Q87-WIP330Wireless-G IP Phone

A Division of Cisco Systems, Inc. ® User Guide Model No. WIP330 IP Phone Wireless-G Voice Wireless-G IP Phone Copyright and Trademarks Specifications are subject to change without notice. Linksys is a registered trademark or trademark of Cisco Systems, Inc. and/or its affiliates in the U.S. and certain other countries. Copyright © 2005 Cisco Systems, Inc. All rights reserved. Other brands and product names are trademarks or registered trademarks of their respective holders. How to Use this Guide Your guide to the Wireless-G IP Phone has been designed to make understanding networking with the IP Phone easier than ever. Look for the following items when reading this User Guide: In addition to these symbols, there are definitions for technical terms that are presented like this: Also, each figure (diagram, screenshot, or other image) is provided with a figure number and description, like this: Figure numbers and descriptions can also be found in the “List of Figures” section. This exclamation point means there is a caution or warning and is something that could damage your property or IP Phone. This question mark provides you with a reminder about something you might need to do while using the IP Phone. This checkmark means there is a note of interest and is something you should pay special attention to while using the IP Phone. word: definition. Figure 0-1: Sample Figure Description WIP330-UG-51027NC JL WARNING:This product contains chemicals, including lead, known to the State of California to cause cancer, and birth defects or other reproductive harm. Wash hands after handling. Wireless-G IP Phone Table of Contents Chapter 1: Introduction1 Welcome1 What’s in This User Guide?1 Chapter 2: Getting to Know the Wireless-G IP Phone3 The Bottom Panel3 The Front and Side Panels4 The Back Panel6 Chapter 3: Installing and Using the Wireless-G IP Phone7 Overview7 Inserting the Battery into the Wireless-G IP Phone7 Powering on the Wireless-G IP Phone8 Setting up the Wireless-G IP Phone10 Using the Wireless-G IP Phone19 Chapter 4: Configuring the Wireless-G IP Phone21 Instructions for Configuring the Wireless-G IP Phone21 Status Information22 Settings of the Wireless-G IP Phone23 Appendix A: Troubleshooting45 Common Problems and Solutions45 Frequently Asked Questions51 Appendix B: Glossary53 Appendix C: Specifications57 Appendix D: Warranty Information59 Appendix E: Regulatory Information61 Appendix F: Contact Information75 Wireless-G IP Phone List of Figures Figure 2-1: Bottom Panel3 Figure 2-2: Front Panel4 Figure 2-3: Side Panel5 Figure 2-4: Back Panel6 Figure 3-1: Press the Button7 Figure 3-2: Insert the Battery7 Figure 3-3: Connect the Power8 Figure 3-4: Front Panel9 Figure 3-5: Scan for Wireless Networks10 Figure 3-6: Select Wireless Network10 Figure 3-7: Connect to Wireless Network11 Figure 3-8: Enter WEP Key (for Secured Networks)11 Figure 3-9: Successful Connection11 Figure 3-10: Select Menu12 Figure 3-11: Select SIP Settings12 Figure 3-12: Edit Proxy IP13 Figure 3-13: Save Proxy IP13 Figure 3-14: Save Register Proxy IP13 Figure 3-15: Save Register Proxy Port14 Figure 3-16: Save Outbound Proxy IP14 Figure 3-17: Edit Outbound Proxy Port15 Figure 3-18: Save Expire Time15 Figure 3-19: Save Phone Number16 Figure 3-20: Save User Name16 Figure 3-21: Save Password17 Figure 3-22: Save SIP Settings17 Figure 3-23: Return to Standby Screen18 Figure 3-24: Standby Screen18 Figure 3-25: Call Connected19 Figure 3-26: Line Options19 Figure 3-27: Second Call20 Figure 4-1: Front Panel of IP Phone21 Figure 4-2: Standby Screen22 Figure 4-3: Standby Screen23 Figure 4-4: Main Menu23 Figure 4-5: Call Log24 Figure 4-6: Select Phone Book25 Figure 4-7: Phone Book25 Figure 4-8: Phone Book Options25 Figure 4-9: Add Person26 Figure 4-10: Enter Name26 Figure 4-11: Select Call Option27 Figure 4-12: Call Option27 Figure 4-13: Forwarding27 Figure 4-14: Enter Phone Number27 Figure 4-15: Select Network Settings28 Figure 4-16: Network Settings - DHCP28 Figure 4-17: Enter DNS IP Address28 Wireless-G IP Phone Figure 4-18: Network Settings - Fixed IP29 Figure 4-19: Enter IP Address29 Figure 4-20: Select Subnet Mask29 Figure 4-21: Enter Subnet Mask29 Figure 4-22: Select Phone Settings30 Figure 4-23: Phone Settings30 Figure 4-24: Ring Options30 Figure 4-25: Ring Types30 Figure 4-26: Keypad Tone31 Figure 4-27: MSG Tone31 Figure 4-28: Change Date32 Figure 4-29: Change Clock32 Figure 4-30: Change Time Format32 Figure 4-31: Change Clock Type32 Figure 4-32: Select Time Zone33 Figure 4-33: Change Time Zone33 Figure 4-34: Select NTP Server33 Figure 4-35: Enter Name of NTP Server33 Figure 4-36: Language34 Figure 4-37: Change Power Saving34 Figure 4-38: Wireless35 Figure 4-39: Scanning for Wireless Networks35 Figure 4-40: List of Wireless Networks35 Figure 4-41: Connecting to Wireless Network36 Figure 4-42: Enter WEP Key (for Secured Network)36 Figure 4-43: Connected to Wireless Network36 Figure 4-44: Wi-Fi Profiles37 Figure 4-45: Select SSID38 Figure 4-46: Enter SSID38 Figure 4-47: Change Wireless Mode38 Figure 4-48: Change Authentication Mode38 Figure 4-49: Change Transmit Key39 Figure 4-50: Edit WEP Key39 Figure 4-51: Enter WEP Key39 Figure 4-52: Profile Added39 Figure 4-53: Edit Proxy IP40 Figure 4-54: Save Proxy IP40 Figure 4-55: Save Register Proxy IP40 Figure 4-56: Save Register Proxy Port40 Figure 4-57: Save Outbound Proxy IP41 Figure 4-58: Edit Outbound Proxy Port41 Figure 4-59: Save Expire Time41 Figure 4-60: Save Phone Number41 Figure 4-61: Save User Name42 Figure 4-62: Save Password42 Figure 4-63: Save DNS Server42 Figure 4-64: Change Payload Type42 Figure 4-65: Web Site43 Figure 4-66: Visit Web Site43 Figure 4-67: Enter New Web Address43 Figure 4-68: Select Drag & Drop43 Figure 4-69: Information44 Wireless-G IP Phone 1 Chapter 1: Introduction Welcome Chapter 1: Introduction Welcome Thank you for choosing the Linksys Wireless-G IP Phone. It will allow you to make phone calls using your broadband connection, whether you are at ho…

Text truncated - open the document above for the full version.

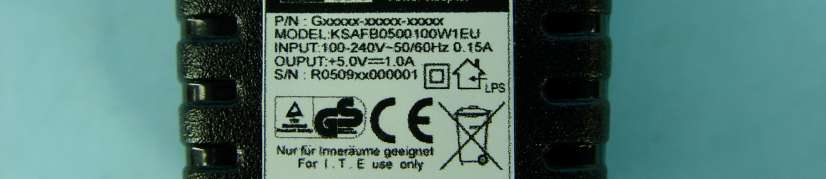

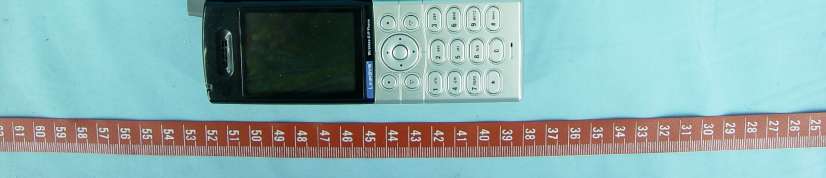

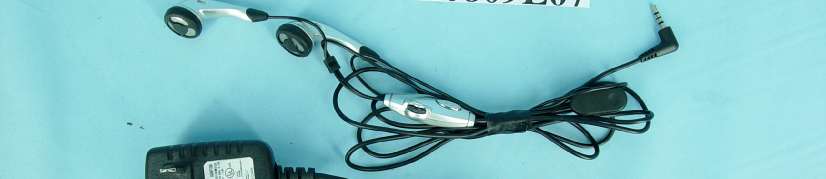

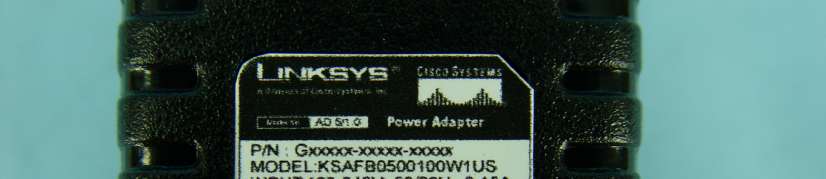

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

Page 4 Page 5 Page 6 Page 7 Page 8 Page 9 Page 10 Page 11 Page 12

FCC ID: Q87-WIP330 Report No.RF940809L07 Technical Description This device is a Wireless-G IP Phone that operates in the 2.4GHz frequency spectrum with throughput of up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by AC Adapter or Battery. The antenna is Helical antenna with Solder antenna connector. The other instruction, please have a look at the users manual.

D3: DAE SN: 579

APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION D1: SAM PHANTOM

１ APPENDIX A: TEST CONFIGURATIONS AND TEST DATA A1: TEST CONFIGURATION Right Head Cheek Position Right Head Tilt Position Left Head Cheek Position Left Head Tilt Position A - 1 BodyWorn Position The bottom of the EUT to the flat phantom distance 0 mm A - 2 EUT Photo Reference Point (Head) Reference Point (Body) A - 3 A - 4 Liquid Level Photo HSL 2450MHz D=155mm MSL 2450MHz D=152mm A - 5 Date/Time: 2005/8/26 10:04:16 Test Laboratory: Advance Data Technology WIP 330_11b_Right Head DUT: Wireless-G IP Phone ; Type: WIP 330 ; Test Frequency: 2412 MHz Communication System: 802.11b ; Frequency: 2412 MHz ; Duty Cycle: 1:1 Medium: HSL2450 Medium parameters used: f = 2412 MHz; σ = 1.77 mho/m; ε r = 39.4; ρ = 1000 kg/m 3 ; Liquid level: 155mm Phantom section: Right Section ; DUT test position : Cheek ; Modulation type: CCK Antenna type : External Antenna ; Air temp. : 23.1 degrees ; Liquid temp. : 21.3 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790; ConvF(4.74, 4.74, 4.74) ; Calibrated: 2004/12/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579; Calibrated: 2005/3/23 - Phantom: SAM 12; Type: SAM V4.0; Serial: TP 1202 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Touch position - Low Channel 1/Area Scan (6x12x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.281 mW/g Touch position - Low Channel 1/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 13.4 V/m Peak SAR (extrapolated) = 0.466 W/kg SAR(1 g) = 0.253 mW/g; SAR(10 g) = 0.140 mW/g Maximum value of SAR (measured) = 0.276 mW/g A - 6 Date/Time: 2005/8/26 10:25:23 Test Laboratory: Advance Data Technology WIP 330_11b_Right Head DUT: Wireless-G IP Phone ; Type: WIP 330 ; Test Frequency: 2437 MHz Communication System: 802.11b ; Frequency: 2437 MHz ; Duty Cycle: 1:1 Medium: HSL2450 Medium parameters used: f = 2437 MHz; σ = 1.8 mho/m; ε r = 39.3; ρ = 1000 kg/m 3 ; Liquid level: 155mm Phantom section: Right Section ; DUT test position : Cheek ; Modulation type: CCK Antenna type : External Antenna ; Air temp. : 23.1 degrees ; Liquid temp. : 21.3 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790; ConvF(4.74, 4.74, 4.74) ; Calibrated: 2004/12/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579; Calibrated: 2005/3/23 - Phantom: SAM 12; Type: SAM V4.0; Serial: TP 1202 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Touch position - Middle Channel 6/Area Scan (6x12x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.219 mW/g Touch position - Middle Channel 6/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 11.9 V/m Peak SAR (extrapolated) = 0.355 W/kg SAR(1 g) = 0.194 mW/g; SAR(10 g) = 0.110 mW/g Maximum value of SAR (measured) = 0.210 mW/g A - 7 Date/Time: 2005/8/26 11:04:38 Test Laboratory: Advance Data Technology WIP 330_11b_Right Head DUT: Wireless-G IP Phone ; Type: WIP 330 ; Test Frequency: 2462 MHz Communication System: 802.11b ; Frequency: 2462 MHz ; Duty Cycle: 1:1 Medium: HSL2450 Medium parameters used: f = 2462 MHz; σ = 1.83 mho/m; ε r = 39.2; ρ = 1000 kg/m 3 ; Liquid level: 155mm Phantom section: Right Section ; DUT test position : Cheek ; Modulation type: CCK Antenna type : External Antenna ; Air temp. : 23.1 degrees ; Liquid temp. : 21.3 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790; ConvF(4.74, 4.74, 4.74) ; Calibrated: 2004/12/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579; Calibrated: 2005/3/23 - Phantom: SAM 12; Type: SAM V4.0; Serial: TP 1202 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Touch position - High Channel 11/Area Scan (6x12x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.102 mW/g Touch position - High Channel 11/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 7.91 V/m Peak SAR (extrapolated) = 0.171 W/kg SAR(1 g) = 0.094 mW/g; SAR(10 g) = 0.052 mW/g Maximum value of SAR (measured) = 0.101 mW/g Touch position - High Channel 11/Zoom Scan (7x7x7) (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 7.91 V/m Peak SAR (extrapolated) = 0.132 W/kg SAR(1 g) = 0.071 mW/g; SAR(10 g) = 0.035 mW/g Maximum value of SAR (measured) = 0.087 mW/g A - 8 Date/Time: 2005/8/26 11:26:08 Test Laboratory: Advance Data Technology WIP 330_11b_Right Head DUT: Wireless-G IP Phone ; Type: WIP 330 ; Test Channel Frequency: 2412 MHz Communication System: 802.11b ; Frequency: 2412 MHz; Duty Cycle: 1:1 Medium: HSL2450 Medium parameters used: f = 2412 MHz; σ = 1.77 mho/m; ε r = 39.4; ρ = 1000 kg/m 3 ; Liquid level: 155 mm Phantom section: Right Section ; DUT test position : Tilt ; Modulation type: CCK Antenna type : External Antenna ; Air temp. : 23.1 degrees ; Liquid temp. : 21.3 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790 ; ConvF(4.74, 4.74, 4.74) ; Calibrated: 2004/12/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579; Calibrated: 2005/3/23 - Phantom: SAM 12; Type: SAM V4.0; Serial: TP 1202 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Tilt position - Low Channel 1/Area Scan (6x12x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.314 mW/g Tilt position - Low Channel 1/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 14.7 V/m Peak SAR (extrapolated) = 0.493 W/kg SAR(1 g) = 0.269 mW/g; SAR(10 g) = 0.147 mW/g Maximum value of SAR (measured) = 0.293 mW/g A - 9 Date/Time: 2005/8/26 11:46:52 Test Laboratory: Advance Data Technology WIP 330_11b_Right Head DUT: Wireless-G IP Phone ; Type: WIP 330 ; Test Channel Frequency: 2437 MHz Communication System: 802.11b ; Frequency: 2437 MHz; Duty Cycle: 1:1 Medium: HSL2450 Medium parameters used: f = 2437 MHz; σ = 1.8 mho/m; ε r = 39.3; ρ = …

Text truncated - open the document above for the full version.

B - 1 APPENDIX B: ADT SAR MEASUREMENT SYSTEM C - 1 APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION

FCC ID: Q87-WIP330 Report no.: SA940809L071Report Format Version 2.0.2 SAR TEST REPORT REPORT NO.: SA940809L07 MODEL NO.: WIP 330 RECEIVED: Aug. 09, 2005 TESTED: Aug. 25 ~ Aug. 26, 2005 ISSUED: Sep. 08, 2005 APPLICANT: Cisco-Linksys LLC ADDRESS: 121 Theory Drive, Irvine, CA 92617, U.S.A. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 45 pages in total except Appendix. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA NO. 2177-01 FCC ID: Q87-WIP330 Report no.: SA940809L072Report Format Version 2.0.2 TABLE OF CONTENTS 1.CERTIFICATION..................................................................................................................3 2.GENERAL INFORMATION...................................................................................................4 2.1GENERAL DESCRIPTION OF EUT......................................................................................4 2.2GENERAL DESCRIPTION OF APPLIED STANDARDS........................................................5 2.3GENERAL INOFRMATION OF THE SAR SYSTEM..............................................................5 2.4GENERAL DESCRIPTION OF THE SPATIAL PEAK SAR EVALUATION...............................9 3.DESCRIPTION OF SUPPORT UNITS................................................................................13 4.DESCRIPTION OF TEST POSITION AND CONFIGURATIONS..........................................14 4.1.DESCRIPTION OF ANTENNA LOCATION.........................................................................14 4.2.TOUCH/CHEEK TEST POSITION......................................................................................16 4.3.TILT TEST POSITION.........................................................................................................17 4.4.BODY-WORN CONFIGURATION.......................................................................................17 4.5.DESCRIPTION OF ASSESSMENT POSITION...................................................................18 4.6.DESCRIPTION OF TEST MODE........................................................................................19 4.7.SUMMARY OF TEST RESULT...........................................................................................20 5.TEST RESULTS.................................................................................................................21 5.1TEST PROCEDURES........................................................................................................21 5.2MEASURED SAR RESULTS..............................................................................................23 5.3SAR LIMITS.......................................................................................................................28 5.4RECIPES FOR TISSUE SIMULATING LIQUIDS.................................................................29 5.5TEST EQUIPMENT FOR TISSUE PROPERTY...................................................................32 6.SYSTEM VALIDATION.......................................................................................................33 6.1TEST EQUIPMENT............................................................................................................33 6.2TEST PROCEDURE...........................................................................................................34 6.3VALIDATION RESULTS......................................................................................................36 6.4SYSTEM VALIDATION UNCERTAINTIES...........................................................................37 7.MEASUREMENT SAR PROCEDURE UNCERTAINTIES....................................................38 7.1.PROBE CALIBRATION UNCERTAINTY.............................................................................38 7.2.ISOTROPY UNCERTAINTY...............................................................................................39 7.3.BOUNDARY EFFECT UNCERTAINTY...............................................................................39 7.4.PROBE LINEARITY UNCERTAINTY..................................................................................40 7.5.READOUT ELECTRONICS UNCERTAINTY......................................................................40 7.6.RESPONSE TIME UNCERTAINTY.....................................................................................40 7.7.INTEGRATION TIME UNCERTAINTY................................................................................41 7.8.PROBE POSITIONER MECHANICAL TOLERANCE..........................................................42 7.9.PROBE POSITIONING.......................................................................................................42 7.10.PHANTOM UNCERTAINTY................................................................................................43 7.11.DASY4 UNCERTAINTY BUDGET......................................................................................44 8.INFORMATION ON THE TESTING LABORATORIES.........................................................45 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA APPENDIX B: ADT SAR MEASUREMENT SYSTEM APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION FCC ID: Q87-WIP330 Report no.: SA940809L073Report Format Version 2.0.2 1. CERTIFICATION PRODUCT : Wireless-G IP Phone MODEL NO. : WIP 330 BRAND NAME : Linksys APPLICANT : Cisco-Linksys LLC TEST DATE: Aug. 25 ~ Aug. 26, 2005 TEST SAMPLE: ENGINEERING SAMPLE STA…

Text truncated - open the document above for the full version.

FCC ID: Q87-WIP330 Report No.: RF940809L071Report Format Version 2.0.3 FCC TEST REPORT REPORT NO.: RF940809L07 MODEL NO.: WIP 330 RECEIVED: Aug. 09, 2005 TESTED: Aug. 17 ~ Aug. 19, 2005 ISSUED: Aug. 22, 2005 APPLICANT: Cisco-Linksys LLC ADDRESS: 121 Theory Drive Irvine, CA 92617 (USA) ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 62 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA No. 2177-01 FCC ID: Q87-WIP330 Report No.: RF940809L072Report Format Version 2.0.3 TABLE OF CONTENTS 1.CERTIFICATION.........................................................................................................4 2.SUMMARY OF TEST RESULTS.................................................................................5 2.1MEASUREMENT UNCERTAINTY..............................................................................5 3.GENERAL INFORMATION.........................................................................................6 3.1 GENERAL DESCRIPTION OF EUT...........................................................................6 3.2 DESCRIPTION OF TEST MODES.............................................................................7 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST.........................................................7 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL..............................8 3.2.3 GENERAL DESCRIPTION OF APPLIED STANDARDS...........................................10 3.2.4 DESCRIPTION OF SUPPORT UNITS......................................................................10 4. TEST TYPES AND RESULTS...................................................................................11 4.1 CONDUCTED EMISSION MEASUREMENT............................................................11 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT..........................................11 4.1.2 TEST INSTRUMENTS..............................................................................................11 4.1.3 TEST PROCEDURES..............................................................................................12 4.1.4 DEVIATION FROM TEST STANDARD.....................................................................12 4.1.5 TEST SETUP...........................................................................................................13 4.1.6 EUT OPERATING CONDITIONS..............................................................................13 4.1.7 TEST RESULTS.......................................................................................................13 4.2 RADIATED EMISSION MEASUREMENT.................................................................20 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT...............................................20 4.2.2 TEST INSTRUMENTS..............................................................................................21 4.2.3 TEST PROCEDURES..............................................................................................22 4.2.4 DEVIATION FROM TEST STANDARD.....................................................................23 4.2.5 TEST SETUP...........................................................................................................23 4.2.6 EUT OPERATING CONDITIONS..............................................................................23 4.2.7 TEST RESULTS.......................................................................................................24 4.3 6dB BANDWIDTH MEASUREMENT........................................................................31 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT......................................................31 4.3.2 TEST INSTRUMENTS..............................................................................................31 4.3.3 TEST PROCEDURE.................................................................................................32 4.3.4 DEVIATION FROM TEST STANDARD.....................................................................32 4.3.5 TEST SETUP...........................................................................................................32 4.3.6 EUT OPERATING CONDITIONS..............................................................................32 4.3.7 TEST RESULTS.......................................................................................................33 4.4 MAXIMUM PEAK OUTPUT POWER........................................................................39 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT.........................39 FCC ID: Q87-WIP330 Report No.: RF940809L073Report Format Version 2.0.3 4.4.2 INSTRUMENTS........................................................................................................39 4.4.3 TEST PROCEDURES..............................................................................................40 4.4.4 DEVIATION FROM TEST STANDARD.....................................................................40 4.4.5 TEST SETUP...........................................................................................................40 4.4.6 EUT OPERATING CONDITIONS..............................................................................40 4.4.7 TEST RESULTS.......................................................................................................41 4.5 POWER SPECTRAL DENSITY MEASUREMENT....................................................42 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASU…

Text truncated - open the document above for the full version.

FCC ID: Q87-WIP330 Report No.: RF940809L0760Report Format Version 2.0.3 5. PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: Q87-WIP330 Report No.: RF940809L0761Report Format Version 2.0.3 RADIATED EMISSION TEST
