Q87-WMB54GWireless-G Music Bridge

A Division of Cisco Systems, Inc. ® Model No. Music Bridge Wireless-G WMB54G User Guide WIRELESS GHz 2.4 802.11g Wireless-G Music Bridge Copyright and Trademarks Specifications are subject to change without notice. Linksys is a registered trademark or trademark of Cisco Systems, Inc. and/or its affiliates in the U.S. and certain other countries. Copyright © 2006 Cisco Systems, Inc. All rights reserved. Other brands and product names are trademarks or registered trademarks of their respective holders. How to Use this User Guide The user guide to the Wireless-G Music Bridge has been designed to make understanding networking with the Wireless-G Music Bridge easier than ever. Look for the following items when reading this User Guide: In addition to these symbols, there are definitions for technical terms that are presented like this: Also, each figure (diagram, screenshot, or other image) is provided with a figure number and description, like this: Figure numbers and descriptions can also be found in the "List of Figures" section. This exclamation point means there is a caution or warning and is something that could damage your property or the Wireless-G Music Bridge. word: definition. This checkmark means there is a note of interest and is something you should pay special attention to while using the Wireless-G Music Bridge. This question mark provides you with a reminder about something you might need to do while using the Wireless-G Music Bridge. Figure 0-1: Sample Figure Description wmb54g-UG-51110NC BW WARNING:This product contains chemicals, including lead, known to the State of California to cause cancer, and birth defects or other reproductive harm. Wash hands after handling. Wireless-G Music Bridge Table of Contents Chapter 1: Introduction1 Welcome1 What’s in this Guide?2 Chapter 2: Getting to Know the Wireless Music Bridge4 The Back Panel4 The Front Panel5 Chapter 3: Setting up the Wireless-G Music Bridge6 Starting the Setup Wizard6 Chapter 4: Connecting the Wireless-G Music Bridge18 Overview18 Connecting to Portable Audio Speakers18 Connecting to your Audio Receiver19 Chapter 5: Using the Wireless-G Music Bridge Utility22 Accessing the Wireless-G Music Bridge Utility22 All Tabs22 Status Tab22 Equalizer Tab23 Information Tab23 Chapter 6: Configuring the Wireless-G Music Bridge24 Overview24 The Setup Tab25 The Search Tab26 The Security Tab27 The Password Tab28 The Status Tab29 Help Tab30 Appendix A: Troubleshooting31 Common Problems and Solutions31 Frequently Asked Questions31 Appendix B: Wireless Security33 Security Precautions33 Security Threats Facing Wireless Networks33 Wireless-G Music Bridge Appendix C: Upgrading Firmware36 Appendix D: Windows Help37 Appendix E: Glossary38 Appendix F: Specifications43 Appendix G: Warranty Information44 Appendix H: Regulatory Information45 Appendix I: Contact Information51 Wireless-G Music Bridge List of Figures Figure 2-1: Back Panel4 Figure 2-2: Front Panel5 Figure 3-1: Setup Wizard’s Welcome Screen6 Figure 3-2: License Agreement6 Figure 3-3: Connecting the PC7 Figure 3-4: Connecting the PC to the Bridge7 Figure 3-5: Connecting the Power8 Figure 3-6: LED Status8 Figure 3-7: Select the Bridge9 Figure 3-8: Login9 Figure 3-9: Change the Password10 Figure 3-10: Available Wireless Network11 Figure 3-11: WEP Key Needed for Connection11 Figure 3-12: PSK Needed for Connection12 Figure 3-13: Install the Utility12 Figure 3-14: Congratulations12 Figure 3-15: Network Settings13 Figure 3-16: Wireless Mode13 Figure 3-17: Ad-Hoc Mode Settings14 Figure 3-18: Wireless Security14 Figure 3-19: Wireless - WEP15 Figure 3-20: Wireless Security - PSK15 Figure 3-21: Confirm New Settings16 Figure 3-22: Install the Utility16 Figure 3-23: Congratulations17 Figure 4-1: Line Out Cable18 Wireless-G Music Bridge Figure 4-2: Portable Audio Speaker Connection18 Figure 4-3: RCA Cable19 Figure 4-4: RCA Cable Connection19 Figure 4-5: Optical Digital Cable20 Figure 4-6: Optical Digital Cable Connection20 Figure 4-7: Digital Coaxial Cable21 Figure 4-8: Digital Coaxial Cable Connection21 Figure 5-1: Utility Icon22 Figure 5-2: Status Tab22 Figure 5-3: Equalizer Tab23 Figure 5-4: Information Tab23 Figure 6-1: Password24 Figure 6-2: Setup - Infrastructure25 Figure 6-3: Setup - Ad-Hoc26 Figure 6-4: Search26 Figure 6-5: Security - WEP27 Figure 6-6: Security - PSK (Pre-Shared Key)27 Figure 6-7: Password28 Figure 6-8: Advanced28 Figure 6-9: Status29 Figure 6-10: Help29 Figure C-1: Upgrade Firmware36 1 Chapter 1: Introduction Welcome Wireless-G Music Bridge Chapter 1: Introduction Welcome Thank you for choosing the Wireless-G Music Bridge. The Wireless-G Music Bridge allows you to listen to digital music in your living room as well as on your computer. How does the Music Bridge do all of this? The Linksys Wireless-G Music Bridge lets you bring the digital music streaming to or stored on your computer to your Home Entertainment Center without running cables through the house. Using a wireless connection, the Music Bridge finally frees your digital music collection from those little computer speakers to play in full glory through your stereo or surround sound system. The Wireless-G Music Bridge sits by your home stereo and connects to it using standard consumer electronics cables. Then it connects to your home network by Wireless-G wireless networking, or if you prefer, it can be connected via standard 10/100 Ethernet cabling. The included software creates a virtual sound system in your PC, which sends the audio output of any application to the Music Bridge and the stereo system. Use your favorite media player to play your music while listening in the comfort of your living room. Use the instructions in this Guide to help you connect the Wireless-G Music Bridge, set it up, and configure it to bridge your music networks. These instructions should be all you need to get the most out of the Wireless-G Music Bridge. 2 Chapter 1: Introduction What’s in this Guide? Wireless-G Music Bridge What’s …

Text truncated - open the document above for the full version.

Cisco-Linksys LLC 121 Theory Drive Irvine, CA 92617 (USA) Phone: 949-261-1288 Fax: 949-823-3002 Agency Authorization Letter Date: November 18, 2005 To whom it may concern: We, the undersigned, hereby authorize Advance Data Technology Corp. (ADT) of Taiwan to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by ADT within the scope of this authorization shall have the same effects as our own. This authorization shall expire six months from the original date. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, __________________________________________ Jennifer Yu / Associate Engineer Cisco-Linksys LLC Tel.: ( 949 ) 823-3188 Fax: ( 949 ) 823-3002 [email protected]

Cisco-Linksys LLC 121 Theory Drive Irvine, CA 92617 (USA) Phone: 949-261-1288 Fax: 949-823-3002 Date: November 18, 2005 FCC ID: Q87-WMB54G Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, __________________________________________ Jennifer Yu / Associate Engineer Cisco-Linksys LLC Tel.: ( 949 ) 823-3188 Fax: ( 949 ) 823-3002 [email protected]

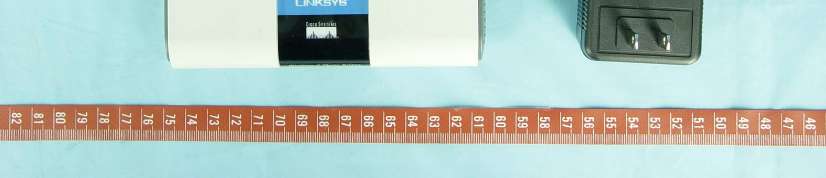

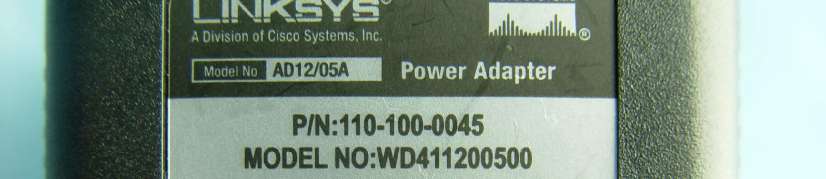

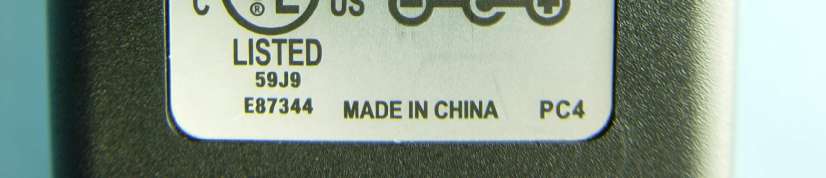

Page 1 Model No.: WMB54G Page 2 CONSTRUCTION PHOTOS OF EUT Page 3

Page 4 Page 5 Page 6 Page 7 Page 8

FCC ID: Q87-WMB54G Report No.: RF940608L03 Operational Description This device is a Wireless-G Music Bridge which operates in the 2.4GHz frequency spectrum with throughput of up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by AC adapter. The antenna is Dipole antenna with UFL antenna connector. The other instruction, please have a look at the users manual.

FCC ID: Q87-WMB54G Report No: SA940608L03 1 RF EXPOSURE REPORT REPORT NO.: SA940608L03 MODEL NO.: WMB54G ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Cisco-Linksys LLC ADDRESS: 121 Theory Drive Irvine, CA 92617 (USA) ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID: Q87-WMB54G Report No: SA940608L03 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: Q87-WMB54G Report No: SA940608L03 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance r. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: Q87-WMB54G Report No: SA940608L03 4 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 1.8dBi or 1.51356(numeric) 6.2 Output Power into Antenna & RF Exposure value at distance 20cm: For 802.11b DSSS Modulation: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241263.8260.0191.000 6243764.2690.0191.000 11246263.2410.0191.000 For 802.11g OFDM Modulation: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241263.3870.0191.000 6243763.8260.0191.000 11246263.5330.0191.000

FCC ID: Q87-WMB54G Report No.: RF940608L031Report Format Version 2.0.4 FCC TEST REPORT REPORT NO.: RF940608L03 MODEL NO.: WMB54G RECEIVED: Jun. 13, 2005 TESTED: Jun. 13 ~ Nov. 16, 2005 ISSUED: Nov. 18, 2005 APPLICANT:Cisco-Linksys LLC ADDRESS:121 Theory Drive Irvine, CA 92617 (USA) ISSUED BY:Advance Data Technology Corporation LAB ADDRESS:47 14 th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. TEST LOCATION:No. 19, Hwa Ya 2 nd Rd., Kueishan, Taoyuan, Taiwan, R.O.C. This test report consists of 63 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA No. 2177-01 FCC ID: Q87-WMB54G Report No.: RF940608L032Report Format Version 2.0.4 Table of Contents 1CERTIFICATION........................................................................................................ 4 2SUMMARY OF TEST RESULTS................................................................................ 5 2.1MEASUREMENT UNCERTAINTY............................................................................. 5 3GENERAL INFORMATION ........................................................................................ 6 3.1GENERAL DESCRIPTION OF EUT .......................................................................... 6 3.2DESCRIPTION OF TEST MODES ............................................................................ 7 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST........................................................ 7 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ............................. 8 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ...........................................10 3.4DESCRIPTION OF SUPPORT UNITS......................................................................10 4TEST TYPES AND RESULTS...................................................................................11 4.1CONDUCTED EMISSION MEASUREMENT............................................................11 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT ..........................................11 4.1.2 TEST INSTRUMENTS ..............................................................................................11 4.1.3 TEST PROCEDURES ..............................................................................................12 4.1.4 DEVIATION FROM TEST STANDARD .....................................................................12 4.1.5 TEST SETUP............................................................................................................13 4.1.6 EUT OPERATING CONDITIONS..............................................................................13 4.1.7 TEST RESULTS .......................................................................................................14 4.2RADIATED EMISSION MEASUREMENT.................................................................20 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT ...............................................20 4.2.2 TEST INSTRUMENTS ..............................................................................................21 4.2.3 TEST PROCEDURES ..............................................................................................22 4.2.4 DEVIATION FROM TEST STANDARD .....................................................................22 4.2.5 TEST SETUP............................................................................................................23 4.2.6 EUT OPERATING CONDITIONS..............................................................................23 4.2.7 TEST RESULTS .......................................................................................................24 4.36dB BANDWIDTH MEASUREMENT ........................................................................31 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT ......................................................31 4.3.2 TEST INSTRUMENTS ..............................................................................................31 4.3.3 TEST PROCEDURE.................................................................................................32 4.3.4 DEVIATION FROM TEST STANDARD .....................................................................32 4.3.5 TEST SETUP............................................................................................................32 4.3.6 EUT OPERATING CONDITIONS..............................................................................32 4.3.7 TEST RESULTS .......................................................................................................33 4.4MAXIMUM PEAK OUTPUT POWER ........................................................................39 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT .........................39 4.4.2 TEST INSTRUMENTS ..............................................................................................39 4.4.3 TEST PROCEDURES ..............................................................................................40 4.4.4 DEVIATION FROM TEST STANDARD .....................................................................40 4.4.5 TEST SETUP............................................................................................................40 4.4.6 EUT OPERATING CONDITIONS..............................................................................40 FCC ID: Q87-WMB54G Report No.: RF940608L033Report Format Version 2.0.4 4.4.7 TEST RESULTS .......................................................................................................41 4.5POWER SPECTRAL DENSITY MEASUREMENT....................................................42 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT..................................42 4.5.2 TEST INSTR…

Text truncated - open the document above for the full version.

FCC ID: Q87-WMB54G Report No.: RF940608L0360Report Format Version 2.0.4 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: Q87-WMB54G Report No.: RF940608L0361Report Format Version 2.0.4 RADIATED EMISSION TEST
