Cisco-Linksys, LLC 121 Theory Drive Irvine, CA 92612 (USA) Phone: 949-823-3188 Fax: 949-823-3002 Date: September 14, 2004 FCC ID: Q87-WMCE54AG Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, __________________________________________ Jennifer Yu / Associate Engineer Cisco-Linksys, LLC Tel.: ( 949 ) 823-3188 Fax: ( 949 ) 823-3002 [email protected]

Cisco-Linksys, LLC 121 Theory Drive Irvine, CA 92612 (USA) Phone: 949-823-3188 Fax: 949-823-3002 Date: September 14, 2004 FEDERAL COMMUNICATIONS COMMISSION DECLARATION OF CONFORMITY (DoC) Cisco-Linksys, LLC declares that the equipment described in this document is within the requirements of the Code of Federal Regulations listed below: Product Name: Wireless A+G Mini PCI Card Model Number: WMCE54AG This device complies with the limits for a Class B digital device pursuant to IEEE ANSI C63.4 and FCC Part 15 subpart B of the Rules and Regulations. The test result has been shown in the ADT test report with numbered FD930901L11. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. The Part 15 radio device operates on a non-interference basis with other devices operation at this frequency. Any change or modification to the product not expressly approved by Linksys could void the user’s authority to operate the device. Jennifer Yu / Associate Engineer Cisco-Linksys, LLC Tel.: ( 949 ) 823-3188 Fax: ( 949 ) 823-3002 [email protected]

FCC ID: Q87-WMCE54AG ADT No.930901L11 Modular Approval Request Letter Advance Data Technology 22, September, 2004 Dear Application Examiner, Thomson Telecom Belgium, It’s Wireless A+G Mini PCI Card FCC ID: Q87-WMCE54AG WMCE54AG, would like to have your authorization as a full modular approval specific to the mobile device such as Notebook. The requirements of Public Notice DA00-1407 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.”: The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip AR5213. 3. “The modular transmitter must have its own power supply regulation.” The chips IF converter and RF/IF converter which will influence the frequency radiation, have to be 2.5Vdc powered. The mini-pci interface provides 3.3Vdc, so there are regulators in front of these chips, the part number of this regulator is AME8805MEFT. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was tested in a stand-alone configuration via a PCMCIA to mini-PCI extender. Please see section Photographs of Test Configuration in the test report, the EUT was plugged in this extender. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: Q87-WMCE54AG ADT No.930901L11 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, Cody Chang Deputy Manager Advance Data Technology

Cisco-Linksys, LLC 121 Theory Drive Irvine, CA 92612 (USA) Phone: 949-823-3188 Fax: 949-823-3002 Agency Authorization Letter Date: September 14, 2004 To whom it may concern: We, the undersigned, hereby authorize Advance Data Technology Corp. (ADT) of Taiwan to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by ADT within the scope of this authorization shall have the same effects as our own. This authorization shall expire six months from the original date. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, _________________________________________ Jennifer Yu / Associate Engineer Cisco-Linksys, LLC Tel.: ( 949 ) 823-3188 Fax: ( 949 ) 823-3002 [email protected]

William Graff From: William Graff [[email protected]] Sent: Thursday, September 30, 2004 9:31 AM To: 'Bette Taube' Subject: RE: TC442861 and TC917290 9/30/2004 Bette, Kindly consider this our formal request to dismiss these filings. A *.pdf copy of this email will be placed in each filing. Regards, Bill -----Original Message----- From: Bette Taube [mailto:[email protected]] Sent: Thursday, September 30, 2004 2:29 AM To: [email protected] Subject: RE: TC442861 and TC917290 Hello I'm sorry, but we require that a new application (both portions, in this case) with the correct ID be submitted/granted and a cover letter exhibit be uploaded (to both portions) requesting a dismissal due to incorrect ID. Let me know when the cover letter(s) have been uploaded, and I will dismiss the apps with the incorrect ID. Thanks, Bette Taube -----Original Message----- From: William Graff [mailto:[email protected]] Sent: Wednesday, September 29, 2004 7:24 AM To: Bette Taube Subject: TC442861 and TC917290 Bette, Are you able to change two FCC IDs for me? I should have written Q87-WMCE54AG instead of Q87-WMCE54A. I just need a "G" added to the end of the ID. Thanks, Bill ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ ~ William H. Graff ~ President and Director of Engineering ~ AmericanTCB ~ 6731 Whittier Avenue ~ McLean, VA 22101 ~ mailto:[email protected] ~ Direct Phone: (703) 880-6337 ~ Direct Mobile: +886 092039926 ~ Corporate Phone: (703) 847-4700 ~ Corporate FAX: (703) 847-6888 ~ ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ 9/30/2004

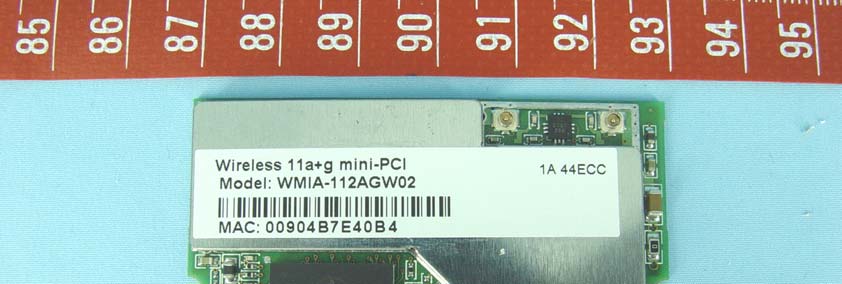

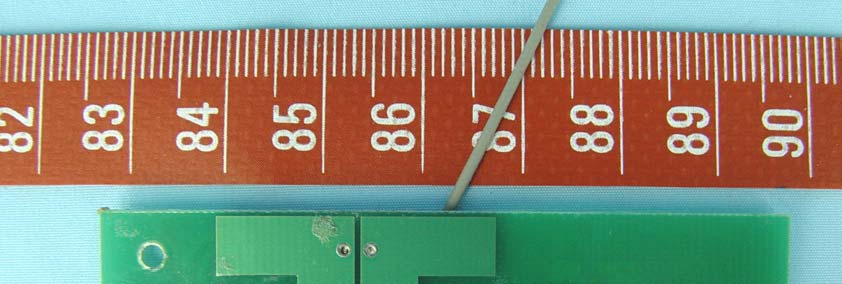

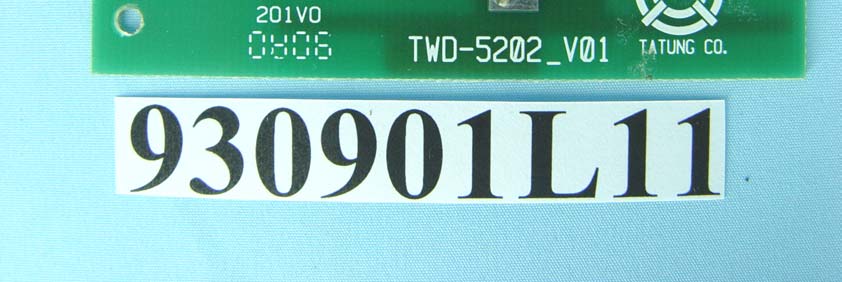

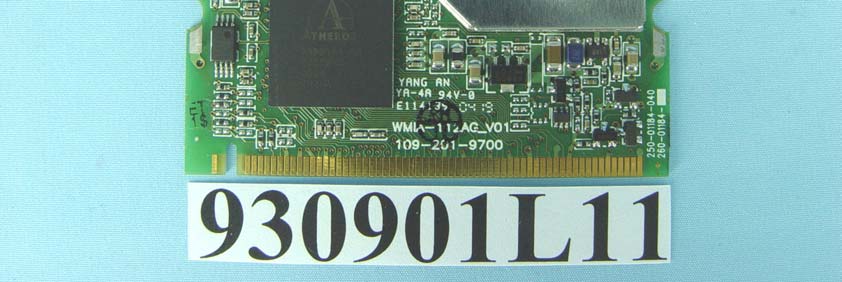

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4

FCC ID: Q87-WMCE54AG Report No.RF930901L11 Technical Description The transmitter of the EUT (Wireless A+G Mini PCI Card) is powered by host equipment via a USB interface. The antenna types used in this product are Dipole and PIFA antenna with UFL antenna connector. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. This device is a Wireless A+G Mini PCI Card, which operates in both of the 5GHz and 2.4GHz bands and can transmitting simultaneously, the maximum data rate could be 54Mbps. For more detailed instruction, please take a look at the user’s manual. FCC 15.407(c) states: The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude the transmission of control or signaling information or the use of repetitive codes used by certain digital technologies to complete frame or burst intervals. Applicants shall include in their application for equipment authorization a description of hoe this requirement is met” Data transmission is always initiated by software, which is then pass down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets (ACKs, CTS, PSPoll, etc...) are initiated by the MAC. There are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets are being transmitted.

FCC ID: Q87-WMCE54AG Report No: SA930901L11 1 RF EXPOSURE REPORT REPORT NO.: SA930901L11 MODEL NO.: WMCE54AG ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Cisco-Linksys, LLC ADDRESS: 121 Theory Drive Irvine, CA 92612, USA ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID: Q87-WMCE54AG Report No: SA930901L11 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: Q87-WMCE54AG Report No: SA930901L11 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification This device is not fixed inside the host equipment, it is connected with host through wire. So it is easy to be re-located in the place where at least 20cm far away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: Q87-WMCE54AG Report No: SA930901L11 4 6 Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber are 2.44dBi or 1.75 (numeric) for 2.4GHz, 5.15 ~ 5.35GHz and 5.725 ~ 5.825GHz are 4.0dBi or 2.51(numeric). 6.2 Output Power Into Antenna & RF Exposure Distance: For 802.11b (2.4GHz Band): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241235.6450.0121.0 6243735.5630.0121.0 11246235.4810.0121.0 Normal mode For 802.11g (2.4GHz Band): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241222.4390.0081.0 6243722.3870.0081.0 11246222.4910.0081.0 Turbo mode For 802.11g (2.4GHz Band): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 6243722.3870.0081.0 FCC ID: Q87-WMCE54AG Report No: SA930901L11 5 For 802.11a (5.15 ~ 5.35GHz): Normal mode: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1518020.0450.0101.0 4524020.3700.0101.0 5526020.3700.0101.0 8532020.1370.0101.0 Turbo mode: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1521020.7490.0101.0 2525020.0910.0101.0 3529020.3700.0101.0 For 802.11a (5.725 ~ 5.850GHz): Normal mode: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 9574520.0910.0101.0 11578520.0450.0101.0 13582519.9530.0101.0 Turbo mode: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 4576020.1840.0101.0 5580020.2300.0101.0 Note: Both of the 2.4GHz and 5GHz bands can transmit simultaneously, the maximum power density value is 0.022 mW/cm 2 , which is less than the 1mW/cm 2 limit.

FCC ID: Q87-WMCE54AG Report No.: RF930901L111Issued: Sep.21, 2004 FCC TEST REPORT REPORT NO.: RF930901L11 MODEL NO.: WMCE54AG RECEIVED: Sep. 01, 2004 TESTED: Sep. 02 ~ Sep 15, 2004 APPLICANT: Cisco-Linksys, LLC ADDRESS: 121 Theory Drive Irvine, CA 92612, USA ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14th Lin, Chiapau Tsun, Linko Hsiang, Taipei Hsien, Taiwan, R.O.C. LAB LOCATION: No. 19, Hwa Ya 2nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 192 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA No. 2177-01 FCC ID: Q87-WMCE54AG Report No.: RF930901L112Issued: Sep.21, 2004 Table of Contents 1.CERTIFICATION ......................................................................................................6 2.SUMMARY OF TEST RESULTS ..............................................................................7 2.1 MEASUREMENT UNCERTAINTY............................................................................9 3.GENERAL INFORMATION.....................................................................................10 3.1GENERAL DESCRIPTION OF EUT.......................................................................10 3.2DESCRIPTION OF TEST MODES......................................................................... 11 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ........................................12 3.4DESCRIPTION OF SUPPORT UNITS ...................................................................13 3.5CONFIGURATION OF SYSTEM UNDER TEST ....................................................13 4.TEST TYPES AND RESULTS (FOR PART 802.11b & 802.11g)............................14 4.1CONDUCTED EMISSION MEASUREMENT .........................................................14 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT....................................... 14 4.1.2 TEST INSTRUMENTS............................................................................................ 14 4.1.3 TEST PROCEDURES ............................................................................................ 15 4.1.4 DEVIATION FROM TEST STANDARD .................................................................. 15 4.1.5 TEST SETUP ......................................................................................................... 16 4.1.6 EUT OPERATING CONDITIONS ........................................................................... 16 4.1.7 TEST RESULTS ..................................................................................................... 17 4.2RADIATED EMISSION MEASUREMENT ..............................................................23 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT............................................ 23 4.2.2 TEST INSTRUMENTS............................................................................................ 24 4.2.3 TEST PROCEDURES ............................................................................................ 25 4.2.4 DEVIATION FROM TEST STANDARD .................................................................. 25 4.2.5 TEST SETUP ......................................................................................................... 26 4.2.6 EUT OPERATING CONDITIONS ........................................................................... 26 4.2.7 TEST RESULTS ..................................................................................................... 27 4.36dB BANDWIDTH MEASUREMENT .....................................................................36 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT ................................................... 36 4.3.2 TEST INSTRUMENTS............................................................................................ 36 4.3.3 TEST PROCEDURE............................................................................................... 37 4.3.4 DEVIATION FROM TEST STANDARD .................................................................. 37 4.3.5 TEST SETUP ......................................................................................................... 37 4.3.6 EUT OPERATING CONDITIONS ........................................................................... 37 4.3.7 TEST RESULTS ..................................................................................................... 38 4.4MAXIMUM PEAK OUTPUT POWER .....................................................................48 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT...................... 48 4.4.2 INSTRUMENTS...................................................................................................... 48 4.4.1 TEST PROCEDURES ............................................................................................ 49 4.4.2 DEVIATION FROM TEST STANDARD .................................................................. 49 4.4.3 TEST SETUP ......................................................................................................... 49 4.4.4 EUT OPERATING CONDITIONS ........................................................................... 49 4.4.3 TEST RESULTS ..................................................................................................... 50 FCC ID: Q87-WMCE54AG Report No.: RF930901L113Issued: Sep.21, 2004 4.5POWER SPECTRAL DENSITY MEASUREMENT.................................................51 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT .............................. 51 4.5.2 TEST INSTRUMENTS............................................................................................ 51 4.5.3 TEST PROCEDURE..................................................…

Text truncated - open the document above for the full version.

FCC ID: Q87-WMCE54AG Report No.: RF930901L11189Issued: Sep.21, 2004 6. PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: Q87-WMCE54AG Report No.: RF930901L11190Issued: Sep.21, 2004 RADIATED EMISSION TEST FCC ID: Q87-WMCE54AG Report No.: RF930901L11191Issued: Sep.21, 2004
