Q87-WMP110RangePlus Wireless PCI adapter

USER GUIDE RangePlus Wireless PCI Adapter Model No: WMP110  About This Guide  RangePlus Wreless PCI Adapter About Ths Gude Icon Descriptions While reading through the User Guide you may see various icons that call attention to specific items. Below is a description of these icons: NOTE: This check mark indicates that there is a note of interest and is something that you should pay special attention to while using the product. WARNING: This exclamation point indicates that there is a caution or warning and it is something that could damage your property or product. WEB: This globe icon indicates a noteworthy website address or e-mail address. Online Resources Website addresses in this document are listed without http:// in front of the address because most current web browsers do not require it. If you use an older web browser, you may have to add http:// in front of the web address. ResourceWebste Linksyswww.linksys.com Linksys International www.linksys.com/international Glossarywww.linksys.com/glossary Network Securitywww.linksys.com/security Copyright and Trademarks Linksys is a registered trademark or trademark of Cisco Systems, Inc. and/ or its affiliates in the U.S. and certain other countries. Copyright © 2008 Cisco Systems, Inc. All rights reserved. Other brands and product names are trademarks or registered trademarks of their respective holders.  Table of Contents  RangePlus Wreless PCI Adapter Chapter 1: Product Overview 1 LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Chapter 2: Wireless Security Checklist 2 General Network Security Guidelines. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Additional Security Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Chapter 3: Advanced Configuration 3 How to Access the Wireless Network Monitor. . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 How to Use the Wireless Network Monitor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Connect . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Profiles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12 Appendix A: Troubleshooting 24 Appendix B: Windows Vista Configuration 2 5 Windows Vista Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25 New Wireless Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25 Appendix C: Windows XP Wireless Zero Configuration 28 Windows XP Wireless Zero Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28 Appendix D: Specifications 30 Appendix E: Warranty Information 3 1 Limited Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31 Exclusions and Limitations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31 Obtaining Warranty Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31 Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32 Appendix E: Regulatory Information 33 FCC Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33 Safety Notices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33 Industry Canada Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33 Avis d’Industrie Canada. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34 Wireless Disclaimer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34 Avis de non-responsabilité concernant les appareils sans fil . . . . . . . . . . . . . . . . . .34 User Information for Consumer Products Covered by EU Directive 2002/96/EC on Waste Electric and Electronic Equipment (WEEE). . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35 Chapter1 Product Overview  RangePlus Wreless PCI Adapter Chapter : Product Overvew Thank you for choosing the Linksys RangePlus Wireless PCI Adapter. Using the latest wireless networking technology, the Adapter adds or upgrades wireless connectivity on your notebook computer. To help protect your data and privacy, you can use industrial-strength WPA2 encryption to protect your wireless connection. The included Setup Wizard will walk you through configuring the Adapter to your network’s settings, step by step. LED Lnk (Green) The LED flashes when there is wireless network activity. Chapter2 Wireless Security Checklist  RangePlus Wreless PCI Adapter Chapter : Wreless Securty Checklst Wireless networks are convenient and easy to install, so homes with high-speed Internet access are adopting them at a rapid pace. Because wireless networking operates by sending information over radio waves, it can be more vulnerable to intruders than a traditional wired network. Like signals from your cellular or cordless phones, signals from your wireless network can also be intercepted. Since you cannot physically prevent someone from connecting to your wireless network, you need to take some additional steps to keep your network secure. . Change the default wreless network name or SSID Wireless devices have a default wireless network name or Service Set Identifier (SSID) set by the factory. This is the name of your wireless network, and can be up to 32 characters in length. Linksys wireless products use lnksys as the default wireless network name. You should change the wireless network name to something unique to distinguish your wireless network from other wireless networks that may exist around you, but do not use personal information (such as y…

Text truncated - open the document above for the full version.

Chapter3 Advanced Configuration  RangePlus Wreless PCI Adapter The Adapter connects to the network. Connecting to the Network Click Prnt to print out your wireless network settings. Then click F nsh to return to the Status screen, or click Ext to exit the Monitor. Congratulations Congratulatons! The Adapter s connected to the network. Enter Key Manually Proceed to the appropriate section, “Wireless Security Disabled” or “Wireless Security Enabled”. Wreless Securty Dsabled If you connect to a network whose wireless security is disabled, then you will view this screen: 4. 5. Click Connect Anyway Click Connect Anyway. Click Fnsh. Congratulations Congratulatons! The Adapter s connected to the network. Wireless Security Enabled If you connect to a network whose wireless security is enabled, then you will view one of three screens. 1. 2. Chapter3 Advanced Configuration  RangePlus Wreless PCI Adapter Proceed to the appropriate instructions. WPA (W-F Protected Access ) If the network uses WPA2 Personal security, then the WPA2-Personal Key Needed for Connection screen appears. WPA2-Personal Security Passphrase Enter the network’s Passphrase (also called a pre-shared key) of 8-63 characters. To connect to the network, click Connect. To cancel the connection, click Cancel. WPA (W-F Protected Access) If the network uses WPA Personal security, then the WPA-Personal Key Needed for Connection screen. WPA-Personal Security Passphrase Enter the network’s Passphrase (also called a pre-shared key) of 8-63 characters. To connect to the network, click Connect. To cancel the connection, click Cancel. WEP (Wred Equvalent Prvacy) If the network uses WEP encryption, then the WEP Key or Passphrase Needed for Connection screen appears. 1. WEP Security Passphrase Enter the Passphrase or WEP key. The passphrase is case-sensitive and must be 16 or fewer alphanumeric characters. It must match the passphrase of your other wireless network devices and is compatible with Linksys wireless products only. (For non-Linksys wireless products, enter the WEP key manually.) If you enter the network’s WEP key, enter the appropriate number of hexadecimal characters (“0” to “9” and “A” to “F”). For 64-bit encryption, enter exactly 10 hexadecimal characters. For 128-bit encryption, enter exactly 26 hexadecimal characters. To connect to the network, click Connect. To cancel the connection, click Cancel. Click Fnsh. Congratulations Congratulatons! The profle s successfully confgured. 2. Chapter3 Advanced Configuration  RangePlus Wreless PCI Adapter Advanced Setup If your network is not listed with the available networks, use Advanced Setup. Available Wireless Networks Click Advanced Setup on the Available Wireless Networks screen to set up the Adapter manually. The Network Settings screen appears. Wireless Network If your network has a router or other DHCP server, select Obtan network settngs automatcally (DHCP). If your network does not have a DHCP server or router, select Specfy network settngs. Enter an IP Address, Subnet Mask, Default Gateway, and DNS addresses appropriate for your network. You must specify the IP Address and Subnet Mask on this screen. If you are unsure about the Default Gateway and DNS addresses, leave these fields blank. IP Address This IP Address must be unique to your network. Subnet Mask The Adapter’s Subnet Mask must be the same as your wired network’s Subnet Mask. 1. 2. – – Default Gateway Enter the IP address of your network’s Gateway. DNS  and DNS  Enter the DNS address of your wired Ethernet network. Click Next to continue, or click Back to return to the previous screen. The Wireless Mode screen shows a choice of two wireless modes. Wireless Mode Infrastructure Mode Select this mode if you want to connect to a wireless router or access point. Ad-Hoc Mode Select this mode if you want to connect to another wireless device directly without using a wireless router or access point. Wreless Network Name Enter a wireless network name (SSID) that must be used for all devices in your wireless network. It is case-sensitive and should be a unique name to help prevent others from entering your network. Click Next to continue, or click Back to return to the previous screen. – – 3. – – – Chapter3 Advanced Configuration  RangePlus Wreless PCI Adapter If you chose Infrastructure Mode, go to step 5 now. If you chose Ad-Hoc Mode, the Ad-Hoc Mode Settings screen appears. NOTE: The Adapter only supports Ad-Hoc Mode for 2.4 GHz networks: Wireless-B, Wireless-G, and Wireless-N (using 2.4 GHz). Ad-Hoc Mode Settings Standard Channel : keep the default, Auto. Click Next to continue, or click Back to return to the previous screen. If your wireless network does not have wireless security, select D sabled and then click Next to continue. Proceed to step 6. Wireless Security If your wireless network has wireless security, select the method of security used: WEP, WPA Personal, WPA2 Personal, WPA Enterprise, WPA2 Enterprise, or RADIUS. WEP stands for Wired Equivalent Privacy, and WPA stands for Wi-Fi Protected Access. WPA2 stands 4. – 5. for Wi-Fi Protected Access 2. WPA is a stronger security method than WEP. WPA2 is a stronger security method than WPA. RADIUS stands for Remote Authentication Dial-In User Service. Click Next to continue, or click Back to return to the previous screen. Proceed to the section for your security method. WEP Make sure the settings you configure match the settings of your wireless network. WEP WEP Select 4-bt or -bt encryption. Passphrase Enter the network’s Passphrase, so a WEP key is automatically generated. It is case-sensitive and should not be longer than 16 alphanumeric characters. This passphrase must match the passphrase of your other wireless network devices and is compatible with Linksys wireless products only. (If you have any non-Linksys wireless products, enter the WEP key manually on those products.) WEP Key If you do not have the Pa…

Text truncated - open the document above for the full version.

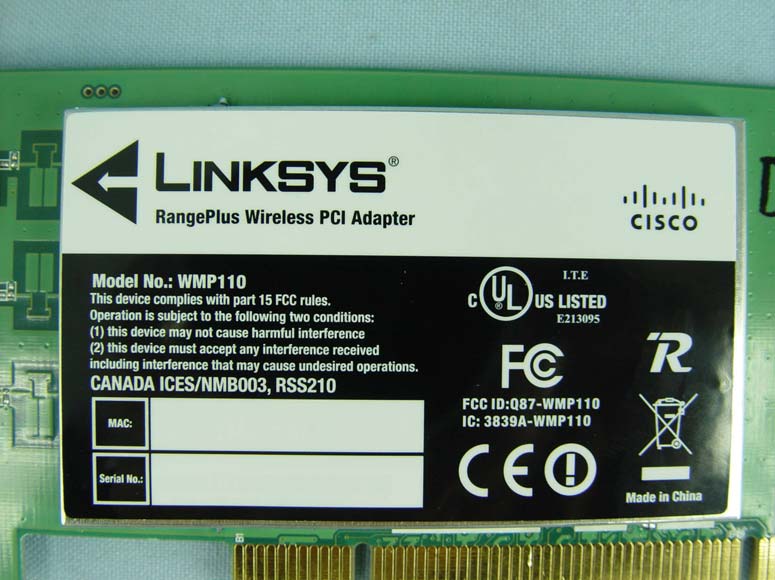

Model No.: WMP110 Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

Page 4 Page 5 Page 6

FCC ID: Q87-WMP110 Report No.: RF970121L10 Operational Description This device is a RangePlus Wireless PCI adapter, which operates in the 2.4GHz frequency spectrum with throughput of up to 150Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 150Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by host equipment. The antenna is dipole antenna with R-SMA connector. The other instruction, please have a look at the users manual.

FCC ID: Q87-WMP110 Report No: SA970121L10 1 RF EXPOSURE REPORT REPORT NO.: SA970121L10 MODEL NO.: WMP110 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT : Cisco-Linksys LLC. ADDRESS : 121 Theory Drive Irvine, CA 92617 (USA) ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: 47 14 th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Kueishan, Taoyuan, Taiwan, R.O.C. FCC ID: Q87-WMP110 Report No: SA970121L10 2 RF EXPOSURE MEASUREMENT (MOBILE DEVICE) 1. INTRODUCTION In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF EXPOSURE LIMIT According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) (A)LIMITS FOR OCCUPATIONAL / CONTROL EXPOSURES 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz FCC ID: Q87-WMP110 Report No: SA970121L10 3 3. FRIIS FORMULA Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance r. Ref.: David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT OPERATING CONDITION The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: Q87-WMP110 Report No: SA970121L10 4 6. TEST RESULTS 6.1 ANTENNA GAIN The maximum Gain measured in Fully Anechoic Chamber is 1.8dBi or 1.514(numeric). 6.2 OUTPUT POWER INTO ANTENNA & RF EXPOSURE VALUE AT DISTANCE 20cm: 802.11b DSSS MODULATION: CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER OUTPUT (mW) PEAK POWER OUTPUT (dBm) POWER DENSITY (mW/CM 2 ) LIMIT OF POWER DENSITY (mW/CM 2 ) 1 2412 65.313 18.15 0.020 1.000 6 2437 64.121 18.07 0.019 1.000 11 2462 65.917 18.19 0.020 1.000 802.11g OFDM MODULATION: CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER OUTPUT (mW) PEAK POWER OUTPUT (dBm) POWER DENSITY (mW/CM 2 ) LIMIT OF POWER DENSITY (mW/CM 2 ) 1 2412 57.280 17.58 0.017 1.000 6 2437 56.624 17.53 0.017 1.000 11 2462 57.544 17.60 0.017 1.000 DRAFT 802.11n (20MHz) OFDM MODULATION CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER OUTPUT (mW) PEAK POWER OUTPUT (dBm) POWER DENSITY (mW/CM 2 ) LIMIT OF POWER DENSITY (mW/CM 2 ) 1 2412 57.810 17.62 0.017 1.000 6 2437 56.494 17.52 0.017 1.000 11 2462 51.050 17.08 0.015 1.000 FCC ID: Q87-WMP110 Report No: SA970121L10 5 DRAFT 802.11n (40MHz) OFDM MODULATION CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER OUTPUT (mW) PEAK POWER OUTPUT (dBm) POWER DENSITY (mW/CM 2 ) LIMIT OF POWER DENSITY (mW/CM 2 ) 1 2422 32.285 15.09 0.010 1.000 4 2437 31.769 15.02 0.010 1.000 7 2452 28.973 14.62 0.009 1.000

Report No.: RF970121L10 1 Report Format Version 2.0.6 FCC TEST REPORT REPORT NO.: RF970121L10 MODEL NO.: WMP110 RECEIVED: Jan. 21, 2008 TESTED: Jan. 22 ~ Jan. 31, 2008 ISSUED: Feb. 04, 2008 APPLICANT: Cisco-Linksys LLC ADDRESS: 121 Theory Drive Irvine, CA 92617 (USA) ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: 47 14 th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Kueishan, Taoyuan, Taiwan, R.O.C. This test report consists of 79 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF, A2LA or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF970121L10 2 Report Format Version 2.0.6 TABLE OF CONTENTS 1. CERTIFICATION ...................................................................................................................... 4 2. SUMMARY OF TEST RESULTS.............................................................................................. 5 2.1 MEASUREMENT UNCERTAINTY .......................................................................................... 5 3. GENERAL INFORMATION ...................................................................................................... 6 3.1 GENERAL DESCRIPTION OF EUT ........................................................................................ 6 3.2 DESCRIPTION OF TEST MODES .......................................................................................... 7 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST ..................................................................... 8 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL .......................................... 9 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ........................................................11 3.4 DESCRIPTION OF SUPPORT UNITS....................................................................................11 4. TEST TYPES AND RESULTS................................................................................................ 12 4.1 RADIATED EMISSION MEASUREMENT.............................................................................. 12 4.1.1 LIMITS OF RADIATED EMISSION MEASUREMENT ........................................................... 12 4.1.2 TEST INSTRUMENTS ........................................................................................................... 13 4.1.3 TEST PROCEDURES ............................................................................................................ 14 4.1.4 DEVIATION FROM TEST STANDARD .................................................................................. 14 4.1.5 TEST SETUP ......................................................................................................................... 15 4.1.6 EUT OPERATING CONDITIONS........................................................................................... 15 4.1.7 TEST RESULTS ..................................................................................................................... 16 4.2 CONDUCTED EMISSION MEASUREMENT......................................................................... 30 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT...................................................... 30 4.2.2 TEST INSTRUMENTS ........................................................................................................... 30 4.2.3 TEST PROCEDURES ............................................................................................................ 31 4.2.4 DEVIATION FROM TEST STANDARD .................................................................................. 31 4.2.5 TEST SETUP ......................................................................................................................... 32 4.2.6 EUT OPERATING CONDITIONS........................................................................................... 32 4.2.7 TEST RESULTS ..................................................................................................................... 33 4.3 6dB BANDWIDTH MEASUREMENT ..................................................................................... 35 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT .................................................................. 35 4.3.2 TEST INSTRUMENTS ........................................................................................................... 35 4.3.3 TEST PROCEDURE .............................................................................................................. 35 4.3.4 DEVIATION FROM TEST STANDARD .................................................................................. 35 4.3.5 TEST SETUP ......................................................................................................................... 36 4.3.6 EUT OPERATING CONDITIONS........................................................................................... 36 4.3.7 TEST RESULTS ..................................................................................................................... 37 4.4 MAXIMUM PEAK OUTPUT POWER ..................................................................................... 45 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ..................................... 45 4.4.2 INSTRUMENTS ..................................................................................................................... 45 4.4.3 TEST PROCEDURES ............................................................................................................ 45 4.4.4 DEVIATION FROM TEST STANDARD .................................................................................. 45 Report No.: RF970121L10 3 Report Format Version 2.0.6 4.4.5 TEST SETUP ............................…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST 2 RADIATED EMISSION TEST
