Q87-WMP200Wireless-G Business PCI Adapter

Wireless-G PCI Adapter with RangeBooster Copyright and Trademarks Specifications are subject to change without notice. Linksys is a registered trademark or trademark of Cisco Systems, Inc. and/or its affiliates in the U.S. and certain other countries. Copyright © 2006 Cisco Systems, Inc. All rights reserved. Other brands and product names are trademarks or registered trademarks of their respective holders. How to Use This User Guide This User Guide has been designed to make understanding networking with the Wireless-G PCI Adapter with RangeBooster easier than ever. Look for the following items when reading this User Guide: In addition to these symbols, there are definitions for technical terms that are presented like this: Also, each figure (diagram, screenshot, or other image) is provided with a figure number and description, like this: Figure numbers and descriptions can also be found in the “List of Figures” section in the “Table of Contents”. This exclamation point means there is a caution or warning and is something that could damage your property or the Wireless-G PCI Adapter with RangeBooster. This checkmark means there is a note of interest and is something you should pay special attention to while using the Wireless-G PCI Adapter with RangeBooster. This question mark provides you with a reminder about something you might need to do while using the Wireless-G PCI Adapter with RangeBooster. word: definition. Figure 0-1: Sample Figure Description WMP54GR-UG-51219NC BW WARNING:This product contains chemicals, including lead, known to the State of California to cause cancer, and birth defects or other reproductive harm. Wash hands after handling. Wireless-G PCI Adapter with RangeBooster Table of Contents Chapter 1: Introduction1 Welcome1 What’s in this Guide?2 Chapter 2: Planning your Wireless Network4 Network Topology4 Roaming4 Network Layout5 Chapter 3: Setting up and Connecting the Wireless-G PCI Adapter with RangeBooster6 Starting the Setup6 Connecting the Adapter7 Setting up the Adapter7 Chapter 4: Using the Wireless Network Monitor16 Accessing the Wireless Network Monitor16 Using the Wireless Network Monitor16 Link Information16 Site Survey19 Profiles20 Create a New Profile21 Appendix A: Troubleshooting30 Common Problems and Solutions30 Frequently Asked Questions31 Chapter B: Using Windows XP Wireless Configuration34 Appendix C: Wireless Security37 Security Precautions37 Security Threats Facing Wireless Networks37 Appendix D: Windows Help40 Appendix E: Glossary41 Appendix F: Specifications44 Appendix G: Warranty Information46 Appendix H: Regulatory Information47 Appendix I: Contact Information53 Wireless-G PCI Adapter with RangeBooster List of Figures Figure 3-1: Setup Wizard’s Welcome Screen 6 Figure 3-2: Setup Wizard’s License Agreement 6 Figure 3-3: Connecting the Adapter 7 Figure 3-4: Available Wireless Network 7 Figure 3-5: WEP Key Needed for Connection 8 Figure 3-6: WPA - Personal Needed for Connection 8 Figure 3-7: PSK2 Needed for Connection 9 Figure 3-8: Congratulations 9 Figure 3-9: Available Wireless Network 10 Figure 3-10: Network Settings 10 Figure 3-11: Wireless Mode 10 Figure 3-12: Ad-Hoc Mode Settings 11 Figure 3-13: Wireless Security - WEP 11 Figure 3-14: Wireless Security - WPA Personal 12 Figure 3-1: Wireless Security - PSK2 12 Figure 3-15: Wireless Security - WPA Enterprise - EAP-TLS 13 Figure 3-16: Wireless Security - WPA Enterprise - PEAP 13 Figure 3-17: Wireless Security - RADIUS - EAP-TLS 14 Figure 3-18: Wireless Security - RADIUS - PEAP 14 Figure 3-19: Confirm New Settings 15 Figure 3-20: Congratulations screen 15 Figure 4-1: Wireless Network Monitor Icon 16 Figure 4-2: Link Information 16 Figure 4-3: More Information - Wireless Network Status 17 Figure 4-4: More Information-Network Statistics 18 Figure 4-5: Site Survey 18 Figure 4-6: WEP Key Needed for Connection 19 Figure 4-7: WPA-Personal Needed for Connection 19 Figure 4-8: PSK2 Needed for Connection 19 Figure 4-9: Profiles 20 Wireless-G PCI Adapter with RangeBooster Figure 4-10: Import a Profile 20 Figure 4-11: Export a Profile 20 Figure 4-12: Create a New Profile 21 Figure 4-1: WEP Key Needed for Connection 21 Figure 4-2: WPA - Personal Needed for Connection 22 Figure 4-3: PSK2 Needed for Connection 22 Figure 4-4: Congratulations 22 Figure 4-13: Available Wireless Network 23 Figure 4-14: Network Settings 23 Figure 4-15: Wireless Mode 24 Figure 4-16: Ad-Hoc Mode Settings 24 Figure 4-17: Wireless Security - WEP 25 Figure 4-18: Wireless Security - WPA Personal 25 Figure 4-19: Wireless Security - PSK2 26 Figure 4-20: Wireless Security - WPA Enterprise Using EAP-TLS 27 Figure 4-21: Wireless Security - WPA Enterprise Using PEAP 27 Figure 4-22: Wireless Security - RADIUS Using EAP-TLS 28 Figure 4-23: Wireless Security - RADIUS Using PEAP 28 Figure 4-24: Confirm New Settings for New Profile 29 Figure 4-25: Congratulations 29 Figure B-1: Wireless Network Monitor Icon 34 Figure B-2: Windows XP - Use Windows XP Wireless Configuration 34 Figure B-3: Windows XP Wireless Configuration Icon 34 Figure B-4: Available Wireless Network 35 Figure B-5: No Wireless Security 35 Figure B-6: Network Connection - Wireless Security 36 Figure B-7: Wireless Network Connection 36 1 Chapter 1: Introduction Welcome Wireless-G PCI Adapter with RangeBooster Chapter 1: Introduction Welcome Thank you for choosing the Wireless-G PCI Adapter with RangeBooster. With this Adapter, your wireless networking experience will be faster and easier than ever. How does the Adapter do this? Like all wireless products, the Adapter allows for greater range and mobility within your wireless network. And with RangeBooster, the range and speed will be even greater. This adapter communicates over the 54Mbps 802.11g wireless standard, but can also communicate with the widely used 11Mbps 802.11b standard. But what does all of this mean? Networks are useful tools for sharing computer resources. You can access one printer from different computers and acces…

Text truncated - open the document above for the full version.

26 Chapter 4: Using the Wireless Network Monitor Create a New Profile Wireless-G PCI Adapter with RangeBooster WEP WEP - Select 64-bit or 128-bit encryption Passphrase - Enter a passphrase in the Passphrase field, so a WEP key is automatically generated. It is case- sensitive and should not be longer than 16 alphanumeric characters. This passphrase must match the passphrase of your other wireless network devices and is compatible with Linksys wireless products only. (If you have any non-Linksys wireless products, enter the WEP key manually on those products.) WEP Key - The WEP key you enter must match the WEP key of your wireless network. For 64-bit encryption, enter exactly 10 hexadecimal characters. For 128-bit encryption, enter exactly 26 hexadecimal characters. Valid hexadecimal characters are “0” to “9” and “A” to “F”. Advanced Users TX Key - The default transmit key number is 1. If your network’s access point or wireless router uses transmit key number 2, 3, or 4, select the appropriate number from the TX Key drop-down box. Authentication -The default is set to Auto, so it will auto-detect for Shared Key or Open System authentication. For Shared Key authentication, both the sender and the recipient share a WEP key for authentication. For Open System authentication, the sender and the recipient do not share a WEP key for authentication. If you are not sure which authentication method to select, keep the default, Auto. Click the Next button to continue, or click the Back button to return to the previous screen. WPA Personal WPA Personal offers two encryption methods, TKIP and AES, with dynamic encryption keys. Select TKIP or AES for encryption. Then enter a Passphrase that is 8-63 characters in length. Encryption - Select the type of algorithm you want to use, TKIP or AES, from the Encryption drop-down menu. Passphrase - Enter a Passphrase, also called a pre-shared key, of 8-63 characters in the Passphrase field. Click the Next button to continue or the Back button to return to the previous screen. Figure 4-18: Wireless Security - WPA Personal Figure 4-17: Wireless Security - WEP 27 Chapter 4: Using the Wireless Network Monitor Create a New Profile Wireless-G PCI Adapter with RangeBooster PSK2 Enter a Passphrase that is 8-63 characters in length. Passphrase - Enter a Passphrase, also called a pre-shared key, of 8-63 characters in the Passphrase field. Click the Next button to continue or the Back button to return to the previous screen. Figure 4-19: Wireless Security - PSK2 28 Chapter 4: Using the Wireless Network Monitor Create a New Profile Wireless-G PCI Adapter with RangeBooster WPA Enterprise WPA Enterprise features WPA security used in coordination with a RADIUS server. (This should only be used when a RADIUS server is connected to the Router.) WPA Enterprise offers two authentication methods, EAP- TLS and PEAP, as well as two encryption methods, TKIP and AES, with dynamic encryption keys. Authentication - Select the authentication method your network is using, EAP-TLS or PEAP. EAP-TLS If you selected EAP-TLS, enter the login name of your wireless network in the Login Name field. Enter the name of the authentication server in the Server Name field (this is optional). From the Certificate drop-down menu, select the certificate you have installed to authenticate you on your wireless network. Select the type of encryption, TKIP or AES, from the Encryption drop-down menu. Click the Next button to continue or the Back button to return to the previous screen. PEAP If you selected PEAP, enter the login name of your wireless network in the Login Name field. Enter the password of your wireless network in the Password field. Enter the name of the authentication server in the Server Name field (this is optional). From the Certificate drop-down menu, select the certificate you have installed to authenticate you on your wireless network; if you want to use any certificate, keep the default setting, Trust Any. Then select the authentication method used inside the PEAP tunnel. Select the type of encryption, TKIP or AES, from the Encryption drop-down menu. Click the Next button to continue or the Back button to return to the previous screen. Figure 4-20: Wireless Security - WPA Enterprise Using EAP-TLS Figure 4-21: Wireless Security - WPA Enterprise Using PEAP 29 Chapter 4: Using the Wireless Network Monitor Create a New Profile Wireless-G PCI Adapter with RangeBooster RADIUS RADIUS features use of a RADIUS server. (This should only be used when a RADIUS server is connected to the Router.) RADIUS offers two authentication types: EAP-TLS and PEAP. Authentication - Select the authentication method your network is using, EAP-TLS or PEAP. EAP-TLS If you selected EAP-TLS, enter the login name of your wireless network in the Login Name field. Enter the name of the authentication server in the Server Name field (this is optional). From the Certificate drop-down menu, select the certificate you have installed to authenticate you on your wireless network. Click the Next button to continue or the Back button to return to the previous screen. PEAP If you selected PEAP, enter the login name of your wireless network in the Login Name field. Enter the password of your wireless network in the Password field. Enter the name of the authentication server in the Server Name field (this is optional). From the Certificate drop-down menu, select the certificate you have installed to authenticate you on your wireless network; if you want to use any certificate, keep the default setting, Trust Any. Then select the authentication method used inside the PEAP tunnel. Click the Next button to continue or the Back button to return to the previous screen. Figure 4-22: Wireless Security - RADIUS Using EAP-TLS Figure 4-23: Wireless Security - RADIUS Using PEAP 30 Chapter 4: Using the Wireless Network Monitor Create a New Profile Wireless-G PCI Adapter with RangeBooster 6. The Confirm New Settings screen will appear next and …

Text truncated - open the document above for the full version.

Cisco-Linksys LLC 121 Theory Drive Irvine, CA 92617 (USA) Phone: 949-261-1288 Fax: 949-823-3002 Date: April 7, 2006 FCC ID: Q87-WMP200 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, __________________________________________ Jennifer Yu / Associate Engineer Cisco-Linksys LLC Tel.: ( 949 ) 823-3188 Fax: ( 949 ) 823-3002 [email protected]

Cisco-Linksys LLC 121 Theory Drive Irvine, CA 92617 (USA) Phone: 949-261-1288 Fax: 949-823-3002 Agency Authorization Letter Date: April 7, 2006 To whom it may concern: We, the undersigned, hereby authorize Advance Data Technology Corp. (ADT) of Taiwan to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by ADT within the scope of this authorization shall have the same effects as our own. This authorization shall expire six months from the original date. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, __________________________________________ Jennifer Yu / Associate Engineer Cisco-Linksys LLC Tel.: ( 949 ) 823-3188 Fax: ( 949 ) 823-3002 [email protected]

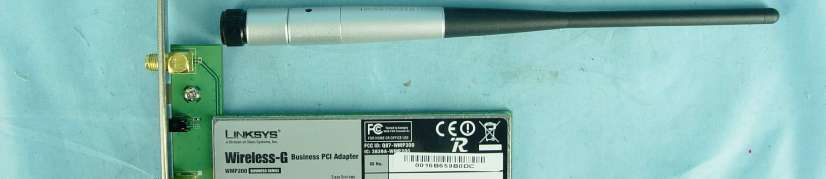

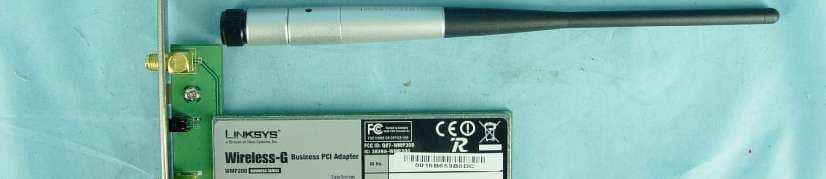

Model No.: WMP200 Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

Page 3 Page 4

FCC ID: Q87-WMP200 Report No.: RF950324L09 Technical Description This device is a Wireless-G Business PCI Adapter that operates in the 2.4GHz frequency spectrum with throughput of up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by host equipment. The antenna is Dipole antenna with R-SMA antenna connector. The other instruction, please have a look at the users manual.

FCC ID: Q87-WMP200 Report No: SA950324L09 1 RF EXPOSURE REPORT REPORT NO.: SA950324L09 MODEL NO.: WMP200 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Cisco-Linksys LLC ADDRESS: 121 Theory Drive Irvine, CA 92617 (USA) ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID: Q87-WMP200 Report No: SA950324L09 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: Q87-WMP200 Report No: SA950324L09 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance r. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: Q87-WMP200 Report No: SA950324L09 4 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 1.8dBi or 1.51356 (numeric) 6.2 Output Power into Antenna & RF Exposure value at distance 20cm: For 802.11b DSSS Modulation: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241240.5510.0121.0 6243763.3870.0191.0 11246232.6590.0101.0 For 802.11g OFDM Modulation: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241235.5630.0111.0 6243739.8110.0121.0 11246235.7270.0111.0

Report No.: RF950324L091Report Format Version 2.0.4 FCC TEST REPORT REPORT NO.: RF950324L09 MODEL NO.: WMP200 RECEIVED: Mar. 24, 2006 TESTED: Mar. 28 ~ Apr. 10, 2006 ISSUED: Apr. 19, 2006 APPLICANT: Cisco-Linksys LLC ADDRESS: 121 Theory Drive Irvine, CA 92617 (USA) ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: 47 14 th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Kueishan, Taoyuan, Taiwan, R.O.C. This test report consists of 63 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. No. 2177-01 Report No.: RF950324L092Report Format Version 2.0.4 Table of Contents 1CERTIFICATION...........................................................................................................4 2SUMMARY OF TEST RESULTS ..................................................................................5 2.1MEASUREMENT UNCERTAINTY ...............................................................................5 3GENERAL INFORMATION ...........................................................................................6 3.1GENERAL DESCRIPTION OF EUT.............................................................................6 3.2DESCRIPTION OF TEST MODES...............................................................................7 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST ..........................................................7 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ...............................8 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS............................................10 3.4DESCRIPTION OF SUPPORT UNITS .......................................................................10 4TEST TYPES AND RESULTS .................................................................................... 11 4.1CONDUCTED EMISSION MEASUREMENT .............................................................11 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT........................................... 11 4.1.2 TEST INSTRUMENTS................................................................................................ 11 4.1.3 TEST PROCEDURES ................................................................................................12 4.1.4 DEVIATION FROM TEST STANDARD ......................................................................12 4.1.5 TEST SETUP .............................................................................................................13 4.1.6 EUT OPERATING CONDITIONS ...............................................................................13 4.1.7 TEST RESULTS .........................................................................................................14 4.2RADIATED EMISSION MEASUREMENT ..................................................................20 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT................................................20 4.2.2 TEST INSTRUMENTS................................................................................................21 4.2.3 TEST PROCEDURES ................................................................................................22 4.2.4 DEVIATION FROM TEST STANDARD ......................................................................22 4.2.5 TEST SETUP .............................................................................................................23 4.2.6 EUT OPERATING CONDITIONS ...............................................................................23 4.2.7 TEST RESULTS .........................................................................................................24 4.36dB BANDWIDTH MEASUREMENT .........................................................................31 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT .......................................................31 4.3.2 TEST INSTRUMENTS................................................................................................31 4.3.3 TEST PROCEDURE...................................................................................................32 4.3.4 DEVIATION FROM TEST STANDARD ......................................................................32 4.3.5 TEST SETUP .............................................................................................................32 4.3.6 EUT OPERATING CONDITIONS ...............................................................................32 4.3.7 TEST RESULTS .........................................................................................................33 4.4MAXIMUM PEAK OUTPUT POWER .........................................................................39 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT..........................39 4.4.2 TEST INSTRUMENTS................................................................................................39 4.4.3 TEST PROCEDURES ................................................................................................40 4.4.4 DEVIATION FROM TEST STANDARD ......................................................................40 4.4.5 TEST SETUP .............................................................................................................40 4.4.6 EUT OPERATING CONDITIONS ...............................................................................40 Report No.: RF950324L093Report Format Version 2.0.4 4.4.7 TEST RESULTS .........................................................................................................41 4.5POWER SPECTRAL DENSITY MEASUREMENT ....................................................42 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ..................................42 4.5.2 TEST IN…

Text truncated - open the document above for the full version.

Report No.: RF950324L0960Report Format Version 2.0.4 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST Report No.: RF950324L0961Report Format Version 2.0.4 RADIATED EMISSION TEST
