Q87-WMP55AGV11Dual-Band A+G Wireless Network PCI Adapter

Instant Wireless ® Series Dual-Band Wireless A+G PCI Adapter Use this guide to install:WMP55AG v1.1 User Guide COPYRIGHT & TRADEMARKS Specifications a re subject to change without notice. Copyright © 2003 Linksys, All Rights Reserved. Instant Wireless, Linksys, and the Linksys logo are registered trademarks ofCisco-Linksys, LLC. Mic rosoft, Windows, and the Windows logo a re registe red trade- marks of Microsoft Corporation. All other trademarks and brand names are the proper-ty of their respective proprietors. LIMITED WARRANTY Linksys guarantees that every Instant Wireless ® Dual-Band Wireless A+G PCI Adapter will be f ree f rom physical defects in material and workmanship for three year f rom the date of purchase, when used within the limits set forth in the Specifications chapter of thisUser Guide. TTh hi is s W Wa ar rr ra an nt ty y i is s v va al li id d a an nd d m ma ay y b be e p pr ro oc ce es ss se ed d o on nl ly y i in n t th he e c co ou un nt tr ry y o of f p pu ur rc ch ha as se e. . If the product proves defective during this warranty period, go to the Linksys website at www .linksys.com for complete RMA (Return Merchandise Authorization) assistance. You can also call Linksys Technical Support in order to obtain a RMA Number. BE SURE TOHAVE YOUR PROOF OF PURCHASE AND A BARCODE FROM THE PRODUCT’S PACK-AGING ON HAND WHEN CALLING. RETURN REQUESTS CANNOT BE PROCESSEDWITHOUT PROOF OF PURCHASE. When returning a product, mark the RMA Numberclearly on the outside of the package and include a copy of your original proof of pur-chase. All customers located outside of the United States of America and Canada shallbe held responsible for shipping and handling charges.IN NO EVENT SHALL LINKSYS'S LIABILITY EXCEED THE PRICE PAID FOR THE PROD-UCT FROM DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAM-AGES RESULTING FROM THE USE OF THE PRODUCT, ITS ACCOMPANYING SOFT-WARE, OR ITS DOCUMENTATION. LINKSYS OFFERS NO REFUNDS FOR ITS PROD-UCTS. Linksys makes no warranty or representation, expressed, implied, or statutory,with respect to its products or the contents or use of this documentation and all accom-panying software, and specifically disclaims its quality, performance, merchantability, orfitness for any particular purpose. Linksys reserves the right to revise or update its prod-ucts, software, or documentation without obligation to notify any individual or entity.Please direct all inquiries to:Linksys P.O. Box 18558, Irvine, CA 92623. SAFETY AND REGULATORY NOTICESFCC STATEMENTThe Instant Wireless Dual-Band Wireless A+G PCI Adapter has been tested and foundto comply with the specifications for a Class B digital device, pursuant to Part 15 of theFCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. These limits are designed to provide reasonable protection against harmful interferencein a residential installation. This equipment generates, uses, and can radiate radio fre-quency energy and, if not installed and used according to the instructions, may causeharmful interference to radio communications. However, there is no guarantee that inter-ference will not occur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which is found by turning the equipment offand on, the user is encouraged to try to correct the interference by one or more of thefollowing measures: • Reorient or relocate the receiving antenna • Increase the separation between the equipment or devices • Connect the equipment to an outlet other than the receiver's • Consult a dealer or an experienced radio/TV technician for assistance FCC Caution: Any change or modification to the product not expressly approved byLinksys could void the user's authority to operate the device.FCC Caution: 5150 to 5250 M Hz frequeny band and turbo mode at channel frequency 5250MHz FCC RF Radiation Exposure StatementTo comply with the FCC and ANSI C95.1 RF exposure limits, the antenna(s) for thisdevice must comply with the following:• Access points with 2.4 GHz or 5 GHz integrated antenna must operate with a sepa- ration distance of at least 20 cm from all persons using the cable provided and mustnot be co-located or operating in conjunction with any other antenna or transmitter. End-users must be provided with specific operations for satisfying RF exposure compli-ance.Note: Dual antennas used for diversity operation are not considered co-located.INDUSTRY CANADA (CANADA)This Class B digital apparatus complies with Canadian ICES-003.Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.The use of this device in a system operating either partially or completely outdoors mayrequire the user to obtain a license for the system according to the Canadian regulations.EC DECLARATION OF CONFORMITY (EUROPE)Cisco-Linksys decla res that the Instant Wi reless ® Series p roducts included in the Instant Wireless ® Series conform to the specifications listed below, following the provisions of the European R&TTE directive 1999/5/EC, EMC directive 89/336/EEC, and Low Voltagedirective 73/23/EEC: For 11Mbps, 2.4 GHz devices with 100 mW radios, the following standards were applied: • ETS 300-826, 301 489-1 General EMC requirements for Radio equipment. • EN 609 50 Safety • ETS 300-328-2 Technical requirements for Radio equipment. For 54Mbps, 5 GHz devices with 40 mW radios, the following standards were applied: • ETS 301 489-1, 301 489-17 General EMC requirements for Radio equipment. • EN 609 50 Safety • ETS 301-893 Technical requirements for Radio equipment. Caution: The frequencies used by 802.11a wireless LAN devices are not yet harmonizedwithin the European community, 802.11a products are designed for use only in specificcountries, and are not allowed to be operated in countries other than those…

Text truncated - open the document above for the full version.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 November 3, 2003 RE: FCC ID: Q87-WMP55AGV11 Attention: Ellis Wu I have a few comments on this Application. 1. Please note that the manual states, “Dual antennas used for diversity operation are not considered co-located.” Please note that this device shows only one antenna connection possible in the configuration tested. While the schematics and the internal photos show two antenna connectors on the board, there is only one antenna used and no indication that both antenna ports were tested. Please explain if the other antenna connector is to be used with the device (i.e. the antenna can be connected to either antenna connector). 2. The user manual has compliance statements dealing with non-US compatibility. This indicates that the device is meant to work in non-US countries. Please verify that when this device is sold in the US that it cannot be made to operate on non-US channel frequencies. 3. Please note that the manual states, “FCC Caution: Operation within the 5150 to 5250GHz band is restricted to indoor use only.” As this device uses the transition frequency of 5250MHz in turbo mode (channel 2) this statement is only partially correct. Because of the use of 5250MHz the device in restricted to indoor use for both the 5150 to 5250 and the 5250 to 5350 MHz bands. Please correct the statement to reflect this added restriction based on the use of the band transition frequency. 4. Your calculated limit for EIRP is 73.3 using your 5dBi EUT antenna. However, in the tables it appears that you have used 71.3 as the actual limit for comparison. Please explain. 5. The report (page 150) states the maximum gain of the antenna is 3dBi. However, other documentation states the gain is 5dBi. Please explain. Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

1 Dennis Ward From: [email protected] Sent: Monday, November 10, 2003 6:07 AM To: dward Cc: [email protected] Subject: 轉寄： 回信: 轉寄： Q87-WMP55AGV11_ATCB000888 ( top top urgent !! ) 11-3-03 WMP55AGV11 ATCB Dennis, Per your comment 1, the MIni-PCI card inserted into slot is covered with metal case which sodered on the PCB board, end user is NOT easy to remove the cover then change to other connector. Do you accept our explanation ? or may we have your suggestion ? Thanks Best Regards. 吳佳鑫 / Ellis Wu E-mail : [email protected] 誠信科技 / ADT Corp. TEL : +886 3 3270910 #1624 FAX : +886 3 3270892 Ashely Lin/ADT(林 雅蔓/華亞無線電客 服部) 收件人 Eric Tung/ADT@ADT, Stephanie 2003/11/09 下午 Hung/ADT@ADT 09:07 副本抄送 主旨 轉寄： Q87-WMP55AGV11_ATCB000888 ( top top urgent !! ) 2 (See attached file: 11-3-03 Q87-WMP55AGV11 ATCB Comments.pdf)

1 Dennis Ward From: [email protected] Sent: Wednesday, November 12, 2003 8:15 AM To: dward Subject: 轉寄： Q87-WMP55AGV11_ATCB000888 11-3-03 WMP55AGV11 ATCB Dear Dennis: We did re-upload the user's manual up to the website. And the Antenna gain for 5Ghz is 3dBi, I did check the report, but find all we showed is 3dBi. That's why the limit is 71.3. Thank you for your kind assistance. Best Regards, Stephanie Hung (洪榭薇) Advance Data Technology Corporation (誠信科技) Website: www.adt.com.tw Tel: 886-3 327 0910 Ext. 1668 Fax: 886-3 327 0892 e-mail: [email protected] \(^o^)/ \(^o^)/ \(^o^)/ \(^o^)/ \(^o^)/ \(^o^)/ \(^o^)/ \ (^o^)/ ----- 轉呈者 Stephanie Hung/ADT 於 2003/11/13 上午 12:13 ----- "dward" <[email protected]> 收件人： <[email protected]>, <[email protected]> 副本抄送： 2003/11/04 上午 主旨： Q87-WMP55AGV11_ATCB000888 10:09 HI Stephanie Please see comments Thanks Dennis (See attached file: 11-3-03 Q87-WMP55AGV11 ATCB Comments.pdf)

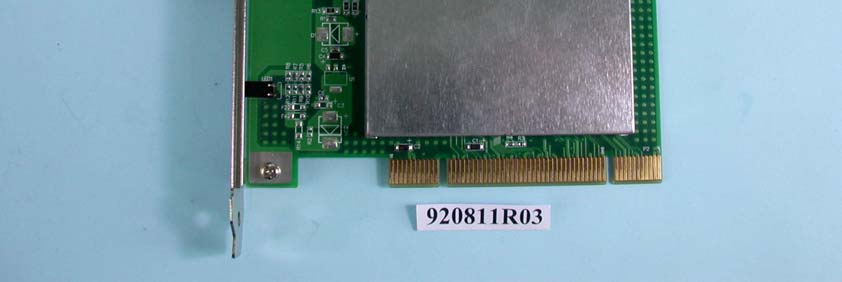

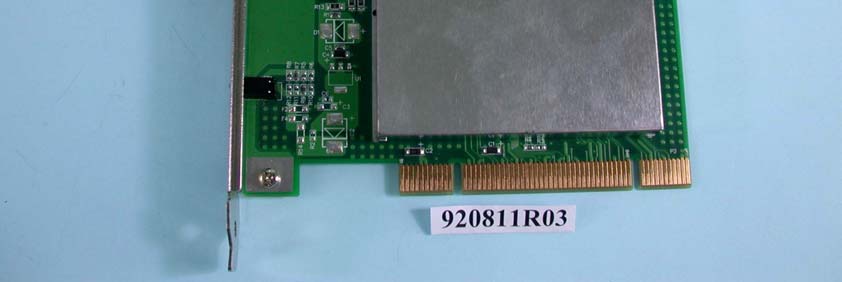

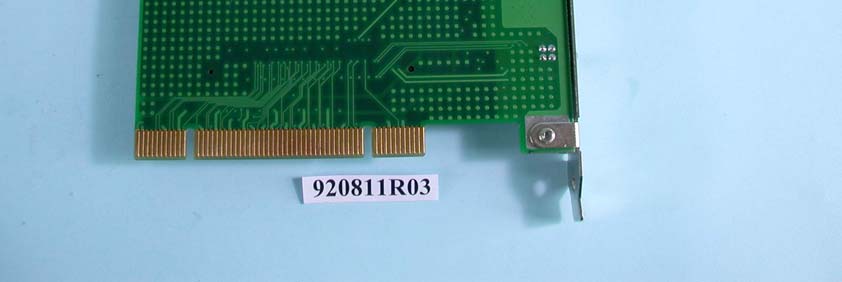

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4

LABEL LOCATION FOR FCC ID

Page 4 Page 5 Page 6 Page 7 Page 8 Page 9

FCC ID: Q87-WMP55AGV11 Report No.920811R03 Operational Description The transmitter of the EUT is powered by host equipment. The antenna is Dipole antenna with UFL antenna connector. This device is Dual-Band A+G Wireless Network PCI Adapter v1.1 operates in both the 5GHz and 2.4GHz bands and can’t transmitting simultaneously, the maximum data rate could be 54Mbps. (turbo mode :108 Mbps) For more detailed instruction, please take a look at the user’s manual. FCC 15.407(c) states : The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude the transmission of control or signaling information or the use of repetitive codes used by certain digital technologies to complete frame or burst intervals. Applicants shall include in their application for equipment authorization a description of hoe this requirement is met” Data transmission is always initiated by software, which is then pass down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets (ACKs, CTS, PSPoll, etc...) are initiated by the MAC. There are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets are being transmitted.

FCC ID: Q87-WMP55AGV11 Report No: RF920811R03 1 RF EXPOSURE REPORT REPORT NO.: RF920811R03 MODEL NO.: WMP55AG v1.1 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Cisco-Linksys, LLC ADDRESS: 17401 Armstrong Ave., Irvine, CA 92614 ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: Q87-WMP55AGV11 Report No: RF920811R03 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: Q87-WMP55AGV11 Report No: RF920811R03 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of the product, under normal use condition, is at least 20cm away from the body of the user. Warming statement for keeping 20cm separation distance and the prohibition of operating next to a person has been printed on the user’s manual. So, this product is classified as the Mobile Device. FCC ID: Q87-WMP55AGV11 Report No: RF920811R03 4 6 Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 1dBi or 1.26(numeric) for 2.4GHz band, and 3dBi or 2(numeric) for 5GHz band. 6.2 Output Power Into Antenna & MPE value at distance 20cm : For Part 802.11b (CCK technique): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241255.980.0141 6243752.000.0131 11246250.470.0131 For Part 802.11g (OFDM technique): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241246.990.0121 6243745.390.0111 11246244.980.0111 FCC ID: Q87-WMP55AGV11 Report No: RF920811R03 5 For Part 802.11a (Normal Mode): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1518041.400.0161 4524042.070.0171 5526043.850.0171 8532040.640.0161 9574536.060.0141 12580534.200.0141 For Part 802.11a (Turbo Mode): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1521037.500.0151 2525041.980.0171 3529034.040.0141 4576027.350.0111 5580027.730.0111

FCC ID: Q87-WMP55AGV11 Report No.: RF920811R031Issued: October 3, 2003 FCC TEST REPORT REPORT NO.: RF920811R03 MODEL NO.: WMP55AG v1.1 RECEIVED: Aug. 04, 2003 TESTED: Aug. 04 ~ Aug. 12, 2003 APPLICANT: Cisco-Linksys, LLC ADDRESS: 17401 Armstrong Ave., Irvine, CA 92614 ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14 th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 153 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: Q87-WMP55AGV11 Report No.: RF920811R032Issued: October 3, 2003 Table of Contents 1.CERTIFICATION .................................................................................................................... 5 2.SUMMARY OF TEST RESULTS............................................................................................ 6 3.GENERAL INFORMATION .................................................................................................... 8 3.1GENERAL DESCRIPTION OF EUT....................................................................................... 8 3.2DESCRIPTION OF TEST MODES......................................................................................... 9 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS...................................................... 10 3.4DESCRIPTION OF SUPPORT UNITS................................................................................. 11 4.TEST TYPES AND RESULTS (FOR PART 802.11b & 802.11g) ......................................... 12 4.1CONDUCTED EMISSION MEASUREMENT....................................................................... 12 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT .................................................... 12 4.1.2TEST INSTRUMENTS ......................................................................................................... 12 4.1.3TEST PROCEDURES .......................................................................................................... 13 4.1.4DEVIATION FROM TEST STANDARD ................................................................................ 13 4.1.5TEST SETUP ....................................................................................................................... 14 4.1.6EUT OPERATING CONDITIONS......................................................................................... 14 4.1.7TEST RESULTS ................................................................................................................... 15 4.2RADIATED EMISSION MEASUREMENT............................................................................ 21 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT ......................................................... 21 4.2.2TEST INSTRUMENTS ......................................................................................................... 22 4.2.3TEST PROCEDURES .......................................................................................................... 23 4.2.4DEVIATION FROM TEST STANDARD ................................................................................ 23 4.2.5TEST SETUP ....................................................................................................................... 24 4.2.6EUT OPERATING CONDITIONS......................................................................................... 24 4.2.7TEST RESULTS ................................................................................................................... 25 4.36dB BANDWIDTH MEASUREMENT ................................................................................... 33 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT ................................................................ 33 4.3.2TEST INSTRUMENTS ......................................................................................................... 33 4.3.3TEST PROCEDURE ............................................................................................................34 4.3.4DEVIATION FROM TEST STANDARD ................................................................................ 34 4.3.5TEST SETUP ....................................................................................................................... 34 4.3.6EUT OPERATING CONDITIONS......................................................................................... 34 4.3.7TEST RESULTS ................................................................................................................... 35 4.4MAXIMUM PEAK OUTPUT POWER ................................................................................... 43 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ................................... 43 4.4.2INSTRUMENTS.................................................................................................................... 43 4.4.1TEST PROCEDURES .......................................................................................................... 44 4.4.2DEVIATION FROM TEST STANDARD ................................................................................ 44 4.4.3TEST SETUP ....................................................................................................................... 44 4.4.4EUT OPERATING CONDITIONS......................................................................................... 44 FCC ID: Q87-WMP55AGV11 Report No.: RF920811R033Issued: October 3, 2003 4.4.3TEST RESULTS ................................................................................................................... 45 4.5POWER SPECTRAL DENSITY MEASUREMENT.............................................................. 47 4.5.1LIMITS OF …

Text truncated - open the document above for the full version.

FCC ID: Q87-WMP55AGV11 Report No.: RF920811R0364Issued: October 3, 2003 5. TEST TYPES AND RESULTS (FOR PART 802.11a) 5.1 CONDUCTED EMISSION MEASUREMENT 5.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT FREQUENCY OF EMISSION (MHz)CONDUCTED LIMIT (dBμV) Quasi-peakAverage 0.15-0.5 0.5-5 5-30 66 to 56 56 60 56 to 46 46 50 NOTE:1. The lower limit shall apply at the transition frequencies. 2. The limit decreases in line with the logarithm of the frequency in the range of 0.15 to 0.50 MHz. 3. All emanations from a class A/B digital device or system, including any network of conductors and apparatus connected thereto, shall not exceed the level of field strengths specified above. 5.1.2 TEST INSTRUMENTS DESCRIPTION & MANUFACTURERMODEL NO.SERIAL NO. CALIBRATED UNTIL ROHDE & SCHWARZ Test Receiver ESCS 30838251/021Jan. 20, 2004 ROHDE & SCHWARZ Artificial Mains Network (for EUT) ESH3-Z5100218Dec. 18, 2003 ROHDE & SCHWARZ Artificial Mains Network (for peripherals) ESH3-Z5100219Dec. 18, 2003 ROHDE & SCHWARZ Artificial Mains Network (for peripherals) ESH3-Z5100220Dec. 18, 2003 ROHDE & SCHWARZ 4-wire ISN ENY41837032/016Nov. 29 2003 ROHDE & SCHWARZ 2-wire ISN ENY22837497/016Nov. 29 2003 SoftwareCond-V2M3NANA RF cable (JYEBAO)5D-FBCable-C10.01May 01, 2004 SUHNER Terminator (For ROHDE & SCHWARZ LISN) 65BNC-5001E1-010770Mar. 24, 2004 SUHNER Terminator (For ROHDE & SCHWARZ LISN) 65BNC-5001E1-010773Apr. 06, 2004 NOTE: 1. The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 2. “*”: These equipment are used for conducted telecom port test only (if tested). 3. The test was performed in ADT Shielded Room No. 10. 4. The VCCI Site Registration No. is C-1312. FCC ID: Q87-WMP55AGV11 Report No.: RF920811R0365Issued: October 3, 2003 5.1.3 TEST PROCEDURES a. The EUT was placed 0.4 meters from the conducting wall of the shielded room with EUT being connected to the power mains through a line impedance stabilization network (LISN). Other support units were connected to the power mains through another LISN. The two LISNs provide 50 ohm/ 50uH of coupling impedance for the measuring instrument. b. Both lines of the power mains connected to the EUT were checked for maximum conducted interference. c. The frequency range from 150kHz to 30MHz was searched. Emission levels over 10dB under the prescribed limits could not be reported 5.1.4 DEVIATION FROM TEST STANDARD No deviation FCC ID: Q87-WMP55AGV11 Report No.: RF920811R0366Issued: October 3, 2003 5.1.5 TEST SETUP For the actual test configuration, please refer to the related item – Photographs of the Test Configuration. 5.1.6 EUT OPERATING CONDITIONS Same as 4.1.6 FCC ID: Q87-WMP55AGV11 Report No.: RF920811R0367Issued: October 3, 2003 5.1.7 TEST RESULTS MODEL WMP55AG v1.1 EUT Dual-Band A+G Wireless Network PCI Adapter v1.1 6dB BANDWIDTH 9 kHz INPUT POWER (SYSTEM) 120Vac, 60 Hz PHASE Line (L) ENVIRONMENTAL CONDITIONS 30deg. C, 60%RH, 991hPa TESTED BY: Hardaway Lee Freq.Corr. Reading Value Emission Level LimitMargin NoFactor[dB (uV)][dB (uV)][dB (uV)](dB) [MHz](dB)Q.P.AV.Q.P.AV.Q.P.AV.Q.P.AV. 10.1810.0645.73-45.79-64.4354.43-18.64- 20.4550.0735.18-35.25-56.7946.79-21.54- 31.2730.1727.22-27.39-56.0046.00-28.61- 46.8090.3119.41-19.72-60.0050.00-40.28- 513.6170.5215.76-16.28-60.0050.00-43.72- 623.3830.8120.68-21.49-60.0050.00-38.51- REMARKS: 1. Q.P. and AV. are abbreviations of quasi-peak and average individually. 2. "-": The Quasi-peak reading value also meets average limit and measurement with the average detector is unnecessary. 3. The emission levels of other frequencies were very low against the limit. 4. Margin value = Emission level - Limit value 5. Correction factor = Insertion loss + Cable loss 6. Emission Level = Correction Factor + Reading Value. FCC ID: Q87-WMP55AGV11 Report No.: RF920811R0368Issued: October 3, 2003 MODEL WMP55AG v1.1 EUT Dual-Band A+G Wireless Network PCI Adapter v1.1 6dB BANDWIDTH 9 kHz INPUT POWER (SYSTEM) 120Vac, 60 Hz PHASE Neutral (N) ENVIRONMENTAL CONDITIONS 30deg. C, 60%RH, 991hPa TESTED BY: Hardaway Lee Freq.Corr. Reading Value Emission Level LimitMargin NoFactor[dB (uV)][dB (uV)][dB (uV)](dB) [MHz](dB)Q.P.AV.Q.P.AV.Q.P.AV.Q.P.AV. 10.1810.0545.87-45.92-64.4354.43-18.51- 20.3610.0533.74-33.79-58.7148.71-24.92- 30.4550.0635.00-35.06-56.7946.79-21.73- 40.7240.1127.76-27.87-56.0046.00-28.13- 58.6300.3525.50-25.85-60.0050.00-34.15- 623.2810.6520.44-21.09-60.0050.00-38.91- REMARKS: 1. Q.P. and AV. are abbreviations of quasi-peak and average individually. 2. "-": The Quasi-peak reading value also meets average limit and measurement with the average detector is unnecessary. 3. The emission levels of other frequencies were very low against the limit. 4. Margin value = Emission level - Limit value 5. Correction factor = Insertion loss + Cable loss 6. Emission Level = Correction Factor + Reading Value. FCC ID: Q87-WMP55AGV11 Report No.: RF920811R0369Issued: October 3, 2003 5.2 RADIATED EMISSION MEASUREMENT 5.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT Emissions radiated outside of the specified bands, shall be according to the general radiated limits in 15.209 as following: Frequencies (MHz) Field strength (microvolts/meter) Measurement distance (meters) 0.009-0.4902400/F(kHz)300 0.490-1.70524000/F(kHz)30 1.705-30.03030 30-881003 88-2161503 216-9602003 Above 9605003 NOTE: 1. The lower limit shall apply at the transition frequencies. 2. Emission level (dBuV/m) = 20 log Emission level (uV/m). 3. As shown in 15.35(b), for frequencies above 1000MHz, the field strength limits are based on average detector, however, the peak field strength of any emission shall not exceed the maximum permitted average limits, specified above by more than 20dB under any condition of modulation. 5.2.2 LIMITS OF UNWANTED EMISSION OUT OF THE RESTRICTED BANDS Frequencies (MHz) EIRP Limit (dBm) Equivalent Field Strength at 3m (dBμV/m) *note 3 5150~5250 -27 71.3 5250~5350 -27 71.3 -27 *note 1 71.3 5725~5825 -17 *no…

Text truncated - open the document above for the full version.

FCC ID: Q87-WMP55AGV11 Report No.: RF920811R03112Issued: October 3, 2003 5.4 PEAK POWER EXCURSION MEASUREMENT 5.4.1 LIMITS OF PEAK POWER EXCURSION MEASUREMENT Frequency BandLimit 5.15 – 5.25 GHz13dB 5.25 – 5.35 GHz13dB 5.725 – 5.825 GHz13dB 5.4.2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until SPECTRUM ANALYZERFSEK30100049Aug. 12, 2004 SPECTRUM ANALYZER8564EC4208A00660Nov. 20, 2003 NOTE: The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. FCC ID: Q87-WMP55AGV11 Report No.: RF920811R03113Issued: October 3, 2003 5.4.3 TEST PROCEDURE 1. The transmitter output was connected to the spectrum analyzer. 2. Set the spectrum bandwidth span to view the entire spectrum. 3. Using peak detector and Max-hold function for Trace 1 (RB=1MHz, VB=3MHz) and 2 (RB=1MHz, VB=300KHz). 4. The largest difference between Trace 1 and Trace 2 in any 1MHz band on any frequency was recorded. 5.4.4 DEVIATION FROM TEST STANDARD No deviation 5.4.5 TEST SETUP 5.4.6 EUT OPERATING CONDITIONS The software provided by client to enable the EUT under transmission condition continuously at specific channel frequencies individually. EUT SPECTRUM FCC ID: Q87-WMP55AGV11 Report No.: RF920811R03114Issued: October 3, 2003 5.4.7 TEST RESULTS EUT Dual-Band A+G Wireless Network PCI Adapter v1.1 MODEL WMP55AG v1.1 MODE Normal INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 27deg. C, 62%RH, 991hPa TESTED BY Ansen Lei CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER EXCURSION (dB) PEAK to AVERAGE EXCURSION LIMIT (dB) PASS/FAIL 151806.9213PASS 452405.6413PASS 552606.1313PASS 853207.5213PASS 957456.2013PASS 1258056.4513PASS FCC ID: Q87-WMP55AGV11 Report No.: RF920811R03115Issued: October 3, 2003 CHANNEL 1 FCC ID: Q87-WMP55AGV11 Report No.: RF920811R03116Issued: October 3, 2003 CHANNEL 4 FCC ID: Q87-WMP55AGV11 Report No.: RF920811R03117Issued: October 3, 20…
