Q87-WMP55AGV12Dual Band Wireless A+G PCI Adapter

Cisco-Linksys, LLC 121 Theory Drive Irvine, CA 92612 (USA) Phone: 949-823-3188 Fax: 949-823-3002 Date: September 24, 2004 FEDERAL COMMUNICATIONS COMMISSION DECLARATION OF CONFORMITY (DoC) Cisco-Linksys, LLC declares that the equipment described in this document is within the requirements of the Code of Federal Regulations listed below: Product Name: Dual-Band Wireless A+G PCI Adapter Model Number: WMP55AG ver. 1.2 This device complies with the limits for a Class B digital device pursuant to IEEE ANSI C63.4 and FCC Part 15 subpart B of the Rules and Regulations. The test result has been shown in the ADT test report with numbered FD930910L07 Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. The Part 15 radio device operates on a non-interference basis with other devices operation at this frequency. Any change or modification to the product not expressly approved by Linksys could void the user’s authority to operate the device. Jennifer Yu / Associate Engineer Cisco-Linksys, LLC Tel.: ( 949 ) 823-3188 Fax: ( 949 ) 823-3002 [email protected]

Dual-Band Wireless A+G PCI Adapter Use this guide to install: WMP55AG ver. 1.2 Copyright and Trademarks Specifications are subject to change without notice. Linksys is a registered trademark or trademark of Cisco Systems, Inc. and/or its affiliates in the U.S. and certain other countries. Copyright © 2004 Cisco Systems, Inc. All rights reserved. Other brands and product names are trademarks or registered trademarks of their respective holders. Table of Contents Chapter 1: Introduction 1 Welcome What’s in this Guide? Chapter 2: Planning Your Wireless Network 4 Network Topology Roaming Network Layout Chapter 3: Getting to Know the Dual-Band Wireless A+G PCI Adapter The LED Indicators Chapter 4: Software Installation and Configuration The Installation Procedure Chapter 5: Hardware Installation Connecting the Adapter Chapter 6: Using the WLAN Monitor Accessing the WLAN Monitor Link Information Site Survey Profiles Creating a New Profile Appendix A: Troubleshooting Common Problems and Solutions Frequently Asked Questions Appendix B: Wireless Security Security Precautions Security Threats Facing Wireless Networks Appendix C: Windows Help Appendix D: Glossary Appendix E: Specifications Appendix F: Warranty Information Appendix G: Regulatory Information Appendix H: Contact Information Chapter 1: Introduction Welcome Thank you for choosing the Dual-Band Wireless A+G PCI Adapter. With this Adapter, your wireless networking experience will be faster and easier than ever. The Linksys Dual-Band Wireless A+G PCI Adapter lets your PC communicate with all three wireless network standards. With one PCI Adapter, you can connect to Wireless-A (802.11a), Wireless-G (802.11g) and Wireless-B (802.11b) networks. Wireless-B networks have a data rate of 11Mbps, and are commonly found in corporate environments and in homes for household Internet connectivity without the need for running cables. They're also popping up all over the country in coffee shops, airports, hotels, convention centers, and other public spaces offering “on the go” connectivity to mobile users. In high speed or heavy usage environments, Wireless-B is quickly being replaced by a new standard, Wireless-G, which uses the same 2.4GHz radio band, but at 54Mbps, is almost five times faster. The third wireless network standard is Wireless-A, which also runs at 54Mbps, but operates in the less-crowded 5GHz radio band. Wireless-A is mostly used in corporate installations. Whichever standard you encounter, the Dual-Band Wireless A+G PCI Adapter is ready to connect. And it's simple to use. Just run the included Setup Wizard, which will walk you through the configuration, and insert the PCI Adapter into one of your PC’s empty PCI slots. All wireless communications can be protected by up to 256-bit encryption, so your data stays secure. Use the instructions in this Guide to help you set up and install the Adapter. These instructions should be all you need to get the most out of the Dual-Band Wireless A+G PCI Adapter. What’s in this Guide? This user guide covers the steps for setting up and using the Dual-Band Wireless A+G PCI Adapter. • Chapter 1: Introduction This chapter describes the Adapter’s applications and this User Guide. • Chapter 2: Planning Your Wireless Network This chapter discusses a few of the basics about wireless networking. • Chapter 3: Getting to Know the Dual-Band Wireless A+G PCI Adapter This chapter describes the physical features of the Adapter. • Chapter 4: Software Installation and Configuration This chapter instructs you on how to use the Adapter’s Setup Wizard and configure the Adapter. • Chapter 5: Hardware Installation This chapter shows you how to connect the Adapter to your PC. • Chapter 6: Using the WLAN Monitor This chapter show you how to use the Adapter’s WLAN Monitor. • Appendix A: Troubleshooting This appendix describes some potential problems and solutions, as well as frequently asked questions, regarding installation and use of the Adapter. • Appendix B: Wireless Security This appendix discusses security issues regarding wireless networking and measures you can take to help protect your wireless network. • Appendix C: Windows Help This appendix describes how you can use Windows Help for instructions about networking, such as installing the TCP/IP protocol. • Appendix D: Glossary This appendix gives a brief glossary of terms frequently used in networking. • Appendix E: Specifications This appendix provides the Adapter’s technical specifications. • Appendix F: Warranty Information This appendix supplies the Adapter’s warranty information. • Appendix G: Regulatory Information This appendix supplies the Adapter’s regulatory information. • Appendix H: Contact Information This appendix provides contact information for a variety of Linksys resources, including Technical Support. Chapter 2: Planning Your Wireless Network Network Topology A wireless network is a group of computers, each equipped with one wireless adapter. Computers in a wireless network must be configured to share the same radio channel. Several PCs equipped with wireless cards or adapters can communicate with one another to form an ad-hoc network. Linksys wireless adapters also provide users access to a wired network when using an access point or wireless router. An integrated wireless and wired network is called an infrastructure network. Each wireless PC in an infrastructure network can talk to any computer in a wired network infrastructure via the access point or wireless router. An infrastructure configuration extends the accessibility of a wireless PC to a wired network, and can double the effective wireless transmission range for two wireless adapter PCs. Since an access point is able to forward data within a network, the effective transmission range in an infrastructure network can be doubled. Roaming Infrastructure mode also supports roaming capabilities for mobile users. Roaming means that you can move your wireless PC within your network and the a…

Text truncated - open the document above for the full version.

Cisco-Linksys, LLC 121 Theory Drive Irvine, CA 92612 (USA) Phone: 949-823-3188 Fax: 949-823-3002 Agency Authorization Letter Date: September 24, 2004 To whom it may concern: We, the undersigned, hereby authorize Advance Data Technology Corp. (ADT) of Taiwan to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by ADT within the scope of this authorization shall have the same effects as our own. This authorization shall expire six months from the original date. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, _________________________________________ Jennifer Yu / Associate Engineer Cisco-Linksys, LLC Tel.: ( 949 ) 823-3188 Fax: ( 949 ) 823-3002 [email protected]

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 November 1, 2004 RE: Cisco-Linksys, LLC. FCC ID: Q87-WMP55AGV12 After a review of the submitted information, I have a few comments on the above referenced Application. 1) The RF exposure exhibit mentions that both the 2.4 and 5 GHz can transmit simultaneously. If this is the case, then simultaneous TX EMC data is necessary to be provided. However, from the block diagram, it appears that the device man not TX simultaneous. Please confirm. If it does, please provide simultaneous TX data. If not, please adjust the RF exposure exhibit to remove reference to this. 2) Please add average data for point 11520 MHz on page 100 for the Vertical Polarity. The peak data shown exceeds the average limit of 54 dBuV/m. Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

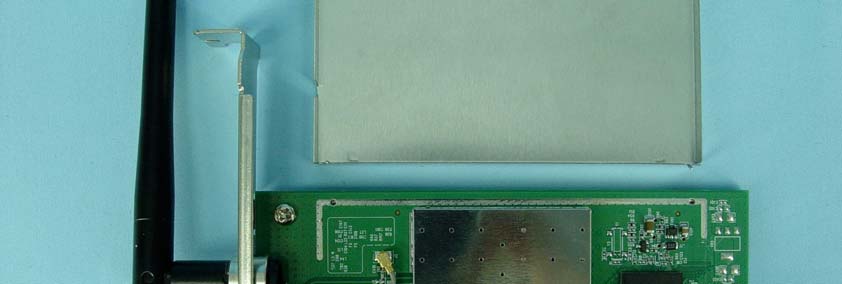

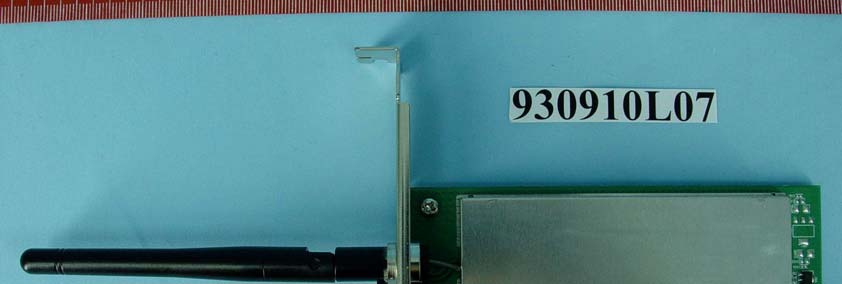

Page 1 CONSTRUCTION PHOTOS OF EUT

FCC ID Label Location

Page 2 Page 3 Page 4 Page 5 Page 6

FCC ID: Q87-WMP55AGV12 Report No.RF930910L07 Technical Description The transmitter of the EUT (Dual-Band Wireless A+G PCI Adapter) is powered by host equipment via a PCI interface. The antenna types used in this product are Dipole antenna with UFL antenna connector. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. This device is a Dual-Band Wireless A+G PCI Adapter, which operates in both of the 5GHz and 2.4GHz bands and can transmitting simultaneously, the maximum data rate could be 54Mbps. For more detailed instruction, please take a look at the user’s manual. FCC 15.407(c) states: The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude the transmission of control or signaling information or the use of repetitive codes used by certain digital technologies to complete frame or burst intervals. Applicants shall include in their application for equipment authorization a description of hoe this requirement is met” Data transmission is always initiated by software, which is then pass down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets (ACKs, CTS, PSPoll, etc...) are initiated by the MAC. There are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets are being transmitted.

FCC ID: Q87-WMP55AGV12 Report No: SA930910L07 1 RF EXPOSURE REPORT REPORT NO.: SA930910L07 MODEL NO.: WMP55AG ver. 1.2 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Cisco-Linksys, LLC ADDRESS: 121 Theory Drive, Irvine, CA 92612, U.S.A. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: 47 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID: Q87-WMP55AGV12 Report No: SA930910L07 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: Q87-WMP55AGV12 Report No: SA930910L07 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification This device is not fixed inside the host equipment, it is connected with host through wire. So it is easy to be re-located in the place where at least 20cm far away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: Q87-WMP55AGV12 Report No: SA930910L07 4 6 Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber are 1.0dBi or 1.259 (numeric) for 2.4GHz, 2.0dBi or 1.585 (numeric) for 5GHz. 6.2 Output Power Into Antenna & RF Exposure Distance: For 802.11b (2.4GHz Band): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241263.3870.01591.0 6243763.0960.01581.0 11246263.2410.01581.0 Normal mode For 802.11g (2.4GHz Band): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241235.5630.00891.0 6243735.4810.00891.0 11246235.7270.00891.0 Turbo mode For 802.11g (2.4GHz Band): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 6243728.7740.00721.0 FCC ID: Q87-WMP55AGV12 Report No: SA930910L07 5 For 802.11a Normal mode: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1518032.1370.01011.0 4524032.1370.01011.0 5526032.3590.01021.0 8532031.6230.01001.0 9574518.2810.00581.0 12580518.3650.00581.0 Turbo mode: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1521032.2850.01021.0 2525032.2850.01021.0 3529032.1370.01011.0 4576018.2390.00581.0 5580017.8240.00561.0 Note: Both of the 2.4GHz and 5GHz bands can not transmit simultaneously, the maximum power density value is 0.0159mW/cm 2 (for 2.4GHz) and 0.0102mW/cm 2 (for 5GHz) which is less than the 1mW/cm 2 limit.

FCC ID: Q87-WMP55AGV12 Report No.: RF930910L071Issued: Sep. 24, 2004 FCC TEST REPORT REPORT NO.: RF930910L07 MODEL NO.: WMP55AG ver. 1.2 RECEIVED: Mar. 08, 2004 TESTED: Mar. 08 ~ Aug. 26, 2004 APPLICANT: Cisco-Linksys, LLC ADDRESS: 121 Theory Drive, Irvine, CA 92612, U.S.A. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: 47 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 173 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA FCC ID: Q87-WMP55AGV12 Report No.: RF930910L072Issued: Sep. 24, 2004 Table of Contents 1.CERTIFICATION ......................................................................................... 5 2.SUMMARY OF TEST RESULTS................................................................. 6 2.1 MEASUREMENT UNCERTAINTY............................................................... 8 3.GENERAL INFORMATION ......................................................................... 9 3.1GENERAL DESCRIPTION OF EUT ........................................................... 9 3.2DESCRIPTION OF TEST MODES ........................................................... 10 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ........................... 11 3.4DESCRIPTION OF SUPPORT UNITS...................................................... 12 3.5CONFIGURATION OF SYSTEM UNDER TEST....................................... 13 4.TEST TYPES AND RESULTS (FOR PART 802.11b & 802.11g)............... 14 4.1CONDUCTED EMISSION MEASUREMENT ............................................ 14 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT ......................... 14 4.1.2TEST INSTRUMENTS .............................................................................. 14 4.1.3TEST PROCEDURES............................................................................... 15 4.1.4DEVIATION FROM TEST STANDARD ..................................................... 15 4.1.5TEST SETUP ............................................................................................ 16 4.1.6EUT OPERATING CONDITIONS.............................................................. 16 4.1.7TEST RESULTS........................................................................................ 16 4.2RADIATED EMISSION MEASUREMENT ................................................. 23 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT .............................. 23 4.2.2TEST INSTRUMENTS .............................................................................. 24 4.2.3TEST PROCEDURES............................................................................... 25 4.2.4DEVIATION FROM TEST STANDARD ..................................................... 25 4.2.5TEST SETUP ............................................................................................ 26 4.2.6EUT OPERATING CONDITIONS.............................................................. 26 4.2.7TEST RESULTS........................................................................................ 27 4.36dB BANDWIDTH MEASUREMENT ........................................................ 36 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT...................................... 36 4.3.2TEST INSTRUMENTS .............................................................................. 36 4.3.3TEST PROCEDURE ................................................................................. 36 4.3.4DEVIATION FROM TEST STANDARD ..................................................... 37 4.3.5TEST SETUP ............................................................................................ 37 4.3.6EUT OPERATING CONDITIONS.............................................................. 37 4.3.7TEST RESULTS........................................................................................ 38 4.4MAXIMUM PEAK OUTPUT POWER ........................................................ 48 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ......... 48 4.4.2INSTRUMENTS........................................................................................ 48 4.4.3TEST PROCEDURES............................................................................... 49 4.4.4TEST SETUP ............................................................................................ 49 4.4.5EUT OPERATING CONDITIONS.............................................................. 49 4.4.6TEST RESULTS........................................................................................ 50 FCC ID: Q87-WMP55AGV12 Report No.: RF930910L073Issued: Sep. 24, 2004 4.5POWER SPECTRAL DENSITY MEASUREMENT.................................... 52 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ................. 52 4.5.2TEST INSTRUMENTS .............................................................................. 52 4.5.3TEST PROCEDURE ................................................................................. 53 4.5.4DEVIATION FROM TEST STANDARD ..................................................... 53 4.5.5TEST SETUP ............................................................................................ 53 4.5.6EUT OPERATING CONDITION ................................................................ 53 4.5.7TEST RESULTS........................................................................................ 54 4.6BAND EDGES MEASUREMENT.............................................................. 64 4.6.1LIMITS OF BAND EDGES MEASUREMENT........................................... 64 4.6.2TEST INSTRUMENTS .................................................…

Text truncated - open the document above for the full version.

FCC ID: Q87-WMP55AGV12 Report No.: RF930910L07171Issued: Sep. 24, 2004 6. PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: Q87-WMP55AGV12 Report No.: RF930910L07172Issued: Sep. 24, 2004 RADIATED EMISSION TEST
