Q87-WPC54GSV11Wireless 11g CardBus Card

A Division of Cisco Systems, Inc. ® Model No. Model No. Wireless Quick Installation Guide Wireless 1 Quick Installation Guide Model No. WPC54GS (EU/UK) Notebook Adapter Package Contents • Wireless G Notebook Adapter • Setup CD-ROM • User Guide on CD-ROM • Quick Installation Wireless-G with SpeedBooster GHz 2 802.11g 4 , 2 1 AInsert the Setup CD-ROM into your CD-ROM drive. The Setup Wizard should run automatically, and the Welcome screen should appear. If it does not, click Start and choose Run. In the field that appears, enter D:\setup.exe (if “D” is the letter of your CD-ROM drive). Click the Install button. BAfter reading the License Agree- ment, click Next to continue the installation. CNext you will choose a wireless mode for your network. Click the Infrastructure Mode radio button if you want your wireless computers to network with computers on your wired network using an access point. Click the Ad-Hoc Mode radio button if you want multiple wireless computers to network directly with each other. In the SSID field, enter the SSID of your wireless network. The SSID must be identical for all devices in the network. The default setting is linksys (all lowercase). Click Next. DIf you chose Infrastructure Mode, go to Step E now. If you chose Ad- Hoc Mode, select the correct operating channel for your net- work. If you have Wireless-G (802.11g) and Wireless-B (802.11b) devices in your network, then keep the default Network Mode setting, Mixed Mode. If you have only A Installing the Wireless-G Notebook Adapter Software B C D 3 Wireless-G devices, select G-Only Mode. Click Next. ESelect your type of security: 64-bit WEP, 128-bit WEP, or WPA-PSK. All devices in a network must use the same type. WEP The Passphrase is used to gener- ate one or more WEP keys. It is case-sensitive and should not be longer than 16 alphanumeric characters. If you are using 64-bit WEP encryp- tion, then the key must be exactly 10 hexadecimal characters. If you are using 128-bit WEP encryption, then the key must be exactly 26 hexadecimal characters. Select the TX key and Authentica- tion method of your network. WPA-PSK SelectTKIP or AES encryption. Then, choose a passphrase between 8-63 characters. FThe Setup Wizard will ask you to review your settings before it starts to install files. Click Next if you are satisfied with your settings, or click Back to change any settings. GAfter the software has been suc- cessfully installed, click Exit. E1 G F E 2 4 ATurn off your notebook PC. BLocate an available PC card slot on your notebook PC. CWith the Adapter’s label fac- ing up, as shown in Figure C, slide it completely into the CardBus slot. DTurn on your notebook PC. EWindows will begin copying the driver files to your com- puter. If Windows asks you for the original Windows CD-ROM, insert the CD-ROM, and direct Windows to its location (e.g., D:\). FAfter installing the Adapter, the Wireless-G Notebook Adapter Wireless Network Monitor icon will appear in the system tray, which is located at the bottom right corner of your screen. If you want to use the Wireless Network Monitor to check the link information, search for available wireless networks, or make additional configura- tion changes, then double- click the icon. Windows XP users: Go to Step 3. Windows 98, Me, and 2000 users: Congratulations! The installation of the Wireless-G Notebook Adapter is complete. 2 Installing the Wireless-G Notebook Adapter into Your PC C 5 Windows XP has a built-in configura- tion tool. To configure the Adapter using the Wireless Network Monitor, you need to disable Windows XP Wireless Zero Configuration. Follow the instructions in Steps A-C. AThe Windows XP Wireless Zero Configuration icon will appear in your computer’s system tray. Double-click the icon. BThe screen that appears will show any available wireless network. Click Advanced. 3 Disabling Windows XP Wireless Zero Configuration A B 6 C C On the Wireless Networks screen, uncheck the box next to Use Windows to configure my wireless network settings. Then click OK. Windows XP Wireless Zero Configu- ration users: Congratulations! The installation of the Wireless-G Notebook Adapter is complete. WPC54GS-UK-EU-QIG-404014 JL For additional information or troubleshooting help, refer to the User Guide on the CD-ROM or the Technical Support Insert. You can also e-mail for further support. Websitehttp://www.linksys.com/international Linksys is a registered trademark or trademark of Cisco Systems, Inc. and/or its affiliates in the U.S. and certain other countries. Copyright © 2004 Cisco Systems, Inc. All rights reserved. A Division of Cisco Systems, Inc. ® Model No. Model No. Wireless Quick Installation Guide Tr åd løs 1 Installationsvejledning Modelnr. WPC54GS (DK) Notebook-adapter Pakkens indhold • Trådløs G Notebook-adapter • Installations-cd-rom • Brugervejledning på cd-rom • Installationsvejledning Trådløs-G med SpeedBooster GHz 2 802.11g 4 , 2 1 APlacer installations-cd-rom'en i cd- rom-drevet. Den guidede konfiguration køres automatisk, og skærmbilledet Welcome (Velkommen) vises. Hvis det ikke er tilfældet, skal du klikke på Start og vælgeRun (Kør). Indtast D:\setup.exe i det felt, der vises (hvis "D" er bogstavet for cd-rom-drevet). Klik på knappen Install (Installer). BKlik på Next (Næste), når du har læst licensaftalen, for at fortsætte installationen. CDerefter skal du vælge en trådløs tilstand for dit netværk. Klik på alternativknappen Infrastructure Mode (Infrastrukturtilstand), hvis dine trådløse computere skal oprette netværksforbindelse til computere i det kabelbaserede netværk ved hjælp af et access point. Klik på alternativknappen Ad-Hoc Mode (Ad-hoc-tilstand), hvis flere trådløse computere skal oprette netværksforbindelse direkte til hinanden. Indtast SSID'et for det trådløse netværk i feltet SSID. SSID'et skal være identisk for alle enheder i det trådløse netværk. Standardindstillingen er linksys (små bogstaver). Klik på Next (Næste). DHvis du vælger Infrastructure Mode (…

Text truncated - open the document above for the full version.

Cisco-Linksys, LLC 121 Theory Drive Irvine, CA 92612 (USA) Phone: ( 949 ) 823-3188 Fax: ( 949 ) 823-3002 Power of Attorney To whom it may concern: We, the undersigned Cisco-Linksys, LLC hereby authorize Advance Data Technology Corporation (ADT) of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15C approval and any communication needed with the national authority. Any and all acts carried out by ADT on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, ------------------------------------------------------------------------------- Jennifer Yu / Associate Engineer Cisco-Linksys, LLC Tel.: ( 949 ) 823-3188 Fax: ( 949 )261-8868 [email protected]

Cisco-Linksys, LLC 121 Theory Drive Irvine, CA 92612 (USA) Phone: : ( 949 ) 823-3188 Fax: ( 949 ) 823-3002 FEDERAL COMMUNICATIONS COMMISSION DECLARATION OF CONFORMITY (DoC) For the following equipment: Product Name: Wireless 11g CardBus Card Model No.: WPC54GS V1.1 Trade Name: Linksys Is herewith confirmed to be in compliance with the requirements of ANSI C63.4 & FCC part 15 regulations. The test result has been shown in the ADT test report with number D930823H05. And this compliance is subject to the following two conditions: (1) This device may not cause harmful interference and, (2) This device must accept any interference received, including interference that may cause undesired operation. The following local Manufacturer/Importer is responsible for this declaration: Cisco-Linksys, LLC (Company Name) 121 Theory Drive Irvine, CA 92612 (USA) (Company Address) TEL( 949 ) 823-3188 FAX ( 949 ) 261-8868 Jennifer Yu/ Associate Engineer (Name) / (Title) (Signature) / (Date)

Cisco-Linksys, LLC 121 Theory Drive Irvine, CA 92612 (USA) Phone: ( 949 ) 823-3188 Fax: ( 949 ) 823-3002 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request FCC ID: Q87-WPC54GSV11 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ------------------------------------------------------------------------------ Jennifer Yu / Associate Engineer Cisco-Linksys, LLC Phone: 949-823-3188 Fax: 949-261-8868 [email protected]

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

(Fig. 1) FCC ID: Q87-WPC54GSV11 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

: +() 2004/9/07 Eina 6102-81606011

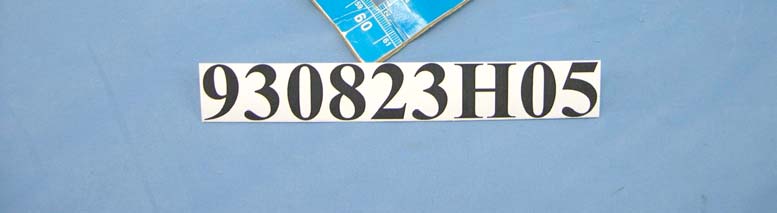

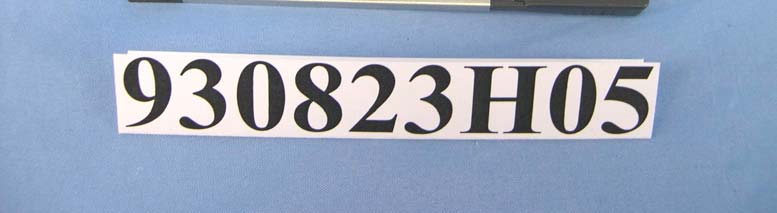

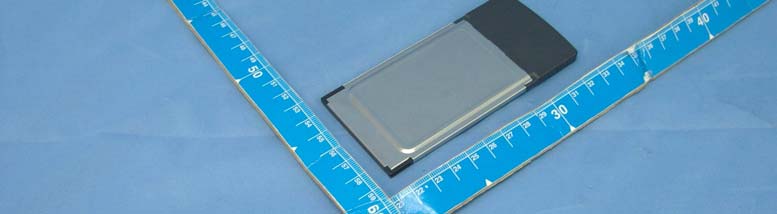

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4 Page 5

FCC ID: Q87-WPC54GSV11 Report No. 930823H05 Operational Description This device is a Wireless 11g CardBus Card, the maximum data rate could be up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT (Wireless 11g CardBus Card) is powered by host equipment. The antenna type used in this product is Chip antenna without connector. The other instruction, please have a look at the users manual.

FCC ID: Q87-WPC54GSV11 Report No.: SA 930823H051Issued: Sept. 13, 2004 SAR TEST REPORT REPORT NO.: SA930823H05 MODEL NO.: WPC54GS V1.1 RECEIVED: Jul. 29, 2004 TESTED: Jul. 29, 2004 APPLICANT: Cisco-Linksys, LLC ADDRESS: 121 Theory Drive, Irvine, CA 92612, U. S. A. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: 47 14th Lin, ChiapauTsun,Linko, Taipei, Taiwan, R.O.C. TESTLOCATION: No. 19, Hwa Ya 2nd Rd.,Kueishan,Taoyuan, Taiwan, R.O.C. This test report consists of 36 pages in total except Appendix. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA No. 2177-01 FCC ID: Q87-WPC54GSV11 Report No.: SA 930823H052Issued: Sept. 13, 2004 Table of Contents 1.CERTIFICATION........................................................................................................... 3 2.GENERAL INFORMATION........................................................................................... 4 2.1 GENERAL DESCRIPTION OF EUT............................................................................. 4 2.2 GENERAL DESCRIPTION OF APPLIED STANDARDS.............................................. 5 2.3 GENERAL INOFRMAT ION OF THE SAR SYSTEM....................................................5 2.4 GENERAL DESCRIPTION OF THE SPATIAL PEAK SAR EVALUATION................... 9 3.DESCRIPTION OF TEST MODES AND CONFIGURATIONS................................... 13 4.DESCRIPTION OF SUPPORT UNITS....................................................................... 15 5.TEST RESULTS.......................................................................................................... 16 5.1 TEST PROCEDURES ................................................................................................ 16 5.2 MEASURED SAR RESULT ........................................................................................ 17 5.3 SAR LIMITS................................................................................................................. 23 5.4 RECIPES FOR TISSUE SIMULATING LIQUIDS....................................................... 23 5.5 TEST EQUIPMENT FOR TISSUE PROPERTY......................................................... 25 6.SYSTEM VALIDATION................................................................................................ 26 6.1 TEST EQUIPMENT..................................................................................................... 26 6.2 TEST PROCEDURE................................................................................................... 26 6.3 VALIDATION RESULT................................................................................................ 28 6.4 SYSTEM VALIDATION UNCERTAINTIES................................................................. 29 7.MEASUREMENT SAR PROCEDURE UNCERTAINTIES......................................... 30 7.1 PROBE CALIBRATION UNCERTAINTY.................................................................... 30 7.2 ISOTROPY UNCERTAINTY....................................................................................... 30 7.3 BOUNDARY EFFECT UNCERTAINTY...................................................................... 31 7.4 PROBE LINEARITY UNCERTAINTY.......................................................................... 31 7.5 READOUT ELECTRONICS UNCERTAINTY............................................................. 31 7.6 RESPONSE TIME UNCERTAINTY............................................................................ 32 7.7 INTEGRATION TIME UNCERTAINTY........................................................................ 33 7.8 PROBE POSITIONER MECHANICAL TOLERANCE................................................ 33 7.9 PROBE POSITIONING ............................................................................................... 34 7.10PHANTOM UNCERTAINTY........................................................................................ 34 7.11DASY4 UNCERTAINTY BUDGET .............................................................................. 35 8.INFORMATION ON THE TESTING LABORATORIES............................................... 36 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA APPENDIX B: ADT SAR MEASUREMENT SYSTEM APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION FCC ID: Q87-WPC54GSV11 Report No.: SA 930823H053Issued: Sept. 13, 2004 1. CERTIFICATION PRODUCT : Wireless 11g CardBus Card MODEL NO. : WPC54GS V1.1 BRAND NAME : Linksys APPLICANT : Cisco-Linksys, LLC TESTED : Jul. 29, 2004 TEST ITEM : ENGINEERING SAMPLE STANDARDS : FCC Part 2(Section 2.1093), FCC OET Bulletin 65, Supplement C (01-01), RSS-102 The above equipment has been tested by Advance Data Technology Corporation, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’ s EMC characteristics under the conditions specified in this report. PREPARED BY:, DATE:Sept. 13, 2004 ( Windy Chou ) TECHNICAL ACCEPTANCE:, DATE:Sept. 13, 2004 Responsible for RF ( Ansen Lei ) APPROVED BY:, DATE:Sept. 13, 2004 ( Cody Chang, Deputy Manager ) FCC ID: Q87-WPC54GSV11 Report No.: SA 930823H054Issued: Sept. 13, 2004 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT PRODUCT Wireless 11g CardBus Card MODEL NO. WPC54GS V1.1 POWER SUPPLY 3.3Vdc powered by host equipment CLASSIFICATION Portable device, production unit MODULATION TYPE BPSK, QPSK, CCK, 16QAM, 64QAM RADIO TECHNOLOGY DSSS, OFDM TRANSFER RATE 54/48/36/24/18/12/11/9/6/5.5/2/1 Mbps FREQUENCY RANGE 2412MHz ~ 2462MHz NUMBER OF CHANNEL 11 MAXIMUN CONDUCTED OUTPUT POWER (FOR …

Text truncated - open the document above for the full version.

D3:DAE D4:2450MHZ SYSTEM VALIDATION DIPOLE

Report No. 930823H05 1 The Measurement of Conducted Spurious Emissions CONDUCTED SPURIOUS EMISSIONS MEASUREMENT 1. LIMITS OF CONDUCTED SPURIOUS EMISSIONS EASUREMENT Below 20dB of the highest emission level of operating band (in 100KHz Resolution Bandwidth, see Section 15.247(c)). Emissions which fall in the restricted bands, as defined in Section 15.205(a), must also comply with the limits specified in Section 15.209(a) (see Section 15.205(c)). 2. TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until R&S SPECTRUM ANALYZERFSP40100036Nov. 27, 2005 High pass filter 2.4G WHK3.1/18G- 10SS SN4Jun. 08, 2005 NOTE: 1.The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 3. TEST PROCEDURE The transmitter output was connected to the spectrum analyzer via a low lose cable. Set both RBW and VBW of spectrum analyzer to 100 kHz with suitable frequency span including 100 kHz bandwidth from band edge. The band edges was measured and recorded. Report No. 930823H05 2 4. TEST SETUP 5. EUT OPERATING CONDITIONS The software provided by client to enable the EUT under transmission condition continuously at lowest, middle and highest channel frequencies individually. EUT SPECTRUM ANALYZER Report No. 930823H05 3 TEST RESULTS – For 802.11b The spectrum plots are attached on the following 2 pages. It shows compliance with the requirement in part 15.247(C),.15.205 and 15.209. Report No. 930823H05 4 Ch1 Report No. 930823H05 5 Ch11 Report No. 930823H05 6 TEST RESULTS – For 802.11g The spectrum plots are attached on the following 2 pages. It shows compliance with the requirement in part 15.247(C),.15.205 and 15.209. Report No. 930823H05 7 Ch1 Report No. 930823H05 8 Ch11

FCC ID: Q87-WPC54GSV11 Report No.: RF930823H051 Issued: Sep. 07, 2004 FCC TEST REPORT REPORT NO.:RF930823H05 MODEL NO.:WPC54GS V1.1 RECEIVED:Aug. 23, 2004 TESTED:Aug. 26 to 31, 2004 APPLICANT: Cisco-Linksys, LLC ADDRESS: 121 Theory Drive Irvine, CA 92612 (USA) ISSUED BY:Advance Data Technology Corporation LAB LOCATION:No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 59 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. The test results in this report are traceable to the national or international standards. 0536 No. 2177-01 ILAC MRA FCC ID: Q87-WPC54GSV11 Report No.: RF930823H052 Issued: Sep. 07, 2004 Table of Contents 1CERTIFICATION ........................................................................................... 4 2SUMMARY OF TEST RESULTS................................................................... 5 3GENERAL INFORMATION ........................................................................... 6 3.1GENERAL DESCRIPTION OF EUT.............................................................. 6 3.2DESCRIPTION OF TEST MODES................................................................ 7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ............................... 7 3.4DESCRIPTION OF SUPPORT UNITS.......................................................... 8 3.5CONFIGURATION OF SYSTEM UNDER TEST ........................................... 8 4TEST TYPES AND RESULTS....................................................................... 9 4.1CONDUCTED EMISSION MEASUREMENT ................................................ 9 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT ............................. 9 4.1.2TEST INSTRUMENTS .................................................................................. 9 4.1.3TEST SETUP .............................................................................................. 10 4.1.4EUT OPERATING CONDITIONS.................................................................11 4.1.5TEST RESULTS.......................................................................................... 12 4.2RADIATED EMISSION MEASUREMENT ................................................... 14 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT ................................ 14 4.2.2TEST INSTRUMENTS ................................................................................ 15 4.2.3TEST PROCEDURES................................................................................. 16 4.2.4TEST SETUP .............................................................................................. 17 4.2.5EUT OPERATING CONDITIONS................................................................ 17 4.2.6TEST RESULTS.......................................................................................... 18 4.2.7TEST RESULTS – DSSS ............................................................................ 19 4.2.8TEST RESULTS - OFDM ............................................................................ 22 4.36DB BANDWIDTH MEASUREMENT.......................................................... 25 4.3.1LIMITS OF 6DB BANDWIDTH MEASUREMENT ....................................... 25 4.3.2TEST INSTRUMENTS ................................................................................ 25 4.3.3TEST PROCEDURE ................................................................................... 26 4.3.4TEST SETUP .............................................................................................. 26 4.3.5EUT OPERATING CONDITIONS................................................................ 26 4.3.6TEST RESULTS-DSSS............................................................................... 27 4.3.7TEST RESULTS-OFDM .............................................................................. 31 4.4MAXIMUM PEAK OUTPUT POWER .......................................................... 35 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ........... 35 4.4.2TEST INSTRUMENTS ................................................................................ 35 FCC ID: Q87-WPC54GSV11 Report No.: RF930823H053 Issued: Sep. 07, 2004 4.4.3TEST PROCEDURES................................................................................. 36 4.4.4TEST SETUP .............................................................................................. 36 4.4.5EUT OPERATING CONDITIONS................................................................ 36 4.4.6TEST RESULTS- DSSS.............................................................................. 37 4.4.7TEST RESULTS- OFDM ............................................................................. 38 4.5POWER SPECTRAL DENSITY MEASUREMENT...................................... 39 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ................... 39 4.5.2TEST INSTRUMENTS ................................................................................ 39 4.5.3TEST PROCEDURE ................................................................................... 40 4.5.4TEST SETUP .............................................................................................. 40 4.5.5EUT OPERATING CONDITIONS................................................................ 40 4.5.6TEST RESULTS-DSSS............................................................................... 41 4.5.7TEST RESULTS-OFDM .............................................................................. 45 4.6BAND EDGES MEASUREMENT ................................................................ 49 4.6.1LIMITS OF BAND EDGES MEASUREMENT ............................................. 49 4.6.2TEST I…

Text truncated - open the document above for the full version.

FCC ID: Q87-WPC54GSV11 Report No.: RF930823H0557 Issued: Sep. 07, 2004 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: Q87-WPC54GSV11 Report No.: RF930823H0558 Issued: Sep. 07, 2004 RADIATED EMISSION TEST
