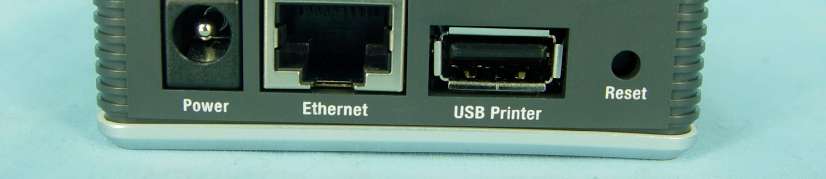

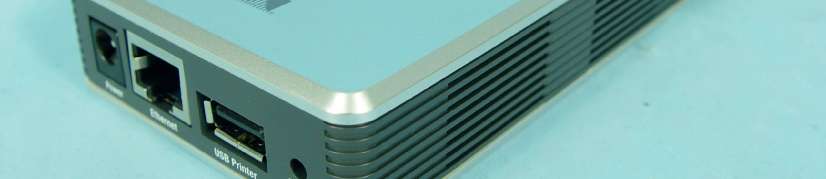

Q87-WPS54GV2Wireless-G Print Server

Wireless-G PrintServer Copyright and Trademarks Specifications are subject to change without notice. Linksys is a registered trademark or trademark of Cisco Systems, Inc. and/or its affiliates in the U.S. and certain other countries. Copyright © 2005 Cisco Systems, Inc. All rights reserved. Other brands and product names are trademarks or registered trademarks of their respective holders. How to Use this User Guide The user guide to the Wireless-G PrintServer has been designed to make understanding networking with the PrintServer easier than ever. Look for the following items when reading this User Guide: In addition to these symbols, there are definitions for technical terms that are presented like this: Also, each figure (diagram, screenshot, or other image) is provided with a figure number and description, like this: Figure numbers and descriptions can also be found in the “List of Figures” section. This exclamation point means there is a caution or warning and is something that could damage your property or the PrintServer. word: definition. This checkmark means there is a note of interest and is something you should pay special attention to while using the PrintServer. This question mark provides you with a reminder about something you might need to do while using the PrintServer. Figure 0-1: Sample Figure Description WPS54G-UG-50315C JL WARNING:This product contains chemicals, including lead, known to the State of California to cause cancer, and birth defects or other reproductive harm. Wash hands after handling. Wireless-G PrintServer Table of Contents Chapter 1: Introduction1 Welcome1 What’s in this Guide?2 Chapter 2: Getting to Know the PrintServer4 The Bottom Panel4 The Front Panel5 Chapter 3: Connecting the PrintServer6 Overview6 Connecting the PrintServer to Your Network6 Placement Options7 Chapter 4: Configuring the PrintServer Using the Setup Wizard8 Starting the Setup Wizard8 Installing the PrintServer8 Chapter 5: Windows Driver Installation19 Overview19 Using the Instructions in This Chapter19 Driver Installation20 Configuration of the PrintServer Driver22 Chapter 6: Configuring the PrintServer Using the Web-based Utility25 Overview25 The Setup Tab26 The Protocol Tab - TCP/IP27 The Protocol Tab - AppleTalk28 The Protocol Tab - NetBEUI29 The Protocol Tab - SNMP30 The Wireless Tab - Basic31 The Wireless Tab - Security32 The Printer Tab - Internet Printing33 The Printer Tab - Logical Port34 The Status Tab - Device35 The Status Tab - Printer36 The Status Tab - Wireless36 The Exit Tab36 Wireless-G PrintServer Chapter 7: Bi-Admin Management37 Overview37 Bi-Admin Installation37 Starting the Bi-Admin Management Utility39 The Bi-Admin Management Utility40 Chapter 8: Internet Printing Protocol (IPP)51 Overview51 Windows IPP Client Setup51 Appendix A: Troubleshooting56 Common Problems and Solutions56 Appendix B: Wireless Security58 Security Precautions58 Security Threats Facing Wireless Networks58 Appendix C: About Bi-Directional Printing61 Appendix D: Upgrading Firmware62 Appendix E: Windows Help63 Appendix F: Glossary64 Appendix G: Specifications71 Appendix H: Warranty Information72 Appendix I: Regulatory Information73 Appendix J: Contact Information75 Wireless-G PrintServer List of Figures Figure 2-1: PrintServer’s Bottom Panel4 Figure 2-2: PrintServer’s Front Panel5 Figure 3-1: Connect to the Ethernet Port6 Figure 3-2: Connect to the USB Port6 Figure 3-3: Connect to the Power Port6 Figure 3-4: Desktop Placement7 Figure 4-1: Welcome8 Figure 4-2: Locate Your Printer8 Figure 4-3: Disconnect USB Printer from PC9 Figure 4-4: Connect Printer to PrintServer9 Figure 4-5: Connect PrintServer to the Router10 Figure 4-6: Connect Power to PrintServer10 Figure 4-7: Connect Power to Printer11 Figure 4-8: Select PrintServer11 Figure 4-9: Password12 Figure 4-10: Basic Settings12 Figure 4-11: IP Settings13 Figure 4-12: Set PrintServer’s Password13 Figure 4-13: Wireless Settings14 Figure 4-14: Wireless Security Settings - WPA14 Figure 4-15: Wireless Security Settings - WEP15 Figure 4-16: Confirmation15 Figure 4-17: Remove Power from PrintServer16 Figure 4-18: Disconnect Network Cable16 Figure 4-19: Reconnect Power to PrintServer17 Figure 4-20: Wireless is Now Active17 Figure 4-21: Installation of PrintServer Driver18 Figure 5-1: Welcome20 Figure 5-2: Driver Setup Welcome20 Figure 5-3: Choose Destination Location20 Figure 5-4: Select Program Folder21 Wireless-G PrintServer Figure 5-5: Setup Complete21 Figure 5-6: Wireless-G PrintServer Setup22 Figure 5-7: Wireless-G PrintServer Diagnostic - Check Printer Driver Installation22 Figure 5-8: Printer Driver Not Installed22 Figure 5-9: Wireless-G PrintServer Diagnostic - Check Network Status23 Figure 5-10: Wireless-G PrintServer Diagnostic - Congratulations23 Figure 5-11: PrintServer Diagnostic Icon24 Figure 5-12: PrintServer Info24 Figure 5-13: Right-click Icon24 Figure 6-1: Setup Tab26 Figure 6-2: Protocol Tab - TCP/IP27 Figure 6-3: Protocol Tab - AppleTalk28 Figure 6-4: Protocol Tab - NetBEUI29 Figure 6-5: Protocol Tab - SNMP30 Figure 6-6: Wireless Tab - Basic31 Figure 6-7: Wireless Tab - Security (WEP)32 Figure 6-8: Wireless Tab - Security (WPA)32 Figure 6-9: Printer - Internet Printing33 Figure 6-10: Printer - Logical Port34 Figure 6-11: Status Tab - Device35 Figure 6-12: Firmware Upgrade35 Figure 6-13: Status Tab - Printer36 Figure 6-14: Status Tab - Wireless36 Figure 6-15: Exit36 Figure 7-1: Bi-Admin Setup Welcome37 Figure 7-2: Choose Destination Location38 Figure 7-3: Select Program Folder38 Figure 7-4: Connected Protocol39 Figure 7-5: Searching for Device39 Figure 7-6: Bi-Admin Management Utility40 Figure 7-7: Device Information40 Figure 7-8: Printer Status41 Figure 7-9: Configuration - System42 Wireless-G PrintServer Figure 7-10: Configuration - TCP/IP43 Figure 7-11: Configuration - AppleTalk44 Figure 7-12: Configuration - NetBEUI45 Figure 7-13: Configuration - Internet Printing46 Figure 7-14: Configuration - Port47 Figure 7-15: Configuration …

Text truncated - open the document above for the full version.

34 Chapter 6: Configuring the PrintServer Using the Web-based Utility The Printer Tab - Logical Port Wireless-G PrintServer The Printer Tab - Logical Port The Logical Printers tab contains the logical printer settings of the PrintServer. Configure them for each Logical Printer. The PrintServer has three logical or virtual printer ports. For example, you can have three different configurations for your USB printer: Logical Printer 1 for landscape orientation, Logical Printer 2 for double-sided copies, and Logical Printer 3 for manual feed. Then you will map Logical Printers 1, 2, and 3 to the physical printer on the PrintServer’s USB port. Select Printer Logical Printer No. From the Logical Printer Port No: drop-down menu, select the number (1-3) of the printer you wish to configure. Click the Get Data button to update the display with the current data for the selected logical printer. Details Pre-string (Hex). Enter the printer control string (in hexadecimal characters) to be sent to the printer before each print job. This string cannot exceed 30 characters. Post String (Hex). Enter the printer control string (in hexadecimal characters) to be sent to the printer after each print job. This string cannot exceed 30 characters. Convert LF to CR+LF. If checked, LF (line feed) characters are changed to CR+LF (carriage return + line feed). Click the Save button to apply your changes, or click Cancel to cancel your changes. Figure 6-10: Printer - Logical Port 35 Chapter 6: Configuring the PrintServer Using the Web-based Utility The Status Tab - Device Wireless-G PrintServer The Status Tab - Device The Device tab allows you to view information about the PrintServer. Server Details The PrintServer’s settings and status information are displayed here. No values can be changed on this screen. This screen is for information only. Upgrade. If you want to upgrade the PrintServer’s firmware, follow these instructions: 1. Visit www.linksys.com and download the firmware upgrade file for the Wireless-G PrintServer. 2. Extract the file on your computer. 3. On the Device screen, click the Upgrade button. 4. On the Firmware Upgrade screen, enter the location of the extracted firmware file, or click the Browse button to find this file. 5. Click the Start Upgrade button, and follow the on-screen instructions. On the Device screen, click the Refresh button to retrieve this information again. Figure 6-11: Status Tab - Device download: to receive a file transmitted over a network firmware: the programming code that runs a networking device upgrade: to replace existing software or firmware with a newer version Figure 6-12: Firmware Upgrade 36 Chapter 6: Configuring the PrintServer Using the Web-based Utility The Status Tab - Printer Wireless-G PrintServer The Status Tab - Printer The Printer tab allows you to view information about the Printers. No values can be changed on this screen. This screen is for information only. Port 1 (USB Port) The port’s status information is displayed here. No values can be changed on this screen. This screen is for information only. Print Test Page. Click the Print Test Page button to print a test page on the connected printer. Clicking the Refresh button causes the PrintServer to retrieve the status information again. The Status Tab - Wireless The Wireless tab allows you to view information about the PrintServer’s wireless connection. No values can be changed on this screen. This screen is for information only. Link Info Settings and current transmission rate for the wireless connection are displayed here. Throughput The throughput information for the wireless connection is displayed here. Clicking the Refresh button causes the PrintServer to retrieve information about the wireless connection again. The Exit Tab This tab is used exclusively for exiting the Web-based Utility. Select the Exit tab, and a new screen will appear. Click the Yes button to exit the Utility, or click No to continue using the Utility. Figure 6-14: Status Tab - Wireless Figure 6-15: Exit Figure 6-13: Status Tab - Printer 37 Wireless-G PrintServer Chapter 7: Bi-Admin Management Overview Chapter 7: Bi-Admin Management Overview If you use Windows, then you can manage the PrintServer using its web-based utility (see “Chapter 6: Configuring the PrintServer Using the Web-based Utility”) or an advanced utility program called Bi-Admin. (If you use a Macintosh or other non-Windows operating system, you can manage the PrintServer only by using its web- based utility.) Bi-Admin is provided on the PrintServer’s Setup CD-ROM and is fully compatible with Windows 98, Me, 2000, and XP. It allows you to change the PrintServer’s internal settings, check on the unit’s status, and perform basic diagnostic tests. Note that the Bi-Admin program must be installed only on the network administrator’s computer. First, install Bi-Admin on your computer. Then, you will be able to use the management utility. Bi-Admin Installation 1. Make sure you have no programs or applications running on your computer. 2. If you haven’t already done so, insert the Setup CD-ROM into the computer’s CD-ROM drive. The Setup CD- ROM should run automatically. Click Exit to exit the Setup Wizard. 3. Then click the Start button and choose Run. In the box that appears, enter D:\Utility\Setup.exe (if “D” is the letter of your CD-ROM drive). 4. The Welcome screen of the Bi-Admin Setup program will appear first. Click Next to continue with the Bi- Admin installation, or click Cancel to quit the setup program, and then close the open programs. Figure 7-1: Bi-Admin Setup Welcome 38 Wireless-G PrintServer Chapter 7: Bi-Admin Management Bi-Admin Installation 5. The Choose Destination Location screen will appear. Choose the location where the B-Admin folder will be installed. To install the driver in the default location, click Next. If you want the folder to be installed in a different location, click the Browse button and select the location. Then click Next. Click Ba…
