Q87-WPSM54GWireless-G PrintServer W/ Multifunction

Model No. PrintServer with Wireless-G WPSM54G User Guide WIRELESS GHz 2.4 802.11g Multifunction Printer Support Wireless-G PrintServer with Multifunction Printer Support Copyright and Trademarks Specifications are subject to change without notice. Linksys is a registered trademark or trademark of Cisco Systems, Inc. and/or its affiliates in the U.S. and certain other countries. Copyright © 2006 Cisco Systems, Inc. All rights reserved. Other brands and product names are trademarks or registered trademarks of their respective holders. How to Use this User Guide The user guide to the Wireless-G PrintServer with Multifunction Printer Support has been designed to make understanding networking with the PrintServer easier than ever. Look for the following items when reading this User Guide: In addition to these symbols, there are definitions for technical terms that are presented like this: Also, each figure (diagram, screenshot, or other image) is provided with a figure number and description, like this: Figure numbers and descriptions can also be found in the “List of Figures” section. This exclamation point means there is a caution or warning and is something that could damage your property or the PrintServer. word: definition. This checkmark means there is a note of interest and is something you should pay special attention to while using the PrintServer. This question mark provides you with a reminder about something you might need to do while using the PrintServer. Figure 0-1: Sample Figure Description WPSM54G-UG-60801NC JL WARNING:This product contains chemicals, including lead, known to the State of California to cause cancer, and birth defects or other reproductive harm. Wash hands after handling. Wireless-G PrintServer with Multifunction Printer Support Table of Contents Chapter 1: Introduction1 Welcome1 What’s in this Guide?2 Chapter 2: Getting to Know the PrintServer4 The Bottom Panel4 The Front Panel5 Chapter 3: Connecting the PrintServer6 Overview6 Connecting the PrintServer to Your Network6 Placement Options7 Chapter 4: Configuring the PrintServer Using the Setup Wizard8 Installation8 Chapter 5: Windows Driver Installation20 Overview20 Installation20 Configuration of the PrintServer Driver22 Chapter 6: Configuring the PrintServer Using the Web-based Utility25 Overview25 The Setup Tab26 The Protocol Tab - TCP/IP27 The Protocol Tab - AppleTalk28 The Protocol Tab - NetBEUI29 The Protocol Tab - SNMP30 The Wireless Tab - Basic31 The Wireless Tab - Security32 The Printer Tab - Internet Printing33 The Printer Tab - Logical Port34 The Status Tab - Device35 The Status Tab - Printer36 The Status Tab - Wireless36 The Exit Tab36 Wireless-G PrintServer with Multifunction Printer Support Chapter 7: Bi-Admin Management37 Overview37 Bi-Admin Installation37 Starting the Bi-Admin Management Utility39 The Bi-Admin Management Utility40 Chapter 8: Internet Printing Protocol (IPP)51 Overview51 Windows IPP Client Setup51 Appendix A: Troubleshooting56 Common Problems and Solutions56 Appendix B: Wireless Security58 Security Precautions58 Security Threats Facing Wireless Networks58 Appendix C: About Bi-Directional Printing61 Appendix D: Upgrading Firmware62 Appendix E: Windows Help63 Appendix F: Glossary64 Appendix G: Specifications69 Appendix H: Warranty Information70 Appendix I: Regulatory Information71 Appendix J: Contact Information73 Wireless-G PrintServer with Multifunction Printer Support List of Figures Figure 2-1: PrintServer’s Bottom Panel4 Figure 2-2: PrintServer’s Front Panel5 Figure 3-1: Connect to the USB Port6 Figure 3-2: Connect to the Ethernet Port6 Figure 3-3: Desktop Placement7 Figure 4-1: Welcome8 Figure 4-2: Set up PrintServer8 Figure 4-3: Disconnect the USB Printer cable and power9 Figure 4-4: Connect the PrintServer to the Printer9 Figure 4-5: Connect the PrintServer10 Figure 4-6: Connect the PrintServer10 Figure 4-7: Reconnect the Printer11 Figure 4-8: Choose PrintServer11 Figure 4-9: Password12 Figure 4-10: Configure IP Settings12 Figure 4-11: Set PrintServer Password13 Figure 4-12: Select Wireless Network13 Figure 4-13: Configure Wireless Settings - SSID14 Figure 4-14: Select Wireless Network14 Figure 4-15: Wireless Security Settings - Disabled15 Figure 4-16: Wireless Security - WEP15 Figure 4-17: Wireless Security - WPA-Pre-Shared16 Figure 4-18: Confirm New Settings16 Figure 4-19: Disconnect power to the PrintServer17 Figure 4-20: Disconnect Network17 Figure 4-21: Reconnect the PrintServer18 Figure 4-22: PrintServer connection complete18 Figure 4-23: Continue to Set up Computer19 Figure 5-1: Welcome21 Figure 5-2: Set up Computer21 Figure 5-3: Select Printer22 Wireless-G PrintServer with Multifunction Printer Support Figure 5-4: Check Print Driver22 Figure 5-5: Wireless-G PrintServer Diagnostic - Check Printer Driver Installation23 Figure 5-6: Printer Driver Not Installed23 Figure 5-7: Print Test Page23 Figure 5-8: PrintServer Diagnostic Icon24 Figure 5-9: PrintServer Info24 Figure 5-10: Right-click Icon24 Figure 6-1: Setup Tab26 Figure 6-2: Protocol Tab - TCP/IP27 Figure 6-3: Protocol Tab - AppleTalk28 Figure 6-4: Protocol Tab - NetBEUI29 Figure 6-5: Protocol Tab - SNMP30 Figure 6-6: Wireless Tab - Basic31 Figure 6-7: Wireless Tab - Security (WEP)32 Figure 6-8: Wireless Tab - Security (WPA)32 Figure 6-9: Printer - Internet Printing33 Figure 6-10: Printer - Logical Port34 Figure 6-11: Status Tab - Device35 Figure 6-12: Firmware Upgrade35 Figure 6-13: Status Tab - Printer36 Figure 6-14: Status Tab - Wireless36 Figure 6-15: Exit36 Figure 7-1: Welcome37 Figure 7-2: Bi-Admin Setup Welcome37 Figure 7-3: Choose Destination Location38 Figure 7-4: Select Program Folder38 Figure 7-5: Connected Protocol39 Figure 7-6: Searching for Device39 Figure 7-7: Bi-Admin Management Utility40 Figure 7-8: Device Information40 Figure 7-9: Printer Status41 Figure 7-10: Configuration - System42 Figure 7-11: Configuration - TCP/IP43 Wireless-G PrintServer with Multifunction Printer Support Figure 7-12: Con…

Text truncated - open the document above for the full version.

Cisco-Linksys LLC 121 Theory Drive Irvine, CA 92617 (USA) Phone: 949-261-1288 Fax: 949-823-3002 Date: April 14, 2006 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize the Taiwan office of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS TW, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by CCS TW on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS TW as our agent, we still recognize that we are responsible to: a) Comply with the relevant provisions of the certification program; b) Make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) Make claims regarding certification only in respect of the scope for which certification has been granted; d) Do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) Upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) Use certification only to indicate the products are certified as being in conformity with specified standards; g) Endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) Ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) Keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) Take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) Document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, ___________________________ Jennifer Yu / Product Engineer July 24, 2006

Cisco-Linksys LLC 121 Theory Drive Irvine, CA 92617 (USA) Phone: 949-261-1288 Fax: 949-823-3002 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Date: July 24, 2006 Subject: Request for Confidentiality FCC ID: Q87-WPSM54G To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Theory of Operation ANT specification Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until 2006/9/26. External Photos Internal Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Sincerely yours, ___________________________ Jennifer Yu / Product Engineer July 24, 2006

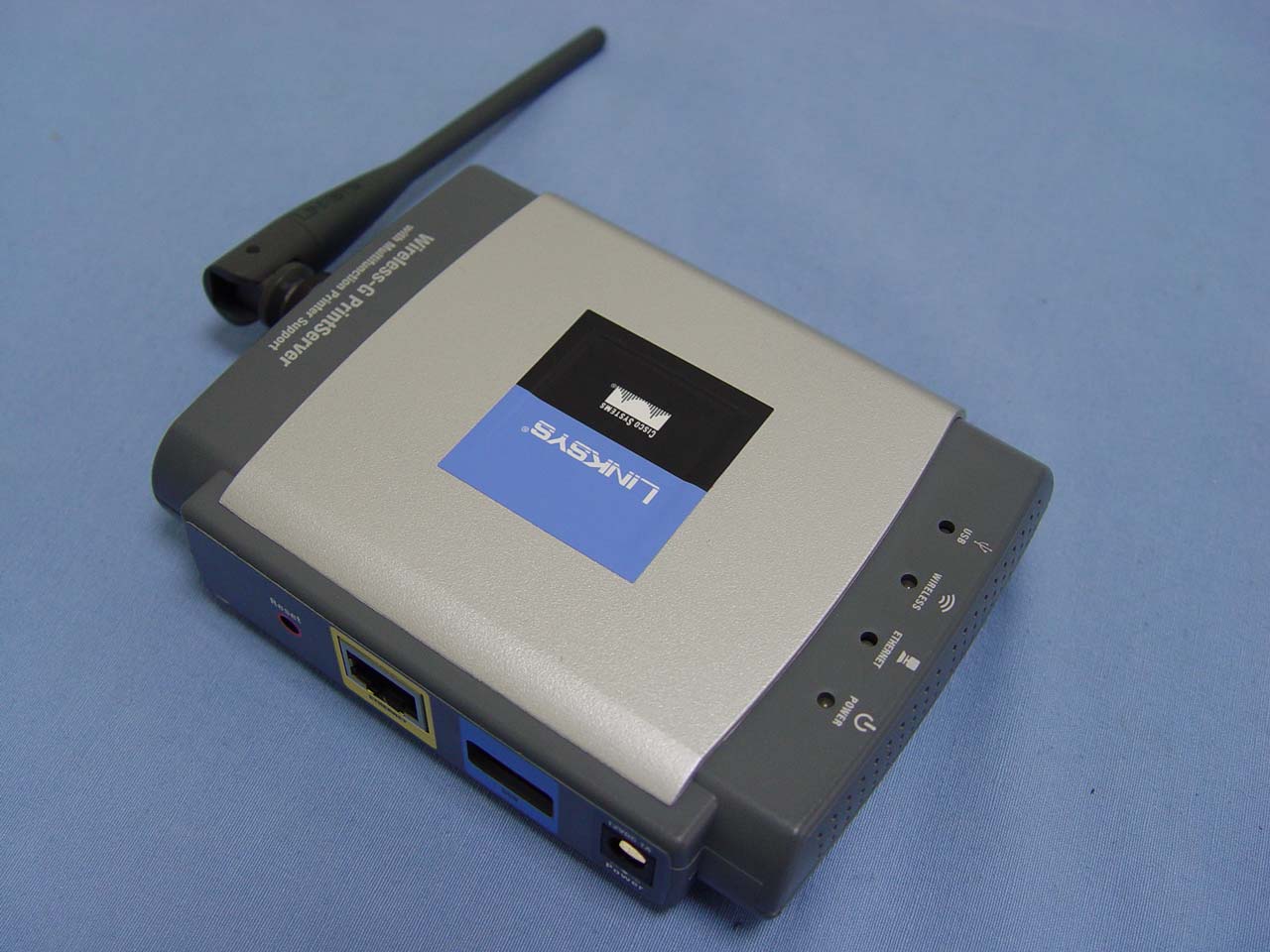

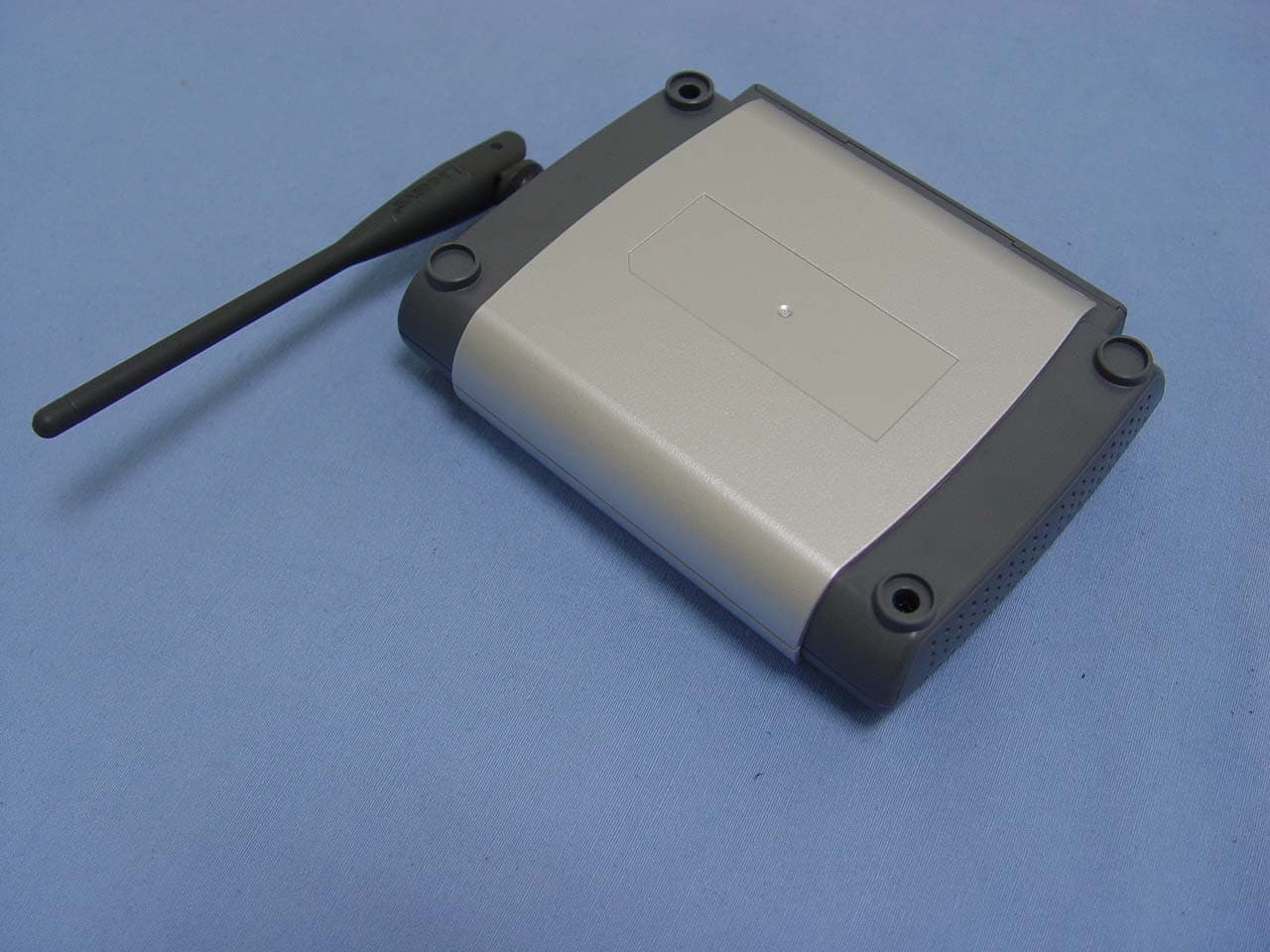

Compliance Certification Services Inc. Report No: 60427201 Date of Issue: July 11, 2006 Page 1 Total Page: 6 Rev. 00 EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No: 60427201 Date of Issue: July 11, 2006 Page 2 Rev. 00

Compliance Certification Services Inc. Report No: 60427201 Date of Issue: July 11, 2006 Page 3 Rev.00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No: 60427201 Date of Issue: July 11, 2006 Page 4 Rev.00 Compliance Certification Services Inc. Report No: 60427201 Date of Issue: July 11, 2006 Page 5 Rev.00 Compliance Certification Services Inc. Report No: 60427201 Date of Issue: July 11, 2006 Page 6 Rev.00

Compliance Certification Services Inc. Report No.: 60427201-RP1 FCC ID: Q87-WPSM54G Date of Issue: July 11, 2006 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 59 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Wireless-G PrintServer with Multifunction Printer Support Model: WPSM54G Trade Name: Linksys Issued to Cisco-Linksys LLC 121 Theory Drive Irvine, CA 92617(USA) Issued by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. http://www.ccsemc.com.tw [email protected] Compliance Certification Services Inc. Report No.: 60427201-RP1 FCC ID: Q87-WPSM54G Date of Issue: July 11, 2006 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION....................................................................................................3 2. EUT DESCRIPTION ...........................................................................................................................4 3. TEST METHODOLOGY ....................................................................................................................5 3.1 EUT CONFIGURATION........................................................................................................................5 3.2 EUT EXERCISE....................................................................................................................................5 3.3 GENERAL TEST PROCEDURES.............................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS........................................................6 3.5 DESCRIPTION OF TEST MODES...........................................................................................................7 4. INSTRUMENT CALIBRATION........................................................................................................8 4.1 MEASURING INSTRUMENT CALIBRATION......................................................................................8 4.2 MEASUREMENT EQUIPMENT USED.........................................................................................8 5. FACILITIES AND ACCREDITATIONS ..........................................................................................9 5.1 FACILITIES .........................................................................................................................................9 5.2 EQUIPMENT........................................................................................................................................9 5.3 TABLE OF ACCREDITATIONS AND LISTINGS.....................................................................................10 6. SETUP OF EQUIPMENT UNDER TEST .......................................................................................11 6.1 SETUP CONFIGURATION OF EUT.......................................................................................................11 6.2 SUPPORT EQUIPMENT ...............................................................................................................11 7. FCC PART 15.247 REQUIREMENTS.............................................................................................12 7.1 6DB BANDWIDTH.............................................................................................................................12 7.2 PEAK POWER....................................................................................................................................16 7.3 AVERAGE POWER............................................................................................................................20 7.4 BAND EDGES MEASUREMENT ................................................................................................24 7.5 PEAK POWER SPECTRAL DENSITY....................................................................................................33 7.6 SPURIOUS EMISSIONS ................................................................................................................38 7.7 POWERLINE CONDUCTED EMISSIONS...............................................................................................52 APPENDIX I RADIO FREQUENCY EXPOSURE ...............................................................................55 APPENDIX II PHOTOGRAPHS OF TEST SETUP .............................................................................57 Compliance Certification Services Inc. Report No.: 60427201-RP1 FCC ID: Q87-WPSM54G Date of Issue: July 11, 2006 Page 3 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: Cisco-Linksys LLC 121 Theory Drive Irvine, CA 92617(USA) Equipment Under Test: Wireless-G PrintServer with Multifunction Printer Support Trade Name: Linksys Model: WPSM54G Date of Test: July 4 ~ 7, 2006 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Gavin Lim Amanda Wu Section Manager Section Manager Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance Certification Services Inc. Report No.: 60427201-RP1 FCC ID: Q87-WPSM54G Date of Issue: July 11, 2006 Page 4 Rev. 00 2. EUT DESCRIPTION Produ…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: 60427201-RP1 FCC ID: Q87-WPSM54G Date of Issue: July 11, 2006 Page 57 Rev. 00 APPENDIX II PHOTOGRAPHS OF TEST SETUP Conducted Emissions Setup Photos Compliance Certification Services Inc. Report No.: 60427201-RP1 FCC ID: Q87-WPSM54G Date of Issue: July 11, 2006 Page 58 Rev. 00 Radiated Emissions Setup Photos Compliance Certification Services Inc. Report No.: 60427201-RP1 FCC ID: Q87-WPSM54G Date of Issue: July 11, 2006 Page 59 Rev. 00 Powerline Conducted Emissions Setup Photos
