Q87-WRE54GV3Wireless-G Range Expander

A Division of Cisco Systems, Inc. ® Model No. Range Expander Wireless-G WRE54G User Guide WIRELESS GHz 2.4 802.11g Wireless-G Range Expander Copyright and Trademarks Specifications are subject to change without notice. Linksys is a registered trademark or trademark of Cisco Systems, Inc. and/or its affiliates in the U.S. and certain other countries. Copyright © 2005 Cisco Systems, Inc. All rights reserved. Other brands and product names are trademarks or registered trademarks of their respective holders. How to Use this User Guide The user guide to the Wireless-G Range Expander has been designed to make understanding networking with the Range Expander easier than ever. Look for the following items when reading this User Guide: In addition to these symbols, there are definitions for technical terms that are presented like this: Also, each figure (diagram, screenshot, or other image) is provided with a figure number and description, like this: Figure numbers and descriptions can also be found in the “List of Figures” section. This exclamation point means there is a caution or warning and is something that could damage your property or the Range Expander. word: definition. This checkmark means there is a note of interest and is something you should pay special attention to while using the Range Expander. This question mark provides you with a reminder about something you might need to do while using the Range Expander. Figure 0-1: Sample Figure Description WRE54G_V2-UG-50114NC JL WARNING:This product contains chemicals, including lead, known to the State of California to cause cancer, and birth defects or other reproductive harm. Wash hands after handling. Wireless-G Range Expander Table of Contents Chapter 1: Introduction1 Welcome1 What’s in this User Guide?2 Chapter 2: Planning Your Wireless Network4 Network Topology4 Roaming4 Network Layout5 Chapter 3: Getting to Know the Wireless-G Range Expander6 The Front Panel6 The Side Panel6 The Recess for the Power Plate7 Chapter 4: Connecting the Wireless-G Range Expander8 Overview8 Connection to a Wired Network for Setup8 Connection to a Wireless Network for Setup9 Connection for Auto Configuration9 Chapter 5: Setting Up the Wireless-G Range Expander10 Overview10 Running the Setup Wizard10 Moving the Range Expander16 Chapter 6: Configuring the Wireless-G Range Expander17 Overview17 Accessing the Web-based Utility17 The Setup Tab18 Appendix A: Troubleshooting23 Common Problems and Solutions23 Frequently Asked Questions23 Appendix B: Wireless Security27 Security Precautions27 Security Threats Facing Wireless Networks27 Appendix C: Upgrading Firmware30 Wireless-G Range Expander Appendix D: Windows Help31 Appendix E: Glossary32 Appendix F: Specifications36 Appendix G: Warranty Information37 Appendix H: Regulatory Information38 Appendix I: Contact Information40 Wireless-G Range Expander List of Figures Figure 3-1: Front Panel6 Figure 3-1: Front Panel with Ethernet Network Cable Connected6 Figure 3-2: Recess for the Power Plate7 Figure 4-1: Connecting the Ethernet Network Cable8 Figure 4-2: Using the Power Plate with Cord8 Figure 4-3: Using the Power Plate with Plug8 Figure 4-4: Using the Power Plate with Cord9 Figure 4-5: Using the Power Plate with Plug9 Figure 5-1: Setup Wizard’s Welcome Screen10 Figure 5-2: Check Your Wireless Network10 Figure 5-3: Confirm Wireless Network Settings11 Figure 5-4: Wireless Network Not Found11 Figure 5-5: Choose the Access Point11 Figure 5-6: Configure Wireless Settings Manually11 Figure 5-7: WEP Security Settings12 Figure 5-8: WPA Security Settings12 Figure 5-9: Choose the Range Expander13 Figure 5-10: Enter the Password13 Figure 5-11: Configure Network Address Settings14 Figure 5-12: MAC Address of Access Point or Wireless Router (WRE54G v1 Only)14 Figure 5-13: Confirmation Screen15 Figure 5-14: Congratulations Screen15 Figure 5-15: Using the Power Plate with Cord16 Figure 5-16: Using the Power Plate with Plug16 Figure 6-1: Login Screen17 Figure 6-2: Setup Tab - Basic Setup18 Figure 6-3: WPA Security19 Wireless-G Range Expander Figure 6-4: WEP Security19 Figure 6-5: Setup Tab - Password21 Figure 6-6: File Download21 Figure 6-7: Setup Tab - Help22 Figure 6-8: Firmware Upgrade22 Figure C-1: Upgrade Firmware30 1 Chapter 1: Introduction Welcome Wireless-G Range Expander Chapter 1: Introduction Welcome Thank you for choosing the Wireless-G Range Expander. This Range Expander will allow you to expand your network beyond the range of your current access point or wireless router. How does the Range Expander do this? Once on your network, the Range Expander repeats the signal to all devices within its range. By placing the Range Expander at the furthest edge of your access point or wireless router’s signal, it could conceivably double the area of your network. But what does all of this mean? Networks are useful tools for sharing computer resources. You can access one printer from different computers and access data located on another computer's hard drive. Networks are even used for playing multiplayer video games. So, networks are not only useful in homes and offices, they can also be fun. PCs equipped with wireless cards and adapters can communicate without cumbersome cables. By sharing the same wireless settings, within their transmission radius, they form a wireless network. While access points and wireless routers bridge wireless networks and wired networks, the Range Expander can then take that signal for networks that use the 802.11b and 802.11g standards and extend it beyond its current range. Use the instructions in this Guide to help you connect the Range Expander, set it up, and configure it to expand the range of your Wireless-G and Wireless-B networks. These instructions should be all you need to get the most out of the Range Expander. 802.11g: an IEEE wireless networking standard that specifies a maximum data transfer rate of 54Mbps, an operating frequency of 2.4GHz, and backward compatibility with 802.11b devi…

Text truncated - open the document above for the full version.

Cisco-Linksys LLC 121 Theory Drive Irvine, CA 92617 (USA) Phone: 949-261-1288 Fax: 949-823-3002 Date: February 10, 2006 FCC ID: Q87-WRE54GV3 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, __________________________________________ Jennifer Yu / Associate Engineer Cisco-Linksys LLC Tel.: ( 949 ) 823-3188 Fax: ( 949 ) 823-3002 [email protected]

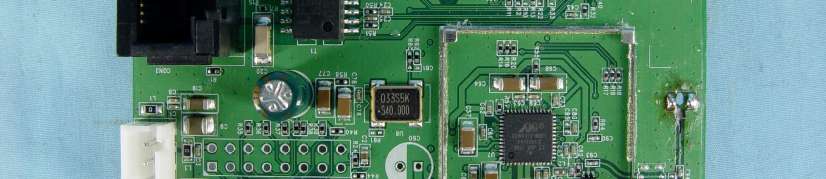

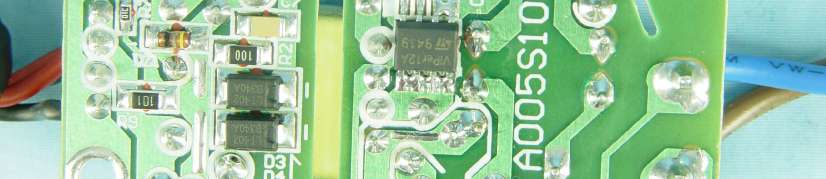

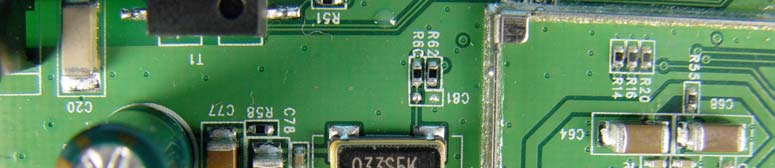

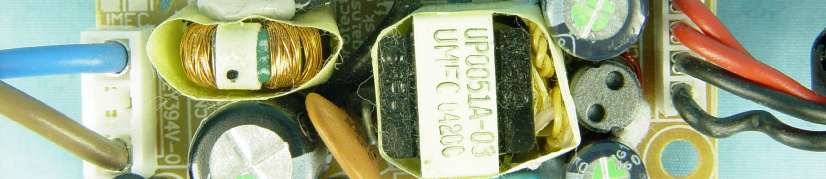

Page 3 Page 4 Page 5 Page 6 Page 7 Page 8

FCC ID: Q87-WRE54GV3 Report No. RF941220L09 Operational Description This device is a Wireless-G Range Expander, which operates in the 2.4GHz frequency spectrum with throughput of up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT is powered by AC Adapter. The antenna is Dipole antenna without antenna connector. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. The other instruction, please have a look at the users manual.

FCC ID: Q87-WRE54GV3 Report No: SA941220L09 1 RF EXPOSURE REPORT REPORT NO.: SA941220L09 MODEL NO.: WRE54G ver. 3 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Cisco-Linksys LLC ADDRESS: 121 Theory Drive Irvine, CA 92617 (USA) ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID: Q87-WRE54GV3 Report No: SA941220L09 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: Q87-WRE54GV3 Report No: SA941220L09 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance r. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: Q87-WRE54GV3 Report No: SA941220L09 4 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 2.0dBi or 1.585(numeric). 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: 802.11b DSSS modulation Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241225.5270.0081.000 6243725.5860.0081.000 11246225.1770.0081.000 802.11g OFDM modulation Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241232.5090.0101.000 6243741.3050.0131.000 11246240.7380.0131.000

Report No.: RF941220L091Report Format Version 2.0.4 FCC TEST REPORT REPORT NO.: RF941220L09 MODEL NO.: WRE54G ver. 3 RECEIVED: Dec. 13, 2005 TESTED: Dec. 13, 2005 ~ Jan. 26, 2006 ISSUED: Feb. 07, 2006 APPLICANT: Cisco-Linksys LLC ADDRESS: 121 Theory Drive Irvine, CA 92617 (USA) ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: 47 14 th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Kueishan, Taoyuan, Taiwan, R.O.C. This test report consists of 63 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. No. 2177-01 Report No.: RF941220L092Report Format Version 2.0.4 Table of Contents 1CERTIFICATION...........................................................................................................4 2SUMMARY OF TEST RESULTS ..................................................................................5 2.1MEASUREMENT UNCERTAINTY ...............................................................................5 3GENERAL INFORMATION ...........................................................................................6 3.1GENERAL DESCRIPTION OF EUT.............................................................................6 3.2DESCRIPTION OF TEST MODES...............................................................................7 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST ..........................................................7 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ...............................8 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS............................................10 3.4DESCRIPTION OF SUPPORT UNITS .......................................................................10 4TEST TYPES AND RESULTS .................................................................................... 11 4.1CONDUCTED EMISSION MEASUREMENT .............................................................11 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT........................................... 11 4.1.2 TEST INSTRUMENTS................................................................................................ 11 4.1.3 TEST PROCEDURES ................................................................................................12 4.1.4 DEVIATION FROM TEST STANDARD ......................................................................12 4.1.5 TEST SETUP .............................................................................................................13 4.1.6 EUT OPERATING CONDITIONS ...............................................................................13 4.1.7 TEST RESULTS .........................................................................................................14 4.2RADIATED EMISSION MEASUREMENT ..................................................................20 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT................................................20 4.2.2 TEST INSTRUMENTS................................................................................................21 4.2.3 TEST PROCEDURES ................................................................................................22 4.2.4 DEVIATION FROM TEST STANDARD ......................................................................22 4.2.5 TEST SETUP .............................................................................................................23 4.2.6 EUT OPERATING CONDITIONS ...............................................................................23 4.2.7 TEST RESULTS .........................................................................................................24 4.36dB BANDWIDTH MEASUREMENT .........................................................................31 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT .......................................................31 4.3.2 TEST INSTRUMENTS................................................................................................31 4.3.3 TEST PROCEDURE...................................................................................................32 4.3.4 DEVIATION FROM TEST STANDARD ......................................................................32 4.3.5 TEST SETUP .............................................................................................................32 4.3.6 EUT OPERATING CONDITIONS ...............................................................................32 4.3.7 TEST RESULTS .........................................................................................................33 4.4MAXIMUM PEAK OUTPUT POWER .........................................................................39 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT..........................39 4.4.2 TEST INSTRUMENTS................................................................................................39 4.4.3 TEST PROCEDURES ................................................................................................40 4.4.4 DEVIATION FROM TEST STANDARD ......................................................................40 4.4.5 TEST SETUP .............................................................................................................40 4.4.6 EUT OPERATING CONDITIONS ...............................................................................40 Report No.: RF941220L093Report Format Version 2.0.4 4.4.7 TEST RESULTS .........................................................................................................41 4.5POWER SPECTRAL DENSITY MEASUREMENT ....................................................42 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ..................................42 …

Text truncated - open the document above for the full version.

Report No.: RF941220L0960Report Format Version 2.0.4 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST Report No.: RF941220L0961Report Format Version 2.0.4 RADIATED EMISSION TEST
