Q87-WRK54GV3Wireless-G Broadband Router with 4-Port Switch

A Division of Cisco Systems, Inc. ® Model No. Wireless 1 Quick Installation Guide WRK54G (EU/LA/UK) Broadband Router Wireless-G Package Contents* • Wireless-G Broadband Router • Setup CD-ROM (with Symantec Internet Security) • User Guide on CD-ROM (English Only) • Power Adapter • Ethernet Network Cable • Quick Installation Guide *other items may be included GHz 2 802.11g 4 , 2 1 ABefore you begin, make sure that you have the setup information for your specific type of Internet connection. The installation technician from your ISP should have left this information with you after installing your broadband connection. If not, you can call your ISP to request the settings. BMake sure that all of your network’s hardware is powered off, including the Router, PCs, and cable or DSL modem. CConnect one end of an Ethernet network cable to one of the ports (labeled 1-4) on the back of the Router, and the other end to an Ethernet port on a PC. DRepeat step C to connect additional PCs or other network devices to the Router. Connect the Broadband Router C 3 EConnect a different Ethernet network cable from your cable or DSL modem to the Internet port on the Router’s back panel. This is the only port that will work for your modem connection. FPower on the cable or DSL modem. GConnect the AC power adapter to the Router’s Power port and the other end into an electrical outlet. HMake sure the Power and Internet LEDs on the front panel light up green. IThe Power LED will flash green for a few seconds when the Router goes through its self- diagnostic test. This LED will stay solidly lit when the self-test is complete. If it does not stop flashing, refer to “Appendix A: Troubleshooting” in the Router’s User Guide on the Setup CD- ROM. JPower on the PC you wish to use to configure the Router. Proceed to Step 2. IMPORTANT:Make sure you use the power adapter that is supplied with the Router. Use of a different power adapter could damage the Router. G E 4 2 These instructions will show you how to configure the Router. You only need to configure it once. AOpen your web browser. Enter http://192.168.1.1 in its Address field. Press the Enter key. BA password request screen will appear. Leave the User Name field empty, and enter the default password, admin, in lowercase letters in the Password field. (You should later set a new password, using the Administration tab’s Management screen of the Web-based Utility). Then, click the OK button. CThe Web-based Utility will appear with the Setup tab selected. If requested by your ISP (usually cable ISPs), complete the Host Name and Domain Name fields. Otherwise, leave them blank. DFor the Internet Connection Type setting, six connection types are offered through the drop-down menu. Each Setup screen and available features will differ depending on which connection type you select. C NOTE: Make sure your PC’s Ethernet adapter is set to obtain an IP address automatically. For more information, refer to Windows Help. A Configure the Broadband Router B 5 Internet Configuration Type DHCP: If you are connecting through DHCP or a dynamic IP address from your ISP, keep the default setting Obtain an IP automatically. Static IP: If your ISP assigns you a static IP address, select Static IP from the drop-down menu. Complete the Internet IP Address, Subnet Mask, Gateway, and Static DNS fields. You need to enter at least one DNS address. PPPoE: If you are connecting through PPPoE, select PPPoE from the drop-down menu. Complete the User Name and Password fields. Select Keep Alive if you always want to be connected to your ISP, or select Connect on Demand if you are charged for the time that you are connected to your ISP. L2TP: L2TP is a service used in Israel only. If you are using an L2TP connection, check with your ISP for setup information. PPTP: PPTP is a service used in Europe only. If you are using a PPTP connection, select PPTP from the drop-down menu . Complete the IP Address, Subnet Mask, Default Gateway, User Name ,and Password fields. Select Keep Alive if you always DHCP Static IP PPPoE L2TP PPTP 6 want to be connected to your ISP, or select Connect on Demand if you are charged for the time that you are connected to your ISP. Telstra: Telstra (HeartBeat Signal) is a service used in Australia only. If you are using a HeartBeat Signal connection, check with your ISP for setup information. EWhen you have finished entering your Internet connection settings, click the Save Settings button to save your changes. FTo configure the Router for your wireless network, select the Wireless Tab’s Basic Wireless Settings screen. GWireless Network Mode. Select the mode you are using from the drop-down menu: If you are using only 802.11g, select G-Only; if you’re using 802.11b only, select B-Only; if you’re using both 802.11b and 802.11g, keep Mixed setting. HWireless Network Name (SSID). The SSID is the network name shared among all devices in a wireless network. The SSID must be identical for all devices in the wireless network. It is case- sensitive and must not exceed 32 characters (use any keyboard character). For F Telstra 7 added security, you should change the default SSID linksys to a unique name. IWireless Channel. Select the appropriate channel from the list provided to correspond with your network settings. All devices in your wireless network must broadcast on the same channel in order to function correctly. JWireless SSID Broadcast. When wireless clients survey the local area for wireless networks to associate with, they will detect the SSID broadcast by the Router. To broadcast the Router's SSID, keep the default setting, Enable. If you do not want to broadcast the Router's SSID, then select Disable. KChange these settings as described here and click the Save Settings button to apply your changes. LPower your modem off and back on again. MRestart your computer. NTest the setup by opening your web browser and entering http://www.linksys.com/ registration . The installation of the Wi…

Text truncated - open the document above for the full version.

23 Chapter 5: Configuring the Wireless-G Broadband Router The Wireless Tab - Wireless Security Wireless-G Broadband Router WPA2 Personal. WPA2 gives you two encryption methods, TKIP and AES, with dynamic encryption keys. Select the type of algorithm, AES, or TKIP + AES. Enter a WPA Shared Key of 8-63 characters. Then enter a Group Key Renewal period, which instructs the Router how often it should change the encryption keys. WPA2 Enterprise. This option features WPA2 used in coordination with a RADIUS server. (This should only be used when a RADIUS server is connected to the Router.) First, select the type of WPA algorithm you want to use, AES, or TKIP + AES. Enter the RADIUS server’s IP Address and port number, along with a key shared between the Router and the server. Last, enter a Key Renewal Timeout, which instructs the Router how often it should change the encryption keys. Figure 5-21: Wireless Tab - Wireless Security (WPA2 Personal) Figure 5-22: Wireless Tab - Wireless Security (WPA2 Enterprise) 24 Chapter 5: Configuring the Wireless-G Broadband Router The Wireless Tab - Wireless Security Wireless-G Broadband Router RADIUS. This option features WEP used in coordination with a RADIUS server. (This should only be used when a RADIUS server is connected to the Router.) First, enter the RADIUS server’s IP Address and port number, along with a key shared between the Router and the server. Then, select a Default Transmit Key (choose which Key to use), and a level of WEP encryption, 64 bits 10 hex digits or 128 bits 26 hex digits. Last, either generate a WEP key using the Passphrase or enter the WEP key manually. WEP. WEP is a basic encryption method, which is not as secure as WPA. To use WEP, select a Default Transmit Key (choose which Key to use), and a level of WEP encryption, 64 bits 10 hex digits or 128 bits 26 hex digits. Then either generate a WEP key using the Passphrase or enter the WEP key manually. Change these settings as described here and click the Save Settings button to apply your changes or Cancel Changes to cancel your changes. For detailed instructions on configuring wireless security for the Router, turn to “Appendix B: Wireless Security.” Figure 5-23: Wireless Tab - Wireless Security (RADIUS) IMPORTANT:If you are using WEP encryption, always remember that each device in your wireless network MUST use the same WEP encryption method and encryption key, or else your wireless network will not function properly. Figure 5-24: Wireless Tab - Wireless Security (WEP) 25 Chapter 5: Configuring the Wireless-G Broadband Router The Wireless Tab - Wireless MAC Filter Wireless-G Broadband Router The Wireless Tab - Wireless MAC Filter Wireless access can be filtered by using the MAC addresses of the wireless devices transmitting within your network’s radius. Wireless MAC Filter. To filter wireless users by MAC Address, either permitting or blocking access, click Enable. If you do not wish to filter users by MAC Address, select Disable. Prevent. Clicking this button will block wireless access by MAC Address. Permit Only. Clicking this button will allow wireless access by MAC Address. Edit MAC Address Filter List. Clicking this button will open the MAC Address Filter List. On this screen, you can list users, by MAC Address, to whom you wish to provide or block access. For easy reference, click the Wireless Client MAC List button to display a list of network users by MAC Address. Change these settings as described here and click the Save Settings button to apply your changes or Cancel Changes to cancel your changes. Figure 5-25: Wireless Tab - Wireless MAC Filter Figure 5-26: MAC Address Filter List 26 Chapter 5: Configuring the Wireless-G Broadband Router The Wireless Tab - Advanced Wireless Settings Wireless-G Broadband Router The Wireless Tab - Advanced Wireless Settings This tab is used to set up the Router’s advanced wireless functions. These settings should only be adjusted by an expert administrator as incorrect settings can reduce wireless performance. Transmission Rate. The rate of data transmission should be set depending on the speed of your wireless network. You can select from a range of transmission speeds, or you can select Auto to have the Router automatically use the fastest possible data rate and enable the Auto-Fallback feature. Auto-Fallback will negotiate the best possible connection speed between the Router and a wireless client. The default value is Auto. Beacon Interval. The default value is 100. Enter a value between 20 and 1,000 milliseconds. The Beacon Interval value indicates the frequency interval of the beacon. A beacon is a packet broadcast by the Router to synchronize the wireless network. DTIM Interval. This value, between 1 and 255, indicates the interval of the Delivery Traffic Indication Message (DTIM). A DTIM field is a countdown field informing clients of the next window for listening to broadcast and multicast messages. When the Router has buffered broadcast or multicast messages for associated clients, it sends the next DTIM with a DTIM Interval value. Its clients hear the beacons and awaken to receive the broadcast and multicast messages. The default value is 1. Fragmentation Threshold. This value specifies the maximum size for a packet before data is fragmented into multiple packets. If you experience a high packet error rate, you may slightly increase the Fragmentation Threshold. Setting the Fragmentation Threshold too low may result in poor network performance. Only minor reduction of the default value is recommended. In most cases, it should remain at its default value of 2346. RTS Threshold. Should you encounter inconsistent data flow, only minor reduction of the default value, 2347, is recommended. If a network packet is smaller than the preset RTS threshold size, the RTS/CTS mechanism will not be enabled. The Router sends Request to Send (RTS) frames to a particular receiving station and negotiates the sending of a data frame. After receivin…

Text truncated - open the document above for the full version.

Cisco-Linksys LLC 121 Theory Drive Irvine, CA 92617 (USA) Phone: 949-261-1288 Fax: 949-823-3002 Date: March 10, 2006 FCC ID: Q87-WRK54GV3 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, _________________________________________ Jennifer Yu / Associate Engineer Cisco-Linksys LLC Tel.: ( 949 ) 823-3188 Fax: ( 949 ) 823-3002 [email protected]

Cisco-Linksys LLC 121 Theory Drive Irvine, CA 92617 (USA) Phone: 949-261-1288 Fax: 949-823-3002 Agency Authorization Letter Date: March 10, 2006 To whom it may concern: We, the undersigned, hereby authorize Advance Data Technology Corp. (ADT) of Taiwan to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by ADT within the scope of this authorization shall have the same effects as our own. This authorization shall expire six months from the original date. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, __________________________________________ Jennifer Yu / Associate Engineer Cisco-Linksys LLC Tel.: ( 949 ) 823-3188 Fax: ( 949 ) 823-3002 [email protected]

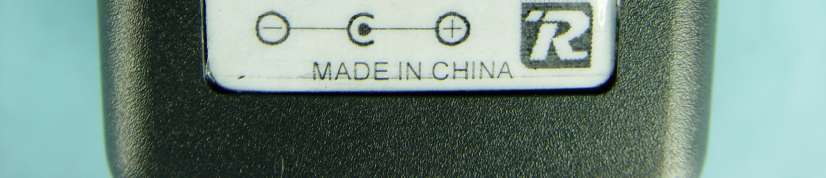

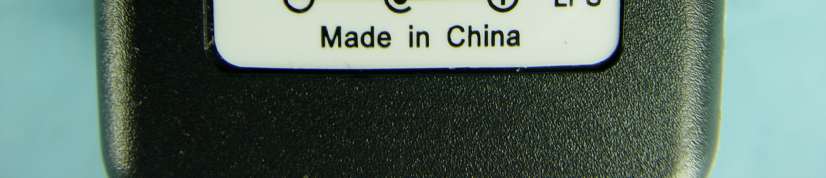

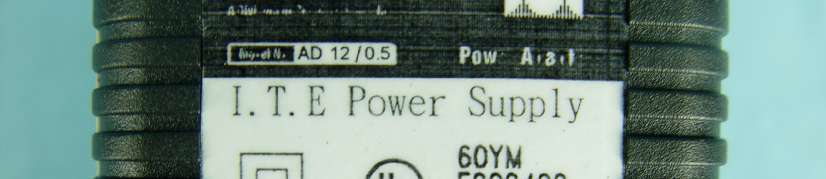

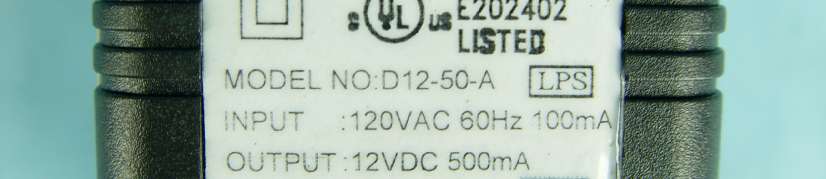

Model No.: WRK54G v3 Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4

FCC ID : Q87-WRK54GV3 Label Location

Page 5 Page 6 Page 7

FCC ID: Q87-WRK54GV3 Report No. RF950208L03 Operational Description This device is a Wireless-G Broadband Router with 4-Port Switch which operates in the 2.4GHz frequency spectrum with throughput of up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by AC Adapter. The antenna used in this EUT is Dipole antenna without antenna connector. The other instruction, please have a look at the users manual.

FCC ID: Q87-WRK54GV3 Report No: SA950208L03 1 RF EXPOSURE REPORT REPORT NO.: SA950208L03 MODEL NO.: WRK54G v3 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Cisco-Linksys LLC ADDRESS: 121 Theory Drive Irvine, CA 92617 (USA) ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID: Q87-WRK54GV3 Report No: SA950208L03 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: Q87-WRK54GV3 Report No: SA950208L03 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance r. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: Q87-WRK54GV3 Report No: SA950208L03 4 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 3.3dBi or 2.137962 (numeric). 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: 802.11b DSSS modulation Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241250.2340.0211.000 6243751.0500.0221.000 11246250.5820.0221.000 802.11g OFDM modulation Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241225.1190.0111.000 6243725.4100.0111.000 11246225.2350.0111.000

Report No.: RF950208L031Report Format Version 2.0.4 FCC TEST REPORT REPORT NO.: RF950208L03 MODEL NO.: WRK54G v3 RECEIVED: Mar. 06, 2006 TESTED: Mar. 17 ~ Mar. 22, 2006 ISSUED: Mar. 24, 2006 APPLICANT: Cisco-Linksys LLC ADDRESS: 121 Theory Drive Irvine, CA 92617 (USA) ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: 47 14 th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Kueishan, Taoyuan, Taiwan, R.O.C. This test report consists of 86 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. No. 2177-01 Report No.: RF950208L032Report Format Version 2.0.4 Table of Contents 1CERTIFICATION.........................................................................................................4 2SUMMARY OF TEST RESULTS.................................................................................5 2.1MEASUREMENT UNCERTAINTY..............................................................................5 3GENERAL INFORMATION.........................................................................................6 3.1GENERAL DESCRIPTION OF EUT...........................................................................6 3.2DESCRIPTION OF TEST MODES.............................................................................8 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST.........................................................8 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL..............................9 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS...........................................11 3.4DESCRIPTION OF SUPPORT UNITS.....................................................................11 4TEST TYPES AND RESULTS..................................................................................12 4.1CONDUCTED EMISSION MEASUREMENT............................................................12 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT..........................................12 4.1.2TEST INSTRUMENTS..............................................................................................12 4.1.3TEST PROCEDURES..............................................................................................13 4.1.4DEVIATION FROM TEST STANDARD.....................................................................13 4.1.5TEST SETUP...........................................................................................................14 4.1.6EUT OPERATING CONDITIONS.............................................................................14 4.1.7TEST RESULTS.......................................................................................................15 4.2RADIATED EMISSION MEASUREMENT.................................................................33 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT...............................................33 4.2.2TEST INSTRUMENTS..............................................................................................34 4.2.3TEST PROCEDURES..............................................................................................35 4.2.4DEVIATION FROM TEST STANDARD.....................................................................35 4.2.5TEST SETUP...........................................................................................................36 4.2.6EUT OPERATING CONDITIONS.............................................................................36 4.2.7TEST RESULTS.......................................................................................................37 4.36dB BANDWIDTH MEASUREMENT........................................................................50 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT......................................................50 4.3.2TEST INSTRUMENTS..............................................................................................50 4.3.3TEST PROCEDURE.................................................................................................51 4.3.4DEVIATION FROM TEST STANDARD.....................................................................51 4.3.5TEST SETUP...........................................................................................................51 4.3.6EUT OPERATING CONDITIONS.............................................................................51 4.3.7TEST RESULTS.......................................................................................................52 4.4MAXIMUM PEAK OUTPUT POWER........................................................................58 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT.........................58 4.4.2TEST INSTRUMENTS..............................................................................................58 4.4.3TEST PROCEDURES..............................................................................................59 4.4.4DEVIATION FROM TEST STANDARD.....................................................................59 4.4.5TEST SETUP...........................................................................................................59 4.4.6EUT OPERATING CONDITIONS.............................................................................59 Report No.: RF950208L033Report Format Version 2.0.4 4.4.7TEST RESULTS.......................................................................................................60 4.5POWER SPECTRAL DENSITY MEASUREMENT....................................................61 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT..................................61 4.5.2TEST INSTRUMENTS..............................................................................................61 4.5.3TEST PROCEDURE.......…

Text truncated - open the document above for the full version.

Report No.: RF950208L0379Report Format Version 2.0.4 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST TEST MODE A Report No.: RF950208L0380Report Format Version 2.0.4 TEST MODE B Report No.: RF950208L0381Report Format Version 2.0.4 TEST MODE C Report No.: RF950208L0382Report Format Version 2.0.4 RADIATED EMISSION TEST TEST MODE A Report No.: RF950208L0383Report Format Version 2.0.4 TEST MODE B Report No.: RF950208L0384Report Format Version 2.0.4 TEST MODE C
