Q87-WRT150NWireless-N Home Router

Model No. Home Router Wireless- N WRT150N User Guide WIRELESS GHz 2.4 Wireless-N Home RouterCopyright and TrademarksSpecifications are subject to change without notice. Linksys is a registered trademark or trademark of Cisco Systems, Inc. and/or its affiliates in the U.S. and certain other countries. Copyright © 2006 Cisco Systems, Inc. All rights reserved. Other brands and product names are trademarks or registered trademarks of their respective holders.How to Use This User GuideThis User Guide has been designed to make understanding networking with the Wireless-N Home Router easier than ever. Look for the following items when reading this User Guide:In addition to these symbols, there are definitions for technical terms that are presented like this:Also, each figure (diagram, screenshot, or other image) is provided with a figure number and description, like this:Figure numbers and descriptions can also be found in the “List of Figures” section in the “Table of Contents”. This exclamation point means there is a caution or warning and is something that could damage your property or the Wireless-N Home Router. This checkmark means there is a note of interest and is something you should pay special attention to while using the Wireless-N Home Router. This question mark provides you with a reminder about something you might need to do while using the Wireless-N Home Router. word: definition. Figure 0-1: Sample Figure Description WRT150N-UG-61027NC JL WARNING: This product contains chemicals, including lead, known to the State of California to cause cancer, and birth defects or other reproductive harm. Wash hands after handling. Wireless-N Broadband RouterTable of ContentsChapter 1: Introduction 1 Welcome 1 What’s in this User Guide? 2 Chapter 2: Planning Your Wireless Network 4 Network Topology 4 Ad-Hoc versus Infrastructure Mode 4 Network Layout 4 Chapter 3: Getting to Know the Wireless-N Home Router 6 The Back Panel 6 The Front Panel 7 The Top Panel 7 Chapter 4: Connecting the Wireless-N Home Router 8 Hardware Installation 8 Chapter 5: Configuring the Wireless-N Home Router 9 Overview 9 How to Access the Web-based Utility 11 The Setup Tab - Basic Setup 11 The Setup Tab - DDNS 17 The Setup Tab - MAC Address Clone 19 The Setup Tab - Advanced Routing 20 The Wireless Tab - Basic Wireless Settings 22 The Wireless Tab - Wireless Security 23 The Wireless Tab - Wireless MAC Filter 26 The Wireless Tab - Advanced Wireless Settings 27 The Security Tab - Firewall 29 The Security Tab - VPN Passthrough 30 The Access Restrictions Tab - Internet Access Policy 31 The Applications & Gaming Tab - Single Port Forwarding 33 The Applications & Gaming Tab - Port Range Forwarding 34 The Applications & Gaming Tab - Port Range Triggering 35 The Applications & Gaming Tab - DMZ 36 The Applications and Gaming Tab - QoS 37 Wireless-N Broadband Router The Administration Tab - Management 40 The Administration Tab - Log 42 The Administration Tab - Diagnostics 43 The Administration Tab - Factory Defaults 44 The Administration Tab - Firmware Upgrade 45 The Status Tab - Router 46 The Status Tab - Local Network 47 The Status Tab - Wireless 48 Appendix A: Troubleshooting 49 Common Problems and Solutions 49 Frequently Asked Questions 57 Appendix B: Wireless Security 63 Security Precautions 63 Security Threats Facing Wireless Networks 63 Appendix C: Upgrading Firmware 66 Appendix D: Windows Help 67 Appendix E: Finding the MAC Address and IP Address for Your Ethernet Adapter 68 Windows 98SE or Me Instructions 68 Windows 2000 or XP Instructions 69 For the Router’s Web-based Utility 69 Appendix F: Glossary 70 Appendix G: Specifications 75 Appendix H: Warranty Information 77 Appendix I: Regulatory Information 78 Appendix J: Contact Information 84 Wireless-N Home RouterList of FiguresFigure 3-1: The Router’s Back Panel 6 Figure 3-2: The Router’s Front Panel 7 Figure 3-3: The Router’s Top Panel 7 Figure 4-1: Connect the Modem 8 Figure 4-2: Connect a PC 8 Figure 4-3: Connect the Power 8 Figure 5-1: Router Login 11 Figure 5-2: Setup Tab - Basic Setup (Automatic Configuration - DHCP) 11 Figure 5-3: Static IP 12 Figure 5-4: PPPoE 12 Figure 5-5: PPTP 13 Figure 5-6: Telstra Cable 13 Figure 5-7: L2TP 14 Figure 5-8: DHCP Reservation 16 Figure 5-9: Setup Tab - DDNS (DynDNS.org) 17 Figure 5-10: Setup Tab - DDNS (TZO.com) 18 Figure 5-11: Setup Tab - MAC Clone 19 Figure 5-12: Setup Tab - Advanced Routing 20 Figure 5-13: Routing Table 21 Figure 5-14: Wireless Tab - Basic Wireless Settings 22 Figure 5-15: Wireless Tab - Wireless Security (PSK-Personal) 23 Figure 5-16: Wireless Security - PSK2-Personal 23 Figure 5-17: Wireless Security - PSK-Enterprise 24 Figure 5-18: Wireless Security - PSK2-Enterprise 24 Figure 5-19: Wireless Security - RADIUS 25 Figure 5-20: Wireless Security - WEP 25 Figure 5-21: Wireless Tab - Wireless MAC Filter 26 Figure 5-22: Wireless Client List 26 Figure 5-23: Wireless Tab - Advanced Wireless Settings 27 Figure 5-24: Security Tab - Firewall 29 Figure 5-25: VPN Passthrough 30 Wireless-N Home RouterFigure 5-26: Access Restrictions Tab - Internet Access Policy 31 Figure 5-27: Summary 31 Figure 5-28: List of PCs 32 Figure 5-29: Applications & Gaming Tab - Single Port Forwarding 33 Figure 5-30: Applications & Gaming Tab - Port Range Forwarding 34 Figure 5-31: Applications & Gaming Tab - Port Range Triggering 35 Figure 5-32: Applications & Gaming Tab - DMZ 36 Figure 5-33: DHCP Client Table 36 Figure 5-34: Applications & Gaming Tab - QoS (Applications) 37 Figure 5-35: QoS - Applications (Add a New Application) 38 Figure 5-36: QoS - Online Games 38 Figure 5-37: QoS - MAC Address 38 Figure 5-38: QoS - MAC Address 38 Figure 5-39: QoS - Voice Device 39 Figure 5-40: Administration Tab - Management 40 Figure 5-41: Administration Tab - Log 42 Figure 5-42: View Log 42 Figure 5-43: Administration Tab - Diagnostics 43 Figure 5-44: Ping Test 43 Figure 5-45: Traceroute Test 43 Figure 5-46: Administration Tab - Factory Defaults 44 Figure 5-4…

Text truncated - open the document above for the full version.

Cisco-Linksys LLC 121 Theory Drive Irvine, CA 92617(USA) Phone: ( 949 ) 823-3188 Fax: ( 949 ) 823-3002 Date:2006/11/30 General Declaration We, Cisco-Linksys LLC declares that device does not have “Ad Hoc on non-US frequencies” while applying for the follow product. FCC ID: Q87-WRT150N If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! ------------------------------------------------------------------------------- Jennifer Yu / Project Manager Cisco-Linksys LLC Phone: 949-823-3188 Fax: 949-823-3002 [email protected]

Cisco-Linksys LLC 121 Theory Drive Irvine, CA 92617(USA) Phone: ( 949 ) 823-3188 Fax: ( 949 ) 823-3002 Date: 2006/12/11 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request FCC ID: Q87-WRT150N Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematic Diagram Block Diagram Theory of Operation The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ------------------------------------------------------------------------------ Jennifer Yu / Project Manager Cisco-Linksys LLC Phone: 949-823-3188 Fax: 949-823-3002 [email protected]

Cisco-Linksys LLC 121 Theory Drive Irvine, CA 92617(USA) Phone: ( 949 ) 823-3188 Fax: ( 949 ) 823-3002 Power of Attorney Date: 2006/12/11 To whom it may concern: We, the undersigned Cisco-Linksys LLC hereby authorize Advance Data Technology Corporation (ADT) of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15C approval and any communication needed with the national authority. Any and all acts carried out by ADT on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, ------------------------------------------------------------------------------- Jennifer Yu / Project Manager Cisco-Linksys LLC Phone: 949-823-3188 Fax: 949-823-3002 [email protected]

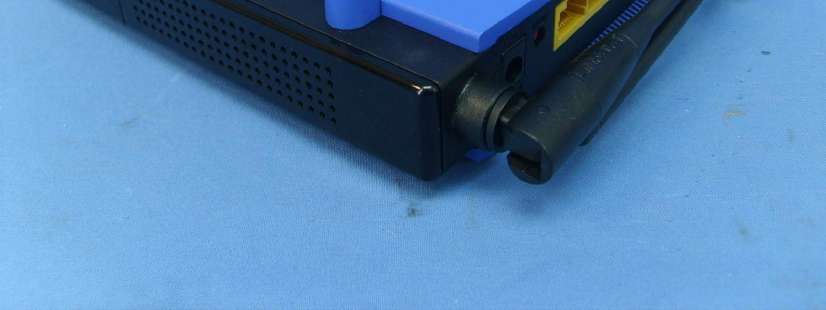

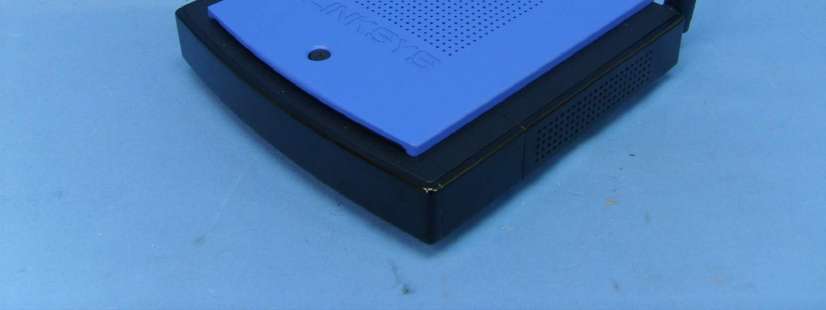

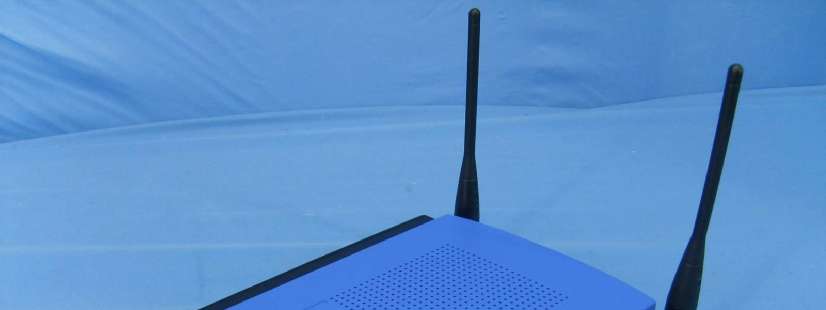

Page 1 CONSTRUCTION PHOTOS OF EUT

(Fig. 1) FCC ID: Q87-WRT150N FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

Page 2 Page 3 Page 4 Model : LS120V10AE Page 5 Page 6 Model : AM-1201000D41 951114H01 951114H01 Page 7 Page 8 Model : D12-1000 951114H01 951114H01 Page 9

Report No.: SA95114H01 1 RF EXPOSURE REPORT REPORT NO.: SA95114H01 MODEL NO.: WRT150N ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Cisco-Linksys LLC ADDRESS: 121 Theory Drive Irvine, CA 92617(USA) ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. Report No.: SA95114H01 2 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 300-1500 ... ... F/1500 6 1500-100,000 ... ... 1.0 30 F = Frequency in MHz Report No.: SA95114H01 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device Report No.: SA95114H01 4 6. Test Results 6.1 Antenna Gain There are two antennas provided to this EUT, please refer to the following table: No. Antenna Type Gain (dBi) Antenna Connector 1 Dipole 1.8 NA 2 Dipole 1.8 NA From above antennas, antenna 1 was selected as representative antennas for the test. 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For Part 802.11b: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 79.433 0.024 1.0 6 2437 75.858 0.023 1.0 11 2462 60.256 0.018 1.0 For Part 802.11g: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 176.891 0.053 1.0 6 2437 176.724 0.053 1.0 11 2462 141.479 0.043 1.0 Report No.: SA95114H01 5 DRAFT 802.11n (20MHz) OFDM modulation: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 189.476 0.057 1.0 6 2437 176.850 0.053 1.0 11 2462 157.993 0.048 1.0 DRAFT 802.11n (40MHz) OFDM modulation: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2422 158.080 0.048 1.0 4 2437 152.187 0.046 1.0 7 2452 152.014 0.046 1.0

Report No.: RF951114H01 1 Report Format Version 2.0.5 FCC TEST REPORT REPORT NO.: RF951114H01 MODEL NO.: WRT150N RECEIVED: Nov. 14, 2006 TESTED: Nov. 09 to 23, 2006 ISSUED: Nov. 29, 2006 APPLICANT: Cisco-Linksys LLC ADDRESS: 121 Theory Drive Irvine, CA 92617(USA) ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 115 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. No. 2177-01 Report No.: RF951114H01 2 Report Format Version 2.0.5 TABLE OF CONTENTS 1. CERTIFICATION........................................................................................... 4 2. SUMMARY OF TEST RESULTS .................................................................. 5 3. GENERAL INFORMATION ........................................................................... 6 3.1 GENERAL DESCRIPTION OF EUT ........................................................ 6 3.2 DESCRIPTION OF TEST MODES .......................................................... 9 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ........ 10 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ....................... 14 3.4 DESCRIPTION OF SUPPORT UNITS .................................................. 15 3.5 CONFIGURATION OF SYSTEM UNDER TEST ................................... 16 4. TEST TYPES AND RESULTS .................................................................... 17 4.1 CONDUCTED EMISSION MEASUREMENT ........................................ 17 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT ...................... 17 4.1.2 TEST INSTRUMENTS .......................................................................... 17 4.1.3 TEST PROCEDURES ........................................................................... 18 4.1.4 DEVIATION FROM TEST STANDARD ................................................. 18 4.1.5 TEST SETUP ........................................................................................ 19 4.1.6 EUT OPERATING CONDITIONS .......................................................... 19 4.1.7 TEST RESULTS .................................................................................... 20 4.2 RADIATED EMISSION MEASUREMENT ............................................. 26 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT ........................... 26 4.2.2 TEST INSTRUMENTS .......................................................................... 27 4.2.3 TEST PROCEDURES ........................................................................... 28 4.2.4 DEVIATION FROM TEST STANDARD ................................................. 28 4.2.5 TEST SETUP ........................................................................................ 29 4.2.6 EUT OPERATING CONDITIONS .......................................................... 29 4.2.7 TEST RESULTS .................................................................................... 30 4.3 6dB BANDWIDTH MEASUREMENT..................................................... 59 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT .................................. 59 4.3.2 TEST INSTRUMENTS .......................................................................... 59 4.3.3 TEST PROCEDURE ............................................................................. 59 4.3.4 DEVIATION FROM TEST STANDARD ................................................. 59 4.3.5 TEST SETUP ........................................................................................ 60 4.3.6 EUT OPERATING CONDITIONS .......................................................... 60 4.3.7 TEST RESULTS .................................................................................... 61 Report No.: RF951114H01 3 Report Format Version 2.0.5 4.4 MAXIMUM PEAK OUTPUT POWER .................................................... 75 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ..... 75 4.4.2 INSTRUMENTS..................................................................................... 75 4.4.3 TEST PROCEDURES ........................................................................... 75 4.4.4 DEVIATION FROM TEST STANDARD ................................................. 75 4.4.5 TEST SETUP ........................................................................................ 76 4.4.6 EUT OPERATING CONDITIONS .......................................................... 76 4.4.7 TEST RESULTS .................................................................................... 77 4.5 POWER SPECTRAL DENSITY MEASUREMENT ................................ 79 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ............. 79 4.5.2 TEST INSTRUMENTS .......................................................................... 79 4.5.3 TEST PROCEDURE ............................................................................. 79 4.5.4 DEVIATION FROM TEST STANDARD ................................................. 79 4.5.5 TEST SETUP ........................................................................................ 80 4.5.6 EUT OPERATING CONDITION ............................................................ 80 4.5.7 TEST RESULTS .................................................................................... 81 4.6 CONDUCTED EMISSION AND BAND EDGES MEASUREMENT........ 95 4.6.1 LIMITS OF CONDTCTED EMISSION AND BAND EDGES MEASUREMENT .................................................................................... 95 4.6.2 TEST INSTRUMENTS .......................................................................... 95 4.6.3 TEST PROCEDURE ........................................................…

Text truncated - open the document above for the full version.

Report No.: RF951114H01 87 Report Format Version 2.0.5 DRAFT 802.11n (20MHz) OFDM MODULATION: MODULATION TYPE BPSK TRANSFER RATE 6.5Mbps INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 26deg.C, 68%RH, 971hPa TESTED BY Sky Liao RF POWER LEVEL IN 3kHz BW (dBm) CHANNEL CHANNEL FREQUENCY (MHz ) CHAIN 0 CHAIN 1 MAXIMUM LIMIT (dBm) PASS / FAIL 1 2412 -10.57 -11.45 8 PASS 6 2437 -11.78 -10.32 8 PASS 11 2462 -11.52 -11.76 8 PASS FOR CHAIN 0: CH1 Report No.: RF951114H01 88 Report Format Version 2.0.5 CH6 CH11 Report No.: RF951114H01 89 Report Format Version 2.0.5 FOR CHAIN 1: CH1 CH6 Report No.: RF951114H01 90 Report Format Version 2.0.5 CH11 Report No.: RF951114H01 91 Report Format Version 2.0.5 DRAFT 802.11n (40MHz) OFDM MODULATION: MODULATION TYPE BPSK TRANSFER RATE 13.5Mbps INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 26deg.C, 68%RH, 971hPa TESTED BY Sky Liao RF POWER LEVEL IN 3kHz BW (dBm) CHANNEL CHANNEL FREQUENCY (MHz ) CHAIN 0 CHAIN 1 MAXIMUM LIMIT (dBm) PASS / FAIL 1 2422 -14.05 -14.49 8 PASS 4 2437 -14.80 -14.88 8 PASS 7 2452 -15.74 -15.41 8 PASS FOR CHAIN 0: CH1 Report No.: RF951114H01 92 Report Format Version 2.0.5 CH4 CH7 Report No.: RF951114H01 93 Report Format Version 2.0.5 FOR CHAIN 1: CH1 CH4 Report No.: RF951114H01 94 Report Format Version 2.0.5 CH7 Report No.: RF951114H01 95 Report Format Version 2.0.5 4.6 CONDUCTED EMISSION AND BAND EDGES MEASUREMENT 4.6.1 LIMITS OF CONDTCTED EMISSION AND BAND EDGES MEASUREMENT Below –20dB of the highest emission level of operating band (in 100kHz Resolution Bandwidth). 4.6.2 TEST INSTRUMENTS Description & Manufacturer Model No. Serial No. Calibrated Until R&S SPECTRUM ANALYZER FSP40 100036 Nov. 23, 2007 NOTE: 1.The measurement uncertainty is less than +/- 2.6dB, which is calculated as per the NAMAS document NIS81. 2.The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 4.6.3 TEST PROCEDURE The transmitter output was connected to the spectrum analyzer via a low lose cable. Set both RBW and VBW of spectrum analyzer to 100kHz with suitable frequency span including 100 MHz bandwidth from band edge. The band edges was measured and recorded. The spectrum plots (RBW = VBW = 100kHz) are attached on the following pages. Report No.: RF951114H01 96 Report Format Version 2.0.5 4.6.4 DEVIATION FROM TEST STANDARD No deviation 4.6.5 EUT OPERATING CONDITION Same as Item 4.3.6 4.6.6 TEST RESULTS The spectrum plots are attached on the following 12 images. D1 line indicates the highest level, and D2 line indicates the 20dB offset below D1. It shows compliance with the requirement in part 15.247(d). Report No.: RF951114H01 97 Report Format Version 2.0.5 802.11b DSSS MODULATION: CH1 CH11 Report No.: RF951114H01 98 Report Format Version 2.0.5 CH1 CH11 Report No.: RF951114H01 99 Report Format Version 2.0.5 802.11g OFDM MODULATION: FOR CHAIN 0:CH 1 CH11 Report No.: RF951114H01 100 Report Format Version 2.0.5 CH1 CH11 Report No.: RF951114H01 101 Report Format Version 2.0.5 FOR CHAIN 1:CH 1 CH11 Report No.: RF951114H01 102 Report Format Version 2.0.5 CH1 CH11 Report No.: RF951114H01 103 Report Format Version 2.0.5 DRAFT 802.11n (20MHz) OFDM MODULATION: FOR CHAIN 0:CH1 CH11 Report No.: RF951114H01 104 Report Format Version 2.0.5 CH1 CH11 Report No.: RF951114H01 105 Report Format Version 2.0.5 FOR CHAIN 1:CH1 CH11 Report No.: RF951114H01 106 Report Format Version 2.0.5 CH1 CH11 Report No.: RF951114H01 107 Report Format Version 2.0.5 DRAFT 802.11n (40MHz) OFDM MODULATION: FOR CHAIN 0:CH1 CH7 Report No.: RF951114H01 108 Report Format Version 2.0.5 CH1 CH7 Report No.: RF951114H01 109 Report Format Version 2.0.5 FOR CHAIN 1:CH1 CH7 Report No.: RF951114H01 110 Report Format Version 2.0.5 CH1 CH7 Report No.: RF951114H01 111 Report Format Version 2.0.5 4.7 ANTENNA REQUIREMENT 4.7.1 STANDARD APPLICABLE For intentional device, according to FCC 47 CFR Section 15.203, an intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible party shall be used with the device. And according to FCC 47 CFR Section 15.247 (b), if transmitting antennas of directional gain greater than 6dBi are used, the power shall be reduced by the amount in dB that the directional gain of the antenna exceeds 6dBi. 4.7.2 ANTENNA CONNECTED CONSTRUCTION The antennas used in this product are as below. No. Antenna Type Gain (dBi) Antenna Connector 1 Dipole 1.8 NA 2 Dipole 1.8 NA Report No.: RF951114H01 112 Report Format Version 2.0.5 5. PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST Report No.: RF951114H01 113 Report Format Version 2.0.5 RADIATED EMISSION TEST Report No.: RF951114H01 114 Report Format Version 2.0.5 6. INFORMATION ON THE TESTING LABORATORIES We, ADT Corp., were founded in 1988 to provide our best service in EMC, Radio, Telecom and Safety consultation. Our laboratories are accredited and approved by the following approval agencies according to ISO/IEC 17025. USA FCC, UL, A2LA Germany TUV Rheinland Japan VCCI Norway NEMKO Canada INDUSTRY CANADA , CSA R.O.C. CNLA, BSMI, NCC Netherlands Telefication Singapore PSB , GOST-ASIA(MOU) Russia CERTIS(MOU) Copies of accreditation certificates of our laboratories obtained from approval agencies can be downloaded from our web site: www.adt.com.tw/index.5/phtml . If you have any comments, please feel free to contact us at the following: Linko EMC/RF Lab: Tel: 886-2-26052180 Fax: 886-2-26052943 Hsin Chu EMC/RF Lab: Tel: 886-3-5935343 Fax: 886-3-5935342 Hwa Ya EMC/RF/Safety Telecom Lab: Tel: 886-3-3183232 Fax: 886-3-3185050 Web Site: www.adt.com.tw The address and road map of all our labs can be found in our web site also. Report No.: RF951114H01 A-1 Report Format Version 2.0.5 APPENDIX-A MODIFICATIONS RECORDERS FOR ENGINEERING CHANGES TO THE EUT BY THE LAB No any modifications are made to the EUT by the lab during the test.

Report No.: RF951114H01 112 Report Format Version 2.0.5 5. PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST Report No.: RF951114H01 113 Report Format Version 2.0.5 RADIATED EMISSION TEST
