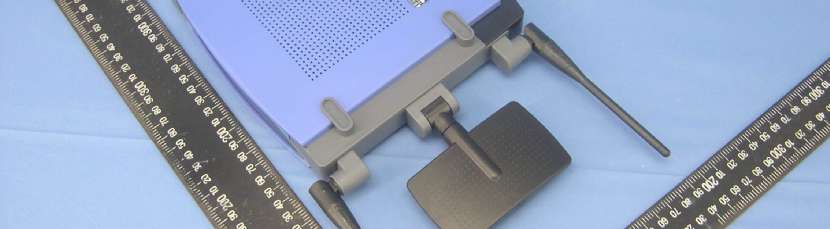

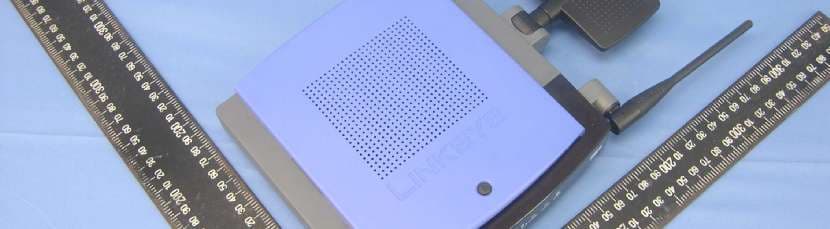

Page 1 CONSTRUCTION PHOTOS OF EUT 950407H03 950407H03 Page 2 950407H03

(Fig. 1) FCC ID: Q87-WRT300N FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

Page 3 950407H03 950407H03 Page 4 950407H03 950407H03 Page 5 950407H03 950407H03 Page 6 950407H03 Page 7 950407H03 950407H03 Page 8 Page 9 Page 10 950407H03 Page 11 Page 12 Page 13 950407H03 950407H03 Page 14 950407H03 Page 15 950407H03 Page 16 950407H03

Report No.: SA950407H03 1 RF EXPOSURE REPORT REPORT NO.: SA950407H03 MODEL NO.: WRT300N ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Cisco-Linksys LLC ADDRESS: 121 Theory Drive Irvine, CA 92617(USA) ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. Report No.: SA950407H03 2 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz Report No.: SA950407H03 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device Report No.: SA950407H03 4 6. Test Results 6.1 Antenna Gain There are three antennas provided to this EUT, please refer to the following table: No.Gain (dBi) Gain (numeric) Antenna Type Antenna Connector 12.01.585DipoleNA 21.81.514PCB monopoleNA 32.01.585DipoleNA 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For Part 802.11b: Maximum Antenna Gain: 2.0dBi Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241297.7240.0311.0 62437102.3290.0321.0 11246293.3250.0291.0 For Part 802.11g: Maximum Antenna Gain: 2.0dBi Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 12412102.3290.0321.0 62437112.2020.0351.0 112462102.3290.0321.0 Report No.: SA950407H03 5 DRAFT 802.11n (20MHz) OFDM modulation: DUAL TX: ANTENNA 1+ ANTENNA 3 Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 12412162.5660.1031.0 62437178.2970.1121.0 112462184.7770.1171.0 ANTENNA 1+ ANTENNA 2 Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 12412181.2830.1121.0 62437168.8260.1041.0 112462134.6940.0831.0 DRAFT 802.11n (40MHz) OFDM modulation: DUAL TX: ANTENNA 1+ ANTENNA 3 Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 12422104.9740.0661.0 42437138.8270.0881.0 72452119.2170.0751.0 ANTENNA 1+ ANTENNA 2 Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 12422102.0000.0631.0 42437144.3790.0891.0 72452135.5390.0841.0

Report No.: RF950407H031Report Format Version 2.0.4 FCC TEST REPORT REPORT NO.: RF950407H03 MODEL NO.: WRT300N RECEIVED: April 07, 2006 TESTED: April 09 to 14, 2006 ISSUED: April 15, 2006 APPLICANT: Cisco-Linksys LLC ADDRESS: 121 Theory Drive Irvine, CA 92617(USA) ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 163 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. The test results in this report are traceable to the national or international standards. No. 2177-01 Report No.: RF950407H032Report Format Version 2.0.4 TABLE OF CONTENTS 1.CERTIFICATION....................................................................................................4 2.SUMMARY OF TEST RESULTS............................................................................5 2.1 MEASUREMENT UNCERTAINTY................................................................................6 3.GENERAL INFORMATION....................................................................................7 3.1GENERAL DESCRIPTION OF EUT..................................................................7 3.2DESCRIPTION OF TEST MODES...................................................................9 3.2.1TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL...................10 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS.................................14 3.4DESCRIPTION OF SUPPORT UNITS............................................................15 3.5CONFIGURATION OF SYSTEM UNDER TEST.............................................16 4.TEST TYPES AND RESULTS..............................................................................18 4.1CONDUCTED EMISSION MEASUREMENT..................................................18 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT................................18 4.1.2TEST INSTRUMENTS....................................................................................18 4.1.3TEST PROCEDURES....................................................................................19 4.1.4DEVIATION FROM TEST STANDARD...........................................................19 4.1.5TEST SETUP..................................................................................................20 4.1.6EUT OPERATING CONDITIONS....................................................................20 4.1.7TEST RESULTS.............................................................................................21 4.2RADIATED EMISSION MEASUREMENT.......................................................39 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT.....................................39 4.2.2TEST INSTRUMENTS....................................................................................40 4.2.3TEST PROCEDURES....................................................................................41 4.2.4DEVIATION FROM TEST STANDARD...........................................................41 4.2.5TEST SETUP..................................................................................................42 4.2.6EUT OPERATING CONDITIONS....................................................................42 4.2.7TEST RESULTS.............................................................................................43 4.36dB BANDWIDTH MEASUREMENT..............................................................88 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT............................................88 4.3.2TEST INSTRUMENTS....................................................................................88 4.3.3TEST PROCEDURE.......................................................................................88 4.3.4DEVIATION FROM TEST STANDARD...........................................................88 4.3.5TEST SETUP..................................................................................................89 4.3.6EUT OPERATING CONDITIONS....................................................................89 4.3.7TEST RESULTS.............................................................................................90 4.4MAXIMUM PEAK OUTPUT POWER............................................................106 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT..............110 Report No.: RF950407H033Report Format Version 2.0.4 4.4.2INSTRUMENTS............................................................................................110 4.4.3TEST PROCEDURES..................................................................................110 4.4.4DEVIATION FROM TEST STANDARD.........................................................110 4.4.5TEST SETUP................................................................................................111 4.4.6EUT OPERATING CONDITIONS..................................................................111 4.4.7TEST RESULTS...........................................................................................112 4.5POWER SPECTRAL DENSITY MEASUREMENT........................................115 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT......................115 4.5.2TEST INSTRUMENTS..................................................................................115 4.5.3TEST PROCEDURE.....................................................................................115 4.5.4DEVIATION FROM TEST STANDARD.........................................................115 4.5.5TEST SETUP................................................................................................116 4.5.6EUT OPERATING CONDITION..................................................…

Text truncated - open the document above for the full version.

Report No.: RF950407H0381Report Format Version 2.0.4 DRAFT 802.11n (40MHz) OFDM MODULATION: DUAL TX: (ANTENNA 1 AND 2) EUT TEST CONDITIONMEASUREMENT DETAIL CHANNEL Channel 1 FREQUENCY RANGE 1 ~ 25GHz MODULATION TYPE BPSK INPUT POWER (SYSTEM) 120Vac, 60 Hz TRANSFER RATE 13.5Mbps DETECTOR FUNCTION Peak(PK) Average (AV) ENVIRONMENTAL CONDITIONS 18deg. C, 65%RH, 971hPa TESTED BY Moris Lin ANTENNA POLARITY & TEST DISTANCE: HORIZONTAL AT 3 M NO. FREQ. (MHz) EMISSION LEVEL (dBuV/m) LIMIT (dBuV/m) MARGIN (dB) ANTENNA HEIGHT (m) TABLE ANGLE (Degree) RAW VALUE (dBuV) CORRECTION FACTOR (dB/m) 12390.0059.20 PK74.00-14.801.25 H19627.6931.51 12390.0048.50 AV54.00-5.501.25 H19616.9931.51 2*2422.0099.10 PK1.25 H19667.4931.61 2*2422.0088.90 AV1.25 H19657.2931.61 33229.0051.70 PK74.00-22.301.08 H35218.4433.26 33229.0048.10 AV54.00-5.901.08 H35214.8433.26 44824.0051.20 PK74.00-22.801.12 H34914.2436.96 44824.0045.50 AV54.00-8.501.12 H3498.5436.96 57236.0052.00 PK74.00-22.001.24 H589.0043.00 57236.0039.00 AV54.00-15.001.24 H58-4.0043.00 ANTENNA POLARITY & TEST DISTANCE: VERTICAL AT 3 M NO. FREQ. (MHz) EMISSION LEVEL (dBuV/m) LIMIT (dBuV/m) MARGIN (dB) ANTENNA HEIGHT (m) TABLE ANGLE (Degree) RAW VALUE (dBuV) CORRECTION FACTOR (dB/m) 12390.0069.00 PK74.00-5.001.06 V35637.4931.51 12390.0053.70 AV54.00-0.301.06 V35622.1931.51 2*2422.00110.70 PK1.06 V35679.0931.61 2*2422.00100.40 AV1.06 V35668.7931.61 33229.0047.80 PK74.00-26.201.00 V33114.5433.26 33229.0045.30 AV54.00-8.701.00 V33112.0433.26 44844.0050.40 PK74.00-23.601.09 V2713.3637.04 44844.0044.80 AV54.00-9.201.09 V277.7637.04 57266.0051.70 PK74.00-22.301.27 V688.6843.02 57266.0038.30 AV54.00-15.701.27 V68-4.7243.02 REMARKS: 1. Emission level (dBuV/m) = Raw Value (dBuV) + Correction Factor (dB/m). 2. Correction Factor (dB/m) = Antenna Factor (dB/m) + Cable Factor (dB). 3. The other emission levels were very low against the limit. 4. Margin value = Emission level – Limit value. 5. The limit value is defined as per 15.247. 6. “ * “: Fundamental frequency. Report No.: RF950407H0382Report Format Version 2.0.4 EUT TEST CONDITIONMEASUREMENT DETAIL CHANNEL Channel 4 FREQUENCY RANGE 1 ~ 25GHz MODULATION TYPE BPSK INPUT POWER (SYSTEM) 120Vac, 60 Hz TRANSFER RATE 13.5Mbps DETECTOR FUNCTION Peak(PK) Average (AV) ENVIRONMENTAL CONDITIONS 18deg. C, 65%RH, 971hPa TESTED BY Moris Lin ANTENNA POLARITY & TEST DISTANCE: HORIZONTAL AT 3 M NO. FREQ. (MHz) EMISSION LEVEL (dBuV/m) LIMIT (dBuV/m) MARGIN (dB) ANTENNA HEIGHT (m) TABLE ANGLE (Degree) RAW VALUE (dBuV) CORRECTION FACTOR (dB/m) 1*2437.0099.70 PK1.22 H19868.0431.66 1*2437.0089.40 AV1.22 H19857.7431.66 23249.0051.80 PK74.00-22.201.06 H34718.4833.32 23249.0048.80 AV54.00-5.201.06 H34715.4833.32 34874.0051.40 PK74.00-22.601.09 H35714.2537.15 34874.0045.80 AV54.00-8.201.09 H3578.6537.15 47311.0052.30 PK74.00-21.701.15 H439.2143.09 47311.0039.10 AV54.00-14.901.15 H43-3.9943.09 ANTENNA POLARITY & TEST DISTANCE: VERTICAL AT 3 M NO. FREQ. (MHz) EMISSION LEVEL (dBuV/m) LIMIT (dBuV/m) MARGIN (dB) ANTENNA HEIGHT (m) TABLE ANGLE (Degree) RAW VALUE (dBuV) CORRECTION FACTOR (dB/m) 1*2437.00111.20 PK1.10 V34779.5431.66 1*2437.00100.50 AV1.10 V34768.8431.66 23249.0050.90 PK74.00-23.101.00 V32717.5833.32 23249.0047.70 AV54.00-6.301.00 V32714.3833.32 34874.0050.80 PK74.00-23.201.07 V2113.6537.15 34874.0045.10 AV54.00-8.901.07 V217.9537.15 47311.0052.10 PK74.00-21.901.24 V639.0143.09 47311.0038.80 AV54.00-15.201.24 V63-4.2943.09 REMARKS: 1. Emission level (dBuV/m) = Raw Value (dBuV) + Correction Factor (dB/m). 2. Correction Factor (dB/m) = Antenna Factor (dB/m) + Cable Factor (dB). 3. The other emission levels were very low against the limit. 4. Margin value = Emission level – Limit value. 5. The limit value is defined as per 15.247. 6. “ * “: Fundamental frequency. Report No.: RF950407H0383Report Format Version 2.0.4 EUT TEST CONDITIONMEASUREMENT DETAIL CHANNEL Channel 7 FREQUENCY RANGE 1 ~ 25GHz MODULATION TYPE BPSK INPUT POWER (SYSTEM) 120Vac, 60 Hz TRANSFER RATE 13.5Mbps DETECTOR FUNCTION Peak(PK) Average (AV) ENVIRONMENTAL CONDITIONS 18deg. C, 65%RH, 971hPa TESTED BY Moris Lin ANTENNA POLARITY & TEST DISTANCE: HORIZONTAL AT 3 M NO. FREQ. (MHz) EMISSION LEVEL (dBuV/m) LIMIT (dBuV/m) MARGIN (dB) ANTENNA HEIGHT (m) TABLE ANGLE (Degree) RAW VALUE (dBuV) CORRECTION FACTOR (dB/m) 1*2462.0097.90 PK1.24 H19766.1631.74 1*2462.0087.80 AV1.24 H19756.0631.74 22483.5059.70 PK74.00-14.301.24 H19727.8931.81 22483.5049.50 AV54.00-4.501.24 H19717.6931.81 33269.0049.80 PK74.00-24.201.04 H35316.4233.38 33269.0047.60 AV54.00-6.401.04 H35314.2233.38 44904.0050.30 PK74.00-23.701.13 H34713.0437.26 44904.0044.90 AV54.00-9.101.13 H3477.6437.26 57386.0051.40 PK74.00-22.601.17 H628.0243.38 57386.0038.20 AV54.00-15.801.17 H62-5.1843.38 ANTENNA POLARITY & TEST DISTANCE: VERTICAL AT 3 M NO. FREQ. (MHz) EMISSION LEVEL (dBuV/m) LIMIT (dBuV/m) MARGIN (dB) ANTENNA HEIGHT (m) TABLE ANGLE (Degree) RAW VALUE (dBuV) CORRECTION FACTOR (dB/m) 1*2452.00110.40 PK1.07 V34478.6931.71 1*2452.0099.90 AV1.07 V34468.1931.71 22483.5065.20 PK74.00-8.801.07 V34433.3931.81 22483.5053.70 AV54.00-0.301.07 V34421.8931.81 33269.0049.40 PK74.00-24.601.06 V32216.0233.38 33269.0047.10 AV54.00-6.901.06 V32213.7233.38 44904.0050.10 PK74.00-23.901.05 V3312.8437.26 44904.0044.60 AV54.00-9.401.05 V337.3437.26 57356.0051.20 PK74.00-22.801.21 V747.9443.26 57356.0037.90 AV54.00-16.101.21 V74-5.3643.26 REMARKS: 1. Emission level (dBuV/m) = Raw Value (dBuV) + Correction Factor (dB/m). 2. Correction Factor (dB/m) = Antenna Factor (dB/m) + Cable Factor (dB). 3. The other emission levels were very low against the limit. 4. Margin value = Emission level – Limit value. 5. The limit value is defined as per 15.247. 6. “ * “: Fundamental frequency. Report No.: RF950407H0384Report Format Version 2.0.4 RESTRICTED BANDEDGE (DRAFT 802.11n (40MHz) MODE,CH1, HORIZONTAL ) Report No.: RF950407H0385Report Format Version 2.0.4 RESTRICTED BANDEDGE (DRAFT 802.11n (40MHz) MODE,CH1, VERTICAL ) Report No.: RF950407H0386Report…

Text truncated - open the document above for the full version.

Report No.: RF950407H03160Report Format Version 2.0.4 5. PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST Report No.: RF950407H03161Report Format Version 2.0.4 RADIATED EMISSION TEST
