Q87-WRT300NV1Wireless-N Broadband Router

Model No. Broadband Router Wireless-N WRT300N User Guide WIRELESS GHz 2.4 Wireless-N Broadband Router Copyright and Trademarks Specifications are subject to change without notice. Linksys is a registered trademark or trademark of Cisco Systems, Inc. and/or its affiliates in the U.S. and certain other countries. Copyright © 2006 Cisco Systems, Inc. All rights reserved. Other brands and product names are trademarks or registered trademarks of their respective holders. How to Use This User Guide This User Guide has been designed to make understanding networking with the Wireless-N Broadband Router easier than ever. Look for the following items when reading this User Guide: In addition to these symbols, there are definitions for technical terms that are presented like this: Also, each figure (diagram, screenshot, or other image) is provided with a figure number and description, like this: Figure numbers and descriptions can also be found in the “List of Figures” section in the “Table of Contents”. This exclamation point means there is a caution or warning and is something that could damage your property or the Wireless-N Broadband Router. This checkmark means there is a note of interest and is something you should pay special attention to while using the Wireless-N Broadband Router. This question mark provides you with a reminder about something you might need to do while using the Wireless-N Broadband Router. word: definition. Figure 0-1: Sample Figure Description WRT300N-UG-60324NC JL WARNING:This product contains chemicals, including lead, known to the State of California to cause cancer, and birth defects or other reproductive harm. Wash hands after handling. Wireless-N Broadband Router Table of Contents Chapter 1: Introduction1 Welcome1 What’s in this User Guide?2 Chapter 2: Planning Your Wireless Network4 Network Topology4 Ad-Hoc versus Infrastructure Mode4 Network Layout4 Chapter 3: Getting to Know the Wireless-N Broadband Router6 The Back Panel6 The Front Panel7 The Top Panel7 Chapter 4: Connecting the Wireless-N Broadband Router8 Hardware Installation8 Chapter 5: Configuring the Wireless-N Broadband Router9 Overview9 How to Access the Web-based Utility11 The Setup Tab - Basic Setup11 The Setup Tab - DDNS17 The Setup Tab - MAC Address Clone19 The Setup Tab - Advanced Routing20 The Wireless Tab - Basic Wireless Settings22 The Wireless Tab - Wireless Security23 The Wireless Tab - Wireless MAC Filter26 The Wireless Tab - Advanced Wireless Settings27 The Security Tab - Firewall29 The Security Tab - VPN Passthrough30 The Access Restrictions Tab - Internet Access Policy31 The Applications & Gaming Tab - Single Port Forwarding33 The Applications & Gaming Tab - Port Range Forwarding34 The Applications & Gaming Tab - Port Range Triggering35 The Applications & Gaming Tab - DMZ36 The Applications and Gaming Tab - QoS37 Wireless-N Broadband Router The Administration Tab - Management40 The Administration Tab - Log42 The Administration Tab - Diagnostics43 The Administration Tab - Factory Defaults44 The Administration Tab - Firmware Upgrade45 The Status Tab - Router46 The Status Tab - Local Network47 The Status Tab - Wireless48 Appendix A: Troubleshooting49 Common Problems and Solutions49 Frequently Asked Questions57 Appendix B: Wireless Security63 Security Precautions63 Security Threats Facing Wireless Networks63 Appendix C: Upgrading Firmware66 Appendix D: Windows Help67 Appendix E: Finding the MAC Address and IP Address for Your Ethernet Adapter68 Windows 98SE or Me Instructions68 Windows 2000 or XP Instructions69 For the Router’s Web-based Utility69 Appendix F: Glossary70 Appendix G: Specifications75 Appendix H: Warranty Information77 Appendix I: Regulatory Information78 Appendix J: Contact Information84 Wireless-N Broadband Router List of Figures Figure 3-1: The Router’s Back Panel6 Figure 3-2: The Router’s Front Panel7 Figure 3-3: The Router’s Top Panel7 Figure 4-1: Connect the Modem8 Figure 4-2: Connect a PC8 Figure 4-3: Connect the Power8 Figure 5-1: Router Login11 Figure 5-2: Setup Tab - Basic Setup (Automatic Configuration - DHCP)11 Figure 5-3: Static IP12 Figure 5-4: PPPoE12 Figure 5-5: PPTP13 Figure 5-6: Telstra Cable13 Figure 5-7: L2TP14 Figure 5-8: DHCP Reservation16 Figure 5-9: Setup Tab - DDNS (DynDNS.org)17 Figure 5-10: Setup Tab - DDNS (TZO.com)18 Figure 5-11: Setup Tab - MAC Clone19 Figure 5-12: Setup Tab - Advanced Routing20 Figure 5-13: Routing Table21 Figure 5-14: Wireless Tab - Basic Wireless Settings22 Figure 5-15: Wireless Tab - Wireless Security (PSK-Personal)23 Figure 5-16: Wireless Security - PSK2-Personal23 Figure 5-17: Wireless Security - PSK-Enterprise24 Figure 5-18: Wireless Security - PSK2-Enterprise24 Figure 5-19: Wireless Security - RADIUS25 Figure 5-20: Wireless Security - WEP25 Figure 5-21: Wireless Tab - Wireless MAC Filter26 Figure 5-22: Wireless Client List26 Figure 5-23: Wireless Tab - Advanced Wireless Settings27 Figure 5-24: Security Tab - Firewall29 Figure 5-25: VPN Passthrough30 Wireless-N Broadband Router Figure 5-26: Access Restrictions Tab - Internet Access Policy31 Figure 5-27: Summary31 Figure 5-28: List of PCs32 Figure 5-29: Applications & Gaming Tab - Single Port Forwarding33 Figure 5-30: Applications & Gaming Tab - Port Range Forwarding34 Figure 5-31: Applications & Gaming Tab - Port Range Triggering35 Figure 5-32: Applications & Gaming Tab - DMZ36 Figure 5-33: DHCP Client Table36 Figure 5-34: Applications & Gaming Tab - QoS (Applications)37 Figure 5-35: QoS - Applications (Add a New Application)38 Figure 5-36: QoS - Online Games38 Figure 5-37: QoS - MAC Address38 Figure 5-38: QoS - MAC Address38 Figure 5-39: QoS - Voice Device39 Figure 5-40: Administration Tab - Management40 Figure 5-41: Administration Tab - Log42 Figure 5-42: View Log42 Figure 5-43: Administration Tab - Diagnostics43 Figure 5-44: Ping Test43 Figure 5-45: Traceroute Test43 Figure 5-46: Administration Tab - Factory Defaults44 Figure 5-47: Administration Tab - Firmware Upgrade45 F…

Text truncated - open the document above for the full version.

49 Appendix A: Troubleshooting Common Problems and Solutions Wireless-N Broadband Router Appendix A: Troubleshooting This appendix consists of two parts: “Common Problems and Solutions” and “Frequently Asked Questions.” Provided are possible solutions to problems that may occur during the installation and operation of the Router. Read the descriptions below to help you solve your problems. If you can’t find an answer here, check the Linksys website at www.linksys.com. Common Problems and Solutions 1. I’m trying to access the Router’s Web-based Utility, but I do not see the login screen. Instead, I see a screen saying, “404 Forbidden.” If you are using Windows Explorer, perform the following steps until you see the Web-based Utility’s login screen (Netscape Navigator will require similar steps): 1. Click File. Make sure Work Offline is NOT checked. 2. Press CTRL + F5. This is a hard refresh, which will force Windows Explorer to load new webpages, not cached ones. 3. Click Tools. Click Internet Options. Click the Security tab. Click the Default level button. Make sure the security level is Medium or lower. Then click the OK button. 2. I need to set a static IP address on a PC. You can assign a static IP address to a PC by performing the following steps: •For Windows 98SE and Me: 1. Click Start, Settings, and Control Panel. Double-click Network. 2. In The following network components are installed box, select the TCP/IP-> associated with your Ethernet adapter. If you only have one Ethernet adapter installed, you will only see one TCP/IP line with no association to an Ethernet adapter. Highlight it and click the Properties button. 3. In the TCP/IP properties window, select the IP address tab, and select Specify an IP address. Enter a unique IP address that is not used by any other computer on the network connected to the Router. Make sure that each IP address is unique for each PC or network device. 4. Click the Gateway tab, and in the New Gateway prompt, enter 192.168.1.1, which is the default IP address of the Router. Click the Add button to accept the entry. 5. Click the DNS tab, and make sure the DNS Enabled option is selected. Enter the Host and Domain names (e.g., John for Host and home for Domain). Enter the DNS entry provided by your ISP. If your ISP has not provided the DNS IP address, contact your ISP to get that information or go to its website for the information. 6. Click the OK button in the TCP/IP properties window, and click Close or the OK button for the Network window. 7. Restart the computer when asked. 50 Appendix A: Troubleshooting Common Problems and Solutions Wireless-N Broadband Router •For Windows 2000: 1. Click Start, Settings, and Control Panel. Double-click Network and Dial-Up Connections. 2. Right-click the Local Area Connection that is associated with the Ethernet adapter you are using, and select the Properties option. 3. In the Components checked are used by this connection box, highlight Internet Protocol (TCP/IP), and click the Properties button. Select Use the following IP address option. 4. Enter a unique IP address that is not used by any other computer on the network connected to the Router. 5. Enter the Subnet Mask, 255.255.255.0. 6. Enter the Default Gateway, 192.168.1.1 (Router’s default IP address). 7. Toward the bottom of the window, select Use the following DNS server addresses, and enter the Preferred DNS server and Alternative DNS server (provided by your ISP). Contact your ISP or go on its website to find the information. 8. Click the OK button in the Internet Protocol (TCP/IP) Properties window, and click the OK button in the Local Area Connection Properties window. 9. Restart the computer if asked. •For Windows XP: The following instructions assume you are running Windows XP with the default interface. If you are using the Classic interface (where the icons and menus look like previous Windows versions), please follow the instructions for Windows 2000. 1. Click Start and Control Panel. 2. Click the Network and Internet Connections icon and then the Network Connections icon. 3. Right-click the Local Area Connection that is associated with the Ethernet adapter you are using, and select the Properties option. 4. In the This connection uses the following items box, highlight Internet Protocol (TCP/IP). Click the Properties button. 5. Enter a unique IP address that is not used by any other computer on the network connected to the Router. 6. Enter the Subnet Mask, 255.255.255.0. 7. Enter the Default Gateway, 192.168.1.1 (Router’s default IP address). 8. Toward the bottom of the window, select Use the following DNS server addresses, and enter the Preferred DNS server and Alternative DNS server (provided by your ISP). Contact your ISP or go on its website to find the information. 9. Click the OK button in the Internet Protocol (TCP/IP) Properties window. Click the OK button in the Local Area Connection Properties window. 3. I want to test my Internet connection. ACheck your TCP/IP settings. For Windows 98SE, Me, 2000, and XP: •Refer to Windows Help for details. Make sure Obtain IP address automatically is selected in the settings. 51 Appendix A: Troubleshooting Common Problems and Solutions Wireless-N Broadband Router BOpen a command prompt. For Windows 98SE and Me: •Click Start and Run. In the Open field, type command. Press the Enter key or click the OK button. For Windows 2000 and XP: •Click Start and Run. In the Open field, type cmd. Press the Enter key or click the OK button. In the command prompt, type ping 192.168.1.1 and press the Enter key. •If you get a reply, the computer is communicating with the Router. •If you do NOT get a reply, please check the cable, and make sure Obtain an IP address automatically is selected in the TCP/IP settings for your Ethernet adapter. CIn the command prompt, type ping followed by your Internet or WAN IP address and press the Enter key. The Internet or WAN IP Address can be found on the Status screen of the Rou…

Text truncated - open the document above for the full version.

81 Appendix I: Regulatory Information Wireless-N Broadband Router 82 Appendix I: Regulatory Information Wireless-N Broadband Router

83 Appendix I: Regulatory Information Wireless-G Broadband Router with RangeBooster For more information, visit www.linksys.com. 84 Appendix J: Contact Information Wireless-N Broadband Router Appendix J: Contact Information Need to contact Linksys? Visit us online for information on the latest products and updates to your existing products at:http://www.linksys.com or ftp.linksys.com Can’t find information about a product you want to buy on the web? Do you want to know more about networking with Linksys products? Give our advice line a call at:800-546-5797 (LINKSYS) Or fax your request in to:949-823-3002 If you experience problems with any Linksys product, you can call us at:800-859-2379 Don’t wish to call? You can e-mail us at:[email protected] If any Linksys product proves defective during its warranty period, you can call the Linksys Return Merchandise Authorization department for obtaining a Return Authorization Number at:949-823-3000 (Details on Warranty and RMA issues can be found in the Warranty Information section in this Guide.)

Cisco-Linksys LLC 121 Theory Drive Irvine, CA 92617(USA) Phone: ( 949 ) 823-3188 Fax: ( 949 ) 823-3002 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: Q87-WRT300NV1 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Theory of Operation Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments for 90 days after the grant letter released External Photos Internal Photos Test Setup Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards ------------------------------------------------------------------------------ Jennifer Yu / Associate Engineer Cisco-Linksys LLC Phone: 949-823-3188 Fax: 949-823-3002 [email protected]

Cisco-Linksys LLC 121 Theory Drive Irvine, CA 92617(USA) Phone: ( 949 ) 823-3188 Fax: ( 949 ) 823-3002 Power of Attorney To whom it may concern: We, the undersigned Cisco-Linksys LLC hereby authorize Advance Data Technology Corporation (ADT) of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15C approval and any communication needed with the national authority. Any and all acts carried out by ADT on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, ------------------------------------------------------------------------------- Jennifer Yu / Associate Engineer Cisco-Linksys LLC Phone: 949-823-3188 Fax: 949-823-3002 [email protected]

From: [email protected] [mailto:[email protected]] Sent: Thursday, April 27, 2006 3:07 AM To: steve.cheng Cc: [email protected]; [email protected]; [email protected] Subject: Done! : TCB Review Comments for (B06-0426c- Q87-WRT300NV1,950420H02- Cisco 11n Router) Dear Steve, Please see response below. Thanks! Best Regards, Amanda Chu / 朱芳誼 Certification Specialist / ADT Corp. (Hsin Chu Office) Tel: 03-5935343 ext. 1737 Fax: 03-5934728 "steve.cheng" <[email protected]> 2006/04/27 上午 11:44 收件人 [email protected] 副本抄 送 主旨 TCB Review Comments for (B06-0426c- Q87-WRT300NV1,950420H02- Cisco 11n Router) TCB Review Comments for (B06-0426c- Q87-WRT300NV1, 950420H02- Cisco 11n Router) -EMC- Question #1: P 136 or test report Sweep Time setting is wrong please re-take data. => Plot has been re-measured with correct setting and test report updated. Question #2: Is this product a 2x2 MIMO or 2x3 MIMO? Does this product capable of 1x2 or other configuration? Please conform. =>This device support only 2x2 MIMO as tested in the report; all other functions are not available for this version. Best regards, Steve Cheng Curtis Straus LLC

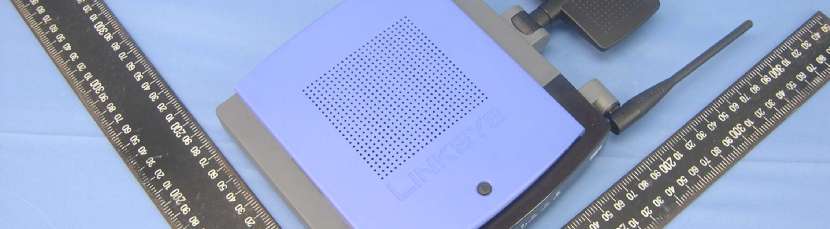

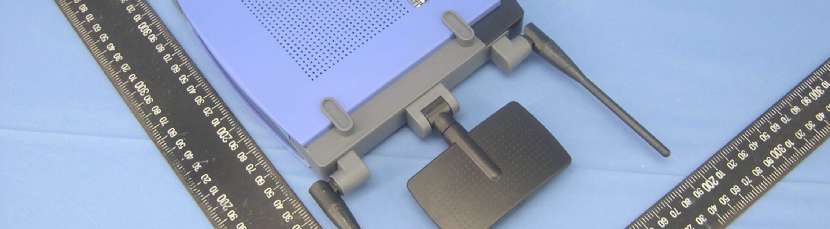

Page 1 CONSTRUCTION PHOTOS OF EUT 950420H02 950420H02 Page 2 950420H02

(Fig. 1) FCC ID: Q87-WRT300NV1 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

Page 3 950420H02 950420H02 Page 4 950420H02 950420H02 Page 5 950420H02 950420H02 Page 6 950420H02 Page 7 950420H02 950420H02 Page 8 Page 9 Page 10 950420H02 Page 11 Page 12 Page 13 950420H02 950420H02 Page 14 950420H02 Page 15 950420H02 Page 16 950420H02

Report No.: SA950420H02 1 RF EXPOSURE REPORT REPORT NO.: SA950420H02 MODEL NO.: WRT300N V1 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Cisco-Linksys LLC ADDRESS: 121 Theory Drive Irvine, CA 92617(USA) ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. Report No.: SA950420H02 2 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz Report No.: SA950420H02 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device Report No.: SA950420H02 4 6. Test Results 6.1 Antenna Gain There are three antennas provided to this EUT, please refer to the following table: No.Gain (dBi) Gain (numeric) Antenna Type Antenna Connector 12.01.585DipoleNA 21.81.514PCB monopoleNA 32.01.585DipoleNA 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For Part 802.11b: Maximum Antenna Gain: 2.0dBi Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241297.7240.0311.0 62437102.3290.0321.0 11246293.3250.0291.0 For Part 802.11g: Maximum Antenna Gain: 2.0dBi Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 12412102.3290.0321.0 62437112.2020.0351.0 112462102.3290.0321.0 Report No.: SA950420H02 5 DRAFT 802.11n (20MHz) OFDM modulation: DUAL TX: ANTENNA 1+ ANTENNA 3 Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 12412162.5660.1031.0 62437178.2970.1121.0 112462184.7770.1171.0 ANTENNA 1+ ANTENNA 2 Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 12412181.2830.1121.0 62437168.8260.1041.0 112462134.6940.0831.0 DRAFT 802.11n (40MHz) OFDM modulation: DUAL TX: ANTENNA 1+ ANTENNA 3 Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 12422197.7150.1251.0 42437197.4900.1251.0 72452197.4840.1251.0 ANTENNA 1+ ANTENNA 2 Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 12422195.4500.1201.0 42437197.0320.1211.0 72452195.9000.1211.0

Report No.: RF950420H021Report Format Version 2.0.4 FCC TEST REPORT REPORT NO.: RF950420H02 MODEL NO.: WRT300N V1 RECEIVED: April 20, 2006 TESTED: April 20 to 21, 2006 ISSUED: April 24, 2006 APPLICANT: Cisco-Linksys LLC ADDRESS: 121 Theory Drive Irvine, CA 92617(USA) ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 163 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. The test results in this report are traceable to the national or international standards. No. 2177-01 Report No.: RF950420H022Report Format Version 2.0.4 TABLE OF CONTENTS 1.CERTIFICATION....................................................................................................4 2.SUMMARY OF TEST RESULTS............................................................................5 2.1 MEASUREMENT UNCERTAINTY................................................................................6 3.GENERAL INFORMATION....................................................................................7 3.1GENERAL DESCRIPTION OF EUT..................................................................7 3.2DESCRIPTION OF TEST MODES...................................................................9 3.2.1TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL...................10 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS.................................14 3.4DESCRIPTION OF SUPPORT UNITS............................................................15 3.5CONFIGURATION OF SYSTEM UNDER TEST.............................................16 4.TEST TYPES AND RESULTS..............................................................................18 4.1CONDUCTED EMISSION MEASUREMENT..................................................18 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT................................18 4.1.2TEST INSTRUMENTS....................................................................................18 4.1.3TEST PROCEDURES....................................................................................19 4.1.4DEVIATION FROM TEST STANDARD...........................................................19 4.1.5TEST SETUP..................................................................................................20 4.1.6EUT OPERATING CONDITIONS....................................................................20 4.1.7TEST RESULTS.............................................................................................21 4.2RADIATED EMISSION MEASUREMENT.......................................................39 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT.....................................39 4.2.2TEST INSTRUMENTS....................................................................................40 4.2.3TEST PROCEDURES....................................................................................41 4.2.4DEVIATION FROM TEST STANDARD...........................................................41 4.2.5TEST SETUP..................................................................................................42 4.2.6EUT OPERATING CONDITIONS...................................................................42 4.2.7TEST RESULTS.............................................................................................43 4.36dB BANDWIDTH MEASUREMENT..............................................................88 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT............................................88 4.3.2TEST INSTRUMENTS....................................................................................88 4.3.3TEST PROCEDURE.......................................................................................88 4.3.4DEVIATION FROM TEST STANDARD...........................................................88 4.3.5TEST SETUP..................................................................................................89 4.3.6EUT OPERATING CONDITIONS....................................................................89 4.3.7TEST RESULTS.............................................................................................90 4.4MAXIMUM PEAK OUTPUT POWER............................................................106 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT..............110 Report No.: RF950420H023Report Format Version 2.0.4 4.4.2INSTRUMENTS............................................................................................110 4.4.3TEST PROCEDURES..................................................................................110 4.4.4DEVIATION FROM TEST STANDARD.........................................................110 4.4.5TEST SETUP................................................................................................111 4.4.6EUT OPERATING CONDITIONS..................................................................111 4.4.7TEST RESULTS...........................................................................................112 4.5POWER SPECTRAL DENSITY MEASUREMENT........................................115 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT......................115 4.5.2TEST INSTRUMENTS..................................................................................115 4.5.3TEST PROCEDURE.....................................................................................115 4.5.4DEVIATION FROM TEST STANDARD.........................................................115 4.5.5TEST SETUP................................................................................................116 4.5.6EUT OPERATING CONDITION................................................…

Text truncated - open the document above for the full version.

Report No.: RF950420H02110Report Format Version 2.0.4 4.4 MAXIMUM PEAK OUTPUT POWER 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT The Maximum Peak Output Power Measurement is 30dBm. 4.4.2 INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until R&S SPECTRUM ANALYZERFSP40100036Nov. 23, 2006 Agilent SIGNAL GENERATORE8257CMY43320668Dec. 07, 2006 TEKTRONIX OSCILLOSCOPETDS380B016335Jun. 22, 2006 NARDA DETECTOR4503AFSCM99899NA NOTE: The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 4.4.3 TEST PROCEDURES 1. A detector was used on the output port of the EUT. An oscilloscope was used to read the response of the detector. 2.Replaced the EUT by the signal generator. The center frequency of the S.G was adjusted to the center frequency of the measured channel. 3. Adjusted the power to have the same reading on oscilloscope. Record the power level. 4.4.4 DEVIATION FROM TEST STANDARD No deviation Report No.: RF950420H02111Report Format Version 2.0.4 4.4.5 TEST SETUP 4.4.6 EUT OPERATING CONDITIONS Same as Item 4.3.6 EUT or S.G OSCILLOSCOPE DETECTOROR Report No.: RF950420H02112Report Format Version 2.0.4 4.4.7 TEST RESULTS 802.11b DSSS MODULATION: MODULATION TYPE DBPSK TRANSFER RATE 1Mbps INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 20deg.C, 60%RH, 971hPa TESTED BY Wen Yu CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER OUTPUT (mW) PEAK POWER OUTPUT (dBm) PEAK POWER LIMIT (dBm) PASS / FAIL 1241297.72419.9030PASS 62437102.32920.1030PASS 11246293.32519.7030PASS 802.11g OFDM MODULATION: MODULATION TYPE BPSK TRANSFER RATE 6Mbps INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 20deg.C, 60%RH, 971hPa TESTED BY Wen Yu CHANNEL CHANNEL FREQUENCY (MHz) PEAK POWER OUTPUT (mW) PEAK POWER OUTPUT (dBm) PEAK POWER LIMIT (dBm) PASS / FAIL 12412102.32920.1030PASS 62437112.20220.5030PASS 112462102.32920.…
