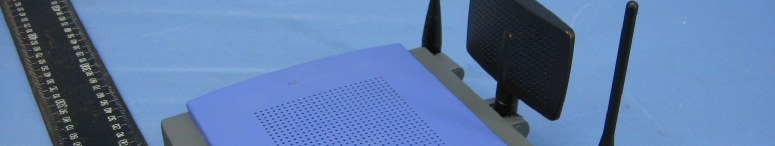

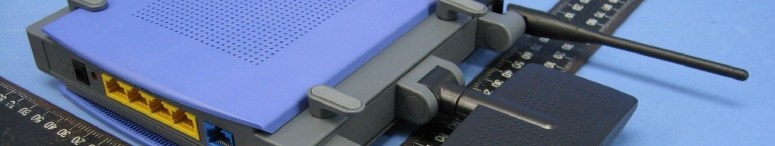

Page 1 CONSTRUCTION PHOTOS OF EUT

6002-81414541R

(Fig. 1) FCC ID: Q87-WRT300NV11 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

Page 2 Page 3 Page 4 Page 5 Page 6 Model: LS120V10AE Page 7 Model: AD12V/1A-SW Page 8 Model: LS12V1A

FCC ID: Q87-WRT300NV11 Report No. RF950703H05 Operational Description This device is a Wireless-N Broadband Router, which operates in the 2.4GHz frequency spectrum with throughput of up to 270Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 270Mbps, the 11Mbps data rate with DSSS technique will be applied. 1. There are three antennas provided to this EUT, please refer to the following table: No. Gain (dBi) Antenna Type Antenna Connector 1 2.0 Dipole NA 2 2.0 Dipole NA 3 1.8 PCB monopole NA 2. The EUT incorporates a MIMO function with 802.11b, 802.11g, draft 802.11n. Physically, the card provides two completed transmit and two receivers. 3. The EUT is 2 * 2 spatial MIMO without beam forming function. The antenna configuration are three transmitter antennas and three receiver antennas , as there are 2 dipole antennas and one PCB monopole antenna. Spatial multiplexing modes for simultaneous transmission using 2 antennas, and for simultaneous receiver using 2 antennas. 4. The EUT complies with draft 802.11n standards and backwards compatible with 802.11b, 802.11g products. 5. The EUT operates in the 2.4GHz frequency spectrum with data rate up to 270Mbps. 6. The above EUT information was declared by manufacturer and for more detailed features description, please refer to the manufacturer's specifications or user's manual.

Report No.: SA950703H05 1 RF EXPOSURE REPORT REPORT NO.: SA950703H05 MODEL NO.: WRT300N V1.1 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Cisco-Linksys LLC ADDRESS: 121 Theory Drive Irvine, CA 92617(USA) ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. Report No.: SA950703H05 2 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 300-1500 ... ... F/1500 6 1500-100,000 ... ... 1.0 30 F = Frequency in MHz Report No.: SA950703H05 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device Report No.: SA950703H05 4 6. Test Results 6.1 Antenna Gain There are three antennas provided to this EUT, please refer to the following table: No. Gain (dBi) Antenna Type Antenna Connector 1 2.0 Dipole NA 2 2.0 Dipole NA 3 1.8 PCB monopole NA 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For Part 802.11b: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 72.444 0.023 1.0 6 2437 79.433 0.025 1.0 11 2462 54.954 0.017 1.0 For Part 802.11g / DUAL TX: ANTENNA 1+ ANTENNA 2 Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 125.152 0.039 1.0 6 2437 125.152 0.039 1.0 11 2462 116.799 0.037 1.0 For Part 802.11g / DUAL TX: ANTENNA 1+ ANTENNA 3 Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 123.842 0.039 1.0 6 2437 123.842 0.039 1.0 11 2462 113.214 0.036 1.0 Report No.: SA950703H05 5 DRAFT 802.11n (20MHz) OFDM modulation / DUAL TX: ANTENNA 1+ ANTENNA 2 Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 126.191 0.040 1.0 6 2437 126.191 0.040 1.0 11 2462 106.353 0.034 1.0 DRAFT 802.11n (20MHz) OFDM modulation / DUAL TX: ANTENNA 1+ ANTENNA 3 Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 152.221 0.048 1.0 6 2437 152.221 0.048 1.0 11 2462 119.330 0.038 1.0 DRAFT 802.11n (40MHz) OFDM modulation / DUAL TX: ANTENNA 1+ ANTENNA 2 Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2422 115.088 0.036 1.0 4 2437 115.088 0.036 1.0 7 2452 81.498 0.026 1.0 DRAFT 802.11n (40MHz) OFDM modulation / DUAL TX: ANTENNA 1+ ANTENNA 3 Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2422 120.640 0.038 1.0 4 2437 120.640 0.038 1.0 7 2452 77.830 0.025 1.0

Report No.: RF950703H05 1 Report Format Version 2.0.5 FCC TEST REPORT REPORT NO.: RF950703H05 MODEL NO.: WRT300N V1.1 RECEIVED: July 04, 2006 TESTED: Jan. 21 to 31, 2007 ISSUED: Feb. 02, 2007 APPLICANT: Cisco-Linksys LLC ADDRESS: 121 Theory Drive Irvine, CA 92617(USA) ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 191 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. No. 2177-01 Report No.: RF950703H05 2 Report Format Version 2.0.5 TABLE OF CONTENTS 1. CERTIFICATION........................................................................................................4 2. SUMMARY OF TEST RESULTS...............................................................................5 2.1 MEASUREMENT UNCERTAINTY.............................................................................6 3. GENERAL INFORMATION........................................................................................7 3.1 GENERAL DESCRIPTION OF EUT..........................................................................7 3.2 DESCRIPTION OF TEST MODES..........................................................................10 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL.........................11 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS.........................................16 3.4 DESCRIPTION OF SUPPORT UNITS....................................................................17 3.5 CONFIGURATION OF SYSTEM UNDER TEST.....................................................18 4. TEST TYPES AND RESULTS.................................................................................19 4.1 CONDUCTED EMISSION MEASUREMENT..........................................................19 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT.......................................19 4.1.2 TEST INSTRUMENTS.............................................................................................19 4.1.3 TEST PROCEDURES..............................................................................................20 4.1.4 DEVIATION FROM TEST STANDARD...................................................................20 4.1.5 TEST SETUP...........................................................................................................21 4.1.6 EUT OPERATING CONDITIONS............................................................................21 4.1.7 TEST RESULTS.......................................................................................................22 4.2 RADIATED EMISSION MEASUREMENT...............................................................40 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT............................................40 4.2.2 TEST INSTRUMENTS.............................................................................................41 4.2.3 TEST PROCEDURES..............................................................................................42 4.2.4 DEVIATION FROM TEST STANDARD...................................................................42 4.2.5 TEST SETUP...........................................................................................................43 4.2.6 EUT OPERATING CONDITIONS............................................................................43 4.2.7 TEST RESULTS.......................................................................................................44 4.3 6dB BANDWIDTH MEASUREMENT.......................................................................99 4.3.1 LIMITS OF 6DB BANDWIDTH MEASUREMENT...................................................99 4.3.2 TEST INSTRUMENTS.............................................................................................99 4.3.3 TEST PROCEDURE................................................................................................99 4.3.4 DEVIATION FROM TEST STANDARD...................................................................99 4.3.5 TEST SETUP.........................................................................................................100 4.3.6 EUT OPERATING CONDITIONS..........................................................................100 4.3.7 TEST RESULTS.....................................................................................................101 4.4 MAXIMUM PEAK OUTPUT POWER.....................................................................127 Report No.: RF950703H05 3 Report Format Version 2.0.5 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT....................127 4.4.2 INSTRUMENTS.....................................................................................................127 4.4.3 TEST PROCEDURES............................................................................................127 4.4.4 DEVIATION FROM TEST STANDARD.................................................................127 4.4.5 TEST SETUP.........................................................................................................128 4.4.6 EUT OPERATING CONDITIONS..........................................................................128 4.4.7 TEST RESULTS.....................................................................................................129 4.5 POWER SPECTRAL DENSITY MEASUREMENT...............................................133 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT............................133 4.5.2 TEST INSTRUMENTS...........................................................................................133 4.5.3 TEST PROCEDURE............................................................…

Text truncated - open the document above for the full version.

Report No.: RF950703H05 99 Report Format Version 2.0.5 4.3 6dB BANDWIDTH MEASUREMENT 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT The minimum of 6dB Bandwidth Measurement is 0.5 MHz. 4.3.2 TEST INSTRUMENTS Description & Manufacturer Model No. Serial No. Calibrated Until R&S SPECTRUM ANALYZER FSP40 100036 Dec. 22, 2007 NOTE: 1.The measurement uncertainty is less than +/- 2.6dB, which is calculated as per the NAMAS document NIS81. 2.The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 4.3.3 TEST PROCEDURE The transmitter output was connected to the spectrum analyzer through an attenuator. The bandwidth of the fundamental frequency was measured by spectrum analyzer with 100kHz RBW and 100kHz VBW. The 6dB bandwidth is defined as the total spectrum the power of which is higher than peak power minus 6dB. 4.3.4 DEVIATION FROM TEST STANDARD No deviation Report No.: RF950703H05 100 Report Format Version 2.0.5 4.3.5 TEST SETUP 4.3.6 EUT OPERATING CONDITIONS The software provided by client to enable the EUT under transmission condition continuously at lowest, middle and highest channel frequencies individually. SPECTRUM ANALYZER EUT Report No.: RF950703H05 101 Report Format Version 2.0.5 4.3.7 TEST RESULTS 802.11b DSSS MODULATION: MODULATION TYPE CCK TRANSFER RATE 1Mbps INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 18deg.C, 64%RH, 971hPa TESTED BY Sky Liao CHANNEL CHANNEL FREQUENCY (MHz) 6dB BANDWIDTH (MHz) MINIMUM LIMIT (MHz) PASS / FAIL 1 2412 10.64 0.5 PASS 6 2437 11.20 0.5 PASS 11 2462 11.28 0.5 PASS CH1 Report No.: RF950703H05 102 Report Format Version 2.0.5 CH6 CH11 Report No.: RF950703H05 103 Report Format Version 2.0.5 802.11g OFDM MODULATION / DUAL TX: (ANTENNA 1 AND 2) MODULATION TYPE BPSK TRANSFER RATE 6Mbps INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 18deg.C, 64%RH, 971hPa TESTED BY Sky Liao 6dB BANDWIDTH (MHz) CHANNEL CHANNEL FREQUENCY (MHz) CHAIN 0 CHAIN 1 MINIMUM LIMIT (MHz) PASS / FAIL 1 2412 16.32 16.40 0.5 PASS 6 2437 16.32 16.32 0.5 PASS 11 2462 16.32 16.32 0.5 PASS FOR CHAIN 0: CH1 Report No.: RF950703H05 104 Report Format Version 2.0.5 CH6 CH11 Report No.: RF950703H05 105 Report Format Version 2.0.5 FOR CHAIN 1: CH1 CH6 Report No.: RF950703H05 106 Report Format Version 2.0.5 CH11 Report No.: RF950703H05 107 Report Format Version 2.0.5 802.11g OFDM MODULATION / DUAL TX: (ANTENNA 1 AND 3) MODULATION TYPE BPSK TRANSFER RATE 6Mbps INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 18deg.C, 64%RH, 971hPa TESTED BY Sky Liao 6dB BANDWIDTH (MHz) CHANNEL CHANNEL FREQUENCY (MHz) CHAIN 0 CHAIN 1 MINIMUM LIMIT (MHz) PASS / FAIL 1 2412 16.32 16.32 0.5 PASS 6 2437 16.32 16.32 0.5 PASS 11 2462 16.32 16.32 0.5 PASS FOR CHAIN 0: CH1 Report No.: RF950703H05 108 Report Format Version 2.0.5 CH6 CH11 Report No.: RF950703H05 109 Report Format Version 2.0.5 FOR CHAIN 1: CH1 CH6 Report No.: RF950703H05 110 Report Format Version 2.0.5 CH11 Report No.: RF950703H05 111 Report Format Version 2.0.5 DRAFT 802.11n (20MHz) OFDM MODULATION / DUAL TX: (ANTENNA 1 AND 2) MODULATION TYPE BPSK TRANSFER RATE 6.5Mbps INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 18deg.C, 64%RH, 971hPa TESTED BY Sky Liao 6dB BANDWIDTH (MHz) CHANNEL CHANNEL FREQUENCY (MHz) CHAIN 0 CHAIN 1 MINIMUM LIMIT (MHz) PASS / FAIL 1 2412 17.04 16.64 0.5 PASS 6 2437 17.04 16.96 0.5 PASS 11 2462 17.12 16.88 0.5 PASS FOR CHAIN 0: CH1 Report No.: RF950703H05 112 Report Format Version 2.0.5 CH6 CH11 Report No.: RF950703H05 113 Report Format Version 2.0.5 FOR CHAIN 1: CH1 CH6 Report No.: RF950703H05 114 Report Format Version 2.0.5 CH11 Report No.: RF950703H05 115 Report Format Version 2.0.5 DRAFT 802.11n (20MHz) OFDM MODULATION / DUAL TX: (ANTENNA 1 AND 3) MODULATION TYPE BPSK TRANSFER RATE 6.5Mbps INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 18deg.C, 64%RH, 971hPa TESTED BY Sky Liao 6dB BANDWIDTH (MHz) CHANNEL CHANNEL FREQUENCY (MHz) CHAIN 0 CHAIN 1 MINIMUM LIMIT (MHz) PASS / FAIL 1 2412 17.04 16.96 0.5 PASS 6 2437 17.04 16.72 0.5 PASS 11 2462 17.12 16.96 0.5 PASS FOR CHAIN 0: CH1 Report No.: RF950703H05 116 Report Format Version 2.0.5 CH6 CH11 Report No.: RF950703H05 117 Report Format Version 2.0.5 FOR CHAIN 1: CH1 CH6 Report No.: RF950703H05 118 Report Format Version 2.0.5 CH11 Report No.: RF950703H05 119 Report Format Version 2.0.5 DRAFT 802.11n (40MHz) OFDM MODULATION / DUAL TX: (ANTENNA 1 AND 2) MODULATION TYPE BPSK TRANSFER RATE 13.5Mbps INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 18deg.C, 64%RH, 971hPa TESTED BY Sky Liao 6dB BANDWIDTH (MHz) CHANNEL CHANNEL FREQUENCY (MHz) CHAIN 0 CHAIN 1 MINIMUM LIMIT (MHz) PASS / FAIL 1 2422 35.68 35.68 0.5 PASS 4 2437 35.68 35.84 0.5 PASS 7 2452 35.84 35.20 0.5 PASS FOR CHAIN 0: CH1 Report No.: RF950703H05 120 Report Format Version 2.0.5 CH4 CH7 Report No.: RF950703H05 121 Report Format Version 2.0.5 FOR CHAIN 1: CH1 CH4 Report No.: RF950703H05 122 Report Format Version 2.0.5 CH7 Report No.: RF950703H05 123 Report Format Version 2.0.5 DRAFT 802.11n (40MHz) OFDM MODULATION: DUAL TX: (ANTENNA 1 AND 3) MODULATION TYPE BPSK TRANSFER RATE 13.5Mbps INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 18deg.C, 64%RH, 971hPa TESTED BY Sky Liao 6dB BANDWIDTH (MHz) CHANNEL CHANNEL FREQUENCY (MHz) CHAIN 0 CHAIN 1 MINIMUM LIMIT (MHz) PASS / FAIL 1 2422 35.68 35.68 0.5 PASS 4 2437 35.68 35.52 0.5 PASS 7 2452 35.84 35.20 0.5 PASS FOR CHAIN 0: CH1 Report No.: RF950703H05 124 Report Format Version 2.0.5 CH4 CH7 Report No.: RF950703H05 125 Report Format Version 2.0.5 FOR CHAIN 1: CH1 CH4 Report No.: RF950703H05 126 Report Format Version 2.0.5 CH7 Report No.: RF950703H05 127 Report Format Version 2.0.5 4.4 MAXIMUM PEAK OUTPUT POWER 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT The Maximum Peak Output Power Measurement is 30dBm. 4.4.2 INSTRUMENTS Description & Manufacturer Model No. Serial No. Calibrated Until R&S SPECTRUM ANALYZER FSP40 100036 Dec. 22, 2007 A…

Text truncated - open the document above for the full version.

Report No.: RF950703H05 145 Report Format Version 2.0.5 DRAFT 802.11n (20MHz) OFDM MODULATION / DUAL TX: (ANTENNA 1 AND 2) MODULATION TYPE BPSK TRANSFER RATE 6.5Mbps INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 18deg.C, 64%RH, 971hPa TESTED BY Sky Liao RF POWER LEVEL IN 3kHz BW (dBm) CHANNEL CHANNEL FREQUENCY (MHz ) CHAIN 0 CHAIN 1 MAXIMUM LIMIT (dBm) PASS / FAIL 1 2412 -11.16 -11.46 8 PASS 6 2437 -10.87 -10.83 8 PASS 11 2462 -12.11 -12.12 8 PASS FOR CHAIN 0: CH1 Report No.: RF950703H05 146 Report Format Version 2.0.5 CH6 CH11 Report No.: RF950703H05 147 Report Format Version 2.0.5 FOR CHAIN 1: CH1 CH6 Report No.: RF950703H05 148 Report Format Version 2.0.5 CH11 Report No.: RF950703H05 149 Report Format Version 2.0.5 DRAFT 802.11n (20MHz) OFDM MODULATION / DUAL TX: (ANTENNA 1 AND 3) MODULATION TYPE BPSK TRANSFER RATE 6.5Mbps INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 18deg.C, 64%RH, 971hPa TESTED BY Sky Liao RF POWER LEVEL IN 3kHz BW (dBm) CHANNEL CHANNEL FREQUENCY (MHz ) CHAIN 0 CHAIN 1 MAXIMUM LIMIT (dBm) PASS / FAIL 1 2412 -11.16 -9.67 8 PASS 6 2437 -10.87 -10.15 8 PASS 11 2462 -12.11 -11.06 8 PASS FOR CHAIN 0: CH1 Report No.: RF950703H05 150 Report Format Version 2.0.5 CH6 CH11 Report No.: RF950703H05 151 Report Format Version 2.0.5 FOR CHAIN 1: CH1 CH6 Report No.: RF950703H05 152 Report Format Version 2.0.5 CH11 Report No.: RF950703H05 153 Report Format Version 2.0.5 DRAFT 802.11n (40MHz) OFDM MODULATION / DUAL TX: (ANTENNA 1 AND 2) MODULATION TYPE BPSK TRANSFER RATE 13.5Mbps INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 18deg.C, 64%RH, 971hPa TESTED BY Sky Liao RF POWER LEVEL IN 3kHz BW (dBm) CHANNEL CHANNEL FREQUENCY (MHz ) CHAIN 0 CHAIN 1 MAXIMUM LIMIT (dBm) PASS / FAIL 1 2422 -14.34 -13.83 8 PASS 4 2437 -14.11 -13.78 8 PASS 7 2452 -15.74 -14.67 8 PASS FOR CHAIN 0: CH1 Report No.: RF950703H05 154 Report Format Version 2.0.5 CH4 CH7 Report No.: RF950703H05 155 Report Format Version 2.0.5 FOR CHAIN 1: CH1 CH4 Report No.: RF950703H05 156 Report Format Version 2.0.5 CH7 Report No.: RF950703H05 157 Report Format Version 2.0.5 DRAFT 802.11n (40MHz) OFDM MODULATION / DUAL TX: (ANTENNA 1 AND 3) MODULATION TYPE BPSK TRANSFER RATE 13.5Mbps INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 18deg.C, 64%RH, 971hPa TESTED BY Sky Liao RF POWER LEVEL IN 3kHz BW (dBm) CHANNEL CHANNEL FREQUENCY (MHz ) CHAIN 0 CHAIN 1 MAXIMUM LIMIT (dBm) PASS / FAIL 1 2422 -14.34 -13.16 8 PASS 4 2437 -14.11 -13.97 8 PASS 7 2452 -15.74 -15.19 8 PASS FOR CHAIN 0: CH1 Report No.: RF950703H05 158 Report Format Version 2.0.5 CH4 CH7 Report No.: RF950703H05 159 Report Format Version 2.0.5 FOR CHAIN 1: CH1 CH4 Report No.: RF950703H05 160 Report Format Version 2.0.5 CH7 Report No.: RF950703H05 161 Report Format Version 2.0.5 4.6 CONDUCTED EMISSION AND BAND EDGES MEASUREMENT 4.6.1 LIMI…
