Q87-WRT350NWireless-N Gigabit Router with Storage Link

Model No. Gigabit Router with Wireless- N WRT350N User Guide WIRELESS GHz 2.4 Storage Link Wireless-N Gigabit Router with Storage LinkCopyright and TrademarksSpecifications are subject to change without notice. Linksys is a registered trademark or trademark of Cisco Systems, Inc. and/or its affiliates in the U.S. and certain other countries. Copyright © 2006 Cisco Systems, Inc. All rights reserved. Other brands and product names are trademarks or registered trademarks of their respective holders.How to Use This User GuideThis User Guide has been designed to make understanding networking with the Wireless-N Gigabit Router with Storage Link easier than ever. Look for the following items when reading this User Guide:In addition to these symbols, there are definitions for technical terms that are presented like this:Also, each figure (diagram, screenshot, or other image) is provided with a figure number and description, like this:Figure numbers and descriptions can also be found in the “List of Figures” section in the “Table of Contents”. This exclamation point means there is a caution or warning and is something that could damage yoGigabit Router with Storage Linkur property or the Wireless-N Gigabit Router with Storage LinkWireless-N Gigabit Router with Storage Link. This checkmark means there is a note of interest and is something you should pay special attention to while using the Wireless-N Gigabit Router with Storage Link. This question mark provides you with a reminder about something you might need to do while using the Wireless-N Gigabit Router with Storage Link. word: definition. Figure 0-1: Sample Figure Description WRT350N-UG-60726NC SW WARNING: This product contains chemicals, including lead, known to the State of California to cause cancer, and birth defects or other reproductive harm. Wash hands after handling. Wireless-N Gigabit Router with Storage LinkTable of ContentsChapter 1: Introduction 1 Welcome 1 What’s in this User Guide? 2 Chapter 2: Planning Your Wireless Network 4 Network Topology 4 Ad-Hoc versus Infrastructure Mode 4 Network Layout 5 Chapter 3: Getting to Know the Wireless-N Gigabit Router with Storage Link 6 The Back Panel 6 The Front Panel 7 The Top Panel 7 Chapter 4: Connecting the Wireless-N Gigabit Router with Storage Link 8 Hardware Installation 8 Chapter 5: Configuring the Wireless-N Gigabit Router with Storage Link 9 Overview 9 How to Access the Web-based Utility 11 The Setup Tab - Basic Setup 11 The Setup Tab - DDNS 17 The Setup Tab - MAC Address Clone 19 The Setup Tab - Advanced Routing 20 The Wireless Tab - Basic Wireless Settings 22 The Wireless Tab - Wireless Security 23 The Wireless Tab - Wireless MAC Filter 26 The Wireless Tab - Advanced Wireless Settings 27 The Security Tab - Firewall 29 The Security Tab - VPN Passthrough 30 The Storage Tab - Disk 31 The Storage Tab - Share 32 The Storage Tab - Administration 33 The Storage Tab - Media Server 35 The Access Restrictions Tab - Internet Access Policy 37 The Applications & Gaming Tab - Single Port Forwarding 39 Wireless-N Gigabit Router with Storage Link The Applications & Gaming Tab - Port Range Forwarding 40 The Applications & Gaming Tab - Port Range Triggering 41 The Applications & Gaming Tab - DMZ 42 The Applications and Gaming Tab - QoS 43 The Administration Tab - Management 46 The Administration Tab - Log 48 The Administration Tab - Diagnostics 49 The Administration Tab - Factory Defaults 50 The Administration Tab - Firmware Upgrade 51 The Status Tab - Router 52 The Status Tab - Local Network 53 The Status Tab - Wireless 54 Appendix A: Troubleshooting 55 Common Problems and Solutions 55 Frequently Asked Questions 63 Appendix B: Wireless Security 69 Security Precautions 69 Security Threats Facing Wireless Networks 69 Appendix C: Upgrading Firmware 72 Appendix D: Windows Help 73 Appendix E: Finding the MAC Address and IP Address for your Ethernet Adapter 74 Windows 98SE or Me Instructions 74 Windows 2000 or XP Instructions 75 For the Router’s Web-based Utility 75 Appendix F: Glossary 76 Appendix G: Specifications 81 Appendix H: Warranty Information 83 Appendix I: Regulatory Information 84 Appendix J: Contact Information 90 Wireless-N Gigabit Router with Storage LinkList of FiguresFigure 3-1: The Router’s Back Panel 6 Figure 3-2: The Router’s Front Panel 7 Figure 3-3: The Router’s Top Panel 7 Figure 4-1: Connect the USB cable 8 Figure 4-2: Connect the internet 8 Figure 4-3: Connect the ethernet 8 Figure 4-4: Connect the power 8 Figure 5-1: Router Login 11 Figure 5-2: Setup Tab - Basic Setup (Automatic Configuration - DHCP) 11 Figure 5-3: Static IP 12 Figure 5-4: PPPoE 12 Figure 5-5: PPTP 13 Figure 5-6: Telstra Cable 14 Figure 5-7: L2TP 14 Figure 5-8: DHCP Reservation 16 Figure 5-9: Setup Tab - DynDDNS.org 17 Figure 5-10: Setup Tab - TZO.com 18 Figure 5-11: Setup Tab - MAC Clone 19 Figure 5-12: Setup Tab - Advanced Routing 20 Figure 5-13: Routing Table 21 Figure 5-14: Wireless Tab - Basic Wireless Settings 22 Figure 5-15: Wireless Tab - Wireless Security (PSK-Personal) 23 Figure 5-16: Wireless Security - PSK2-Personal 23 Figure 5-17: Wireless Security - PSK-Enterprise 24 Figure 5-18: Wireless Security - PSK2-Enterprise 24 Figure 5-19: Wireless Security - RADIUS 25 Figure 5-20: Wireless Security - WEP 25 Figure 5-21: Wireless Tab - Wireless MAC Filter 26 Figure 5-22: Wireless Client List 26 Figure 5-23: Wireless Tab - Advanced Wireless Settings 27 Figure 5-24: Security Tab - Firewall 29 Wireless-N Gigabit Router with Storage LinkFigure 5-25: VPN Passthrough 30 Figure 5-26: Storage Tab - Disk 31 Figure 5-27: Storage Tab - Claim Disk 31 Figure 5-28: Storage Tab - Claimed Disk 31 Figure 5-29: Storage Tab - Share Management 32 Figure 5-30: Share Properties 32 Figure 5-31: Storage Tab - Administration 33 Figure 5-32: User Properties 33 Figure 5-33: User Properties 34 Figure 5-34: Storage Tab - UPnP Media Server 35 Figure 5-35: Partition List 35 Figure 5-36: FTP Server 36 Figure 5-37: FTP Access 36 Figure …

Text truncated - open the document above for the full version.

Cisco-Linksys LLC 121 Theory Drive Irvine, CA 92617(USA) Phone: ( 949 ) 823-3188 Fax: ( 949 ) 823-3002 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request FCC ID: Q87-WRT350N Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematic Diagram Block Diagram Theory of Operation The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ------------------------------------------------------------------------------ Jennifer Yu / Associate Engineer Cisco-Linksys LLC Phone: 949-823-3188 Fax: 949-823-3002 [email protected]

Cisco-Linksys LLC 121 Theory Drive Irvine, CA 92617(USA) Phone: ( 949 ) 823-3188 Fax: ( 949 ) 823-3002 Power of Attorney To whom it may concern: We, the undersigned Cisco-Linksys LLC hereby authorize Advance Data Technology Corporation (ADT) of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15C approval and any communication needed with the national authority. Any and all acts carried out by ADT on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, ------------------------------------------------------------------------------- Jennifer Yu / Associate Engineer Cisco-Linksys LLC Phone: 949-823-3188 Fax: 949-823-3002 [email protected]

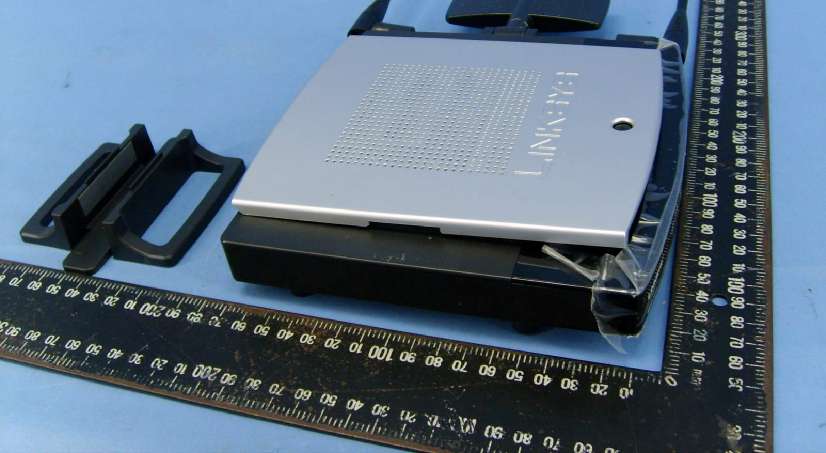

Model No.: WRT350N Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

(Fig. 1) FCC ID: Q87-WRT350N FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

Page 4 Page 5 Page 6 Page 7 Page 8 Page 9 Page 10 Page 11 Page 12 Page 13 Page 14 Adapter Model No.: LS120V15ALE Page 15 Page 16 Adapter Model No.: M2-15USG12R-A

Report No.: SA950616H03 1 RF EXPOSURE REPORT REPORT NO.: SA950616H03 MODEL NO.: WRT350N ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Cisco-Linksys LLC ADDRESS: 121 Theory Drive Irvine, CA 92617(USA) ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. Report No.: SA950616H03 2 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz Report No.: SA950616H03 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device Report No.: SA950616H03 4 6. Test Results 6.1 Antenna Gain There are three antennas provided to this EUT, please refer to the following table: No.Gain (dBi) Gain (numeric) Antenna Type Antenna Connector 12.01.585DipoleNA 21.81.514PCB monopoleNA 32.01.585DipoleNA 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For Part 802.11b: Maximum Antenna Gain: 2.0dBi Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241297.7240.0311.0 62437102.3290.0321.0 11246293.3250.0291.0 For Part 802.11g: Maximum Antenna Gain: 2.0dBi Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 12412102.3290.0321.0 62437112.2020.0351.0 112462102.3290.0321.0 Report No.: SA950616H03 5 DRAFT 802.11n (20MHz) OFDM modulation: DUAL TX: ANTENNA 1+ ANTENNA 3 Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 12412162.5660.1031.0 62437178.2970.1121.0 112462184.7770.1171.0 ANTENNA 1+ ANTENNA 2 Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 12412181.2830.1121.0 62437168.8260.1041.0 112462134.6940.0831.0 DRAFT 802.11n (40MHz) OFDM modulation: DUAL TX: ANTENNA 1+ ANTENNA 3 Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 12422197.7150.1251.0 42437197.4900.1251.0 72452197.4840.1251.0 ANTENNA 1+ ANTENNA 2 Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 12422195.4500.1201.0 42437197.0320.1211.0 72452195.9000.1211.0

Report No.: RF950616H031Report Format Version 2.0.4 FCC TEST REPORT REPORT NO.: RF950616H03 MODEL NO.: WRT350N RECEIVED: June 16, 2006 TESTED: June 16 to Aug. 23, 2006 ISSUED: Aug. 24, 2006 APPLICANT: Cisco-Linksys LLC ADDRESS: 121 Theory Drive Irvine, CA 92617(USA) ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 147 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. No. 2177-01 Report No.: RF950616H032Report Format Version 2.0.4 TABLE OF CONTENTS 1.CERTIFICATION....................................................................................................4 2.SUMMARY OF TEST RESULTS............................................................................5 2.1 MEASUREMENT UNCERTAINTY................................................................................6 3.GENERAL INFORMATION....................................................................................7 3.1GENERAL DESCRIPTION OF EUT..................................................................7 3.2DESCRIPTION OF TEST MODES...................................................................9 3.2.1TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL...................10 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS.................................14 3.4DESCRIPTION OF SUPPORT UNITS............................................................15 3.5CONFIGURATION OF SYSTEM UNDER TEST.............................................16 4.TEST TYPES AND RESULTS..............................................................................17 4.1CONDUCTED EMISSION MEASUREMENT..................................................17 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT................................17 4.1.2TEST INSTRUMENTS....................................................................................17 4.1.3TEST PROCEDURES....................................................................................18 4.1.4DEVIATION FROM TEST STANDARD...........................................................18 4.1.5TEST SETUP..................................................................................................19 4.1.6EUT OPERATING CONDITIONS....................................................................19 4.1.7TEST RESULTS.............................................................................................20 4.2RADIATED EMISSION MEASUREMENT.......................................................24 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT.....................................24 4.2.2TEST INSTRUMENTS....................................................................................25 4.2.3TEST PROCEDURES....................................................................................26 4.2.4DEVIATION FROM TEST STANDARD...........................................................26 4.2.5TEST SETUP..................................................................................................27 4.2.6EUT OPERATING CONDITIONS....................................................................27 4.2.7TEST RESULTS.............................................................................................28 4.36dB BANDWIDTH MEASUREMENT..............................................................72 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT............................................72 4.3.2TEST INSTRUMENTS....................................................................................72 4.3.3TEST PROCEDURE.......................................................................................72 4.3.4DEVIATION FROM TEST STANDARD...........................................................72 4.3.5TEST SETUP..................................................................................................73 4.3.6EUT OPERATING CONDITIONS....................................................................73 4.3.7TEST RESULTS.............................................................................................74 4.4MAXIMUM PEAK OUTPUT POWER..............................................................90 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT................94 Report No.: RF950616H033Report Format Version 2.0.4 4.4.2INSTRUMENTS..............................................................................................94 4.4.3TEST PROCEDURES....................................................................................94 4.4.4DEVIATION FROM TEST STANDARD...........................................................94 4.4.5TEST SETUP..................................................................................................95 4.4.6EUT OPERATING CONDITIONS....................................................................95 4.4.7TEST RESULTS.............................................................................................96 4.5POWER SPECTRAL DENSITY MEASUREMENT..........................................99 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT........................99 4.5.2TEST INSTRUMENTS....................................................................................99 4.5.3TEST PROCEDURE.......................................................................................99 4.5.4DEVIATION FROM TEST STANDARD...........................................................99 4.5.5TEST SETUP................................................................................................100 4.5.6EUT OPERATING CONDITION....................................................................100 4.5.7TEST RESULTS....................................…

Text truncated - open the document above for the full version.

Report No.: RF950616H0374Report Format Version 2.0.4 4.3.7 TEST RESULTS 802.11b DSSS MODULATION: MODULATION TYPE DBPSK TRANSFER RATE 1Mbps INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 20deg.C, 60%RH, 971hPa TESTED BY Wen Yu CHANNEL CHANNEL FREQUENCY (MHz) 6dB BANDWIDTH (MHz) MINIMUM LIMIT (MHz) PASS / FAIL 1241210.150.5PASS 6243710.150.5PASS 11246210.150.5PASS CH1 A Att 30 dB * Offset 1 dB LVL Ref 20 dBm 3.5 MHz/Center2.412 GHzSpan35 MHz * * RBW 100 kHz VBW 100 kHz SWT 10 ms 1 PK VIEW PRN -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 1 Marker 1 [T1 ] -1.42 dBm 2.406890000 GHz 1 Delta 1 [T1 ] 3.60 dB 10.150000000 MHz D1 5.81 dBm D2 -0.19 dBm F1 F2 Date: 14.APR.2006 21:19:01 Report No.: RF950616H0375Report Format Version 2.0.4 CH6 CH11 A Att 30 dB * Offset 1 dB LVL Ref 20 dBm Center2.437 GHzSpan35 MHz3.5 MHz/ * * RBW 100 kHz VBW 100 kHz SWT 10 ms 1 PK VIEW PRN -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 1 Marker 1 [T1 ] 1.24 dBm 2.431960000 GHz 1 Delta 1 [T1 ] -2.14 dB 10.150000000 MHz D1 6.34 dBm D2 0.34 dBm F1 F2 Date: 14.APR.2006 21:07:01 A Att 30 dB * Offset 1 dB LVL Ref 20 dBm 3.5 MHz/Center2.462 GHzSpan35 MHz * * RBW 100 kHz VBW 100 kHz SWT 10 ms 1 PK VIEW PRN -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 1 Marker 1 [T1 ] 1.66 dBm 2.456960000 GHz 1 Delta 1 [T1 ] -2.19 dB 10.150000000 MHz D1 6.07 dBm D2 0.07 dBm F2 F1 Date: 14.APR.2006 21:32:06 Report No.: RF950616H0376Report Format Version 2.0.4 802.11g OFDM MODULATION: MODULATION TYPE BPSK TRANSFER RATE 6Mbps INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 20deg.C, 60%RH, 971hPa TESTED BY Wen Yu CHANNEL CHANNEL FREQUENCY (MHz) 6dB BANDWIDTH (MHz) MINIMUM LIMIT (MHz) PASS / FAIL 1241215.120.5PASS 6243715.120.5PASS 11246215.120.5PASS CH1 A Att 30 dB * Offset 1 dB LVL Ref 20 dBm 3.5 MHz/Center2.412 GHzSpan35 MHz * * RBW 100 kHz VBW 100 kHz SWT 10 ms 1 PK VIEW PRN -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 1 Marker 1 [T1 ] -0.93 dBm 2.404440000 GHz 1 Delta 1 [T1 ] 0.40 dB 15.120000000 MHz D1 4.25 dBm D2 -1.75 dBm F1 F2 Date: 14.APR.2006 21:58:10 Report No.: RF950616H0377Report Format Version 2.0.4 CH6 CH11 A Att 30 dB * Offset 1 dB LVL Ref 20 dBm 3.5 MHz/Center2.437 GHzSpan35 MHz * * RBW 100 kHz VBW 100 kHz SWT 10 ms 1 PK VIEW PRN -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 1 Marker 1 [T1 ] -0.37 dBm 2.429440000 GHz 1 Delta 1 [T1 ] 0.65 dB 15.120000000 MHz D1 5.46 dBm D2 -0.54 dBm F1 F2 Date: 14.APR.2006 21:49:43 A Att 30 dB * Offset 1 dB LVL Ref 20 dBm 3.5 MHz/Center2.462 GHzSpan35 MHz * * RBW 100 kHz VBW 100 kHz SWT 10 ms 1 PK VIEW PRN -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 1 Marker 1 [T1 ] -0.18 dBm 2.454440000 GHz 1 Delta 1 [T1 ] -1.79 dB 15.120000000 MHz D1 4.31 dBm D2 -1.69 dBm F1 F2 Date: 14.APR.2006 22:10:26 Report No.: RF950616H0378Report Format Version 2.0.4 DRAFT 802.11n (20MHz) OFDM MODULATION: DUAL TX: (ANTENNA 1 AND 3) MODULATION TYPE BPSK TRANSFER RATE 6.5Mbps INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 20deg.C, 60%RH, 971hPa TESTED BY Wen Yu 6dB BANDWIDTH (MHz) CHANNEL CHANNEL FREQUENCY (MHz) CHAIN 0CHAIN 1 MINIMUM LIMIT (MHz) PASS / FAIL 1241216.8017.150.5PASS 6243717.0116.940.5PASS 11246217.0817.010.5PASS FOR CHAIN 0: CH1 A Att 30 dB * Offset 1 dB LVL Ref 20 dBm 3.5 MHz/Center2.412 GHzSpan35 MHz * * RBW 100 kHz VBW 100 kHz SWT 10 ms 1 PK VIEW PRN -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 1 Marker 1 [T1 ] -6.17 dBm 2.403740000 GHz 1 Delta 1 [T1 ] 1.41 dB 16.800000000 MHz D1 0.79 dBm D2 -5.21 dBm F1 F2 Date: 14.APR.2006 23:50:10 Report No.: RF950616H0379Report Format Version 2.0.4 CH6 CH11 A Att 30 dB * Offset 1 dB LVL Ref 20 dBm 3.5 MHz/Center2.437 GHzSpan35 MHz * * RBW 100 kHz VBW 100 kHz SWT 10 ms 1 PK VIEW PRN -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 1 Marker 1 [T1 ] -3.83 dBm 2.428530000 GHz 1 Delta 1 [T1 ] -0.52 dB 17.010000000 MHz D1 1.74 dBm D2 -4.26 dBm F1 F2 Date: 15.APR.2006 00:15:33 A Att 30 dB * Offset 1 dB LVL Ref 20 dBm 3.5 MHz/Center2.462 GHzSpan35 MHz * * RBW 100 kHz VBW 100 kHz SWT 10 ms 1 PK VIEW PRN -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 1 Marker 1 [T1 ] -3.74 dBm 2.453460000 GHz 1 Delta 1 [T1 ] -0.13 dB 17.080000000 MHz D1 1.95 dBm D2 -4.05 dBm F1 F2 Date: 15.APR.2006 00:39:42 Report No.: RF950616H0380Report Format Version 2.0.4 FOR CHAIN 1: CH1 CH6 A Att 30 dB * Offset 1 dB LVL Ref 20 dBm 3.5 MHz/Center2.412 GHzSpan35 MHz * * RBW 100 kHz VBW 100 kHz SWT 10 ms 1 PK VIEW PRN -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 1 Marker 1 [T1 ] -4.70 dBm 2.403600000 GHz 1 Delta 1 [T1 ] 0.02 dB 17.150000000 MHz D1 1.11 dBm D2 -4.89 dBm F1 F2 Date: 15.APR.2006 00:03:35 A Att 30 dB * Offset 1 dB LVL Ref 20 dBm 3.5 MHz/Center2.437 GHzSpan35 MHz * RBW 100 kHz * VBW 100 kHz SWT 10 ms 1 PK VIEW PRN -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 1 Marker 1 [T1 ] -3.85 dBm 2.428600000 GHz 1 Delta 1 [T1 ] -0.50 dB 16.940000000 MHz D1 2.11 dBm D2 -3.89 dBm F1 F2 Date: 15.APR.2006 00:09:43 Report No.: RF950616H0381Report Format Version 2.0.4 CH11 A Att 30 dB * Offset 1 dB LVL Ref 20 dBm 3.5 MHz/Center2.462 GHzSpan35 MHz * RBW 100 kHz * VBW 100 kHz SWT 10 ms 1 PK VIEW PRN -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 1 Marker 1 [T1 ] -5.56 dBm 2.453530000 GHz 1 Delta 1 [T1 ] 0.20 dB 17.010000000 MHz D1 0.51 dBm D2 -5.49 dBm F1 F2 Date: 15.APR.2006 00:51:50 Report No.: RF950616H0382Report Format Version 2.0.4 DRAFT 802.11n (20MHz) OFDM MODULATION: DUAL TX: (ANTENNA 1 AND 2) MODULATION TYPE BPSK TRANSFER RATE 6.5Mbps INPUT POWER (SYSTEM) 120Vac, 60 Hz ENVIRONMENTAL CONDITIONS 20deg.C, 60%RH, 971hPa TESTED BY Wen Yu 6dB BANDWIDTH (MHz) CHANNEL CHANNEL FREQUENCY (MHz) CHAIN 0CHAIN 1 MINIMUM LIMIT (MHz) PASS / FAIL 1241216.8016.520.5PASS 6243717.0116.450.5PASS 11246217.0816.520.5PASS FOR CHAIN 0: CH1 A Att 30 dB * Offset 1 dB LVL Ref 20 dBm 3.5 MHz/Center2.412 GHzSpan35 MHz * * RBW 100 kHz VBW 100 kHz SWT 10 ms 1 PK VIEW PRN -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 1 Marker 1 [T1 ] -6.17 dBm 2.403740000 GHz 1 Delta 1 [T1 ] 1.41 dB 16.800000000 MHz D1 0.79 dBm D2 -5.21 dBm F1 F2 Date: 14.APR.2006 23:50:10 Report No.: RF950616H03…

Text truncated - open the document above for the full version.

Report No.: RF950616H03144Report Format Version 2.0.4 5. PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST Report No.: RF950616H03145Report Format Version 2.0.4 RADIATED EMISSION TEST 950616H03 950616H03
