Q87-WRT54G11Wireless-G Broadband Router

Instant Wireless ® Series Wireless-G Broadband RouterUse this guide to install:WRT54G User Guide FCC Caution: Any change or modification to the product not expressly approved byLinksys could void the user's authority to operate the device.FCC RF Radiation Exposure StatementTo comply with the FCC and ANSI C95.1 RF exposure limits, the antenna(s) for thisdevice must comply with the following:• Access points with 2.4 GHz integrated antenna must operate with a separation dis-tance of at least 20 cm from all persons using the cable provided and must not beco-located or operating in conjunction with any other antenna or transmitter. End-users must be provided with specific operations for satisfying RF exposure compli-ance.Note: Dual antennas used for diversity operation are not considered co-located.Canadian Department of Communications Industry Canada (IC) NoticeThis Class B digital apparatus complies with Canadian ICES-003 and RSS-210.Cet appareil numérique de la classe B est conforme à la norme NMB-003 et CNR-210du Canada."To prevent radio interference to the licensed service, this device is intended to be oper-ated indoors and away from windows to provide maximum shielding. Equipment (or itstransmit antenna) that is installed outdoors is subject to licensing."" Pour empêcher que cet appareil cause du brouillage au service faisant l'objet d'unelicence, il doit être utilisé à l'intérieur et devrait être placé loin des fenêtres afin de fournirun écran de blindage maximal. Si le matériel (ou son antenne d'émission) est installé àl'extérieur, il doit faire l'objet d'une licence. "EC DECLARATION OF CONFORMITY (EUROPE)Linksys Group declares that the Instant Wireless® Series products included in the InstantWireless® Series conform to the specifications listed below, following the provisions ofthe European R&TTE directive 1999/5/EC, EMC directive 89/336/EEC, and Low Voltagedirective 73/23/EEC: For 11Mbps, 2.4 GHz access points with 100 mW radios, the following standards wereapplied: • EMC: EN 301 489-1, EN 301.89-17 • Safety: EN 60950 • Radio: ETS 300-328-2 Technical requirements for Radio equipment. Caution: This equipment is intended to be used in all EU and EFTA countries. Outdooruse may be restricted to certain frequencies and/or may require a license for operation.Contact local Authority for procedure to follow.Note: Combinations of power levels and antennas resulting in a radiated power level ofabove 100 mW equivalent isotropic radiated power (EIRP) are considered as not com-pliant with the above mentioned directive and are not allowed for use within the Europeancommunity and countries that have adopted the European R&TTE directive 1999/5/ECand/or the CEPT recommendation Rec 70.03. For more details on legal combinations of power levels and antennas, contact LinksysCorporate Compliance. COPYRIGHT & TRADEMARKS Specifications are subject to change without notice. Copyright © 2002 Linksys, All RightsReserved. Instant Wireless, Linksys, and the Linksys logo are registered trademarks ofLinksys Group, Inc. Microsoft, Windows, and the Windows logo are registered trade-marks of Microsoft Corporation. All other trademarks and brand names are the proper-ty of their respective proprietors. LIMITED WARRANTY Linksys guarantees that every Instant Wireless Wireless-G Broadband Router will be freefrom physical defects in material and workmanship for one year from the date of pur-chase, when used within the limits set forth in the Specifications section of this UserGuide.If the product proves defective during this warranty period, go to the Linksys website atwww.linksys.com for complete RMA (Return Merchandise Authorization) assistance. You can also call Linksys Technical Support in order to obtain a RMA Number. BE SURE TOHAVE YOUR PROOF OF PURCHASE AND A BARCODE FROM THE PRODUCT’S PACK-AGING ON HAND WHEN CALLING. RETURN REQUESTS CANNOT BE PROCESSEDWITHOUT PROOF OF PURCHASE. When returning a product, mark the RMA Numberclearly on the outside of the package and include a copy of your original proof of pur-chase. All customers located outside of the United States of America and Canada shallbe held responsible for shipping and handling charges.IN NO EVENT SHALL LINKSYS'S LIABILITY EXCEED THE PRICE PAID FOR THE PROD-UCT FROM DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAM-AGES RESULTING FROM THE USE OF THE PRODUCT, ITS ACCOMPANYING SOFT-WARE, OR ITS DOCUMENTATION. LINKSYS OFFERS NO REFUNDS FOR ITS PROD-UCTS. Linksys makes no warranty or representation, expressed, implied, or statutory,with respect to its products or the contents or use of this documentation and all accom-panying software, and specifically disclaims its quality, performance, merchantability, orfitness for any particular purpose. Linksys reserves the right to revise or update its prod-ucts, software, or documentation without obligation to notify any individual or entity.Please direct all inquiries to:Linksys P.O. Box 18558, Irvine, CA 92623. SAFETY AND REGULATORY NOTICESFCC STATEMENTThe Instant Wireless® Wireless-G Broadband Router has been tested and found to com-ply with the specifications for a Class B digital device, pursuant to Part 15 of the FCCRules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. These limits are designed to provide reasonable protection against harmful interferencein a residential installation. This equipment generates, uses, and can radiate radio fre-quency energy and, if not installed and used according to the instructions, may causeharmful interference to radio communications. However, there is no guarantee that inter-ference will not occur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which is found by turning the equipment offand on, the user is encouraged to try to co…

Text truncated - open the document above for the full version.

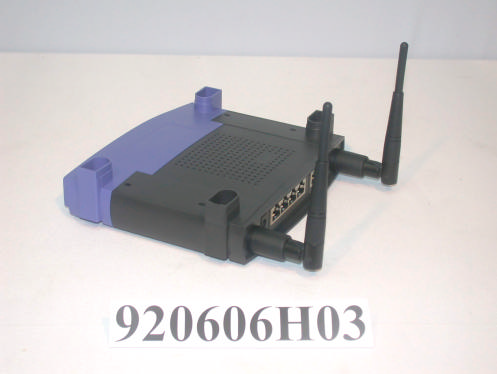

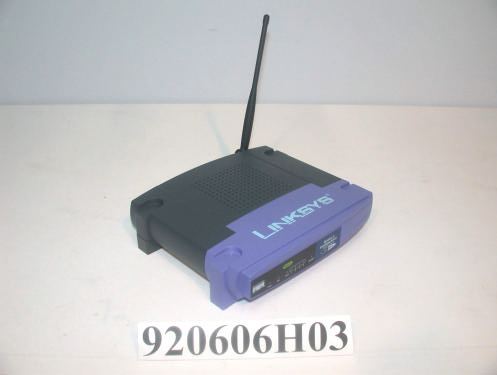

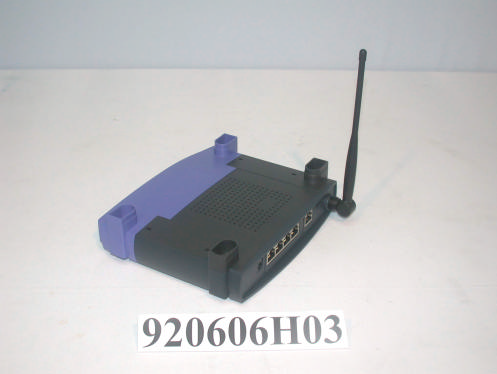

Page 1 CONSTRUCTION PHOTOS OF EUT Two Antannas Page 2 One Antanna

(Fig. 1) FCC ID: FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

Page 1 CONSTRUCTION PHOTOS OF EUT Two Antannas Page 2 Page 3 Page 4 Page 5 Page 6 One Antanna Page 7 Page 8 Page 9 Adapter Model No.: AD12-1A Page 10 Page 11 Page 12 Adapter Model No.: AD-121AN Page 13 Page 14 Page 15

FCC ID: Q87-WRT54G11 Report No.: RF920606H03 ADT No.: 920606H03 Operational Description The transmitter of the EUT (Wireless-G Broadband Router) is powered by power adapter. The antenna used in this product is Dipole Antenna, Antenna 1 with TNC connector and Antenna 2 with printed connector. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. The other instruction, please have a look at the users manual. DSSS Information This device is Direct Sequence Spread Spectrum, the data is mixed by pseudorandom code which is an orthogonal code. The mixed data is digital modulated by DBPSK and DQPSK technique depends on the data rates. The CCK coding is applied for increasing the data rate, and also the processing gain will be increased. The bit rates are 1,2,5.5,11Mbps.

FCC ID: Q87-WRT54G11 ADT No.: 920606H03 RF EXPOSURE REPORT REPORT NO.: RF920606H03 MODEL NO.: WRT54G ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Cisco-Linksys, LLC ADDRESS: 17401 Armstrong Ave. Irvine, CA 92614 ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. Lab Code: 200376-0 FCC ID: Q87-WRT54G11 ADT No.: 920606H03 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: Q87-WRT54G11 ADT No.: 920606H03 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification This device is not fixed inside the host equipment, it is connected with host through wire. So it is easy to be re-located in the place where at least 20 cm far away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: Q87-WRT54G11 ADT No.: 920606H03 6 Test Results 6.1 Antenna Gain Antenna 1: (Antenna Type: Dipole) The maximum Gain measured in Fully Anechoic Chamber is 2dBi or 1.585 (numeric). Antenna 2: (Antenna Type: Dipole) The maximum Gain measured in Fully Anechoic Chamber is 3.3dBi or 2.138 (numeric). 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: (For DSSS) Antenna 1: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241234.0410.0107331.0 6243728.4450.0089691.0 11246223.9880.0075641.0 Antenna 2: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241234.0410.0144791.0 6243728.4450.0120981.0 11246223.9880.0102031.0 FCC ID: Q87-WRT54G11 ADT No.: 920606H03 (For OFDM) Antenna 1: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241231.9150.0100631.0 6243742.0730.0132661.0 11246233.1130.0104411.0 Antenna 2: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241231.9150.0135751.0 6243742.0730.0178951.0 11246233.1130.0140841.0

FCC ID: Q87-WRT54G11 Report No.: RF920606H031Issued: Jul. 15, 2003 ADT No.: 920606H03 FCC TEST REPORT REPORT NO.: RF920606H03 MODEL NO.: WRT54G RECEIVED: Jun. 26, 2003 TESTED: Jun. 07 to Jul. 09, 2003 APPLICANT: Cisco-Linksys, LLC ADDRESS: 17401 Armstrong Ave. Irvine, CA 92614 ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 78 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by NVLAP or any government agencies. The test results in the report only apply to the tested sample. Lab Code: 200376-0 FCC ID: Q87-WRT54G11 Report No.: RF920606H032Issued: Jul. 15, 2003 ADT No.: 920606H03 Table of Contents 1CERTIFICATION.......................................................................................................4 2SUMMARY OF TEST RESULTS............................................................................5 3GENERAL INFORMATION.....................................................................................6 3.1GENERAL DESCRIPTION OF EUT......................................................................6 3.2DESCRIPTION OF TEST MODES........................................................................8 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS...................................8 3.4DESCRIPTION OF SUPPORT UNITS..................................................................9 4TEST TYPES AND RESULTS..............................................................................10 4.1CONDUCTED EMISSION MEASUREMENT.....................................................10 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT................................10 4.1.2TEST INSTRUMENTS...........................................................................................10 4.1.3TEST SETUP..........................................................................................................11 4.1.4EUT OPERATING CONDITIONS........................................................................12 4.1.5TEST RESULTS - Power adapter A.....................................................................13 4.1.6TEST RESULTS - Power adapter B....................................................................19 4.2RADIATED EMISSION MEASUREMENT..........................................................25 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT......................................25 4.2.2TEST INSTRUMENTS...........................................................................................26 4.2.3TEST PROCEDURES...........................................................................................27 4.2.4TEST SETUP..........................................................................................................28 4.2.5EUT OPERATING CONDITIONS........................................................................28 4.2.6TEST RESULTS (A)...............................................................................................29 4.2.7TEST RESULTS (B)...............................................................................................30 4.2.8TEST RESULTS (C)...............................................................................................31 4.2.9TEST RESULTS (D)...............................................................................................32 4.2.10TEST RESULTS – DSSS(A).................................................................................33 4.2.11TEST RESULTS – DSSS(B).................................................................................36 4.2.12TEST RESULTS –OFDM (A)................................................................................39 4.2.13TEST RESULTS –OFDM (B)................................................................................42 4.36dB BANDWIDTH MEASUREMENT..................................................................45 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT..............................................45 4.3.2TEST INSTRUMENTS...........................................................................................45 4.3.3TEST PROCEDURE..............................................................................................46 4.3.4TEST SETUP..........................................................................................................46 4.3.5EUT OPERATING CONDITIONS........................................................................46 FCC ID: Q87-WRT54G11 Report No.: RF920606H033Issued: Jul. 15, 2003 ADT No.: 920606H03 4.3.6TEST RESULTS-DSSS.........................................................................................47 4.3.7TEST RESULTS-OFDM........................................................................................51 4.4MAXIMUM PEAK OUTPUT POWER..................................................................55 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT.............55 4.4.2TEST INSTRUMENTS...........................................................................................55 4.4.3TEST PROCEDURES...........................................................................................56 4.4.4TEST SETUP..........................................................................................................56 4.4.5EUT OPERATING CONDITIONS........................................................................56 4.4.6TEST RESULTS-DSSS.........................................................................................57 4.4.7TEST RESULTS-OFDM........................................................................................57 4.5POWER SPECTRAL DENSITY MEASUREMENT...........................................58 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT.......................58…

Text truncated - open the document above for the full version.

FCC ID: Q87-WRT54G11 Report No.: RF920606H0341Issued: Jul. 15, 2003 ADT No.: 920606H03 EUT Wireless-G Broadband Router MODEL WRT54G MODEChannel 11 FREQUENCY RANGE Above 1000 MHz INPUT POWER (SYSTEM) 120Vac, 60 Hz DETECTOR FUNCTION Peak (PK) Average (AV) ENVIRONMENTAL CONDITIONS 27 deg. C, 68%RH, 965 hPa TESTED BYEric Lee ANTENNA POLARITY & TEST DISTANCE: HORIZONTAL AT 3 M No. Freq. (MHz) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Antenna Height (m) Table Angle (Degree) Raw Value (dBuV) Correction Factor (dB/m) 11510.0040.7 PK74.00-33.301.29 H5713.2027.50 22320.0040.1 PK74.00-33.901.53 H29910.5029.60 3*2462.0097.5 PK1.51 H4867.4030.10 3*2462.0091.1 AV1.51 H4861.0027.50 42483.5058.1 PK74.00-15.901.00 H24828.0030.10 42483.5048.1 AV54.00-5.901.00 H24818.0029.60 52808.0039.6 PK74.00-34.401.56 H3088.5031.00 64924.0042.8 PK74.00-31.201.63 H3206.1036.70 ANTENNA POLARITY & TEST DISTANCE: VERTICAL AT 3 M No. Freq. (MHz) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Antenna Height (m) Table Angle (Degree) Raw Value (dBuV) Correction Factor (dB/m) 11510.0042.3 PK74.00-31.701.45 V24714.9027.50 22320.0049.3 PK74.00-24.701.35 V24719.7029.60 3*2462.00107.1 PK1.21 V277.1030.10 3*2462.0097.1 AV1.21 V267.1027.50 42483.5059.8 PK74.00-14.201.48 V6829.7030.10 42483.5050.8 AV54.00-3.201.48 V6820.6029.60 52808.0042.3 PK74.00-31.701.43 V6111.3031.00 64924.0047.8 PK74.00-26.201.35 V2611.1036.70 REMARKS:1. Emission level(dBuV/m)=Raw Value(dBuV) + Correction Factor(dB) 2. Correction Factor(dB/m) = Antenna Factor (dB/m) + Cable Factor (dB) 3. The other emission levels were very low against the limit. 4. Margin value = Emission level – Limit value. 5. The limit value is defined as per 15.247 6. “ * “ : Fundamental frequency FCC ID: Q87-WRT54G11 Report No.: RF920606H0342Issued: Jul. 15, 2003 ADT No.: 920606H03 4.2.13 TEST RESULTS –OFDM (B) EUT Wireless-G Broadband Router MODEL WRT54G MODEChannel 1 FREQUENCY RANGE Above 1000 MHz INPUT POWER (SYSTEM) 120Vac, 60 Hz DETECTOR FUNCTION Peak (PK) Average(AV) ENVIRONMENTAL CONDITIONS 24 deg. C, 57%RH, 965 hPa TESTED BYTony Chen ANTENNA POLARITY & TEST DISTANCE: HORIZONTAL AT 3 M No. Freq. (MHz) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Antenna Height (m) Table Angle (Degree) Raw Value (dBuV) Correction Factor (dB/m) 12379.0052.7 PK74.00-21.301.97 H11923.0029.70 12379.0043.5 AV54.00-10.501.97 H11913.8029.70 2*2412.0098.3 PK1.71 H18268.4029.90 2*2412.0086.8 AV1.71 H18256.9029.90 32484.0052.6 PK74.00-21.401.10 H9022.4030.10 32484.0043.7 AV54.00-10.301.10 H9013.6030.10 43216.0040.5 PK74.00-33.501.52 H308.3032.20 54824.0037.7 PK74.00-36.301.43 H2191.5036.20 ANTENNA POLARITY & TEST DISTANCE: VERTICAL AT 3 M No. Freq. (MHz) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Antenna Height (m) Table Angle (Degree) Raw Value (dBuV) Correction Factor (dB/m) 11608.0037.8 PK74.00-36.201.69 V10210.1027.70 22390.0052.0 PK74.00-22.001.22 V11722.2029.80 22390.0045.3 AV54.00-8.701.22 V11715.5027.70 3*2412.00105.5 PK1.13 V31675.6029.90 3*2412.0096.3 AV1.13 V31666.4029.80 42484.0051.5 PK74.00-22.501.49 V11621.3030.10 42484.0043.6 AV54.00-10.401.49 V11613.4029.90 54824.0037.7 PK74.00-36.301.51 V1361.5036.20 REMARKS:1. Emission level(dBuV/m)=Raw Value(dBuV) + Correction Factor(dB) 2. Correction Factor(dB/m) = Antenna Factor (dB/m) + Cable Factor (dB) 3. The other emission levels were very low against the limit. 4. Margin value = Emission level – Limit value. 5. The limit value is defined as per 15.247 6. “ * “ : Fundamental frequency FCC ID: Q87-WRT54G11 Report No.: RF920606H0343Issued: Jul. 15, 2003 ADT No.: 920606H03 EUT Wireless-G Broadband Router MODEL WRT54G MODEChannel 6 FREQUENCY RANGE Above 1000 MHz INPUT POWER (SYSTEM) 120Vac, 60 Hz DETECTOR FUNCTION Peak (PK) Average (AV) ENVIRONMENTAL CONDITIONS 24 deg. C, 57%RH, 965 hPa TESTED BYTony Chen ANTENNA POLARITY & TEST DISTANCE: HORIZONTAL AT 3 M No. Freq. (MHz) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Antenna Height (m) Table Angle (Degree) Raw Value (dBuV) Correction Factor (dB/m) 12375.0052.3 PK74.00-21.701.44 H2422.5029.70 12375.0043.6 AV54.00-10.401.44 H2413.8029.70 2*2437.0099.8 PK1.20 H32669.8030.00 2*2437.0088.7 AV1.20 H32658.7030.00 32493.0052.5 PK74.00-21.501.27 H2222.3030.20 32493.0044.1 AV54.00-9.901.27 H2214.0030.20 43249.0042.5 PK74.00-31.501.00 H2810.2032.30 54874.0038.5 PK74.00-35.501.35 H502.0036.50 ANTENNA POLARITY & TEST DISTANCE: VERTICAL AT 3 M No. Freq. (MHz) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Antenna Height (m) Table Angle (Degree) Raw Value (dBuV) Correction Factor (dB/m) 11264.0033.2 PK74.00-40.801.02 V306.5026.70 22320.0054.0 PK74.00-20.001.25 V6024.4029.60 22320.0045.4 AV54.00-8.601.25 V6015.8026.70 3*2437.00105.1 PK1.00 V2175.1030.00 3*2437.0093.1 AV1.00 V2163.1029.60 42487.0053.6 PK74.00-20.401.31 V3823.4030.10 42487.0044.0 AV54.00-10.001.31 V3813.8030.00 54874.0037.5 PK74.00-36.501.49 V271.0036.50 REMARKS:1. Emission level(dBuV/m)=Raw Value(dBuV) + Correction Factor(dB) 2. Correction Factor(dB/m) = Antenna Factor (dB/m) + Cable Factor (dB) 3. The other emission levels were very low against the limit. 4. Margin value = Emission level – Limit value. 5. The limit value is defined as per 15.247 6. “ * “ : Fundamental frequency FCC ID: Q87-WRT54G11 Report No.: RF920606H0344Issued: Jul. 15, 2003 ADT No.: 920606H03 EUT Wireless-G Broadband Router MODEL WRT54G MODEChannel 11 FREQUENCY RANGE Above 1000 MHz INPUT POWER (SYSTEM) 120Vac, 60 Hz DETECTOR FUNCTION Peak (PK) Average (AV) ENVIRONMENTAL CONDITIONS 24 deg. C, 57%RH, 965 hPa TESTED BYTony Chen ANTENNA POLARITY & TEST DISTANCE: HORIZONTAL AT 3 M No. Freq. (MHz) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Antenna Height (m) Table Angle (Degree) Raw Value (dBuV) Correction Factor (dB/m) 11641.0036.5 PK74.00-37.501.26 H3468.7027.80 22361.0053.3 PK74.00-20.701.39 H15623.6029.70 22361.0043.4 AV54.00-10.601.39 H15613.8027.80 3*2462.00101.5 PK1.00 H10471.4030.10 3*2462.0089.4 AV1.00 H10459.3029.70 42484.0052.8 PK74.00-…

Text truncated - open the document above for the full version.

FCC ID: Q87-WRT54G11 Report No.: RF920606H0376Issued: Jul. 15, 2003 ADT No.: 920606H03 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: Q87-WRT54G11 Report No.: RF920606H0377Issued: Jul. 15, 2003 ADT No.: 920606H03 RADIATED EMISSION TEST
