Q87-WRT54G3GWireless-G Router for Mobile Broadband

Model No. Router for Mobile Broadband Wireless-G WRT54G3G-ST User Guide WIRELESS GHz 802.11g 2.4 Wireless-G Router for Mobile Broadband Copyright and Trademarks Specifications are subject to change without notice. Linksys is a registered trademark or trademark of Cisco Systems, Inc. and/or its affiliates in the U.S. and certain other countries. Copyright © 2006 Cisco Systems, Inc. All rights reserved. Other brands and product names are trademarks or registered trademarks of their respective holders. How to Use This User Guide This User Guide has been designed to make understanding networking with the Wireless-G Router for Mobile Broadband easier than ever. Look for the following items when reading this User Guide: In addition to these symbols, there are definitions for technical terms that are presented like this: Also, each figure (diagram, screenshot, or other image) is provided with a figure number and description, like this: Figure numbers and descriptions can also be found in the “List of Figures” section in the “Table of Contents”. This exclamation point means there is a caution or warning and is something that could damage your property or the Wireless-G Router for Mobile Broadband. This checkmark means there is a note of interest and is something you should pay special attention to while using the Wireless-G Router for Wireless Broadband. This question mark provides you with a reminder about something you might need to do while using the Wireless-G Router for Mobile Broadband. word: definition. Figure 0-1: Sample Figure Description WRT54G3G-ST-UG 60622NC BW Wireless-G Router for Mobile Broadband Table of Contents Chapter 1: Introduction1 Welcome1 What’s in this User Guide?2 Chapter 2: Planning Your Wireless Network4 Network Topology4 Ad-Hoc versus Infrastructure Mode4 Network Layout4 Chapter 3: Getting to Know the Wireless-G Router for Mobile Broadband6 The Router’s Ports6 The Router’s LEDs7 The Router’s Data Card Slot8 Chapter 4: Connecting the Wireless-G Router for Mobile Broadband9 Overview9 Hardware Installation for Use of the Mobile Broadband Service Only9 Hardware Installation for Connection to Your Broadband Modem11 Hardware Installation for Connection to Another Router13 Placement Options15 Chapter 5: Setting up the Wireless-G Router for Mobile Broadband Service17 Overview17 Before You Begin17 Using the Setup Wizard18 Chapter 6: Setting up the Wireless-G Router for Broadband WAN Service Only27 Overview27 Before You Begin27 Using the Setup Wizard27 Chapter 7: Setting up the Wireless-G Router for Broadband WAN and Mobile Broadband Service39 Overview39 Before You Begin39 Using the Setup Wizard40 Wireless-G Router for Mobile Broadband Chapter 8: Configuring the Wireless-G Router for Mobile Broadband53 Overview53 The Setup Tab - Basic Setup54 The Setup Tab - Mobile Network59 The Setup Tab - DDNS60 The Setup Tab - MAC Address Clone61 The Setup Tab - Advanced Routing62 The Wireless Tab - Basic Wireless Settings63 The Wireless Tab - Wireless Security64 The Wireless Tab - Wireless MAC Filter67 The Wireless Tab - Advanced Wireless Settings68 The Security Tab - Firewall70 The Security Tab - VPN Passthrough71 The Access Restrictions Tab - Internet Access71 The Applications and Gaming Tab - Port Range Forward73 The Applications & Gaming Tab - Port Triggering74 The Applications and Gaming Tab - DMZ75 The Applications and Gaming Tab - QoS75 The Administration Tab - Management77 The Administration Tab - Log78 The Administration Tab - Diagnostics79 The Administration Tab - Factory Defaults80 The Administration Tab - Firmware Upgrade80 The Administration Tab - Config Management80 The Status Tab - Mobile Network81 The Status Tab - Router82 The Status Tab - Local Network83 The Status Tab - Wireless84 Appendix A: Troubleshooting85 Common Problems and Solutions85 Frequently Asked Questions93 Appendix B: Wireless Security101 Security Precautions101 Security Threats Facing Wireless Networks101 Appendix C: Upgrading Firmware104 Wireless-G Router for Mobile Broadband Appendix D: Windows Help105 Appendix E: Finding the MAC Address and IP Address for Your Ethernet Adapter106 Windows 98SE or Me Instructions106 Windows 2000 or XP Instructions106 For the Router’s Web-based Utility107 Appendix F: Glossary108 Appendix G: Specifications113 Appendix H: Warranty Information115 Appendix I: Regulatory Information117 Appendix J: Contact Information123 Wireless-G Router for Mobile Broadband List of Figures Figure 3-1: The Router’s Ports6 Figure 3-2: The Router’s Front Panel6 Figure 3-3: The Router’s LEDs7 Figure 3-4: The Router’s Data Card Slot8 Figure 4-1: Connect Your Computer10 Figure 4-2: Connect the Power10 Figure 4-3: Connect the Broadband Modem11 Figure 4-4: Connect Your Computer12 Figure 4-5: Connect the Power12 Figure 4-6: Diagram for Connection to Another Router13 Figure 4-7: Connect Another Router13 Figure 4-8: Connect Your Computer14 Figure 4-9: Connect the Power14 Figure 4-10: Stand Attached to the Router15 Figure 4-11: Measurement between Wall-Mount Slots16 Figure 5-1: Setup Wizard’s Welcome - Start Wizard Screen18 Figure 5-2: Select Service Screen19 Figure 5-3: Insert Mobile Broadband Data Card Screen19 Figure 5-4: Connect the Router to a Computer Screen20 Figure 5-5: Connect the Router to a Computer Screen, Continued20 Figure 5-6: Power on the Router Screen21 Figure 5-7: Check the Router’s Status Screen21 Figure 5-8: Set the Router’s Password Screen22 Figure 5-9: Wireless Settings Screen22 Figure 5-10: Configure Wireless Security Settings Screen23 Figure 5-11: Configure Wireless Security Settings - WPA2-PSK Screen23 Figure 5-12: Configure Wireless Security Settings - WPA-PSK Screen24 Figure 5-13: Configure Wireless Security Settings - WEP (128-Bit) Screen24 Figure 5-14: Configure Wireless Security Settings - WEP (64-Bit) Screen25 Figure 5-15: Warning about Disabled Wireless Security Screen25 Figure 5-16: Confirm New Settings Screen26 Wireless-G Router for Mobile Broadband Figure 5-17: Mobile Bro…

Text truncated - open the document above for the full version.

78 Chapter 8: Configuring the Wireless-G Router for Mobile Broadband The Administration Tab - Log Wireless-G Router for Mobile Broadband The Administration Tab - Log The Router can keep logs of all traffic for your Internet connection. Log Log. To disable the Log function, keep the default setting, Disable. To monitor traffic between the network and the Internet, select Enable. When you wish to view the logs, click Incoming Log or Outgoing Log, depending on which you wish to view. Change these settings as described here, and click the Save Settings button to apply your changes or Cancel Changes to cancel your changes. Figure 8-41: Administration Tab - Log 79 Chapter 8: Configuring the Wireless-G Router for Mobile Broadband The Administration Tab - Diagnostics Wireless-G Router for Mobile Broadband The Administration Tab - Diagnostics The diagnostic tests (Ping and Traceroute) allow you to check the connections of your network components. The reboot Ping Test Ping Parameters. The Ping test will check the status of a connection. Click the Ping button to open the Ping Test screen. Enter the address of the PC whose connection you wish to test and how many times you wish to test it. Then, click the Ping button. The Ping Test screen will then display the test results. To stop the test, click the Stop button. Click the Clear Log button to clear the screen. Click the Close button to return to the Diagnostics screen. Traceroute Test Trace ro ute Param et ers. To test the performance of a connection, click the Traceroute button. Enter the address of the PC whose connection you wish to test and click the Traceroute button. The Traceroute screen will then display the test results. To stop the test, click the Stop button. Click the Clear Log button to clear the screen. Click the Close button to return to the Diagnostics screen. Figure 8-42: Administration Tab - Diagnostics Figure 8-43: The Ping Test Figure 8-44: The Traceroute Test 80 Chapter 8: Configuring the Wireless-G Router for Mobile Broadband The Administration Tab - Factory Defaults Wireless-G Router for Mobile Broadband The Administration Tab - Factory Defaults Factory Defaults Restore Factory Defaults. Click the Yes button to reset all configuration settings to their default values, and then click the Save Settings button. Any settings you have saved will be lost when the default settings are restored. This feature is disabled by default. Click the Cancel Changes button to cancel your change. The Administration Tab - Firmware Upgrade Upgrade Firmware To upgrade the Router’s firmware, first download the firmware from the Linksys website. Then extract the file on your computer. Do not upgrade your firmware unless you are experiencing problems with the Router. Please select a file to upgrade. Click the Browse button to find the extracted firmware file. Then click the Upgrade button. For more information about upgrading firmware, refer to “Appendix C: Upgrading Firmware”. The Administration Tab - Config Management This screen is used to back up or restore the Router’s configuration file. Backup Configuration To back up the Router’s configuration file, click the Backup button. Then follow the on-screen instructions. Router Configuration To restore the Router’s configuration file, click the Browse button to locate the file, and follow the on-screen instructions. After you have selected the file, click the Restore button. Figure 8-45: Administration Tab - Factory Defaults Figure 8-46: Administration Tab - Firmware Upgrade Figure 8-47: Administration Tab - Config Management 81 Chapter 8: Configuring the Wireless-G Router for Mobile Broadband The Status Tab - Mobile Network Wireless-G Router for Mobile Broadband The Status Tab - Mobile Network The Mobile Network screen on the Status Tab displays the Router’s current mobile network and mobile broadband data card status. Mobile Network Status Network Name. Displayed here is the name of the mobile network the Router is using. Signal Strength. This indicates the strength of the mobile broadband signal that the Router is receiving. Connection Time. This is the length of time the Router has been connected to the mobile network since your last connection. Current Session Usage. Displayed here is the amount of data that has been sent to and received from the mobile network since your last connection. Data Card Status Card Model. Displayed here is the model number of your broadband mobile data card. Card Firmware. This is the firmware version of your broadband mobile data card. Click the Refresh button to view the latest status information. Figure 8-48: Status Tab - Mobile Network 82 Chapter 8: Configuring the Wireless-G Router for Mobile Broadband The Status Tab - Router Wireless-G Router for Mobile Broadband The Status Tab - Router The Router screen on the Status Tab displays the Router’s current status. Router Information Firmware Version. This is the Router’s current firmware. Current Time. This shows the time, as you set on the Setup Tab. MAC Address. This is the Router’s MAC Address, as seen by your ISP. Router Name. This is the specific name for the Router, which you set on the Setup Tab. Host Name. If required by your ISP, this would have been entered on the Setup Tab. Domain Name. If required by your ISP, this would have been entered on the Setup Tab. Internet Configuration Type. Displayed here is the information required by your ISP for connection to the Internet. This information was entered on the Setup Tab. Click the Refresh button to view the latest status information. Figure 8-49: Status Tab - Router 83 Chapter 8: Configuring the Wireless-G Router for Mobile Broadband The Status Tab - Local Network Wireless-G Router for Mobile Broadband The Status Tab - Local Network The Local Network screen on the Status Tab displays the status of your network. Local Network MAC Address. This is the Router’s MAC Address, as seen on your local, Ethernet network. IP Address. This shows the Router’s IP Address, …

Text truncated - open the document above for the full version.

120 Appendix I: Regulatory Information Wireless-G Router for Mobile Broadband 121 Appendix I: Regulatory Information Wireless-G Router for Mobile Broadband 122 Appendix I: Regulatory Information Dual-Band Wireless Access Point For more information, visit www.linksys.com. 123 Wireless-G Router for Mobile Broadband Appendix J: Contact Information Appendix J: Contact Information Need to contact Linksys? Visit us online for information on the latest products and updates to your existing products at: http://www.linksys.com or http://www.linksys.com/support If you experience problems with any Linksys product, you can e-mail us at: [email protected]

Following three 3G cards have passed co-located EMC / RF exposure test with this device and could be used with this device. Other 3G card may or may not comply with the FCC rule, please consult manufacture before purchase. ItemFCC ID 1NBZNRM-U730 2NBZNRM-U630 3NCMOGL3Q

Cisco-Linksys LLC 121 Theory Drive Irvine, CA 92617(USA) Phone: ( 949 ) 823-3188 Fax: ( 949 ) 823-3002 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request FCC ID: Q87-WRT54G3G Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ------------------------------------------------------------------------------ Jennifer Yu / Associate Engineer Cisco-Linksys LLC Phone: 949-823-3188 Fax: 949-823-3002 [email protected]

From: [email protected] [mailto:[email protected]] Sent: Thursday, June 08, 2006 1:46 AM To: steve.cheng Cc: [email protected]; [email protected]; [email protected]; [email protected] Subject: Re : TCB Review Comments for (B06-0517b- Q87-WRT54G3G- Cisco 11g Router w3G card) Dear Steve, Thank you for your comments on this application! We have performed the extra collocation test with 3 typical 3G cards, please refer to submitted test reports. Thanks! Best Regards, Amanda Chu / 朱芳誼 Certification Specialist / ADT Corp. (Hsin Chu Office) Tel: 03-5935343 ext. 1737 Fax: 03-5934728 "steve.cheng" <[email protected]> 2006/05/18 下午 02:24 收件人 [email protected], [email protected] 副本抄 送 [email protected], [email protected], [email protected] 主旨 TCB Review Comments for (B06-0517b- Q87-WRT54G3G- Cisco 11g Router w3G card) TCB Review Comments for (B06-0517b- Q87-WRT54G3G- Cisco 11g Router w 3G card) -EMC- Question #1: Per FCC policy, the part 15 WLAN device needs to address the end user specific collocation condition if the device provides an open slot for license radio. Please clarify if this product is intended for working with all license radios available from market or only to certain specific models? Please supply enough test data to demonstrate the compliance of FCC collocated EMC and RF exposure requirement accordingly. Best regards, Steve Cheng Curtis-Straus LLC Email: [email protected]

Cisco-Linksys LLC 121 Theory Drive Irvine, CA 92617(USA) Phone: ( 949 ) 823-3188 Fax: ( 949 ) 823-3002 Power of Attorney To whom it may concern: We, the undersigned Cisco-Linksys LLC hereby authorize Advance Data Technology Corporation (ADT) of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15C approval and any communication needed with the national authority. Any and all acts carried out by ADT on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, ------------------------------------------------------------------------------- Jennifer Yu / Associate Engineer Cisco-Linksys LLC Phone: 949-823-3188 Fax: 949-823-3002 [email protected]

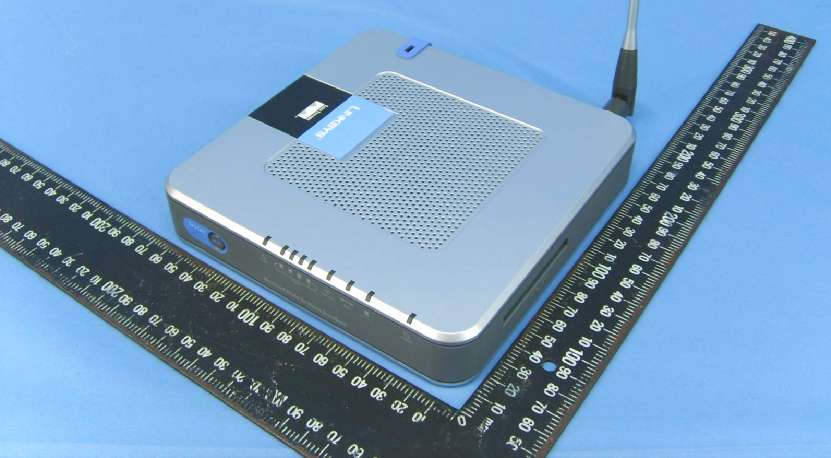

Page 1 CONSTRUCTION PHOTOS OF EUT

(Fig. 1) FCC ID: Q87-WRT54G3G FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

Page 2 Page 3 Page 4 Page 5 Page 6 Page 7 Page 8 Adapter Model No.: AM-1201000D41 950403H03 950403H03 Page 9 Page 10 Adapter Model No.: D12-1000 950403H03 950403H03 Page 11

FCC ID: Q87-WRT54G3G Report No. RF950403H03 Operational Description This device is a Wireless-G Router for Mobile Broadband, the maximum data rate could be up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT (Wireless-G Router for Mobile Broadband) is powered by power adapter. The antenna used in this product is dipole antenna with Reverse SMA connector. The other instruction, please have a look at the users manual.

Report No.: SA950403H03-1 1 RF EXPOSURE REPORT REPORT NO.: SA950403H03-1 MODEL NO.: WRT54G3G FCC ID: Q87-WRT54G3G ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Cisco-Linksys LLC ADDRESS: 121 Theory Drive Irvine, CA 92617(USA) ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. Report No.: SA950403H03-1 2 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz Report No.: SA950403H03-1 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device Report No.: SA950403H03-1 4 6. Test Results 6.1 Antenna Gain FOR WLAN FUNCTION: The maximum Gain measured in Fully Anechoic Chamber is 2dBi or 1.584893 (numeric) 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For WLAN Part 802.11b: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241278.8860.0251.0 6243788.1050.0281.0 112462109.1440.0341.0 For WLAN Part 802.11g: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 12412136.7730.0431.0 62437174.5820.0551.0 112462178.2380.0561.0 Report No.: SA950403H03-1 5 For Card 1: Model No.: NRM-U730 EDGE 850: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 251848.812220.2430.566 NOTE: Limit of power density = 848.8 (MHz) / 1500 = 0.566. HSDPA 850: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 189836.663.100.0130.558 NOTE: Limit of power density = 836.6 (MHz) / 1500 = 0.558. EDGE 1900: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 8101909.7330.0071.0 HSDPA 1900: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 8101909.7330.0071.0 NOTE: The power as above refers to the FCC part 22 / 24 report of FCC ID: NBZNRM-U730. Report No.: SA950403H03-1 6 For Card 2: Model No.:U630 GSM 1900: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 6611880.0831.760.1651.0 NOTE: The power as above refers to the FCC part 24 report of FCC ID: NBZNRM-U630. For Card 3: Model No.:GT 3G Quad GSM 850: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 190836.6351.560.0700.558 NOTE: Limit of power density = 836.6 (MHz) / 1500 = 0.558. GSM 1900: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 8101909.8316.2280.0631.0 NOTE: The power as above refers to the FCC part 22 / 24 report of FCC ID: NCMOGL3Q. CONCULSION: Both of the WLAN and GSM can transmit simultaneously, the formula of calculated the MPE is: CPD 1 / LPD 1 + CPD 2 / LPD 2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore, the worst-case situation is 0.243 / 0.566 + 0.056 / 1 = 0.4853, which is less than “1”. This confirmed that the device comply with FCC 1.1310 MPE limit.

Report No.: RF950403H03-11Report Format Version 2.0.4 FCC TEST REPORT REPORT NO.: RF950403H03-1 MODEL NO.: WRT54G3G RECEIVED: April 03, 2006 TESTED: May 10 to June 02, 2006 ISSUED: June 7, 2006 APPLICANT: Cisco-Linksys LLC ADDRESS: 121 Theory Drive Irvine, CA 92617(USA) ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 78 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. The test results in this report are traceable to the national or international standards. No. 2177-01 Report No.: RF950403H03-12Report Format Version 2.0.4 Table of Contents 1CERTIFICATION...........................................................................................3 2SUMMARY OF TEST RESULTS...................................................................4 3GENERAL INFORMATION............................................................................5 3.1GENERAL DESCRIPTION OF EUT........................................................................5 3.2DESCRIPTION OF TEST MODES..........................................................................6 3.3TEST MODE APPLICABLITY AND TESTED CHANNEL DETAIL:...........................7 3.4GENERAL DESCRIPTION OF APPLIED STANDARDS..........................................9 3.5DESCRIPTION OF SUPPORT UNITS...................................................................10 3.6CONFIGURATION OF SYSTEM UNDER TEST....................................................11 4TEST TYPES AND RESULTS.....................................................................12 4.1CONDUCTED EMISSION MEASUREMENT.........................................................12 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT............................12 4.1.2TEST INSTRUMENTS.................................................................................12 4.1.3TEST PROCEDURES.................................................................................13 4.1.4TEST SETUP..............................................................................................13 4.1.5EUT OPERATING CONDITIONS................................................................14 4.1.6TEST RESULTS..........................................................................................15 4.2RADIATED EMISSION MEASUREMENT..............................................................43 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT.................................43 4.2.2TEST INSTRUMENTS.................................................................................44 4.2.3TEST PROCEDURES.................................................................................45 4.2.4TEST SETUP..............................................................................................46 4.2.5EUT OPERATING CONDITIONS................................................................46 4.2.6TEST RESULTS..........................................................................................47 4.2.7TEST RESULTS - DSSS.............................................................................61 4.2.8TEST RESULTS - OFDM............................................................................68 5PHOTOGRAPHS OF THE TEST CONFIGURATION..................................75 6INFORMATION ON THE TESTING LABORATORIES................................77 APPENDIX-A..........................................................................................................A-1 Report No.: RF950403H03-13Report Format Version 2.0.4 1 CERTIFICATION PRODUCT : Wireless-G Router for Mobile Broadband BRAND NAME : Linksys MODEL NO. : WRT54G3G TESTED: May 10 to June 02, 2006 APPLICANT : Cisco-Linksys LLC TEST ITEM: ENGINEERING SAMPLE STANDARDS : 47 CFR Part 15, Subpart C (Section 15.247), ANSI C63.4-2003 The above equipment (Model: WRT54G3G) has been tested by Advance Data Technology Corporation, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY: , DATE:June 7, 2006 ( Carol Liao ) TECHNICAL ACCEPTANCE : , DATE:June 7, 2006 Responsible for RF ( Hank Chung ) APPROVED BY : , DATE: June 7, 2006 ( May Chen, Deputy Manager ) Report No.: RF950403H03-14Report Format Version 2.0.4 2 SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: APPLIED STANDARD: 47 CFR Part 15, Subpart C Standard Section Test Type and LimitResultREMARK 15.207AC Power Conducted EmissionPASS Meet the requirement of limit Minimum passing margin is –13.05 dB at 0.509 MHz and 0.510 MHz 15.247(c) Transmitter Radiated Emissions Limit: Table 15.209 PASS Meet the requirement of limit Minimum passing margin is –2.1 dB at 366.82 MHz Report No.: RF950403H03-15Report Format Version 2.0.4 3 GENERAL INFORMATION 3.1 GENERAL DESCRIPTION OF EUT PRODUCT Wireless-G Router for Mobile Broadband MODEL NO. WRT54G3G FCC ID Q87-WRT54G3G POWER SUPPLY DC 12V from power adapter MODULATION TYPE CCK, DQPSK, DBPSK for DSSS 64QAM, 16QAM, QPSK, BPSK for OFDM RADIO TECHNOLOGY DSSS, OFDM TRANSFER RATE 802.11b: 11/5.5/2/1Mbps 802.11g: 54/48/36/24/18/12/9/6Mbps FREQUENCY RANGE 2412MHz ~ 2462MHz NUMBER OF CHANNEL 11 CHANNEL SPACING5MHz OUTPUT POWER 802.11b: 109.144mW 802.11g: 178.238mW ANTENNA TYPE Dipole antenna, antenna gain: 2dBi DATA CABLE NA I/O PORTS One 10/100 RJ45 Internet Port Four 10/100 RJ45 Switched LAN Port ASSOCIATED DEVICES NA NOTE: 1. The EUT was tested with following three GSM Cards …

Text truncated - open the document above for the full version.

Report No.: RF950403H031Report Format Version 2.0.4 FCC TEST REPORT REPORT NO.: RF950403H03 MODEL NO.: WRT54G3G RECEIVED: April 03, 2006 TESTED: May 05 to 11, 2006 ISSUED: May 15, 2006 APPLICANT: Cisco-Linksys LLC ADDRESS: 121 Theory Drive Irvine, CA 92617(USA) ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 70 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. The test results in this report are traceable to the national or international standards. No. 2177-01 Report No.: RF950403H032Report Format Version 2.0.4 Table of Contents 1CERTIFICATION......................................................................................................4 2SUMMARY OF TEST RESULTS.............................................................................5 3GENERAL INFORMATION......................................................................................6 3.1GENERAL DESCRIPTION …

Text truncated - open the document above for the full version.
