Q87-WRT54G3GV2Wireless-G Router for Mobile Broadband

USER GUIDE Wireless-G Router for Mobile Broadband Model No: WRT54G3GV2-ST  About This Guide  Wreless-G Router for Moble Broadband About Ths Gude Icon Descriptions While reading through the User Guide you may see various icons that call attention to specific items. Below is a description of these icons: NOTE: This check mark indicates that there is a note of interest and is something that you should pay special attention to while using the product. WARNING: This exclamation point indicates that there is a caution or warning and it is something that could damage your property or product. WEB: This globe icon indicates a noteworthy website address or e-mail address. Online Resources Website addresses in this document are listed without http:// in front of the address because most current web browsers do not require it. If you use an older web browser, you may have to add http:// in front of the web address. ResourceWebste Sprintwww.sprint.com Linksyswww.linksys.com Linksys International www.linksys.com/international Glossarywww.linksys.com/glossary Network Securitywww.linksys.com/security Copyright and Trademarks Specifications are subject to change without notice. Linksys is a registered trademark or trademark of Cisco Systems, Inc. and/or its affiliates in the U.S. and certain other countries. Copyright © 2007 Cisco Systems, Inc. All rights reserved. Other brands and product names are trademarks or registered trademarks of their respective holders.  Table of Contents  Wreless-G Router for Moble Broadband Chapter 1: Product Overview 4 Top Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Side Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Opposite Side Panel with Antenna. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Front Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Bottom Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Placement Positions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Chapter 2: Wireless Security Checklist 7 General Network Security Guidelines. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Additional Security Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Chapter 3: Advanced Configuration 8 Setup > Basic Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Setup > Mobile Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12 Setup > DDNS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12 Setup > MAC Address Clone. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13 Setup > Advanced Routing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 Wireless > Basic Wireless Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 Wireless > Wireless Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 Wireless > Wireless MAC Filter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17 Wireless > Advanced Wireless Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18 Security > Firewall . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19 Security > VPN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19 Access Restrictions > Internet Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23 Applications and Gaming > Single Port Forwarding. . . . . . . . . . . . . . . . . . . . . . . .24 Applications and Gaming > Port Range Forwarding . . . . . . . . . . . . . . . . . . . . . . .24 Applications & Gaming > Port Range Triggering . . . . . . . . . . . . . . . . . . . . . . . . . .25 Applications and Gaming > DMZ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25 Applications and Gaming > QoS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26 Administration > Management. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28 Administration > Log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29 Administration > Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29 Administration > Factory Defaults. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30 Administration > Firmware Upgrade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30 Status > Mobile Network. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31 Status > Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31 Status > Local Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32 Status > Wireless Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32 Appendix A: Troubleshooting 33 Appendix B: Specifications 3 5 Appendix C: Warranty Information 3 6  Table of Contents  Wreless-G Router for Moble Broadband Appendix D: Regulatory Information 37 FCC Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37 FCC Radiation Exposure Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37 Safety Notices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37 Industry Canada Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37 Avis d’Industrie Canada. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .…

Text truncated - open the document above for the full version.

Chapter3 Advanced Configuration 21 Wreless-G Router for Moble Broadband IP Addr. Enter the IP address of the remote VPN device. This can be static or dynamic, depending on the settings of the remote VPN device. The IP address you enter is NOT the IP address of the local Gateway. IP Address Enter the IP address of the VPN device at the other end of the tunnel. FQDN Enter the Fully Qualified Domain Name (FQDN) of the remote VPN device. Doman Name Enter the domain name of the VPN device at the other end of the tunnel. Any Select this option to have the Router accept requests from any IP address. Encrypton Using encryption helps make your connection more secure. Select DES or 3DES (3DES is recommended because it is more secure). You may choose either of these, but it must be the same type of encryption that is being used by the VPN device at the other end of the tunnel. If you do not choose to encrypt your data, select Dsabled. Authentcaton Authentication acts as another level of security. Select MD or SHA (SHA is recommended because it is more secure). As with encryption, either of these may be selected, if the VPN device at the other end of the tunnel is using the same type of authentication. Key Management A key is a string of letters and/or numbers used for authentication or encryption. Select Auto (IKE) for automatic key management by the Internet Key Exchange (IKE) protocol, or select Manual for manual key management. The two methods are described below. Auto (IKE) PFS PFS (Perfect Forward Secrecy) enables automatic re-keying to enhance security. Select Enabled to ensure that the initial key exchange and IKE proposals are secure. Otherwise, select Dsabled. Pre-shared Key Enter a series of numbers or letters. Based on this word, which MUST be entered at both ends of the tunnel if this method is used, a key is generated to scramble (encrypt) the data being transmitted over the tunnel, where it is unscrambled (decrypted). You may use any combination of up to 24 numbers or letters in this field. No special characters or spaces are allowed. Key Lfetme You may have the key expire at the end of a time period. Enter the number of seconds you’d like the key to be useful, or leave it blank for the key to last indefinitely. The default is 300 seconds. • • Manual VPN> Manual Key Management Encrypton Key If you chose DES for your Encryption setting, enter 16 hexadecimal characters, or if you chose 3DES, enter 48 hexadecimal characters. Authentcaton Key If you chose MD5 for your Authentication setting, enter 32 hexadecimal characters, or if you chose SHA, enter 40 hexadecimal characters. Inbound SPI Enter the Inbound Security Parameter Index (SPI). This is the Outbound SPI for the remote VPN device. Outbound SPI Enter the Outbound Security Parameter Index (SPI). This is the Inbound SPI for the remote VPN device. Status The status of the connection is shown. The following settings are available if Auto (IKE) is selected. Connect Click this button to connect your VPN tunnel. Vew Logs To view the logs, click Vew Logs. Incoming Log Table The table shows the Source IP and Destination Port Number of incoming traffic. VPN > Incoming Log Table Click Refresh to update the log. Click Close to return to the VPN screen. Advanced Settngs Before configuring these settings, click Save Settngs on the VPN screen to apply your changes, or click Cancel Changes to cancel your changes. Then click Advanced Settngs to configure additional settings. Advanced IPSec VPN Tunnel Setup Phase 1 is when the two endpoints negotiate parameters for key exchange. Phase 2 is when they negotiate parameters for data exchange. Chapter3 Advanced Configuration 22 Wreless-G Router for Moble Broadband VPN> Advanced IPSec VPN Tunnel Setup Phase 1 Phase 1 is used to create a Security Association (SA), often called the IKE SA. After Phase 1 is completed, Phase 2 is used to create one or more IPSec SAs, which are then used to key IPSec sessions. Operaton Mode There are two modes: Main and Aggressive, and they exchange the same IKE payloads in different sequences. Main mode is more common; however, some people prefer Aggressive mode because it is faster. Main mode is for normal usage and includes more authentication requirements than Aggressive mode. Main mode is recommended because it is more secure. No matter which mode is selected, the Router will accept both Main and Aggressive requests from the remote VPN device. Proposal 1 A proposal is a set of parameters that the initiator sends and the responder examines for acceptability. Encrypton Select the length of the key used to encrypt and decrypt ESP packets. Select DES or 3DES. 3DES is recommended because it is more secure. Authentcaton Select the method used to authenticate ESP packets. Select MD or SHA. SHA is recommended because it is more secure. Group Select a Diffie-Hellman group, -bt or 102- bt. Diffie-Hellman refers to a cryptographic technique that uses public and private keys for encryption and decryption. Key Lfetme You may optionally select to have the key expire at the end of a time period of your choosing. Enter the number of seconds you’d like the key to be used until a re-key negotiation between each endpoint is completed. The default is 300 seconds. Phase 2 Proposal Encrypton The encryption method selected in Phase 1 is displayed. Authentcaton The authentication method selected in Phase 1 is displayed. PFS The status of PFS is displayed. Group Select a Diffie-Hellman group, -bt or 102- bt. Diffie-Hellman refers to a cryptographic technique that uses public and private keys for encryption and decryption. Key Lfetme The key lifetime selected in Phase 1 is displayed. Other Setting NAT Traversal Select this option if the remote device is behind a Network Address Translation (NAT) device. NetBIOS broadcast Select this option to enable NetBIOS traffic to pass through the VPN tunnel. This should be used if the local network does not inc…

Text truncated - open the document above for the full version.

Cisco-Linksys LLC 121 Theory Drive Irvine, CA 92617(USA) Phone: ( 949 ) 823-3188 Fax: ( 949 ) 823-3002 Date:2007/9/26 General Declaration We, Cisco-Linksys LLC declares that device does not have “Ad Hoc on non-US frequencies” and/or “on DFS frequencies” while applying for the follow product. FCC ID: Q87-WRT54G3GV2 If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! ------------------------------------------------------------------------------- Jennifer Yu / Program Manager Cisco-Linksys LLC Phone: 949-823-3188 Fax: 949-823-3002 [email protected]

Cisco-Linksys LLC 121 Theory Drive Irvine, CA 92617 (USA) Phone: 949-261-1288 Fax: 949-823-3002 Date:200709/26 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request FCC ID: Q87-WRT54G3GV2 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematic Diagram Block Diagram Theory of Operation The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ------------------------------------------------------------------------------ Jennifer Yu / Program Manager Cisco-Linksys LLC Phone: 949-823-3188 Fax: 949-823-3002 [email protected]

Cisco-Linksys LLC 121 Theory Drive Irvine, CA 92617(USA) Phone: ( 949 ) 823-3188 Fax: ( 949 ) 823-3002 Power of Attorney Date:2007/9/26 To whom it may concern: We, the undersigned Cisco-Linksys LLC hereby authorize Advance Data Technology Corporation (ADT) of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15C approval and any communication needed with the national authority. Any and all acts carried out by ADT on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, ------------------------------------------------------------------------------- Jennifer Yu / Program Manager Cisco-Linksys LLC Phone: 949-823-3188 Fax: 949-823-3002 [email protected]

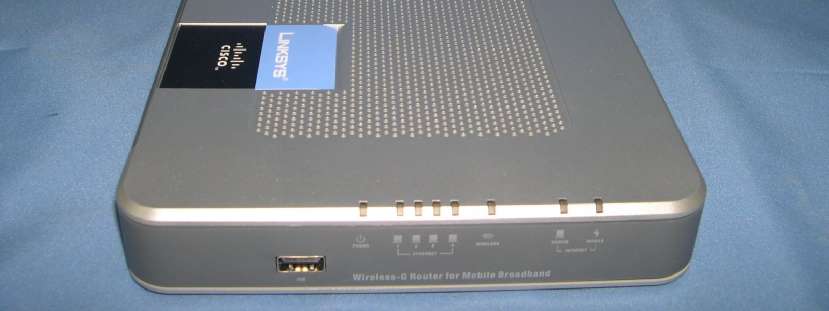

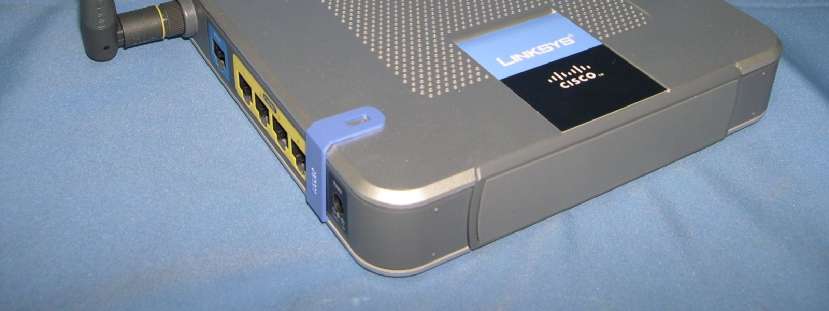

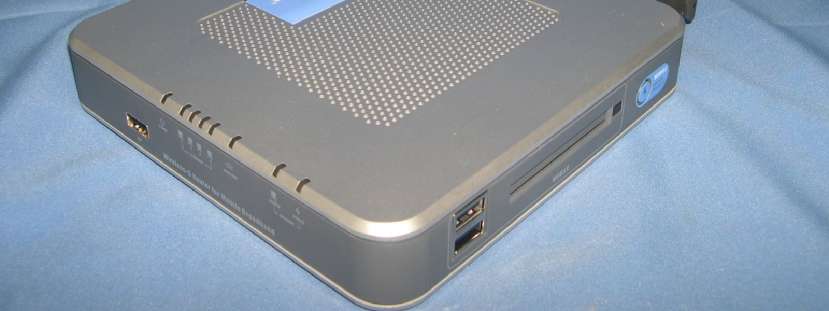

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

(Fig. 1) FCC ID: Q87-WRT54G3GV2 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

Page 4 Page 5 Page 6 Page 7 Page 8 Page 9 Page 10 Page 11

Report No.: SA960903H01 1 RF EXPOSURE REPORT REPORT NO.: SA960903H01 MODEL NO.: WRT54G3G V2-XX FCC ID: Q87-WRT54G3GV2 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Cisco-Linksys LLC ADDRESS: 121 Theory Drive Irvine, CA 92617 (USA) ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. Report No.: SA960903H01 2 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 300-1500 ... ... F/1500 6 1500-100,000 ... ... 1.0 30 F = Frequency in MHz Report No.: SA960903H01 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by client enabled the EUT to transmit and receive data at specific channel frequencies individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device Report No.: SA960903H01 4 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 3.3dBi or 2.1379 (numeric) 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For Part 802.11b: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 70.795 0.030 1.0 6 2437 61.660 0.026 1.0 11 2462 54.954 0.023 1.0 For Part 802.11g: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 95.499 0.041 1.0 6 2437 102.329 0.044 1.0 11 2462 91.201 0.039 1.0 Report No.: SA960903H01 5 For Card 1: Model No.: AC595 1xRTTRC3 : Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 836.5 824.7 676.083 0.181 0.5498 NOTE: Limit of power density = 824.7 (MHz) / 1500 = 0.5498. For Card 2: Model No.: S620 CDMA : Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 380 836.4 281.838 0.076 0.5576 NOTE: Limit of power density = 836.4 (MHz) / 1500 = 0.5576. For Card 3: Model No.: Merlin S720 1x EV-Do : Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1013 824.7 291.743 0.078 0.5498 NOTE: Limit of power density = 824.7 (MHz) / 1500 = 0.5498. For Card 4: Model No.: U720 1x EV-Do : Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1013 824.7 260.615 0.070 0.5498 NOTE: Limit of power density = 824.7 (MHz) / 1500 = 0.5498. For Card 5: Model No.: E220 GPRS : Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm2) Limit of Power Density (mW/cm2) 661 1880 805.378 0.216 1.0000 NOTE: The power as above refers to the FCC part 24 report of FCC ID: QISE220. Report No.: SA960903H01 6 For Card 6: Model No.: 595U 1x EV-Do : Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 836.5 836.5 1044.720 0.280 0.5577 NOTE: Limit of power density = 836.5 (MHz) / 1500 = 0.5577. CONCULSION: Both of the WLAN and GSM can transmit simultaneously, the formula of calculated the MPE is: CPD 1 / LPD 1 + CPD 2 / LPD 2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore, the worst-case situation is 0.280 / 0.5577 + 0.044 / 1 = 0.546723, which is less than “1”. This confirmed that the device comply with FCC 1.1310 MPE limit.

Report No.: RF960903H01 1 Report Format Version 2.0.6 FCC TEST REPORT REPORT NO.: RF960903H01 MODEL NO.: WRT54G3G V2-XX RECEIVED: Sep. 03, 2007 TESTED: Sep. 09 to 11, 2007 ISSUED: Sep. 24, 2007 APPLICANT: Cisco-Linksys LLC ADDRESS: 121 Theory Drive Irvine, CA 92617 (USA) ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 66 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF, A2LA or any government agencies. The test results in the report only apply to the tested sample. No. 2177-01 Report No.: RF960903H01 2 Report Format Version 2.0.6 Table of Contents 1 CERTIFICATION...........................................................................................4 2 SUMMARY OF TEST RESULTS...................................................................5 2.1 MEASUREMENT UNCERTAINTY.................................................................5 3 GENERAL INFORMATION............................................................................6 3.1 GENERAL DESCRIPTION OF EUT..............................................................6 3.2 DESCRIPTION OF TEST MODES................................................................8 3.3 TEST MODE APPLICABLITY AND TESTED CHANNEL DETAIL:................9 3.4 GENERAL DESCRIPTION OF APPLIED STANDARDS.............................11 3.5 DESCRIPTION OF SUPPORT UNITS........................................................12 3.6 CONFIGURATION OF SYSTEM UNDER TEST.........................................13 4 TEST TYPES AND RESULTS.....................................................................14 4.1 CONDUCTED EMISSION MEASUREMENT..............................................14 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT............................14 4.1.2 TEST INSTRUMENTS.................................................................................14 4.1.3 TEST PROCEDURES.................................................................................15 4.1.4 TEST SETUP..............................................................................................15 4.1.5 EUT OPERATING CONDITIONS................................................................16 4.1.6 TEST RESULTS..........................................................................................17 4.2 RADIATED EMISSION MEASUREMENT...................................................19 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT.................................19 4.2.2 TEST INSTRUMENTS.................................................................................20 4.2.3 TEST PROCEDURES.................................................................................21 4.2.4 TEST SETUP..............................................................................................22 4.2.5 EUT OPERATING CONDITIONS................................................................22 4.2.6 TEST RESULTS..........................................................................................23 4.2.7 TEST RESULTS - DSSS.............................................................................24 4.2.8 TEST RESULTS - OFDM............................................................................31 4.3 6dB BANDWIDTH MEASUREMENT...........................................................38 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT........................................38 4.3.2 TEST INSTRUMENTS.................................................................................38 4.3.3 TEST PROCEDURE....................................................................................39 4.3.4 TEST SETUP..............................................................................................39 4.3.5 EUT OPERATING CONDITIONS................................................................39 4.3.6 TEST RESULTS –DSSS.............................................................................40 4.3.7 TEST RESULTS-OFDM..............................................................................43 4.4 MAXIMUM PEAK OUTPUT POWER...........................................................46 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT...........46 4.4.2 TEST INSTRUMENTS.................................................................................46 Report No.: RF960903H01 3 Report Format Version 2.0.6 4.4.3 TEST PROCEDURES.................................................................................47 4.4.4 TEST SETUP..............................................................................................47 4.4.5 EUT OPERATING CONDITIONS................................................................47 4.4.6 TEST RESULTS – DSSS............................................................................48 4.4.7 TEST RESULTS –OFDM.............................................................................49 4.5 POWER SPECTRAL DENSITY MEASUREMENT......................................50 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT....................50 4.5.2 TEST INSTRUMENTS.................................................................................50 4.5.3 TEST PROCEDURE....................................................................................51 4.5.4 TEST SETUP..............................................................................................51 4.5.5 EUT OPERATING CONDITIONS................................................................51 4.5.6 TEST RESULTS –DSSS.............................................................................52 4.5.7 TEST RESULTS –OFDM.............................................................................55 4.6 CONDUCTED EMISSION AND BAND EDGES MEASUREMENT..............58 4.6.…

Text truncated - open the document above for the full version.

Report No.: RF960903H01-1 1 Report Format Version 2.0.6 FCC TEST REPORT REPORT NO.: RF960903H01-1 MODEL NO.: WRT54G3G V2-XX RECEIVED: Sep. 03, 2007 TESTED: Sep. 09 to 11, 2007 ISSUED: Sep. 26, 2007 APPLICANT: Cisco-Linksys LLC ADDRESS: 121 Theory Drive Irvine, CA 92617(USA) ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 45 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF, A2LA or any government agencies. The test results in the report only apply to the tested sample. The test results in this report are traceable to the national or international standards. No. 2177-01 Report No.: RF960903H01-1 2 Report Format Version 2.0.6 Table of Contents 1 CERTIFICATION...........................................................................................3 2 SUMMARY OF TEST RESULTS...................................................................4 2.1 MEASUREMENT UNCERTAINTY...........................................................................4 3 GENERAL INFORMATION............................................................................5 3.1 GENERAL DESCRIPTION OF EUT........................................................................5 3.2 DESCRIPTION OF TEST MODES..........................................................................7 3.3 TEST MODE APPLICABLITY AND TESTED CHANNEL DETAIL:...........................8 3.4 GENERAL DESCRIPTION OF APPLIED STANDARDS..........................................9 3.5 DESCRIPTION OF SUPPORT UNITS...................................................................10 3.6 CONFIGURATION OF SYSTEM UNDER TEST....................................................11 4 TEST TYPES AND RESULTS.....................................................................13 4.1 CONDUCTED EMISSION MEASUREMENT.........................................................13 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT............................13 4.1.2 TEST INSTRUMENTS.................................................................................13 4.1.3 TEST PROCEDURES.................................................................................14 4.1.4 TEST SETUP..............................................................................................14 4.1.5 EUT OPERATING CONDITIONS................................................................15 4.1.6 TEST RESULTS..........................................................................................16 4.1.7 TEST RESULTS..........................................................................................18 4.2 RADIATED EMISSION MEASUREMENT..............................................................20 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT.................................20 4.2.2 TEST INSTRUMENTS.................................................................................21 4.2.3 TEST PROCEDURES.................................................................................22 4.2.4 TEST SETUP..............................................................................................23 4.2.5 EUT OPERATING CONDITIONS................................................................23 4.2.6 TEST RESULTS..........................................................................................24 4.2.7 TEST RESULTS - DSSS.............................................................................30 5 PHOTOGRAPHS OF THE TEST CONFIGURATION.....................…

Text truncated - open the document above for the full version.
