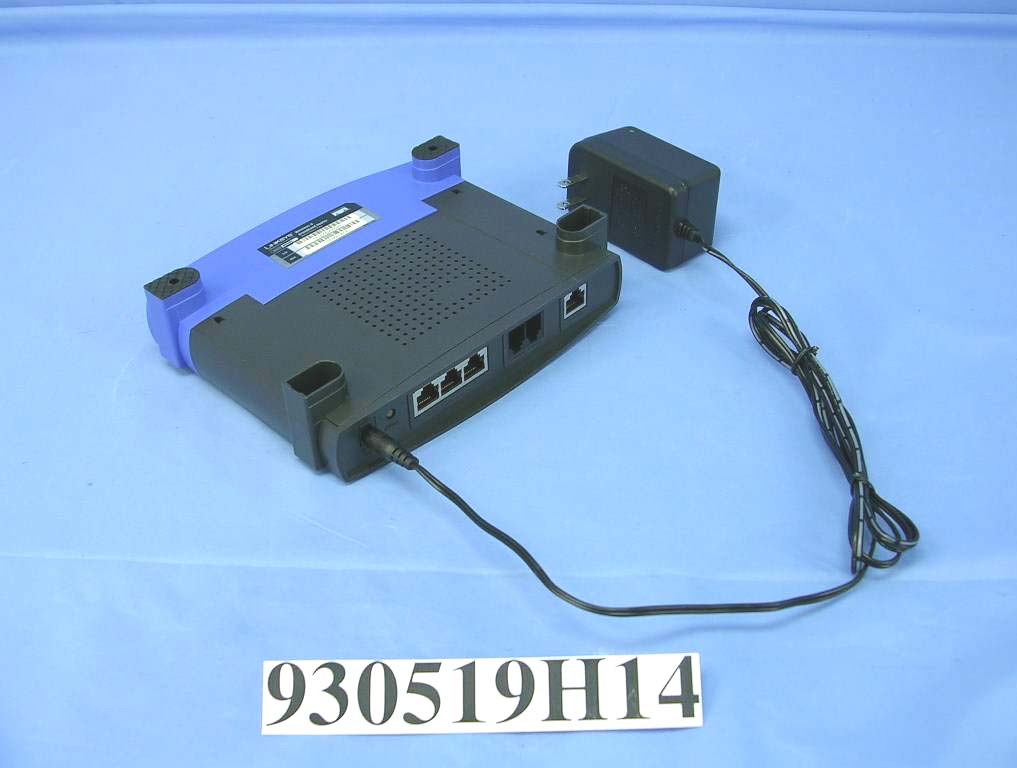

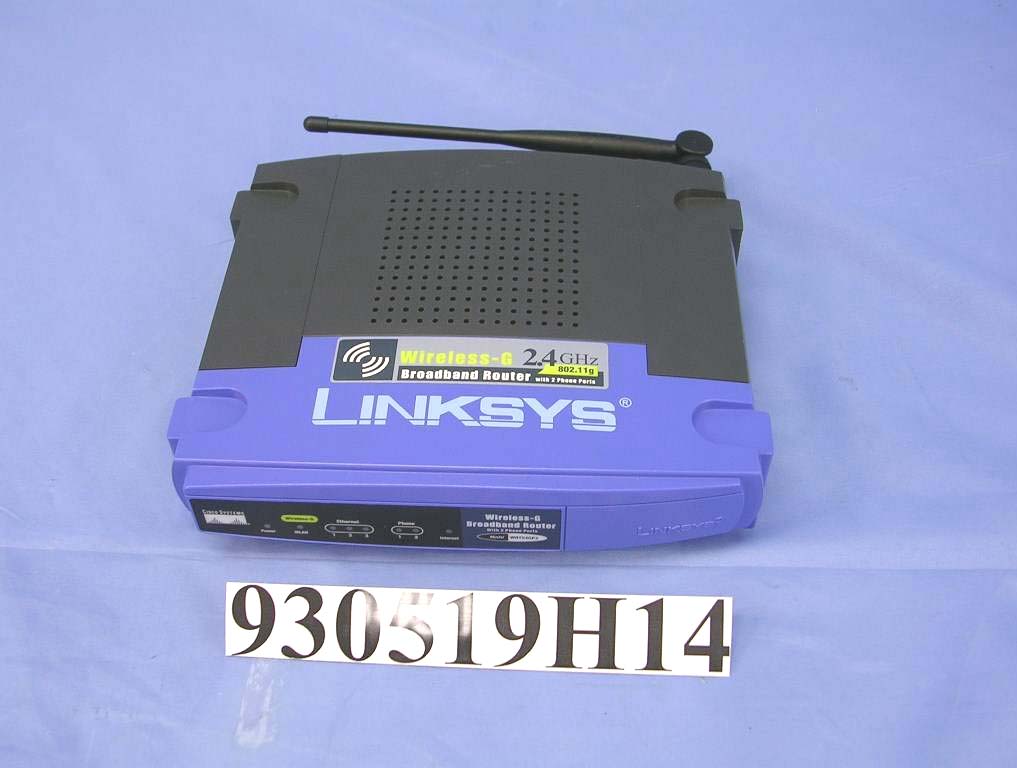

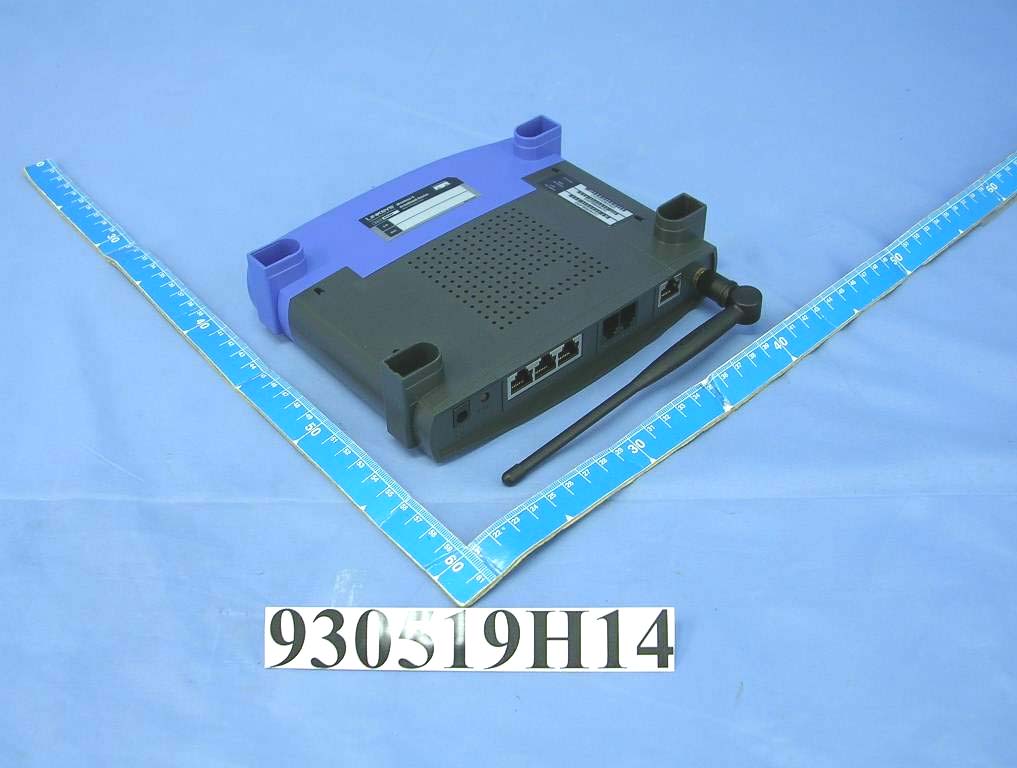

Page 1 CONSTRUCTION PHOTOS OF EUT With D12-1A adapter Page 2 With AM-1201000D41 adapter Page 3 Page 4

(Fig. 1) FCC ID: Q87-WRT54GP2 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

: 100+25 WRT54GP2 PRODUCT LABEL 2004/05/21 Eina

Page 5 Page 6 Page 7 Page 8 Page 9 Page 10 Page 11 Page 12 Page 13 Model : D12-1A Page 14 Page 15 Page 16 Page 17 Model : AM-1201000D41 Page 18 Page 19 Page 20

FCC ID: Q87-WRT54GP2 Report No. 930519H14 Operational Description This device is a Wireless-G Broadband Router with 2 Phone Ports, the maximum data rate could be up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT (Wireless-G Broadband Router with 2 Phone Ports) is powered by from AC adapter. The antenna type used in this product is Dipole antenna with reverse SMA connector. The other instruction, please have a look at the users manual.

FCC ID: Q87-WRT54GP2 Report No.: 930519H14 1 FCC TEST REPORT REPORT NO.: SA930519H14 MODEL NO.: WRT54GP2 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT:Cisco-Linksys, LLC ADDRESS:121 Theory Drive Irvine, CA 92612 (USA) ISSUED BY:Advance Data Technology Corporation LAB LOCATION:No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. FCC ID: Q87-WRT54GP2 Report No.: 930519H14 2 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 300-1500 ... ... F/1500 6 1500-100,000 ... ... 1.0 30 F = Frequency in MHz FCC ID: Q87-WRT54GP2 Report No.: 930519H14 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of the product, under normal use condition, is at least 20 cm away from the body of the user. Warning statement for keeping 20cm separation distance and the prohibition of operating next to a person has been printed on the users manual. So, this product is classified as the Mobile Device. FCC ID: Q87-WRT54GP2 Report No.: 930519H14 4 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber are 3.3dBi or 2.13796(numeric) 6.2 Output Power Into Antenna & RF Exposure Distance : For Part 802.11b: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 52.6017266 0.022373253 1.0 6 2437 52.3600437 0.022270457 1.0 11 2462 52.8445252 0.022476523 1.0 For Part 802.11g: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 53.8269783 0.022897393 1.0 6 2437 51.7606832 0.022015529 1.0 11 2462 52.7229861 0.022424828 1.0

FCC ID: Q87-WRT54GP2 Report No.: RF930519H14 1 Issued: Jun. 14, 2004 FCC TEST REPORT REPORT NO.: RF930519H14 MODEL NO.: WRT54GP2 RECEIVED: May 20, 2004 TESTED: Jun. 01 to 06, 2004 APPLICANT: Cisco-Linksys, LLC ADDRESS: 121 Theory Drive Irvine, CA 92612 (USA) ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 71 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced, except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, or any government agencies. The test results in the report only apply to the tested sample. 0536 ILAC MRA FCC ID: Q87-WRT54GP2 Report No.: RF930519H14 2 Issued: Jun. 14, 2004 Table of Contents 1 CERTIFICATION ........................................................................................... 4 2 SUMMARY OF TEST RESULTS................................................................... 5 3 GENERAL INFORMATION ........................................................................... 6 3.1 GENERAL DESCRIPTION OF EUT.............................................................. 6 3.2 DESCRIPTION OF TEST MODES................................................................ 8 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................... 8 3.4 DESCRIPTION OF SUPPORT UNITS.......................................................... 9 3.5 CONFIGURATION OF SYSTEM UNDER TEST ......................................... 10 4 TEST TYPES AND RESULTS..................................................................... 12 4.1 CONDUCTED EMISSION MEASUREMENT .............................................. 12 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT............................ 12 4.1.2 TEST INSTRUMENTS ................................................................................ 12 4.1.3 TEST SETUP .............................................................................................. 13 4.1.4 EUT OPERATING CONDITIONS................................................................ 14 4.1.5 TEST RESULTS.......................................................................................... 15 4.2 RADIATED EMISSION MEASUREMENT ................................................... 19 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT................................. 19 4.2.2 TEST INSTRUMENTS ................................................................................ 20 4.2.3 TEST PROCEDURES................................................................................. 21 4.2.4 TEST SETUP .............................................................................................. 22 4.2.5 EUT OPERATING CONDITIONS................................................................ 22 4.2.6 TEST RESULTS.......................................................................................... 23 4.2.7 TEST RESULTS - DSSS ............................................................................. 25 4.2.8 TEST RESULTS -OFDM ............................................................................. 31 4.3 6DB BANDWIDTH MEASUREMENT.......................................................... 37 4.3.1 LIMITS OF 6DB BANDWIDTH MEASUREMENT ....................................... 37 4.3.2 TEST INSTRUMENTS ................................................................................ 37 4.3.3 TEST PROCEDURE ................................................................................... 38 4.3.4 TEST SETUP .............................................................................................. 38 4.3.5 EUT OPERATING CONDITIONS................................................................ 38 4.3.6 TEST RESULTS-DSSS ............................................................................... 39 4.3.7 TEST RESULTS-OFDM .............................................................................. 43 4.4 MAXIMUM PEAK OUTPUT POWER .......................................................... 47 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ........... 47 4.4.2 TEST INSTRUMENTS ................................................................................ 47 FCC ID: Q87-WRT54GP2 Report No.: RF930519H14 3 Issued: Jun. 14, 2004 4.4.3 TEST PROCEDURES................................................................................. 48 4.4.4 TEST SETUP .............................................................................................. 48 4.4.5 EUT OPERATING CONDITIONS................................................................ 48 4.4.6 TEST RESULTS - DSSS ............................................................................. 49 4.4.7 TEST RESULTS - OFDM ............................................................................ 50 4.5 POWER SPECTRAL DENSITY MEASUREMENT...................................... 51 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ................... 51 4.5.2 TEST INSTRUMENTS ................................................................................ 51 4.5.3 TEST PROCEDURE ................................................................................... 52 4.5.4 TEST SETUP .............................................................................................. 52 4.5.5 EUT OPERATING CONDITIONS................................................................ 52 4.5.6 TEST RESULTS-DSSS ............................................................................... 53 4.5.7 TEST RESULTS-OFDM .............................................................................. 57 4.6 BAND EDGES MEASUREMENT ................................................................ 61 4.6.1 LIMITS OF BAND EDGES MEASUREMENT ............................................. 61 4.6.2 TEST INSTRUMENTS ...............................................…

Text truncated - open the document above for the full version.

Report No. 930519H14 1 The Measurement of Conducted Spurious Emissions CONDUCTED SPURIOUS EMISSIONS MEASUREMENT 1. LIMITS OF CONDUCTED SPURIOUS EMISSIONS EASUREMENT Below 20dB of the highest emission level of operating band (in 100KHz Resolution Bandwidth, see Section 15.247(c)). Emissions which fall in the restricted bands, as defined in Section 15.205(a), must also comply with the limits specified in Section 15.209(a) (see Section 15.205(c)). 2. TEST INSTRUMENTS Description & Manufacturer Model No. Serial No. Calibrated Until R&S SPECTRUM ANALYZER FSP40 100036 Nov. 27, 2005 High pass filter 2.4G WHK3.1/18G-1 0SS SN4 Jun. 12, 2004 NOTE: 1.The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 3. TEST PROCEDURE The transmitter output was connected to the spectrum analyzer via a low lose cable. Set both RBW and VBW of spectrum analyzer to 100 kHz with suitable frequency span including 100 kHz bandwidth from band edge. The band edges was measured and recorded. Report No. 930519H14 2 4. TEST SETUP 5. EUT OPERATING CONDITIONS The software provided by client to enable the EUT under transmission condition continuously at lowest, middle and highest channel frequencies individually. EUT SPECTRUM ANALYZER Report No. 930519H14 3 TEST RESULTS – For 802.11b The spectrum plots are attached on the following 2 pages. It shows compliance with the requirement in part 15.247(C),.15.205 and 15.209. Report No. 930519H14 4 Ch1 Report No. 930519H14 5 Ch11 Report No. 930519H14 6 TEST RESULTS – For 802.11g The spectrum plots are attached on the following 2 pages. It shows compliance with the requirement in part 15.247(C),.15.205 and 15.209. Report No. 930519H14 7 Ch1 Report No. 930519H14 8 Ch11

FCC ID: Q87-WRT54GP2 Report No.: RF930519H14 69 Issued: Jun. 14, 2004 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: Q87-WRT54GP2 Report No.: RF930519H14 70 Issued: Jun. 14, 2004 RADIATED EMISSION TEST
