Q87-WRT54GRWireless-G Broadband Router with RangeBooster

A Division of Cisco Systems, Inc. ® Model No. Broadband Router Wireless-G WRT54GR User Guide WIRELESS GHz 2.4 802.11g with RangeBooster Wireless-G Broadband Router with RangeBooster Copyright and Trademarks Specifications are subject to change without notice. Linksys is a registered trademark or trademark of Cisco Systems, Inc. and/or its affiliates in the U.S. and certain other countries. Copyright © 2006 Cisco Systems, Inc. All rights reserved. Other brands and product names are trademarks or registered trademarks of their respective holders. How to Use This User Guide This User Guide has been designed to make understanding networking with the Wireless-G Broadband Router with RangeBooster easier than ever. Look for the following items when reading this User Guide: In addition to these symbols, there are definitions for technical terms that are presented like this: Also, each figure (diagram, screenshot, or other image) is provided with a figure number and description, like this: Figure numbers and descriptions can also be found in the “List of Figures” section in the “Table of Contents”. This exclamation point means there is a caution or warning and is something that could damage your property or the Wireless-G Broadband Router with RangeBooster. This checkmark means there is a note of interest and is something you should pay special attention to while using the Wireless-G Broadband Router with RangeBooster. This question mark provides you with a reminder about something you might need to do while using the Wireless-G Broadband Router with RangeBooster. word: definition. Figure 0-1: Sample Figure Description WRT54GR-UG-50719NC BW WARNING:This product contains chemicals, including lead, known to the State of California to cause cancer, and birth defects or other reproductive harm. Wash hands after handling. Wireless-G Broadband Router with RangeBooster Table of Contents Chapter 1: Introduction1 Welcome1 What’s in this User Guide?2 Chapter 2: Planning Your Wireless Network4 Network Topology4 Ad-Hoc versus Infrastructure Mode4 Network Layout4 Chapter 3: Getting to Know the Wireless-G Broadband Router with RangeBooster6 The Back Panel6 The Front Panel7 Chapter 4: Connecting the Wireless-G Broadband Router with RangeBooster8 Hardware Installation for Connection to Your Broadband Modem8 Chapter 5: Configuring the Wireless-G Broadband Router with RangeBooster10 Overview10 The Setup Tab - Basic Setup11 The Setup Tab - DDNS15 The Setup Tab - MAC Address Clone16 The Setup Tab - Advanced Routing17 The Wireless Tab - Basic Wireless Settings18 The Wireless Tab - Wireless Security19 The Wireless Tab - Wireless MAC Filter22 The Wireless Tab - Advanced Wireless Settings23 The Security Tab - Firewall25 The Security Tab - VPN Passthrough26 The Access Restrictions Tab - Internet Access Policy26 The Applications and Gaming Tab - Single Port Forwarding28 The Applications and Gaming Tab - Port Range Forwarding29 The Applications & Gaming Tab - Port Range Triggering30 The Applications and Gaming Tab - DMZ30 The Administration Tab - Management31 The Administration Tab - Log33 The Administration Tab - Diagnostics34 Wireless-G Broadband Router with RangeBooster The Administration Tab - Factory Defaults35 The Administration Tab - Firmware Upgrade35 The Status Tab - Router36 The Status Tab - Local Network37 The Status Tab - Wireless Network37 Appendix A: Troubleshooting38 Common Problems and Solutions38 Frequently Asked Questions46 Appendix B: Wireless Security53 Security Precautions53 Security Threats Facing Wireless Networks53 Appendix C: Upgrading Firmware56 Appendix D: Windows Help57 Appendix E: Finding the MAC Address and IP Address for Your Ethernet Adapter58 Windows 98SE or Me Instructions58 Windows 2000 or XP Instructions58 For the Router’s Web-based Utility59 Appendix F: Glossary60 Appendix G: Specifications67 Appendix H: Warranty Information69 Appendix I: Regulatory Information70 Appendix J: Contact Information72 Wireless-G Broadband Router with RangeBooster List of Figures Figure 3-1: The Router’s Back Panel6 Figure 3-2: The Router’s Front Panel7 Figure 4-1: Connecting Your Internet Connection8 Figure 4-2: Connecting Your Network Devices9 Figure 4-3: Connecting the Power9 Figure 5-1: Password Screen10 Figure 5-2: Setup Tab - Basic Setup11 Figure 5-3: DHCP Connection Type11 Figure 5-4: Static IP Connection Type11 Figure 5-5: PPPoE Connection Type12 Figure 5-6: PPTP Connection Type12 Figure 5-7: HeartBeat Signal Connection Type13 Figure 5-8: Optional Settings13 Figure 5-9: Router IP13 Figure 5-10: DHCP Server Settings14 Figure 5-11: Static DHCP Client List14 Figure 5-12: DHCP Client Table14 Figure 5-13: Time Setting14 Figure 5-14: Setup Tab - DDNS.com15 Figure 5-15: Setup Tab - TZO.com15 Figure 5-16: Setup Tab - MAC Address Clone16 Figure 5-17: Setup Tab - Advanced Routing17 Figure 5-18: Setup Tab - Routing Table17 Figure 5-19: Wireless Tab - Basic Wireless Settings18 Figure 5-20: Wireless Tab - Wireless Security (WEP)19 Figure 5-21: Wireless Tab - Wireless Security (WPA-Personal)19 Figure 5-22: Wireless Tab - Wireless Security (PSK2)20 Figure 5-23: Wireless Tab - Wireless Security (RPSK2-Mixed)20 Figure 5-24: Wireless Tab - Wireless Security (WPA Enterprise)20 Figure 5-25: Wireless Tab - Wireless Security (PSK2 + RADIUS)21 Figure 5-26: Wireless Tab - Wireless Security (RADIUS)21 Wireless-G Broadband Router with RangeBooster Figure 5-27: Wireless Tab - Wireless MAC Filter22 Figure 5-28: Wireless Client List22 Figure 5-29: Wireless Tab - Advanced Wireless Settings23 Figure 5-30: Security Tab - Firewall25 Figure 5-31: Security Tab - VPN Passthrough26 Figure 5-32: Access Restrictions Tab - Internet Access Policy26 Figure 5-33: Internet Policy Summary27 Figure 5-34: List of PCs27 Figure 5-35: Applications and Gaming Tab - Single Port Forwarding28 Figure 5-36: Applications and Gaming Tab - Port Range Forward29 Figure 5-37: Applications and Gaming Tab - Port Triggering30 Figure 5-38: Applications and Gaming Ta…

Text truncated - open the document above for the full version.

38 Appendix A: Troubleshooting Common Problems and Solutions Wireless-G Broadband Router with RangeBooster Appendix A: Troubleshooting This appendix consists of two parts: “Common Problems and Solutions” and “Frequently Asked Questions.” Provided are possible solutions to problems that may occur during the installation and operation of the Router. Read the descriptions below to help you solve your problems. If you can’t find an answer here, check the Linksys website at www.linksys.com. Common Problems and Solutions 1. I’m trying to access the Router’s Web-based Utility, but I do not see the login screen. Instead, I see a screen saying, “404 Forbidden.” If you are using Windows Explorer, perform the following steps until you see the Web-based Utility’s login screen (Netscape Navigator will require similar steps): 1. Click File. Make sure Work Offline is NOT checked. 2. Press CTRL + F5. This is a hard refresh, which will force Windows Explorer to load new webpages, not cached ones. 3. Click Tools. Click Internet Options. Click the Security tab. Click the Default level button. Make sure the security level is Medium or lower. Then click the OK button. 2. I need to set a static IP address on a PC. You can assign a static IP address to a PC by performing the following steps: •For Windows 98SE and Me: 1. Click Start, Settings, and Control Panel. Double-click Network. 2. In The following network components are installed box, select the TCP/IP-> associated with your Ethernet adapter. If you only have one Ethernet adapter installed, you will only see one TCP/IP line with no association to an Ethernet adapter. Highlight it and click the Properties button. 3. In the TCP/IP properties window, select the IP address tab, and select Specify an IP address. Enter a unique IP address that is not used by any other computer on the network connected to the Router. Make sure that each IP address is unique for each PC or network device. 4. Click the Gateway tab, and in the New Gateway prompt, enter 192.168.1.1, which is the default IP address of the Router. Click the Add button to accept the entry. 5. Click the DNS tab, and make sure the DNS Enabled option is selected. Enter the Host and Domain names (e.g., John for Host and home for Domain). Enter the DNS entry provided by your ISP. If your ISP has not provided the DNS IP address, contact your ISP to get that information or go to its website for the information. 6. Click the OK button in the TCP/IP properties window, and click Close or the OK button for the Network window. 7. Restart the computer when asked. 39 Appendix A: Troubleshooting Common Problems and Solutions Wireless-G Broadband Router with RangeBooster •For Windows 2000: 1. Click Start, Settings, and Control Panel. Double-click Network and Dial-Up Connections. 2. Right-click the Local Area Connection that is associated with the Ethernet adapter you are using, and select the Properties option. 3. In the Components checked are used by this connection box, highlight Internet Protocol (TCP/IP), and click the Properties button. Select Use the following IP address option. 4. Enter a unique IP address that is not used by any other computer on the network connected to the Router. 5. Enter the Subnet Mask, 255.255.255.0. 6. Enter the Default Gateway, 192.168.1.1 (Router’s default IP address). 7. Toward the bottom of the window, select Use the following DNS server addresses, and enter the Preferred DNS server and Alternative DNS server (provided by your ISP). Contact your ISP or go on its website to find the information. 8. Click the OK button in the Internet Protocol (TCP/IP) Properties window, and click the OK button in the Local Area Connection Properties window. 9. Restart the computer if asked. •For Windows XP: The following instructions assume you are running Windows XP with the default interface. If you are using the Classic interface (where the icons and menus look like previous Windows versions), please follow the instructions for Windows 2000. 1. Click Start and Control Panel. 2. Click the Network and Internet Connections icon and then the Network Connections icon. 3. Right-click the Local Area Connection that is associated with the Ethernet adapter you are using, and select the Properties option. 4. In the This connection uses the following items box, highlight Internet Protocol (TCP/IP). Click the Properties button. 5. Enter a unique IP address that is not used by any other computer on the network connected to the Router. 6. Enter the Subnet Mask, 255.255.255.0. 7. Enter the Default Gateway, 192.168.1.1 (Router’s default IP address). 8. Toward the bottom of the window, select Use the following DNS server addresses, and enter the Preferred DNS server and Alternative DNS server (provided by your ISP). Contact your ISP or go on its website to find the information. 9. Click the OK button in the Internet Protocol (TCP/IP) Properties window. Click the OK button in the Local Area Connection Properties window. 3. I want to test my Internet connection. ACheck your TCP/IP settings. For Windows 98SE, Me, 2000, and XP: •Refer to Windows Help for details. Make sure Obtain IP address automatically is selected in the settings. 40 Appendix A: Troubleshooting Common Problems and Solutions Wireless-G Broadband Router with RangeBooster BOpen a command prompt. For Windows 98SE and Me: •Click Start and Run. In the Open field, type command. Press the Enter key or click the OK button. For Windows 2000 and XP: •Click Start and Run. In the Open field, type cmd. Press the Enter key or click the OK button. In the command prompt, type ping 192.168.1.1 and press the Enter key. •If you get a reply, the computer is communicating with the Router. •If you do NOT get a reply, please check the cable, and make sure Obtain an IP address automatically is selected in the TCP/IP settings for your Ethernet adapter. CIn the command prompt, type ping followed by your Internet or WAN IP address and press the Enter key. The Internet or WAN I…

Text truncated - open the document above for the full version.

Cisco-Linksys LLC 121 Theory Drive Irvine, CA 92617 (USA) Phone: 949-261-1288 Fax: 949-823-3002 Agency Authorization Letter Date: July 22, 2005 To whom it may concern: We, the undersigned, hereby authorize Advance Data Technology Corp. (ADT) of Taiwan to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by ADT within the scope of this authorization shall have the same effects as our own. This authorization shall expire six months from the original date. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, _________________________________________ Jennifer Yu / Associate Engineer Cisco-Linksys LLC Tel.: ( 949 ) 823-3188 Fax: ( 949 ) 823-3002 [email protected]

Cisco-Linksys LLC 121 Theory Drive Irvine, CA 92617 (USA) Phone: 949-261-1288 Fax: 949-823-3002 Date: July 22, 2005 FCC ID: Q87-WRT54GR Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, __________________________________________ Jennifer Yu / Associate Engineer Cisco-Linksys LLC Tel.: ( 949 ) 823-3188 Fax: ( 949 ) 823-3002 [email protected]

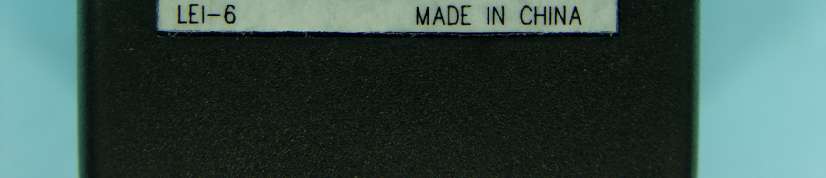

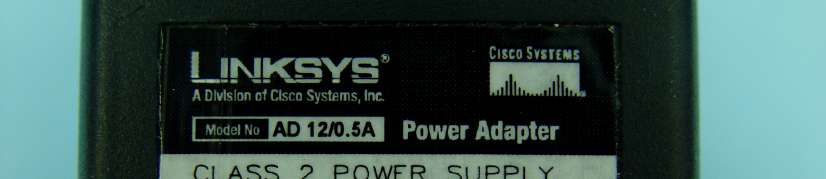

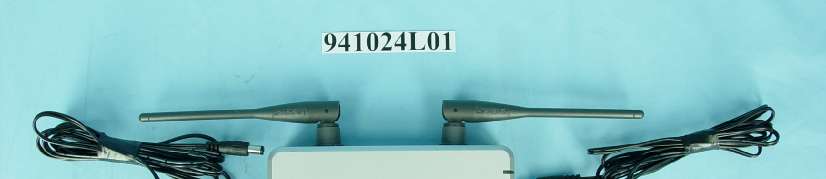

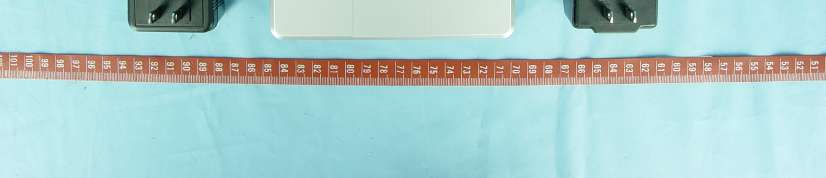

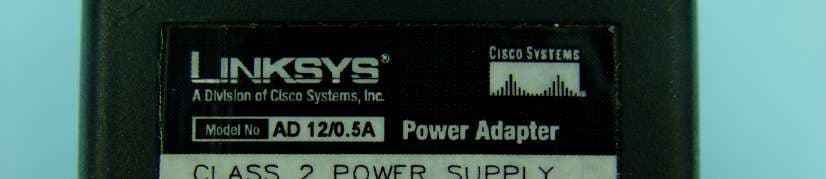

Model No.: WRT54GR Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

FCC ID : Q87-WRT54GR Label Location

Wireless-G Broadband Router withRangeBooster 420-120-0060 LABEL BACK WRTR-136GHL36A1 20-900-1342 LABEL FCC WRTR-136GHL36A1

Page 4 Page 5 Page 6 Page 7 Page 8 Page 9

FCC ID: Q87-WRT54GR Report No. RF941024L01 Operational Description This device is a Wireless-G Broadband Router with RangeBooster which operates in the 2.4GHz frequency spectrum with throughput of up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT is powered by AC adapters and connected with managing computer through RJ45 port. The antenna is Dipole antenna without antenna connector. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. The other instruction, please have a look at the users manual.

FCC ID: Q87-WRT54GR Report No: SA941024L01 1 RF EXPOSURE REPORT REPORT NO.: SA941024L01 MODEL NO.: WRT54GR ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Cisco-Linksys LLC ADDRESS: 121 Theory Drive Irvine, CA 92617 (USA) ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID: Q87-WRT54GR Report No: SA941024L01 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: Q87-WRT54GR Report No: SA941024L01 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance r. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification This device is not fixed inside the host equipment, it is connected with host through wire. So it is easy to be re-located in the place where at least 20cm far away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: Q87-WRT54GR Report No: SA941024L01 4 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 1.8dBi or 1.514 (numeric). 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: 802.11b DSSS modulation Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 12412 40.2720.012 1.0 62437 64.2690.019 1.0 112462 39.9940.012 1.0 802.11g OFDM modulation Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 12412 50.6990.015 1.0 62437 50.9330.015 1.0 112462 38.0190.011 1.0

FCC ID: Q87-WRT54GR Report No.: RF941024L011Report Format Version 2.0.4 FCC TEST REPORT REPORT NO.: RF941024L01 MODEL NO.: WRT54GR RECEIVED: Oct. 07, 2005 TESTED: Oct. 07 ~ Nov. 02, 2005 ISSUED: Nov. 03, 2005 APPLICANT : Cisco-Linksys LLC ADDRESS : 121 Theory Drive Irvine, CA 92617 (USA) ISSUED BY : Advance Data Technology Corporation LAB ADDRESS : No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION : No. 19, Hwa Ya 2nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 73 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. No. 2177-01 0528 ILAC MRA FCC ID: Q87-WRT54GR Report No.: RF941024L012Report Format Version 2.0.4 Table of Contents 1CERTIFICATION.......................................................................................................4 2SUMMARY OF TEST RESULTS ..............................................................................5 2.1MEASUREMENT UNCERTAINTY ...........................................................................5 3GENERAL INFORMATION .......................................................................................6 3.1GENERAL DESCRIPTION OF EUT.........................................................................6 3.2DESCRIPTION OF TEST MODES...........................................................................7 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST ......................................................8 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ...........................9 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS........................................10 3.4DESCRIPTION OF SUPPORT UNITS ...................................................................11 4TEST TYPES AND RESULTS ................................................................................12 4.1CONDUCTED EMISSION MEASUREMENT .........................................................12 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT.......................................12 4.1.2 TEST INSTRUMENTS............................................................................................12 4.1.3 TEST PROCEDURES ............................................................................................13 4.1.4 DEVIATION FROM TEST STANDARD ..................................................................13 4.1.5 TEST SETUP .........................................................................................................14 4.1.6 EUT OPERATING CONDITIONS ...........................................................................15 4.1.7 TEST RESULTS .....................................................................................................16 4.2RADIATED EMISSION MEASUREMENT ..............................................................28 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT............................................28 4.2.2 TEST INSTRUMENTS............................................................................................29 4.2.3 TEST PROCEDURES ............................................................................................30 4.2.4 DEVIATION FROM TEST STANDARD ..................................................................30 4.2.5 TEST SETUP .........................................................................................................31 4.2.6 EUT OPERATING CONDITIONS ...........................................................................31 4.2.7 TEST RESULTS .....................................................................................................32 4.36dB BANDWIDTH MEASUREMENT .....................................................................40 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT ...................................................40 4.3.2 TEST INSTRUMENTS............................................................................................40 4.3.3 TEST PROCEDURE...............................................................................................40 4.3.4 DEVIATION FROM TEST STANDARD ..................................................................40 4.3.5 TEST SETUP .........................................................................................................41 FCC ID: Q87-WRT54GR Report No.: RF941024L013Report Format Version 2.0.4 4.3.6 EUT OPERATING CONDITIONS ...........................................................................41 4.3.7 TEST RESULTS .....................................................................................................42 4.4MAXIMUM PEAK OUTPUT POWER .....................................................................48 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT......................48 4.4.2 TEST INSTRUMENTS............................................................................................48 4.4.3 TEST PROCEDURES ............................................................................................49 4.4.4 DEVIATION FROM TEST STANDARD ..................................................................49 4.4.5 TEST SETUP .........................................................................................................49 4.4.6 EUT OPERATING CONDITIONS ...........................................................................49 4.4.7 TEST RESULTS .....................................................................................................50 4.5POWER SPECTRAL DENSITY MEASUREMENT.................................................51 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ..............................51 4.5.2 TEST INSTRUMENTS....................................…

Text truncated - open the document above for the full version.

FCC ID: Q87-WRT54GR Report No.: RF941024L0168Report Format Version 2.0.4 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST (TEST MODE A) FCC ID: Q87-WRT54GR Report No.: RF941024L0169Report Format Version 2.0.4 CONDUCTED EMISSION TEST (TEST MODE B) FCC ID: Q87-WRT54GR Report No.: RF941024L0170Report Format Version 2.0.4 RADIATED EMISSION TEST (TEST MODE A) FCC ID: Q87-WRT54GR Report No.: RF941024L0171Report Format Version 2.0.4 RADIATED EMISSION TEST (TEST MODE B)
