Q87-WRT54GSV7Wireless-G Broadband Router with 4-Port Switch

Cisco-Linksys LLC 121 Theory Drive Irvine, CA 92617 (USA) Phone: 949-261-1288 Fax: 949-823-3002 Date: 10.24.2006 FCC ID: Q87-WRT54GSV7 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, __________________________________________ Jennifer Yu / Project Manager Cisco-Linksys LLC Tel.: ( 949 ) 823-3188 Fax: ( 949 ) 823-3002 [email protected]

Cisco-Linksys LLC 121 Theory Drive Irvine, CA 92617 (USA) Phone: 949-261-1288 Fax: 949-823-3002 Agency Authorization Letter Date: 10.24.2006 To whom it may concern: We, the undersigned, hereby authorize Advance Data Technology Corp. (ADT) of Taiwan to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by ADT within the scope of this authorization shall have the same effects as our own. This authorization shall expire six months from the original date. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, __________________________________________ Jennifer Yu / Project Manager Cisco-Linksys LLC Tel.: ( 949 ) 823-3188 Fax: ( 949 ) 823-3002 [email protected]

Cisco-Linksys LLC 121 Theory Drive Irvine, CA 92617(USA) Phone: ( 949 ) 823-3188 Fax: ( 949 ) 823-3002 Date:2007/01/08 General Declaration We, Cisco-Linksys LLC declares that device does not have “Ad Hoc on non-US frequencies” while applying for the follow product. FCC ID: Q87-WRT54GSV7 If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! ------------------------------------------------------------------------------- Jennifer Yu / Project Manager Cisco-Linksys LLC Phone: 949-823-3188 Fax: 949-823-3002 [email protected]

(Fig. 1) FCC ID: Q87-WRT54GSV7 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

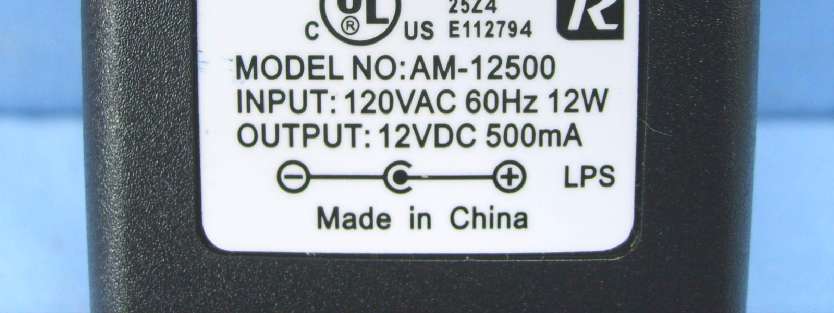

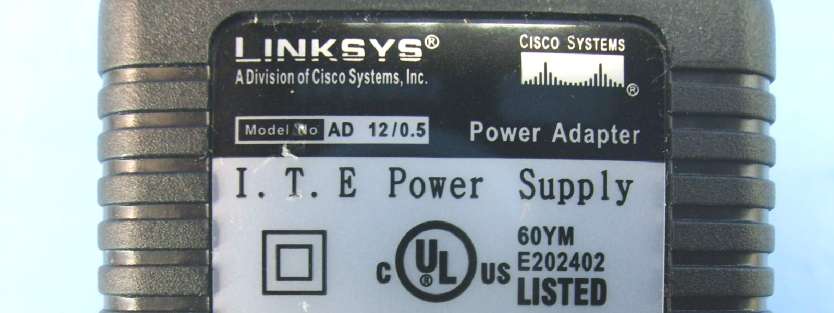

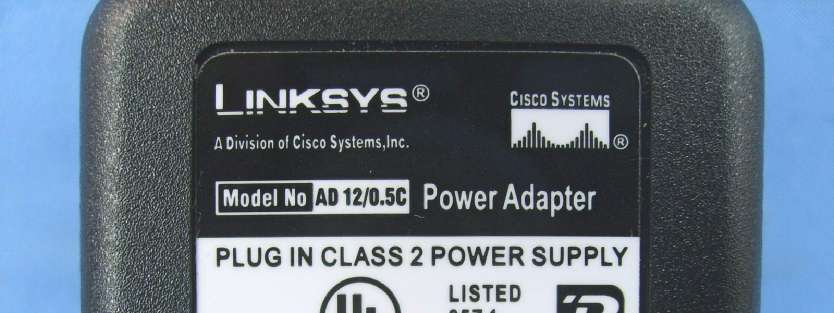

Page 3 Page 4 Page 5 Page 6 For Adapter Model No.: LS120V05AE For Adapter Model No.: D12-50-A Page 7 For Adapter Model No.: AM-12500 For Adapter Model No.: AD12V/0.5A-SW Page 8 For Adapter Model No.: LS120V05A

FCC ID: Q87-WRT54GSV7 Report No. RF951204H06 Operational Description This device is a Wireless-G Broadband Router With 4-Port Switch, the maximum data rate could be up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT (Wireless-G Broadband Router With 4-Port Switch) is powered by power adapter. The antennas used in this product is Dipole antenna with Reversed-TNC connector. The other instruction, please have a look at the users manual.

Report No.: SA951204H06 1 RF EXPOSURE REPORT REPORT NO.: SA951204H06 MODEL NO.: WRT54GS V7 FCC ID: Q87-WRT54GSV7 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Cisco-Linksys LLC ADDRESS: 121 Theory Drive Irvine, CA 92617 (USA) ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. Report No.: SA951204H06 2 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 300-1500 ... ... F/1500 6 1500-100,000 ... ... 1.0 30 F = Frequency in MHz Report No.: SA951204H06 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device Report No.: SA951204H06 4 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 2.0dBi or 1.58489 (numeric) 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For Part 802.11b: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 134.896 0.043 1.0 6 2437 134.896 0.043 1.0 11 2462 107.152 0.034 1.0 For Part 802.11g: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 134.896 0.043 1.0 6 2437 134.896 0.043 1.0 11 2462 120.226 0.038 1.0

Report No.: RF951204H06 1 Report Format Version 2.0.5 FCC TEST REPORT REPORT NO.: RF951204H06 MODEL NO.: WRT54GS V7 RECEIVED: Dec. 04, 2006 TESTED: Dec. 04 to 15, 2006 ISSUED: Dec. 18, 2006 APPLICANT: Cisco-Linksys LLC ADDRESS: 121 Theory Drive Irvine, CA 92617 (USA) ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 81 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. No. 2177-01 Report No.: RF951204H06 2 Report Format Version 2.0.5 Table of Contents 1 CERTIFICATION...........................................................................................4 2 SUMMARY OF TEST RESULTS...................................................................5 2.1 MEASUREMENT UNCERTAINTY.................................................................5 3 GENERAL INFORMATION............................................................................6 3.1 GENERAL DESCRIPTION OF EUT..............................................................6 3.2 DESCRIPTION OF TEST MODES................................................................8 3.3 TEST MODE APPLICABLITY AND TESTED CHANNEL DETAIL:................9 3.4 GENERAL DESCRIPTION OF APPLIED STANDARDS.............................11 3.5 DESCRIPTION OF SUPPORT UNITS........................................................12 3.6 CONFIGURATION OF SYSTEM UNDER TEST.........................................13 4 TEST TYPES AND RESULTS.....................................................................15 4.1 CONDUCTED EMISSION MEASUREMENT..............................................15 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT............................15 4.1.2 TEST INSTRUMENTS.................................................................................15 4.1.3 TEST PROCEDURES.................................................................................16 4.1.4 TEST SETUP..............................................................................................16 4.1.5 EUT OPERATING CONDITIONS................................................................17 4.1.6 TEST RESULTS..........................................................................................18 4.2 RADIATED EMISSION MEASUREMENT...................................................28 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT.................................28 4.2.2 TEST INSTRUMENTS.................................................................................29 4.2.3 TEST PROCEDURES.................................................................................30 4.2.4 TEST SETUP..............................................................................................31 4.2.5 EUT OPERATING CONDITIONS................................................................31 4.2.6 TEST RESULTS..........................................................................................32 4.2.7 TEST RESULTS - DSSS.............................................................................33 4.2.8 TEST RESULTS - OFDM............................................................................40 4.3 6dB BANDWIDTH MEASUREMENT...........................................................47 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT........................................47 4.3.2 TEST INSTRUMENTS.................................................................................47 4.3.3 TEST PROCEDURE....................................................................................48 4.3.4 TEST SETUP..............................................................................................48 4.3.5 EUT OPERATING CONDITIONS................................................................48 4.3.6 TEST RESULTS –DSSS.............................................................................49 4.3.7 TEST RESULTS-OFDM..............................................................................52 4.4 MAXIMUM PEAK OUTPUT POWER...........................................................55 Report No.: RF951204H06 3 Report Format Version 2.0.5 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT...........55 4.4.2 TEST INSTRUMENTS.................................................................................55 4.4.3 TEST PROCEDURES.................................................................................56 4.4.4 TEST SETUP..............................................................................................56 4.4.5 EUT OPERATING CONDITIONS................................................................56 4.4.6 TEST RESULTS – DSSS............................................................................57 4.4.7 TEST RESULTS –OFDM.............................................................................58 4.5 POWER SPECTRAL DENSITY MEASUREMENT......................................59 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT....................59 4.5.2 TEST INSTRUMENTS.................................................................................59 4.5.3 TEST PROCEDURE....................................................................................60 4.5.4 TEST SETUP..............................................................................................60 4.5.5 EUT OPERATING CONDITIONS................................................................60 4.5.6 TEST RESULTS –DSSS.............................................................................61 4.5.7 TEST RESULTS –OFDM.............................................................................64 4.6 CONDUCTED EMISSION AND BAND EDGES MEASUREMENT..............67 4.6.1 L…

Text truncated - open the document above for the full version.

Report No.: RF951204H06 74 Report Format Version 2.0.5 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST (With Adapter 1) Report No.: RF951204H06 75 Report Format Version 2.0.5 CONDUCTED EMISSION TEST (With Adapter 2) Report No.: RF951204H06 76 Report Format Version 2.0.5 CONDUCTED EMISSION TEST (With Adapter 3) Report No.: RF951204H06 77 Report Format Version 2.0.5 CONDUCTED EMISSION TEST (With Adapter 4) Report No.: RF951204H06 78 Report Format Version 2.0.5 CONDUCTED EMISSION TEST (With Adapter 5) Report No.: RF951204H06 79 Report Format Version 2.0.5 RADIATED EMISSION TEST
