Q87-WRT54GSV72Wireless-G Broadband Router With SppedBooster

Table of Contents ii Wireless-G Broadband Router Chapter 1: Product Overview1 Front Panel.................................................. 1 Back Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Chapter 2: Wireless Security Checklist2 General Network Security Guidelines................................. 2 Additional Security Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Chapter 3: Advanced Configuration3 Setup > Basic Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Setup > DDNS................................................ 6 Setup > MAC Address Clone....................................... 7 Setup > Advanced Routing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Wireless > Basic Wireless Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Wireless > Wireless Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Wireless > Wireless MAC Filter......................................11 Wireless > Advanced Wireless Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11 Security > Firewall . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12 Security > VPN Passthrough.......................................13 Access Restrictions > Internet Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13 Applications and Gaming > Port Range Forward..........................15 Applications & Gaming > Port Triggering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 Applications and Gaming > DMZ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16 Applications and Gaming > QoS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16 Administration > Management.....................................17 Administration > Log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17 Administration > Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18 Administration > Factory Defaults...................................18 Administration > Firmware Upgrade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19 Administration > Config Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19 Status > Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19 Status > Local Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20 Status > Wireless . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20 Appendix A: Troubleshooting21 Appendix B: Specifications22 Table of Contents iii Wireless-G Broadband Router Appendix C: Warranty and Regulatory Information23 Limited Warranty..............................................23 Wireless Disclaimer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24 FCC Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24 Safety Notices................................................24 Industry Canada (Canada) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24 IC Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24 Règlement d’Industry Canada . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24 User Information for Consumer Products Covered by EU Directive 2002/96/EC on Waste Electric and Electronic Equipment (WEEE)..............................25

AppendixC Warranty and Regulatory Information 23 Wreless-G Broadband Router wth SpeedBooster Appendx C: Warranty and Regulatory Informaton Limited Warranty Linksys warrants to You that, for a period of one year (the "Warranty Period"), your Linksys Product will be substantially free of defects in materials and workmanship under normal use. Your exclusive remedy and Linksys’ entire liability under this warranty will be for Linksys at its option to repair or replace the Product or refund Your purchase price less any rebates. This limited warranty extends only to the original purchaser. If the Product proves defective during the Warranty Period call Linksys Technical Support in order to obtain a Return Authorization Number, if applicable. BE SURE TO HAVE YOUR PROOF OF PURCHASE ON HAND WHEN CALLING. If You are requested to return the Product, mark the Return Authorization Number clearly on the outside of the package and include a copy of your original proof of purchase. RETURN REQUESTS CANNOT BE PROCESSED WITHOUT PROOF OF PURCHASE. You are responsible for shipping defective Products to Linksys. Linksys pays for UPS Ground shipping from Linksys back to You only. Customers located outside of the United States of America and Canada are responsible for all shipping and handling charges. ALL IMPLIED WARRANTIES AND CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ARE LIMITED TO THE DURATION OF THE WARRANTY PERIOD. ALL OTHER EXPRESS OR IMPLIED CONDITIONS, REPRESENTATIONS AND WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF NON-INFRINGEMENT, ARE DISCLAIMED. Some jurisdictions do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to You. This warranty gives You specific legal rights, and You may also have other rights which vary by jurisdiction. This warranty does not apply if the Product (a) has been altered, except by Linksys, (b) has not been installed, operated, repaired, or maintained in accordance with instructions supplied by Linksys, or (c) has been subjected to abnormal physical or electrical stress, misuse, negligence, or accident. In addition, due to the continual development of new techniques for intruding upon and attacking networks, Linksys does not warrant that the Product will be free of vulnerability to intrusion or attack. TO THE EXTENT NOT PROHIBITED BY LAW, IN NO EVENT WILL LINKSYS BE LIABLE FOR ANY LOST DATA, REVENUE OR PROFIT, OR FOR SPECIAL, INDIRECT, CONSEQUENTIAL, INCIDENTAL OR PUNITIVE DAMAGES, REGARDLESS OF THE THEORY OF LIABILITY (INCLUDING NEGLIGENCE), ARISING OUT OF OR RELATED TO THE USE OF OR INABILITY TO USE THE PRODUCT (INCLUDING ANY SOFTWARE), EVEN IF LINKSYS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN NO EVENT WILL LINKSYS’ LIABILITY EXCEED THE AMOUNT PAID BY YOU FOR THE PRODUCT. The foregoing limitations will apply even if any warranty or remedy provided under this Agreement fails of its essential purpose. Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to You. Please direct all inquiries to: Linksys, P.O. Box 18558, Irvine, CA 92623. AppendixC Warranty and Regulatory Information 24 Wreless-G Broadband Router wth SpeedBooster Wireless Disclaimer The maximum performance for wireless is derived from IEEE Standard 802.11 specifications. Actual performance can vary, including lower wireless network capacity, data throughput rate, range and coverage. Performance depends on many factors, conditions and variables, including distance from the access point, volume of network traffic, building materials and construction, operating system used, interference and other adverse conditions. FCC Statement This product has been tested and complies with the specifications for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used according to the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which is found by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna Increase the separation between the equipment or devices Connect the equipment to an outlet other than the receiver’s Consult a dealer or an experienced radio/TV technician for assistance Safety Notices Caution: To reduce the risk of fire, use only No.26 AWG or larger telecommunication line cord. Do not use this product near water, for example, in a wet basement or near a swimming pool. Avoid using this product during an electrical storm. There may be a remote risk of electric shock from lightning. WARNING: This product contains lead, known to the State of California to cause cancer, and birth defects or other reproductive harm. Wash hands after handling. • • • • Industry Canada (Canada) This device complies with Industry Canada ICES-003 rule. Cet appareil est conforme à la norme NMB003 d’Industrie Canada. IC Statement Operation is subject to the following two conditions: This device may not cause interference and This device must accept any interference, including interference that may cause undesired operation of the device. Règlement d’Industry Canada Le fonctionnement est soumis aux conditions suivantes : Ce périphérique ne doit pas causer d’interférences; Ce périphérique doit accepter toutes les interférences reçues, y compris celles qui risquent d’entraîner un fonctionnement indésirable. 1. 2. 1. 2. AppendixC Warranty and Regulatory Information 25 Wreless-G Broadband Router wth SpeedBooster…

Text truncated - open the document above for the full version.

Cisco-Linksys LLC 121 Theory Drive Irvine, CA 92617 (USA) Phone: 949-261-1288 Fax: 949-823-3002 Confidentiality Request FCC IDQ87-WRT54GSV72 ProductWireless-G Broadband Router With SpeedBooster Model WRT54GS V7.2 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely Yours, ------------------------------------------------------------------------------ Jennifer Yu / Program Manager Cisco-Linksys LLC Phone: 949-823-3188 Fax: 949-823-3002 [email protected]

1 Lucy Tsai From: kate.chang [[email protected]] Sent: Wednesday, November 07, 2007 12:22 AM To: lucy.tsai Cc: [email protected] Subject: Re:FW: Cisco-Linksys LLC, FCC ID: Q87WRT54GSV72, Assessment NO.: AN07T7340, Notice#2 Attachments: WRT54GS V7.2 Label Drawing and Location._update_pdf.pdf; WRT54GS V7.2_External Photo(FCC).pdf; WRT54GS V7.2 _Descriotion of Operation.pdf; WRT54GS V7.2_Antenna spec._Part 1. pdf.pdf; WRT54GS V7.2_Antenna spec_Part 2 .pdf; WRT54GS V7.2_Test Photo.pdf; WRT54GS V7.2_Test Report(FCC Part 15C)_update.pdf; WRT54GS V7.2_User Manual(revised)_Part4 .pdf kate.chang 張惠雅 收件人： <[email protected]> 副本抄送： "daphne.liang" <[email protected]>, "Mike Kuo" <[email protected]>, paul.liao/ccsemc@ccsemc 2007/11/06 03:12 主旨： FW: Cisco‐Linksys LLC, FCC ID: Q87WRT54GSV72, Assessment NO.: AN07T7340, PM Notice#2 Dear Lucy, Please refer to my following responses. Thank you! Q#1: The exhibit of label format and location only indicates the label format without location, please provide. ‐‐‐> Please find attachment. Q#2: Please remove internal photos from the external photos. ‐‐‐> I revised it. Please see attachment. Q#3: Please submit operational description. ‐‐‐> Please find attachment. Q#4: Please provide antenna specification. ‐‐‐> Please find attachment‐Antenna Spec Part & Part 2. Q#5: User manual indicates the output power is 18dBi which has about 2‐4dBm difference from the test report. Please address. ‐‐‐> Please find attachment‐User Manual Part 4. For your information, I just gave you the revised part because the complete document is too big. 2 Q#6: Please provide a separate exhibit of test setup photos. ‐‐‐> Please find attachment. Q#7: Per FCC DTS/UNII measurement procedure, the test method of peak output power as indicates in page 18 of test report is not included. Due to a previous application, same issue has been brought to FCC for investigate and before the conclusion is made, please provide another output power test result measured with the spectrum analyzer channel power. ‐‐‐> Please refer to attached file for the output power test result measured by spectrum channel power. Q#8: Please provide the test result of the conducted spurious emission according to 15.247(d) ‐‐‐> Please refer to the revised test report (page.34) as attached. (See attached file: WRT54GS V7.2 Label Drawing and Location. _update_pdf.pdf)(See attached file: WRT54GS V7.2_External Photo(FCC).pdf) (See attached file: WRT54GS V7.2 _Descriotion of Operation.pdf)(See attached file: WRT54GS V7.2_Antenna spec._Part 1. pdf.pdf)(See attached file: WRT54GS V7.2_Antenna spec_Part 2 .pdf)(See attached file: WRT54GS V7.2_Test Photo.pdf)(See attached file: WRT54GS V7.2_Test Report(FCC Part 15C)_update.pdf)(See attached file: WRT54GS V7.2_User Manual(revised)_Part4 .pdf) Sincerely yours, Kate Chang ‐‐‐‐‐ 轉呈者 kate.chang/ccsemc 於 2007/11/05 11:01 AM ‐‐‐‐‐ "Lucy Tsai" <lucy.tsai@ccsemc 收件人： <[email protected]> .com> 副本抄送： "daphne.liang" <[email protected]>, "Mike Kuo" <[email protected]> 2007/11/03 12:52 主旨： FW: Cisco‐Linksys LLC, FCC ID: Q87WRT54GSV72, Assessment NO.: AN07T7340, AM Notice#2 Hi Kate, Please address following issues. Q#1: The exhibit of label format and location only indicates the label format without location, please provide. Q#2: Please remove internal photos from the external photos. Q#3: Please submit operational description. Q#4: Please provide antenna specification. Q#5: User manual indicates the output power is 18dBi which has about 2‐4dBm difference from the test report. Please address. Q#6: Please provide a separate exhibit of test setup photos. Q#7: Per FCC DTS/UNII measurement procedure, the test method of peak output power as indicates in page 18 of test report is not included. Due to a previous application, same 3 issue has been brought to FCC for investigate and before the conclusion is made, please provide another output power test result measured with the spectrum analyzer channel power. Q#8: Please provide the test result of the conducted spurious emission according to 15.247(d) Best Regards, Lucy The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e‐mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted Any questions about the content of this correspondence should be directed to the e‐mail address listed below the name of the sender. ________________________________________________________________________ This e‐mail transmission is confidential and intended solely for being reviewed by the recipient(s) identified above. If you are not an identified recipient, please ensure that this communication remains confidential and promptly return it to the sender. Please contact immediately by phone (Tel: 886‐2‐2299‐9720) for any problem with this transmission. Thank you for your attention. ________________________________________________________________________ This e‐mail transmission is confidential and intended solely for being reviewed by the recipient(s) identified above. If you are not an identified recipient, please ensure that this communication remains confidential and promptly return it to the sender. Please contact immediately by phone (Tel: 886‐2‐2299‐9720) for any problem with this transmission. Thank you for your attention.

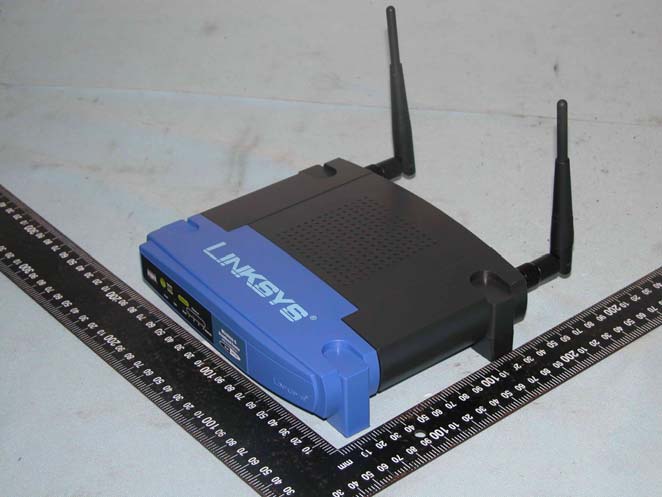

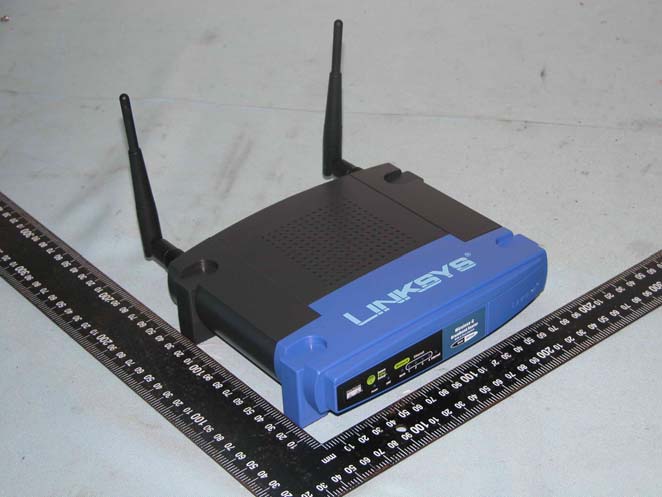

Compliance Certification Services Inc. Report No.71016301 Page 1 of 22 External Photo Compliance Certification Services Inc. Report No.71016301 Page 2 of 22

Label Here

Compliance Certification Services Inc. Report No.71016301 Page 4 of 22 Compliance Certification Services Inc. Report No.71016301 Page 5 of 22 Compliance Certification Services Inc. Report No.71016301 Page 6 of 22 Compliance Certification Services Inc. Report No.71016301 Page 7 of 22 Power Adapter (1) Photo (Model : LS120V05AE) Compliance Certification Services Inc. Report No.71016301 Page 8 of 22 Compliance Certification Services Inc. Report No.71016301 Page 9 of 22 Power Adapter (2) Photo (Model : AD12V/A-SW) Compliance Certification Services Inc. Report No.71016301 Page 10 of 22 Compliance Certification Services Inc. Report No.71016301 Page 11 of 22 Power Adapter (3) Photo (Model : ADA12050UA05) Compliance Certification Services Inc. Report No.71016301 Page 12 of 22 Power Adapter (4) Photo (Model : LS120V05A) Compliance Certification Services Inc. Report No.71016301 Page 13 of 22 Compliance Certification Services Inc. Report No.71016301 Page 14 of 22 Power Adapter (5) Photo (Model : AD12V/0.5A-SW) Compliance Certification Services Inc. Report No.71016301 Page 15 of 22 Compliance Certification Services Inc. Report No.71016301 Page 16 of 22 Power Adapter (6) Photo (Model : AD12V/0.5A-SW) Compliance Certification Services Inc. Report No.71016301 Page 17 of 22 Compliance Certification Services Inc. Report No.71016301 Page 18 of 22 Power Adapter (7) Photo (Model : HK-X102-A12) Compliance Certification Services Inc. Report No.71016301 Page 19 of 22 Compliance Certification Services Inc. Report No.71016301 Page 20 of 22 Power Adapter (8) Photo (Model : AMS1-1200500FU) Compliance Certification Services Inc. Report No.71016301 Page 21 of 22 Compliance Certification Services Inc. Report No.71016301 Page 22 of 22 Power Cable Photo

Specification 1. Electrical Properties : 1.1 Frequency Range............ 1.2 Impedance .................. 1.3 VSWR ..................... ... 1.4 Return Loss.................. 1.5 Electrical Wave............... 1.6 Gain(peak)...................2 dBi 1.7 Admitted Power............ 2. Physical Properties : 2.1 Cable...........................RG-178 Coaxial Cable 2.2 Antenna Cover............ ...TPE 2.3 Antenna Base............... PC 2.4 Antenna Base............... PBT 2.5 Operating Temp. ......... ...-20 ~ +65 2.6 Storage Temp. ............ ...-30 ~ +75 2.7 Color ........................ .Black 2.8 Connector.................. ...TNC Plug Reverse 2.9 Connector Material......... ANG Zinc RF Antenna Cable Assembly 1/2λDipole 1W 2.4GHz ~ 2.5GHz 50Ω Nominal 1.92 Max. -10 dB Maximum 1 2 RF Antenna Assembly P/NO :C120-510162-A SPEC : 2.4GHz 8/8/2005 3 8/8/2005 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -20-100 dB Far-field amplitude of C120-510093-A-H.nsi 2.400000 GHz2.450000 GHz2.500000 GHz C120-510162-A-H.nsi 4 8/8/2005 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -20-100 dB Far-field amplitude of C120-510093-A-V.nsi 2.400000 GHz2.450000 GHz2.500000 GHz C120-510162-A-V.nsi 5 6 7 8 9

Applicant ： Cisco-Linksys LLC Address ： 121 Theory Drive Irvine, CA 92617(USA) Equipment Under Test ： Wireless-G Broadband Router With SpeedBooster Model ： WRT54GS V7.2 Trad e Na me ： Linksys PEAK OUTPUT POWER LIMIT The maximum peak output power of the intentional radiator shall not exceed the following: 1. According to §15.247(b)(3), for systems using digital modulation in the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz: 1 Watt. 2. According to §15.247(b)(4), the conducted output power limit specified in paragraph (b) of this section is based on the use of antennas with directional gains that do not exceed 6 dBi. Except as shown in paragraph (c) of this section, if transmitting antennas of directional gain greater than 6 dBi are used, the conducted output power from the intentional radiator shall be reduced below the stated values in paragraphs (b)(1), (b)(2), and (b)(3) of this section, as appropriate, by the amount in dB that the directional gain of the antenna exceeds 6 dBi. TEST CONFIGURATION TEST PROCEDURE The transmitter output is connected to the Spectrum analyzer. The Spectrum analyzer is set to the peak power detection. EUT Spectrum Analyzer TEST RESULTS No non-compliance noted. Te s t D a t a Test mode: IEEE 802.11b mode Channel Frequency (MHz) Output Power (dBm) Output Power (W) Limit (W) Result 1 2412 21.23 0.1327 PASS 6 2437 21.06 0.1276 PASS 11 2462 21.30 0.1348 1.00 PASS Peak Power (CH 1) Peak Power (CH 6) Peak Power (CH 11) Te s t D a t a Test mode: IEEE 802.11g mode Channel Frequency (MHz) Output Power (dBm) Output Power (W) Limit (W) Result 1 2412 22.17 0.1648 PASS 6 2437 21.52 0.1419 PASS 11 2462 20.80 0.1202 1.00 PASS Peak Power (CH 1) Peak Power (CH 6) Peak Power (CH 11)

Compliance Certification Services Inc. Report No.: 71016301-RP1 FCC ID: Q87-WRT54GSV72 Date of Issue: October 30, 2007 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, NVLAP or any government agencies. The test results in the report only apply to the tested sample. Page 1 Total Page: 74 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Wireless-G Broadband Router With SpeedBooster Model: WRT54GS V7.2 Trade Name: Linksys Issued to Cisco-Linksys LLC 121 Theory Drive Irvine, CA 92617(USA) Issued by Compliance Certification Services Inc. Hsinchu Lab. Rm. 258, Bldg. 17, NO.195, Sec.4 Chung HsingRd., ChuTung Chen, Hsinchu, Taiwan 310, R.O.C http://www.ccsemc.com.tw [email protected] Compliance Certification Services Inc. Report No.: 71016301-RP1 FCC ID: Q87-WRT54GSV72 Date of Issue: October 30, 2007 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION .................................................................................... 4 2. SUMMARY OF TEST RESULTS ..................................................................................... 5 3. EUT DESCRIPTION .......................................................................................................... 6 4. TEST METHODOLOGY ................................................................................................... 7 4.1 EUT CONFIGURATION ................................................................................................... 7 4.2 EUT EXERCISE ................................................................................................................. 7 4.3 GENERAL TEST PROCEDURES..................................................................................... 7 4.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ...................................... 8 4.5 DESCRIPTION OF TEST MODES ................................................................................... 8 5. INSTRUMENT CALIBRATION ....................................................................................... 9 5.1 MEASURING INSTRUMENT CALIBRATION .............................................................. 9 5.2 MEASUREMENT EQUIPMENT USED ........................................................................... 9 6. FACILITIES AND ACCREDITATIONS ........................................................................ 10 6.1 FACILITIES...................................................................................................................... 10 6.2 EQUIPMENT.................................................................................................................... 10 6.3 TABLE OF ACCREDITATIONS AND LISTINGS........................................................ 11 7. SETUP OF EQUIPMENT UNDER TEST ....................................................................... 12 7.1 SETUP CONFIGURATION OF EUT .............................................................................. 12 7.2 SUPPORT EQUIPMENT ................................................................................................. 12 8. FCC PART 15.247 REQUIREMENTS ............................................................................ 13 8.1 6DB BANDWIDTH.......................................................................................................... 13 8.1.1 LIMIT.............................................................................................................................. 13 8.1.2 TEST PROCEDURE......................................................................................................... 13 8.1.3 TEST RESULTS ............................................................................................................... 14 8.2 PEAK POWER .................................................................................................................18 8.2.1 LIMIT............................................................................................................................. 18 8.2.2 TEST PROCEDURE......................................................................................................... 18 8.2.3 TEST RESULTS ............................................................................................................... 19 8.3 BAND EDGES MEASUREMENT .................................................................................. 20 8.3.1 LIMIT.............................................................................................................................. 20 8.3.2 TEST PROCEDURE......................................................................................................... 20 8.3.3 TEST RESULTS ............................................................................................................... 20 Compliance Certification Services Inc. Report No.: 71016301-RP1 FCC ID: Q87-WRT54GSV72 Date of Issue: October 30, 2007 Page 3 Rev. 00 8.4 PEAK POWER SPECTRAL DENSITY .......................................................................... 29 8.4.1 LIMIT.............................................................................................................................. 29 8.4.2 TEST PROCEDURE......................................................................................................... 29 8.4.3 TEST RESULTS ............................................................................................................... 30 8.5 SPURIOUS EMISSIONS ................................................................................................. 34 8.5.1 CONDUCTED MEASUREMENT................................................................................... 34 8.5.1.1 LIMIT................................................…
