Q87-WRT54GV82Wireless-G Broadband Router With 4-Port Switch

Table of Contents ii Wireless-G Broadband Router Chapter 1: Product Overview1 Front Panel.................................................. 1 Back Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Chapter 2: Wireless Security Checklist2 General Network Security Guidelines................................. 2 Additional Security Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Chapter 3: Advanced Configuration3 Setup > Basic Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Setup > DDNS................................................ 6 Setup > MAC Address Clone....................................... 7 Setup > Advanced Routing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Wireless > Basic Wireless Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Wireless > Wireless Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Wireless > Wireless MAC Filter......................................11 Wireless > Advanced Wireless Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12 Security > Firewall . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13 Firewall . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13 Security > VPN Passthrough.......................................13 Access Restrictions > Internet Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 Applications and Gaming > Port Range Forward..........................15 Applications & Gaming > Port Triggering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 Applications and Gaming > DMZ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16 Applications and Gaming > QoS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16 Administration > Management.....................................17 Administration > Log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18 Administration > Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18 Administration > Factory Defaults...................................19 Administration > Upgrade Firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19 Administration > Config Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19 Status > Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19 Status > Local Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20 Status > Wireless . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21 Appendix A: Troubleshooting22 Appendix B: Specifications23 Table of Contents iii Wireless-G Broadband Router Appendix C: Warranty and Regulatory Information24 Limited Warranty..............................................24 Wireless Disclaimer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25 FCC Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25 Safety Notices................................................25 Industry Canada (Canada) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25 IC Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25 Règlement d’Industry Canada . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25 User Information for Consumer Products Covered by EU Directive 2002/96/EC on Waste Electric and Electronic Equipment (WEEE)..............................26

Chapter3 Advanced Configuration 2 Wreless-G Broadband Router Status > Wireless The Status > Wireless screen displays the status of your wireless network. Status > Wireless Wireless MAC Address This is the Router’s MAC Address, as seen on your local, wireless network. Mode As selected from the Wireless > Basic Wireless Settings screen, this displays the wireless mode (Mixed, G- Only, or Disabled) used by the network. SSID As entered on the Wireless > Basic Wireless Settings screen, this displays the wireless network name or SSID. DHCP Server The status of the DHCP server function is displayed here. Channel As entered on the Wireless > Basic Wireless Settings screen, this displays the channel on which your wireless network is broadcasting. Encrypton Functon As selected on the Wireless > Wireless Security screen, this displays the status of the Router’s wireless security. Click Refresh to update the on-screen information. AppendixA Troubleshooting 22 Wreless-G Broadband Router Appendx A: Troubleshootng Your computer cannot connect to the Internet. Follow these instructions until your computer can connect to the Internet: Make sure that the Router is powered on. The Power LED should be green and not flashing. If the Power LED is flashing, then power off all of your network devices, including the modem, Router, and computers. Then power on each device in the following order: Cable or DSL modem Router Computer Check the cable connections. The computer should be connected to one of the ports numbered 1-4 on the Router, and the modem must be connected to the Internet port on the Router. The modem does not have an Ethernet port. The modem is a dial-up modem for traditional dial-up service. To use the Router, you need a cable/DSL modem and high-speed Internet connection. You cannot use the DSL service to connect manually to the Internet. After you have installed the Router, it will automatically connect to your Internet Service Provider (ISP), so you no longer need to connect manually. The DSL telephone line does not fit into the Router’s Internet port. The Router does not replace your modem. You still need your DSL modem in order to use the Router. Connect the telephone line to the DSL modem, insert the setup CD into your computer, and then follow the on-screen instructions. • • 1. 2. 3. • When you double-click the web browser, you are prompted for a username and password. If you want to get rid of the prompt, follow these instructions. Launch the web browser and perform the following steps (these steps are specific to Internet Explorer but are similar for other browsers): Select Tools > Internet Optons. Click the Connectons tab. Select Never dal a connecton. Click OK. The Router does not have a coaxial port for the cable connection. The Router does not replace your modem. You still need your cable modem in order to use the Router. Connect your cable connection to the cable modem, insert the setup CD into your computer, and then follow the on-screen instructions. The computer cannot connect wirelessly to the network. Make sure the wireless network name or SSID is the same on both the computer and the Router. If you have enabled wireless security, then make sure the same security method and key are used by both the computer and the Router. You need to modify the settings on the Router. Open the web browser (for example, Internet Explorer or Firefox), and enter the Router’s IP address in the address field (the default IP address is 92.68..). When prompted, leave the User name field blank and enter the password to the Router (the default is admn). Click the appropriate tab to change the settings. WEB: If your questions are not addressed here, refer to the Linksys website, www.lnksys.com. 1. 2. 3. 4. AppendixB Specifications 23 Wreless-G Broadband Router Appendx B: Specfcatons Model WRT54G Standards IEEE 802.3, IEEE 802.3u, IEEE 802.11g, IEEE 802.11b Channels 11 Channels (US, Canada) 13 Channels (Europe, Japan) Ports Internet: One 10/100 RJ-45 Port LAN: Four 10/100 RJ-45 Switched Ports One Power Port Button Reset, SecureEasySetup Cabling Type CAT5 LEDs Power, DMZ, WLAN, LAN (1-4), Internet, SecureEasySetup RF Power Output 18 dBm UPnP able/cert Able Security Features Stateful Packet Inspection (SPI) Firewall, Internet Policy Wireless Security Wi-Fi Protected Access™2 (WPA2), WEP, Wireless MAC Filtering Envronmental Dimensions 7.32" x 1.89" x 6.06" (186 x 48 x 154 mm) Weight 11.2 oz (317 g) Power External, 12V DC, 0.5A Certifications FCC, IC-03, CE, Wi-Fi (802.11b, 802.11g), WPA2, WMM Operating Temp. 32 to 104ºF (0 to 40ºC) Storage Temp. -4 to 158ºF (-20 to 70ºC) Operating Humidity 10 to 85%, Noncondensing Storage Humidity 5 to 90%, Noncondensing AppendixC Warranty and Regulatory Information 24 Wreless-G Broadband Router Appendx C: Warranty and Regulatory Informaton Limited Warranty Linksys warrants to You that, for a period of one year (the "Warranty Period"), your Linksys Product will be substantially free of defects in materials and workmanship under normal use. Your exclusive remedy and Linksys’ entire liability under this warranty will be for Linksys at its option to repair or replace the Product or refund Your purchase price less any rebates. This limited warranty extends only to the original purchaser. If the Product proves defective during the Warranty Period call Linksys Technical Support in order to obtain a Return Authorization Number, if applicable. BE SURE TO HAVE YOUR PROOF OF PURCHASE ON HAND WHEN CALLING. If You are requested to return the Product, mark the Return Authorization Number clearly on the outside of the package and include a copy of your original proof of purchase. RETURN REQUESTS CANNOT BE PROCESSED WITHOUT PROOF OF PURCHASE. You are responsible for shipping defective Products to Linksys. Linksys pays for UPS Ground shipping from Linksys back to You only. Customers located outside of the United States of America and Canada are responsible for al…

Text truncated - open the document above for the full version.

AppendixC Warranty and Regulatory Information 24 Wreless-G Broadband Router Appendx C: Warranty and Regulatory Informaton Limited Warranty Linksys warrants to You that, for a period of one year (the "Warranty Period"), your Linksys Product will be substantially free of defects in materials and workmanship under normal use. Your exclusive remedy and Linksys’ entire liability under this warranty will be for Linksys at its option to repair or replace the Product or refund Your purchase price less any rebates. This limited warranty extends only to the original purchaser. If the Product proves defective during the Warranty Period call Linksys Technical Support in order to obtain a Return Authorization Number, if applicable. BE SURE TO HAVE YOUR PROOF OF PURCHASE ON HAND WHEN CALLING. If You are requested to return the Product, mark the Return Authorization Number clearly on the outside of the package and include a copy of your original proof of purchase. RETURN REQUESTS CANNOT BE PROCESSED WITHOUT PROOF OF PURCHASE. You are responsible for shipping defective Products to Linksys. Linksys pays for UPS Ground shipping from Linksys back to You only. Customers located outside of the United States of America and Canada are responsible for all shipping and handling charges. ALL IMPLIED WARRANTIES AND CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ARE LIMITED TO THE DURATION OF THE WARRANTY PERIOD. ALL OTHER EXPRESS OR IMPLIED CONDITIONS, REPRESENTATIONS AND WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF NON-INFRINGEMENT, ARE DISCLAIMED. Some jurisdictions do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to You. This warranty gives You specific legal rights, and You may also have other rights which vary by jurisdiction. This warranty does not apply if the Product (a) has been altered, except by Linksys, (b) has not been installed, operated, repaired, or maintained in accordance with instructions supplied by Linksys, or (c) has been subjected to abnormal physical or electrical stress, misuse, negligence, or accident. In addition, due to the continual development of new techniques for intruding upon and attacking networks, Linksys does not warrant that the Product will be free of vulnerability to intrusion or attack. TO THE EXTENT NOT PROHIBITED BY LAW, IN NO EVENT WILL LINKSYS BE LIABLE FOR ANY LOST DATA, REVENUE OR PROFIT, OR FOR SPECIAL, INDIRECT, CONSEQUENTIAL, INCIDENTAL OR PUNITIVE DAMAGES, REGARDLESS OF THE THEORY OF LIABILITY (INCLUDING NEGLIGENCE), ARISING OUT OF OR RELATED TO THE USE OF OR INABILITY TO USE THE PRODUCT (INCLUDING ANY SOFTWARE), EVEN IF LINKSYS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN NO EVENT WILL LINKSYS’ LIABILITY EXCEED THE AMOUNT PAID BY YOU FOR THE PRODUCT. The foregoing limitations will apply even if any warranty or remedy provided under this Agreement fails of its essential purpose. Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to You. Please direct all inquiries to: Linksys, P.O. Box 18558, Irvine, CA 92623. AppendixC Warranty and Regulatory Information 25 Wreless-G Broadband Router Wireless Disclaimer The maximum performance for wireless is derived from IEEE Standard 802.11 specifications. Actual performance can vary, including lower wireless network capacity, data throughput rate, range and coverage. Performance depends on many factors, conditions and variables, including distance from the access point, volume of network traffic, building materials and construction, operating system used, interference and other adverse conditions. FCC Statement This product has been tested and complies with the specifications for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used according to the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which is found by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna Increase the separation between the equipment or devices Connect the equipment to an outlet other than the receiver’s Consult a dealer or an experienced radio/TV technician for assistance Safety Notices Caution: To reduce the risk of fire, use only No.26 AWG or larger telecommunication line cord. Do not use this product near water, for example, in a wet basement or near a swimming pool. Avoid using this product during an electrical storm. There may be a remote risk of electric shock from lightning. WARNING: This product contains lead, known to the State of California to cause cancer, and birth defects or other reproductive harm. Wash hands after handling. • • • • Industry Canada (Canada) This device complies with Industry Canada ICES-003 rule. Cet appareil est conforme à la norme NMB003 d’Industrie Canada. IC Statement Operation is subject to the following two conditions: This device may not cause interference and This device must accept any interference, including interference that may cause undesired operation of the device. Règlement d’Industry Canada Le fonctionnement est soumis aux conditions suivantes : Ce périphérique ne doit pas causer d’interférences; Ce périphérique doit accepter toutes les interférences reçues, y compris celles qui risquent d’entraîner un fonctionnement indésirable. 1. 2. 1. 2. AppendixC Warranty and Regulatory Information 26 Wreless-G Broadband Router User Information for Consumer Products Covered by EU …

Text truncated - open the document above for the full version.

Cisco-Linksys LLC 121 Theory Drive Irvine, CA 92617 (USA) Phone: 949-261-1288 Fax: 949-823-3002 Confidentiality Request FCC IDQ87-WRT54GV82 ProductWireless-G Broadband Router With 4-Port Switch Model WRT54G V8.2 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely Yours, ------------------------------------------------------------------------------ Jennifer Yu / Program Manager Cisco-Linksys LLC Phone: 949-823-3188 Fax: 949-823-3002 [email protected]

Cisco-Linksys LLC 121 Theory Drive Irvine, CA 92617 (USA) Phone: 949-261-1288 Fax: 949-823-3002 Date: 2007/10/25 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize the Taiwan office of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS TW, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by CCS TW on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS TW as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation,including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, ------------------------------------------------------------------------------ Jennifer Yu / Program Manager Cisco-Linksys LLC Phone: 949-823-3188 Fax: 949-823-3002 [email protected] REMARK : 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us.

1 Lucy Tsai From: kate.chang [[email protected]] Sent: Wednesday, November 07, 2007 12:21 AM To: lucy.tsai Cc: [email protected] Subject: Re:FW: Cisco-Linksys LLC, FCC ID: Q87WRT54GV82, Assessment NO.: AN07T7341, Notice#1 Attachments: WRT54G V8.2 Label Drawing and Location_update.pdf; WRT54G V8.2 _Descriotion of Operation.pdf; WRT54G v8.2_Antenna spec _Part 1.pdf; WRT54G v8.2_Antenna Spec_Part 2_.pdf; WRT54G V8.2_User Manual(revised)_Part 4.pdf; WRT54G V8.2_Test Report(FCC Part 15C)_update.pdf; WRT54G V8.2 WRT54GS V7.2 _Difference.pdf; WRT54G V8.2 _Internal Photo_update.pdf kate.chang 張惠雅 收件人： <[email protected]> 副本抄送： "daphne.liang" <[email protected]>, "Mike Kuo" <[email protected]>, paul.liao/ccsemc@ccsemc 2007/11/06 03:06 主旨： FW: Cisco‐Linksys LLC, FCC ID: Q87WRT54GV82, Assessment NO.: AN07T7341, PM Notice#1 Dear Lucy, Please refer to my following responses. Thanks! Q#1: The exhibit of label format and location only indicates the label format without location, please provide. ‐‐‐> Please find attachment. Q#2: Please provide an internal photo to show the RF module without shielding. ‐‐‐> Please see attachment‐Internal Photo (Page 2). Q#3: Please submit operational description. ‐‐‐> Please find attachment. Q#4: Please provide antenna specification. ‐‐‐> Please find attachment‐Antenna Spec Part1 & Part 2. Q#5: User manual indicates the output power is 18dBi which has about 2‐4dBm difference from the test report. Please address. ‐‐‐>Please find attachment. For your information, I just gave you the revised part because the complete document is too big. 2 Q#6: Per FCC DTS/UNII measurement procedure, the test method of peak output power as indicates in page 18 of test report is not included. Due to a previous application, same issue has been brought to FCC for investigate and before the conclusion is made, please provide another output power test result measured with the spectrum analyzer channel power. ‐‐‐> Please refer to attached for the test result of output power measued by spectrum analyzer channel power. Q#7: Please provide the test data of the conducted spurious emission to show the compliance of 15.247(d). ‐‐‐> Please refer to the revised test report (Page 34) as attached. (See attached file: WRT54G V8.2 Label Drawing and Location_update.pdf)(See attached file: WRT54G V8.2 _Descriotion of Operation.pdf)(See attached file: WRT54G v8.2_Antenna spec _Part 1.pdf)(See attached file: WRT54G v8.2_Antenna Spec_Part 2_.pdf)(See attached file: WRT54G V8.2_User Manual(revised)_Part 4.pdf)(See attached file: WRT54G V8.2_Test Report(FCC Part 15C)_update.pdf)(See attached file: WRT54G V8.2 WRT54GS V7.2 _Difference.pdf)(See attached file: WRT54G V8.2_Internal Photo_update.pdf) Sincerely yours, Kate Chang "Lucy Tsai" <lucy.tsai@ccsemc 收件人： <[email protected]> .com> 副本抄送： "daphne.liang" <[email protected]>, "Mike Kuo" <[email protected]> 2007/11/03 12:59 主旨： FW: Cisco‐Linksys LLC, FCC ID: Q87WRT54GV82, Assessment NO.: AN07T7341, AM Notice#1 Hi Kate, Please address following issues. Q#1: The exhibit of label format and location only indicates the label format without location, please provide. Q#2: Please provide an internal photo to show the RF module without shielding. Q#3: Please submit operational description. Q#4: Please provide antenna specification. Q#5: User manual indicates the output power is 18dBi which has about 2‐4dBm difference from the test report. Please address. 3 Q#6: Per FCC DTS/UNII measurement procedure, the test method of peak output power as indicates in page 18 of test report is not included. Due to a previous application, same issue has been brought to FCC for investigate and before the conclusion is made, please provide another output power test result measured with the spectrum analyzer channel power. Q#7: Please provide the test data of the conducted spurious emission to show the compliance of 15.247(d). Best Regards, Lucy The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e‐mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted Any questions about the content of this correspondence should be directed to the e‐mail address listed below the name of the sender. ________________________________________________________________________ This e‐mail transmission is confidential and intended solely for being reviewed by the recipient(s) identified above. If you are not an identified recipient, please ensure that this communication remains confidential and promptly return it to the sender. Please contact immediately by phone (Tel: 886‐2‐2299‐9720) for any problem with this transmission. Thank you for your attention. ________________________________________________________________________ This e‐mail transmission is confidential and intended solely for being reviewed by the recipient(s) identified above. If you are not an identified recipient, please ensure that this communication remains confidential and promptly return it to the sender. Please contact immediately by phone (Tel: 886‐2‐2299‐9720) for any problem with this transmission. Thank you for your attention.

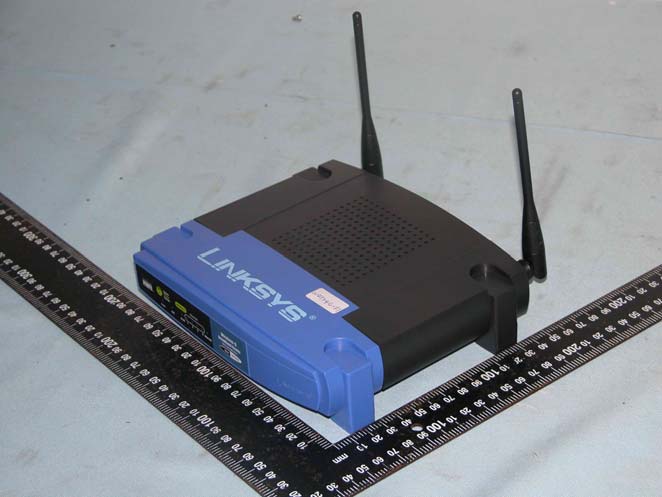

Compliance Certification Services Inc. Report No.71016302 Page 1 of 20 External Photo

Label Here

Compliance Certification Services Inc. Report No.71016302 Page 2 of 20 Internal Photo Compliance Certification Services Inc. Report No.71016302 Page 3 of 20 Compliance Certification Services Inc. Report No.71016302 Page 4 of 20 Compliance Certification Services Inc. Report No.71016302 Page 5 of 20 Power Adapter (1) Photo (Model : LS120V05AE) Compliance Certification Services Inc. Report No.71016302 Page 6 of 20 Compliance Certification Services Inc. Report No.71016302 Page 7 of 20 Power Adapter (2) Photo (Model : AD12V/A-SW) Compliance Certification Services Inc. Report No.71016302 Page 8 of 20 Compliance Certification Services Inc. Report No.71016302 Page 9 of 20 Power Adapter (3) Photo (Model : ADA12050UA05) Compliance Certification Services Inc. Report No.71016302 Page 10 of 20 Power Adapter (4) Photo (Model : LS120V05A) Compliance Certification Services Inc. Report No.71016302 Page 11 of 20 Compliance Certification Services Inc. Report No.71016302 Page 12 of 20 Power Adapter (5) Photo (Model : AD12V/0.5A-SW) Compliance Certification Services Inc. Report No.71016302 Page 13 of 20 Compliance Certification Services Inc. Report No.71016302 Page 14 of 20 Power Adapter (6) Photo (Model : AD12V/0.5A-SW) Compliance Certification Services Inc. Report No.71016302 Page 15 of 20 Compliance Certification Services Inc. Report No.71016302 Page 16 of 20 Power Adapter (7) Photo (Model : HK-X102-A12) Compliance Certification Services Inc. Report No.71016302 Page 17 of 20 Compliance Certification Services Inc. Report No.71016302 Page 18 of 20 Power Adapter (8) Photo (Model : AMS1-1200500FU) Compliance Certification Services Inc. Report No.71016302 Page 19 of 20 Compliance Certification Services Inc. Report No.71016302 Page 20 of 20 Power Cable Photo

Specification 1. Electrical Properties : 1.1 Frequency Range............ 1.2 Impedance .................. 1.3 VSWR ..................... ... 1.4 Return Loss.................. 1.5 Radiation ..................... 1.6 Gain(peak)...................2 dBi 1.7 Cable Loss.................. ...0.65dB 1.8 Polarization............... ...Linear Vertical 1.9 Admitted Power............ 2. Physical Properties : 2.1 Cable...........................φ1.13 Coaxial Cable 2.2 Antenna Cover............ ...TPE 2.3 Antenna Base............... PC 2.4 Operating Temp. ......... ...-20 ~ +65 2.5 Storage Temp. ............ ...-30 ~ +75 2.6 Color ........................ .Black RF Antenna Cable Assembly Omni-directional 1W 2.4GHz ~ 2.5GHz 50Ω Nominal 1.92 Max. -10 dB Maximum 1 2 2006/10/3 RF Antenna Assembly P/NO :C120-510239-A SPEC : 2.4GHz 1. 3 2006/10/3 RF Antenna Assembly P/NO :C120-510239-A SPEC : 2.4GHz 2.PCB 4 2006/10/3 1. 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -20-100 dB Far-field amplitude of C120-510239-A-Free-H.nsi 2.400000 GHz2.450000 GHz2.500000 GHz 5 2006/10/3 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -20-100 dB Far-field amplitude of C120-510239-A-Free-V.nsi 2.400000 GHz2.450000 GHz2.500000 GHz 6 2006/10/3 2.PCB 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -20-100 dB Far-field amplitude of C120-510239-A-PCB-H.nsi 2.400000 GHz2.450000 GHz2.500000 GHz 7 2006/10/3 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -20-100 dB Far-field amplitude of C120-510239-A-PCB-V.nsi 2.400000 GHz2.450000 GHz2.500000 GHz 8 9 10 11 SGS Test Report Product：RF Antenna Contents No Description Report No. Page 1 Cable φ1.13mm Cable CE/2006/11286 P.13~17 2 Antenna BodyTPE EL-550 CE/2006/14410 GZ0605064879/CHEM P.18~24 3 Antenna Base PC -110 KE/2006/10319 GZ0605064879/CHEM P.25~26 P.23~24 4 Rivet POM ; Black SH6053394/CHEM P.27~28 5 Ground Tube Tin Plated + POM CE/2006/35000 CE/2006/34999 P.29~41 Result for RoHS：PASS 12 Test Report Report No. : CE/2006/11286 Date: 2006/01/12 Page: 1 of 5 Type of Product : Style/Item No : Sample Received: Testing Date: ============================================================================================ Test Result:- Please see the next page - KHCX-32AWG-SB-TA GRAY PANTONE COOL GRAY 9C SHOWA ELECTRIC WIRE & CABLE CO., LTD. NO. 1-8, TORANOMON 1-CHOME, MINATO-KU, TOKYO 105-8444, JAPAN The following merchandise was (were) submitted and identified by the clien…

Text truncated - open the document above for the full version.
