A Division of Cisco Systems, Inc. ® Model No. Broadband Router Wireless A+G WRT55AG ver. 2 User Guide WIRELESS Dual-Band GHz 5 GHz 2.4 802.11g 802.11a + Dual-Band Dual-Band Wireless A+G Broadband Router Copyright and Trademarks Specifications are subject to change without notice. Linksys is a registered trademark or trademark of Cisco Systems, Inc. and/or its affiliates in the U.S. and certain other countries. Copyright © 2004 Cisco Systems, Inc. All rights reserved. Other brands and product names are trademarks or registered trademarks of their respective holders. How to Use This User Guide This User Guide has been designed to make understanding networking with the Dual-Band Wireless A+G Broadband Router easier than ever. Look for the following items when reading this User Guide: In addition to these symbols, there are definitions for technical terms that are presented like this: Also, each figure (diagram, screenshot, or other image) is provided with a figure number and description, like this: Figure numbers and descriptions can also be found in the “List of Figures” section in the “Table of Contents”. This exclamation point means there is a caution or warning and is something that could damage your property or the Dual-Band Wireless A+G Broadband Router. This checkmark means there is a note of interest and is something you should pay special attention to while using the Dual-Band Wireless A+G Broadband Router. This question mark provides you with a reminder about something you might need to do while using the Dual-Band Wireless A+G Broadband Router. word: definition. Figure 0-1: Sample Figure Description WRT55AG_V2-UG-40913NC JL WARNING:This product contains chemicals, including lead, known to the State of California to cause cancer, and birth defects or other reproductive harm. Wash hands after handling. Dual-Band Wireless A+G Broadband Router Table of Contents Chapter 1: Introduction1 Welcome1 What’s in this Guide?2 Chapter 2: Planning Your Wireless Network4 Network Topology4 Ad-Hoc versus Infrastructure Mode4 Network Layout4 Chapter 3: Getting to Know the Dual-Band Wireless A+G Broadband Router6 The Back Panel6 The Front Panel7 Chapter 4: Connecting the Dual-Band Wireless A+G Broadband Router8 Overview8 Hardware Installation for Connection to Your Broadband Modem8 Hardware Installation for Connection to Another Router10 Chapter 5: Configuring the Dual-Band Wireless A+G Broadband Router12 Overview12 How to Access the Web-based Utility13 The Setup Tab - Basic Setup13 The Setup Tab - MAC Address Clone17 The Wireless Tab - Basic Wireless Settings18 The Wireless Tab - Wireless Security20 The Wireless Tab - Wireless MAC Filter22 The Wireless Tab - Advanced Wireless Settings23 The Security Tab - Firewall26 The Security Tab - VPN Passthrough26 The Access Restrictions Tab - Internet Access Policy27 The Applications and Gaming Tab - Port Range Forwarding29 The Applications & Gaming Tab - Port Range Triggering31 The Applications and Gaming Tab - DMZ32 The Applications and Gaming Tab - QoS33 The Administration Tab - Management36 The Administration Tab - Log38 Dual-Band Wireless A+G Broadband Router The Administration Tab - Diagnostics39 The Administration Tab - Factory Defaults40 The Administration Tab - Firmware Upgrade40 The Status Tab - Router41 The Status Tab - Local Network42 The Status Tab - Wireless43 Appendix A: Troubleshooting44 Common Problems and Solutions44 Frequently Asked Questions52 Appendix B: Wireless Security59 Security Precautions59 Security Threats Facing Wireless Networks59 Appendix C: Upgrading Firmware62 Appendix D: Windows Help63 Appendix E: Finding the MAC Address and IP Address for Your Ethernet Adapter64 Windows 98SE or Me Instructions64 Windows 2000 or XP Instructions64 For the Router’s Web-based Utility65 Appendix F: Glossary66 Appendix G: Specifications73 Appendix H: Warranty Information74 Appendix I: Regulatory Information75 Appendix J: Contact Information77 Dual-Band Wireless A+G Broadband Router List of Figures Figure 3-1: The Router’s Back Panel6 Figure 3-2: The Router’s Front Panel7 Figure 4-1: Connecting Your Broadband Modem8 Figure 4-2: Connecting Your Network Devices9 Figure 4-3: Connecting the Power9 Figure 4-4: Diagram for Connection to Another Router10 Figure 4-5: Connecting Another Router10 Figure 4-6: Connecting Your Network Devices11 Figure 4-7: Connecting the Power11 Figure 5-1: Router’s IP Address13 Figure 5-2: Router Login Screen13 Figure 5-3: Setup Tab - Basic Setup13 Figure 5-4: Static IP Connection Type14 Figure 5-5: PPPoE Connection Type14 Figure 5-6: Static DHCP Client List15 Figure 5-7: DHCP Client Table15 Figure 5-8: Setup Tab - MAC Address Clone17 Figure 5-9: Wireless Tab - Basic Wireless Settings18 Figure 5-10: Wireless Tab - Wireless Security (Pre-Shared Key)20 Figure 5-11: Wireless Tab - Wireless Security (Pre-Shared Key + RADIUS)20 Figure 5-12: Wireless Tab - Wireless Security (WEP)21 Figure 5-13: Wireless Tab - Wireless MAC Filter22 Figure 5-14: Wireless Client List22 Figure 5-15: Wireless Tab - Advanced Wireless Settings23 Figure 5-16: Security Tab - Firewall26 Figure 5-17: Security Tab - VPN Passthrough26 Figure 5-18: Access Restrictions Tab - Internet Access Policy27 Figure 5-19: Summary27 Figure 5-20: List of PCs28 Figure 5-21: Applications and Gaming Tab - Port Range Forwarding29 Dual-Band Wireless A+G Broadband Router Figure 5-22: Applications and Gaming Tab - Port Triggering31 Figure 5-23: Applications and Gaming Tab - DMZ32 Figure 5-24: Applications and Gaming Tab - QOS33 Figure 5-25: Administration Tab - Management36 Figure 5-26: Administration Tab - Log38 Figure 5-27: Incoming Log38 Figure 5-28: Outgoing Log38 Figure 5-29: Administration Tab - Diagnostics39 Figure 5-30: Ping39 Figure 5-31: Administration Tab - Factory Defaults40 Figure 5-32: Administration Tab - Firmware Upgrade40 Figure 5-33: Status Tab - Router41 Figure 5-34: Status Tab - Local Network42 Figure 5-35: DHCP Client Table42 Figure 5-36: Status Tab - Wireless43…

Text truncated - open the document above for the full version.

25 Chapter 5: Configuring the Dual-Band Wireless A+G Broadband Router The Wireless Tab - Advanced Wireless Settings Dual-Band Wireless A+G Broadband Router Router’s ability to catch all Wireless-G transmissions but will severely decrease performance. If you do not want to use CTS Protection Mode at all, select Disabled. Frame Burst Mode. Enabling this option should provide your network with greater performance, depending on the manufacturer of your wireless products. If you are not sure how to use this option, keep the default, Enabled. Beacon Interval. The default value is 100. The Beacon Interval value indicates the frequency interval of the beacon. A beacon is a packet broadcast by the Router to synchronize the wireless network. DTIM Interval. This value indicates the interval of the Delivery Traffic Indication Message (DTIM). A DTIM field is a countdown field informing clients of the next window for listening to broadcast and multicast messages. When the Router has buffered broadcast or multicast messages for associated clients, it sends the next DTIM with a DTIM Interval value. Its clients hear the beacons and awaken to receive the broadcast and multicast messages. The default value is 1. Fragmentation Threshold. This value specifies the maximum size for a packet before data is fragmented into multiple packets. If you experience a high packet error rate, you may slightly increase the Fragmentation Threshold. Setting the Fragmentation Threshold too low may result in poor network performance. Only minor reduction of the default value is recommended. In most cases, it should remain at its default value of 2346. RTS Threshold. Should you encounter inconsistent data flow, only minor reduction of the default value, 2347, is recommended. If a network packet is smaller than the preset RTS threshold size, the RTS/CTS mechanism will not be enabled. The Router sends Request to Send (RTS) frames to a particular receiving station and negotiates the sending of a data frame. After receiving an RTS, the wireless station responds with a Clear to Send (CTS) frame to acknowledge the right to begin transmission. The RTS Threshold value should remain at its default value of 2347. Change these settings as described here and click the Save Settings button to apply your changes or Cancel Changes to cancel your changes. Help information is shown on the right-hand side of the screen. For additional information, click More. 26 Chapter 5: Configuring the Dual-Band Wireless A+G Broadband Router The Security Tab - Firewall Dual-Band Wireless A+G Broadband Router The Security Tab - Firewall The Firewall screen offers the Block Anonymous Internet Requests feature. The use of this feature enhances the security of your network. Firewall Block Anonymous Requests. When enabled, this feature keeps your network from being “pinged,” or detected, by other Internet users. It also reinforces your network security by hiding your network ports. Both functions of this feature make it more difficult for outside users to work their way into your network. This feature is enabled by default. Select Disabled to allow anonymous Internet requests. Change this setting as described here and click the Save Settings button to apply your change or Cancel Changes to cancel your change. Help information is shown on the right-hand side of the screen. The Security Tab - VPN Passthrough Use the settings on this tab to allow VPN tunnels using IPSec, L2TP, or PPTP protocols to pass through the Router’s firewall. VPN Passthrough IPSec Passthrough. Internet Protocol Security (IPSec) is a suite of protocols used to implement secure exchange of packets at the IP layer. IPSec Pass-Through is enabled by default. To disable IPSec Passthrough, select Disabled. L2TP Passthrough. Layer 2 Tunneling Protocol is the method used to enable Point-to-Point sessions via the Internet on the Layer 2 level. L2TP Pass-Through is enabled by default. To disable L2TP Passthrough, select Disabled. PPTP Passthrough. Point-to-Point Tunneling Protocol (PPTP) allows the Point-to-Point Protocol (PPP) to be tunneled through an IP network. PPTP Pass-Through is enabled by default. To disable PPTP Passthrough, select Disabled. Change these settings as described here and click the Save Settings button to apply your changes or Cancel Changes to cancel your changes. Help information is shown on the right-hand side of the screen. For additional information, click More. Figure 5-16: Security Tab - Firewall Figure 5-17: Security Tab - VPN Passthrough ipsec: a VPN protocol used to implement secure exchange of packets at the IP layer. pptp: a VPN protocol that allows the Point to Point Protocol (PPP) to be tunneled through an IP network. This protocol is also used as a type of broadband connection in Europe. vpn: a security measure to protect data as it leaves one network and goes to another over the Internet. 27 Chapter 5: Configuring the Dual-Band Wireless A+G Broadband Router The Access Restrictions Tab - Internet Access Policy Dual-Band Wireless A+G Broadband Router Figure 5-18: Access Restrictions Tab - Internet Access Policy Figure 5-19: Summary The Access Restrictions Tab - Internet Access Policy The Internet Access Policy screen allows you to block or allow specific kinds of Internet usage and traffic, such as Internet access, designated applications, websites, and inbound traffic during specific days and times. Internet Access Policy Access Policy. Access can be managed by a policy. Use the settings on this screen to establish an access policy (after the Save Settings button is clicked). Selecting a policy from the drop-down menu will display that policy’s settings. To delete a policy, select that policy’s number and click the Delete This Policy button. To view all the policies, click the Summary button. On the Summary screen, the policies are listed with the following information: No., Policy Name, Access, Days, Time, and status (Enabled). You can change the type of access, day…

Text truncated - open the document above for the full version.

55 Appendix A: Troubleshooting Frequently Asked Questions Dual-Band Wireless A+G Broadband Router How do I get mIRC to work with the Router? Under the Port Forwarding tab, set port forwarding to 113 for the PC on which you are using mIRC. Can the Router act as my DHCP server? Yes. The Router has DHCP server software built-in. Can I run an application from a remote computer over the wireless network? This will depend on whether or not the application is designed to be used over a network. Consult the application’s documentation to determine if it supports operation over a network. What is the IEEE 802.11a standard? It is one of the IEEE standards for wireless networks. The 802.11a standard allows wireless networking hardware from different manufacturers to communicate, provided that the hardware complies with the 802.11a standard. The 802.11a standard states a maximum data transfer rate of 54Mbps and an operating frequency of 5GHz. What is the IEEE 802.11b standard? It is one of the IEEE standards for wireless networks. The 802.11b standard allows wireless networking hardware from different manufacturers to communicate, provided that the hardware complies with the 802.11b standard. The 802.11b standard states a maximum data transfer rate of 11Mbps and an operating frequency of 2.4GHz. What is the IEEE 802.11g standard? It is one of the IEEE standards for wireless networks. The 802.11g standard allows wireless networking hardware from different manufacturers to communicate, provided that the hardware complies with the 802.11g standard. The 802.11g standard states a maximum data transfer rate of 54Mbps and an operating frequency of 2.4GHz. What IEEE 802.11a features are supported? The product supports the following IEEE 802.11a functions: •OFDM protocol •Multi-Channel Roaming •Automatic Rate Selection •RTS/CTS feature •Fragmentation 56 Appendix A: Troubleshooting Frequently Asked Questions Dual-Band Wireless A+G Broadband Router What IEEE 802.11b features are supported? The product supports the following IEEE 802.11b functions: •CSMA/CA plus Acknowledge protocol •Multi-Channel Roaming •Automatic Rate Selection •RTS/CTS feature •Fragmentation •Power Management What IEEE 802.11g features are supported? The product supports the following IEEE 802.11g functions: •CSMA/CA plus Acknowledge protocol •OFDM protocol •Multi-Channel Roaming •Automatic Rate Selection •RTS/CTS feature •Fragmentation •Power Management What is ad-hoc mode? When a wireless network is set to ad-hoc mode, the wireless-equipped computers are configured to communicate directly with each other. The ad-hoc wireless network will not communicate with any wired network. What is infrastructure mode? When a wireless network is set to infrastructure mode, the wireless network is configured to communicate with a wired network through a wireless access point. What is roaming? Roaming is the ability of a portable computer to communicate continuously while moving freely throughout an area greater than that covered by a single access point. Before using the roaming function, the user must make sure that the workstation uses the same channel number as the access point of the dedicated coverage area. To achieve true seamless connectivity, the wireless LAN must incorporate a number of different functions. Each node and access point, for example, must always acknowledge receipt of each message. Each node must maintain contact with the wireless network even when not actually transmitting data. Achieving these functions simultaneously requires a dynamic RF networking technology that links access points and nodes. In such a system, the user’s end node undertakes a search for the best possible access to the system. First, it evaluates such factors as signal strength and quality, as well as the message load currently being carried by each access point and the distance of each access point to the wired backbone. Based on that information, the node next 57 Appendix A: Troubleshooting Frequently Asked Questions Dual-Band Wireless A+G Broadband Router selects the right access point and registers its address. Communications between end node and host computer can then be transmitted up and down the backbone. As the user moves on, the end node’s RF transmitter regularly checks the system to determine whether it is in touch with the original access point or whether it should seek a new one. When a node no longer receives acknowledgment from its original access point, it undertakes a new search. Upon finding a new access point, it then re-registers, and the communication process continues. What is ISM band? The FCC and their counterparts outside of the U.S. have set aside bandwidth for unlicensed use in the ISM (Industrial, Scientific and Medical) band. Spectrum in the vicinity of 2.4 GHz, in particular, is being made available worldwide. This presents a truly revolutionary opportunity to place convenient high-speed wireless capabilities in the hands of users around the globe. What is Spread Spectrum? Spread Spectrum technology is a wideband radio frequency technique developed by the military for use in reliable, secure, mission-critical communications systems. It is designed to trade off bandwidth efficiency for reliability, integrity, and security. In other words, more bandwidth is consumed than in the case of narrowband transmission, but the trade-off produces a signal that is, in effect, louder and thus easier to detect, provided that the receiver knows the parameters of the spread-spectrum signal being broadcast. If a receiver is not tuned to the right frequency, a spread-spectrum signal looks like background noise. There are two main alternatives, Direct Sequence Spread Spectrum (DSSS) and Frequency Hopping Spread Spectrum (FHSS). What is DSSS? What is FHSS? And what are their differences? Frequency-Hopping Spread-Spectrum (FHSS) uses a narrowband carrier that changes frequency in a pattern that is known to both transmitter and receiver. Properly sync…

Text truncated - open the document above for the full version.

Cisco-Linksys, LLC 121 Theory Drive Irvine, CA 92612 (USA) Phone: 949-823-3188 Fax: 949-823-3002 Agency Authorization Letter Date: September 24, 2004 To whom it may concern: We, the undersigned, hereby authorize Advance Data Technology Corp. (ADT) of Taiwan to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by ADT within the scope of this authorization shall have the same effects as our own. This authorization shall expire six months from the original date. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, _________________________________________ Jennifer Yu / Associate Engineer Cisco-Linksys, LLC Tel.: ( 949 ) 823-3188 Fax: ( 949 ) 823-3002 [email protected]

Cisco-Linksys, LLC 121 Theory Drive Irvine, CA 92612 (USA) Phone: 949-823-3188 Fax: 949-823-3002 Date: September 24, 2004 FCC ID: Q87-WRT55AGV2 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, __________________________________________ Jennifer Yu / Associate Engineer Cisco-Linksys, LLC Tel.: ( 949 ) 823-3188 Fax: ( 949 ) 823-3002 [email protected]

Cisco-Linksys, LLC 121 Theory Drive Irvine, CA 92612 (USA) Phone: 949-823-3188 Fax: 949-823-3002 Date: September 24, 2004 FEDERAL COMMUNICATIONS COMMISSION DECLARATION OF CONFORMITY (DoC) Cisco-Linksys, LLC declares that the equipment described in this document is within the requirements of the Code of Federal Regulations listed below: Product Name: Wireless A+G Broadband Router Model Number: WRT55AG ver. 2 This device complies with the limits for a Class B digital device pursuant to IEEE ANSI C63.4 and FCC Part 15 subpart B of the Rules and Regulations. The test result has been shown in the ADT test report with numbered FD930919L01 Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. The Part 15 radio device operates on a non-interference basis with other devices operation at this frequency. Any change or modification to the product not expressly approved by Linksys could void the user’s authority to operate the device. Jennifer Yu / Associate Engineer Cisco-Linksys, LLC Tel.: ( 949 ) 823-3188 Fax: ( 949 ) 823-3002 [email protected]

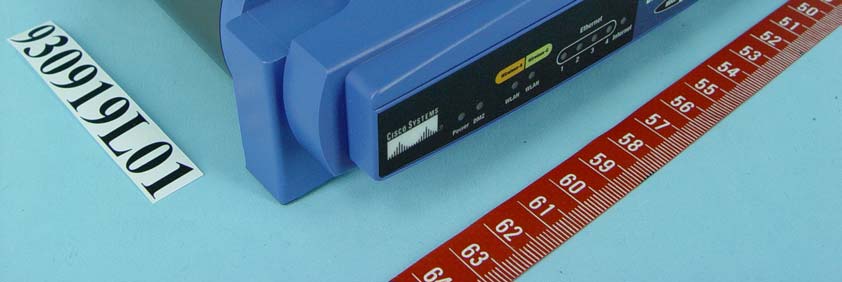

Page 1 CONSTRUCTION PHOTOS OF EUT (Mode 1) Page 2 Page 3 Page 4 Page 5 Page 6 (Mode 2) Page 7 Page 8 Page 9

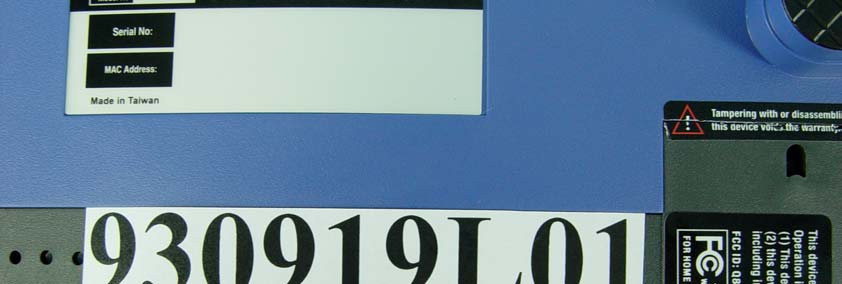

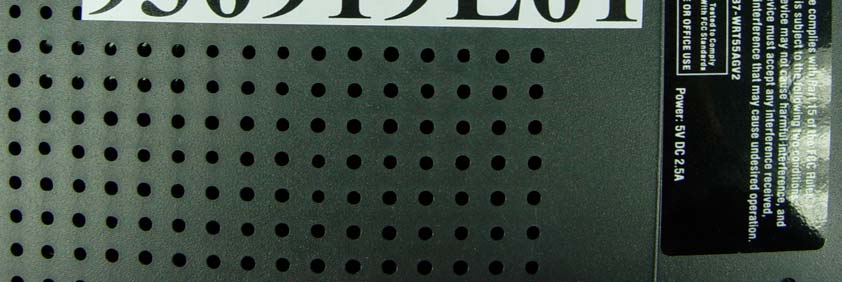

FCC ID Label Location

Page 10 Page 11 Page 12 Page 13 Page 14 (Mode 1) Page 15 Page 16 (Mode 2) Page 17

FCC ID: Q87-WRT55AGV2 Report No. RF930919L01 Operational Description The transmitter of the EUT is powered by host equipment via a RJ45 interface. The antenna type used in this product is dipole antenna with UFL antenna connector. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. This device is a Wireless A+G Broadband Router, which operates in both of the 5GHz and 2.4GHz bands and can transmitting simultaneously, the maximum data rate could be 54Mbps (turbo mode: up to 108Mbps). For more detailed instruction, please take a look at the user’s manual. FCC 15.407(c) states: The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude the transmission of control or signaling information or the use of repetitive codes used by certain digital technologies to complete frame or burst intervals. Applicants shall include in their application for equipment authorization a description of hoe this requirement is met” Data transmission is always initiated by software, which is then pass down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets (ACKs, CTS, PSPoll, etc...) are initiated by the MAC. There are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets are being transmitted.

FCC ID: Q87-WRT55AGV2 Report No.: RF930919L0171Issued: Sep. 23, 2004 OFDM Normal mode FCC ID: Q87-WRT55AGV2 Report No.: RF930919L0172Issued: Sep. 23, 2004 FCC ID: Q87-WRT55AGV2 Report No.: RF930919L0173Issued: Sep. 23, 2004 FCC ID: Q87-WRT55AGV2 Report No.: RF930919L0174Issued: Sep. 23, 2004 FCC ID: Q87-WRT55AGV2 Report No.: RF930919L0175Issued: Sep. 23, 2004 OFDM Turbo mode FCC ID: Q87-WRT55AGV2 Report No.: RF930919L0176Issued: Sep. 23, 2004 FCC ID: Q87-WRT55AGV2 Report No.: RF930919L0177Issued: Sep. 23, 2004 FCC ID: Q87-WRT55AGV2 Report No.: RF930919L0178Issued: Sep. 23, 2004 FCC ID: Q87-WRT55AGV2 Report No.: RF930919L0179Issued: Sep. 23, 2004 4.7 ANTENNA REQUIREMENT 4.7.1 STANDARD APPLICABLE For intentional device, according to FCC 47 CFR Section 15.203, an intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible party shall be used with the device. And according to FCC 47 CFR Section 15.247 (b), if transmitting antennas of directional gain greater than 6dBi are used, the power shall be reduced by the amount in dB that the directional gain of the antenna exceeds 6dBi. 4.7.2 ANTENNA CONNECTED CONSTRUCTION The antenna used in this product is dipole antenna with UFL connector. The maximum Gain of the antenna is 2dBi. FCC ID: Q87-WRT55AGV2 Report No.: RF930919L0180Issued: Sep. 23, 2004 5. TEST TYPES AND RESULTS (FOR PART 802.11a) 5.1 CONDUCTED EMISSION MEASUREMENT 5.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT FREQUENCY OF EMISSION (MHz)CONDUCTED LIMIT (dBμV) Quasi-peakAverage 0.15-0.5 0.5-5 5-30 66 to 56 56 60 56 to 46 46 50 NOTE:1. The lower limit shall apply at the transition frequencies. 2. The limit decreases in line with the logarithm of the frequency in the range of 0.15 to 0.50 MHz. 3. All emanations from a class A/B digital device or system, including any network of conductors and apparatus connected thereto, shall not exceed the level of field strengths specified above. 5.1.2 TEST INSTRUMENTS DESCRIPTION & MANUFACTURERMODEL NO.SERIAL NO.CALIBRATED UNTIL Test Receiver ROHDE & SCHWARZ ESCS30100291Dec. 12, 2004 RF signal cable Woken 5D-FBCable-HYC01-01Mar. 02, 2005 LISN ROHDE & SCHWARZ ESH3-Z5100312Mar. 03, 2005 LISN ROHDE & SCHWARZ ESH2-Z5100104Mar. 02, 2005 Software ADT ADT_Cond_V3NANA NOTE: 1. The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 2. The test was performed in HwaYa Shielded Room 1. 3. The VCCI Site Registration No. is C-2040. FCC ID: Q87-WRT55AGV2 Report No.: RF930919L0181Issued: Sep. 23, 2004 5.1.3 TEST PROCEDURES a. The EUT was placed 0.4 meters from the conducting wall of the shielded room with EUT being connected to the power mains through a line impedance stabilization network (LISN). Other support units were connected to the power mains through another LISN. The two LISNs provide 50 ohm/ 50uH of coupling impedance for the measuring instrument. b. Both lines of the power mains connected to the EUT were checked for maximum conducted interference. c. The frequency range from 150kHz to 30MHz was searched. Emission levels under ( Limit - 20dB) was not recorded. 5.1.4 DEVIATION FROM TEST STANDARD No deviation. FCC ID: Q87-WRT55AGV2 Report No.: RF930919L0182Issued: Sep. 23, 2004 5.1.5 TEST SETUP For the actual test configuration, please refer to the related item – Photographs of the Test Configuration. 5.1.6 EUT OPERATING CONDITIONS Same as 4.1.6. FCC ID: Q87-WRT55AGV2 Report No.: RF930919L0183Issued: Sep. 23, 2004 5.1.7 TEST RESULTS EUT Wireless A+G Broadband Router MODEL WRT55AG ver. 2 INPUT POWER (SYSTEM) 120 Vac, 60 Hz 6dB BANDWIDTH 9 kHz ENVIRONMENTAL CONDITIONS 27 deg. C, 62% RH, 991 hPa PHASE Line (L) TESTED BY Rush Kao Freq.Corr. Reading Value Emission Level LimitMargin NoFactor[dB (uV)][dB (uV)][dB (uV)](dB) [MHz](dB)Q.P.AV.Q.P.AV.Q.P.AV.Q.P.AV. 10.5090.1337.35-37.48-56.0046.00-18.52- 20.8570.1439.46-39.60-56.0046.00-16.40- 31.4100.1547.4032.1647.5532.3156.0046.00-8.45-13.69 41.6170.1648.5632.9748.7233.1356.0046.00-7.28-12.87 52.3870.1747.8336.3248.0036.4956.0046.00-8.00-9.51 64.5980.2242.28-42.50-56.0046.00-13.50- REMARKS: 1. Q.P. and AV. are abbreviations of quasi-peak and average individually. 2. "-": The Quasi-peak reading value also meets average limit and measurement with the average detector is unnecessary. 3. The emission levels of other frequencies were very low against the limit. 4. Margin value = Emission level - Limit value 5. Correction factor = Insertion loss + Cable loss 6. Emission Level = Correction Factor + Reading Value. FCC ID: Q87-WRT55AGV2 Report No.: RF930919L0184Issued: Sep. 23, 2004 EUT Wireless A+G Broadband Router MODEL WRT55AG ver. 2 INPUT POWER (SYSTEM) 120 Vac, 60 Hz 6dB BANDWIDTH 9 kHz ENVIRONMENTAL CONDITIONS 27 deg. C, 62% RH, 991 hPa PHASE Neutral (N) TESTED BY Rush Kao Freq.Corr. Reading Value Emission Level LimitMargin NoFactor[dB (uV)][dB (uV)][dB (uV)](dB) [MHz](dB)Q.P.AV.Q.P.AV.Q.P.AV.Q.P.AV. 10.4590.1238.44-38.56-56.7246.72-18.16- 21.7660.1644.82-44.98-56.0046.00-11.02- 32.2420.1645.77-45.93-56.0046.00-10.07- 42.6840.1744.67-44.84-56.0046.00-11.16- 57.5900.2834.31-34.59-60.0050.00-25.41- 612.3130.4530.34-30.79-60.0050.00-29.21- REMARKS: 1. Q.P. and AV. are abbreviations of quasi-peak and average individually. 2. "-": The Quasi-peak reading value also meets average limit and measurement with the average detector is unnecessary. 3. The emission levels of other frequencies were very low against the limit. 4. Margin value = Emission level - Limit value 5. Correction factor = Insertion loss + Cable loss 6. Emission Level = Correction Factor + Reading Value. FCC ID: Q87-WRT55AGV2 Report No.: RF930919L0185Issued: Sep. 23, 2004 5.2 RADIATED EMISSION MEASUREMENT 5.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT Emissions radiated outside of the specified bands, shall be according to the general radiated limits in 15.209 as following: Frequencies (MHz) Field strength (microvolts/meter) Measurement distanc…

Text truncated - open the document above for the full version.

FCC ID: Q87-WRT55AGV2 Report No.: RF930919L01121Issued: Sep. 23, 2004 CH3 FCC ID: Q87-WRT55AGV2 Report No.: RF930919L01122Issued: Sep. 23, 2004 5.4 PEAK POWER EXCURSION MEASUREMENT 5.4.1 LIMITS OF PEAK POWER EXCURSION MEASUREMENT Frequency BandLimit 5.15 – 5.25 GHz13dB 5.25 – 5.35 GHz13dB 5.725 – 5.825 GHz13dB 5.4.2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until SPECTRUM ANALYZERFSEK30100049Aug. 12, 2005 NOTE: The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. FCC ID: Q87-WRT55AGV2 Report No.: RF930919L01123Issued: Sep. 23, 2004 5.4.3 TEST PROCEDURE 1. The transmitter output was connected to the spectrum analyzer. 2. Set the spectrum bandwidth span to view the entire spectrum. 3. Using peak detector and Max-hold function for Trace 1 (RB=1MHz, VB=3MHz) and 2 (RB=1MHz, VB=300KHz). 4. The largest difference between Trace 1 and Trace 2 in any 1…
