Q87-WRV200Wireless-G VPN Router with RangeBooster

Chapter 1: Introduction What’s in this Guide? This user guide covers the steps for setting up and using the Wireless-G VPN Router with RangeBooster. • Chapter 1: Introduction This chapter describes the Wireless-G VPN Router with RangeBooster applications and this User Guide. • Chapter 2: Planning your Wireless Network This chapter describes the basics of wireless networking. • Chapter 3: Getting to Know the Wireless-G VPN Router with RangeBooster This chapter describes the physical features of the Router. • Chapter 4: Connecting the Wireless-G VPN Router with RangeBooster This chapter instructs you on how to connect the Router to your network. • Chapter 5: Configuring the PCs This chapter explains how to configure the PCs for your network. • Chapter 6: Configuring the Router This chapter explains how to use the Web-Based Utility to configure the settings on the Router. • Appendix A: Troubleshooting This appendix describes some problems and solutions, as well as frequently asked questions, regarding installation and use of the Wireless-G VPN Router with RangeBooster. • Appendix B: Wireless Security This appendix explains the risks of wireless networking and some solutions to reduce the risks. • Appendix C: Configuring IPSec between a Windows 2000 Pc and the Router This appendix instructs you on how to establish a secure IPSec tunnel using preshared keys to join a private network inside the VPN Router and a Windows 2000 or XP PC. • Appendix D: SNMP Functions This appendix explains SNMP. • Appendix E: Upgrading Firmware This appendix instructs you on how to upgrade the firmware on your Router if you should need to do so. • Appendix F: Windows Help This appendix describes how you can use Windows Help for instructions about networking, such as installing the TCP/IP protocol. • Appendix G: Finding the MAC Address and IP Address for your Ethernet Adapter. This appendix describes how to find the MAC address for your computer’s Ethenet adapter so you can use the MAC filtering and/or MAC address cloning feature of the Router. • Appendix H: Glossary This appendix gives a brief glossary of terms frequently used in networking. • Appendix I: Specifications This appendix provides the technical specifications for the Router. • Appendix J: Warranty Information This appendix supplies the warranty information for the Router.. • Appendix K: Regulatory Information This appendix supplies the regulatory information regarding the Router. • Appendix L: Contact Information This appendix provides contact information for a variety of Linksys resources, including Technical Support. Chapter 2: Planning your Wireless Network The Router’s Functions Simply put, a router is a network device that connects two networks together. In this instance, the Router connects your Local Area Network (LAN), or the group of PCs in your home or office, to the Internet. The Router processes and regulates the data that travels between these two networks. The Router’s NAT feature protects your network of PCs so users on the public, Internet side cannot “see” your PCs. This is how your network remains private. The Router protects your network by inspecting every packet coming in through the Internet port before delivery to the appropriate PC on your network. The Router inspects Internet port services like the web server, ftp server, or other Internet applications, and, if allowed, it will forward the packet to the appropriate PC on the LAN side. Remember that the Router’s ports connect to two sides. The LAN ports connect to the LAN, and the Internet port connects to the Internet. The LAN and Internet ports transmit data at 10/100Mbps. IP Addresses What’s an IP Address? IP stands for Internet Protocol. Every device on an IP-based network, including PCs, print servers, and routers, requires an IP address to identify its “location,” or address, on the network. This applies to both the Internet and LAN connections. There are two ways of assigning an IP address to your network devices. You can assign static IP addresses or use the Router to assign IP addresses dynamically. Static IP Addresses A static IP address is a fixed IP address that you assign manually to a PC or other device on the network. Since a static IP address remains valid until you disable it, static IP addressing ensures that the device assigned it will always have that same IP address until you change it. Static IP addresses must be unique and are commonly used with network devices such as server PCs or print servers. If you use the Router to share your cable or DSL Internet connection, contact your ISP to find out if they have assigned a static IP address to your account. If so, you will need that static IP address when configuring the Router. You can get that information from your ISP. Dynamic IP Addresses A dynamic IP address is automatically assigned to a device on the network, such as PCs and print servers. These IP addresses are called “dynamic” because they are only temporarily assigned to the PC or device. After a certain time period, they expire and may change. If a PC logs onto the network (or the Internet) and its dynamic IP address has expired, the DHCP server will automatically assign it a new dynamic IP address. DHCP (Dynamic Host Configuration Protocol) Servers PCs and other network devices using dynamic IP addressing are assigned a new IP address by a DHCP server. The PC or network device obtaining an IP address is called the DHCP client. DHCP frees you from having to assign IP addresses manually every time a new user is added to your network. A DHCP server can either be a designated PC on the network or another network device, such as the Router. By default, the Router’s DHCP Server function is enabled. If you already have a DHCP server running on your network, you must disable one of the two DHCP servers. If you run more than one DHCP server on your network, you will experience network errors, such as conflicting IP addresses. To disable DHCP on the Router, se…

Text truncated - open the document above for the full version.

Cisco-Linksys LLC 121 Theory Drive Irvine, CA 92617 (USA) Phone: 949-261-1288 Fax: 949-823-3002 Date: January 18, 2006 FCC ID: Q87-WRV200 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, __________________________________________ Jennifer Yu / Associate Engineer Cisco-Linksys LLC Tel.: ( 949 ) 823-3188 Fax: ( 949 ) 823-3002 [email protected]

Cisco-Linksys LLC 121 Theory Drive Irvine, CA 92617 (USA) Phone: 949-261-1288 Fax: 949-823-3002 Agency Authorization Letter Date: January 18, 2006 To whom it may concern: We, the undersigned, hereby authorize Advance Data Technology Corp. (ADT) of Taiwan to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by ADT within the scope of this authorization shall have the same effects as our own. This authorization shall expire six months from the original date. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, __________________________________________ Jennifer Yu / Associate Engineer Cisco-Linksys LLC Tel.: ( 949 ) 823-3188 Fax: ( 949 ) 823-3002 [email protected]

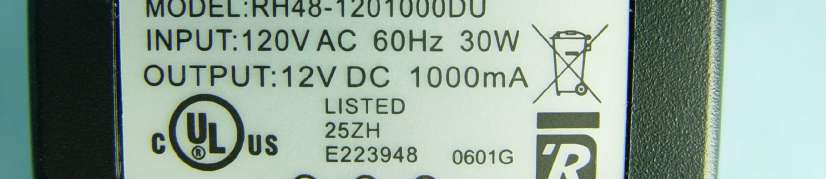

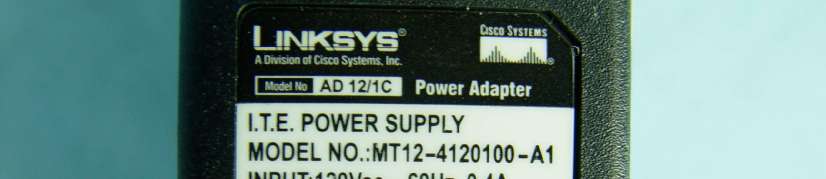

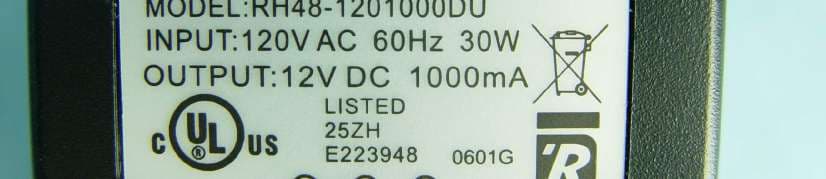

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

FCC ID : Q87-WRV200 Label Location

Page 4 Page 5 Page 6 Page 7

FCC ID: Q87-WRV200 Report No.: RF941115L16 Technical Description This device is an Wireless-G VPN Router with RangeBooster which operates in the 2.4GHz frequency spectrum with throughput of up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by AC adapter. The antenna is Dipole antenna without antenna connector. The other instruction, please have a look at the users manual.

FCC ID: Q87-WRV200 Report No: SA941115L16 1 RF EXPOSURE REPORT REPORT NO.: SA941115L16 MODEL NO.: WRV200 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Cisco-Linksys LLC ADDRESS: 121 Theory Drive Irvine, CA 92617 (USA) ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID: Q87-WRV200 Report No: SA941115L16 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: Q87-WRV200 Report No: SA941115L16 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance r. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of the product, under normal use condition, is at least 20cm far away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: Q87-WRV200 Report No: SA941115L16 4 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 2.2dBi or 1.660 (numeric) 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: 802.11b DSSS modulation Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241231.6230.0101.0 6243731.6960.0101.0 11246231.9890.0111.0 802.11g OFDM modulation Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241222.5940.0071.0 6243722.4390.0071.0 11246222.4910.0071.0

Report No.: RF941115L161Report Format Version 2.0.4 FCC TEST REPORT REPORT NO.: RF941115L16 MODEL NO.: WRV200 RECEIVED: Dec. 23, 2005 TESTED: Dec. 23, 2005 ~ Jan. 24, 2006 ISSUED: Feb. 06, 2006 APPLICANT : Cisco-Linksys LLC ADDRESS : 121 Theory Drive Irvine, CA 92617 (USA) ISSUED BY : Advance Data Technology Corporation LAB ADDRESS : No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION : No. 19, Hwa Ya 2nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 72 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF941115L162Report Format Version 2.0.4 Table of Contents 1CERTIFICATION.....................................................................................................4 2SUMMARY OF TEST RESULTS.............................................................................5 2.1MEASUREMENT UNCERTAINTY..........................................................................5 3GENERAL INFORMATION.....................................................................................6 3.1GENERAL DESCRIPTION OF EUT.......................................................................6 3.2DESCRIPTION OF TEST MODES.........................................................................7 3.2.1CONFIGURATION OF SYSTEM UNDER TEST.....................................................7 3.2.2TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL..........................8 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS.........................................9 3.4DESCRIPTION OF SUPPORT UNITS.................................................................10 4TEST TYPES AND RESULTS...............................................................................11 4.1CONDUCTED EMISSION MEASUREMENT........................................................11 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT......................................11 4.1.2TEST INSTRUMENTS..........................................................................................11 4.1.3TEST PROCEDURES..........................................................................................12 4.1.4DEVIATION FROM TEST STANDARD.................................................................12 4.1.5TEST SETUP.......................................................................................................13 4.1.6EUT OPERATING CONDITIONS.........................................................................14 4.1.7TEST RESULTS...................................................................................................15 4.2RADIATED EMISSION MEASUREMENT.............................................................27 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT...........................................27 4.2.2TEST INSTRUMENTS..........................................................................................28 4.2.3TEST PROCEDURES..........................................................................................29 4.2.4DEVIATION FROM TEST STANDARD.................................................................29 4.2.5TEST SETUP.......................................................................................................30 4.2.6EUT OPERATING CONDITIONS.........................................................................30 4.2.7TEST RESULTS...................................................................................................31 4.36dB BANDWIDTH MEASUREMENT....................................................................39 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT..................................................39 4.3.2TEST INSTRUMENTS..........................................................................................39 4.3.3TEST PROCEDURE.............................................................................................39 4.3.4DEVIATION FROM TEST STANDARD.................................................................39 4.3.5TEST SETUP.......................................................................................................40 4.3.6EUT OPERATING CONDITIONS.........................................................................40 4.3.7TEST RESULTS...................................................................................................41 4.4MAXIMUM PEAK OUTPUT POWER....................................................................47 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT.....................47 4.4.2TEST INSTRUMENTS..........................................................................................47 4.4.3TEST PROCEDURES..........................................................................................48 4.4.4DEVIATION FROM TEST STANDARD.................................................................48 4.4.5TEST SETUP.......................................................................................................48 4.4.6EUT OPERATING CONDITIONS.........................................................................48 Report No.: RF941115L163Report Format Version 2.0.4 4.4.7TEST RESULTS...................................................................................................49 4.5POWER SPECTRAL DENSITY MEASUREMENT................................................50 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT..............................50 4.5.2TEST INSTRUMENTS..........................................................................................50 4.5.3TEST PROCEDURE.............................................................................................50 4.5.4DEVIATION FROM TEST STANDARD........…

Text truncated - open the document above for the full version.

Report No.: RF941115L1667Report Format Version 2.0.4 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST (TEST MODE A) Report No.: RF941115L1668Report Format Version 2.0.4 CONDUCTED EMISSION TEST (TEST MODE B) Report No.: RF941115L1669Report Format Version 2.0.4 RADIATED EMISSION TEST (TEST MODE A) Report No.: RF941115L1670Report Format Version 2.0.4 RADIATED EMISSION TEST (TEST MODE B)
