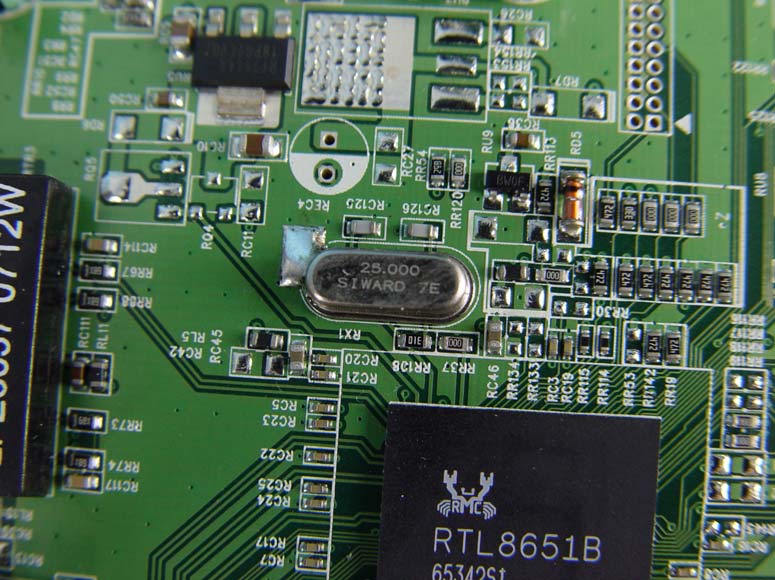

Q87-WRV210Wireless-G VPN Router with RangeBooster

Model No. VPN Router with RangeBooster Wireless-G WRV210 WIRELESS GHz 2.4 802.11g User Guide Wireless-G VPN Router with RangeBooster Copyright and Trademarks Specifications are subject to change without notice. Linksys is a registered trademark or trademark of Cisco Systems, Inc. and/or its affiliates in the U.S. and certain other countries. Copyright © 2006 Cisco Systems, Inc. All rights reserved. Other brands and product names are trademarks or registered trademarks of their respective holders. How to Use this Guide This User Guide has been designed to make understanding networking with the Router easier than ever. Look for the following items when reading this User Guide: In addition to these symbols, there are definitions for technical terms that are presented like this: Also, each figure (diagram, screenshot, or other image) is provided with a figure number and description, like this: Figure numbers and descriptions can also be found in the “List of Figures” section in the “Table of Contents”. WRV210-UG-60407NC BW This exclamation point means there is a caution or warning and is something that could damage your property or the Router. This checkmark means there is a note of interest and is something you should pay special attention to while using the Router. This question mark provides you with a reminder about something you might need to do while using the Router. word: definition. Figure 0-1: Sample Figure Description WARNING:This product contains chemicals, including lead, known to the State of California to cause cancer, and birth defects or other reproductive harm. Wash hands after handling. Wireless-G VPN Router with RangeBooster Table of Contents Chapter 1: Introduction1 Welcome1 What’s in this Guide?2 Chapter 2: Planning Your Wireless Network4 Network Topology4 Ad-Hoc versus Infrastructure Mode4 Network Layout4 Chapter 3: Planning Your Virtual Private Network (VPN)6 Why do I need a VPN?6 What is a VPN?7 Chapter 4: Getting to Know the Wireless-G VPN Router9 The Back Panel9 The Front Panel10 Chapter 5: Connecting the Wireless-G VPN Router11 Overview11 Wired Connection to a PC11 Wireless Connection to a PC12 Chapter 6: Configuring the Wireless-G VPN Router13 Overview13 How to Access the Web-based Utility15 The Setup Tab - Basic Setup15 The Setup Tab - DDNS21 The Setup Tab - MAC Address Clone22 The Setup Tab - Advanced Routing23 The Wireless Tab - Basic Wireless Settings25 The Wireless Tab - Wireless Security26 The Wireless Tab - Wireless Network Access30 The Wireless Tab - Advanced Wireless Settings31 The Firewall Tab - General33 Wireless-G VPN Router with RangeBooster The Firewall Tab - Port Forwarding34 The Firewall Tab - Port Triggering35 The Firewall Tab - DMZ36 The Firewall Tab - Access Restriction37 The Firewall Tab - URL Filtering38 The VPN Tab39 The VPN Tab - VPN Client Access39 The VPN Tab - VPN Passthrough40 The VPN Tab - IPSec VPN41 The VPN Tab - VPN Summary46 The QoS Tab - Application-based QoS48 The QoS Tab - Port-based QoS49 The Administration Tab - Management50 The Administration Tab - Log53 The Administration Tab - Diagnostics54 The Administration Tab - Factory Defaults55 The Administration Tab - Firmware Upgrade55 The Administration Tab - Reboot55 The Status Tab - Router56 The Status Tab - Local Network57 The Status Tab - System Performance59 The Status Tab - VPN Clients60 Appendix A: Troubleshooting61 Common Problems and Solutions61 Frequently Asked Questions69 Appendix B: Wireless Security77 Security Precautions77 Security Threats Facing Wireless Networks77 Appendix C: Using the Linksys QuickVPN Software for Windows 2000 or XP80 Overview80 Before You Begin80 Using the Linksys QuickVPN Software82 Wireless-G VPN Router with RangeBooster Appendix D: Configuring IPSec between a Windows 2000 or XP Computer and the Router84 Introduction84 Environment84 How to Establish a Secure IPSec Tunnel85 Appendix E: Configuring a Gateway-to-Gateway IPSec Tunnel95 Overview95 Before You Begin95 Configuring the VPN Settings for the VPN Routers96 Configuring the Key Management Settings98 Configuring PC 1 and PC 299 Appendix F: Finding the MAC Address and IP Address for your Ethernet Adapter 100 Windows 98 or Me Instructions100 Windows 2000 or XP Instructions101 Appendix G: SNMP Functions102 Appendix H: Upgrading Firmware103 Appendix I: Windows Help104 Appendix J: Glossary105 Appendix K: Specifications110 Appendix L: Warranty Information111 Appendix M: Regulatory Information112 Appendix N: Contact Information118 Wireless-G VPN Router with RangeBooster List of Figures Figure 2-1: Network Diagram5 Figure 3-1: VPN Router to VPN Router8 Figure 3-2: Computer to VPN Router8 Figure 4-1: Back Panel9 Figure 4-2: Front Panel10 Figure 5-1: Connect to LAN Ports11 Figure 5-2: Connect to Internet Port11 Figure 5-3: Connect to Power Port11 Figure 5-4: Connect to Internet Port12 Figure 5-5: Connect to Power Port12 Figure 6-1: Login Screen15 Figure 6-2: Setup Tab - Automatic Configuration - DHCP15 Figure 6-3: Internet Connection Type - Static IP16 Figure 6-4: Internet Connection Type - PPPoE16 Figure 6-5: Internet Connection Type - PPTP17 Figure 6-6: Internet Connection Type - L2TP18 Figure 6-7: Static Table20 Figure 6-8: The Setup Tab - VLAN20 Figure 6-9: The Setup Tab - DDNS - DynDNS.org21 Figure 6-10: The Setup Tab - DDNS - TZO.com21 Figure 6-11: Setup Tab - MAC Address Clone22 Figure 6-12: The Setup Tab - Advanced Routing23 Figure 6-13: Routing Table Entry List24 Figure 6-14: The Wireless Tab - Basic Wireless Settings25 Figure 6-15: Wireless Security - WPA-Personal26 Figure 6-16: Wireless Security - WPA2-Personal26 Figure 6-17: Wireless Security - WPA Enterprise27 Figure 6-18: Wireless Security - WPA2 Enterprise27 Figure 6-19: Wireless Security - WPA2 Personal Mixed28 Figure 6-20: Wireless Security - WPA2 Enterprise Mixed28 Wireless-G VPN Router with RangeBooster Figure 6-21: Wireless Security - RADIUS29 Figure 6-22: Wireless Security - WEP29 Figure 6-23: Wireless Tab - Wireless Network Access3…

Text truncated - open the document above for the full version.

101 Appendix F: Finding the MAC Address and IP Address for your Ethernet Adapter Windows 2000 or XP Instructions Wireless-G VPN Router with RangeBooster Windows 2000 or XP Instructions 1. Click Start and Run. In the Open field, enter cmd. Press the Enter key or click the OK button. 2. At the command prompt, enter ipconfig /all. Then press the Enter key. 3. Write down the Physical Address as shown on your computer screen; it is the MAC address for your Ethernet adapter. This appears as a series of numbers and letters. The MAC address/Physical Address is what you will use for MAC address cloning or MAC filtering. On the MAC Address/Physical Address screen, the example shows the Ethernet adapter’s IP address as 192.168.1.100. Your computer may show something different. Figure F-3: MAC Address/Physical Address Note: The MAC address is also called the Physical Address. 102 Appendix G: SNMP Functions Wireless-G VPN Router with RangeBooster Appendix G: SNMP Functions SNMP (Simple Network Management Protocol) is a widely-used network monitoring and control protocol. Data is passed from a SNMP agent, such as the VPN Router, to the workstation console used to oversee the network. The Router then returns information contained in a MIB (Management Information Base), which is a data structure that defines what is obtainable from the device and what can be controlled (turned off, on, etc.). SNMP functions, such as statistics, configuration, and device information, are not available without third-party Management Software. The Router is compatible with all HP Openview compliant software. 103 Appendix H: Upgrading Firmware Wireless-G VPN Router with RangeBooster Appendix H: Upgrading Firmware You can use the Router’s Web-based Utility to upgrade the firmware; however, if you do so, you will lose the settings you have configured on the Router. Before you upgrade its firmware, write down all of your custom settings. After you upgrade its firmware, you will have to re-enter all of your configuration settings. To upgrade the Router’s firmware, follow these instructions: 1. Download the Router’s firmware upgrade file from the Linksys website, www.linksys.com. 2. Extract the file on your computer. 3. Click the Administration tab and then the Firmware Upgrade tab of the Router’s Web-based Utility. 4. On the Upgrade Firmware screen, enter the location of the extracted firmware upgrade file, or click the Browse button to find this file. 5. Click the Upgrade button, and follow the on-screen instructions. Figure H-1: Upgrade Firmware 104 Appendix I: Windows Help Wireless-G VPN Router with RangeBooster Appendix I: Windows Help Almost all wireless products require Microsoft Windows. Windows is the most used operating system in the world and comes with many features that help make networking easier. These features can be accessed through Windows Help and are described in this appendix. TCP/IP Before a computer can communicate with the Access Point, TCP/IP must be enabled. TCP/IP is a set of instructions, or protocol, all PCs follow to communicate over a network. This is true for wireless networks as well. Your PCs will not be able to utilize wireless networking without having TCP/IP enabled. Windows Help provides complete instructions on enabling TCP/IP. Shared Resources If you wish to share printers, folder, or files over your network, Windows Help provides complete instructions on utilizing shared resources. Network Neighborhood/My Network Places Other PCs on your network will appear under Network Neighborhood or My Network Places (depending upon the version of Windows you're running). Windows Help provides complete instructions on adding PCs to your network. 105 Appendix J: Glossary Wireless-G VPN Router with RangeBooster Appendix J: Glossary This glossary contains some basic networking terms you may come across when using this product. For more advanced terms, see the complete Linksys glossary at http://www.linksys.com/glossary. Access Point - A device that allows wireless-equipped computers and other devices to communicate with a wired network. Also used to expand the range of a wireless network. Ad-hoc - A group of wireless devices communicating directly with each other (peer-to-peer) without the use of an access point. AES (Advanced Encryption Standard) - A security method that uses symmetric 128-bit block data encryption. Bandwidth - The transmission capacity of a given device or network. Bit - A binary digit. Boot - To start a device and cause it to start executing instructions. Broadband - An always-on, fast Internet connection. Browser - An application program that provides a way to look at and interact with all the information on the World Wide Web. Byte - A unit of data that is usually eight bits long. Cable Modem - A device that connects a computer to the cable television network, which in turn connects to the Internet. Daisy Chain - A method used to connect devices in a series, one after the other. DDNS (Dynamic Domain Name System) - Allows the hosting of a website, FTP server, or e-mail server with a fixed domain name (e.g., www.xyz.com) and a dynamic IP address. Default Gateway - A device that forwards Internet traffic from your local area network. DHCP (Dynamic Host Configuration Protocol) - A networking protocol that allows administrators to assign temporary IP addresses to network computers by “leasing” an IP address to a user for a limited amount of time, instead of assigning permanent IP addresses. 106 Appendix J: Glossary Wireless-G VPN Router with RangeBooster DMZ (Demilitarized Zone) - Removes the Router's firewall protection from one PC, allowing it to be “seen” from the Internet. DNS (Domain Name Server) - The IP address of your ISP's server, which translates the names of websites into IP addresses. Domain - A specific name for a network of computers. Download - To receive a file transmitted over a network. DSL (Digital Subscriber Line) - An always-on broadband connection over traditional p…

Text truncated - open the document above for the full version.

Cisco-Linksys LLC 121 Theory Drive Irvine, CA 92617 (USA) Phone: 949-261-1288 Fax: 949-823-3002 FCC DFS Declaration letter FCC ID: Q87-WRV210 Date: October 09, 2007 To whom it may concern: We, the undersigned, declare that the WRV210 ( FCC ID: Q87-WRV210 ) doesn’t have “Ad Hoc on non-US frequencies” and/or “on DFS frequencies” Sincerely, __________________________________________ Jennifer Yu / Program Manager Cisco-Linksys LLC Tel.: ( 949 ) 823-3188 Fax: ( 949 ) 823-3002 [email protected]

Cisco-Linksys LLC 121 Theory Drive Irvine, CA 92617 (USA) Phone: 949-261-1288 Fax: 949-823-3002 Agency Authorization Letter Date: October 09, 2007 To whom it may concern: We, the undersigned, hereby authorize Advance Data Technology Corp. (ADT) of Taiwan to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by ADT within the scope of this authorization shall have the same effects as our own. This authorization shall expire six months from the original date. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, _________________________________________ Jennifer Yu / Program Manager Cisco-Linksys LLC Tel.: ( 949 ) 823-3188 Fax: ( 949 ) 823-3002 [email protected]

Cisco-Linksys LLC 121 Theory Drive Irvine, CA 92617 (USA) Phone: 949-261-1288 Fax: 949-823-3002 Date: October 09, 2007 FCC ID: Q87-WRV210 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, __________________________________________ Jennifer Yu / Program Manager Cisco-Linksys LLC Tel.: ( 949 ) 823-3188 Fax: ( 949 ) 823-3002 [email protected]

Page 3 Page 4 Page 5 Page 6

FCC ID: Q87-WRV210 Report No.: RF941115L16A Operational Description This device is a Wireless-G VPN Router with RangeBooster, which operates in the 2.4GHz frequency spectrum with throughput of up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by AC adapter. The antenna is dipole antenna without connector. The other instruction, please have a look at the users manual.

Report No.: RF941115L16A 1 Report Format Version 2.0.6 Reference No.: 960822L11 FCC TEST REPORT REPORT NO.: RF941115L16A MODEL NO.: WRV210 RECEIVED: Aug. 23, 2007 TESTED: Oct. 05 ~ Oct. 08, 2007 ISSUED: Oct. 11, 2007 APPLICANT : Cisco-Linksys LLC ADDRESS : 121 Theory Drive Irvine, CA 92617 (USA) ISSUED BY : Advance Data Technology Corporation LAB ADDRESS : No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION : No. 19, Hwa Ya 2nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 60 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF, A2LA or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF941115L16A 2 Report Format Version 2.0.6 Reference No.: 960822L11 Table of Contents 1 CERTIFICATION...........................................................................................................4 2 SUMMARY OF TEST RESULTS ..................................................................................5 2.1 MEASUREMENT UNCERTAINTY................................................................................5 3 GENERAL INFORMATION ...........................................................................................6 3.1 GENERAL DESCRIPTION OF EUT .............................................................................6 3.2 DESCRIPTION OF TEST MODES ...............................................................................8 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST ..........................................................8 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ...............................9 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................................10 3.4 DESCRIPTION OF SUPPORT UNITS ....................................................................... 11 4 TEST TYPES AND RESULTS ....................................................................................12 4.1 RADIATED EMISSION MEASUREMENT ..................................................................12 4.1.1 LIMITS OF RADIATED EMISSION MEASUREMENT................................................12 4.1.2 TEST INSTRUMENTS................................................................................................13 4.1.3 TEST PROCEDURES ................................................................................................14 4.1.4 DEVIATION FROM TEST STANDARD.......................................................................14 4.1.5 TEST SETUP..............................................................................................................15 4.1.6 EUT OPERATING CONDITIONS ...............................................................................15 4.1.7 TEST RESULTS .........................................................................................................16 4.2 CONDUCTED EMISSION MEASUREMENT .............................................................25 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT...........................................25 4.2.2 TEST INSTRUMENTS................................................................................................25 4.2.3 TEST PROCEDURES ................................................................................................26 4.2.4 DEVIATION FROM TEST STANDARD.......................................................................26 4.2.5 TEST SETUP..............................................................................................................27 4.2.6 EUT OPERATING CONDITIONS ...............................................................................27 4.2.7 TEST RESULTS .........................................................................................................28 4.3 6dB BANDWIDTH MEASUREMENT..........................................................................34 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT .......................................................34 4.3.2 TEST INSTRUMENTS................................................................................................34 4.3.3 TEST PROCEDURE...................................................................................................34 4.3.4 DEVIATION FROM TEST STANDARD.......................................................................34 4.3.5 TEST SETUP..............................................................................................................35 4.3.6 EUT OPERATING CONDITIONS ...............................................................................35 4.3.7 TEST RESULTS .........................................................................................................36 4.4 MAXIMUM PEAK OUTPUT POWER..........................................................................40 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ..........................40 4.4.2 TEST INSTRUMENTS................................................................................................40 4.4.3 TEST PROCEDURES ................................................................................................41 4.4.4 DEVIATION FROM TEST STANDARD.......................................................................41 4.4.5 TEST SETUP..............................................................................................................41 4.4.6 EUT OPERATING CONDITIONS ...............................................................................41 Report No.: RF941115L16A 3 Report Format Version 2.0.6 Reference No.: 960822L11 4.4.7 TEST RESULTS .........................................................................................................42 4.5 POWER SPECTRAL DENSITY MEASUREMENT .....…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST 2 RADIATED EMISSION TEST
