Q87-WTR54GSWireless-G Travel Router with SpeedBooster

A Division of Cisco Systems, Inc. ® Model No. Trav e l R o u t e r Wireless-G WTR54GS User Guide WIRELESS with SpeedBooster Wireless-G Travel Router with SpeedBooster Copyright and Trademarks Specifications are subject to change without notice. Linksys is a registered trademark or trademark of Cisco Systems, Inc. and/or its affiliates in the U.S. and certain other countries. Copyright © 2005 Cisco Systems, Inc. All rights reserved. Other brands and product names are trademarks or registered trademarks of their respective holders. How to Use This User Guide This User Guide has been designed to make understanding networking with the Wireless-G Travel Router with SpeedBooster easier than ever. Look for the following items when reading this User Guide: In addition to these symbols, there are definitions for technical terms that are presented like this: Also, each figure (diagram, screenshot, or other image) is provided with a figure number and description, like this: Figure numbers and descriptions can also be found in the “List of Figures” section in the “Table of Contents”. This exclamation point means there is a caution or warning and is something that could damage your property or the Wireless-G Travel Router with SpeedBooster This checkmark means there is a note of interest and is something you should pay special attention to while using the Wireless-G Travel Router with SpeedBooster . This question mark provides you with a reminder about something you might need to do while using the Wireless-G Travel Router with SpeedBooster . word: definition. Figure 0-1: Sample Figure Description WTR54GS-UG-50520NC BW WARNING:This product contains chemicals, including lead, known to the State of California to cause cancer, and birth defects or other reproductive harm. Wash hands after handling. Wireless-G Travel Router with SpeedBooster Table of Contents Chapter 1: Introduction1 Welcome1 What’s in this Guide?2 Chapter 2: Planning Your Wireless Network4 Network Topology4 Ad-Hoc versus Infrastructure Mode4 Network Layout4 Chapter 3: Getting to Know the Wireless-G Travel Router with SpeedBooster6 The Front Panel6 The Power Plug and Slide7 Chapter 4: Connecting the Wireless-G Travel Router with SpeedBooster8 Overview8 Hardware Installation8 Chapter 5: Configuring the Wireless-G Travel Router with SpeedBooster10 Overview10 How to Access the Web-based Utility11 The Setup Tab - Basic Setup11 The Setup Tab - DDNS16 The Setup Tab - MAC Address Clone17 The Setup Tab - Advanced Routing18 The Wireless Tab - Basic Wireless Settings19 The Wireless Tab - Wireless Security21 The Wireless Tab - Wireless MAC Filter23 The Wireless Tab - Advanced Wireless Settings24 The Security Tab - Firewall26 The Security Tab - VPN Passthrough27 The Security Tab - VPN27 The Access Restrictions Tab - Internet Access Policy31 The Applications and Gaming Tab - Port Range Forwarding33 The Applications & Gaming Tab - Port Range Triggering35 The Applications and Gaming Tab - DMZ36 The Administration Tab - Management37 Wireless-G Travel Router with SpeedBooster The Administration Tab - Log39 The Administration Tab - Diagnostics40 The Administration Tab - Factory Defaults41 The Administration Tab - Firmware Upgrade41 The Status Tab - Router42 The Status Tab - Local Network43 The Status Tab - Wireless44 Appendix A: Troubleshooting45 Common Problems and Solutions45 Frequently Asked Questions53 Appendix B: Wireless Security60 Security Precautions60 Security Threats Facing Wireless Networks60 Appendix C: Upgrading Firmware63 Appendix D: Windows Help64 Appendix E: Finding the MAC Address and IP Address for Your Ethernet Adapter 65 Windows 98SE or Me Instructions65 Windows 2000 or XP Instructions65 For the Router’s Web-based Utility66 Appendix F: Glossary67 Appendix G: Specifications74 Appendix H: Warranty Information76 Appendix I: Regulatory Information77 Appendix J: Contact Information79 Wireless-G Travel Router with SpeedBooster List of Figures Figure 3-1: The Router’s Front Panel6 Figure 3-2: The Router’s Power Plug and Slide7 Figure 4-1: Connecting to the Internet8 Figure 4-2: Connecting to the PC9 Figure 4-3: Connecting the Power9 Figure 5-1: Router’s IP Address11 Figure 5-2: Router Login Screen11 Figure 5-3: Basic Setup11 Figure 5-4: Wireless Internet Type12 Figure 5-5: Setup Tab - Basic Setup - DHCP Internet Connection Type12 Figure 5-6: Static IP Connection Type13 Figure 5-7: PPPoE Connection Type13 Figure 5-8: PPTP Connection Type14 Figure 5-9: Static DHCP Client List15 Figure 5-10: DHCP Client Table15 Figure 5-11: DynDNS.org16 Figure 5-12: TZO.com17 Figure 5-13: Setup Tab - MAC Address Clone17 Figure 5-14: Setup Tab - Advanced Routing18 Figure 5-15: Setup Tab - Advanced Routing - Routing Table18 Figure 5-16: Wireless Tab - Basic Wireless Settings19 Figure 5-17: Wireless Tab - Wireless Security (WEP)21 Figure 5-18: Wireless Tab - Wireless Security (WPA Personal)21 Figure 5-19: Wireless Tab - Wireless Security (WPA2-Personal)22 Figure 5-20: Wireless Tab - Wireless Security (WPA2-Mixed)22 Figure 5-21: Wireless Tab - Wireless MAC Filter23 Figure 5-22: Wireless Tab - Wireless Client List23 Figure 5-23: Wireless Tab - Advanced Wireless Settings24 Figure 5-24: Security Tab - Firewall26 Figure 5-25: Security Tab - VPN Passthrough27 Wireless-G Travel Router with SpeedBooster Figure 5-26: Security Tab - VPN27 Figure 5-27: Security Tab - VPN - Summary28 Figure 5-28: Security Tab - VPN - Advanced VPN Tunnel Setup30 Figure 5-29: Access Restrictions Tab - Internet Access Policy31 Figure 5-30: Access Restrictions Tab - Summary32 Figure 5-31: Access Restrictions Tab - Internet Access PCs List32 Figure 5-32: Applications and Gaming Tab - Port Range Forwarding33 Figure 5-33: Applications and Gaming Tab - Port Range Triggering35 Figure 5-34: Applications and Gaming Tab - DMZ36 Figure 5-35: Administration Tab - Management37 Figure 5-36: Administration Tab - Log39 Figure 5-37: Incoming Log39 Figure 5-38: Administration Tab - Diagnostics40 Figure 5-39: Ping…

Text truncated - open the document above for the full version.

15 Chapter 5: Configuring the Wireless-G Travel Router with SpeedBooster The Setup Tab - Basic Setup Wireless-G Travel Router with SpeedBooster Router IP IP Address and Subnet Mask. This shows both the Router’s IP Address and Subnet Mask, as seen by your network. The default IP Address is 192.168.16.1, and the default Subnet Mask is 255.255.255.0. In most cases, keeping the default values will work. DHCP Server Setting The settings allow you to configure the Router’s Dynamic Host Configuration Protocol (DHCP) server function. The Router can be used as a DHCP server for your network. A DHCP server automatically assigns an IP address to each computer on your network. If you choose to enable the Router’s DHCP server option, you must make sure there is no other DHCP server on your network. DHCP Server. DHCP is enabled by factory default. If you already have a DHCP server on your network, or you don’t want a DHCP server, then select Disabled (no other DHCP features will be available). Static DHCP. Every time a PC reboots, it is assigned a new local IP address by the Router. If you want a PC to be assigned the same IP address every time it reboots, then click the Static IP button. On the DHCP Client List screen, enter the static local IP address in the Assign this IP field, and enter the MAC address of the PC in the To this MAC field. Then click the Enabled checkbox. When you have finished your entries, click the Save Settings button to save your changes. Click the Cancel Changes button to cancel your changes. To exit this screen, click the Close button. If you want to see a list of DHCP clients, click the DHCP Client Table button. On the DHCP Client Table screen, you will see a list of DHCP clients with the following information: Client Name, Interface, IP Addresse, and MAC Addresse. To save the information, select Static DHCP Client List. From the To So rt by drop-down menu, you can sort the table by Client Name, Interface, IP Address, or MAC Address. To view the most up-to-date information, click the Refresh button. To exit this screen, click the Close button. Start IP Address. Enter a value for the DHCP server to start with when issuing IP addresses. Because the Router’s default IP address is 192.168.16.1, the Starting IP Address must be 192.168.1.2 or greater, but smaller than 192.168.1.254. The default Starting IP Address is 192.168.16.100. Maximum Number of Users. Enter the maximum number of PCs that you want the DHCP server to assign IP addresses to. This number cannot be greater than 253. The default is 50. IP Address Range. The range of DHCP addresses is displayed here. Client Lease Time. The Client Lease Time is the amount of time a network user will be allowed connection to the Router with their current dynamic IP address. Enter the amount of time, in minutes, that the user will be “leased” Figure 5-9: Static DHCP Client List Figure 5-10: DHCP Client Table 16 Chapter 5: Configuring the Wireless-G Travel Router with SpeedBooster The Setup Tab - DDNS Wireless-G Travel Router with SpeedBooster this dynamic IP address. After the time is up, the user will be automatically assigned a new dynamic IP address. The default is 0 minutes, which means one day. Static DNS (1-3). Your ISP will provide you with at least one DNS (Domain Name System) Server IP Address. WINS. The Windows Internet Naming Service (WINS) manages each PC’s interaction with the Internet. If you use a WINS server, enter that server’s IP Address here. Otherwise, leave this blank. Time Settings Change the time zone in which your network functions from this pull-down menu. Click the checkbox if you want the Router to automatically adjust for daylight savings time. Change these settings as described here and click the Save Settings button to apply your changes or Cancel Changes to cancel your changes. Help information is shown on the right-hand side of the screen. The Setup Tab - DDNS The Router offers a Dynamic Domain Name System (DDNS) feature. DDNS lets you assign a fixed host and domain name to a dynamic Internet IP address. It is useful when you are hosting your own website, FTP server, or other server behind the Router. Before you can use this feature, you need to sign up for DDNS service at one of two DDNS service providers, DynDNS.org or TZO.com. If you do not want to use this feature, keep the default setting, Disabled. DDNS DDNS Service. If your DDNS service is provided by DynDNS.org, then select DynDNS.org from the drop-down menu. If your DDNS service is provided by TZO, then select TZO.com. The features available on the DDNS screen will vary, depending on which DDNS service provider you use. DynDNS.org User Name, Password, and Host Name. Enter the User Name, Password, and Host Name of the account you set up with DynDNS.org. Internet IP Address. The Router’s current Internet IP Address is displayed here. Because it is dynamic, it will change. Status. The status of the DDNS service connection is displayed here. dynamic ip address: a temporary IP address assigned by a DHCP server. Figure 5-11: DynDNS.org 17 Chapter 5: Configuring the Wireless-G Travel Router with SpeedBooster The Setup Tab - MAC Address Clone Wireless-G Travel Router with SpeedBooster TZO.com E-mail Address, TZO Password, and Domain Name. Enter the Email Address, Password, and Domain Name of the service you set up with TZO. Internet IP Address. The Router’s current Internet IP Address is displayed here. Because it is dynamic, this will change. Status. The status of the DDNS service connection is displayed here. When you have finished making changes to this screen, click the Save Settings button to apply your changes or Cancel Changes to cancel your changes. Help information is shown on the right-hand side of the screen. The Setup Tab - MAC Address Clone A MAC address is a 12-digit code assigned to a unique piece of hardware for identification. Some ISPs will require you to register a MAC address in order to access the Internet. If you do not wish to r…

Text truncated - open the document above for the full version.

33 Chapter 5: Configuring the Wireless-G Travel Router with SpeedBooster The Applications and Gaming Tab - Port Range Forwarding Wireless-G Travel Router with SpeedBooster The Applications and Gaming Tab - Port Range Forwarding The Port Range Forwarding screen allows you to set up public services on your network, such as web servers, ftp servers, e-mail servers, or other specialized Internet applications. (Specialized Internet applications are any applications that use Internet access to perform functions such as videoconferencing or online gaming. Some Internet applications may not require any forwarding.) Before using forwarding, you should assign static IP addresses to the designated PCs. Port Range Forwarding To forward a port, enter the information on each line for the criteria required. Descriptions of each criteria are described here. Application Name. Each drop-down menu offers a choice of ten preset applications (select None if you do not want to use any of the preset applications). Select up to five preset applications. For custom applications, enter the name of your application in one of the available fields. The preset applications are among the most widely used Internet applications. They include the following: DNS (Domain Name System). The way that Internet domain names are located and translated into IP addresses. A domain name is a meaningful and easy-to-remember “handle” for an Internet address. Finger. A UNIX command widely used on the Internet to find out information about a particular user, such as a telephone number, whether the user is currently logged on, and the last time the user was logged on. The person being “fingered” must have placed his or her profile on the system in order for the information to be available. Fingering requires entering the full user@domain address. FTP (File Transfer Protocol). A protocol used to transfer files over a TCP/IP network (Internet, UNIX, etc.). For example, after developing the HTML pages for a website on a local machine, they are typically uploaded to the web server using FTP. POP3 (Post Office Protocol 3). A standard mail server commonly used on the Internet. It provides a message store that holds incoming e-mail until users log on and download it. POP3 is a simple system with little selectivity. All pending messages and attachments are downloaded at the same time. POP3 uses the SMTP messaging protocol. SMTP (Simple Mail Transfer Protocol). The standard e-mail protocol on the Internet. It is a TCP/IP protocol that defines the message format and the message transfer agent (MTA), which stores and forwards the mail. tcp: a network protocol for transmitting data that requires acknowledgement from the recipient of data sent. udp: a network protocol for transmitting data that does not require acknowledgement from the recipient of the data that is sent. Figure 5-32: Applications and Gaming Tab - Port Range Forwarding 34 Chapter 5: Configuring the Wireless-G Travel Router with SpeedBooster The Applications and Gaming Tab - Port Range Forwarding Wireless-G Travel Router with SpeedBooster SNMP (Simple Network Management Protocol). A widely used network monitoring and control protocol. Data is passed from SNMP agents, which are hardware and/or software processes reporting activity in each network device (hub, router, bridge, etc.) to the workstation console used to oversee the network. The agents return information contained in a MIB (Management Information Base), which is a data structure that defines what is obtainable from the device and what can be controlled (turned off, on, etc.). Te lnet. A terminal emulation protocol commonly used on Internet and TCP/IP-based networks. It allows a user at a terminal or computer to log onto a remote device and run a program. TFTP (Trivial File Transfer Protocol). A version of the TCP/IP FTP protocol that has no directory or password capability. Web. The Internet. Start/End Port. This is the port range. Enter the port number or range of external ports used by the server or Internet application. Check with the software documentation of the Internet application for more information. Protocol. Select the protocol(s) used for this application, TCP and/or UDP. To IP A dd re ss. For each application, enter the IP address of the PC running the specific application. Enabled. Click the Enabled checkbox to enable port forwarding for the relevant application. Change these settings as described here and click the Save Settings button to apply your changes or Cancel Changes to cancel your changes. Help information is shown on the right-hand side of the screen. 35 Chapter 5: Configuring the Wireless-G Travel Router with SpeedBooster The Applications & Gaming Tab - Port Range Triggering Wireless-G Travel Router with SpeedBooster The Applications & Gaming Tab - Port Range Triggering The Port Range Triggering screen allows the Router to watch outgoing data for specific port numbers. The IP address of the computer that sends the matching data is remembered by the Router, so that when the requested data returns through the Router, the data is pulled back to the proper computer by way of IP address and port mapping rules. Port Range Triggering Application Name. Enter the application name of the trigger. Triggered Range. For each application, list the triggered port number range. Check with the Internet application documentation for the port number(s) needed. In the first field, enter the starting port number of the Triggered Range. In the second field, enter the ending port number of the Triggered Range. Forwarded Range. For each application, list the forwarded port number range. Check with the Internet application documentation for the port number(s) needed. In the first field, enter the starting port number of the Forwarded Range. In the second field, enter the ending port number of the Forwarded Range. Enabled. Click the Enabled checkbox to enable port range triggering for the relevant application. Change these s…

Text truncated - open the document above for the full version.

Cisco -Linksys LLC 121 Theory Drive Irvine, CA 92617 (USA) Phone: 949-823-3188 Fax: 949-823-3002 Date: March 28, 2005 FCC ID: Q87-WTR54GS Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, _________________________________________ Jennifer Yu / Associate Engineer Cisco -Linksys LLC Tel.: (949) 823-3188 Fax: (949) 823-3002 [email protected]

Cisco -Linksys LLC 121 Theory Drive Irvine, CA 92617 (USA) Phone: 949-823-3188 Fax: 949-823-3002 Agency Authorization Letter Date: March 28, 2005 To whom it may concern: We, the undersigned, hereby authorize Advance Data Technology Corp. (ADT) of Taiwan to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by ADT within the scope of this authorization shall have the same effects as our own. This authorization shall expire six months from the original date. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, _________________________________________ Jennifer Yu / Associate Engineer Cisco-Linksys LLC Tel.: (949) 823-3188 Fax: (949) 823-3002 [email protected]

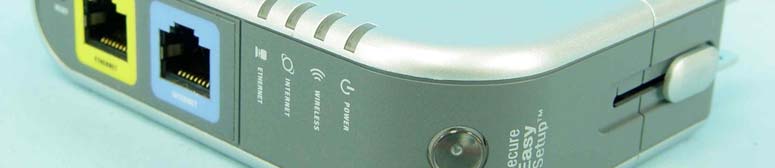

Model No.: WTR54GS Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

FCC ID Label Location (FCC ID: Q87-WTR54GS)

NOTES: 1. : Front label/Travel Router/Linksys PANTONE 2718C Black FCC Label /Travel Router(WTR54GS)/Linksys 9320QZ0008 37.0 36.0 Power: 3.3V 1.5A

Page 3 Page 4 Page 5 Page 6 Page 7 Page 8

FCC ID: Q87-WTR54GS Report No. RF940301L03 Operational Description This device is a Wireless-G Travel Router with SpeedBooster which operates in the 2.4GHz frequency spectrum with throughput of up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by AC adapter. The antenna is PIFA antenna without antenna connector. The other instruction, please have a look at the users manual.

FCC ID: Q87-WTR54GS Report No: SA940301L03 1 RF EXPOSURE REPORT REPORT NO.: SA940301L03 MODEL NO.: WTR54GS ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Cisco-Linksys LLC ADDRESS: 121 Theory Drive Irvine, CA 92617 (USA) ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID: Q87-WTR54GS Report No: SA940301L03 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: Q87-WTR54GS Report No: SA940301L03 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance r. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification This device is not fixed inside the host equipment, it is connected with host through wire. So it is easy to be re-located in the place where at least 20cm far away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: Q87-WTR54GS Report No: SA940301L03 4 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 1.8dBi or 1.51356(numeric) 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For DSSS: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241247.2060.0141.0 6243747.4240.0141.0 11246246.8810.0141.0 For OFDM: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241230.2000.0091.0 6243730.4090.0091.0 11246230.5490.0091.0

FCC ID: Q87-WTR54GS Report No.: RF940301L031Report Format Version 2.0.2 FCC TEST REPORT REPORT NO.: RF940301L03 MODEL NO.: WTR54GS RECEIVED: Mar. 01, 2005 TESTED: Apr. 07 ~ Apr. 26, 2005 ISSUED: Apr. 27, 2005 APPLICANT: Cisco-Linksys LLC ADDRESS: 121 Theory Drive Irvine, CA 92617 (USA) ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 66 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA FCC ID: Q87-WTR54GS Report No.: RF940301L032Report Format Version 2.0.2 Table of Contents 1.CERTIFICATION ..................................................................................................... 4 2.SUMMARY OF TEST RESULTS ............................................................................. 5 2.1MEASUREMENT UNCERTAINTY .......................................................................... 5 3.GENERAL INFORMATION...................................................................................... 6 3.1GENERAL DESCRIPTION OF EUT........................................................................ 6 3.2DESCRIPTION OF TEST MODES.......................................................................... 7 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST ..................................................... 7 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL: ......................... 8 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ....................................... 10 3.4DESCRIPTION OF SUPPORT UNITS .................................................................. 10 4.TEST TYPES AND RESULTS ............................................................................... 11 4.1CONDUCTED EMISSION MEASUREMENT ........................................................ 11 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT...................................... 11 4.1.2 TEST INSTRUMENTS........................................................................................... 11 4.1.3 TEST PROCEDURES ........................................................................................... 12 4.1.4 DEVIATION FROM TEST STANDARD ................................................................. 12 4.1.5 TEST SETUP ........................................................................................................ 13 4.1.6 EUT OPERATING CONDITIONS .......................................................................... 13 4.1.7 TEST RESULTS .................................................................................................... 14 4.2RADIATED EMISSION MEASUREMENT ............................................................. 20 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT........................................... 20 4.2.2 TEST INSTRUMENTS........................................................................................... 21 4.2.3 TEST PROCEDURES ........................................................................................... 22 4.2.4 DEVIATION FROM TEST STANDARD ................................................................. 22 4.2.5 TEST SETUP ........................................................................................................ 23 4.2.6 EUT OPERATING CONDITIONS .......................................................................... 23 4.2.7 TEST RESULTS .................................................................................................... 24 4.36dB BANDWIDTH MEASUREMENT .................................................................... 35 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT .................................................. 35 4.3.2 TEST INSTRUMENTS........................................................................................... 35 4.3.3 TEST PROCEDURE ............................................................................................. 36 4.3.4 DEVIATION FROM TEST STANDARD ................................................................. 36 4.3.5 TEST SETUP ........................................................................................................ 36 4.3.6 EUT OPERATING CONDITIONS .......................................................................... 36 4.3.7 TEST RESULTS .................................................................................................... 37 4.4MAXIMUM PEAK OUTPUT POWER .................................................................... 43 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT..................... 43 4.4.2 INSTRUMENTS..................................................................................................... 43 4.4.3 TEST PROCEDURES ........................................................................................... 44 FCC ID: Q87-WTR54GS Report No.: RF940301L033Report Format Version 2.0.2 4.4.4 DEVIATION FROM TEST STANDARD ................................................................. 44 4.4.5 TEST SETUP ...........................................…
