A Division of Cisco Systems, Inc. ® Model No. Media Storage Link Router Wireless-G WRTSL54GS User Guide WIRELESS GHz 2.4 802.11g with SpeedBooster Wireless-G Media Storage Link Router with SpeedBooster Copyright and Trademarks Specifications are subject to change without notice. Linksys is a registered trademark or trademark of Cisco Systems, Inc. and/or its affiliates in the U.S. and certain other countries. Copyright © 2005 Cisco Systems, Inc. All rights reserved. Other brands and product names are trademarks or registered trademarks of their respective holders. How to Use This User Guide This User Guide has been designed to make understanding networking with the Wireless-G Media Storage Link Router with SpeedBooster easier than ever. Look for the following items when reading this User Guide: In addition to these symbols, there are definitions for technical terms that are presented like this: Also, each figure (diagram, screenshot, or other image) is provided with a figure number and description, like this: Figure numbers and descriptions can also be found in the “List of Figures” section in the “Table of Contents”. This exclamation point means there is a caution or warning and is something that could damage your property or the Router. This checkmark means there is a note of interest and is something you should pay special attention to while using the Router. This question mark provides you with a reminder about something you might need to do while using the Router. word: definition. Figure 0-1: Sample Figure Description WRTSL54GS-UG-50928NC JL WARNING:This product contains chemicals, including lead, known to the State of California to cause cancer, and birth defects or other reproductive harm. Wash hands after handling. Wireless-G Media Storage Link Router with SpeedBooster Table of Contents Chapter 1: Introduction1 Welcome1 What’s in this User Guide?2 Chapter 2: Planning Your Wireless Network4 Network Topology4 Ad-Hoc versus Infrastructure Mode4 Network Layout4 Chapter 3: Getting to Know the Wireless-G Media Storage Link Router6 The Back Panel6 The Front Panel7 Chapter 4: Connecting the Wireless-G Media Storage Link Router8 Instructions for Connecting the Router8 Placement Options10 Chapter 5: Configuring the Wireless-G Media Storage Link Router12 Overview12 The Setup Tab - Basic Setup13 The Setup Tab - DDNS18 The Setup Tab - MAC Address Clone19 The Setup Tab - Advanced Routing20 The Wireless Tab - Basic Wireless Settings22 The Wireless Tab - Wireless Security24 The Wireless Tab - Wireless MAC Filter27 The Wireless Tab - Advanced Wireless Settings28 The Security Tab - Firewall30 The Security Tab - VPN Passthrough31 The Storage Tab - Disk32 The Storage Tab - Share33 The Storage Tab - Administration34 The Storage Tab - Media Server36 The Access Restrictions Tab - Internet Access37 The Applications and Gaming Tab - Port Range Forward39 The Applications & Gaming Tab - Port Triggering40 Wireless-G Media Storage Link Router with SpeedBooster The Applications and Gaming Tab - DMZ41 The Applications and Gaming Tab - QoS42 The Administration Tab - Management44 The Administration Tab - Log45 The Administration Tab - Diagnostics46 The Administration Tab - Factory Defaults47 The Administration Tab - Firmware Upgrade47 The Administration Tab - Config Management47 The Status Tab - Router48 The Status Tab - Local Network49 The Status Tab - Wireless50 Appendix A: Troubleshooting51 Common Problems and Solutions51 Frequently Asked Questions59 Appendix B: Wireless Security67 Security Precautions67 Security Threats Facing Wireless Networks67 Appendix C: Upgrading Firmware70 Appendix D: Windows Help71 Appendix E: Finding the MAC Address and IP Address for Your Ethernet Adapter72 Windows 98SE or Me Instructions72 Windows 2000 or XP Instructions72 For the Router’s Web-based Utility73 Appendix F: Glossary74 Appendix G: Specifications79 Appendix H: Warranty Information81 Appendix I: Regulatory Information82 Appendix J: Contact Information88 Wireless-G Media Storage Link Router with SpeedBooster List of Figures Figure 3-1: The Router’s Back Panel6 Figure 3-2: The Router’s Front Panel7 Figure 4-1: Connect the USB Disk8 Figure 4-2: Connect the Broadband Modem9 Figure 4-3: Connect Your Network Devices9 Figure 4-4: Connect the Power10 Figure 4-5: Stand in Closed Position10 Figure 4-6: Wall-Mount Slots11 Figure 5-1: Login Screen12 Figure 5-2: Setup Tab - Basic Setup13 Figure 5-3: DHCP Connection Type13 Figure 5-4: Static IP Connection Type13 Figure 5-5: PPPoE Connection Type14 Figure 5-6: PPTP Connection Type14 Figure 5-7: L2TP Connection Type15 Figure 5-8: Telstra Cable Connection Type15 Figure 5-9: Optional Settings16 Figure 5-10: Router IP16 Figure 5-11: Network Address Server Settings16 Figure 5-12: Time Setting17 Figure 5-13: Setup Tab - DDNS (DynDNS.org)18 Figure 5-14: Setup Tab - DDNS (TZO.com)18 Figure 5-15: Setup Tab - MAC Address Clone19 Figure 5-16: Setup Tab - Advanced Routing (Gateway)20 Figure 5-17: Setup Tab - Advanced Routing (Router)20 Figure 5-18: Routing Table Entry List21 Figure 5-19: Wireless Tab - Basic Wireless Settings22 Figure 5-20: SecureEasySetup Ready Screen23 Figure 5-21: Wireless Tab - Wireless Security (WPA Personal)24 Figure 5-22: Wireless Tab - Wireless Security (WPA Enterprise)24 Figure 5-23: Wireless Tab - Wireless Security (WPA2 Personal)25 Wireless-G Media Storage Link Router with SpeedBooster Figure 5-24: Wireless Tab - Wireless Security (WPA2 Enterprise)25 Figure 5-25: Wireless Tab - Wireless Security (RADIUS)26 Figure 5-26: Wireless Tab - Wireless Security (WEP)26 Figure 5-27: Wireless Tab - Wireless MAC Filter27 Figure 5-28: MAC Address Filter List27 Figure 5-29: Wireless Tab - Advanced Wireless Settings28 Figure 5-30: Security Tab - Firewall30 Figure 5-31: Security Tab - VPN Passthrough31 Figure 5-32: Storage Tab - Disk32 Figure 5-33: Claim Disk32 Figure 5-34: Storage Tab - Claimed Disk32 Figure 5-35: Storage Tab - Share33 Figure 5-36: Share Properties33 Figure 5-37: Shar…

Text truncated - open the document above for the full version.

51 Appendix A: Troubleshooting Common Problems and Solutions Wireless-G Media Storage Link Router with SpeedBooster Appendix A: Troubleshooting This appendix consists of two parts: “Common Problems and Solutions” and “Frequently Asked Questions.” Provided are possible solutions to problems that may occur during the installation and operation of the Router. Read the descriptions below to help you solve your problems. If you can’t find an answer here, check the Linksys website at www.linksys.com. Common Problems and Solutions 1. I’m trying to access the Router’s Web-based Utility, but I do not see the login screen. Instead, I see a screen saying, “404 Forbidden.” If you are using Windows Explorer, perform the following steps until you see the Web-based Utility’s login screen (Netscape Navigator will require similar steps): 1. Click File. Make sure Work Offline is NOT checked. 2. Press CTRL + F5. This is a hard refresh, which will force Windows Explorer to load new webpages, not cached ones. 3. Click Tools. Click Internet Options. Click the Security tab. Click the Default level button. Make sure the security level is Medium or lower. Then click the OK button. 2. I need to set a static IP address on a PC. You can assign a static IP address to a PC by performing the following steps: •For Windows 98SE and Me: 1. Click Start, Settings, and Control Panel. Double-click Network. 2. In The following network components are installed box, select the TCP/IP-> associated with your Ethernet adapter. If you only have one Ethernet adapter installed, you will only see one TCP/IP line with no association to an Ethernet adapter. Highlight it and click the Properties button. 3. In the TCP/IP properties window, select the IP address tab, and select Specify an IP address. Enter a unique IP address that is not used by any other computer on the network connected to the Router. Make sure that each IP address is unique for each PC or network device. 4. Click the Gateway tab, and in the New Gateway prompt, enter 192.168.1.1, which is the default IP address of the Router. Click the Add button to accept the entry. 5. Click the DNS tab, and make sure the DNS Enabled option is selected. Enter the Host and Domain names (e.g., John for Host and home for Domain). Enter the DNS entry provided by your ISP. If your ISP has not provided the DNS IP address, contact your ISP to get that information or go to its website for the information. 6. Click the OK button in the TCP/IP properties window, and click Close or the OK button for the Network window. 7. Restart the computer when asked. 52 Appendix A: Troubleshooting Common Problems and Solutions Wireless-G Media Storage Link Router with SpeedBooster •For Windows 2000: 1. Click Start, Settings, and Control Panel. Double-click Network and Dial-Up Connections. 2. Right-click the Local Area Connection that is associated with the Ethernet adapter you are using, and select the Properties option. 3. In the Components checked are used by this connection box, highlight Internet Protocol (TCP/IP), and click the Properties button. Select Use the following IP address option. 4. Enter a unique IP address that is not used by any other computer on the network connected to the Router. 5. Enter the Subnet Mask, 255.255.255.0. 6. Enter the Default Gateway, 192.168.1.1 (Router’s default IP address). 7. Toward the bottom of the window, select Use the following DNS server addresses, and enter the Preferred DNS server and Alternative DNS server (provided by your ISP). Contact your ISP or go on its website to find the information. 8. Click the OK button in the Internet Protocol (TCP/IP) Properties window, and click the OK button in the Local Area Connection Properties window. 9. Restart the computer if asked. •For Windows XP: The following instructions assume you are running Windows XP with the default interface. If you are using the Classic interface (where the icons and menus look like previous Windows versions), please follow the instructions for Windows 2000. 1. Click Start and Control Panel. 2. Click the Network and Internet Connections icon and then the Network Connections icon. 3. Right-click the Local Area Connection that is associated with the Ethernet adapter you are using, and select the Properties option. 4. In the This connection uses the following items box, highlight Internet Protocol (TCP/IP). Click the Properties button. 5. Enter a unique IP address that is not used by any other computer on the network connected to the Router. 6. Enter the Subnet Mask, 255.255.255.0. 7. Enter the Default Gateway, 192.168.1.1 (Router’s default IP address). 8. Toward the bottom of the window, select Use the following DNS server addresses, and enter the Preferred DNS server and Alternative DNS server (provided by your ISP). Contact your ISP or go on its website to find the information. 9. Click the OK button in the Internet Protocol (TCP/IP) Properties window. Click the OK button in the Local Area Connection Properties window. 3. I want to test my Internet connection. ACheck your TCP/IP settings. For Windows 98SE, Me, 2000, and XP: •Refer to Windows Help for details. Make sure Obtain IP address automatically is selected in the settings. 53 Appendix A: Troubleshooting Common Problems and Solutions Wireless-G Media Storage Link Router with SpeedBooster BOpen a command prompt. For Windows 98SE and Me: •Click Start and Run. In the Open field, type command. Press the Enter key or click the OK button. For Windows 2000 and XP: •Click Start and Run. In the Open field, type cmd. Press the Enter key or click the OK button. In the command prompt, type ping 192.168.1.1 and press the Enter key. •If you get a reply, the computer is communicating with the Router. •If you do NOT get a reply, please check the cable, and make sure Obtain an IP address automatically is selected in the TCP/IP settings for your Ethernet adapter. CIn the command prompt, type ping followed by your Internet or WAN IP address and press the Enter…

Text truncated - open the document above for the full version.

Cisco-Linksys LLC 121 Theory Drive Irvine, CA 92617(USA) Phone: ( 949 ) 823-3188 Fax: ( 949 ) 823-3002 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request FCC ID: Q87-WTSLGS Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ------------------------------------------------------------------------------ Jennifer Yu / Associate Engineer Cisco-Linksys LLC Phone: 949-823-3188 Fax: 949-823-3002 [email protected]

Cisco-Linksys LLC 121 Theory Drive Irvine, CA 92617(USA) Phone: ( 949 ) 823-3188 Fax: ( 949 ) 823-3002 Power of Attorney To whom it may concern: We, the undersigned Cisco-Linksys LLC hereby authorize Advance Data Technology Corporation (ADT) of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15C approval and any communication needed with the national authority. Any and all acts carried out by ADT on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, ------------------------------------------------------------------------------- Jennifer Yu / Associate Engineer Cisco-Linksys LLC Phone: 949-823-3188 Fax: 949-823-3002 [email protected]

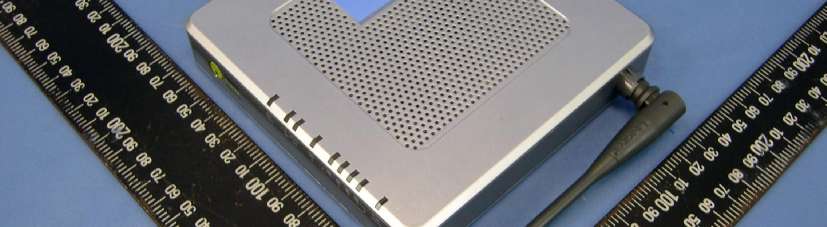

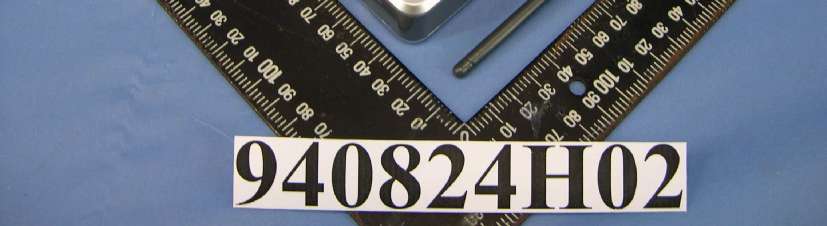

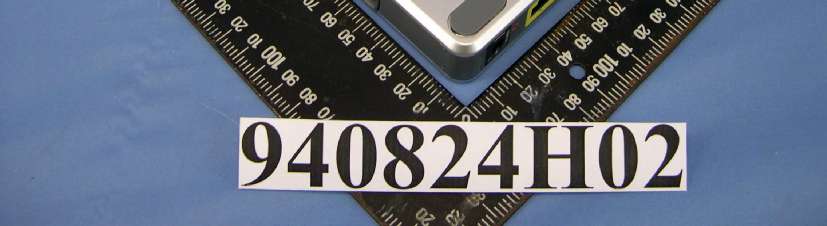

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

(Fig. 1) FCC ID: Q87-WTSLGS FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

Page 3 Page 4 Page 5 Page 6 Page 7 Page 8 Page 9 Page 10 Page 11

FCC ID: Q87-WTSLGS Report No. RF940824H02 Operational Description This device is a Wireless-G Media Storage Link Router with SpeedBooster, the maximum data rate could be up to 54Mbps which OFDM technique will be applied. If the signal to noise ratio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT (Wireless-G Media Storage Link Router with SpeedBooster) is powered by Power Adapter. The antenna type used in this product is Dipole Antenna without connector. The other instruction, please have a look at the users manual.

FCC ID: Q87-WTSLGS Report No.: SA940824H02 1 RF EXPOSURE REPORT REPORT NO.: SA940824H02 MODEL NO.: WRTSL54GS ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Cisco-Linksys LLC ADDRESS: 121 Theory Drive Irvine, CA 92617(USA) ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. FCC ID: Q87-WTSLGS Report No.: SA940824H02 2 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: Q87-WTSLGS Report No.: SA940824H02 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device FCC ID: Q87-WTSLGS Report No.: SA940824H02 4 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 1.8dBi or 1.51356(numeric) 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For Part 802.11b: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 12412100.23050.03021.0 62437102.80160.03101.0 112462101.85910.03071.0 For Part 802.11g: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 12412112.20180.03381.0 62437113.24000.03411.0 112462111.68630.03361.0

FCC ID: Q87-WTSLGS Report No.: RF940824H021Report Format Version 2.0.2 FCC TEST REPORT REPORT NO.:RF940824H02 MODEL NO.: WRTSL54GS RECEIVED:Aug. 24, 2005 TESTED:Aug. 30 to Sep. 05, 2005 ISSUED: Sep. 06, 2005 APPLICANT:Cisco-Linksys LLC ADDRESS:121 Theory Drive Irvine, CA 92617(USA) ISSUED BY:Advance Data Technology Corporation LAB LOCATION:No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 60 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. The test results in this report are traceable to the national or international standards. 0536 No. 2177-01 ILAC MRA FCC ID: Q87-WTSLGS Report No.: RF940824H022Report Format Version 2.0.2 Table of Contents 1CERTIFICATION ........................................................................................... 4 2SUMMARY OF TEST RESULTS................................................................... 5 3GENERAL INFORMATION ........................................................................... 6 3.1GENERAL DESCRIPTION OF EUT.............................................................. 6 3.2DESCRIPTION OF TEST MODES................................................................ 7 3.3TEST MODE APPLICABLITY AND TESTED CHANNEL DETAIL: ................ 8 3.4GENERAL DESCRIPTION OF APPLIED STANDARDS ............................... 9 3.5DESCRIPTION OF SUPPORT UNITS........................................................ 10 3.6CONFIGURATION OF SYSTEM UNDER TEST ..........................................11 4TEST TYPES AND RESULTS..................................................................... 12 4.1CONDUCTED EMISSION MEASUREMENT .............................................. 12 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT ........................... 12 4.1.2TEST INSTRUMENTS ................................................................................ 12 4.1.3TEST PROCEDURES................................................................................. 13 4.1.4TEST SETUP .............................................................................................. 13 4.1.5EUT OPERATING CONDITIONS................................................................ 14 4.1.6TEST RESULTS.......................................................................................... 15 4.2RADIATED EMISSION MEASUREMENT ................................................... 17 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT ................................ 17 4.2.2TEST INSTRUMENTS ................................................................................ 18 4.2.3TEST PROCEDURES................................................................................. 19 4.2.4TEST SETUP .............................................................................................. 20 4.2.5EUT OPERATING CONDITIONS................................................................ 20 4.2.6TEST RESULTS.......................................................................................... 21 4.2.7TEST RESULTS – DSSS ............................................................................ 22 4.2.8TEST RESULTS – OFDM ........................................................................... 25 4.36dB BANDWIDTH MEASUREMENT .......................................................... 28 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT........................................ 28 4.3.2TEST INSTRUMENTS ................................................................................ 28 4.3.3TEST PROCEDURE ................................................................................... 29 4.3.4TEST SETUP .............................................................................................. 29 4.3.5EUT OPERATING CONDITIONS................................................................ 29 4.3.6TEST RESULTS – DSSS ............................................................................ 30 4.3.7TEST RESULTS – OFDM ........................................................................... 33 4.4MAXIMUM PEAK OUTPUT POWER .......................................................... 36 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ........... 36 4.4.2TEST INSTRUMENTS ................................................................................ 36 4.4.3TEST PROCEDURES................................................................................. 37 4.4.4TEST SETUP .............................................................................................. 37 FCC ID: Q87-WTSLGS Report No.: RF940824H023Report Format Version 2.0.2 4.4.5EUT OPERATING CONDITIONS................................................................ 37 4.4.6TEST RESULTS – DSSS ............................................................................ 38 4.4.7TEST RESULTS – OFDM ........................................................................... 39 4.5POWER SPECTRAL DENSITY MEASUREMENT...................................... 40 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ................... 40 4.5.2TEST INSTRUMENTS ................................................................................ 40 4.5.3TEST PROCEDURE ................................................................................... 41 4.5.4TEST SETUP .............................................................................................. 41 4.5.5EUT OPERATING CONDITIONS................................................................ 41 4.5.6TEST RESULTS – DSSS ............................................................................ 42 4.5.7TEST RESULTS – OFDM ........................................................................... 45 …

Text truncated - open the document above for the full version.

FCC ID: Q87-WTSLGS Report No.: RF940824H0256Report Format Version 2.0.2 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: Q87-WTSLGS Report No.: RF940824H0257Report Format Version 2.0.2 RADIATED EMISSION TEST
