Cisco-Linksys, LLC 121 Theory Drive Irvine, CA 92612 (USA) Phone: 949-823-3188 Fax: 949-823-3002 Date: July 5, 2004 FEDERAL COMMUNICATIONS COMMISSION DECLARATION OF CONFORMITY (DoC) Cisco-Linksys, LLC declares that the equipment described in this document is within the requirements of the Code of Federal Regulations listed below: Product Name: Wireless-G Portable USB Adapter Model Number: WUSB54GP ver. 4 This device complies with the limits for a Class B digital device pursuant to IEEE ANSI C63.4 and FCC Part 15 subpart B of the Rules and Regulations. The test result has been shown in the ADT test report with numbered D930629L11. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. The Part 15 radio device operates on a non-interference basis with other devices operation at this frequency. Any change or modification to the product not expressly approved by Linksys could void the user’s authority to operate the device. Jennifer Yu / Associate Engineer Cisco-Linksys, LLC Tel.: ( 949 ) 823-3188 Fax: ( 949 ) 823-3002 [email protected]

A Division of Cisco Systems, Inc. ® Model No. Portable USB Adapter Wireless-G WUSB54GP v4 Linksys is a registered trademark or trademark of Cisco Systems, Inc. and/or its affiliates in the U.S. and certain other countries. User Guide WIRELESS GHz 2.4 802.11g Wireless-G Portable USB Adapter Copyright and Trademarks Specifications are subject to change without notice. Linksys is a registered trademark or trademark of Cisco Systems, Inc. and/or its affiliates in the U.S. and certain other countries. Copyright © 2004 Cisco Systems, Inc. All rights reserved. Other brands and product names are trademarks or registered trademarks of their respective holders. How to Use this User Guide This User Guide has been designed to make understanding networking with the Wireless-G Portable USB Adapter easier than ever. Look for the following items when reading this User Guide: In addition to these symbols, there are definitions for technical terms that are presented like this: Also, each figure (diagram, screenshot, or other image) is provided with a figure number and description, like this: Figure numbers and descriptions can also be found in the "List of Figures" section in the “Table of Contents”. This exclamation point means there is a Caution or warning and is something that could damage your property or the Wireless-G Portable USB Adapter. This checkmark means there is a Note of interest and is something you should pay special attention to while using the Wireless-G Portable USB Adapter. This question mark provides you with a reminder about something you might need to do while using the Wireless-G Portable USB Adapter. word: definition. Figure 0-1: Sample Figure Description Wireless-G Portable USB Adapter Table of Contents Chapter 1: Introduction1 Welcome1 What’s in this Guide?2 Chapter 2: Planning your Wireless Network4 Network Topology4 Roaming4 Network Layout5 Chapter 3: Software Installation and Configuration for Windows 20006 Chapter 4: Connecting the Portable USB Adapter10 Using the USB Extension Base11 Chapter 5: Driver Installation for Windows XP12 Windows XP Wireless Zero Configuration13 Chapter 6: Using the WLAN Monitor15 Overview15 Accessing the WLAN Monitor15 The Link Information Tab15 The Site Survey Tab17 The Profiles Tab18 Creating a New Profile20 Appendix A: Troubleshooting24 Common Problems and Solutions24 Frequently Asked Questions25 Security Precautions28 Security Threats Facing Wireless Networks28 Appendix B: Wireless Security28 Appendix C: Windows Help31 Appendix D: Glossary32 Appendix E: Specifications35 Appendix F: Warranty Information37 Appendix G: Regulatory Information38 Appendix H: Contact Information39 Wireless-G Portable USB Adapter Appendix I: Windows Help31 Appendix J: Glossary32 Appendix K: Specifications35 Appendix L: Warranty Information37 Appendix M: Regulatory Information38 Appendix N: Contact Information39 Wireless-G Portable USB Adapter List of Figures Figure 3-1: The Setup Wizard’s Welcome Screen6 Figure 3-2: The License Agreement Screen7 Figure 3-3: The Wireless Mode Screen7 Figure 3-4: The Ad-Hoc Mode Settings Screen8 Figure 3-5: The Wireless Security Screen8 Figure 3-6: The Check Settings Screen9 Figure 3-7: The Congratulations Screen9 Figure 4-1: The Portable USB Adapter on Your Laptop10 Figure 4-2: A USB Port10 Figure 4-3: The Windows 2000 Digital Signature Screen11 Figure 5-1: XP Setup Welcome Screen12 Figure 5-2: Windows logo testing screen12 Figure 5-3: New Hardware Found screen12 Figure 5-4: Windows XP Wireless Zero Configuration icon13 Figure 5-5: Network Connection - No WEP13 Figure 5-6: Network Connection - WEP14 Figure 5-7: Optional Settings14 Figure 6-1: The Wireless Icon15 Figure 6-2: The Link Information Tab15 Figure 6-3: The Link Information Tab - More Information16 Figure 6-4: The Site Survey Tab17 Figure 6-5: The Profiles Tab18 Figure 6-6: Importing a Profile19 Figure 6-7: Optional Settings19 Figure 6-8: The Profiles Tab20 Figure 6-9: Create Connection Profile20 Figure 6-10: Profiles - Network Settings21 Figure 6-11: Profiles - Wireless Mode21 Figure 6-12: Profiles - Ad-Hoc Settings22 Figure 6-13: Profiles - Security Settings22 Wireless-G Portable USB Adapter Figure 6-14: Profiles - Confirm New Settings23 Figure 6-15: Profiles - Congratulations23 1 Chapter 1: Introduction Welcome Wireless-G Portable USB Adapter Chapter 1: Introduction Welcome Thank you for choosing the Wireless-G Portable USB Adapter. With this Adapter, your wireless networking experience will be faster and easier than ever. How does the Adapter do this? Like all wireless products, the Adapter allows for greater range and mobility within your wireless network. Connecting to your PC via the USB port means that this Adapter leaves the PC’s slots open for other purposes. This adapter communicates over the 802.11g wireless standard, one of the newest wireless standards, to communicate with your network. But what does all of this mean? Networks are useful tools for sharing computer resources. You can access one printer from different computers and access data located on another computer's hard drive. Networks are even used for playing multiplayer video games. So, networks are not only useful in homes and offices, they can also be fun. PCs equipped with wireless cards and adapters can communicate without cumbersome cables. By sharing the same wireless settings, within their transmission radius, they form a wireless network. Use the instructions in this Guide to help you connect the Adapter, set it up, and configure it for your network. These instructions should be all you need to get the most out of the Adapter. 802.11g: an IEEE wireless networking standard that specifies a maximum data transfer rate of 54Mbps, an operating frequency of 2.4GHz, and backward compatibility with 802.11b devices. adapter: a device that adds network functionality to your PC. network: a series of computers or devices connected for the purpose of data sharing, storage, and/or transmission between users. 2…

Text truncated - open the document above for the full version.

Cisco-Linksys, LLC 121 Theory Drive Irvine, CA 92612 (USA) Phone: 949-823-3188 Fax: 949-823-3002 Date: July 5, 2004 FCC ID: Q87-WU54GPV4 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, __________________________________________ Jennifer Yu / Associate Engineer Cisco-Linksys, LLC Tel.: ( 949 ) 823-3188 Fax: ( 949 ) 823-3002 [email protected]

Cisco-Linksys, LLC 121 Theory Drive Irvine, CA 92612 (USA) Phone: 949-823-3188 Fax: 949-823-3002 Agency Authorization Letter Date: July 5, 2004 To whom it may concern: We, the undersigned, hereby authorize Advance Data Technology Corp. (ADT) of Taiwan to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by ADT within the scope of this authorization shall have the same effects as our own. This authorization shall expire six months from the original date. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, __________________________________________ Jennifer Yu / Associate Engineer Cisco-Linksys, LLC Tel.: ( 949 ) 823-3188 Fax: ( 949 ) 823-3002 [email protected]

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 July 19, 2004 RE: Cisco-Linksys, LLC. FCC ID: Q87-WU54GPV4 After a review of the submitted information, I have a few comments on the above referenced Application. SAR REPORT 1) The probe calibration information on the plots (4.6, 4.6, 4.6) does not appear to agree with calibration information or the information on page 6. It appears the probe information given is for the incorrect S/N. 2) The dipole validation information appears outdated. Please provide the correct information that matches the required value on page 23 (14.3). 3) The Standard Value for 2462 MHz for Conductivity on page 20 appears incorrect. Please review. 4) The measurement Value for 2462 Permitivity on page 20 appears out of spec or incorrect. Please review. 5) The liquid parameter values specified on the plots do not appear to match page 20. Please explain. a) FYI....Note that check for consistency in liquid parameters in calibration, system verification, and device testing could not be verified due to questions above. USERS MANUAL 6) Information in the users manual should identify SAR spacing and/or approved test configurations (page 44). 7) FYI...Declaration of Conformity information in the manual is lacking information. All the following information should be placed on a single page in the users manual for the end user. COMPLIANCE INFORMATION FOR DoC AUTHORIZATIONS (47CFR 2.1077) If a product is tested and authorized under a Declaration of Conformity, a compliance information statement shall be supplied with the product at the time of marketing or importation, containing the following information on a single page (as a separate sheet or in the users manual): (1) Identification of the product, i.e. name and model number. NOTE THIS IS ALREADY ON PAGE 44. (2) A statement similar to that contained in Section 15.19(a)(3) that the product complies with Part 15 of the regulations. NOTE THIS IS ALREAY ON PAGE 44. (3) The identification, by name, address and telephone number, of the responsible party. The responsible party is defined as either the manufacturer, or if the equipment is imported, the importer. The responsible party for a Declaration of Conformity must be located within the United States. THIS INFORMATION APPEARS TO BE MISSING FROM PAGE 44. z Page 2 July 19, 2004 Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

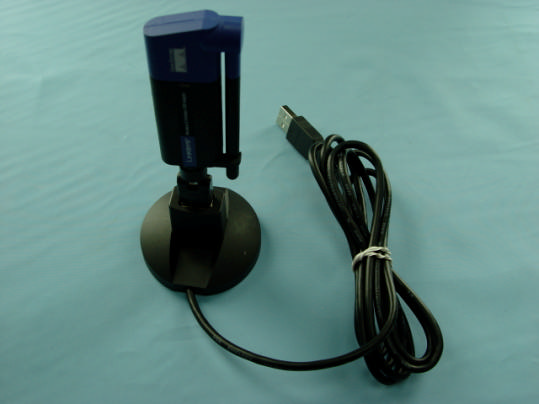

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

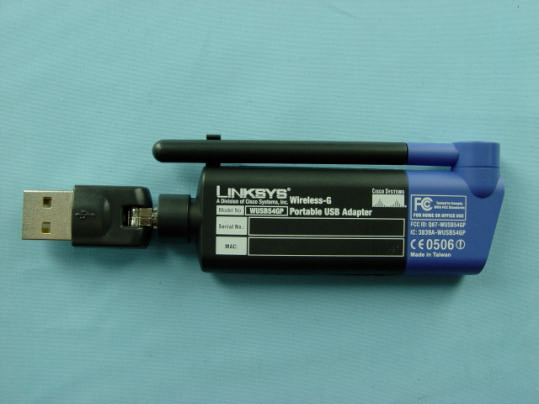

Label Location

FCC ID: Q87-WU54GPV4 IC:3839A-WU54GPV4

Page 4 Page 5 Page 6 Page 7 Page 8

FCC ID: Q87-WU54GPV4 Report No.RF930629L11 Operational Description This device is a Wireless-G Portable USB Adapter which operates in the 2.4GHz frequency spectrum with throughput of up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT is powered by host equipment. The antenna is Sleeve dipole antenna without antenna connector. The other instruction, please have a look at the users manual.

FCC ID: Q87-WU54GPV4 Report No.: SA930629L111Issued: July 8, 2004 SAR TEST REPORT REPORT NO.: SA930629L11 MODEL NO.: WUSB54GP ver. 4 RECEIVED: June 30, 2004 TESTED: July 6, 2004 APPLICANT: Cisco-Linksys, LLC ADDRESS: 121 Theory Drive, Irvine, CA 92612, U.S.A. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 19, Hwa Ya 2nd rd., Kueishan, Taoyuan, Taiwan, R.O.C. This test report consists of 31 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA or any government agency. The test results in the report only apply to the tested sample. 0528 ILAC MRA FCC ID: Q87-WU54GPV4 Report No.: SA930629L112Issued: July 8, 2004 Table of Contents 1.CERTIFICATION...........................................................................................................3 2.GENERAL INFORMATION...........................................................................................4 2.1GENERAL DESCRIPTION OF EUT.............................................................................4 2.2GENERAL DESCRIPTION OF APPLIED STANDARDS..............................................5 2.3GENERAL INOFRMATION OF THE SAR SYSTEM....................................................5 2.4GENERAL DESCRIPTION OF THE SPATIAL PEAK SAR EVALUATION ..................9 3.DESCRIPTION OF TEST MODES AND CONFIGURATIONS...................................13 4.DESCRIPTION OF SUPPORT UNITS.......................................................................14 5.TEST RESULTS..........................................................................................................15 5.1TEST PROCEDURES................................................................................................15 5.2MEASURED SAR RESULT........................................................................................16 5.3SAR LIMITS.................................................................................................................18 5.4RECIPES FOR TISSUE SIMULATING LIQUIDS.......................................................18 5.5TEST EQUIPMENT FOR TISSUE PROPERTY.........................................................20 6.SYSTEM VALIDATION................................................................................................21 6.1TEST EQUIPMENT.....................................................................................................21 6.2TEST PROCEDURE...................................................................................................21 6.3VALIDATION RESULT................................................................................................23 6.4SYSTEM VALIDATION UNCERTAINTIES.................................................................24 7.MEASUREMENT SAR PROCEDURE UNCERTAINTIES.........................................25 7.1PROBE CALIBRATION UNCERTAINTY....................................................................25 7.2ISOTROPY UNCERTAINTY.......................................................................................25 7.3BOUNDARY EFFECT UNCERTAINTY......................................................................26 7.4PROBE LINEARITY UNCERTAINTY..........................................................................26 7.5READOUT ELECTRONICS UNCERTAINTY.............................................................26 7.6RESPONSE TIME UNCERTAINTY............................................................................27 7.7INTEGRATION TIME UNCERTAINTY........................................................................28 7.8PROBE POSITIONER MECHANICAL TOLERANCE................................................28 7.9PROBE POSITIONING...............................................................................................29 7.10PHANTOM UNCERTAINTY........................................................................................29 7.11DASY4 UNCERTAINTY BUDGET..............................................................................30 8.INFORMATION ON THE TESTING LABORATORIES...............................................31 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA APPENDIX B: ADT SAR MEASUREMENT SYSTEM APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION FCC ID: Q87-WU54GPV4 Report No.: SA930629L113Issued: July 8, 2004 1. CERTIFICATION PRODUCT : Wireless-G Portable USB Adapter MODEL NO. : WUSB54GP ver. 4 BRAND NAME : Linksys APPLICANT : Cisco-Linksys, LLC TESTED: July 6, 2004 TEST ITEM : Engineering Sample STANDARDS : FCC Part 2 (Section 2.1093), FCC OET Bulletin 65, Supplement C (01-01), RSS-102 The above equipment has been tested by Advance Data Technology Corporation, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY:, DATE:July 8, 2004 APPROVED BY: Windy Chou , DATE:July 8, 2004 Cody Chang / Supervisor FCC ID: Q87-WU54GPV4 Report No.: SA930629L114Issued: July 8, 2004 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT PRODUCT Wireless-G Portable USB Adapter MODEL NO. WUSB54GP ver. 4 POWER SUPPLY 5.0Vdc powered by host equipment CLASSIFICATION Portable device, production unit MODULATION TYPE BPSK, QPSK, CCK, 16QAM, 64QAM RADIO TECHNOLOGY DSSS, OFDM TRANSFER RATE 54/48/36/24/18/12/11/9/6/5.5/2/1Mbps FREQUENCY RANGE 2412MHz ~ 2462MHz NUMBER OF CHANNEL 11 MAXIMUN CONDUCTED OUTPUT POWER (FOR CCK) 16.00dBm MAXIMUN CONDUCTED OUTPUT POWER (FOR OFDM) 15.00dBm ANTENNA TYPE Sleeve dipole antenna with 1dBi gain AVERAGE SAR(1g) (FOR CCK) 0.299W/kg AVERAGE SAR(1g) (FOR OFDM) 0.090W/kg DATA CABLE 1.8m shielded cable without core I/O PORTS USB ASSOCIATE…

Text truncated - open the document above for the full version.

APPENDIX B: ADT SAR MEASUREMENT SYSTEM APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION D1: SAM PHANTOM D2: 2450MHZ SYSTEM VALIDATION DIPOLE

D3: DOSIMETRIC E-FIELD PROBE

FCC ID: Q87-WU54GPV4 Report No.: RF930629L111Issued: July 6, 2004 FCC TEST REPORT REPORT NO.: RF930629L11 MODEL NO.: WUSB54GP ver. 4 RECEIVED: May 31, 2004 TESTED: May 31 ~ July 5, 2004 APPLICANT: Cisco-Linksys, LLC ADDRESS: 121 Theory Drive, Irvine, CA 92612, U.S.A. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 19, Hwa Ya 2nd rd., Kueishan, Taoyuan, Taiwan, R.O.C. This test report consists of 74 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA FCC ID: Q87-WU54GPV4 Report No.: RF930629L112Issued: July 6, 2004 Table of Contents 1CERTIFICATION.......................................................................................................4 2SUMMARY OF TEST RESULTS............................................................................5 3GENERAL INFORMATION.....................................................................................6 3.1GENERAL DESCRIPTION OF EUT......................................................................6 3.2DESCRIPTION OF TEST MODES........................................................................7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS...................................7 3.4DESCRIPTION OF SUPPORT UNITS..................................................................8 3.5CONFIGURATION OF SYSTEM UNDER TEST.................................................9 4TEST TYPES AND RESULTS..............................................................................10 4.1CONDUCTED EMISSION MEASUREMENT.....................................................10 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT................................10 4.1.2TEST INSTRUMENTS...........................................................................................10 4.1.3TEST PROCEDURES...........................................................................................11 4.1.4DEVIATION FROM TEST STANDARD...............................................................11 4.1.5TEST SETUP..........................................................................................................12 4.1.6EUT OPERATING CONDITIONS........................................................................13 4.1.7TEST RESULTS......................................................................................................14 4.2RADIATED EMISSION MEASUREMENT..........................................................20 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT......................................20 4.2.2TEST INSTRUMENTS...........................................................................................21 4.2.3TEST PROCEDURES...........................................................................................22 4.2.4DEVIATION FROM TEST STANDARD...............................................................22 4.2.5TEST SETUP..........................................................................................................23 4.2.6EUT OPERATING CONDITIONS........................................................................23 4.2.7TEST RESULTS......................................................................................................24 4.2.8TEST RESULTS (A)...............................................................................................28 4.2.9TEST RESULTS (B)...............................................................................................31 4.36dB BANDWIDTH MEASUREMENT..................................................................34 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT..............................................34 4.3.2TEST INSTRUMENTS...........................................................................................34 4.3.3TEST PROCEDURE..............................................................................................35 4.3.4DEVIATION FROM TEST STANDARD...............................................................35 4.3.5TEST SETUP..........................................................................................................35 4.3.6EUT OPERATING CONDITIONS........................................................................35 4.3.7TEST RESULTS (A)...............................................................................................36 FCC ID: Q87-WU54GPV4 Report No.: RF930629L113Issued: July 6, 2004 4.3.8TEST RESULTS (B)...............................................................................................40 4.4MAXIMUM PEAK OUTPUT POWER..................................................................44 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT.............44 4.4.2TEST INSTRUMENTS...........................................................................................44 4.4.3TEST PROCEDURES...........................................................................................45 4.4.4DEVIATION FROM TEST STANDARD...............................................................45 4.4.5TEST SETUP..........................................................................................................45 4.4.6EUT OPERATING CONDITIONS........................................................................45 4.4.7TEST RESULTS (A)...............................................................................................46 4.4.8TEST RESULTS (B)...............................................................................................47 4.5POWER SPECTRAL DENSITY MEASUREMENT...........................................48 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT.......................48 4.5.2TEST INSTRUMENTS...........................................................................................48 4.5.3TEST PR…

Text truncated - open the document above for the full version.

FCC ID: Q87-WU54GPV4 Report No.: RF930629L1151Issued: July 6, 2004 CH1 FCC ID: Q87-WU54GPV4 Report No.: RF930629L1152Issued: July 6, 2004 CH6 FCC ID: Q87-WU54GPV4 Report No.: RF930629L1153Issued: July 6, 2004 CH11 FCC ID: Q87-WU54GPV4 Report No.: RF930629L1154Issued: July 6, 2004 4.5.8 TEST RESULTS (B) EUT Wireless-G Portable USB Adapter MODEL WUSB54GP ver. 4 INPUT POWER (SYSTEM) 120 Vac, 60 Hz ENVIRONMENTAL CONDITIONS 25 deg. C, 60% RH, 991 hPa TESTED BY Gary Chang CHANNEL NUMBER CHANNEL FREQUENCY (MHz ) RF POWER LEVEL IN 3KHz BW (dBm) MAXIMUM LIMIT (dBm) PASS/FAIL 12412-14.508PASS 62437-16.098PASS 112462-17.638PASS FCC ID: Q87-WU54GPV4 Report No.: RF930629L1155Issued: July 6, 2004 CH1 FCC ID: Q87-WU54GPV4 Report No.: RF930629L1156Issued: July 6, 2004 CH6 FCC ID: Q87-WU54GPV4 Report No.: RF930629L1157Issued: July 6, 2004 CH11 FCC ID: Q87-WU54GPV4 Report No.: RF930629L1158Issued: July 6, 2004 4.6 BAND EDGES MEASUREMENT 4.6.1 LIMITS OF BAND EDGES MEASUREMENT Below –20dB of the highest emission level of operating band (in 100kHz Resolution Bandwidth). 4.6.2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until SPECTRUM ANALYZERFSEK30100049Aug. 12, 2004 NOTE: The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 4.6.3 TEST PROCEDURE The transmitter output was connected to the spectrum analyzer via a low lose cable. Set both RBW and VBW of spectrum analyzer to 100kHz with suitable frequency span including 100MHz bandwidth from band edge. The band edges was measured and recorded. 4.6.4 DEVIATION FROM TEST STANDARD No deviation 4.6.5 EUT OPERATING CONDITION Same as Item 4.3.6 FCC ID: Q87-WU54GPV4 Report No.: RF930629L1159Issued: July 6, 2004 4.6.6 TEST RESULTS (A) The spectrum plots are attached on the following 4 pages. D2 line indicates the highest level, D1 line indicates the 20dB offset below D2. It shows compliance with the requirement in part 15.247(C). NOTE: The band edge emission plot on the following 1~2 pages show 57.65dB delta between carrier maximum power and local maximum emission in restrict band (2.3861GHz). The emission of carrier strength list in the test result of channel 1 at the item 4.2.8 is 105.69dBuV/m, so the maximum field strength in restrict band is 105.69-57.65=48.04dBuV/m which is under 54dBuV/m limit. The band edge emission plot on the following 3~4 pages show 60.92dB delta between carrier maximum power and local maximum emission in restrict band (2.4897GHz). The emission of carrier strength list in the test result of channel 11 at the item 4.2.8 is 105.12dBuV/m, so the maximum field strength in restrict band is 105.12-60.92=44.20dBuV/m which is under 54dBuV/m limit. FCC ID: Q87-WU54GPV4 Report No.: RF930629L1160Issued: July 6, 2004 FCC ID: Q87-WU54GPV4 Report No.: RF930629L1161Issued: July 6, 2004 FCC ID: Q87-WU54GPV4 Report No.: RF930629L1162Issued: July 6, 2004 FCC ID: Q87-WU54GPV4 Report No.: RF930629L1163Issued: July 6, 2004 FCC ID: Q87-WU54GPV4 Report No.: RF930629L1164Issued: July 6, 2004 4.6.7 TEST RESULTS (B) The spectrum plots are attached on the following 4 pages. D2 line indicates the highest level and D1 line indicates the 20dB offset below D2. It shows compliance with the requirement in part 15.247(C). NOTE: The band edge emission plot on the following 1~2 pages show 47.96dB delta between carrier maximum power and local maximum emission in restrict band (2.3893GHz). The emission of carrier strength list in the test result of channel 1 at the item 4.2.9 is 101.28dBuV/m, so the maximum field strength in restrict band is 101.28-47.96=53.32dBuV/m which is under 54dBuV/m limit. The band edge emission plot on the following 3~4 pages show 52.59dB delta between carrier maximum power and local maximum emission in restrict band (2.4835GHz). The emission of carrier strength list in the test result of channel 11 at the item 4.2.9 is 100.84dBuV/m, so the maximum field strength in restrict band is 100.84-52.59=48.25dBuV/m which is under 54dBuV/m limit. FCC ID: Q87-WU54GPV4 Report No.: RF930629L1165Issued: July 6, 2004 FCC ID: Q87-WU54GPV4 Report No.: RF930629L1166Issued: July 6, 2004 FCC ID: Q87-WU54GPV4 Report No.: RF930629L1167Issued: July 6, 2004 FCC ID: Q87-WU54GPV4 Report No.: RF930629L1168Issued: July 6, 2004 FCC ID: Q87-WU54GPV4 Report No.: RF930629L1169Issued: July 6, 2004 4.7 ANTENNA REQUIREMENT 4.7.1 STANDARD APPLICABLE For intentional device, according to FCC 47 CFR Section 15.203, an intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible party shall be used with the device. And according to FCC 47 CFR Section 15.247 (b), if transmitting ant…
