Model No. Model No. USER GUIDE BUSINESS SERIES Model No. Model No. Wireless-G with Ports Model No. WUSB200 4-portuter Business USB Network Adapter Wireless with RangeBooster Wireless-G Business USB Network Adapter with RangeBooster Copyright and Trademarks Specifications are subject to change without notice. Linksys is a registered trademark or trademark of Cisco Systems, Inc. and/or its affiliates in the U.S. and certain other countries. Copyright © 2006 Cisco Systems, Inc. All rights reserved. Other brands and product names are trademarks or registered trademarks of their respective holders. How to Use this User Guide This user guide has been designed to make understanding networking with the USB Network Adapter easier than ever. Look for the following items when reading this User Guide: In addition to these symbols, there are definitions for technical terms that are presented like this: Also, each figure (diagram, screenshot, or other image) is provided with a figure number and description, like this: Figure numbers and descriptions can also be found in the "List of Figures" section. This exclamation point means there is a caution or warning and is something that could damage your property or the USB Network Adapter. word: definition. This checkmark means there is a note of interest and is something you should pay special attention to while using the USB Network Adapter. This question mark provides you with a reminder about something you might need to do while using the USB Network Adapter. Figure 0-1: Sample Figure Description WUSB200-UG-60107NC BW WARNING:This product contains chemicals, including lead, known to the State of California to cause cancer, and birth defects or other reproductive harm. Wash hands after handling. Wireless-G Business USB Network Adapter with RangeBooster Table of Contents Chapter 1: Introduction1 Welcome1 What’s in this User Guide?2 Chapter 2: Planning your Wireless Network4 Network Topology4 Roaming4 Network Layout5 Chapter 3: Getting to Know the Wireless-G Business USB Network Adapter6 The LED Indicator6 Chapter 4: Setting up and Connecting the Wireless-G Business USB Network Adapter 7 Starting the Setup7 Connecting the Adapter8 Setting up the Adapter9 Chapter 5: Using the Wireless Network Monitor19 Accessing the Wireless Network Monitor19 Using the Wireless Network Monitors19 Link Information19 Profiles22 Create a New Profile23 Editing a Profile32 Site Survey41 Troubleshooting42 Administration42 Chapter 6: The Administrative Functions in the Wireless Network Monitor45 Accessing the Wireless Network Monitor45 Using the Administrative Functions in the Wireless Network Monitor45 Classification46 Security Monitor49 Appendix A: Troubleshooting61 Common Problems and Solutions61 Frequently Asked Questions62 Appendix B: Windows XP Wireless Zero Configuration65 Wireless-G Business USB Network Adapter with RangeBooster Windows XP Wireless Zero Configuration65 Appendix C: Wireless Security68 Security Precautions68 Security Threats Facing Wireless Networks68 Appendix D: Windows Help71 Appendix E: Glossary72 Appendix F: Specifications77 Appendix G: Warranty Information79 Appendix H: Regulatory Information80 Appendix I: Contact Information86 Wireless-G Business USB Network Adapter with RangeBooster List of Figures Figure 3-1: LED 6 Figure 4-1: Setup Wizard’s Welcome Screen 7 Figure 4-2: Setup Wizard’s License Agreement 8 Figure 4-3: Connecting the Adapter 8 Figure 4-4: Available Wireless Network 9 Figure 4-5: WEP 10 Figure 4-6: WPA - Personal 10 Figure 4-7: WPA2 - Personal 11 Figure 4-8: Confirm New Settings 11 Figure 4-9: Congratulations 11 Figure 4-10: Creating a Profile 12 Figure 4-11: Network Settings - Wireless Mode 12 Figure 4-12: Ad-Hoc Mode Settings 13 Figure 4-13: Wireless Security - WEP 13 Figure 4-14: Wireless Security - WPA Personal 14 Figure 4-15: Wireless Security - WPA2 Personal 14 Figure 4-16: Wireless Security - WPA Enterprise-EAP-TLS 15 Figure 4-17: Wireless Security - WPA Enterprise-PEAP 15 Figure 4-18: Wireless Security - WPA2 Enterprise-EAP 16 Figure 4-19: Wireless Security - WPA2 Enterprise-PEAP 16 Figure 4-20: Wireless Security - RADIUS - EAP-TLS 17 Figure 4-21: Wireless Security - RADIUS - PEAP 17 Figure 4-22: Wireless Security - LEAP 18 Figure 4-23: Congratulations Screen 18 Figure 5-1: Wireless Network Monitor Icon 19 Figure 5-2: Link Information - Connection 19 Figure 5-3: Link Information - Wireless Network Status 20 Figure 5-4: Link Information - Wireless Network Statistics 21 Figure 5-5: Profiles 22 Figure 5-6: Import a Profile 22 Figure 5-7: Export a Profile 22 Figure 5-8: Creating a Profile - Available Wireless Network 23 Wireless-G Business USB Network Adapter with RangeBooster Figure 5-9: Creating a Profile - WEP Key Needed 23 Figure 5-10: Creating a Profile - WPA-Personal 24 Figure 5-11: Creating a Profile - Congratulations 24 Figure 5-12: Creating a Profile - Manual Setup - Network Settings 25 Figure 5-13: Creating a Profile - Manual Setup - Wireless Mode 25 Figure 5-14: Creating a Profile - Manual Setup - Wireless Security - Disabled 26 Figure 5-15: Creating a Profile - Manual Setup - Wireless Security - WEP 26 Figure 5-16: Creating a Profile - Manual Setup - Wireless Security - WPA Personal 27 Figure 5-17: Creating a Profile - Manual Setup - Wireless Security - WPA2 Personal 27 Figure 5-18: Creating a Profile - Manual Setup - Wireless Security - WPA Enterprise - EAP-TLS 28 Figure 5-19: Creating a Profile - Manual Setup - Wireless Security - WPA Enterprise - PEAP 28 Figure 5-20: Creating a Profile - Manual Setup - Wireless Security - WPA2 Enterprise - EAP-TLS 29 Figure 5-21: Creating a Profile - Manual Setup - Wireless Security - WPA2 Enterprise - PEAP 29 Figure 5-22: Creating a Profile - Manual Setup - Wireless Security - RADIUS - EAP-TLS 30 Figure 5-23: Creating a Profile - Manual Setup - Wireless Security - RADIUS - PEAP 30 Figure 5-24: Creating a Profile - Manual Setup - Wireless Security - LEAP 31 Figure 5-25: Creating a Prof…

Text truncated - open the document above for the full version.

44 Chapter 5: Using the Wireless Network Monitor Administration Wireless-G Business USB Network Adapter with RangeBooster Security Monitor Account The Security Monitor Account screen provides you with the function to create and modify your Security Monitor account. The Security Monitor account gives access to the administrative functions of the Wireless Network Monitor. Enter the administrator’s username and password and retype the password in the confirm field. Click Next to proceed with more administrative options. You can select an account from the drop-down menu to create or modify the username and password. There are a total of five accounts available. Click Save to save your existing changes. The username and password for the Security Monitor administrator account do not need to be the same as the Access Point's administrator account. Figure 5-49: Administration - Security Monitor Account 45 Chapter 6: The Administrative Functions in the Wireless Network Monitor Accessing the Wireless Network Monitor Wireless-G Business USB Network Adapter with RangeBooster Chapter 6: The Administrative Functions in the Wireless Network Monitor When used with the WAP200 Access Point, you can use the administration functions in the Wireless Network Monitor to classify your wireless networks into different groups and monitor the activities and resources within your networks. The following functions under Classification and Security Monitor screens are only enabled after an administrator or privileged user enters a valid username and password. Accessing the Wireless Network Monitor After installing the Adapter, the Wireless Network Monitor icon will appear in the system tray of your computer. If the Wireless Network Monitor is enabled, then the icon will be green. If the Wireless Network Monitor is disabled or the Adapter is not connected, then the icon will be gray. Using the Administrative Functions in the Wireless Network Monitor The Administration tab will give you access to the administrative tasks of the account information and other functions, such as classification and monitoring of your wireless networks. The Classification and Security Monitor functions will be provided after logging in to the Security Monitor account on the Administration screen. To configure trusted and untrusted wireless networks, click the Classification tab. To view the summarized report of the monitored wireless activities and alert messages, click the Security Monitor. NOTE:You must associate with a WAP200 Access Point to be able to log in to the Security Monitor. NOTE:You will need to log in with a valid Security Monitor account to view the screens in this chapter. Figure 6-1: Wireless Network Monitor Icon Figure 6-2: Administration - Login Security Monitor Administration - Login Security Monitor Account Figure 6-3: Classification 46 Chapter 6: The Administrative Functions in the Wireless Network Monitor Classification Wireless-G Business USB Network Adapter with RangeBooster Classification The Classification tab displays a summary of classified devices. The Classification Summary table shows the number of access points and clients classified as trusted and untrusted by MAC addresses in your networks. It also shows the number of allowed vendors, SSIDs, and channels. You may uncheck the Receive classification rules to disable a client from receiving the network's current classification rules. The default condition is checked, so each client always receives classification rules in synchronization with other clients in the network. You may also click the Synchronize button to send out the classification rules to other users within your monitored wireless networks. Click Next to configure your trusted networks. AP Classification The AP Classification Screen lets you classify the existing access points as trusted or untrusted. A Trusted device is one that has been identified by the system administrator to be known and legitimate. An untrusted device is one that is known and not legitimate. This device could be a malicious device or simply a neighborhood device not part of the network. Remaining devices that have not been classified are considered unclassified or unknown. The Unclassified Access Points table lists the available unclassified wireless access points with their SSIDs, channels and MAC Addresses. The top right table lists the Trusted Access Points. The lower right table lists the Untrusted Access Points. You may select any items from the Unclassified Access Points table and click the arrow to classify your selections into Trusted Access Points or Untrusted Access Points. You may also select any items from the Trusted Access Points or Untrusted Access Points and click the arrow to de-classify your selections into theUnclassified Access Points table. Click Refresh to refresh the list, Clear to clear selected items on the list, or click Back to go to the previous screen. Click AP Classification, Client Classification, or Advanced Settings to go to that screen. NOTE:Classification rules: access points and clients can be classified as trusted or untrusted, and access points can be additionally classified by MAC address, SSID, vendor, or channel. Figure 6-4: AP Classification Figure 6-5: Client Classification 47 Chapter 6: The Administrative Functions in the Wireless Network Monitor Classification Wireless-G Business USB Network Adapter with RangeBooster Client Classification The Client Classification Screen lets you classify the existing wireless clients into trusted networks and untrusted networks. New client information is received from Linksys Business Series access points. New clients start off as Unclassified until the System Administrator classifies them. A Trusted Client is one that has been identified by the System Administrator to be known and legitimate. An Untrusted Client is one that is known and not legitimate; this client could be a malicious client or simply a neighborhood client not part of the netwo…

Text truncated - open the document above for the full version.

Cisco-Linksys LLC 121 Theory Drive Irvine, CA 92617 (USA) Phone: 949-261-1288 Fax: 949-823-3002 Date: September 19, 2006 FCC ID: Q87-WUSB200 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, __________________________________________ Jennifer Yu / Project Manager Cisco-Linksys LLC Tel.: ( 949 ) 823-3188 Fax: ( 949 ) 823-3002 [email protected]

Cisco-Linksys LLC 121 Theory Drive Irvine, CA 92617 (USA) Phone: 949-261-1288 Fax: 949-823-3002 Agency Authorization Letter Date: September 19, 2006 To whom it may concern: We, the undersigned, hereby authorize Advance Data Technology Corp. (ADT) of Taiwan to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by ADT within the scope of this authorization shall have the same effects as our own. This authorization shall expire six months from the original date. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, __________________________________________ Jennifer Yu / Project Manager Cisco-Linksys LLC Tel.: ( 949 ) 823-3188 Fax: ( 949 ) 823-3002 [email protected]

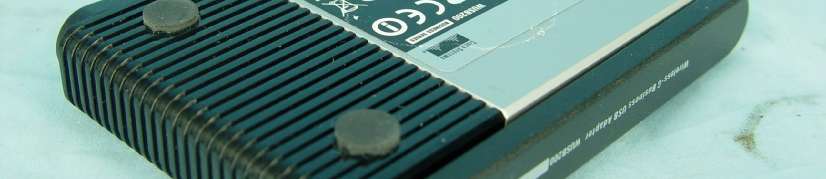

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

Page 3 Page 4 Page 5

FCC ID: Q87-WUSB200 Report No.RF950628L08 Operational Description This device is a Wireless-G Business USB Adapter with RangeBooster which operates in the 2.4GHz frequency spectrum with throughput of up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by host equipment. The antenna is Dipole antenna without antenna connector. For more detailed instruction, please take a look at the user’s manual.

FCC ID: Q87-WUSB200 Report No: SA950628L08 1 RF EXPOSURE REPORT REPORT NO.: SA950628L08 MODEL NO.: WUSB200 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Cisco-Linksys LLC ADDRESS: 121 Theory Drive Irvine, CA 92617 (USA) ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID: Q87-WUSB200 Report No: SA950628L08 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: Q87-WUSB200 Report No: SA950628L08 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance r. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: Q87-WUSB200 Report No: SA950628L08 4 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 1.89dBi or 1.54525 (numeric) 6.2 Output Power into Antenna & RF Exposure value at distance 20cm: For 802.11b DSSS Modulation Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241290.5730.0281.0 6243790.9910.0281.0 11246257.2800.0181.0 For 802.11g OFDM Modulation Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241290.5730.0281.0 6243771.7790.0221.0 11246263.9730.0201.0

Report No.: RF950628L081Report Format Version 2.0.4 FCC TEST REPORT REPORT NO.: RF950628L08 MODEL NO.: WUSB200 RECEIVED: Jul. 19, 2006 TESTED: Jul. 19 ~ Sep. 15, 2006 ISSUED: Sep. 19, 2006 APPLICANT: Cisco-Linksys LLC ADDRESS: 121 Theory Drive Irvine, CA 92617 (USA) ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 61 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. No. 2177-01 Report No.: RF950628L082Report Format Version 2.0.4 Table of Contents 1CERTIFICATION.............................................................................................................4 2SUMMARY OF TEST RESULTS...................................................................................5 2.1MEASUREMENT UNCERTAINTY................................................................................5 3GENERAL INFORMATION.............................................................................................6 3.1GENERAL DESCRIPTION OF EUT..............................................................................6 3.2DESCRIPTION OF TEST MODES................................................................................7 3.2.1CONFIGURATION OF SYSTEM UNDER TEST...........................................................7 3.2.2TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL...............................8 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS............................................10 3.4DESCRIPTION OF SUPPORT UNITS........................................................................10 4TEST TYPES AND RESULTS.......................................................................................11 4.1CONDUCTED EMISSION MEASUREMENT..............................................................11 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT............................................11 4.1.2TEST INSTRUMENTS..................................................................................................11 4.1.3TEST PROCEDURES.................................................................................................12 4.1.4DEVIATION FROM TEST STANDARD.......................................................................12 4.1.5TEST SETUP...............................................................................................................13 4.1.6EUT OPERATING CONDITIONS................................................................................13 4.1.7TEST RESULTS...........................................................................................................14 4.2RADIATED EMISSION MEASUREMENT...................................................................20 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT................................................20 4.2.2TEST INSTRUMENTS.................................................................................................21 4.2.3TEST PROCEDURES.................................................................................................22 4.2.4DEVIATION FROM TEST STANDARD.......................................................................22 4.2.5TEST SETUP...............................................................................................................23 4.2.6EUT OPERATING CONDITIONS................................................................................23 4.2.7TEST RESULTS...........................................................................................................24 4.36dB BANDWIDTH MEASUREMENT...........................................................................31 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT........................................................31 4.3.2TEST INSTRUMENTS.................................................................................................31 4.3.3TEST PROCEDURE....................................................................................................32 4.3.4DEVIATION FROM TEST STANDARD.......................................................................32 4.3.5TEST SETUP...............................................................................................................32 4.3.6EUT OPERATING CONDITIONS................................................................................32 4.3.7TEST RESULTS...........................................................................................................33 4.4MAXIMUM PEAK OUTPUT POWER..........................................................................39 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT..........................39 4.4.2TEST INSTRUMENTS.................................................................................................39 4.4.3TEST PROCEDURES.................................................................................................40 4.4.4DEVIATION FROM TEST STANDARD.......................................................................40 4.4.5TEST SETUP...............................................................................................................40 4.4.6EUT OPERATING CONDITIONS................................................................................40 4.4.7TEST RESULTS...........................................................................................................41 4.5POWER SPECTRAL DENSITY MEASUREMENT.....................................................42 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT...................................42 4.5.2TEST INSTRU…
