Q87-WUSB54AGWireless A/G USB Network Adapter

Instant Wireless® Series Wireless A/G USB Network Adapter Use this guide to install: WUSB54AG User Guide COPYRIGHT & TRADEMARKS Specifications are subject to change without notice.Copyright © 2003 Linksys, All Rights Reserved. Instant Wireless, Linksys, and the Linksys logo are registered trademarks ofLinksys Group, Inc. Microsoft, Windows, and the Windows logo are registered trademarksof Microsoft Corporation. All other trademarks and brand names are the propertyof their respective proprietors. LIMITED WARRANTY Linksys guarantees that every Instant Wireless® Dual-Band Wireless A+G PCI Adapter will be free from physical defects in material and workmanship for three year from the date of purchase, when used within the limits set forth in the Specifications chapter of this User Guide. This Warranty is valid and may be processed only in the country of purchase. If the product proves defective during this warranty period, go to the Linksys website at www.linksys.com for complete RMA (Return Merchandise Authorization) assistance. You can also call Linksys Technical Support in order to obtain a RMA Number. BE SURE TO HAVE YOUR PROOF OF PURCHASE AND A BARCODE FROM THE PRODUCT’S PACKAGING ON HAND WHEN CALLING. RETURN REQUESTS CANNOT BE PROCESSED WITHOUT PROOF OF PURCHASE. When returning a product, mark the RMA Number clearly on the outside of the package and include a copy of your original proof of purchase. All customers located outside of the United States of America and Canada shall be held responsible for shipping and handling charges. IN NO EVENT SHALL LINKSYS'S LIABILITY EXCEED THE PRICE PAID FOR THE PRODUCT FROM DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THE PRODUCT, ITS ACCOMPANYING SOFTWARE, OR ITS DOCUMENTATION. LINKSYS OFFERS NO REFUNDS FOR ITS PRODUCTS. Linksys makes no warranty or representation, expressed, implied, or statutory, with respect to its products or the contents or use of this documentation and all accompanying software, and specifically disclaims its quality, performance, merchantability, or fitness for any particular purpose. Linksys reserves the right to revise or update its products, software, or documentation without obligation to notify any individual or entity. Please direct all inquiries to: Linksys P.O. Box 18558, Irvine, CA 92623. SAFETY AND REGULATORY NOTICES FCC STATEMENT The Instant Wireless Wireless A/G USB Network Adapter has been tested and found to comply with the specifications for a Class B digital device, pursuant to Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used according to the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which is found by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna • Increase the separation between the equipment or devices • Connect the equipment to an outlet other than the receiver's • Consult a dealer or an experienced radio/TV technician for assistance FCC Caution: Any change or modification to the product not expressly approved by Linksys could void the user's authority to operate the device. FCC Caution: Operation within the 5150 to 5250GHz band is restricted to indoor use only. FCC RF Radiation Exposure Statement To comply with the FCC and ANSI C95.1 RF exposure limits, the antenna(s) for this device must comply with the following: • Access points with 2.4 GHz or 5 GHz integrated antenna must operate with a separation distance of at least 20 cm from all persons using the cable provided and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users must be provided with specific operations for satisfying RF exposure compliance. Note: Dual antennas used for diversity operation are not considered co-located. INDUSTRY CANADA (CANADA) This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. The use of this device in a system operating either partially or completely outdoors may require the user to obtain a license for the system according to the Canadian regulations. EC DECLARATION OF CONFORMITY (EUROPE) Linksys Group declares that the Instant Wireless® Series products included in the Instant Wireless® Series conform to the specifications listed below, following the provisions of the European R&TTE directive 1999/5/EC, EMC directive 89/336/EEC, and Low Voltage directive 73/23/EEC: For 11Mbps, 2.4 GHz devices with 100 mW radios, the following standards were applied: • ETS 300-826, 301 489-1 General EMC requirements for Radio equipment. • EN 609 50 Safety • ETS 300-328-2 Technical requirements for Radio equipment. For 54Mbps, 5 GHz devices with 40 mW radios, the following standards were applied: • ETS 301 489-1, 301 489-17 General EMC requirements for Radio equipment. • EN 609 50 Safety • ETS 301-893 Technical requirements for Radio equipment. Caution: The frequencies used by 802.11a wireless LAN devices are not yet harmonized within the European community, 802.11a products are designed for use only in specific countries, and are not allowed to be operated in countries other than those of designated use. Contact local Authority for procedure to follow. Caution: This equipment is intended to be used in all EU and …

Text truncated - open the document above for the full version.

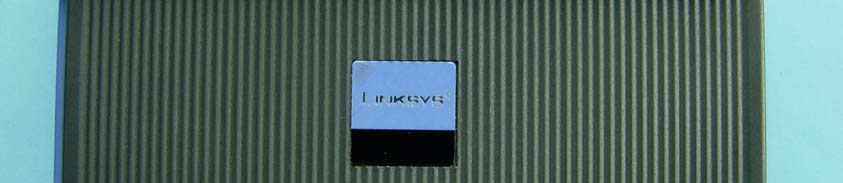

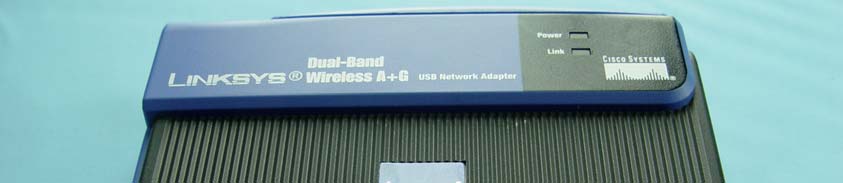

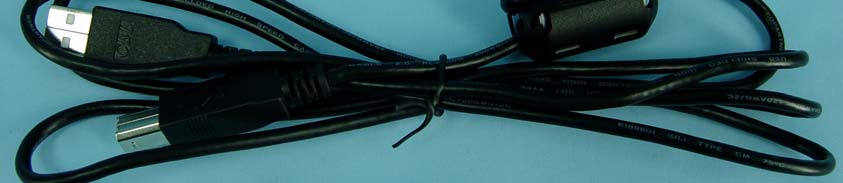

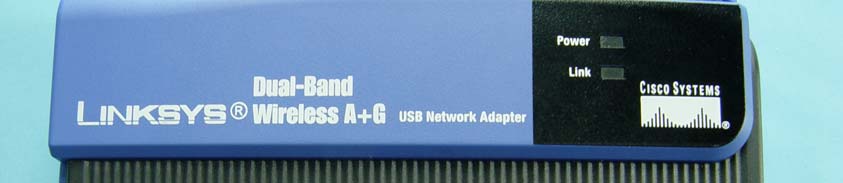

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

Page 4 Page 5 Page 6 Page 7 Page 8

FCC ID: Q87-WUSB54AG Report No.930525L04 Technical Description The transmitter of the EUT (Wireless A/G USB Network Adapter) is powered by host equipment via a USB interface. The antenna type used in this product is Dipole antenna without antenna connector. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. This device is an Dual-Band Wireless A+G USB Adapter, which operates in both of the 5GHz and 2.4GHz bands and can transmitting simultaneously, the maximum data rate could be 54Mbps. For more detailed instruction, please take a look at the user’s manual. FCC 15.407(c) states: The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude the transmission of control or signaling information or the use of repetitive codes used by certain digital technologies to complete frame or burst intervals. Applicants shall include in their application for equipment authorization a description of hoe this requirement is met” Data transmission is always initiated by software, which is then pass down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets (ACKs, CTS, PSPoll, etc...) are initiated by the MAC. There are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets are being transmitted.

FCC ID: Q87-WUSB54AG Report No: SA930525L04 1 RF EXPOSURE REPORT REPORT NO.: SA930525L04 MODEL NO.: WUSB54AG ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Cisco-Linksys, LLC ADDRESS: 121 Theory Drive, Irvine, CA 92612 (USA) ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID: Q87-WUSB55AG Report No: SA930525L04 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: Q87-WUSB55AG Report No: SA930525L04 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification This device is not fixed inside the host equipment, it is connected with host through wire. So it is easy to be re-located in the place where at least 20cm far away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: Q87-WUSB55AG Report No: SA930525L04 4 6 Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber are 1.3dBi or 1.349 (numeric) for 2.4GHz and 0dBi or 1 (numeric) for 5GHz. 6.2 Output Power Into Antenna & RF Exposure Distance: For 802.11b (2.4GHz Band): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241231.9890.0091.0 6243731.8420.0091.0 11246231.9150.0091.0 For 802.11g (2.4GHz Band): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241231.6230.0081.0 6243731.7690.0091.0 11246231.8420.0091.0 For 802.11a (5GHz Band): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1518036.2240.0071.0 4524036.0580.0071.0 5526036.3080.0071.0 8532035.6450.0071.0 9574535.7270.0071.0 12580535.5630.0071.0 Note: Both of the 2.4GHz and 5GHz bands can transmit simultaneously, the maximum power density value is 0.016 mW/cm 2 , which is less than the 1mW/cm 2 limit.

FCC ID: Q87-WUSB54AG Report No.: RF930525L041Issued: June 2, 2004 FCC TEST REPORT REPORT NO.: RF930525L04 MODEL NO.: WUSB54AG RECEIVED: May 25, 2004 TESTED: May 25 ~ June 2, 2004 APPLICANT: Cisco-Linksys, LLC ADDRESS: 121 Theory Drive, Irvine, CA 92612 (USA) ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 130 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA FCC ID: Q87-WUSB54AG Report No.: RF930525L042Issued: June 2, 2004 Table of Contents 1.CERTIFICATION .................................................................................................................... 5 2.SUMMARY OF TEST RESULTS............................................................................................ 6 3.GENERAL INFORMATION .................................................................................................... 8 3.1GENERAL DESCRIPTION OF EUT....................................................................................... 8 3.2DESCRIPTION OF TEST MODES......................................................................................... 9 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS...................................................... 10 3.4DESCRIPTION OF SUPPORT UNITS................................................................................. 11 3.5CONFIGURATION OF SYSTEM UNDER TEST.................................................................. 11 4.TEST TYPES AND RESULTS (FOR PART 802.11b & DRAFT 802.11g)............................ 12 4.1CONDUCTED EMISSION MEASUREMENT....................................................................... 12 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT .................................................... 12 4.1.2TEST INSTRUMENTS ......................................................................................................... 12 4.1.3TEST PROCEDURES .......................................................................................................... 13 4.1.4DEVIATION FROM TEST STANDARD ................................................................................ 13 4.1.5TEST SETUP ....................................................................................................................... 14 4.1.6EUT OPERATING CONDITIONS......................................................................................... 14 4.1.7TEST RESULTS ................................................................................................................... 15 4.2RADIATED EMISSION MEASUREMENT............................................................................ 21 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT ......................................................... 21 4.2.2TEST INSTRUMENTS ......................................................................................................... 22 4.2.3TEST PROCEDURES .......................................................................................................... 23 4.2.4DEVIATION FROM TEST STANDARD ................................................................................ 23 4.2.5TEST SETUP ....................................................................................................................... 24 4.2.6EUT OPERATING CONDITIONS......................................................................................... 24 4.2.7TEST RESULTS ................................................................................................................... 25 4.36dB BANDWIDTH MEASUREMENT ................................................................................... 32 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT ................................................................ 32 4.3.2TEST INSTRUMENTS ......................................................................................................... 32 4.3.3TEST PROCEDURE ............................................................................................................33 4.3.4DEVIATION FROM TEST STANDARD ................................................................................ 33 4.3.5TEST SETUP ....................................................................................................................... 33 4.3.6EUT OPERATING CONDITIONS......................................................................................... 33 4.3.7TEST RESULTS ................................................................................................................... 34 4.4MAXIMUM PEAK OUTPUT POWER ................................................................................... 42 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ................................... 42 4.4.2INSTRUMENTS.................................................................................................................... 42 4.4.3TEST PROCEDURES .......................................................................................................... 43 4.4.4DEVIATION FROM TEST STANDARD ................................................................................ 43 4.4.5TEST SETUP ....................................................................................................................... 43 FCC ID: Q87-WUSB54AG Report No.: RF930525L043Issued: June 2, 2004 4.4.6EUT OPERATING CONDITIONS......................................................................................... 43 4.4.7TEST RESULTS ................................................................................................................... 44 4.5POWER SPECTRAL DENSITY MEASU…

Text truncated - open the document above for the full version.

FCC ID: Q87-WUSB55AG Report No.: RF930525L04128Issued: June 2, 2004 6. PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: Q87-WUSB55AG Report No.: RF930525L04129Issued: June 2, 2004 RADIATED EMISSION TEST
