Q87-WUSB54GCCompact Wireless-G USB Adapter

A Division of Cisco Systems, Inc. ® Model No. USB Adapter Wireless-G WUSB54GC User Guide WIRELESS GHz 2.4 802.11g Compact Compact Wireless-G USB Adapter Copyright and Trademarks Specifications are subject to change without notice. Linksys is a registered trademark or trademark of Cisco Systems, Inc. and/or its affiliates in the U.S. and certain other countries. Copyright © 2006 Cisco Systems, Inc. All rights reserved. Other brands and product names are trademarks or registered trademarks of their respective holders. How to Use this User Guide This User Guide has been designed to make understanding networking with the Compact Wireless-G USB Adapter easier than ever. Look for the following items when reading this User Guide: In addition to these symbols, there are definitions for technical terms that are presented like this: Also, each figure (diagram, screenshot, or other image) is provided with a figure number and description, like this: Figure numbers and descriptions can also be found in the "List of Figures" section in the “Table of Contents”. This exclamation point means there is a Caution or warning and is something that could damage your property or the Compact Wireless-G USB Adapter. This checkmark means there is a Note of interest and is something you should pay special attention to while using the Compact Wireless-G USB Adapter. This question mark provides you with a reminder about something you might need to do while using the Compact Wireless-G USB Adapter. word: definition. Figure 0-1: Sample Figure Description WUSB54Gv4-UG-50418NC BW WARNING:This product contains chemicals, including lead, known to the State of California to cause cancer, and birth defects or other reproductive harm. Wash hands after handling. Compact Wireless-G USB Adapter Table of Contents Chapter 1: Introduction1 Welcome1 What’s in this Guide?2 Chapter 2: Planning your Wireless Network4 Network Topology4 Roaming4 Network Layout5 Chapter 3: Getting to Know the Compact Wireless-G USB Adapter6 The LED Indicators6 Chapter 4: Setting up and Connecting the USB Adapter7 Starting the Setup Wizard7 Connecting the Adapter8 Setting Up the Adapter9 Chapter 5: Using the Wireless Network Monitor23 Accessing the Wireless Network Monitor23 Link Information Screens23 SecureEasySetup26 Site Survey28 Profiles29 Creating a New Profile30 Appendix A: Troubleshooting44 Common Problems and Solutions44 Frequently Asked Questions45 Appendix B: Using Windows XP Wireless Configuration48 Appendix C: Wireless Security51 Security Precautions51 Security Threats Facing Wireless Networks51 Appendix D: Windows Help54 Appendix E: Glossary55 Appendix F: Warranty Information60 Appendix G: Specifications61 Compact Wireless-G USB Adapter Appendix H: Regulatory Information63 Appendix I: Contact Information69 Compact Wireless-G USB Adapter List of Figures Figure 3-1: Front Panel6 Figure 4-1: Setup Wizard’s Welcome Screen7 Figure 4-2: Setup Wizard’s License Agreement7 Figure 4-3: The Connecting the Adapter Screen8 Figure 4-4: Available Wireless Network9 Figure 4-5: Available Wireless Network10 Figure 4-6: SecureEasySetup10 Figure 4-7: The SecureEasySetup Logo and Location10 Figure 4-8: SecureEasySetup Complete11 Figure 4-9: Available Wireless Network12 Figure 4-10: WEP Key Needed for Connection12 Figure 4-11: WPA-Personal Needed for Connection13 Figure 4-12: PSK2 Needed for Connection13 Figure 4-13: The Congratulations Screen14 Figure 4-14: Available Wireless Network15 Figure 4-15: Network Settings15 Figure 4-16: Wireless Mode16 Figure 4-17: Ad-Hoc Mode Settings16 Figure 4-18: Wireless Security17 Figure 4-19: Wireless Security - WEP17 Figure 4-20: Wireless Security - WPA Personal18 Figure 4-21: Wireless Security - PSK218 Figure 4-22: Wireless Security - WPA Enterprise - EAP-TLS19 Figure 4-23: Wireless Security - WPA Enterprise - PEAP19 Figure 4-24: Wireless Security - RADIUS - EAP-TLS20 Figure 4-25: Wireless Security - RADIUS - PEAP20 Figure 4-26: Wireless Security - LEAP21 Figure 4-27: Confirm New Settings22 Figure 4-28: Congratulations22 Figure 5-1: Wireless Network Monitor Icon23 Figure 5-2: Link Information23 Compact Wireless-G USB Adapter Figure 5-3: More Information - Wireless Network Status24 Figure 5-4: More Information - Wireless Network Statistics25 Figure 5-5: The SecureEasySetup Button26 Figure 5-6: The SecureEasySetup Logo and Location26 Figure 5-7: SecureEasySetup26 Figure 5-8: SecureEasySetup is Complete27 Figure 5-9: Site Survey28 Figure 5-10: WEP Key Needed for Connection28 Figure 5-11: WPA-Personal Needed for Connection28 Figure 5-12: PSK2 Needed for Connection29 Figure 5-13: Profiles29 Figure 5-14: Import a Profile29 Figure 5-15: Export a Profile30 Figure 5-16: Create a New Profile30 Figure 5-17: Available Wireless Network30 Figure 5-18: Available Wireless Network31 Figure 5-19: The SecureEasySetup Logo and Location31 Figure 5-20: SecureEasySetup31 Figure 5-21: SecureEasySetup Complete32 Figure 5-22: Available Wireless Network33 Figure 5-23: WEP Key Needed for Connection33 Figure 5-24: WPA-Personal Needed for Connection34 Figure 5-25: PSK2 Needed for Connection34 Figure 5-26: The Congratulations Screen35 Figure 5-27: Available Wireless Network35 Figure 5-28: Network Settings36 Figure 5-29: Wireless Mode36 Figure 5-30: Ad-Hoc Mode Settings37 Figure 5-31: Wireless Security37 Figure 5-32: Wireless Security - WEP38 Figure 5-33: Wireless Security - WPA Personal39 Figure 5-34: Wireless Security - PSK239 Figure 5-35: Wireless Security - WPA Enterprise - EAP-TLS40 Figure 5-36: Wireless Security - WPA Enterprise - PEAP40 Figure 5-37: Wireless Security - RADIUS - EAP-TLS41 Figure 5-38: Wireless Security - RADIUS - PEAP41 Compact Wireless-G USB Adapter Figure 5-39: LEAP42 Figure 5-40: Confirm New Settings43 Figure 5-41: The Congratulations Screen43 Figure B-1: Wireless Network Monitor Icon48 Figure B-2: Windows XP - Use Windows XP Wireless Configuration48 Figure B-3: Windows XP Wireless Configuration Icon48 Figure B-4: Available Wireless N…

Text truncated - open the document above for the full version.

31 Chapter 5: Using the Wireless Network Monitor Creating a New Profile Compact Wireless-G USB Adapter Setting Up the Adapter with SecureEasySetup With SecureEasySetup, setting up the Adapter is as simple as pushing a couple of buttons. Before you press any buttons, though, you should locate the SecureEasySetup button on the device you’re connecting the Adapter to, such as a wireless router or access point. 4. Starting from the Available Wireless Network screen, click the SecureEasySetup button on the right hand side. 5. You will be asked to locate the SecureEasySetup button on the device with which the Adapter will be communicating. If you are not sure where to find this button, click Where can I find the button?. This will walk you through a couple of screens to help you find the button, which is usually located on the front of the wireless router or access point. If you’ve clicked the button by accident or do not wish to use SecureEasySetup, you can click Cancel to return to the previous screen. Figure 5-18: Available Wireless Network Figure 5-19: The SecureEasySetup Logo and Location Figure 5-20: SecureEasySetup 32 Chapter 5: Using the Wireless Network Monitor Creating a New Profile Compact Wireless-G USB Adapter 6. Press the Cisco logo or SecureEasySetup button on the wireless router or access point. When it turns white and begins to flash, click the Next button on the Setup Wizard screen. The logo or button will stop flashing on the wireless router or access point when the Adapter has been successfully added to the network. Repeat this procedure for any additional SecureEasySetup device. 7. SecureEasySetup is now complete and a configuration profile will has been created automatically. You may save your configuration profile to a text file by clicking the Save button, or print the configuration by clicking the Print button. Click Connect to Network to connect to your network. Congratulations! SecureEasySetup is complete. Figure 5-21: SecureEasySetup Complete NOTE:You can only add one SecureEasySetup device at a time. 33 Chapter 5: Using the Wireless Network Monitor Creating a New Profile Compact Wireless-G USB Adapter Setting Up the Adapter with Available Networks If you’re not setting up the Adapter with SecureEasySetup, another method for setting up the Adapter is with the available networks listed on the Available Wireless Network screen. The available networks are listed in the table on the center of the screen by SSID. Select the wireless network you wish to connect to and click the Connect button. (If you do not see your network listed, you can click the Refresh button to bring the list up again.) If the network utilizes wireless security, you will need to configure security on the Adapter. If not, you will be taken directly to the Congratulations screen. 1. If wireless security has been enabled on this network, you will see a wireless security screen. If your network utilizes WEP (Wired Equivalent Privacy) encryption, the WEP Key Needed for Connection screen will appear. If your network utilizes WPA-Personal (Wi-Fi Protected Access) encryption, the WPA-Personal Needed for Connection screen will appear. If your network utilizes PSK2 (Pre-Shared Key 2) encryption, the PSK2 Needed for Connection screen will appear. WEP Key Needed for Connection Select 64-bit or 128-bit. Then, enter a passphrase or WEP key. Passphrase - Enter a passphrase in the Passphrase field, so a WEP key is automatically generated. The passphrase is case-sensitive and should not be longer than 16 alphanumeric characters. It must match the passphrase of your other wireless network devices and is compatible with Linksys wireless products only. (If you have any non-Linksys wireless products, enter the WEP key manually on those products.) WEP Key - The WEP key you enter must match the WEP key of your wireless network. For 64-bit encryption, enter exactly 10 hexadecimal characters. For 128-bit encryption, enter exactly 26 hexadecimal characters. Valid hexadecimal characters are “0” to “9” and “A” to “F”. Then, click Connect and proceed to the Congratulations screen. To cancel the connection, click Cancel. Figure 5-22: Available Wireless Network Figure 5-23: WEP Key Needed for Connection 34 Chapter 5: Using the Wireless Network Monitor Creating a New Profile Compact Wireless-G USB Adapter WPA-Personal Needed for Connection Encryption - Select the type of algorithm you want to use, TKIP or AES, from the Encryption drop-down menu. Passphrase - Enter a Passphrase, also called a pre-shared key, of 8-63 characters in the Passphrase field. Then, click Connect and proceed to the Congratulations screen. To cancel the connection, click Cancel. PSK2 Needed for Connection Passphrase - Enter a Passphrase, also called a pre-shared key, of 8-63 characters in the Passphrase field. The longer and more complex your Passphrase is, the more secure your network will be. Then, click Connect and proceed to the Congratulations screen. To cancel the connection, click Cancel. Figure 5-25: PSK2 Needed for Connection Figure 5-24: WPA-Personal Needed for Connection 35 Chapter 5: Using the Wireless Network Monitor Creating a New Profile Compact Wireless-G USB Adapter 2. After the software has been successfully installed, the Congratulations screen will appear. Click Connect to Network to connect to your network. Congratulations! Setup is complete. Setting Up the Adapter with Manual Setup If you are not taking advantage of SecureEasySetup and your network is not listed among the available networks, click Manual Setup on the Available Wireless Network screen to set up the adapter manually. 1. After clicking Manual Setup, the Network Settings screen will appear. If your network has a router or other DHCP server, click the radio button next to Obtain network settings automatically (DHCP). Figure 5-26: The Congratulations Screen Figure 5-27: Available Wireless Network 36 Chapter 5: Using the Wireless Network Monitor Creating a New Profile Compact…

Text truncated - open the document above for the full version.

Cisco-Linksys LLC 121 Theory Drive Irvine, CA 92617 (USA) Phone: 949-261-1288 Fax: 949-823-3002 Agency Authorization Letter Date: October 28, 2005 To whom it may concern: We, the undersigned, hereby authorize Advance Data Technology Corp. (ADT) of Taiwan to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by ADT within the scope of this authorization shall have the same effects as our own. This authorization shall expire six months from the original date. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, __________________________________________ Jennifer Yu / Associate Engineer Cisco-Linksys LLC Tel.: ( 949 ) 823-3188 Fax: ( 949 ) 823-3002 [email protected]

Cisco-Linksys LLC 121 Theory Drive Irvine, CA 92617 (USA) Phone: 949-261-1288 Fax: 949-823-3002 Date: October 28, 2005 FCC ID: Q87-WUSB54GC Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, __________________________________________ Jennifer Yu / Associate Engineer Cisco-Linksys LLC Tel.: ( 949 ) 823-3188 Fax: ( 949 ) 823-3002 [email protected]

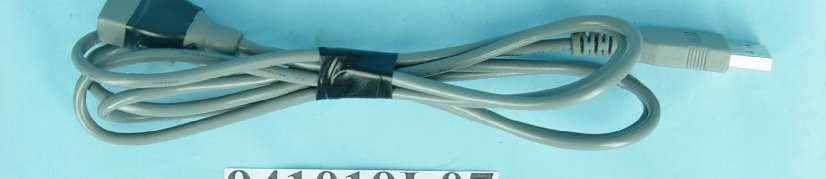

Page 1 Model No.: WUSB54GC Page 2 CONSTRUCTION PHOTOS OF EUT Page 3

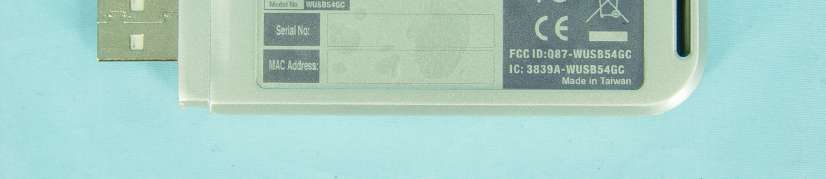

FCC ID : Q87-WUSB54GC Label Location

Page 4 Page 5 Page 6 Page 7

FCC ID: Q87-WUSB54GC Report No. RF940614L05C Operational Description This device is a Compact Wireless-G USB Adapter which operates in the 2.4GHz frequency spectrum with throughput of up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by host equipment. The antenna used in this product is printed antenna without antenna connector. The other instruction, please have a look at the users manual.

D3: DAE SN: 579

APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION D1: SAM PHANTOM

A - 1 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA A1: TEST CONFIGURATION EUT Place：Horizontal NB：Compaq EVO N800C The bottom of the EUT to the flat phantom distance 10 mm A - 2 EUT Place：Vertical NB：Dell C600 The edge of the EUT to the flat phantom distance 7 mm A - 3 EUT Photo Reference Point A - 4 A - 5 Liquid Level Photo MSL 2450MHz D=150mm A - 6 Date/Time: 2005/9/12 10:46:23 Test Laboratory: Advance Data Technology N800C-11b-Ch 1-Mode 1 DUT: Compact Wireless-G USB Adapter ; Type: WUSB54GC ; Test Frequency: 2412 MHz Communication System: 802.11b ; Frequency: 2412 MHz ; Duty Cycle: 1:1 ; Modulation type: CCK Medium: MSL2450 Medium parameters used: f = 2412 MHz; σ = 1.95 mho/m; ε r = 51.4; ρ = 1000 kg/m 3 ; Liquid level : 150mm Phantom section: Flat Section ; Separation distance : 10 mm (The bottom side of the EUT to the Phantom) Antenna type : Internal Antenna ; Air temp. : 22.8 degrees ; Liquid temp. : 22.1 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790 ; ConvF(4.35, 4.35, 4.35) ; Calibrated: 2004/12/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579 ; Calibrated: 2005/3/23 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.5 Build 19 ; Postprocessing SW: SEMCAD, V1.8 Build 146 Low Channel 1/Area Scan (5x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.382 mW/g Low Channel 1/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 13.9 V/m Peak SAR (extrapolated) = 0.671 W/kg SAR(1 g) = 0.338 mW/g; SAR(10 g) = 0.177 mW/g Maximum value of SAR (measured) = 0.370 mW/g A - 7 A - 8 Date/Time: 2005/9/12 11:04:27 Test Laboratory: Advance Data Technology N800C-11b-Ch 6-Mode 1 DUT: Compact Wireless-G USB Adapter ; Type: WUSB54GC ; Test Frequency: 2437 MHz Communication System: 802.11b ; Frequency: 2437 MHz ; Duty Cycle: 1:1 ; Modulation type: CCK Medium: MSL2450 Medium parameters used: f = 2437 MHz; σ = 1.98 mho/m; ε r = 51.3; ρ = 1000 kg/m 3 ; Liquid level : 150mm Phantom section: Flat Section ; Separation distance : 10 mm (The bottom side of the EUT to the Phantom) Antenna type : Internal Antenna ; Air temp. : 22.8 degrees ; Liquid temp. : 22.1 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790 ; ConvF(4.35, 4.35, 4.35) ; Calibrated: 2004/12/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579 ; Calibrated: 2005/3/23 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.5 Build 19 ; Postprocessing SW: SEMCAD, V1.8 Build 146 Mid Channel 6/Area Scan (5x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.353 mW/g Mid Channel 6/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 12.3 V/m Peak SAR (extrapolated) = 0.646 W/kg SAR(1 g) = 0.323 mW/g; SAR(10 g) = 0.169 mW/g Maximum value of SAR (measured) = 0.355 mW/g A - 9 Date/Time: 2005/9/12 11:20:53 Test Laboratory: Advance Data Technology N800C-11b-Ch 11-Mode 1 DUT: Compact Wireless-G USB Adapter ; Type: WUSB54GC ; Test Frequency: 2462 MHz Communication System: 802.11b ; Frequency: 2462 MHz ; Duty Cycle: 1:1 ; Modulation type: CCK Medium: MSL2450 Medium parameters used: f = 2462 MHz; σ = 2.01 mho/m; ε r = 51.2; ρ = 1000 kg/m 3 ; Liquid level : 150mm Phantom section: Flat Section ; Separation distance : 10 mm (The bottom side of the EUT to the Phantom) Antenna type : Internal Antenna ; Air temp. : 22.8 degrees ; Liquid temp. : 22.1 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790 ; ConvF(4.35, 4.35, 4.35) ; Calibrated: 2004/12/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579 ; Calibrated: 2005/3/23 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.5 Build 19 ; Postprocessing SW: SEMCAD, V1.8 Build 146 High Channel 11/Area Scan (5x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.343 mW/g High Channel 11/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 11.8 V/m Peak SAR (extrapolated) = 0.623 W/kg SAR(1 g) = 0.312 mW/g; SAR(10 g) = 0.162 mW/g Maximum value of SAR (measured) = 0.337 mW/g A - 10 Date/Time: 2005/9/12 11:40:33 Test Laboratory: Advance Data Technology N800C-11g-Ch 1-Mode 2 DUT: Compact Wireless-G USB Adapter ; Type: WUSB54GC ; Test Frequency: 2412 MHz Communication System: 802.11g ; Frequency: 2412 MHz; Duty Cycle: 1:1; Modulation type: OFDM Medium: MSL2450 Medium parameters used: f = 2412 MHz; σ = 1.95 mho/m; ε r = 51.4; ρ = 1000 kg/m 3 ; Liquid level : 150 mm Phantom section: Flat Section ; Separation distance : 10 mm (The bottom of the EUT to the Phantom) Antenna type : Internal Antenna ; Air temp. : 22.8 degrees ; Liquid temp. : 22.1 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1790 ; ConvF(4.35, 4.35, 4.35) ; Calibrated: 2004/12/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579; Calibrated: 2005/3/23 - Phantom: SAM 12; Type: SAM V4.0; Serial: TP 1202 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Low Channel 1/Area Scan (5x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.191 mW/g Low Channel 1/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 9.41 V/m Peak SAR (extrapolated) = 0.347 W/kg SAR(1 g) = 0.176 mW/g; SAR(10 g) = 0.092 mW/g Maximum value of SAR (measured) = 0.193 mW/g A - 11 Date/Time: 2005/9/12 11:56:56 Test Laboratory: Advance Data Technology N800C-11g-Ch 6-Mode 2 DUT: Compact Wireless-G USB Adapter ; Type: WUSB54GC ; Test Frequency: 2437 MHz Communication System: 802.11g ; Frequency: 2437 MHz; Duty Cycle: 1:1; Modulation type: OFDM Medium: MSL2450 Medium parameters used: f = 2437 MHz; σ = 1.98 mho/m; ε r = 51.3; ρ = 1000 kg/m 3 ; Liquid level : 150 mm Phantom section: Flat Section ; Separation distance : 10 mm (The bottom of the EUT to the Phantom) Antenna type : Internal Antenna ; Air temp. : 22.8 degrees ; Liquid temp…

Text truncated - open the document above for the full version.

FCC ID: Q87-WUSB54GC Report no.: SA940614L05C1Report Format Version 2.0.2 Reference No.: 941019L07 SAR TEST REPORT REPORT NO.: SA940614L05C MODEL NO.: WUSB54GC RECEIVED: Sep. 07, 2005 TESTED: Sep. 12, 2005 ISSUED: Nov. 07, 2005 APPLICANT: Cisco-Linksys LLC ADDRESS: 121 Theory Drive Irvine, CA 92617 (USA) ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 36 pages in total except Appendix. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA No. 2177-01 FCC ID: Q87-WUSB54GC Report no.: SA940614L05C2Report Format Version 2.0.2 Reference No.: 941019L07 TABLE OF CONTENTS 1.CERTIFICATION.......................................................................................................3 2.GENERAL INFORMATION........................................................................................4 2.1GENERAL DESCRIPTION OF EUT..........................................................................4 2.2GENERAL DESCRIPTION OF APPLIED STANDARDS............................................5 2.3GENERAL INOFRMATION OF THE SAR SYSTEM..................................................5 2.4GENERAL DESCRIPTION OF THE SPATIAL PEAK SAR EVALUATION..................8 3.DESCRIPTION OF SUPPORT UNITS....................................................................12 4.DESCRIPTION OF TEST MODES AND CONFIGURATIONS.................................13 4.1.DESCRIPTION OF ANTENNA LOCATION..............................................................13 4.2.DESCRIPTION OF ASSESSMENT POSITION.......................................................14 4.3.DESCRIPTION OF TEST MODE............................................................................15 4.4.SUMMARY OF TEST RESULTS.............................................................................15 5.TEST RESULTS......................................................................................................16 5.1TEST PROCEDURES.............................................................................................16 5.2MEASURED SAR RESULTS...................................................................................18 5.3SAR LIMITS............................................................................................................20 5.4RECIPES FOR TISSUE SIMULATING LIQUIDS.....................................................21 5.5TEST EQUIPMENT FOR TISSUE PROPERTY.......................................................23 6.SYSTEM VALIDATION............................................................................................24 6.1TEST EQUIPMENT.................................................................................................24 6.2TEST PROCEDURE...............................................................................................25 6.3VALIDATION RESULTS..........................................................................................27 6.4SYSTEM VALIDATION UNCERTAINTIES...............................................................28 7.MEASUREMENT SAR PROCEDURE UNCERTAINTIES........................................29 7.1.PROBE CALIBRATION UNCERTAINTY.................................................................29 7.2.ISOTROPY UNCERTAINTY....................................................................................30 7.3.BOUNDARY EFFECT UNCERTAINTY...................................................................30 7.4.PROBE LINEARITY UNCERTAINTY.......................................................................31 7.5.READOUT ELECTRONICS UNCERTAINTY...........................................................31 7.6.RESPONSE TIME UNCERTAINTY.........................................................................31 7.7.INTEGRATION TIME UNCERTAINTY....................................................................32 7.8.PROBE POSITIONER MECHANICAL TOLERANCE..............................................33 7.9.PROBE POSITIONING............................................................................................33 7.10.PHANTOM UNCERTAINTY....................................................................................34 7.11.DASY4 UNCERTAINTY BUDGET...........................................................................35 8.INFORMATION ON THE TESTING LABORATORIES.............................................36 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA APPENDIX B: ADT SAR MEASUREMENT SYSTEM APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION FCC ID: Q87-WUSB54GC Report no.: SA940614L05C3Report Format Version 2.0.2 Reference No.: 941019L07 1. CERTIFICATION PRODUCT: Compact Wireless-G USB Adapter MODEL: WUSB54GC BRAND: Linksys APPLICANT: Cisco-Linksys LLC TESTED: Sep. 12, 2005 TEST SAMPLE: ENGINEERING SAMPLE STANDARDS: FCC Part 2 (Section 2.1093), FCC OET Bulletin 65, Supplement C (01-01), RSS-102 The above equipment has been tested by Advance Data Technology Corporation, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY:, DATE:Nov. 07, 2005 Rennie Wang TECHNICAL ACCEPTANCE : , DATE:Nov. 07, 2005 Responsible for RF Stanely Hsu APPROVED BY:, DATE:Nov. 07, 2005 Cody Chang / Deputy Manager FCC ID: Q87-WUSB54GC Report no.: SA940614L05C4Report Format Version 2.0.2 Reference No.: 941019L07 …

Text truncated - open the document above for the full version.

FCC ID: Q87-WUSB54GC Report No.: RF940614L05C1Report Format Version 2.0.4 Reference No.: 941019L07 FCC TEST REPORT REPORT NO.: RF940614L05C MODEL NO.: WUSB54GC RECEIVED: Jul. 11, 2005 TESTED: Jul. 11 ~ Oct. 31, 2005 ISSUED: Nov. 01, 2005 APPLICANT: Cisco-Linksys LLC ADDRESS: 121 Theory Drive Irvine, CA 92617 (USA) ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 74 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA No. 2177-01 FCC ID: Q87-WUSB54GC Report No.: RF940614L05C2Report Format Version 2.0.4 Reference No.: 941019L07 TABLE OF CONTENTS 1.CERTIFICATION.........................................................................................................4 2.SUMMARY OF TEST RESULTS.................................................................................5 2.1MEASUREMENT UNCERTAINTY..............................................................................6 3.GENERAL INFORMATION.........................................................................................7 3.1GENERAL DESCRIPTION OF EUT...........................................................................7 3.2 DESCRIPTION OF TEST MODES.............................................................................8 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST.........................................................9 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL............................10 3.2.3 GENERAL DESCRIPTION OF APPLIED STANDARDS...........................................12 3.2.4 DESCRIPTION OF SUPPORT UNITS......................................................................12 4. TEST TYPES AND RESULTS...................................................................................13 4.1 CONDUCTED EMISSION MEASUREMENT............................................................13 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT..........................................13 4.1.2 TEST INSTRUMENTS..............................................................................................13 4.1.3 TEST PROCEDURES..............................................................................................14 4.1.4 DEVIATION FROM TEST STANDARD.....................................................................14 4.1.5 TEST SETUP...........................................................................................................15 4.1.6 EUT OPERATING CONDITIONS..............................................................................15 4.1.7 TEST RESULTS.......................................................................................................16 4.2 RADIATED EMISSION MEASUREMENT....................................…

Text truncated - open the document above for the full version.
