Q87-WUSB54GRWireless-G USB Network Adapter with RangeBooster

A Division of Cisco Systems, Inc. ® Model No. USB Network Adapter Wireless-G WUSB54GR User Guide WIRELESS GHz 2.4 802.11g with RangeBooster Wireless-G USB Network Adapter with RangeBooster Copyright and Trademarks Specifications are subject to change without notice. Linksys is a registered trademark or trademark of Cisco Systems, Inc. and/or its affiliates in the U.S. and certain other countries. Copyright © 2006 Cisco Systems, Inc. All rights reserved. Other brands and product names are trademarks or registered trademarks of their respective holders. How to Use this User Guide This User Guide has been designed to make understanding networking with the Wireless-G USB Network Adapter easier than ever. Look for the following items when reading this User Guide: In addition to these symbols, there are definitions for technical terms that are presented like this: Also, each figure (diagram, screenshot, or other image) is provided with a figure number and description, like this: Figure numbers and descriptions can also be found in the "List of Figures" section in the “Table of Contents”. This exclamation point means there is a Caution or warning and is something that could damage your property or the Wireless-G USB Network Adapter. This checkmark means there is a Note of interest and is something you should pay special attention to while using the Wireless-G USB Network Adapter. This question mark provides you with a reminder about something you might need to do while using the Wireless-G USB Network Adapter. word: definition. Figure 0-1: Sample Figure Description WUSB54GR-UG-51213NC BW WARNING:This product contains chemicals, including lead, known to the State of California to cause cancer, and birth defects or other reproductive harm. Wash hands after handling. Wireless-G USB Network Adapter with RangeBooster Table of Contents Chapter 1: Introduction1 Welcome1 What’s in this Guide?2 Chapter 2: Planning your Wireless Network4 Network Topology4 Roaming4 Network Layout5 Chapter 3: Getting to Know the Wireless-G Network Adapter with RangeBooster6 The Front Panel6 The Side Panel7 Chapter 4: Setting up and Connecting the Wireless-G Network Adapter with RangeBooster8 Starting the Setup8 Connecting the Adapter9 Setting up the Adapter9 Chapter 5: Using the Wireless Network Monitor18 Accessing the Wireless Network Monitor18 Using the Wireless Network Monitor18 Link Information18 Site Survey21 Profiles22 Create a New Profile23 Appendix A: Troubleshooting32 Common Problems and Solutions32 Frequently Asked Questions33 Appendix B: Using Windows XP Wireless Configuration36 Appendix C: Wireless Security39 Security Precautions39 Security Threats Facing Wireless Networks39 Appendix D: Windows Help42 Appendix E: Glossary43 Appendix F: Specifications50 Wireless-G USB Network Adapter with RangeBooster Appendix G: Warranty Information52 Appendix H: Regulatory Information53 Appendix I: Contact Information59 Wireless-G USB Network Adapter with RangeBooster List of Figures Figure 3-1: Front Panel6 Figure 3-2: Side Panel7 Figure 4-1: Setup Wizard’s Welcome Screen8 Figure 4-2: Setup Wizard’s License Agreement8 Figure 4-3: Connecting the Adapter9 Figure 4-4: Available Wireless Network9 Figure 4-5: WEP Key Needed for Connection10 Figure 4-6: WPA - Personal Needed for Connection10 Figure 4-7: PSK2 Needed for Connection11 Figure 4-8: Congratulations11 Figure 4-9: Available Wireless Network12 Figure 4-10: Network Settings12 Figure 4-11: Wireless Mode12 Figure 4-12: Ad-Hoc Mode Settings13 Figure 4-13: Wireless Security - WEP13 Figure 4-14: Wireless Security - WPA Personal14 Figure 4-1: Wireless Security - PSK214 Figure 4-15: Wireless Security - WPA Enterprise - EAP-TLS15 Figure 4-16: Wireless Security - WPA Enterprise - PEAP15 Figure 4-17: Wireless Security - RADIUS - EAP-TLS16 Figure 4-18: Wireless Security - RADIUS - PEAP16 Figure 4-19: Confirm New Settings17 Figure 4-20: Congratulations screen17 Figure 5-1: Wireless Network Monitor Icon18 Figure 5-2: Link Information18 Figure 5-3: More Information - Wireless Network Status19 Figure 5-4: More Information-Network Statistics20 Figure 5-5: Site Survey20 Figure 5-6: WEP Key Needed for Connection21 Figure 5-7: WPA-Personal Needed for Connection21 Wireless-G USB Network Adapter with RangeBooster Figure 5-8: PSK2 Needed for Connection21 Figure 5-9: Profiles22 Figure 5-10: Import a Profile22 Figure 5-11: Export a Profile22 Figure 5-12: Create a New Profile23 Figure 5-1: WEP Key Needed for Connection23 Figure 5-2: WPA - Personal Needed for Connection24 Figure 5-3: PSK2 Needed for Connection24 Figure 5-4: Congratulations24 Figure 5-13: Available Wireless Network25 Figure 5-14: Network Settings25 Figure 5-15: Wireless Mode26 Figure 5-16: Ad-Hoc Mode Settings26 Figure 5-17: Wireless Security - WEP27 Figure 5-18: Wireless Security - WPA Personal27 Figure 5-19: Wireless Security - PSK228 Figure 5-20: Wireless Security - WPA Enterprise Using EAP-TLS29 Figure 5-21: Wireless Security - WPA Enterprise Using PEAP29 Figure 5-22: Wireless Security - RADIUS Using EAP-TLS30 Figure 5-23: Wireless Security - RADIUS Using PEAP30 Figure 5-24: Confirm New Settings for New Profile31 Figure 5-25: Congratulations31 Figure B-1: Wireless Network Monitor Icon36 Figure B-2: Windows XP - Use Windows XP Wireless Configuration36 Figure B-3: Windows XP Wireless Configuration Icon36 Figure B-4: Available Wireless Network37 Figure B-5: No Wireless Security37 Figure B-6: Network Connection - Wireless Security38 Figure B-7: Wireless Network Connection38 1 Chapter 1: Introduction Welcome Wireless-G USB Network Adapter with RangeBooster Chapter 1: Introduction Welcome Thank you for choosing the Wireless-G USB Network Adapter with RangeBooster. With this Adapter, your wireless networking experience will be faster and easier than ever. How does the Adapter do this? Like all wireless products, the Adapter allows for greater range and mobility within your wireless network. And with RangeBooster, your range and speed wil…

Text truncated - open the document above for the full version.

Cisco-Linksys LLC 121 Theory Drive Irvine, CA 92617 (USA) Phone: 949-261-1288 Fax: 949-823-3002 Date: December 15, 2005 FCC ID: Q87-WUSB54GR Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, __________________________________________ Jennifer Yu / Associate Engineer Cisco-Linksys LLC Tel.: ( 949 ) 823-3188 Fax: ( 949 ) 823-3002 [email protected]

Cisco-Linksys LLC 121 Theory Drive Irvine, CA 92617 (USA) Phone: 949-261-1288 Fax: 949-823-3002 Agency Authorization Letter Date: December 15, 2005 To whom it may concern: We, the undersigned, hereby authorize Advance Data Technology Corp. (ADT) of Taiwan to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by ADT within the scope of this authorization shall have the same effects as our own. This authorization shall expire six months from the original date. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, __________________________________________ Jennifer Yu / Associate Engineer Cisco-Linksys LLC Tel.: ( 949 ) 823-3188 Fax: ( 949 ) 823-3002 [email protected]

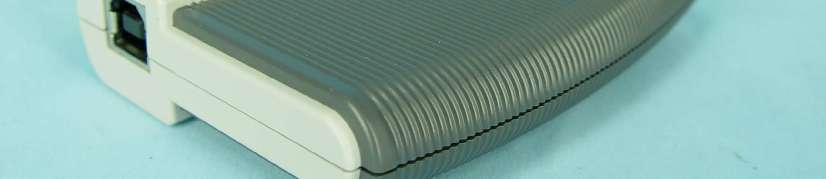

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

Page 1 Page 2 Page 3

FCC ID: Q87-WUSB54GR Report No. RF941125L02 Operational Description This device is a Wireless-G USB Network Adapter with RangeBooster which operates in the 2.4GHz frequency spectrum with throughput of up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT is powered by host equipment. The antenna are Printed dipole antenna without antenna connector and PIFA antenna without antenna connector. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. The other instruction, please have a look at the users manual.

FCC ID: Q87-WUSB54GR Report No: SA941125L02 1 RF EXPOSURE REPORT REPORT NO.: SA941125L02 MODEL NO.: WUSB54GR ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Cisco-Linksys LLC ADDRESS: 121 Theory Drive Irvine, CA 92617 (USA) ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID: Q87-WUSB54GR Report No: SA941125L02 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: Q87-WUSB54GR Report No: SA941125L02 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance r. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: Q87-WUSB54GR Report No: SA941125L02 4 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 1.5dBi or 1.41254 (numeric). 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: 802.11b DSSS modulation Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241263.5330.0181.000 6243780.5380.0231.000 11246231.7690.0091.000 802.11g OFDM modulation Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241250.3500.0141.000 6243750.3500.0141.000 11246250.2340.0141.000

FCC ID: Q87-WUSB54GR Report No.: RF941125L021Report Format Version 2.0.4 FCC TEST REPORT REPORT NO.: RF941125L02 MODEL NO.: WUSB54GR RECEIVED: Dec. 05, 2005 TESTED: Dec. 05 ~ Dec. 13, 2005 ISSUED: Dec. 16, 2005 APPLICANT:Cisco-Linksys LLC ADDRESS:121 Theory Drive Irvine, CA 92617 (USA) ISSUED BY:Advance Data Technology Corporation LAB ADDRESS:47 14 th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. TEST LOCATION:No. 19, Hwa Ya 2 nd Rd., Kueishan, Taoyuan, Taiwan, R.O.C. This test report consists of 65 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA No. 2177-01 FCC ID: Q87-WUSB54GR Report No.: RF941125L022Report Format Version 2.0.4 Table of Contents 1CERTIFICATION........................................................................................................ 4 2SUMMARY OF TEST RESULTS................................................................................ 5 2.1MEASUREMENT UNCERTAINTY............................................................................. 5 3GENERAL INFORMATION ........................................................................................ 6 3.1GENERAL DESCRIPTION OF EUT .......................................................................... 6 3.2DESCRIPTION OF TEST MODES ............................................................................ 7 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST........................................................ 7 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ............................. 8 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ...........................................10 3.4DESCRIPTION OF SUPPORT UNITS......................................................................10 4TEST TYPES AND RESULTS...................................................................................11 4.1CONDUCTED EMISSION MEASUREMENT............................................................11 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT ..........................................11 4.1.2 TEST INSTRUMENTS ..............................................................................................11 4.1.3 TEST PROCEDURES ..............................................................................................12 4.1.4 DEVIATION FROM TEST STANDARD .....................................................................12 4.1.5 TEST SETUP............................................................................................................13 4.1.6 EUT OPERATING CONDITIONS..............................................................................13 4.1.7 TEST RESULTS .......................................................................................................14 4.2RADIATED EMISSION MEASUREMENT.................................................................20 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT ...............................................20 4.2.2 TEST INSTRUMENTS ..............................................................................................21 4.2.3 TEST PROCEDURES ..............................................................................................22 4.2.4 DEVIATION FROM TEST STANDARD .....................................................................22 4.2.5 TEST SETUP............................................................................................................23 4.2.6 EUT OPERATING CONDITIONS..............................................................................23 4.2.7 TEST RESULTS .......................................................................................................24 4.36dB BANDWIDTH MEASUREMENT ........................................................................33 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT ......................................................33 4.3.2 TEST INSTRUMENTS ..............................................................................................33 4.3.3 TEST PROCEDURE.................................................................................................34 4.3.4 DEVIATION FROM TEST STANDARD .....................................................................34 4.3.5 TEST SETUP............................................................................................................34 4.3.6 EUT OPERATING CONDITIONS..............................................................................34 4.3.7 TEST RESULTS .......................................................................................................35 4.4MAXIMUM PEAK OUTPUT POWER ........................................................................41 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT .........................41 4.4.2 TEST INSTRUMENTS ..............................................................................................41 4.4.3 TEST PROCEDURES ..............................................................................................42 4.4.4 DEVIATION FROM TEST STANDARD .....................................................................42 4.4.5 TEST SETUP............................................................................................................42 4.4.6 EUT OPERATING CONDITIONS..............................................................................42 FCC ID: Q87-WUSB54GR Report No.: RF941125L023Report Format Version 2.0.4 4.4.7 TEST RESULTS .......................................................................................................43 4.5POWER SPECTRAL DENSITY MEASUREMENT....................................................44 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT..................................44 4.5.2 TE…

Text truncated - open the document above for the full version.

FCC ID: Q87-WUSB54GR Report No.: RF941125L0262Report Format Version 2.0.4 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: Q87-WUSB54GR Report No.: RF941125L0263Report Format Version 2.0.4 RADIATED EMISSION TEST
