Q87-WUSB54GSCCompact Wireless-G USB Network Adapter w/SpeedBoos

Model No. USB Network Adapter Wireless-G WUSB54GSC User Guide WIRELESS GHz 2.4 802.11g Compact with SpeedBooster Compact Wireless-G USB Network Adapter with SpeedBooster Copyright and Trademarks Specifications are subject to change without notice. Linksys is a registered trademark or trademark of Cisco Systems, Inc. and/or its affiliates in the U.S. and certain other countries. Copyright © 2006 Cisco Systems, Inc. All rights reserved. Other brands and product names are trademarks or registered trademarks of their respective holders. How to Use this User Guide This User Guide has been designed to make understanding networking with the Compact Wireless-G USB Adapter easier than ever. Look for the following items when reading this User Guide: In addition to these symbols, there are definitions for technical terms that are presented like this: Also, each figure (diagram, screenshot, or other image) is provided with a figure number and description, like this: Figure numbers and descriptions can also be found in the "List of Figures" section in the “Table of Contents”. This exclamation point means there is a Caution or warning and is something that could damage your property or the Compact Wireless-G USB Adapter. This checkmark means there is a Note of interest and is something you should pay special attention to while using the Compact Wireless-G USB Adapter. This question mark provides you with a reminder about something you might need to do while using the Compact Wireless-G USB Adapter. word: definition. Figure 0-1: Sample Figure Description WUSB54Gv4-UG-50418NC BW WARNING:This product contains chemicals, including lead, known to the State of California to cause cancer, and birth defects or other reproductive harm. Wash hands after handling. Compact Wireless-G USB Network Adapter with SpeedBooster Table of Contents Chapter 1: Introduction1 Welcome1 What’s in this Guide?2 Chapter 2: Planning your Wireless Network4 Network Topology4 Roaming4 Network Layout5 Chapter 3: Getting to Know the Compact Wireless-G USB Network Adapter6 The LED Indicators6 Chapter 4: Setting up and Connecting the USB Adapter7 Starting the Setup Wizard7 Connecting the Adapter8 Creating a Profile9 Setting Up the Adapter with SecureEasySetup10 Setting Up the Adapter with Available Networks12 Setting Up the Adapter with Manual Setup15 Chapter 5: Using the Wireless Network Monitor22 Accessing the Wireless Network Monitor22 Link Information Screens22 SecureEasySetup25 Site Survey27 Profiles28 Creating a New Profile29 Appendix A: Troubleshooting30 Common Problems and Solutions30 Frequently Asked Questions31 Appendix B: Using Windows XP Wireless Configuration34 Appendix C: Wireless Security37 Security Precautions37 Security Threats Facing Wireless Networks37 Appendix D: Windows Help40 Compact Wireless-G USB Network Adapter with SpeedBooster Appendix E: Glossary41 Appendix F: Warranty Information46 Appendix G: Specifications47 Appendix H: Regulatory Information48 Appendix I: Contact Information54 Compact Wireless-G USB Network Adapter with SpeedBooster List of Figures Figure 3-1: Front Panel6 Figure 4-1: Setup Wizard’s Welcome Screen7 Figure 4-2: Setup Wizard’s License Agreement7 Figure 4-3: The Connecting the Adapter Screen8 Figure 4-4: SecureEasySetup9 Figure 4-5: Available Wireless Network9 Figure 4-6: SecureEasySetup10 Figure 4-7: SecureEasySetup10 Figure 4-8: The SecureEasySetup Logo and Location10 Figure 4-9: SecureEasySetup Complete11 Figure 4-10: Available Wireless Network12 Figure 4-11: WEP Key Needed for Connection12 Figure 4-12: WPA-Personal Needed for Connection13 Figure 4-13: WPA-Personal 2 Needed for Connection13 Figure 4-14: The Congratulations Screen14 Figure 4-15: Available Wireless Network15 Figure 4-16: Network Settings15 Figure 4-17: Wireless Mode16 Figure 4-18: Ad-Hoc Mode Settings16 Figure 4-19: Wireless Security17 Figure 4-20: Wireless Security - WEP17 Figure 4-21: Wireless Security - WPA Personal18 Figure 4-22: Wireless Security - WPA Personal 218 Figure 4-23: Wireless Security - WPA Enterprise - EAP-TLS19 Figure 4-24: Wireless Security - WPA Enterprise - PEAP19 Figure 4-25: Wireless Security - RADIUS - EAP-TLS20 Figure 4-26: Wireless Security - RADIUS - PEAP20 Figure 4-27: Confirm New Settings21 Figure 4-28: Congratulations21 Figure 4-29: 21 Figure 5-1: Wireless Network Monitor Icon22 Compact Wireless-G USB Network Adapter with SpeedBooster Figure 5-2: Link Information22 Figure 5-3: Link Information - Wireless Network Status23 Figure 5-4: Link Information - Wireless Network Statistics24 Figure 5-5: The SecureEasySetup Button25 Figure 5-6: The SecureEasySetup Logo and Location25 Figure 5-7: SecureEasySetup25 Figure 5-8: SecureEasySetup is Complete26 Figure 5-9: Site Survey27 Figure 5-10: WEP Key Needed for Connection27 Figure 5-11: WPA-Personal Needed for Connection27 Figure 5-12: WPA-Personal 2 Needed for Connection28 Figure 5-13: Profiles28 Figure 5-14: Import a Profile28 Figure 5-15: Export a Profile29 Figure 5-16: Create a New Profile29 Figure B-1: Wireless Network Monitor Icon34 Figure B-2: Windows XP - Use Windows XP Wireless Configuration34 Figure B-3: Windows XP Wireless Configuration Icon34 Figure B-4: Available Wireless Network35 Figure B-5: No Wireless Security35 Figure B-6: Network Connection - Wireless Security36 Figure B-7: Wireless Network Connection36 1 Chapter 1: Introduction Welcome Compact Wireless-G USB Network Adapter with SpeedBooster Chapter 1: Introduction Welcome Thank you for choosing the Compact Wireless-G USB Network Adapter with SpeedBooster. With this Adapter, your wireless networking experience will be faster and easier than ever. How does the Adapter do this? Like all wireless products, the Adapter allows for greater range and mobility within your wireless network. Connecting to your PC via the USB port means that this Adapter leaves the PC’s slots open for other purposes. This adapter communicates over the 802.11g wireless standard, one of the newest wireless standards, …

Text truncated - open the document above for the full version.

Cisco-Linksys LLC 121 Theory Drive Irvine, CA 92617 (USA) Phone: 949-261-1288 Fax: 949-823-3002 Date: May 12, 2006 FCC ID: Q87-WUSB54GSC Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, __________________________________________ Jennifer Yu / Associate Engineer Cisco-Linksys LLC Tel.: ( 949 ) 823-3188 Fax: ( 949 ) 823-3002 [email protected]

Cisco-Linksys LLC 121 Theory Drive Irvine, CA 92617 (USA) Phone: 949-261-1288 Fax: 949-823-3002 Agency Authorization Letter Date: May 12, 2006 To whom it may concern: We, the undersigned, hereby authorize Advance Data Technology Corp. (ADT) of Taiwan to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by ADT within the scope of this authorization shall have the same effects as our own. This authorization shall expire six months from the original date. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, __________________________________________ Jennifer Yu / Associate Engineer Cisco-Linksys LLC Tel.: ( 949 ) 823-3188 Fax: ( 949 ) 823-3002 [email protected]

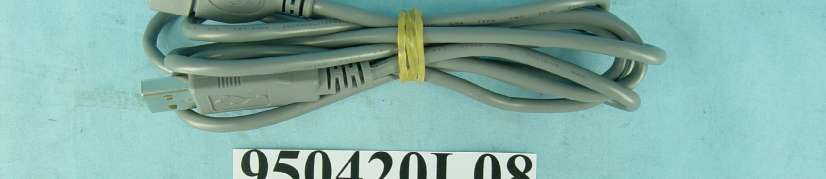

Model No.: WUSB54GSC Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

Page 3 Page 4 Page 5

FCC ID: Q87-WUSB54GSC Report No. RF940401L07B Operational Description This device is a Compact Wireless-G USB Network Adapter with SpeedBooster which operates in the 2.4GHz frequency spectrum with throughput of up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by host equipment The antenna is Sleeve antenna without antenna connector. The other instruction, please have a look at the users manual.

Report No.: SA940401L07B1Report Format Version 2.0.3 Reference: 950420L08 SAR TEST REPORT REPORT NO.: SA940401L07B MODEL NO.: WUSB54GSC RECEIVED: Apr. 20, 2005 TESTED: May 05, 2005 ISSUED: May 03, 2006 APPLICANT: Cisco-Linksys LLC ADDRESS: 121 Theory Drive Irvine, CA 92617 (USA) ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 37 pages in total except Appendix. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. No. 2177-01 Report No.: SA940401L07B2Report Format Version 2.0.3 Reference: 950420L08 TABLE OF CONTENTS 1.CERTIFICATION .........................................................................................................3 2.GENERAL INFORMATION..........................................................................................4 2.1 GENERAL DESCRIPTION OF EUT............................................................................4 2.2 GENERAL DESCRIPTION OF APPLIED STANDARDS .............................................5 2.3 GENERAL INOFRMATION OF THE SAR SYSTEM ...................................................5 2.4 GENERAL DESCRIPTION OF THE SPATIAL PEAK SAR EVALUATION ..................8 3.DESCRIPTION OF SUPPORT UNITS ......................................................................12 4.DESCRIPTION OF TEST MODES AND CONFIGURATIONS ..................................13 4.1 DESCRIPTION OF ANTENNA LOCATION ...............................................................13 4.2 DESCRIPTION OF ASSESSMENT POSITION ........................................................14 4.3 DESCRIPTION OF TEST MODE ..............................................................................15 4.4 SUMMARY OF TEST RESULTS ...............................................................................16 5.TEST RESULTS ........................................................................................................17 5.1 TEST PROCEDURES ...............................................................................................17 5.2 MEASURED SAR RESULTS ....................................................................................19 5.3 SAR LIMITS...............................................................................................................21 5.4 RECIPES FOR TISSUE SIMULATING LIQUIDS ......................................................22 5.5 TEST EQUIPMENT FOR TISSUE PROPERTY ........................................................24 6.SYSTEM VALIDATION ..............................................................................................25 6.1 TEST EQUIPMENT ...................................................................................................25 6.2 TEST PROCEDURE .................................................................................................26 6.3 VALIDATION RESULTS ............................................................................................28 6.4 SYSTEM VALIDATION UNCERTAINTIES ................................................................29 7.MEASUREMENT SAR PROCEDURE UNCERTAINTIES.........................................30 7.1 PROBE CALIBRATION UNCERTAINTY...................................................................30 7.2 ISOTROPY UNCERTAINTY .....................................................................................31 7.3 BOUNDARY EFFECT UNCERTAINTY.....................................................................31 7.4 PROBE LINEARITY UNCERTAINTY ........................................................................32 7.5 READOUT ELECTRONICS UNCERTAINTY ............................................................32 7.6 RESPONSE TIME UNCERTAINTY ..........................................................................32 7.7 INTEGRATION TIME UNCERTAINTY ......................................................................33 7.8 PROBE POSITIONER MECHANICAL TOLERANCE ...............................................34 7.9 PROBE POSITIONING .............................................................................................34 7.10 PHANTOM UNCERTAINTY ......................................................................................35 7.11 DASY4 UNCERTAINTY BUDGET ............................................................................36 8.INFORMATION ON THE TESTING LABORATORIES ..............................................37 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA APPENDIX B: ADT SAR MEASUREMENT SYSTEM APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION Report No.: SA940401L07B3Report Format Version 2.0.3 Reference: 950420L08 1. CERTIFICATION PRODUCT: Compact Wireless-G USB Network Adapter with SpeedBooster MODEL: WUSB54GSC BRAND: Linksys APPLICANT: Cisco-Linksys LLC TESTED: May 05, 2005 TEST SAMPLE: ENGINEERING SAMPLE STANDARDS: FCC Part 2 (Section 2.1093), RSS-102 FCC OET Bulletin 65, Supplement C (01-01) The above equipment has been tested by Advance Data Technology Corporation, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY:, DATE:May 03, 2006 ( Jessie Wang ) TECHNICAL ACCEPTANCE :, DATE:May 03, 2006 Responsible for RF ( Stanely Hsu ) APPROVED BY:, DATE:May 03, 2006 ( Gary Chang / Supervisor ) Report No.: SA940401L07B4Report Format Version 2.0.3 Reference: …

Text truncated - open the document above for the full version.

A - 1 APPENDIX A: TEST DATA Liquid Level Photo MSL 2450MHz D=150mm A - 2 Date/Time: 2005/5/5 09:31:39 Test Laboratory: Advance Data Technology D600-11b-CH1-Mode 1 DUT: Compact Wireless-G USB Network Adapter with SpeedBooster ; Type: WUSB54GSC ; Test Frequency: 2412 MHz Communication System: 802.11b ; Frequency: 2412 MHz ; Duty Cycle: 1:1 ; Modulation type: CCK Medium: MSL2450 Medium parameters used: f = 2412 MHz; σ = 1.98 mho/m; ε r = 53.8; ρ = 1000 kg/m 3 ; Liquid level : 150mm Phantom section: Flat Section ; Separation distance : 0 mm (The bottom side of the EUT to the Phantom) Antenna type : Internal Antenna ; Air temp. : 22.0 degrees ; Liquid temp. : 21.0 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1753 ; ConvF(4.25, 4.25, 4.25) ; Calibrated: 2004/8/26 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579 ; Calibrated: 2005/3/23 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.5 Build 19 ; Postprocessing SW: SEMCAD, V1.8 Build 146 Low Channel 1/Area Scan (5x8x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.28 mW/g Low Channel 1/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 4.83 V/m Peak SAR (extrapolated) = 3.34 W/kg SAR(1 g) = 1.21 mW/g; SAR(10 g) = 0.559 mW/g Maximum value of SAR (measured) = 1.34 mW/g A - 3 A - 4 Date/Time: 2005/5/5 09:50:12 Test Laboratory: Advance Data Technology D600-11b-CH6-Mode 1 DUT: Compact Wireless-G USB Network Adapter with SpeedBooster ; Type: WUSB54GSC ; Test Frequency: 2437 MHz Communication System: 802.11b ; Frequency: 2437 MHz ; Duty Cycle: 1:1 ; Modulation type: CCK Medium: MSL2450 Medium parameters used: f = 2437 MHz; σ = 2.02 mho/m; ε r = 53.7; ρ = 1000 kg/m 3 ; Liquid level : 150mm Phantom section: Flat Section ; Separation distance : 0 mm (The bottom side of the EUT to the Phantom) Antenna type : Internal Antenna ; Air temp. : 22.0 degrees ; Liquid temp. : 21.0 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1753 ; ConvF(4.25, 4.25, 4.25) ; Calibrated: 2004/8/26 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579 ; Calibrated: 2005/3/23 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.5 Build 19 ; Postprocessing SW: SEMCAD, V1.8 Build 146 Mid Channel 6/Area Scan (5x8x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.16 mW/g Mid Channel 6/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 5.18 V/m Peak SAR (extrapolated) = 3.13 W/kg SAR(1 g) = 1.13 mW/g; SAR(10 g) = 0.503 mW/g Maximum value of SAR (measured) = 1.34 mW/g A - 5 Date/Time: 2005/5/5 10:09:25 Test Laboratory: Advance Data Technology D600-11b-CH11-Mode 1 DUT: Compact Wireless-G USB Network Adapter with SpeedBooster ; Type: WUSB54GSC ; Test Frequency: 2462 MHz Communication System: 802.11b ; Frequency: 2462 MHz ; Duty Cycle: 1:1 ; Modulation type: CCK Medium: MSL2450 Medium parameters used: f = 2462 MHz; σ = 2.05 mho/m; ε r = 53.6; ρ = 1000 kg/m 3 ; Liquid level : 150mm Phantom section: Flat Section ; Separation distance : 0 mm (The bottom side of the EUT to the Phantom) Antenna type : Internal Antenna ; Air temp. : 22.0 degrees ; Liquid temp. : 21.0 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1753 ; ConvF(4.25, 4.25, 4.25) ; Calibrated: 2004/8/26 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579 ; Calibrated: 2005/3/23 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.5 Build 19 ; Postprocessing SW: SEMCAD, V1.8 Build 146 High Channel 11/Area Scan (5x8x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.05 mW/g High Channel 11/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 5.21 V/m Peak SAR (extrapolated) = 2.95 W/kg SAR(1 g) = 1.08 mW/g; SAR(10 g) = 0.459 mW/g Maximum value of SAR (measured) = 1.21 mW/g High Channel 11/Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 5.21 V/m Peak SAR (extrapolated) = 2.13 W/kg SAR(1 g) = 1.04 mW/g; SAR(10 g) = 0.537 mW/g Maximum value of SAR (measured) = 1.16 mW/g A - 6 Date/Time: 2005/5/5 10:28:46 Test Laboratory: Advance Data Technology D600-11g-CH1-Mode 2 DUT: Compact Wireless-G USB Network Adapter with SpeedBooster ; Type: WUSB54GSC ; Test Frequency: 2412 MHz Communication System: 802.11g ; Frequency: 2412 MHz ; Duty Cycle: 1:1 ; Modulation type: OFDM Medium: MSL2450 Medium parameters used: f = 2412 MHz; σ = 1.98 mho/m; ε r = 53.8; ρ = 1000 kg/m 3 ; Liquid level : 150mm Phantom section: Flat Section ; Separation distance : 0 mm (The bottom side of the EUT to the Phantom) Antenna type : Internal Antenna ; Air temp. : 22.0 degrees ; Liquid temp. : 21.0 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1753 ; ConvF(4.25, 4.25, 4.25) ; Calibrated: 2004/8/26 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn579 ; Calibrated: 2005/3/23 - Phantom: SAM 12 ; Type: SAM V4.0 ; Serial: TP 1202 - Measurement SW: DASY4, V4.5 Build 19 ; Postprocessing SW: SEMCAD, V1.8 Build 146 Low Channel 1/Area Scan (5x8x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.391 mW/g Low Channel 1/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 2.95 V/m Peak SAR (extrapolated) = 0.876 W/kg SAR(1 g) = 0.330 mW/g; SAR(10 g) = 0.159 mW/g Maximum value of SAR (measured) = 0.393 mW/g A - 7 Date/Time: 2005/5/5 10:59:08 Test Laboratory: Advance Data Technology 3800-11b-CH1-Mode 3 DUT: Compact Wireless-G USB Network Adapter with SpeedBooster ; Type: WUSB54GSC ; Test Frequency: 2412 MHz Communication System: 802.11b ; Frequency: 2412 MHz; Duty Cycle: 1:1; Modulation type: CCK Medium: MSL2450 Medium parameters used: f = 2412 MHz; σ = 1.98 mho/m; ε r = 53.8; ρ = 1000 kg/m 3 ; Liquid level : 150 mm Phantom section: Flat Section ; Separation distance : 0 mm (The tip of the EUT to the Phantom) Antenna type : …

Text truncated - open the document above for the full version.

B - 1 APPENDIX B: ADT SAR MEASUREMENT SYSTEM C - 1 APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION D2: DOSIMETRIC E-FIELD PROBE SN: 1753 D3: DAE SN: 579 APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION D1: SAM PHANTOM

Report No.: RF940401L07B1Report Format Version 2.0.4 Reference No.: 950420L08 FCC TEST REPORT REPORT NO.: RF940401L07B MODEL NO.: WUSB54GSC RECEIVED: Apr. 04, 2005 TESTED: Apr. 04 ~ Apr. 22, 2005 Apr. 24, 2006 (for conducted and radiated emission below 1GHz of test mode 1) ISSUED: May 02, 2006 APPLICANT: Cisco-Linksys LLC ADDRESS: 121 Theory Drive Irvine, CA 92617 (USA) ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 73 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF940401L07B2Report Format Version 2.0.4 Reference No.: 950420L08 Table of Contents 1.CERTIFICATION ..................................................................................................... 4 2.SUMMARY OF TEST RESULTS ............................................................................. 5 2.1MEASUREMENT UNCERTAINTY .......................................................................... 5 3.GENERAL INFORMATION...................................................................................... 6 3.1GENERAL DESCRIPTION OF EUT........................................................................ 6 3.2DESCRIPTION OF TEST MODES.......................................................................... 7 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST ..................................................... 8 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL: ......................... 9 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ....................................... 11 3.4DESCRIPTION OF SUPPORT UNITS .................................................................. 11 4.TEST TYPES AND RESULTS ............................................................................... 12 4.1CONDUCTED EMISSION MEASUREMENT ........................................................ 12 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT...................................... 12 4.1.2 TEST INSTRUMENTS........................................................................................... 12 4.1.3 TEST PROCEDURES ........................................................................................... 13 4.1.4 DEVIATION FROM TEST STANDARD ................................................................. 13 4.1.5 TEST SETUP ........................................................................................................ 14 4.1.6 EUT OPERATING CONDITIONS .......................................................................... 14 4.1.7 TEST RESULTS .................................................................................................... 15 4.2RADIATED EMISSION MEASUREMENT ............................................................. 27 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT........................................... 27 4.2.2 TEST INSTRUMENTS........................................................................................... 28 4.2.3 TEST PROCEDURES ........................................................................................... 29 4.2.4 DEVIATION FROM TEST STANDARD ................................................................. 29 4.2.5 TEST SETUP ........................................................................................................ 30 4.2.6 EUT OPERATING CONDITIONS .......................................................................... 30 4.2.7 TEST RESULTS .................................................................................................... 31 4.36dB BANDWIDTH MEASUREMENT .................................................................... 39 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT .................................................. 39 4.3.2 TEST INSTRUMENTS........................................................................................... 39 4.3.3 TEST PROCEDURE.............................................................................................. 40 4.3.4 DEVIATION FROM TEST STANDARD ................................................................. 40 4.3.5 TEST SETUP ........................................................................................................ 40 4.3.6 EUT OPERATING CONDITIONS .......................................................................... 40 4.3.7 TEST RESULTS .................................................................................................... 41 4.4MAXIMUM PEAK OUTPUT POWER .................................................................... 47 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT..................... 47 4.4.2 INSTRUMENTS..................................................................................................... 47 Report No.: RF940401L07B3Report Format Version 2.0.4 Reference No.: 950420L08 4.4.3 TEST PROCEDURES ........................................................................................... 48 4.4.4 DEVIATION FROM TEST STANDARD ................................................................. 48 4.4.5 TEST SETUP ........................................................................................................ 48 4.4.6 EUT OPERATING CONDITIONS .......................................................................... 48 4.4.7 TEST RESULTS .................................................................................................... 49 4.5POWER SPECTRAL DENSITY MEASUREMENT................................................ 50 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT .............…

Text truncated - open the document above for the full version.

Report No.: RF940401L07B68Report Format Version 2.0.4 Reference No.: 950420L08 5. PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST_TEST MODE 1 Report No.: RF940401L07B69Report Format Version 2.0.4 Reference No.: 950420L08 CONDUCTED EMISSION TEST_TEST MODE 2 Report No.: RF940401L07B70Report Format Version 2.0.4 Reference No.: 950420L08 RADIATED EMISSION TEST_TEST MODE 1 Report No.: RF940401L07B71Report Format Version 2.0.4 Reference No.: 950420L08 RADIATED EMISSION TEST_TEST MODE 2
