Q87-WUSB54GSV2Wireless-G USB Network Adapter with SpeedBooster

A Division of Cisco Systems, Inc. ® Model No. USB Network Adapter Wireless- G WUSB54GS ver. 2 User Guide WIRELESS GHz 2.4 802.11g with SpeedBooster Wireless-G USB Network Adapter with SpeedBoosterCopyright and TrademarksSpecifications are subject to change without notice. Linksys is a registered trademark or trademark of Cisco Systems, Inc. and/or its affiliates in the U.S. and certain other countries. Copyright © 2004 Cisco Systems, Inc. All rights reserved. Other brands and product names are trademarks or registered trademarks of their respective holders.How to Use this User GuideThis User Guide has been designed to make understanding networking with the Wireless-G USB Network Adapter easier than ever. Look for the following items when reading this User Guide:In addition to these symbols, there are definitions for technical terms that are presented like this:Also, each figure (diagram, screenshot, or other image) is provided with a figure number and description, like this:Figure numbers and descriptions can also be found in the "List of Figures" section in the “Table of Contents”. This exclamation point means there is a Caution or warning and is something that could damage your property or the Wireless-G USB Network Adapter. This checkmark means there is a Note of interest and is something you should pay special attention to while using the Wireless-G USB Network Adapter. This question mark provides you with a reminder about something you might need to do while using the Wireless-G USB Network Adapter. word: definition. Figure 0-1: Sample Figure Description WUSB54GS-UG-40811A JL WARNING: This product contains chemicals, including lead, known to the State of California to cause cancer, and birth defects or other reproductive harm. Wash hands after handling. Wireless-G USB Network Adapter with SpeedBoosterTable of ContentsChapter 1: Introduction 1 Welcome 1 What’s in this Guide? 2 Chapter 2: Planning your Wireless Network 4 Network Topology 4 Roaming 4 Network Layout 5 Chapter 3: Using the USB Network Adapter’s Setup Wizard 6 Chapter 4: Connecting the USB Network Adapter 13 The LED Indicators 14 Chapter 5: Using the Wireless Network Monitor 15 Using the Wireless Network Monitor Icon 15 Accessing the Wireless Network Monitor 16 Link Information 16 Site Survey 19 Profiles 20 Creating a New Profile 21 Appendix A: Troubleshooting 28 Common Problems and Solutions 28 Frequently Asked Questions 29 Appendix B: Wireless Security 32 Security Precautions 32 Security Threats Facing Wireless Networks 32 Appendix C: Windows Help 35 Appendix D: Glossary 36 Appendix E: Specifications 39 Appendix F: Warranty Information 41 Appendix G: Regulatory Information 42 Appendix H: Contact Information 43 Wireless-G USB Network Adapter with SpeedBoosterList of FiguresFigure 3-1: The Setup Wizard’s Welcome Screen 6 Figure 3-2: The License Agreement Screen 7 Figure 3-3: The Wireless Mode Screen 7 Figure 3-4: The Ad-Hoc Mode Settings Screen 8 Figure 3-5: The Wireless Security Screen 8 Figure 3-6: The WEP Security Settings Screen 9 Figure 3-7: The Wireless Security PSK Screen 9 Figure 3-8: The Wireless Security PSK+RADIUS (EAP-TLS) Screen 10 Figure 3-9: The Wireless Security RADIUS (EAP-PEAP) Screen 10 Figure 3-10: The Check Settings Screen 11 Figure 3-11: The Windows 2000 Digital Signature Screen 11 Figure 3-12: The Windows XP Digital Signature Screen 11 Figure 3-13: The Congratulations Screen 12 Figure 4-1: The Adapter’s USB Port 13 Figure 4-2: A USB Port 13 Figure 4-3: The New Hardware Wizard 13 Figure 4-4: The Windows 2000 Digital Signature Screen 14 Figure 4-5: The Windows XP Digital Signature Screen 14 Figure 5-1: Wireless Network Monitor Icon 15 Figure 5-2: Windows XP - Use Windows XP Wireless Configuration 15 Figure 5-3: Windows XP - Use Linksys Wireless Network Monitor 15 Figure 5-4: Link Information 16 Figure 5-5: More Information - Wireless Network Status 17 Figure 5-6: More Information - Wireless Network Statistics 18 Figure 5-7: Site Survey 19 Figure 5-8: WEP Key Needed for Connection 19 Figure 5-9: PSK (Pre-Shared Key) Needed for Connection 19 Figure 5-10: Profiles 20 Figure 5-11: Import a Profile 20 Figure 5-12: Export a Profile 20 Wireless-G USB Network Adapter with SpeedBoosterFigure 5-13: Create a New Profile 21 Figure 5-14: Enter Profile Name 21 Figure 5-15: Network Settings for New Profile 21 Figure 5-16: Wireless Mode for New Profile 22 Figure 5-17: Ad-Hoc Mode Settings for New Profile 22 Figure 5-18: Wireless Security for New Profile 23 Figure 5-19: Wireless Security - WEP for New Profile 23 Figure 5-20: Wireless Security - PSK for New Profile 24 Figure 5-21: Wireless Security - PSK + RADIUS Using EAP-TLS for New Profile 25 Figure 5-22: Wireless Security - PSK + RADIUS Using EAP-PEAP for New Profile 25 Figure 5-23: Wireless Security - RADIUS Using EAP-TLS for New Profile 26 Figure 5-24: Wireless Security - RADIUS Using EAP-PEAP for New Profile 26 Figure 5-25: Confirm New Settings for New Profile 27 Figure 5-26: Congratulations for New Profile 27 1 Chapter 1: IntroductionWelcomeWireless-G USB Network Adapter with SpeedBoosterChapter 1: IntroductionWelcomeThank you for choosing the Wireless-G USB Network Adapter. With this Adapter, your wireless networking experience will be faster and easier than ever.How does the Adapter do this? Like all wireless products, the Adapter allows for greater range and mobility within your wireless network. Connecting to your PC via the USB port means that this Adapter leaves the PC’s slots open for other purposes. This adapter communicates over the 802.11g wireless standard, one of the newest wireless standards, to communicate with your network.But what does all of this mean? Networks are useful tools for sharing computer resources. You can access one printer from different computers and access data located on another computer's hard drive. Networks are even used for playing multiplayer video games. So, networks are not only useful in homes and offices, they can also …

Text truncated - open the document above for the full version.

Cisco-Linksys LLC 121 Theory Drive Irvine, CA 92617 (USA) Phone: 949-261-1288 Fax: 949-823-3002 Date: March 21, 2005 FCC ID: Q87-WUSB54GSV2 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, __________________________________________ Jennifer Yu / Associate Engineer Cisco-Linksys LLC Tel.: ( 949 ) 823-3188 Fax: ( 949 ) 823-3002 [email protected]

Cisco-Linksys LLC 121 Theory Drive Irvine, CA 92617 (USA) Phone: 949-261-1288 Fax: 949-823-3002 Agency Authorization Letter Date: March 21, 2005 To whom it may concern: We, the undersigned, hereby authorize Advance Data Technology Corp. (ADT) of Taiwan to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by ADT within the scope of this authorization shall have the same effects as our own. This authorization shall expire six months from the original date. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, __________________________________________ Jennifer Yu / Associate Engineer Cisco-Linksys LLC Tel.: ( 949 ) 823-3188 Fax: ( 949 ) 823-3002 [email protected]

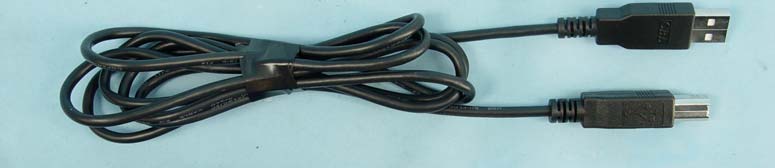

Model No.: WUSB54GS ver. 2 Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

FCC ID Label Location (FCC ID: Q87-WUSB54GSV2)

Page 3 Page 4 Page 5

FCC ID: Q87-WUSB54GSV2 Report No. RF940224L09 Operational Description This device is a Wireless-G USB Network Adapter with SpeedBooster which operates in the 2.4GHz frequency spectrum with throughput of up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by host equipment. The antenna is Dipole antenna without antenna connector. The other instruction, please have a look at the users manual.

FCC ID: Q87-WUSB54GSV2 Report No: SA940224L09 1 RF EXPOSURE REPORT REPORT NO.: SA940224L09 MODEL NO.: WUSB54GS ver. 2 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Cisco-Linksys LLC ADDRESS: 121 Theory Drive Irvine, CA 92617 (USA) ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID: Q87-WUSB54GSV2 Report No: SA940224L09 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: Q87-WUSB54GSV2 Report No: SA940224L09 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance r. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification This device is not fixed inside the host equipment, it is connected with host through wire. So it is easy to be re-located in the place where at least 20cm far away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: Q87-WUSB54GSV2 Report No: SA940224L09 4 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 1dBi or 1.2589 (numeric) 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For DSSS: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241250.9330.0131.0 6243750.8160.0131.0 11246250.4660.0131.0 For OFDM: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241225.2930.0061.0 6243725.1770.0061.0 11246225.5270.0061.0

FCC ID: Q87-WUSB54GSV2 Report No.: RF940224L091Report Format Version 2.0.2 FCC TEST REPORT REPORT NO.: RF940224L09 MODEL NO.: WUSB54GS ver. 2 RECEIVED: Feb. 16, 2005 TESTED: Feb. 16 ~ Feb. 25, 2005 ISSUED: Mar. 14, 2005 APPLICANT: Cisco-Linksys LLC ADDRESS: 121 Theory Drive Irvine, CA 92617 (USA) ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 63 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA FCC ID: Q87-WUSB54GSV2 Report No.: RF940224L092Report Format Version 2.0.2 Table of Contents 1. CERTIFICATION ......................................................................................4 2. SUMMARY OF TEST RESULTS..................................................................5 2.1MEASUREMENT UNCERTAINTY ...........................................................................5 3. GENERAL INFORMATION .........................................................................6 3.1GENERAL DESCRIPTION OF EUT.........................................................................6 3.2DESCRIPTION OF TEST MODES...........................................................................7 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST ...................................................... 7 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL: .......................... 8 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ........................................10 3.4DESCRIPTION OF SUPPORT UNITS ...................................................................10 4. TEST TYPES AND RESULTS....................................................................11 4.1CONDUCTED EMISSION MEASUREMENT ......................................................... 11 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT....................................... 11 4.1.2 TEST INSTRUMENTS............................................................................................ 11 4.1.3 TEST PROCEDURES ............................................................................................ 12 4.1.4 DEVIATION FROM TEST STANDARD .................................................................. 12 4.1.5 TEST SETUP ......................................................................................................... 13 4.1.6 EUT OPERATING CONDITIONS ........................................................................... 13 4.1.7 TEST RESULTS ..................................................................................................... 13 4.2RADIATED EMISSION MEASUREMENT ..............................................................20 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT............................................ 20 4.2.2 TEST INSTRUMENTS............................................................................................ 21 4.2.3 TEST PROCEDURES ............................................................................................ 22 4.2.4 DEVIATION FROM TEST STANDARD .................................................................. 22 4.2.5 TEST SETUP ......................................................................................................... 23 4.2.6 EUT OPERATING CONDITIONS ........................................................................... 23 4.2.7 TEST RESULTS ..................................................................................................... 24 4.36dB BANDWIDTH MEASUREMENT .....................................................................32 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT ................................................... 32 4.3.2 TEST INSTRUMENTS............................................................................................ 32 4.3.3 TEST PROCEDURE............................................................................................... 33 4.3.4 DEVIATION FROM TEST STANDARD .................................................................. 33 4.3.5 TEST SETUP ......................................................................................................... 33 4.3.6 EUT OPERATING CONDITIONS ........................................................................... 33 4.3.7 TEST RESULTS ..................................................................................................... 34 4.4MAXIMUM PEAK OUTPUT POWER .....................................................................40 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT...................... 40 4.4.2 INSTRUMENTS...................................................................................................... 40 4.4.3 TEST PROCEDURES ............................................................................................ 41 FCC ID: Q87-WUSB54GSV2 Report No.: RF940224L093Report Format Version 2.0.2 4.4.4 DEVIATION FROM TEST STANDARD .................................................................. 41 4.4.5 TEST SETUP ......................................................................................................... 41 4.4.6 EUT OPERATING CONDITIONS ........................................................................... 41 4.4.7 TEST RESULTS ..................................................................................................... 42 4.5POWER SPECTRAL DENSITY MEASUREMENT.................................................43 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT .............................. 43 4.5.2 TEST INSTRUMENTS............................................…

Text truncated - open the document above for the full version.

FCC ID: Q87-WUSB54GSV2 Report No.: RF940224L0961Report Format Version 2.0.2 5. PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: Q87-WUSB54GSV2 Report No.: RF940224L0962Report Format Version 2.0.2 RADIATED EMISSION TEST
