Q87-WUSB54GV4Wireless-G USB Network Adapter ver. 4

A Division of Cisco Systems, Inc. ® Model No. USB Network Adapter Wireless-G WUSB54G User Guide WIRELESS GHz 2.4 802.11g Wireless-G USB Network Adapter Copyright and Trademarks Specifications are subject to change without notice. Linksys is a registered trademark or trademark of Cisco Systems, Inc. and/or its affiliates in the U.S. and certain other countries. Copyright © 2004 Cisco Systems, Inc. All rights reserved. Other brands and product names are trademarks or registered trademarks of their respective holders. This User Guide The User Guide to the Wireless-G USB Network Adapter has been designed to make understanding networking easier than ever. Look for the following items when reading this guide: In addition to these symbols, there are definitions for technical terms that are presented like this: Also, each figure (diagram, screenshot, or other image) is provided with a figure number and description, like this: Figure numbers and descriptions can also be found in the “List of Figures” section in the “Table of Contents”. This exclamation point means there is a caution or warning and is something that could damage your property or the Adapter. word: definition. This checkmark means there is a note of interest and is something you should pay special attention to while using the Adapter. This question mark provides you with a reminder about something you might need to do while using the Adapter. Figure 0-1: Sample Figure Description WUSB54G_V2-UG-40422NC JL Wireless-G USB Network Adapter Table of Contents Chapter 1: Introduction1 Welcome1 What’s in this Guide?2 Chapter 2: Planning Your Wireless Network4 Network Topology4 Roaming4 Network Layout4 Chapter 3: Getting to Know the Wireless-G USB Network Adapter6 The USB Port6 The LED Indicators6 Chapter 4: Setting up the Wireless-G USB Network Adapter7 Using the Setup Wizard7 Chapter 5: Connecting the Wireless-G USB Network Adapter14 Connecting the Adapter14 Using the Adapter’s Wall Mount15 Chapter 6: Using the Wireless Network Monitor16 Using the Wireless Network Monitor Icon16 Accessing the Wireless Network Monitor17 Link Information17 Site Survey20 Profiles21 Creating a New Profile22 Appendix A: Troubleshooting29 Common Problems and Solutions29 Frequently Asked Questions30 Appendix B: Wireless Security33 Security Precautions33 Security Threats Facing Wireless Networks33 Appendix C: Windows Help36 Appendix D: Glossary37 Appendix E: Specifications44 Wireless-G USB Network Adapter Appendix F: Warranty Information46 Appendix G: Regulatory Information47 Appendix H: Contact Information49 Wireless-G USB Network Adapter List of Figures Figure 3-1: USB Port6 Figure 3-2: Front Panel6 Figure 4-1: Setup Wizard’s Welcome Screen7 Figure 4-2: Setup Wizard’s License Agreement7 Figure 4-3: Setup Wizard’s Wireless Mode Screen8 Figure 4-4: Setup Wizard’s Ad-Hoc Mode Settings Screen8 Figure 4-5: Setup Wizard’s Wireless Security Screen9 Figure 4-6: Setup Wizard’s Wireless Security - WEP Screen9 Figure 4-7: Setup Wizard’s Wireless Security - PSK Using TKIP Screen10 Figure 4-8: Setup Wizard’s Wireless Security - PSK Using AES Screen10 Figure 4-9: Setup Wizard’s Wireless Security - PSK + RADIUS Using EAP-TLS Screen11 Figure 4-10: Setup Wizard’s Wireless Security - PSK + RADIUS Using EAP-PEAP Screen11 Figure 4-11: Setup Wizard’s Wireless Security - RADIUS Using EAP-TLS Screen12 Figure 4-12: Setup Wizard’s Wireless Security - RADIUS Using EAP-PEAP Screen12 Figure 4-13: Setup Wizard’s Check Settings Screen13 Figure 4-14: Digital Signature Not Found Screen13 Figure 4-15: Setup Wizard’s Congratulations Screen13 Figure 5-1: How the Adapter Connects to Your PC14 Figure 5-2: Adapter’s USB Port14 Figure 5-3: PC’s USB Ports14 Figure 5-4: Digital Signature Not Found Screen14 Figure 5-5: Using the Wall Mount - Step A15 Figure 5-6: Using the Wall Mount - Step B15 Figure 5-7: Using the Wall Mount - Step C15 Figure 6-1: Wireless Network Monitor Icon16 Figure 6-2: Windows XP - Use Windows XP Wireless Configuration16 Figure 6-3: Windows XP - Use Linksys Wireless Network Monitor16 Figure 6-4: Link Information17 Figure 6-5: More Information - Wireless Network Status18 Figure 6-6: More Information-Network Statistics19 Wireless-G USB Network Adapter Figure 6-7: Site Survey20 Figure 6-8: WEP Key Needed for Connection20 Figure 6-9: PSK (Pre-Shared Key) Needed for Connection20 Figure 6-10: Profiles21 Figure 6-11: Import a Profile21 Figure 6-12: Export a Profile21 Figure 6-13: Create a New Profile22 Figure 6-14: Enter Profile Name22 Figure 6-15: Network Settings for New Profile22 Figure 6-16: Wireless Mode for New Profile23 Figure 6-17: Ad-Hoc Mode Settings for New Profile23 Figure 6-18: Wireless Security for New Profile24 Figure 6-19: Wireless Security - WEP for New Profile24 Figure 6-20: Wireless Security - PSK for New Profile25 Figure 6-21: Wireless Security - PSK + RADIUS Using EAP-TLS for New Profile26 Figure 6-22: Wireless Security - PSK + RADIUS Using EAP-PEAP for New Profile26 Figure 6-23: Wireless Security - RADIUS Using EAP-TLS for New Profile27 Figure 6-24: Wireless Security - RADIUS Using EAP-PEAP for New Profile27 Figure 6-25: Confirm New Settings for New Profile28 Figure 6-26: Congratulations for New Profile28 1 Chapter 1: Introduction Welcome Wireless-G USB Network Adapter Chapter 1: Introduction Welcome Thank you for choosing the Wireless-G USB Network Adapter. With this Adapter, your wireless networking experience will be faster and easier than ever. Connect your USB-equipped desktop or notebook computer to a wireless network at incredible speeds with the Linksys Wireless-G USB Network Adapter. By incorporating two fast technologies—USB 2.0 and Wireless-G (802.11g)—the Adapter delivers data rates up to 54Mbps (5 times as fast as 802.11b), without the trouble of opening up the case of your desktop computer. To install, simply plug the Adapter into any available USB port. (It's compatible with both USB 1.1 and 2.0 ports, but 2.0 will yield the fastest speeds.) It gets i…

Text truncated - open the document above for the full version.

25 Chapter 6: Using the Wireless Network Monitor Creating a New Profile Wireless-G USB Network Adapter PSK PSK offers two encryption methods, TKIP and AES, with dynamic encryption keys. Select the type of algorithm, TKIP or AES, for the Encryption Type. Then enter a Passphrase that is 8-63 characters in length. Encryption - Select the type of algorithm you want to use, TKIP or AES, for the Encryption Type. Passphrase - Enter a Passphrase, also called a Pre-Shared Key, of 8-63 characters in the Passphrase field. The longer and more complex your Passphrase is, the more secure your network will be. Click the Next button to continue. Click the Back button to return to the previous screen. Figure 6-20: Wireless Security - PSK for New Profile 26 Chapter 6: Using the Wireless Network Monitor Creating a New Profile Wireless-G USB Network Adapter PSK + RADIUS PSK + RADIUS features a Pre-Shared Key used in coordination with a RADIUS server. (This should only be used when a RADIUS server is connected to the Router.) PSK + RADIUS offers two encryption methods, TKIP and AES, with dynamic encryption keys, as well as two authentication methods, EAP-TLS and EAP-PEAP. Authentication - Select the authentication method your network is using, EAP-TLS or EAP-PEAP. EAP-TLS If you selected EAP-TLS, enter the login name of your wireless network in the Login Name field. Enter the name of the authentication server in the Server Name field. From the Certificate drop-down menu, select the certificate you have installed to authenticate you on your wireless network. Select the type of encryption, TKIP or AES, for the Encryption field. Click the Next button to continue. Click the Back button to return to the previous screen. EAP-PEAP If you selected EAP-PEAP, enter the login name of your wireless network in the Login Name field. Enter the password of your wireless network in the Password field. Enter the name of the authentication server in the Server Name field. From the Certificate drop-down menu, select the certificate you have installed to authenticate you on your wireless network. Select the type of encryption, TKIP or AES, for the Encryption field. Click the Next button to continue. Click the Back button to return to the previous screen. Figure 6-21: Wireless Security - PSK + RADIUS Using EAP-TLS for New Profile Figure 6-22: Wireless Security - PSK + RADIUS Using EAP-PEAP for New Profile 27 Chapter 6: Using the Wireless Network Monitor Creating a New Profile Wireless-G USB Network Adapter RADIUS RADIUS features use of a RADIUS server. (This should only be used when a RADIUS server is connected to the Router.) RADIUS offers two authentication types: EAP-TLS and EAP-PEAP. Authentication - Select the authentication method your network is using, EAP-TLS or EAP-PEAP. EAP-TLS If you selected EAP-TLS, enter the login name of your wireless network in the Login Name field. Enter the name of the authentication server in the Server Name field. From the Certificate drop-down menu, select the certificate you have installed to authenticate you on your wireless network. Click the Next button to continue. Click the Back button to return to the previous screen. EAP-PEAP If you selected EAP-PEAP, enter the login name of your wireless network in the Login Name field. Enter the password of your wireless network in the Password field. Enter the name of the authentication server in the Server Name field. From the Certificate drop-down menu, select the certificate you have installed to authenticate you on your wireless network. Click the Next button to continue. Click the Back button to return to the previous screen. Figure 6-23: Wireless Security - RADIUS Using EAP-TLS for New Profile Figure 6-24: Wireless Security - RADIUS Using EAP-PEAP for New Profile 28 Chapter 6: Using the Wireless Network Monitor Creating a New Profile Wireless-G USB Network Adapter 8. The Confirm New Settings screen will appear next and show the new settings. To save the new settings, click the Save button. To edit the new settings, click the Back button. To exit the Wireless Network Monitor, click Exit. 9. The Congratulations screen will appear next. Click Connect to Network to implement the new settings immediately and return to the Link Information screen. Click Return to Profiles Screen to keep the current settings active and return to the Profiles screen. You have successfully created a connection profile. Figure 6-25: Confirm New Settings for New Profile Figure 6-26: Congratulations for New Profile 29 Appendix A: Troubleshooting Common Problems and Solutions Wireless-G USB Network Adapter Appendix A: Troubleshooting This appendix consists of two parts: “Common Problems and Solutions” and “Frequently Asked Questions.” This appendix provides solutions to problems that may occur during the installation and operation of the Wireless-G USB Network Adapter. Read the description below to solve your problems. If you can't find an answer here, check the Linksys website at www.linksys.com. Common Problems and Solutions 1. My computer does not recognize the Wireless-G USB Network Adapter. Follow the steps below until the problem is solved: •Make sure the Adapter is properly connected to the PC’s USB port. •Make sure that the USB Controller is enabled in the BIOS. Refer to the documentation for your PC’s motherboard. 2. The Wireless-G USB Network Adapter does not work properly. Follow the steps below until the problem is solved: •Reinsert the Wireless-G USB Network Adapter into the notebook or desktop’s USB port. •Click Start and select Settings. Click Control Panel. Double-click System. Click the Hardware tab. Click the Device Manager button. You will find the Wireless-G USB Network Adapter if it is installed successfully. If not, disconnect the Adapter and uninstall the driver software from your PC. Then restart your PC and repeat the software and hardware installation specified in this User Guide. 3. I cannot communicate with the other computers linked via Ethern…

Text truncated - open the document above for the full version.

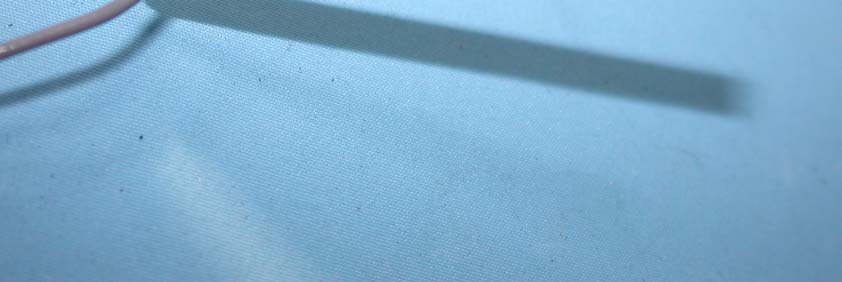

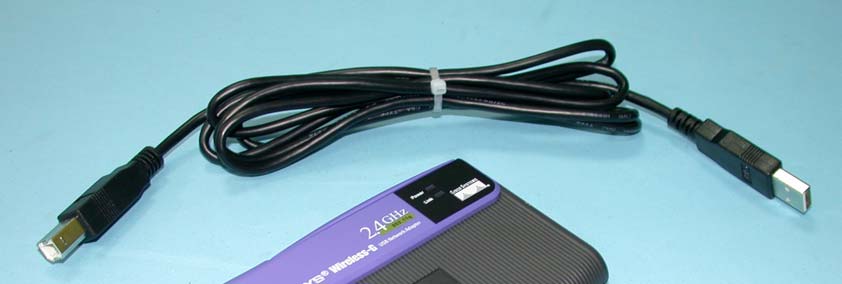

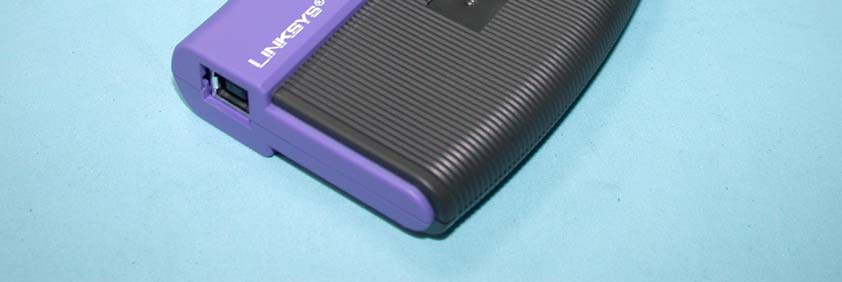

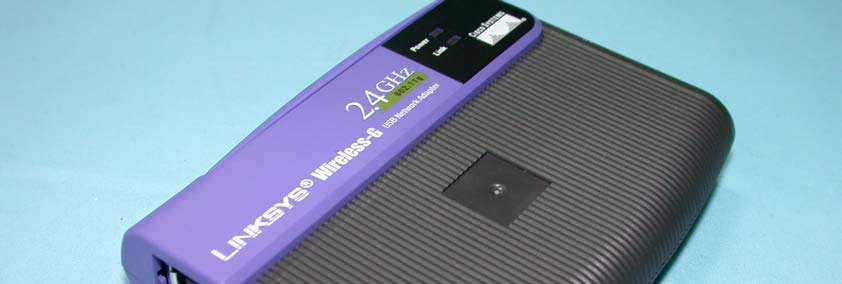

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 V Page 4

Page 5 Page 6 Page 7 Page 8 Page 9

FCC ID: Q87-WUSB54GV4 Report No.: RF930513L10 Operational Description This device is a Wireless-G USB Network Adapter ver. 4, which operates in the 2.4GHz frequency spectrum with throughput of up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT is powered by host equipment via a USB interface. The antenna is Dipole antenna without a connector. The other instruction, please have a look at the users manual.

FCC ID: Q87-WUSB54GV4 Report No: SA930513L10 1 RF EXPOSURE REPORT REPORT NO.: SA930513L10 MODEL NO.: WUSB54G ver. 4 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Cisco-Linksys, LLC ADDRESS: 121 Theory Drive, Irvine, CA 92612 (USA) ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 19, Hwa Ya 2nd rd., Kueishan, Taoyuan, Taiwan, R.O.C. FCC ID: Q87-WUSB54GV4 Report No: SA930513L10 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: Q87-WUSB54GV4 Report No: SA930513L10 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification This device is not fixed inside the host equipment, it is connected with host through wire. So it is easy to be re-located in the place where at least 20cm far away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: Q87-WUSB54GV4 Report No: SA930513L10 4 6 Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 0dBi or 1(numeric). 6.2 Output Power Into Antenna & RF Exposure Distance : For Part 802.11b (CCK technique): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241231.6230.0061.0 6243731.6230.0061.0 11246231.6230.0061.0 For Part 802.11g (OFDM technique): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241231.6230.0061.0 6243731.6230.0061.0 11246231.6230.0061.0

FCC ID: Q87-WUSB54GV4 Report No.: RF930513L101Issued: May 20, 2004 FCC TEST REPORT REPORT NO.: RF930513L10 MODEL NO.: WUSB54G ver. 4 RECEIVED: May 14, 2004 TESTED: May 14 ~ May 19, 2004 APPLICANT: Cisco-Linksys, LLC ADDRESS: 121 Theory Drive, Irvine, CA 92612, U.S.A. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 19, Hwa Ya 2nd rd., Kueishan, Taoyuan, Taiwan, R.O.C. This test report consists of 69 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by any government agencies. The test results in the report only apply to the tested sample. FCC ID: Q87-WUSB54GV4 Report No.: RF930513L102Issued: May 20, 2004 Table of Contents 1CERTIFICATION ........................................................................................... 4 2SUMMARY OF TEST RESULTS................................................................... 5 3GENERAL INFORMATION ........................................................................... 6 3.1GENERAL DESCRIPTION OF EUT.............................................................. 6 3.2DESCRIPTION OF TEST MODES................................................................ 7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ............................... 7 3.4DESCRIPTION OF SUPPORT UNITS .......................................................... 8 3.5 CONFIGURATION OF SYSTEM UNDER TEST .......................................... 8 4TEST TYPES AND RESULTS....................................................................... 9 4.1CONDUCTED EMISSION MEASUREMENT ................................................ 9 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT.............................. 9 4.1.2TEST INSTRUMENTS .................................................................................. 9 4.1.3TEST PROCEDURES................................................................................. 10 4.1.4DEVIATION FROM TEST STANDARD ....................................................... 10 4.1.5TEST SETUP ...............................................................................................11 4.1.6EUT OPERATING CONDITIONS................................................................ 12 4.1.7TEST RESULTS.......................................................................................... 13 4.2RADIATED EMISSION MEASUREMENT ................................................... 19 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT................................. 19 4.2.2TEST INSTRUMENTS ................................................................................ 20 4.2.3TEST PROCEDURES................................................................................. 21 4.2.4DEVIATION FROM TEST STANDARD ....................................................... 21 4.2.5TEST SETUP .............................................................................................. 22 4.2.6EUT OPERATING CONDITIONS................................................................ 22 4.2.7TEST RESULTS.......................................................................................... 23 4.2.8TEST RESULTS (A) .................................................................................... 25 4.2.9TEST RESULTS (B) .................................................................................... 28 4.36dB BANDWIDTH MEASUREMENT .......................................................... 31 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT ........................................ 31 4.3.2TEST INSTRUMENTS ................................................................................ 31 4.3.3TEST PROCEDURE ................................................................................... 32 4.3.4DEVIATION FROM TEST STANDARD ....................................................... 32 4.3.5TEST SETUP .............................................................................................. 32 4.3.6EUT OPERATING CONDITIONS................................................................ 32 4.3.7TEST RESULTS (A) .................................................................................... 33 FCC ID: Q87-WUSB54GV4 Report No.: RF930513L103Issued: May 20, 2004 4.3.8TEST RESULTS (B) .................................................................................... 37 4.4MAXIMUM PEAK OUTPUT POWER .......................................................... 41 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ........... 41 4.4.2TEST INSTRUMENTS ................................................................................ 41 4.4.3TEST PROCEDURES................................................................................. 42 4.4.4DEVIATION FROM TEST STANDARD ....................................................... 42 4.4.5TEST SETUP .............................................................................................. 42 4.4.6EUT OPERATING CONDITIONS................................................................ 42 4.4.7TEST RESULTS (A) .................................................................................... 43 4.4.8TEST RESULTS (B) .................................................................................... 44 4.5POWER SPECTRAL DENSITY MEASUREMENT...................................... 45 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ................... 45 4.5.2TEST INSTRUMENTS ................................................................................ 45 4.5.3TEST PROCEDURE ................................................................................... 46 4.5.4DEVIATION FROM TEST STANDARD ....................................................... 46 4.5.5TEST SETUP .............................................................................................. 46 4.5.6EUT OPERATING CONDITIONS.................................…

Text truncated - open the document above for the full version.

FCC ID: Q87-WUSB54GV4 Report No.: RF930513L1067Issued: May 20, 2004 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: Q87-WUSB54GV4 Report No.: RF930513L1068Issued: May 20, 2004 RADIATED EMISSION TEST
