Q87-WVC210Wireless-G PTZ camera

A Division of Cisco Systems, Inc. ® Model No. PTZ Internet Camera Wireless-G WVC210 User Guide WIRELESS GHz 2.4 802.11g with Audio Wireless-G PTZ Internet Camera with Audio Copyright and Trademarks Specifications are subject to change without notice. Linksys is a registered trademark or trademark of Cisco Systems, Inc. and/or its affiliates in the U.S. and certain other countries. Copyright © 2005 Cisco Systems, Inc. All rights reserved. Other brands and product names are trademarks or registered trademarks of their respective holders. How to Use this Guide This User Guide has been designed to make understanding networking with the Camera easier than ever. Look for the following items when reading this guide: In addition to these symbols, there are definitions for technical terms that are presented like this: Also, each figure (diagram, screenshot, or other image) is provided with a figure number and description, like this: Figure numbers and descriptions can also be found in the “List of Figures” section in the “Table of Contents”. This exclamation point means there is a Caution or warning and is something that could damage your property or the Camera. word: definition. This checkmark means there is a Note of interest and is something you should pay special attention to while using the Camera. This question mark provides you with a reminder about something you might need to do while using the Camera. Figure 0-1: Sample Figure Description WVC210-UG-60113 CB Wireless-G PTZ Internet Camera with Audio Table of Contents Chapter 1: Planning Your Wireless Network. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Ad-Hoc and Infrastructure Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Network Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Chapter 2: Getting to Know the PTZ Internet Camera. . . . . . . . . . . . . . . . . . . . . . . . . 6 Camera LCD Screen and Built-in Microphone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Camera LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Camera Ports and Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Chapter 3: Connecting the PTZ Internet Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Connection to a Wired Network for Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Connection to a Wireless Ad-Hoc Network for Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Moving the Camera to a Different Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Chapter 4: Setting up and Mounting the Wireless-G Internet Camera . . . . . . . . . 11 Setup Wizard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Placement Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Audio Option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Chapter 5: Installing and Using the Internet Camera Viewer & Recorder Utility. 19 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Installing the Viewer & Recorder Utility. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Using the Viewer & Recorder Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Setting Up the Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Using File Finder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Chapter 6: Setting up the Linksys SoloLinktm DDNS Service. . . . . . . . . . . . . . . . . 30 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 Setup Wizard for the SoloLink DDNS Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 SoloLink Registration of Additional Cameras . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 Wireless-G PTZ Internet Camera with Audio Chapter 7: Using the Wireless-G Internet Camera’s Web-based Utility . . . . . . . . 41 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41 How to Access the Web-based Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41 View Video . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43 Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56 Appendix A: Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57 Appendix B: Wireless Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59 Security Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59 Security Threats Facing Wireless Ne…

Text truncated - open the document above for the full version.

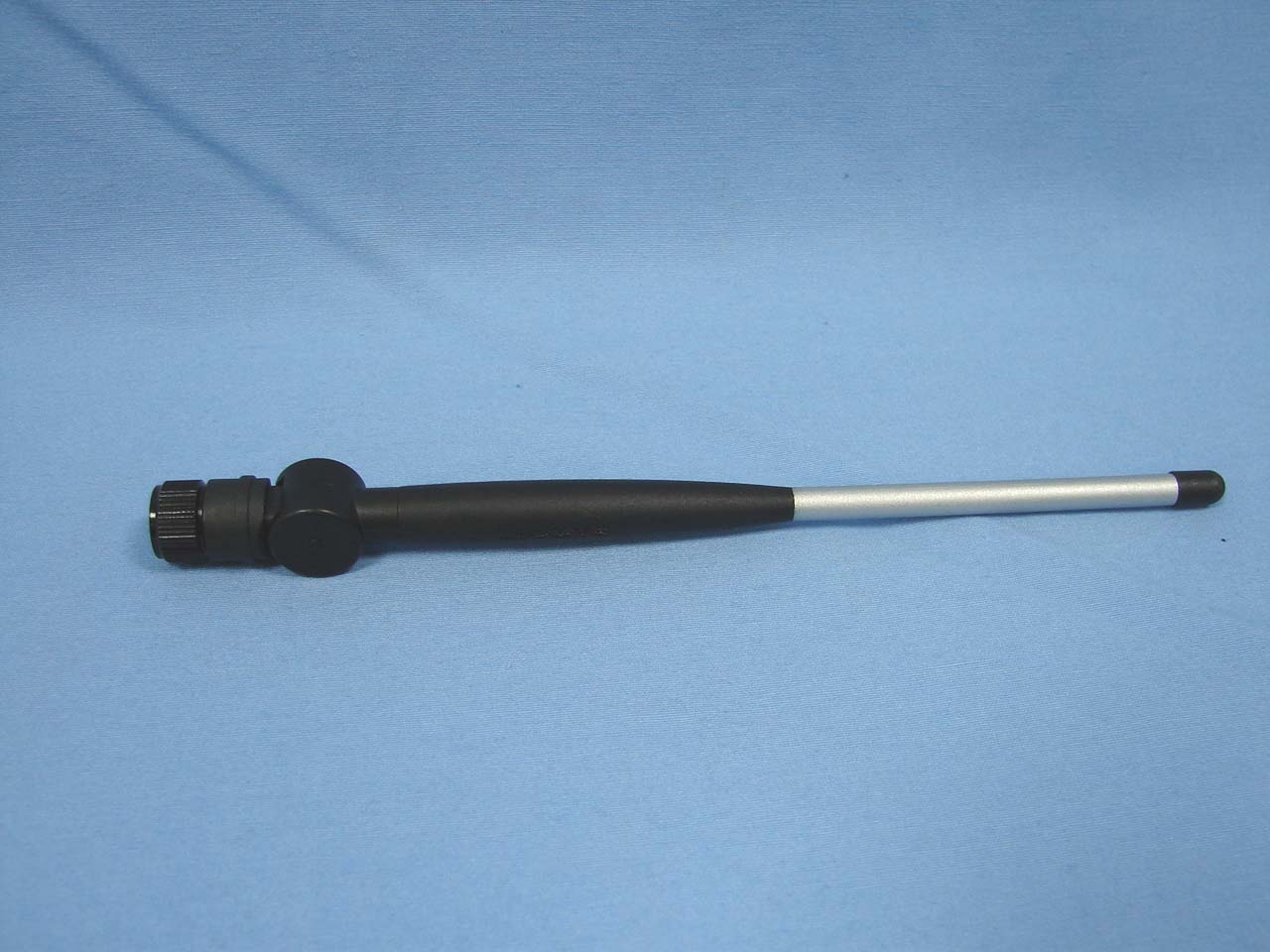

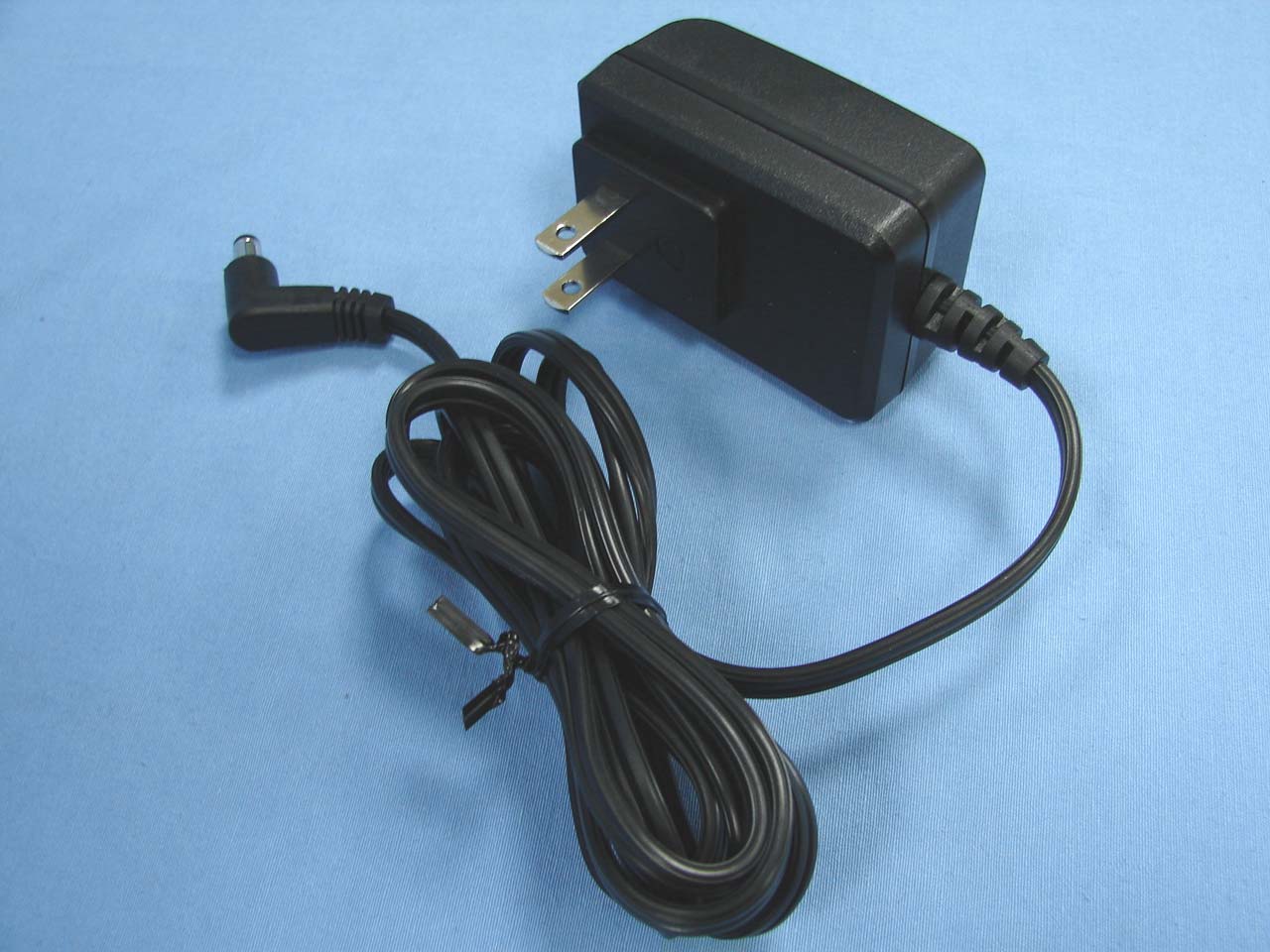

Compliance Certification Services Inc. Report No.: 80212205 Date of Issue: April 7, 2008 Page 1 Total Page: 15 Rev. 00 EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: 80212205 Date of Issue: April 7, 2008 Page 2 Total Page: 15 Rev. 00 Compliance Certification Services Inc. Report No.: 80212205 Date of Issue: April 7, 2008 Page 3 Rev. 00 Compliance Certification Services Inc. Report No.: 80212205 Date of Issue: April 7, 2008 Page 4 Rev.00 Compliance Certification Services Inc. Report No.: 80212205 Date of Issue: April 7, 2008 Page 5 Rev.00 Omni Antenna Compliance Certification Services Inc. Report No.: 80212205 Date of Issue: April 7, 2008 Page 6 Rev.00 Model: MU12-2050200-A1 Compliance Certification Services Inc. Report No.: 80212205 Date of Issue: April 7, 2008 Page 7 Rev.00 Model: SA110C-05S-I

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation

Compliance Certification Services Inc. Report No.: 80212205 Date of Issue: April 7, 2008 Page 8 Rev.00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: 80212205 Date of Issue: April 7, 2008 Page 9 Rev.00 Compliance Certification Services Inc. Report No.: 80212205 Date of Issue: April 7, 2008 Page 10 Rev.00 Compliance Certification Services Inc. Report No.: 80212205 Date of Issue: April 7, 2008 Page 11 Rev.00 Compliance Certification Services Inc. Report No.: 80212205 Date of Issue: April 7, 2008 Page 12 Rev.00 Compliance Certification Services Inc. Report No.: 80212205 Date of Issue: April 7, 2008 Page 13 Rev.00 WLAN Module Compliance Certification Services Inc. Report No.: 80212205 Date of Issue: April 7, 2008 Page 14 Rev.00 Compliance Certification Services Inc. Report No.: 80212205 Date of Issue: April 7, 2008 Page 15 Rev.00

2 RF Antenna Assembly P/NO : C147-510198-A SPEC : 2.4GHz 2005/10/13 3 10/13/2005 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -20-100 dB Far-field amplitude of C147-510198-A-H.nsi 2.400000 GHz2.450000 GHz2.500000 GHz 4 10/13/2005 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -20-100 dB Far-field amplitude of C147-510198-A-V.nsi 2.400000 GHz2.450000 GHz2.500000 GHz 5 6 7 8 SGS Test Report Product：RF Antenna Contents No Description Report No. Page 1 Cable RG-178 Cable CE/2004/C1640 P.10~12 2 Antenna Body Antenna Head Cap TPE EL-550 CE/2004/C2040 P.13~15 3 Antenna Base PC -110 KE/2005/41718 SZTYR041023786/LP P.16~17 4 Rivet POM ; Black CE/2005/50700 P.18~21 5 Connector SMA Plug Reverse GZSCR041250485/LP P.22 6 Ground Tube Ni Plated + POM CE/2005/96122 CE/2005/96120 CE/2005/96111 P.23~30 Result for RoHS：PASS 9 10 11 12 The content of this PDF file is in accordance with the original issued reports for reference only. This Test Report cannot be reproduced, except in full, without prior written permission of the Company SGS TAIWAN LIMITED NO. 136-1, Wu Kung Road, WuKu Industrial Zone, Taipei county, Taiwan. t(886-2) 22993939 f(886-2) 2299-3237 www.sgs.com.tw Test Report Type of Product: Sample Received : Testing Date : ============================================================================== = Test Result : - Please see the next page - DSM ENGINEERING PLASTICS. Page : 1 of 3 Report No. : CE/2004/C2040 Date : 2004/12/17 The following merchandise was (were) submitted and identified by the client as : EL550 2004/12/10 2004/12/10 TO 2004/12/17 13 The content of this PDF file is in accordance with the original issued reports for reference only. This Test Report cannot be reproduced, except in full, without prior written permission of the Company SGS TAIWAN LIMITED NO. 136-1, Wu Kung Road, WuKu Industrial Zone, Taipei county, Taiwan. t(886-2) 22993939 f(886-2) 2299-3237 www.sgs.com.tw Test Report Test Result PART NAME NO.1: Test Item (s):UnitMethodMDLNo.1 PBBs(Polybrominated biphenyls)(CAS NO:059536-65-1) %With reference to USEPA3540 or USEPA3550. Analysis was performed by HPLC/DAD, LC/MS or GC/MS. (prohibited by 2002/95/EC (RoHS), 83/264/EEC, and 76 /769/EEC) 0.0005N.D. PBBEs(PBDEs)(Polybromi nated biphenyl ethers) %With reference to USEPA3540 or USEPA3550. Analysis was performed by HPLC/DAD, LC/MS or GC/MS. (prohibited by 2002/95/EC (RoHS), 83/264/EEC, and 76 /769/EEC) 0.0005N.D. Test Item (s):UnitMethodMDLNo.1 Chromium VI (Cr+6)ppm As per US EPA 7196A and US EPA 3060A. 2N.D. Cadmium (Cd)ppm ICP-AES after as per EN 1122, method B:2001 or other acid di gestion. 2N.D. Mercury (Hg)ppm ICP-AES after as per US EPA 3052 or other acid di gestion. 2N.D. Lead (Pb)ppm ICP-AES after as per US EPA 3050B or other acid di gestion. 2N.D. WHITE PLASTIC PELLETS(PLEASE REFER TO THE PHOTO ATTACHED) (2) ppm = mg/kg (3) MDL = Method Detection Limit NOTE (1) N.D. = Not detected (<MDL) Result Result DSM ENGINEERING PLASTICS. Report No. : CE/2004/C2040 Date : 2004/12/17 Page : 2 of 3 14 The content of this PDF file is in accordance with the original issued reports for reference only. This Test Report cannot be reproduced, except in full, without prior written permission of the Company SGS TAIWAN LIMITED NO. 136-1, Wu Kung Road, WuKu Industrial Zone, Taipei county, Taiwan. t(886-2) 22993939 f(886-2) 2299-3237 www.sgs.com.tw Test Report DSM ENGINEERING PLASTICS. Report No. : CE/2004/C2040 Date : 2004/12/17 Page : 3 of 3 15 16 17 The content of this PDF file is in accordance with the original issued reports for reference only. This Test Report cannot be reproduced, except in full, without prior written permission of the Company SGS TAIWAN LIMITED NO. 136-1, Wu Kung Road, WuKu Industrial Zone, Taipei county, Taiwan. t(886-2) 22993939 f(886-2) 2299-3237 www.sgs.com.tw Test Report Report No. : CE/2005/50700 Date : 2005/05/12 Page : 1 of 4 Type of Product : Sample Received : Testing Date : ========================================================================== = Test Result : - Please see the next page - REN-YUH ENTERPEISE CO., LTD. NO. 3, LANE 36, DONG-SHUN ST., SHE-LIN, TAIPEI, TAIWAN, R. O. C. The following merchandise was (were) submitted and identified by the client as : BLACK POM 2005/5/5 2005/5/5 TO 2005/05/12 18 The content of this PDF file is in accordance with the original issued reports for reference only. This Test Report cannot be reproduced, except in full, without prior written permission of the Company SGS TAIWAN LIMITED NO. 136-1, Wu Kung Road, WuKu Industrial Zone, Taipei county, Taiwan. t(886-2) 22993939 f(886-2) 2299-3237 www.sgs.com.tw Test Report Report No. : CE/2005/50700 Date : 2005/05/12 Page : 2 of 4 Test Result PART NAME NO.1: Result No.1 Monobromobiphenyl%0.0005N.D. Dibromobiphenyl%0.0005N.D. Tribromobiphenyl%0.0005N.D. Tetrabromobiphenyl%0.0005N.D. Pentabromobiphenyl%0.0005N.D. Hexabromobiphenyl%0.0005N.D. Heptabromobiphenyl%0.0005N.D. Octabromobiphenyl%0.0005N.D. Nonabromobiphenyl%0.0005N.D. Decabromobiphenyl%0.0005N.D. Total PBBs (Polybrominated biphenyls)/Sum of above %-N.D. Monobromobiphenyl ether%0.0005N.D. Dibromobiphenyl ether%0.0005N.D. Tribromobiphenyl ether%0.0005N.D. Tetrabromobiphenyl ether%0.0005N.D. Pentabromobiphenyl ether%0.0005N.D. Hexabromobiphenyl ether%0.0005N.D. Heptabromobiphenyl ether%0.0005N.D. Octabromobiphenyl ether%0.0005N.D. Nonabromobiphenyl ether%0.0005N.D. Decabromobiphenyl ether%0.0005N.D. Total PBBEs (PBDEs)(Polybrominated biphenyl ethers)/Sum of above %-N.D. With reference to USEPA3540C or USEPA3550C. Analysis was performed by HPLC/DAD, LC/MS or GC/MS. (prohibited by 2002/95/EC (RoHS), 83/264/EEC, and 76/769/EEC) With reference to USEPA3540C or USEPA3550C. Analysis was performed by HPLC/DAD, LC/MS or GC/MS. (prohibited by 2002/95/EC (RoHS), 83/264/EEC, and 76/769/EEC) REN-YUH ENTERPEISE CO., LTD. NO. 3, LANE 36, DONG-SHUN ST., SHE-LIN, TAIPEI, TAIWAN, R. O. C. Unit BLACK PLAS…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: 80212205-RP1 FCC ID: Q87-WVC210 Date of Issue: April 7, 2008 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 61 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Wireless-G PTZ camera Trade Name: Linksys Model: WVC210 Issued to Cisco-Linksys LLC 121 Theory Drive Irvine, CA 92617 Issued by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. http://www.ccsemc.com.tw [email protected] Compliance Certification Services Inc. Report No.: 80212205-RP1 FCC ID: Q87-WVC210 Date of Issue: April 7, 2008 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION....................................................................................................3 2. EUT DESCRIPTION ...........................................................................................................................4 3. TEST METHODOLOGY ....................................................................................................................5 3.1 EUT CONFIGURATION........................................................................................................................5 3.2 EUT EXERCISE....................................................................................................................................5 3.3 GENERAL TEST PROCEDURES.............................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS........................................................6 3.5 DESCRIPTION OF TEST MODES...........................................................................................................7 4. INSTRUMENT CALIBRATION........................................................................................................8 4.1 MEASURING INSTRUMENT CALIBRATION......................................................................................8 4.2 MEASUREMENT EQUIPMENT USED.........................................................................................8 5. FACILITIES AND ACCREDITATIONS ..........................................................................................9 5.1 FACILITIES .........................................................................................................................................9 5.2 EQUIPMENT........................................................................................................................................9 5.3 TABLE OF ACCREDITATIONS AND LISTINGS.....................................................................................10 6. SETUP OF EQUIPMENT UNDER TEST .......................................................................................11 6.1 SETUP CONFIGURATION OF EUT.......................................................................................................11 6.2 SUPPORT EQUIPMENT ...............................................................................................................11 7. FCC PART 15.247 REQUIREMENTS.............................................................................................12 7.1 6 DB BANDWIDTH.............................................................................................................................12 7.2 PEAK POWER....................................................................................................................................17 7.3 A VERAGE POWER............................................................................................................................21 7.4 BAND EDGES MEASUREMENT ................................................................................................26 7.5 PEAK POWER SPECTRAL DENSITY....................................................................................................35 7.6 SPURIOUS EMISSIONS ................................................................................................................40 7.7 POWERLINE CONDUCTED EMISSIONS...............................................................................................54 APPENDIX I RADIO FREQUENCY EXPOSURE ...............................................................................57 APPENDIX II PHOTOGRAPHS OF TEST SETUP .............................................................................59 Compliance Certification Services Inc. Report No.: 80212205-RP1 FCC ID: Q87-WVC210 Date of Issue: April 7, 2008 Page 3 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: Cisco-Linksys LLC 121 Theory Drive Irvine, CA 92617 Equipment Under Test: Wireless-G PTZ camera Trade Name: Linksys Model: WVC210 Date of Test: March 3 ~ 26, 2008 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Rex Lai Amanda Wu Section Manager Section Manager Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance Certification Services Inc. Report No.: 80212205-RP1 FCC ID: Q87-WVC210 Date of Issue: April 7, 2008 Page 4 Rev. 00 2. EUT DESCRIPTION Product Wireless-G PTZ camera Trade Name Linksys Model Number WVC210 Model Discrepancy N/A …

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: 80212205-RP1 FCC ID: Q87-WVC210 Date of Issue: April 7, 2008 Page 59 Rev. 00 APPENDIX II PHOTOGRAPHS OF TEST SETUP CONDUCTED EMISSION SETUP PHOTOS Compliance Certification Services Inc. Report No.: 80212205-RP1 FCC ID: Q87-WVC210 Date of Issue: April 7, 2008 Page 60 Rev. 00 RADIATED EMISSION SETUP PHOTOS Compliance Certification Services Inc. Report No.: 80212205-RP1 FCC ID: Q87-WVC210 Date of Issue: April 7, 2008 Page 61 Rev. 00 POWERLINE CONDUCTED EMISSIONS SETUP PHOTOS
