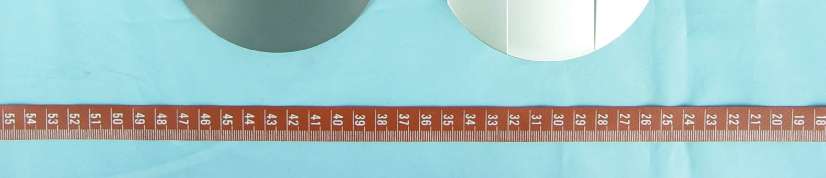

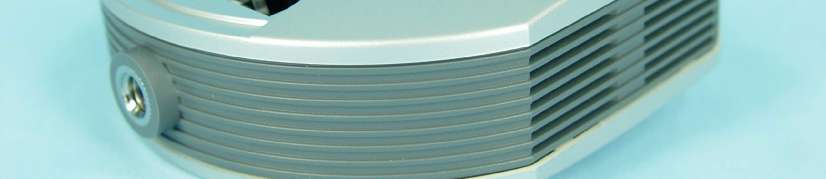

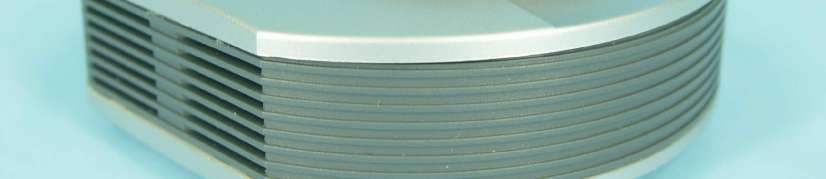

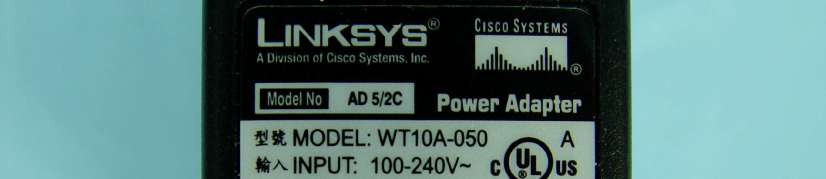

Page 1 Model No.: WVC54GC Page 2 CONSTRUCTION PHOTOS OF EUT Page 3

Label location (1280x960x16M jpeg)

Page 4 Page 5 Page 6 Page 7 Page 8 Page 9 Page 10 Page 11 Page 12

FCC ID: Q87-WVC54GC Report No. RF940728L01 Operational Description This device is a Compact Wireless-G Internet Video Camera which operates in the 2.4GHz frequency spectrum with throughput of up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by AC Adapter. The antenna used in this product is PCB antenna without antenna connector. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. The other instruction, please have a look at the users manual.

FCC ID: Q87-WVC54GC Report No: SA940728L01 1 RF EXPOSURE REPORT REPORT NO.: SA940728L01 MODEL NO.: WVC54GC ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Cisco-Linksys LLC ADDRESS: 121 Theory Drive, Irvine, CA 92617 (USA) ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID: Q87-WVC54GC Report No: SA940728L01 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: Q87-WVC54GC Report No: SA940728L01 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance r. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification This device is not fixed inside the host equipment, it is connected with host through wire. So it is easy to be re-located in the place where at least 20cm far away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: Q87-WVC54GC Report No: SA940728L01 4 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 1.5dBi or 1.413 (numeric). 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: 802.11b DSSS modulation Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241279.7990.0221.0 6243780.3530.0231.0 11246279.9830.0221.0 802.11g OFDM modulation Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241231.9150.0091.0 6243732.1370.0091.0 11246231.7690.0091.0

FCC ID: Q87-WVC54GC Report No.: RF940728L011Report Format Version 2.0.4 FCC TEST REPORT REPORT NO.: RF940728L01 MODEL NO.: WVC54GC RECEIVED: Aug. 02, 2005 TESTED: Oct. 06 ~ Oct. 11, 2005 ISSUED: Oct. 12, 2005 APPLICANT: Cisco-Linksys LLC ADDRESS: 121 Theory Drive, Irvine, CA 92617 (USA) ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 63 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA No. 2177-01 FCC ID: Q87-WVC54GC Report No.: RF940728L012Report Format Version 2.0.4 Table of Contents 1.CERTIFICATION....................................................................................................4 2.SUMMARY OF TEST RESULTS............................................................................5 2.1MEASUREMENT UNCERTAINTY..........................................................................5 3.GENERAL INFORMATION.....................................................................................6 3.1GENERAL DESCRIPTION OF EUT.......................................................................6 3.2DESCRIPTION OF TEST MODES.........................................................................7 3.2.1CONFIGURATION OF SYSTEM UNDER TEST.....................................................7 3.2.2TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL..........................8 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS.......................................10 3.4DESCRIPTION OF SUPPORT UNITS..................................................................10 4.TEST TYPES AND RESULTS..............................................................................11 4.1CONDUCTED EMISSION MEASUREMENT........................................................11 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT......................................11 4.1.2TEST INSTRUMENTS..........................................................................................11 4.1.3TEST PROCEDURES..........................................................................................12 4.1.4DEVIATION FROM TEST STANDARD.................................................................12 4.1.5TEST SETUP.......................................................................................................13 4.1.6EUT OPERATING CONDITIONS.........................................................................13 4.1.7TEST RESULTS...................................................................................................14 4.2RADIATED EMISSION MEASUREMENT.............................................................20 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT...........................................20 4.2.2TEST INSTRUMENTS..........................................................................................21 4.2.3TEST PROCEDURES..........................................................................................22 4.2.4DEVIATION FROM TEST STANDARD.................................................................22 4.2.5TEST SETUP.......................................................................................................23 4.2.6EUT OPERATING CONDITIONS.........................................................................23 4.2.7TEST RESULTS...................................................................................................24 4.36dB BANDWIDTH MEASUREMENT....................................................................31 4.3.1LIMITS OF 6DB BANDWIDTH MEASUREMENT.................................................31 4.3.2TEST INSTRUMENTS..........................................................................................31 4.3.3TEST PROCEDURE.............................................................................................32 4.3.4DEVIATION FROM TEST STANDARD.................................................................32 4.3.5TEST SETUP.......................................................................................................32 4.3.6EUT OPERATING CONDITIONS.........................................................................32 4.3.7TEST RESULTS...................................................................................................33 4.4MAXIMUM PEAK OUTPUT POWER....................................................................39 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT.....................39 4.4.2INSTRUMENTS....................................................................................................39 4.4.3TEST PROCEDURES..........................................................................................40 4.4.4DEVIATION FROM TEST STANDARD.................................................................40 4.4.5TEST SETUP.......................................................................................................40 4.4.6EUT OPERATING CONDITIONS.........................................................................40 4.4.7TEST RESULTS...................................................................................................41 4.5POWER SPECTRAL DENSITY MEASUREMENT................................................42 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT..............................42 4.5.2TEST INSTRUMENTS..........................................................................................42 4.5.3TEST PROCEDURE.............................................................................................43 4.5.4DEVIATION FROM TEST STAN…

Text truncated - open the document above for the full version.

FCC ID: Q87-WVC54GC Report No.: RF940728L0160Report Format Version 2.0.4 5. PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: Q87-WVC54GC Report No.: RF940728L0161Report Format Version 2.0.4 RADIATED EMISSION TEST
