Q87-WVC54GCAWireless-G Internet Home Monitoring Camera

USER GUIDE Wireless-G Internet Home Monitoring Camera Model: WVC54GCA About This Guide i Wireless-G Internet Home Monitoring Camera About This Guide Icon Descriptions While reading through the User Guide you may see various icons that call attention to specific items. Below is a description of these icons: NOTE: This check mark indicates that there is a note of interest and is something that you should pay special attention to while using the product. WARNING: This exclamation point indicates that there is a caution or warning and it is somet hing that could damage your property or product. WEB: This globe icon indicates a noteworthy website address or e-mail address. Online Resources Website addresses in this document are listed without http:// in front of the address because most current web browsers do not require it. If you use an older web browser, you may have to add http:// in front of the web address. ResourceWebsite Linksyswww.linksys.com Linksys Internationalwww.linksys.com/international Glossarywww.linksys.com/glossary Network Securitywww.linksys.com/security Copyright and Trademarks Specifications are subject to change without notice. Linksys is a registered trademark or trademark of Cisco Systems, Inc. and/or its affiliates in the U.S. and certain other countries. Copyright © 2007 Cisco Systems, Inc. All rights reserved. Other brands and product names are trademarks or registered trademarks of their respective holders. Table of Contents ii Wireless-G Internet Home Monitoring Camera Chapter 1: Product Overview4 Front Panel.................................................. 4 Back Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Bottom Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Chapter 2: Setting up and Mounting the Camera5 Setup Wizard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Placement Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Chapter 2: Installing and Using the Camera Utility11 Overview...................................................11 Installing the Camera Utility.......................................11 Using the Camera Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13 Main Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13 Chapter 4: Advanced Configuration with the Web-based Utility20 Overview...................................................20 How to Access the Web-based Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20 View Video..................................................20 Setup > Basic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21 Setup > Image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22 Setup > Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23 Setup > Users . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23 Setup > DDNS................................................24 Setup > FTP Upload . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25 Setup > Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26 Setup > Pan/Tilt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27 Setup > Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27 Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28 Appendix A: Troubleshooting29 Common Problems and Solutions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29 Frequently Asked Questions.......................................30 Appendix B: Wireless Security Checklist32 General Network Security Guidelines.................................32 Additional Security Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32 Appendix C: Specifications33 Appendix D: Warranty Information34 Appendix E: Regulatory Information35 FCC Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35 FCC Radiation Exposure Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35 Safety Notices................................................35 Table of Contents iii Wireless-G Internet Home Monitoring Camera Industry Canada Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35 Avis d’Industrie Canada..........................................36 Wireless Disclaimer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36 Avis de non-responsabilité concernant les appareils sans fil . . . . . . . . . . . . . . . . . .36 User Information for Consumer Products Covered by EU Directive 2002/96/EC on Waste Electric and Electronic Equipment (WEEE)..............................37 Chapter 1 Product Overview 4 Wireless-G Internet Home Monitoring Camera Chapter 1: Product Overview Thank you for choosing the Linksys Wireless-G Internet Home Monitoring Camera. The Camera sends live video through the Internet to a web browser anywhere in the world! This compact, self-contained unit lets you keep an eye on your home, your kids, your workplace—whatever’s important to you. Front Panel Power(Blue) This LED lights up when the Camera is powered on. It flashes while the Camera is booting up and remains lit when the Camera is ready for use. MicrophoneThe microphone is used to record the ambient sound. Back Panel PowerThe Power port is where you will connect t he power adapter. EthernetThe Ethernet port is where …

Text truncated - open the document above for the full version.

Chapter 4 Advanced Configuration with the Web-based Utility 21 Wireless-G Internet Home Monitoring Camera Setup > Basic TheSetup > Basic screen allows you to alter the Camera’s c Device settings, Network settings, Wireless settings, and Security settings. Setup > Basic Screenc Device Settings Device IDThis is the Camera name that is used by the Camera and the Utility to exchange data. Camera NameYou may assign the Camera any name up to 15 characters long. Unique, memorable names are helpful, especially if you use multiple Cameras on the same wireless network. DescriptionEnter information about the Camera in this field. You can enter up to 32 characters. Enable LCD and LED OperationsThis feature allows you to enable or disable the Camera’s LCD and LEDs. Current Date/TimeThis is the Camera’s current date and time. To change it, click Change, and theSet Date/ Time screen appears. To use the computer’s date and time, click Sync with PC; otherwise, update the date and time and click Set New Time. Then, click Close. Set Date/Time Screen Time ZoneSelect the time zone for the Camera’s location. Adjust for Daylight Saving TimeSelect this to adjust the Camera’s current time for Daylight Saving Time. NOTE: You must unselect this option when Daylight Saving Time finishes. • • • • • • • Check hereif you want to update the time automatically through the NTP server from the InternetSelect this option and fill in the NTP Server Address field if you want the Camera to update its time at regular intervals by contacting an NTP (Network Time Protocol) server on the Internet. Network Settings Configuration TypeIf you want to automatically assign the Camera an IP address from a DHCP server, then selectObtain Address Automatically (DHCP). If you want to assign the Camera a static IP address, then selectFixed IP Address, and complete theIP Address, Subnet Mask,kGateway,yyPrimary DNS andSecondary DNS fields. IP Address, Subnet Mask, Gateway, Primary DNS, Secondary DNSComplete these fields if you want to assign the Camera a static IP address. You need to enter at least one DNS address. Wireless Settings SSIDEnter the network’s SSID or network name here. Networ k TypeSelect the network’s m ode, Ad-hoc or Infrastructure. Channel NoIf the Camera is set to Ad-hoc mode, select its channel setting from the drop-down menu. SecurityClickEdit Security Settings to display the Wireless Securityscreen.y Security Mode Select the appropriate option based on your wireless network configuration. Disabled This option implements no security on your wireless network. Data is not encrypted be fore transmission. WEP WEP is a basic encryption method, which is not as secure as later methods such as WPA-Personal or WPA2 Personal. However, it is supported by all clients. Wireless Security > Security Mode > WEP TX KeySelect the number of the key used on the • • • • • • • • Chapter 4 Advanced Configuration with the Web-based Utility 22 Wireless-G Internet Home Monitoring Camera wireless network. WE P EncryptionSelect the appropriate option for key length based on your network settings. Passp hraseType in the passphrase used to generate WEP keys on your network and click Generate. Key 1 - Key4Key values can be entered manually or generated from a passphrase. Aut henticationSelect the appropriate authentication type used on the wireless network. WPA Personal This method offers TKIP encryption with dynamic encryption keys. Wireless Security > Security Mode > WPA Personal WPA AlgorithmThis cannot be modified. WPA Shared KeyEnter the shared key used for accessing the wireless network. To save your changes, click Apply. To cancel any unsaved changes, click Cancel. To get additional information about the screen’s features, click Help. Setup > Image TheSetup > Image screen allows you to alter the Camera’s video settings. Setup > Image Screen Video Settings Image TypeSelect the desired type: MPEG-4 gives smooth motion and high quality images, but the video image quality will deteriorate if sufficient bandwidth is not available. MJPE G requires more bandwidth than MPEG-4, but if the bandwidth is insufficient, the frame rate will drop while image quality remains at the same level. • • • • • • • • • ResolutionSelect the resolution you want for viewing or recording the Camera’s video. Select640*480 for the highest resolution, 320*240 for medium resolution, and select160*128 for the lowest resolution. Video Quality ControlSelect eitherFixed Bit Rate or Fixed Quality for the video stream. Fixed Bit RateSelect the bit rate you want for viewing or recording the Camera’s video. The range varies from64 Kbps to1.2 Mbps. Fixed QualitySelect the level of quality you want for viewing or recording the Camera’s video. The range varies from Very Low toVery High. It may be helpful to know what the bit rates are for video viewing or recording at different resolutions and image quality levels. The following table lists these estimated bit rates. Estimated Bit Rates for Video Viewing or Recording ResolutionQuality LevelBit Ratein kbps 640 x 480Very High4000 640 x 480High3200 640 x 480Normal1200 640 x 480Low480 640 x 480Very Low160 320 x 240Very High1000 320 x 240High800 320 x 240Normal300 320 x 240Low120 320 x 240Very Low40 160 x 128Very High800 160 x 128High400 160 x 128Normal200 160 x 128Low100 160 x 128Very Low40 NOTE:Video quality and/or performance may be affected by the number of users connected to the Camera. Max Frame RateSelect the maximum frame rate for the camera. Reducing this lowers the amount of bandwidth required by the camera. Power Line FrequencySelect the power line frequency (50Hz or60Hz) used in your region, to improve the picture quality under fluorescent lighting. Adjustments Color BalanceSelect the desired option to match the current environment and lighting. • • • • • • • Chapter 4 Advanced Configuration with the Web-based Utility 23 Wireless-G Internet Home Monitoring Camera ExposureIf necessary, you can adjust the exposure to obtain a better i…

Text truncated - open the document above for the full version.

Hi Jill, Q#2 still have some problem. Q#2: Regarding user manual, the product function is different from the current submitted device. For example, an adjustable antenna, output speaker port and etc.. Please go over the user manual again and make sure it is consist with the filing. Best Regards Lucy -----Original Message----- From: jill.shiau [mailto:[email protected]] On Behalf Of application Sent: Wednesday, September 19, 2007 10:42 PM To: Lucy Tsai Cc: julia.wei Subject: Re:Cisco-Linksys LLC, FCC ID: Q87-WVC54GCA, Assessment NO.: AN07T7186, Notice#1 Hi Lucy: Sorry for lately reply. Q#1: Please provide WLAN RF module's schematics and block diagram. Ans: Attached file for RF Module Block Diagram and Schematics Q#2: According the user's manual and antenna specification, an external dipole antenna is used with this device; but why the dipole antenna didn't show out in test setup photos and moreover, from EUT "Lucy Tsai" <[email protected]> 2007/09/21 12:56 AM "application" <[email protected]> "julia.wei" <[email protected]> external photos, there are no antenna port existed. Instead, in the internal photos, it seems that a PIFA antenna is used. Please confirm what kind of antenna is used and provide the correct the antenna specification and revise test report accordingly. Also, please provide the correct user manual if necessary. Ans: The antenna type is PCB Antenna. Attached files for revised Antenna specification and User Manual Q#3: Test report page 22-29 , all test plots of band edge test indicate that the display line 74 dBuV is equal to 80dBuV in peak mode and the display line in average looks like to be man-added. Please explain. Ans: The test report has been revised for Page 22-29 and 38-40. Please see attached file. Q#4: Test report page 38-40, test plots of conducted emission can't match the exact test channels they are. Please have a check and revise as well. Ans: The test report has been revised for Page 22-29 and 38-40. Please see attached file. Best regards, Jill Hi Jill, Please address following questions. Q#1: Please provide WLAN RF module's schematics and block diagram. Q#2: According the user's manual and antenna specification, an external dipole antenna is used with this device; but why the dipole antenna didn't show out in test setup photos and moreover, from EUT external photos, there are no antenna port existed. Instead, in the internal photos, it seems that a PIFA antenna is used. Please confirm what kind of antenna is used and provide the correct the antenna specification and revise test report accordingly. Also, please provide the correct user manual if necessary. Q#3: Test report page 22-29 , all test plots of band edge test indicate that the display line 74 dBuV is equal to 80dBuV in peak mode and the display line in average looks like to be man-added. Please explain. Q#4: Test report page 38-40, test plots of conducted emission can't match the exact test channels they are. Please have a check and revise as well. Best Regards, <[email protected]> 2007/09/12 05:39 AM <[email protected]> <[email protected]> Lucy The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

Date: 2007-08-08 Federal Communications Commission Authorization and Evaluation Division FCC ID: Q87-WVC54GCA Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1. Schematics 2. Operational Description 3. Block diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Yours sincerely, ___________________ __ Jennifer Yu / Program Manager Cisco-Linksys LLC TEL: +1 949-823-3188 FAX: +1-949-823-3002 E-Mail: [email protected] Cisco-Linksys LLC 121 Theory Drive Irvine, CA 92617 (USA) Phone: 949-261-1288 Fax: 949-823-3002

Cisco-Linksys LLC 121 Theory Drive Irvine, CA 92617 (USA) Phone: 949-261-1288 Fax: 949-823-3002 Date: August 08, 2007 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize the Testing Division of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by CCS on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS Testing Division as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Yours sincerely, ___________________ __ Jennifer Yu / Program Manager Cisco-Linksys LLC TEL: +1 949-823-3188 FAX: +1-949-823-3002 E-Mail: [email protected]

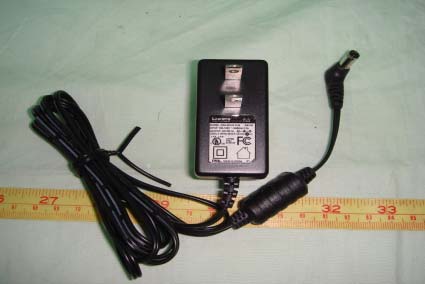

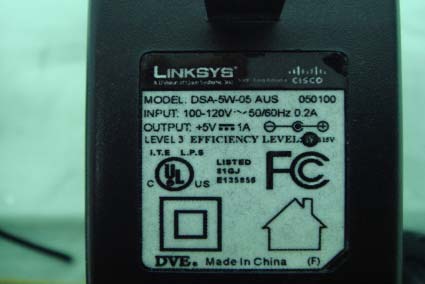

Compliance Certification Services Inc. Report No: 70808203 Date of Issue: September 4, 2007 Page 1 Total Page: 12 Rev. 00 EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No: 70808203 Date of Issue: September 4, 2007 Page 2 Rev. 00 Compliance Certification Services Inc. Report No: 70808203 Date of Issue: September 4, 2007 Page 3 Rev. 00 DVE / DSA-5W-05 AUS 050100 Power Adapter Compliance Certification Services Inc. Report No: 70808203 Date of Issue: September 4, 2007 Page 4 Rev. 00 Compliance Certification Services Inc. Report No: 70808203 Date of Issue: September 4, 2007 Page 5 Rev. 00 Leader / MU05-B050100-A1 Power Adapter Compliance Certification Services Inc. Report No: 70808203 Date of Issue: September 4, 2007 Page 6 Rev. 00

4 . 2 m m

Compliance Certification Services Inc. Report No: 70808203 Date of Issue: September 4, 2007 Page 7 Rev. 00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No: 70808203 Date of Issue: September 4, 2007 Page 8 Rev. 00 Compliance Certification Services Inc. Report No: 70808203 Date of Issue: September 4, 2007 Page 9 Rev. 00 Compliance Certification Services Inc. Report No: 70808203 Date of Issue: September 4, 2007 Page 10 Rev. 00 Compliance Certification Services Inc. Report No: 70808203 Date of Issue: September 4, 2007 Page 11 Rev. 00 Compliance Certification Services Inc. Report No: 70808203 Date of Issue: September 4, 2007 Page 12 Rev. 00

Specification 1. Electrical Properties : 1.1 Frequency Range............ 1.2 Impedance .................. 1.3 VSWR ..................... ... 1.4 Return Loss.................. 1.5 Radiation ..................... 1.6 Gain(peak)................... 1.8 dBi 1.7 Polarization............... ...Linear Vertical 1.8 Admitted Power............ 2. Physical Properties : 2.1 Cable........................... 2.2 Operating Temp. ............-20 ~ +65 2.3 Storage Temp. ............ ...-30 ~ +75 2.4FR4 41.65mm*12.25mm*0.8mm 1W Antenna Body............ ... φ1.13 Coaxial Cable Gray RF Antenna Assembly Omni-directional(PCB Antenna) 2.4GHz ~ 2.5GHz 50Ω Nominal 1.92 Max. -10 dB Maximum 1 2 RF Antenna Assembly P/NO : C147-510282-A SPEC : 2.4~2.5GHz 2006/9/14 3 2006/9/14 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -20-100 dB Far-field amplitude of C147-510282-A-100-H.nsi 2.400000 GHz2.450000 GHz2.500000 GHz 4 2006/9/14 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -20-100 dB Far-field amplitude of C147-510282-A-100-V.nsi 2.400000 GHz2.450000 GHz2.500000 GHz 5

Compliance Certification Services Inc. Report No.: 70808203-RP1 FCC ID: Q87-WVC54GCA Date of Issue: September 21, 2007 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 59 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Compact Wireless-G Internet Video Camera with Audio Model: WVC54GCA Trade Name: Linksys Issued to Cisco-Linksys LLC 121 Theory Drive Irvine, CA 92617(USA) Issued by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 Compliance Certification Services Inc. Report No.: 70808203-RP1 FCC ID: Q87-WVC54GCA Date of Issue: September 21, 2007 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION ...................................................................................... 3 2. EUT DESCRIPTION .............................................................................................................. 4 3. TEST METHODOLOGY....................................................................................................... 5 3.1 EUT CONFIGURATION............................................................................................................ 5 3.2 EUT EXERCISE....................................................................................................................... 5 3.3 GENERAL TEST PROCEDURES................................................................................................. 5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ........................................... 6 3.5 DESCRIPTION OF TEST MODES................................................................................................ 6 4. INSTRUMENT CALIBRATION .......................................................................................... 7 5. FACILITIES AND ACCREDITATIONS ............................................................................ 7 5.1 FACILITIES............................................................................................................................. 7 5.2 EQUIPMENT........................................................................................................................... 7 5.3 LABORATORY ACCREDITATIONS AND LISTING....................................................................... 7 5.4 TABLE OF ACCREDITATIONS AND LISTINGS............................................................................ 8 6. SETUP OF EQUIPMENT UNDER TEST ........................................................................... 9 6.1 SETUP CONFIGURATION OF EUT............................................................................................. 9 6.2 SUPPORT EQUIPMENT.................................................................................................... 9 7. FCC PART 15.247 REQUIREMENTS ............................................................................... 10 7.1 6 DB BANDWIDTH................................................................................................................. 10 7.2 PEAK POWER....................................................................................................................... 15 7.3 BAND EDGES MEASUREMENT................................................................................... 20 7.4 PEAK POWER SPECTRAL DENSITY........................................................................................ 30 7.5 RADIO FREQUENCY EXPOSURE............................................................................................ 35 7.6 SPURIOUS EMISSIONS.................................................................................................... 37 7.7 POWERLINE CONDUCTED EMISSIONS................................................................................... 54 APPENDIX 1 PHOTOGRAPHS OF TEST SETUP ................................................................ 57 Compliance Certification Services Inc. Report No.: 70808203-RP1 FCC ID: Q87-WVC54GCA Date of Issue: September 21, 2007 Page 3 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: Cisco-Linksys LLC 121 Theory Drive Irvine, CA 92617(USA) Equipment Under Test: Compact Wireless-G Internet Video Camera with Audio Trade Name: Linksys Model: WVC54GCA Date of Test: August 23 ~ September 21, 2007 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: S.C. Wang Miller Lee Executive Vice President Deputy Manager of Linkou Laboratory Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance Certification Services Inc. Report No.: 70808203-RP1 FCC ID: Q87-WVC54GCA Date of Issue: September 21, 2007 Page 4 Rev. 00 2. EUT DESCRIPTION Product Compact Wireless-G Internet Video Camera with Audio Trade Name Linksys Model Number WVC54GCA Model Discrepancy N/A Power Supply VDC from Power Adapter Power Adapter Manufacturer DVE Model DSA-5W-05 AUS 050100 Leader Model MU05-B050100-A1 Power Adapter Power Rating For DVE I/P: 100-120VAC, 50/60Hz, 0.2A O/P: 5VDC, 1A For Leader I/P: 100-240VAC, 50/60Hz, 0.3A O/P: 5VDC, 1A Frequency Range 2412 ~ 2462 MHz Transmit Power IEEE 802.11b: 17.43 dBm IEEE 802.11g: 14.22 dBm Modulation Technique IE…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: 70808203-RP1 FCC ID: Q87-WVC54GCA Date of Issue: September 4, 2007 APPENDIX 1 PHOTOGRAPHS OF TEST SETUP Radiated Emission Set up Photos Page 54 Rev. 00 Compliance Certification Services Inc. Report No.: 70808203-RP1 FCC ID: Q87-WVC54GCA Date of Issue: September 4, 2007 Conducted Emission Set Up Photos Page 55 Rev. 00 Compliance Certification Services Inc. Report No.: 70808203-RP1 FCC ID: Q87-WVC54GCA Date of Issue: September 4, 2007 Powerline Conducted Emissions Setup Photos Page 56 Rev. 00
