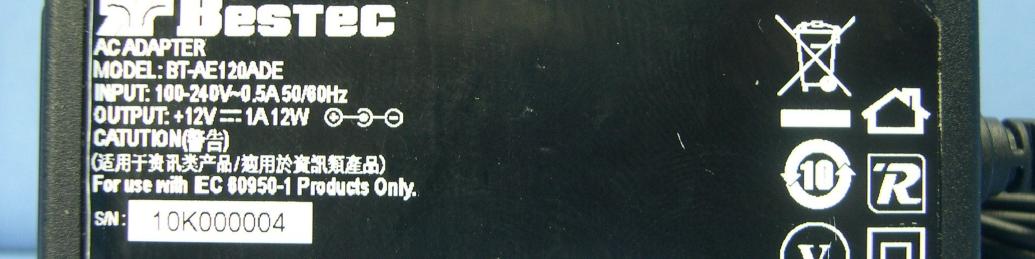

Page 1 CONSTRUCTION PHOTOS OF EUT Page 6 Adapter: EA0121WAA D Page 7 Page 8 Adapter: MU12-N120100-A1 Page 9 Page 10 Adapter: BT-AE120ADE Page 11

UL Approved--Acrylic Background: Black Wording: White 2011 01 11 1460000XXX00J AR7504AAW22 2-A-88 UL Label +/-0.15mm +/-0.3mm White Myler(50#) + Glossy PP 0.12mm R01 NOTE: 1.Printing Ink and material must base on WEEE environment protect standard 2.The RoHS requirement 3.The part of weight about XX g(include liner) 1SVA accton technology CO LTD.GZ 2Accton Joytech CO LTDAC 3Accton Technology CO LTD.None 4Compal Corp.(Kunshan) None (from08/21/2007) Bel Sary Vendor ID (Arial Narrow, Point5) MFG Factory (Arial Narrow, Point5) 38x6mm label(Blue line do not print) XX 1460000XXX00J R01 XX 40.30mm [1.587] 104.53mm[4.115] R11.8 [0.465] R12.8[0.504]

FCC ID： ：： ：Q87-X2000 LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label Here

Page 2 Page 3 Page 4 Page 5

Report No.: SA991228E08 Report Format Version 4.0.0 1 RF EXPOSURE REPORT REPORT NO.: SA991228E08 MODEL NO.: X2000 FCC ID: Q87-X2000 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Cisco Consumer Products LLC ADDRESS: 121 Theory Drive, Irvine, CA 92617, USA ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan Report No.: SA991228E08 Report Format Version 4.0.0 2 1. RF EXPOSURE LIMIT LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 2. MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r2) where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 3. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. Report No.: SA991228E08 Report Format Version 4.0.0 3 4. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 618.1 3.04 20 0.245 1.00 --- END ---

Report No.: RF991228E08 1 Report Format Version 4.0.0 FCC TEST REPORT REPORT NO.: RF991228E08 MODEL NO.: X2000 FCC ID: Q87-X2000 RECEIVED: Dec. 27, 2010 TESTED: Jan. 21 to Feb. 28, 2011 ISSUED: Mar. 02, 2011 APPLICANT: Cisco Consumer Products LLC ADDRESS: 121 Theory Drive, Irvine, CA 92617, USA ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS : No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan TEST LOCATION (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan This test report consists of 85 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF991228E08 2 Report Format Version 4.0.0 Table of Contents RELEASE CONTROL RECORD........................................................................................4 1. CERTIFICATION....................................................................................................5 2. SUMMARY OF TEST RESULTS............................................................................6 2.1 MEASUREMENT UNCERTAINTY..........................................................................7 3. GENERAL INFORMATION.....................................................................................8 3.1 GENERAL DESCRIPTION OF EUT.......................................................................8 3.2 DESCRIPTION OF TEST MODES.......................................................................11 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL........................12 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS.......................................15 3.4 DESCRIPTION OF SUPPORT UNITS..................................................................16 3.5 CONFIGURATION OF SYSTEM UNDER TEST...................................................17 4. TEST TYPES AND RESULTS..............................................................................18 4.1 CONDUCTED EMISSION MEASUREMENT........................................................18 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT......................................18 4.1.2 TEST INSTRUMENTS..........................................................................................18 4.1.3 TEST PROCEDURES..........................................................................................19 4.1.4 DEVIATION FROM TEST STANDARD.................................................................19 4.1.5 TEST SETUP.......................................................................................................20 4.1.6 EUT OPERATING CONDITIONS.........................................................................20 4.1.7 TEST RESULTS (With adapter 1).........................................................................21 4.1.8 TEST RESULTS (With adapter 2).........................................................................23 4.1.9 TEST RESULTS (With adapter 3).........................................................................25 4.2 RADIATED EMISSION MEASUREMENT.............................................................27 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT...........................................27 4.2.2 TEST INSTRUMENTS..........................................................................................28 4.2.3 TEST PROCEDURES..........................................................................................30 4.2.4 DEVIATION FROM TEST STANDARD.................................................................30 4.2.5 TEST SETUP.......................................................................................................31 4.2.6 EUT OPERATING CONDITIONS.........................................................................32 4.2.7 TEST RESULTS...................................................................................................33 4.3 6dB BANDWIDTH MEASUREMENT....................................................................62 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT..................................................62 4.3.2 TEST INSTRUMENTS..........................................................................................62 4.3.3 TEST PROCEDURE.............................................................................................62 4.3.4 DEVIATION FROM TEST STANDARD.................................................................62 4.3.5 TEST SETUP.......................................................................................................62 4.3.6 EUT OPERATING CONDITIONS.........................................................................62 4.3.7 TEST RESULTS...................................................................................................63 4.4 MAXIMUM PEAK OUTPUT POWER....................................................................67 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT.....................67 Report No.: RF991228E08 3 Report Format Version 4.0.0 4.4.2 INSTRUMENTS....................................................................................................67 4.4.3 TEST PROCEDURES..........................................................................................67 4.4.4 DEVIATION FROM TEST STANDARD.................................................................67 4.4.5 TEST SETUP.......................................................................................................67 4.4.6 EUT OPERATING CONDITIONS.........................................…
