PORTABLE MULTIMEDIA PLAYER Owner’s Instructions DM-AV7 Before using this product, please read the security instructions first and bear them in mind when using the product. Safety Instructions Safety Instructions 2 Please read the safety instructions below before using the player. • Do not overload the Mains outlet with too many power cords at any time . (It may cause the generation of abnormal heat and/or fire.) • Do not excessively bend the power cord or be squeezed by heavy objects. (It may cause fire.) • Do not handle the power plug with wet hands. (It may cause electric shock.) • Plug the player properly so that it can be stable. (If it is not properly plugged, it may cause fire.) •Never disassemble or modify the player in any way. •Do not let chemicals, such as benzene, thinner, and etc., come in contact with the player. •Do not use the player near a magnetic material (magnet, and etc.). •Do not let dirt or foreign materials go in the player. •Avoid using the player in a place where has high temperature (40°... or higher) or low temperature (5°... or lower), or has much moisture. •Do not drop the player or give a shock. •Keep the player away from a place where has severe vibration or a magnetic material. •Interruption by electromagnetic wave may damage the player. Be sure to completely untie the adaptor cable before using it. •Avoid using the player near a direct ray of light or heat-generating device. •Avoid using the player near a place where has much dirt or soot. W arning Caution Notes when using an earphone Traffic safety •Do not use the earphone while riding a bicycle or driving a car or motorcycle. It is not only dangerous, but also illegal depending on the region. If the earphone is used while walking on the road, keeping its volume high on the crosswalk is very dangerous. Protection for hearing ability •Do not keep the earphone volume high. Most doctors point out that keeping the volume high for a long time is very harmful to ears. •If ears ring, turn down the volume or stop using the earphone. Environmental information •Separate packing materials, batteries, and/or old electronic products when disusing. •Packing materials are classified into cardboard, polyethylene, and etc. Unnecessary packing materials have not been used for this player. Table of Contents Table of Contents 3 ENG Safety Instructions...........................................2 Table of Contents ............................................3 Overview ........................................................ 4 Viewing an External Source ........................... 6 Viewing Video ................................................. 7 Viewing an Image ........................................... 9 Listening to the Music ................................... 11 Viewing Text Files..........................................14 Voice Record .................................................16 FM RADIO (Option).......................................18 Using a System Setup Menu ....................... 20 Connecting an External Component and USB... 23 How to Install the Windows 98 USB Driver .. 24 Installing and Using a Transcoder ................ 25 Miscellaneous .............................................. 32 Specifications .............................................. 34 Accessories Sold separately Owner’s Instructions Installation CD (Transcoder program) Video/Audio cables Audio cable USB cable Earphone Hand strap Carrying case Camera Battery AC adaptor Description of each part Overview 4 ENG Overview 5 1LCD display 2REC button: Use to record an external input signal. Use to display operating time while video playback and recording. 3REPEAT button: Use to repeat playback. 4button: Press and hold down the JOG key left or right to move to the position you wish or use it to search or skip. Press and hold down the JOG key up or down to control the volume or use it to select a delay time of the slide show. Press the JOG key to select a menu or use it to play or pause. 5MENU button: Use to return to the menu screen. 6POWER/STOP button:Use to turn the player on/off or to stop playing. From the menu, press the STOP button to display HELP. 7Status indicator:The indicator blinks to display the current status when the LCD lights are off, the power is on or the battery is so weak that the player shuts down. 8USB Connection jack 9SD CARD insertion slot 10MIC: Use to make a voice recording. 11AV IN (external input) jack: Use to connect an external component. 12DC IN (DC Power Input) port: Only use a rated voltage of DC 3V, 0.5A. 13Headphone jack: Use to connect a headphone. 14LCD ON/OFF switch: Use to turn on or off the LCD display. 15HOLD switch:If the HOLD function is set, the player does not operate even in the entry of another button during playback. 16DIM button:Use to darken the screen in an attempt to prolong its life. Use this during nighttime or when listening to the radio, a recording or MP3 music file. 1730° tilt: Install hand strap circular stand into 30° slot. 18Battery compartment: Use only two AA-sized Alkaline batteries or Ni-MH rechargeable ones. Viewing an External Source Operation INPUT MODE Recording External Signals Memory Settings & Screen Menu 6 This player allows you to view an external input signal. For connection of an external component, see page 23. After moving to "INPUT MODE" by using the JOG key, press the JOG key. The external component that is being currently connected will play and the playback screen will be displayed. Press the MENU button to move to the menu screen. The menu screen will be displayed. You can set the screen brightness and the contrast, or configure the memory settings for recording. Press and hold down the MENU button. Awindow appears for configuring the screen brightness and contrast as well as the memory settings. Use the JOG key to select and set an item and press the STOP button. The window disappears and the settings are activating accordingly. ŒŒ Video Recording: Press the RE…

Text truncated - open the document above for the full version.

9 ENG Viewing an Image Operation IMAGE LIST ŒŒ After moving to "JPEG LIST" by using the JOG key, press the JOG key for selection. - Choose either built-in or external memory to display a list of JPEG files on that memory. - In a file list, press and hold down the MENU button to view the jpeg files as small images (Thumbnail). ́ ́ After moving to a desired JPEG file by using the JOG key, press the JOG key. -The selected JPEG file will appear on the whole screen. -You can view the previous file or next file by using the JOG key. - When the STOP button is pressed, playback will stop and the list of files will return. -During image playback, press and hold down the JOG key to select another image file or display a window where you can choose either MP3 or FM RADIO mode Press the MENU button to move to the menu screen. The menu screen will be displayed. Option
Viewing an Image Operation 10 Setting a Slide Show ŒŒ Press the REPEAT button to switch to change modes. OFF : Deactivates the slide show. 3-SEC : Displays the image files within the current folder once only. REP 3-SEC : Displays the image files within the current folder repeatedly. SLIDESHOW 1 (O-A : D : Time):Plays one file while starting a slide show at the set time interval. SLIDESHOW 2(O-A : D : Time):Plays all MP3 files repeatedly and starts a slide show at the set time interval. SLIDESHOW 3 (O-A : OFF): Changes the MP3 music file or JPEG image file according to the user’s key stroke. OFF_FM : In FM radio mode, changes the image by the user’s key stroke. ON_FM : In FM radio mode, changes the image at the set time interval. - Even during the slide show, you can use REPEAT button to change the mode. ́ ́ Move the JOG key up or down to select a slide show delay time. - You can set it up to 30 seconds. - The default is 3 seconds. Note: Files on the built-in memory and those on the external one cannot be displayed at the same time. The slide show feature does not support more than 300 kb for MP3, 1024x768 for JPEG and 1MB for both. LOGO Skin You can apply a JPEG file you want as the main logo skin. When a JPEG file is listed on the screen or is open, press and hold REC for more than 2 seconds to apply the picture file as a logo skin. Note: Only files smaller than 128Kb and with a resolution of 640x480, 720x480, 640x576 and 720x576 can be applied as a skin. Use RESET from the SETUP menu when you want to delete the skin. Deleting a File ŒŒ When deleting a file from the list of files, select the file you want to delete by using the JOG key and hold the key for at least two seconds. (When selecting all the files in the folder, press and hold the REPEAT button for two seconds or longer.) ́ ́ When the STOP button is pressed, the selected files will be deleted. ˇˇ Deletion of the selected files can be cancelled in the same way as the selection of files. 11 ENG MP3 LIST ŒŒ After moving to "MP3 LIST" by using the JOG key, press the JOG key for selection. Choose either the built-in or external memory to display a list of MP3 files on that memory. ́ ́ After moving to a desired MP3 file by using the JOG key, press the JOG key. -The selected MP3 file will play. - You can use the JOG key while a file is playing to navigate to another file or folder. -When the STOP button is pressed, playback will stop the list of files will return. -During MP3 playback with a slide show, press and hold down the JOG key to display a list of MP3s or image files and select one according to your preference. Press the MENU button to move to the menu screen. The menu screen will be displayed. Option
Listening to the Music Operation 12 Search ŒŒ Hold the JOG key to the left or right to move the playback position of the current file forwards or backwards. ́ ́ Asearch can be executed at a maximum speed of 16 ́. The sound is muted during a search. ˇˇ If you press the JOG key during a search, the file is played. Listening to the Music Repeating Playback Press the REPEAT button to change modes. OFF : Automatically plays the next file when the current one is over. ONE: Plays the current file repeatedly. ALL: Plays all MP3 files in the current folder repeatedly. SHUFFLE: Plays all MP3 files in the current folder at random. PROGRAM: Plays the MP3 files that you selected repeatedly one after another. -When you want to add a file to the PROGRAM list, select a file and press and hold down the JOG key to change the icon image before adding it to the list. - When you want to remove a file from the PROGRAM list, select the file and press and hold down the JOG key to change the icon image before removing it from the list. - Each time you press and hold down the REPEAT button, the PROGRAM list add/delete will be activated. - When exiting from REPEAT mode, your settings for the program list will be lost. -In PRGRAM playback mode, you cannot delete a file from the list. SLIDESHOW 1 (O-A : D : Time):Plays one MP3 file and starts a slide show at the set time interval. SLIDESHOW 2(O-A : D : Time):Plays the entire MP3 files repeatedly and starts a slide show at the set time interval. SLIDESHOW 3(O-A : OFF):Changes the MP3 music file or JPEG image file according to the user’s key stroke. -During a slide show, move the JOG key to the left or right to select the previous or next MP3 file. -Even during the slide show, you can use the REPEAT button to change the mode. Note: Files on the built-in memory and those on the external one cannot be displayed at the same time. The slide show feature does not support more than 300 kb for MP3, 1024x768 for JPEG and 1MB for both. 13 ENG Operation Repeat Section ŒŒ Repeats a section selected from the currently playing file. ́ ́ Press the MENU button to select the start (point A). ˇˇ Press the MENU button again to select the end (point B). Section A-B will be played repeatedly. ̈ ̈ If you press the MENU button during the repeat section, the repeat section is canceled. Deleting a File ŒŒ When deleting a file from the list of files, select the file you want to …

Text truncated - open the document above for the full version.

Voice Record Operation 16 Option
VOICE VOICE001 . VOC VOICE001. VOC VOICE002. VOC VOICE003. VOC VOICE004. VOC 8.0KHz 32Kbps 785KB 0:03:21 0:00:00 REPEATVOL USE / TOTAL IN 178 / 250MB OFF VOICE RECORD ŒŒ After moving to "VOICE RECORD LIST" by using the JOG key, press the JOG key for selection. ́ ́ Press the REC button to start recording. - While recording, the current file name and progress time are displayed at the top of the list. -When done, press the STOP button to exit the recording. - The recorded files are displayed in the voice record list by name so that you can select one from the list and play it. - All operations are locked while recording. Press the MENU button to move to the menu screen. The menu screen will be displayed. Playback Move to a file from the voice record list and press the JOG key to select it. - This plays the voice record file that you selected. - You can use the JOG key to move to another file during playback. - Press the STOP button to stop playback and switch to the file list. 17 ENG Repeating Playback Search ŒŒ Move and hold down the JOG key to the left or right to move the current file to the previous or next position. ́ ́ It supports up to 16X search, during which no sound emits. ˇˇ Even while searching, you can play a file by pressing the JOG key. Press the REPEAT button to change modes. OFF :Automatically plays the next file when the current one is over. ONE:Plays the current file repeatedly. ALL:Plays all files in the voice record list repeatedly. Repeat Section ŒŒ This plays a selected section of the current file repeatedly. ́ ́ Press and hold down the MENU button once to select the start point (A point) of a section. ˇˇ Press and hold down the MENU button again to select the end point (B point). This will start playing the section (A-B). ̈ ̈ During the section repetition, press the MENU button again to deactivate it. Deletiog a File ŒŒ Use the JOG key to select a file that you want to remove from the file list and press it again for more than 2 seconds. (When you want to delete all files in the list, press and hold down the REPEAT button for more than 2 seconds) ́ ́ Press the Stop button and select OK to delete the files in the list sequentially. ˇˇ You can deselect the selected file for deletion in the same way as for file selection. (Press and hold down the JOG key and then the REPEAT button for more than 2 seconds to deselect the file) Operation 18 FM RADIO After moving to "FM RADIO MODE" by using the JOG key, press the JOG key for selection. Search Mode ŒŒ Press the REPEAT button to enter search mode. Achannel is not displayed in search mode. ́ ́ Move the JOG key to the left or right to increase or decrease the radio frequency. ˇˇ Hold the JOG key to the left or to the right to automatically search for the next or previous channel. (Press the JOG key to stop the operation.) ̈ ̈ Hold down the JOG key to save a channel to the PRESET LIST. (A maximum of 20 channels can be saved.) Preset Mode ŒŒ Press the REPEAT button to enter preset mode. Achannel is displayed in preset mode. ́ ́ AUTO MEMORY: If you hold down the REPEAT button, channels are automatically searched for and subsequently saved in the PRESET LIST. (Press the JOG key to stop the operation.) ˇˇ Operate the JOG key to select and listen to a channel. ̈ ̈ Hold down the JOG key to delete the selected channel from the PRESET LIST. FM RADIO(Option) In a weak-electrical field area where propagation is weak, some channels may not be able to be saved. Note Option
19 ENG Operation FM RADIO & Memory Setting ŒŒ Press and hold down the MENU button to display a window that enables you to set the FM broadcasting area and the memory for recording. ́ ́ Use the JOG key to select and set an item and press the STOP button to start broadcasting. Recording an FM Program ŒŒ Press the REC button to start recording the FM program you are currently hearing. ́ ́ During recording, the “REC” mark is red and the name of the currently recording file and the recording time are displayed at the bottom right. - Press the STOP button to stop recording. - The recorded file is saved with the displayed name to the MP3 list. You can select and play the recorded file in MP3 mode. - All operations are locked by the REC button. You can convert MONO sound to STEREO sound by using STOP button. Note Operation 20 Using a System Setup Menu How to use a System Setup Menu ŒŒ Select the item you want to set among GENERAL SETUP, RECORD SETUP, MEMORY SETUP, DISPLAY SETUP, SETUP EXIT by using the JOG key. ́ ́ Move to a detailed setup item in the selected setup menu by using the JOG key. ˇˇ After moving to a desired menu by using the JOG key, press the JOG key for selection. ̈ ̈ After moving to or adjusting a desired menu by using the JOG key, press the JOG key to save the state of setup. -Press the STOP button to move to the upper menu. -Press the MENU button to move to the menu screen. GENERAL SETUP ✓MEMORY LANGUAGE POWER SAVE BATTERY RESET UP GRADE GENERAL SETUP ✓MEMORY LANGUAGE POWER SAVE BATTERY RESET UP GRADE ✓INTERNAL EXTENDED Option
21 ENG Operation •MEMORY INTERNAL: Use when playing, recording, deleting, and formatting the contents of the built-in memory. An SD card cannot be used. EXTENDED:Use when playing, recording, deleting, and formatting the contents of an external SD card. The built-in memory cannot be used. Note: From the main menu, press and hold down the MENU button to set the memory for recording. •LANGUAGE Use to select a language. •POWER SAVE Use to set the power saving function. When the function is set, power will be shut down after a certain time (five minutes) elapses in the state of stop. •BATTERY ALKALINE: Select this when you want to use an alkaline battery. RECHARGE:Select this when you want to use a rechargeable battery. Note: The remaining battery capacity is displayed on the screen •RESET Use to initialize all settings (factory default). •UPGRADE Use to upgrade the firmware that has been downloaded thr…

Text truncated - open the document above for the full version.

24 How to Install the Windows 98 USB Driver Install the Windows 98 USB Driver Window 98 users should first install the USB driver for the operating system. Users of later versions of Windows do not need to install the USB driver, it will be automatically  recognized as a removable disk. Follow the instructions below to install the USB driver: Insert the installation CD into your CD-ROM drive. Use the USB cable that ships with the player to connect it to your PC. The USB driver is included in the "WIN98_USB_Driver" folder of the Transcoder CD. To install the USB driver When the "Add New Hardware Wizard" appears When the driver is not properly recognized on the first connection 1. When the "Add New Hardware Wizard" window appears, click on Next. 2. Select "Search for the Best Driver for This Device (Recommended)" and click Next. 3. Select "CD-ROM Drive" and click Next. 4. Identify the device that you want to locate a driver for and click on Next. 5. When you see the "Copying Files" dialog box, select Browse. 6. Select the "WIN98_USB_Driver" folder on the CD-ROM and click OK. 7. In the "Copying Files" dialog box, click OK. 8. Select Finish. 9. In Windows Explorer, a "removable disk" drive will have been created.  1. Select Start> Control Panel. 2. Select System from the Control Panel. 3. Select "Device Manager" and check for any incompletely installed USB devices. 4. Select USB Device from Other Devices and click on Properties. 5. Select "Reinstall Driver" at the bottom of the dialog box. 6. In the "Device Driver Update Wizard" dialog box, click on Next. 7. Check the "Search for the latest river (Recommended)" box and click on Next. 8. Select "CD-ROM Drive" and click Next. 9. Select "Updated Driver (recommended)" and click Next. 10. Make sure that the "device to search a driver for" is "DM Technology AV Player"  and select Next. 11. The installation is completed successfully. 1 2 25 ENG er Installing and Using Transcoder Installing and Using Transcoder Using Environment [PC requirements] •Pentium III 1G at least •Memory: 256MB at least •Microsoft DirectX supported VGA •Sound card-required [OS] •Microsoft Windows ME/Windows 2000/Windows XP [Codec] •Divx 5.1.1 Visit at the web site http://download.divx.com/divx/DivX511.exe and download Divx codec for installation. •Aunified codec for running media files on a PC. Aunified codec must be installed on the PC to run a file normally. [Others] •Microsoft DirectX 8.0 at least •Microsoft Windows Media Player 9.0 Installing and Using Transcoder 26 Installing and Using Transcoder Installation Guide Transcoder software decodes files such as WMV, ASF, AVI, MPEG, MPG, WMA, MPGA, VOB and DAT so that the files can be played. Most files having the video formats, MPEG4-SP and DivX Ver 3.11, and audio formats, 4.0, 5.03 SP and MPEG1 Layer3 (MP3), can be played without being transformed. Use a Transcoder for files that do not play, The following programs will be installed to your PC. 1. DivX 5.1.1 Bundle 2. All Codec Packs Link 3. Microsoft Windows Media Player 9.0 4. DirectX9.0 5. Transcoder Insert the CD that came with the product into your PC to start the installation process. You can download files from the Internet by using the enclosed CD. The download time may differ according to the kind of Internet connection. If you insert the CD into your PC, the following menu will appear. Note Make sure to select the icons sequentially starting from the top of the MENU window in this order to install all five programs. Refer to the Installation Guide and the Q&A at the bottom of the MENU for the installation methods Note 27 ENG Installing and Using Transcoder Installing Transcoder Executing Transcoder Insert the supplied installation CD and execute "TransCoder.EXE". 1 Select "Next". 2 As shown in the figure right, the process of program installation is displayed. 3 After installation is complete, select "Finish" to end installation. 4 Select the menus at the right bottom of Windows in the following sequence: "Start" → "Program (P)" → "TRANSCODER" →"TRANSCODER". Or double click "TRANSCODER()" on the Windows background screen. 28 Installing and Using Transcoder Installing and Using Transcoder Configuration and Function of Transcoder Screen ŒŒ ́ ́ ˇˇ ˆˆ ØØ ∏∏”” ̈ ̈ ŒŒ Menu ́ ́ Function icon ˇˇ File search window: This has the same function as Windows Explorer. ̈ ̈ File list window: This has the same function as Windows Explorer. ˆˆ Transcoded files list window: The files to be transcoded are displayed. ØØ Location where the transcoded files are saved: This displays the location where the transcoded files are saved. ∏∏ Capacitance of memory:This displays the capacitance of the location where the transcoded files are saved. ”” Display of transcoding progress: This displays the progress rate. 29 ENG Installing and Using Transcoder •File -New Schedule: Calls a new file in the list of transcoded files. -Open Schedule: Applies the saved * .dmt files in the list of transcoded files. -Save: Saves the contents of the operation which is under progress. in the list of transcoded files. -Save As: Saves as another name. -Exit: Exits the program. •Build -Starts transcoding. •Option -Sami: If there is a caption file, whether to apply or not will be determined. -Media File: Only media files are applied in the list. -Media Info: Displays the files which can play without change. This is only available for Windows 2000. -Refresh: Re-applies the file. -SaveFile Path: Applies the path of a file to be transcoded. •Help -About: Guides product information and the whole web site. Menu -New schedule: Builds a new list of transcoded files. -Open schedule: Calls a list of saved transcoded files. -Save: Saves the contents of the list of transcoded files under operation. -Start File Switching: Starts the schedule which is applied to the list of transcoded files. Tool Bar New schedule Open schedule Save Start File Switching 30 Installing and Using Transcoder Installing and Usi…

Text truncated - open the document above for the full version.

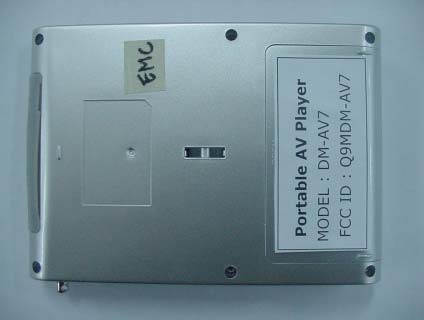

Portable Multimedia Player MODEL : DM-AV7 FCC ID : Q9MDM-AV7

EMI TEST REPORT Emission of electromagnetic disturbance Test Report No. : ERI-FCC04-0057 Equipment : Portable AV Player Name of basic model : DM-AV7 Family model : Refer to the page 4 Manufacturer : GUANGZHOU DEBAO YUCHANG ELECTRONICS CO.,Ltd Applicant : D.M. Technology Co., Ltd. Tested date : 2004. 11. 17 Issued date : 2004. 11. 22 Test results : PASS Test Standards : FCC Part 15 Subpart B (Class B) /Digital devices & peripherals Test Procedure and Items: - AC Power line Conducted emissions measurement : ANSI C63.4-1992 - Radiated emissions measurement : ANSI C63.4-1992 Tested by: YOUNG-SIK, KIM Approved by: SANG-KYU, LEE The results in this report apply only to the sample tested. This test report shall not be reproduced except in full, without the written approval of ERI Laboratory. EMC RESEARCH INSTITUTE EMC Research Institute CONTENTS 1. CLIENT INFORMATION 2. LABORATORY INFORMATION 3. EQUIPMENT UNDER TEST INFORMATION(EUT) 3.1 Identification of the EUT 3.2 Additional information about the EUT 3.3 Peripheral equipment 4. CONTINUOUS DISTURBANCE VOLTAGE, MAIN TERMINAL 4.1 Operating environment 4.2 Test set-up and test procedures 4.3 Operation Conditions 4.4 Test instrument 4.5 Test results (Test mode: Up & Download mode) 4.6 Test results (Test mode: FM Tuner mode) 5. RADIATED DISTURBANCE: 30MHz – 1000MHz 5.1 Operating environment 5.2 Test set-up 5.3 Test conditions 5.4 Test instrument 5.5 Test results (Test mode: Up & Download mode) 5.6 Test results (Test mode: Play mode) 5.7 Test results (Test mode: Record mode) 5.8 Test results (Test mode: FM Tuner mode) APPENDIX (None) EMC Research Institute 1. CLIENT INFORMATION The EUT has been tested by request of : Address : 5 th F1., Mando Bldg. 730 Dang-dong, Gunpo, Kyunggi-do, Korea 435-010 Name of contact : TONG-JIN, PARK Telephone : + 82-31-451-4526 Facsimile : + 82-31-451-4520 2. LABORATORY INFORMATION The 10m full-anechoic chamber and/or EMC facilities are used for these testing. These facilities were accredited by KOLAS, EK, MIC of Korea and FCC of USA. Address ELECTROMAGNETIC RESEARCH INSTITUTE. 66-6, JEIL-RI, YANGJI-MYUN, YOUNGIN-CITY, KYUNGGI-DO, KOREA Telephone No. : +82-31-336-1186~7 Facsimile No. : +82-31-336-1184 Registered No. KOLAS : 111 EK : J MIC : KR0030 FCC Filing No. : 302567 3. EQUIPMENT UNDER TEST INFORMATION(EUT) 3.1 Identification of the EUT Type of equipment : Portable AV Player Model name : DM-AV7 Manufacturer : GUANGZHOU DEBAO YUCHANG ELECTRONICS CO.,Ltd Address : DONGSI BUILDING, HONGTU, INDUSTRIAL ZONE, LICUN VILLAGE, DASHI TOWN, PANYU CITY, UANGDONG, CHINA Telephone : + 86-20-3456-1885 Facsimile : + 86-20-3456-1811 Country of origin : CHINA Rating : AC110V, 60Hz EMC Research Institute 3.2 Additional information about the EUT Class B, Family Models List: Basic Model Memory size DM-AV7 1G, 512M, 256M, 128M 3.3 Peripheral equipment Defined as equipment needed for correct operation of the EUT. Description Model No. Serial No. Manufacture MOUSE M-S48a LZA95250340 Logitech KEYBOARD ACK-260 103063349 Solid Year Co., Ltd. MONITOR PN15VT P181H80R807018 Chunghwa electronic PC MTC2 FSZS91S DELL PRINTER DeskJet930C CN13V1B1SZ HP ADAPTOR STP032030E - D.M. Technology Co., Ltd. EARPHONE - - EMC Research Institute 4. CONTINUOUS DISTURBANCE VOLTAGE, MAIN TERMINAL : Frequency range 0.15 MHz to 30 MHz 4.1 Operating environment Temperature : 22.0 Relative Humidity : 38.0 % 4.2 Test set-up and test procedures The mains terminal disturbance voltage was measured with the equipment under test(EUT) in a shield room. The EUT was connected to an artificial mains network(LISN) placed on the floor. The EUT was placed on non-metallic table 0.4m above the metallic, grounded floor. The distance to other metallic surface was at least 0.8m. Amplitude measurements were performed with a quasi-peak detector and an average detector. 4.3 Operation Conditions Up & Down load mode, FM tuner mode 4.4 Test instrument Instrument Model No Serial No. Makers Next cal.date Used Test receiver ESCS30 830986-015 R&S 2005. 04. 08 ESH3-Z5 100029 R&S 2004. 11. 11 L.I.S.N. ESH3-Z5 831887/018 R&S 2005. 03. 19 Shield room 8 6 3.3m/H - - - AC Main LISN LISN PC EUT Printer AC/DC adaptor Earphone Monitor Keyboard Mouse EMC Research Institute 4.5 Test results (Up & download mode) Date of test: Nov 17, 2004. An overview sweep performed with peak detector & average detector are included in the report as test reports. [Live line] EMC Research Institute [Neutral line] EMC Research Institute 4.6 Test results (FM tuner mode) Date of test: Nov 17, 2004. An overview sweep performed with peak detector & average detector are included in the report as test reports. [Live line] EMC Research Institute [Neutral line] EMC Research Institute 5. RADIATED DISTURBANCE : 30MHz – 1000MHz 5.1 Operating environment Temperature : 22.0 Relative Humidity : 38.0 % 5.2 Test set-up The frequency range investigated was 30 MHz to 1000 MHz. All readings are quasi-peak unless stated otherwise. The half-wave dipole antenna was tuned to the frequency found during Preliminary radiated measurements. The EUT, support equipment and Interconnecting cables were re-configured to the set-up to the producing the Maximum emission for the frequency and were placed on top of a 0.8 meter High non-metallic 1 X 1.5 meter table. The EUT, support equipment, and interconnecting cables were re-arranged and manipulated to maximize each EME emission. The turntable containing the system was rotated the antenna height was varied 1 to 4 meters and stopped at the azimuth or height producing the maximum emission. And this device(EUT) was tested in 3 orthogonal planes. The antenna measured both horizontal and vertical polarization. <General test set-up for radiated emissions> 5.3 Operation Conditions Up & download mode, play & record mode, FM tuner mode EMC Research Institute 5.4 Test instrument Instrument Model No. Serial No. Makers Next cal.date Used Test receiver ESCS30 10002…
