American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 June 3, 2004 RE: SendFar Technolgy Co. Ltd. FCC ID: QA5-MPI-04001 After a review of the submitted information, I have a few comments on the above referenced Application. Administrative Issues: 1) FYI....(For Your Information – No Response Necessary). The modular approval letter does reference the correct FCC ID, and internal components list. However, the manufacture name in the letter appears incorrect. Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

FCC ID: QA5-MPI-04001 Report No. RF930507L02 Modular Approval Request Letter Advance Data Technology June 2, 2004 Dear Application Examiner, Gemtek’s 54Mbps/11Mbps Wireless Mini PCI, FCC ID: QA5-MPI-04001, would like to have your authorization for Module Approval specific to the mobile device such as Access Point or Router. The requirements of Public Notice DA00-1407 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.”: The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip ISL3880IK. 3. “The modular transmitter must have its own power supply regulation.” There is a regulator in the DC input port, the part number is ISL6411IR. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was tested in a stand-alone configuration via a Mimi-PCI to PCMCIA adapter card. Please see section Photographs of Test Configuration in the test report. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: QA5-MPI-04001 Report No. RF930507L02 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, Ellis Wu / Manager Manager of R&TTE Division Advance Data Technology

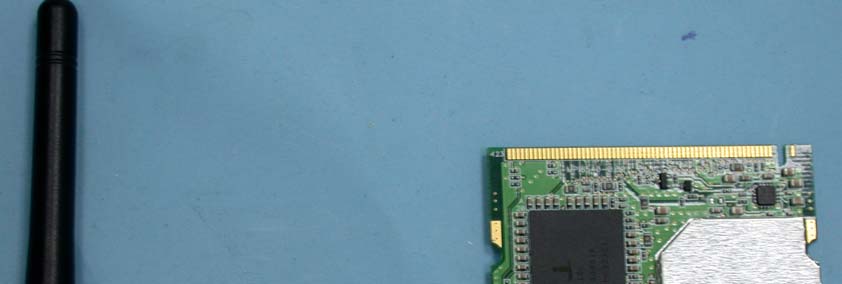

Page 1 CONSTRUCTION PHOTOS OF EUT

Model No.: MPI-8540 FCC ID: QA5-MPI-04001 2.5mm 2.5mm WLAN Mini-PCI Card MADE IN TAIWAN 15mm 30mm Model No.: MPI-8540 FCC ID: QA5-MPI-04001 WLAN Mini-PCI Card MADE IN TAIWAN

Model No.: MPI-8540 FCC ID: QA5-MPI-04001 2.5mm 2.5mm WLAN Mini-PCI Card MADE IN TAIWAN 15mm 30mm Model No.: MPI-8540 FCC ID: QA5-MPI-04001 WLAN Mini-PCI Card MADE IN TAIWAN

Page 2 Page 3

FCC ID: QA5-MPI-04001 Report No.RF930507L02 Operational Description This device is a Wireless LAN Card which operates in the 2.4GHz frequency spectrum with throughput of up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT is powered by host equipment via a PCI interface. The antenna are Inverted F, Dipole antenna with UFL connector. The other instruction, please have a look at the users manual.

FCC ID: QA5-MPI-04001 Report No: SA930507L02 1 RF EXPOSURE REPORT REPORT NO.: SA930507L02 MODEL NO.: MPI-8540 (for Brand: SendFar) ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: SendFar Technology Co., Ltd. ADDRESS: 15FL., No.866-2, JungJeng Rd., Jung He City, Taipei, Taiwan 235, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 19, Hwa Ya 2nd Rd., Kueishan, Taoyuan, Taiwan, R.O.C. FCC ID: QA5-MPI-04001 Report No: SA930507L02 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: QA5-MPI-04001 Report No: SA930507L02 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance r. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification This modular is specified to be installed in access point or router which is connected with host through wire. So it is easy to be re-located in the place where at least 20cm far away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: QA5-MPI-04001 Report No: SA930507L02 4 6 Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 2.00dBi or 1.584 (numeric). 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For CCK technique: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241244.6680.0141.0 62437100.0000.0321.0 11246235.4810.0111.0 For OFDM technique: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241242.170.0131.0 6243779.430.0251.0 11246242.170.0131.0

FCC ID: QA5-MPI-04001 Report No.: RF930507L021Issued: May 13, 2004 FCC TEST REPORT REPORT NO.: RF930507L02 MODEL NO.: MPI-8540 RECEIVED: May 5, 2004 TESTED: May 5 ~ May 12, 2004 APPLICANT: SendFar Technology Co., Ltd. ADDRESS: 15FL., No.866-2, JungJeng Rd., Jung He City, Taipei, Taiwan 235, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 19, Hwa Ya 2nd Rd., Kueishan, Taoyuan, Taiwan, R.O.C. This test report consists of 70 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by any government agencies. The test results in the report only apply to the tested sample. FCC ID: QA5-MPI-04001 Report No.: RF930507L022Issued: May 13, 2004 Table of Contents 1CERTIFICATION ..................................................................................................................... 4 2SUMMARY OF TEST RESULTS ............................................................................................ 5 3GENERAL INFORMATION ..................................................................................................... 6 3.1GENERAL DESCRIPTION OF EUT ....................................................................................... 6 3.2DESCRIPTION OF TEST MODES ......................................................................................... 7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ........................................................ 7 3.4DESCRIPTION OF SUPPORT UNITS ................................................................................... 8 3.5CONFIGURATION OF SYSTEM UNDER TEST .................................................................... 8 4TEST TYPES AND RESULTS................................................................................................. 9 4.1CONDUCTED EMISSION MEASUREMENT ......................................................................... 9 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT....................................................... 9 4.1.2TEST INSTRUMENTS ............................................................................................................ 9 4.1.3TEST PROCEDURES...........................................................................................................10 4.1.4DEVIATION FROM TEST STANDARD................................................................................. 10 4.1.5TEST SETUP .........................................................................................................................11 4.1.6EUT OPERATING CONDITIONS ......................................................................................... 12 4.1.7TEST RESULTS .................................................................................................................... 13 4.2RADIATED EMISSION MEASUREMENT............................................................................. 19 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT .......................................................... 19 4.2.2TEST INSTRUMENTS ..........................................................................................................20 4.2.3TEST PROCEDURES...........................................................................................................21 4.2.4DEVIATION FROM TEST STANDARD................................................................................. 21 4.2.5TEST SETUP ........................................................................................................................ 22 4.2.6EUT OPERATING CONDITIONS ......................................................................................... 22 4.2.7TEST RESULTS .................................................................................................................... 23 4.2.8TEST RESULTS (A) .............................................................................................................. 24 4.2.9TEST RESULTS (B) .............................................................................................................. 27 4.36dB BANDWIDTH MEASUREMENT .................................................................................... 30 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT ................................................................. 30 4.3.2TEST INSTRUMENTS ..........................................................................................................30 4.3.3TEST PROCEDURE .............................................................................................................31 4.3.4DEVIATION FROM TEST STANDARD................................................................................. 31 4.3.5TEST SETUP ........................................................................................................................ 31 4.3.6EUT OPERATING CONDITIONS ......................................................................................... 31 4.3.7TEST RESULTS (A) .............................................................................................................. 32 FCC ID: QA5-MPI-04001 Report No.: RF930507L023Issued: May 13, 2004 4.3.8TEST RESULTS (B) .............................................................................................................. 36 4.4MAXIMUM PEAK OUTPUT POWER.................................................................................... 40 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT .................................... 40 4.4.2TEST INSTRUMENTS ..........................................................................................................40 4.4.3TEST PROCEDURES...........................................................................................................41 4.4.4DEVIATION FROM TEST STANDARD.......................................................................…

Text truncated - open the document above for the full version.

FCC ID: QA5-MPI-04001 Report No.: RF930507L0266Issued: May 13, 2004 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: QA5-MPI-04001 Report No.: RF930507L0267Issued: May 13, 2004 FCC ID: QA5-MPI-04001 Report No.: RF930507L0268Issued: May 13, 2004 RADIATED EMISSION TEST FCC ID: QA5-MPI-04001 Report No.: RF930507L0269Issued: May 13, 2004
