SF-3000 IEEE 802.11b Outdoor Wireless Client Bridge User Manual February 23, 2004 Version 1.01 Before operating the unit, please read this manual thoroughly, andretain it for future reference. Version 1.01 i ■ Contents CHAPTER 1. INTRODUCTION .................................................................. 1 1.1 I NTRODUCING THE SF-3000 ...................................................................... 1 1.2 P RODUCT F EATURES ................................................................................. 1 1.3 P ACKAGE C ONTENTS ................................................................................. 1 1.4 S YSTEM R EQUIREMENTS ........................................................................... 1 1.5 I NLINE P OWER I NJECTOR (P O E) ................................................................ 2 CHAPTER 2. INSTALLATION AND BASIC CONFIGURATION ......... 3 2.1 B EFORE Y OU S TART .................................................................................. 3 2.2 L OCATE THE SF-3000 AND I NLINE P OWER I NJECTOR P ORTS .................... 4 2.3 P REPARING I NSTALLATION ........................................................................ 6 2.4 B ASIC C ONFIGURATION ............................................................................. 7 2.4.1 What you need to know .................................................................... 7 2.4.2 Basic Configuration Steps ................................................................ 7 2.4.3 Logging into the Web Interface ........................................................ 8 2.4.4 Set Operating Mode, IP Address, Subnet Mask, Default Route IP, DNS Server IP of SF-3000 11 2.4.5 Set Wireless Encryption for Wireless Interface ............................. 13 2.4.6 Change Supervisor Account & Password ....................................... 13 2.4.7 Upgrade the Firmware .................................................................... 14 2.4.8 Back-up the SF-3000’s Configuration Files ................................... 18 CHAPTER 3. NETWORK TOPOLOGIES ............................................... 20 3.1 W IRELESS C LIENT B RIDGE - TO -C ENTRAL W IRELESS B RIDGE .................. 21 3.2 W IRELESS C LIENT R OUTER - TO -C ENTRAL W IRELESS B RIDGE ................. 22 3.3 W IRELESS C LIENT B RIDGE - TO -C ENTRAL W IRELESS R OUTER ................. 23 3.4 W IRELESS C LIENT R OUTER - TO -C ENTRAL W IRELESS R OUTER ................ 24 CHAPTER 4. NETWORK PARAMETERS .............................................. 26 4.1 IP C ONFIGURATION ................................................................................. 26 4.2 V IRTUAL S ERVER .................................................................................... 27 4.3 C ONFIGURE SNMP .................................................................................. 30 4.3.1 Configure Community Pool ........................................................... 30 4.3.2 Configure Trap Host Pool .............................................................. 32 4.4 C ONFIGURE W IRELESS RELATED PARAMETERS ....................................... 34 4.5 S ECURITY ................................................................................................ 37 4.5.1 MAC based Access Control ........................................................... 37 4.6 U TILITY ................................................................................................... 38 Version 1.01 ii 4.6.1 Software Upgrade ........................................................................... 38 4.6.2 Administration ................................................................................ 39 CHAPTER 5. MONITOR INFORMATION ............................................. 40 5.1 S YSTEM I NFORMATION ............................................................................ 40 5.2 S TATISTIC I NFORMATION ........................................................................ 42 5.3 W IRELESS L INK I NFORMATION ............................................................... 43 CHAPTER 6. SPECIFICATIONS .............................................................. 44 6.1 H ARDWARE S PECIFICATIONS ................................................................... 44 6.2 S OFTWARE S PECIFICATIONS .................................................................... 45 CHAPTER 7. DEFAULT SETTINGS ........................................................ 47 7.1 G ENERAL C ONFIGURATION ..................................................................... 47 7.1.1 System ............................................................................................ 47 7.1.2 Virtual Server ................................................................................. 47 7.1.3 SNMP ............................................................................................. 48 7.1.3.1 Table of SNMP Community Pool .............................................. 48 7.1.3.2 Table of SNMP Trap Community Host Pool ............................. 48 7.1.4 Wireless LAN ................................................................................. 49 7.2 U TILITY ................................................................................................... 50 7.2.1 Software Upgrade ........................................................................... 50 7.2.2 Administration ................................................................................ 50 CHAPTER 8. REGULATORY COMPLIANCE INFORMATION ........ 51 Version 1.01 1 Chapter 1. Introduction 1.1 Introducing the SF-3000 The SF-3000 is a fully interoperable with IEEE 802.11b compliant OutdoorWireless Last-mile product. The SF-3000 operates in remote bridge mode,and connects SendFar RB-8110 Outdoor Wireless Router Bridge toconstruct point-to-point as well as point-to-multipoint topologies, for maximum flexibility in configuring bu ilding-to-building networks to WISP. 1.2 Product Features 9 Outdoor enclosure in…

Text truncated - open the document above for the full version.

[email protected] www.adt.com.tw ADVANCE DATA TECHNOLOGY CORPORATION FEDERAL COMMUNICATIONS COMMISSION DECLARATION OF CONFORMITY (DoC) FOR THE FOLLOWING EQUIPMENT: PRODUCT NAME: Wireless Access Bridge MODEL NO.: SF-3000 PLUS TRADE NAME: SendFar IS HEREWITH CONFIRMED AND FOUND TO COMPLY WITH THE REQUIREMENTS OF CFR 47 PART 15 REGULATION. THE RESULTS OF ELECTROMAGNETIC EMISSION EVALUATION ARE SHOWN IN THE REPORT NO.: D930625L04 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND, (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. THE FOLLOWING LOCAL MANUFACTURER/IMPORTER IS RESPONSIBLE FOR THIS DECLARATION SendFar Technology Co., Ltd. (Company Name, Manufacturer) 15FL., NO. 866-2, JUNGJENG JUNGHE CITY, TAIPEI, TAIWAN 235, R.O.C. (Company Address, Manufacturer) Person responsible for this declaration: Henry Lin (Name, Surname, Manufacturer) Manager (Position/Title) (Legal Signature) Taiwan (Place) (Date) Representative with U.S. based address has not yet been determined.

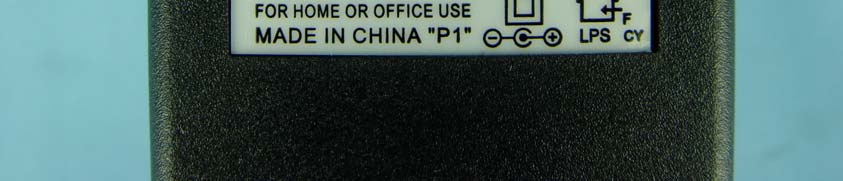

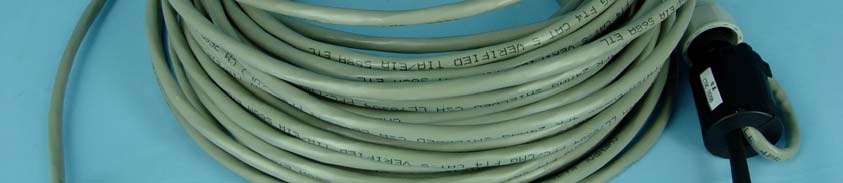

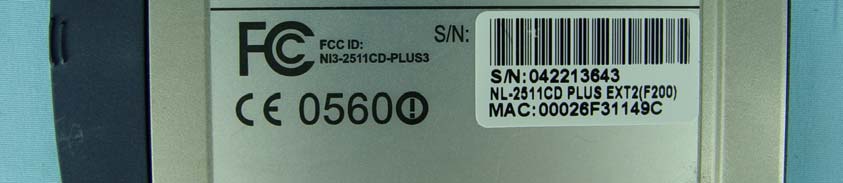

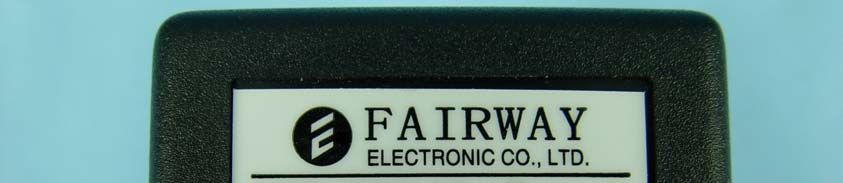

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4 Page 5 Page 6 Page 7 Page 8 Page 9 Page 10 Page 11 Page 12 Page 13 Page 14

Label Location

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference,and (2)this device must accept any interference received, including interference that may cause undesired operation. FOR HOME OR OFFICE USE Tested To Comply With FCC Standards Model No. : SF-3000 PLUS FCC ID: QA5-OAB-04004 AC: 100~240V 50~60Hz DC: 24V / 0.8A S/N: MADE IN TAIWAN 74.0 mm 80.0 mm 2 mm 2 mm

Page 15 Page 16 Page 17 Page 18 Page 19 Page 20 Page 21 Page 22 Page 23 Page 24 Page 25 Page 26 Page 27 Page 28 Page 29 Page 30

FCC ID: QA5-OAB-04004 Report No. RF930625L04 Operational Description The transmitter of the EUT is powered by POE and connected with managing computer through console port and Ethernet port port. The antennas used in this product are Dipole antenna. The antenna connector is Revers N Type. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. The other instruction, please have a look at the users manual. DSSS Information This device is Wireless Access Bridge, the data is mixed by pseudorandom code which is an orthogonal code. The mixed data is digital modulated by BPSK and QPSK technique depends on the data rates. The CCK coding is applied for increasing the data rate, and also the processing gain will be increased. The bit rates are 1,2,5.5,11Mbps, the symbol rates are 1,1,1.375,1.375Mbps, the chip rates are always 11Mbps. So, the Chip/symbol is 11,11,8 and 8 respectively. Although is higher bit rate, the processing gain is lower than 10, but the CCK coding used in higher bit rate will provide 9dB coding gain.

FCC ID: QA5-OAB-04004 Report No: SA930625L04 1 RF EXPOSURE REPORT REPORT NO.: SA930625L04 MODEL NO.: SF-3000 PLUS ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: SendFar Technology Co., Ltd. ADDRESS: 15FL., NO.866-2, JUNGJENG RD., JUNGHE CITY, TAIPEI, TAIWAN 235, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 19, Hwa Ya 2nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID: QA5-OAB-04004 Report No: SA930625L04 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: QA5-OAB-04004 Report No: SA930625L04 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance r. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: QA5-OAB-04004 Report No: SA930625L04 4 6 Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 9dBi or 7.943 (numeric). 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 12412100.0000.1581.0 62437199.5260.3151.0 112462100.0000.1581.0

FCC ID: QA5-OAB-04004 Report No.: RF930625L041Issued: July 14, 2004 FCC TEST REPORT REPORT NO.: RF930625L04 MODEL NO.: SF-3000 PLUS RECEIVED: June 24, 2004 TESTED: June 24 ~ July 13, 2004 APPLICANT: SendFar Technology Co., Ltd. ADDRESS: 15FL., NO.866-2, Jung Jeng Rd., Junghe City,Taipei, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 54 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA FCC ID: QA5-OAB-04004 Report No.: RF930625L042Issued: July 14, 2004 Table of Contents 1CERTIFICATION ........................................................................................... 4 2SUMMARY OF TEST RESULTS................................................................... 5 3GENERAL INFORMATION ........................................................................... 6 3.1GENERAL DESCRIPTION OF EUT.............................................................. 6 3.2DESCRIPTION OF TEST MODES................................................................ 7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS............................... 7 3.4DESCRIPTION OF SUPPORT UNITS .......................................................... 8 3.5CONFIGURATION OF SYSTEM UNDER TEST........................................... 9 4TEST TYPES AND RESULTS..................................................................... 10 4.1CONDUCTED EMISSION MEASUREMENT .............................................. 10 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT............................ 10 4.1.2 TEST INSTRUMENTS .................................................................................11 4.1.3 TEST PROCEDURES ................................................................................. 12 3.1.4DEVIATION FROM TEST STANDARD ....................................................... 12 3.1.5TEST SETUP .............................................................................................. 13 4.1.6 EUT OPERATING CONDITIONS ................................................................ 14 4.1. TEST RESULTS .......................................................................................... 15 4.2RADIATED EMISSION MEASUREMENT ................................................... 21 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT................................. 21 4.2.2TEST INSTRUMENTS ................................................................................ 22 4.2.3TEST PROCEDURES................................................................................. 23 4.2.4TEST SETUP .............................................................................................. 24 4.2.5EUT OPERATING CONDITIONS................................................................ 24 4.2.6TEST RESULTS.......................................................................................... 25 4.36dB BANDWIDTH MEASUREMENT .......................................................... 30 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT ........................................ 30 4.3.2TEST INSTRUMENTS ................................................................................ 30 4.3.3TEST PROCEDURE ................................................................................... 31 4.3.4TEST SETUP .............................................................................................. 31 4.3.5EUT OPERATING CONDITIONS................................................................ 31 4.4MAXIMUM PEAK OUTPUT POWER .......................................................... 36 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ........... 36 4.4.2TEST INSTRUMENTS ................................................................................ 36 4.4.3TEST PROCEDURES................................................................................. 37 FCC ID: QA5-OAB-04004 Report No.: RF930625L043Issued: July 14, 2004 4.4.4DEVIATION FROM TEST STANDARD ....................................................... 37 4.4.5TEST SETUP .............................................................................................. 37 4.4.6EUT OPERATING CONDITIONS................................................................ 37 4.4.7TEST RESULTS.......................................................................................... 38 4.5POWER SPECTRAL DENSITY MEASUREMENT...................................... 39 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ................... 39 4.5.2TEST INSTRUMENTS ................................................................................ 39 4.5.3TEST PROCEDURE ................................................................................... 40 4.5.4TEST SETUP .............................................................................................. 40 4.5.5EUT OPERATING CONDITIONS................................................................ 40 4.5.6TEST RESULTS.......................................................................................... 41 4.6BAND EDGES MEASUREMENT ................................................................ 45 4.6.1LIMITS OF BAND EDGES MEASUREMENT ............................................. 45 4.6.2TEST INSTRUMENTS ................................................................................ 45 4.6.3TEST PROCEDURE ................................................................................... 45 4.6.4EUT OPERATING CONDITION .................................................................. 45 4.6.5TEST RESULTS.............................................................................…
