QA5-OAP-04003Wireless Access Point

[email protected] www.adt.com.tw ADVANCE DATA TECHNOLOGY CORPORATION FEDERAL COMMUNICATIONS COMMISSION DECLARATION OF CONFORMITY (DoC) FOR THE FOLLOWING EQUIPMENT: PRODUCT NAME: Wireless Access Point MODEL NO.: AP-8110 PLUS TRADE NAME: SendFar IS HEREWITH CONFIRMED AND FOUND TO COMPLY WITH THE REQUIREMENTS OF CFR 47 PART 15 REGULATION. THE RESULTS OF ELECTROMAGNETIC EMISSION EVALUATION ARE SHOWN IN THE REPORT NO.: D930607L15 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND, (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. THE FOLLOWING LOCAL MANUFACTURER/IMPORTER IS RESPONSIBLE FOR THIS DECLARATION： SendFar Technology Co., Ltd. (Company Name, Manufacturer) 15FL., NO. 866-2, JUNGJENG JUNGHE CITY, TAIPEI, TAIWAN 235, R.O.C. (Company Address, Manufacturer) Person responsible for this declaration: Henry Lin (Name, Surname, Manufacturer) Manager (Position/Title) (Legal Signature) Ta i w a n (Place)(Date) Representative with U.S. based address has not yet been determined.

A Outdoor Wireless Access Point User’s Manual Before operating the unit, please read this manual thoroughly, and retain it for future reference. i Contents CHAPTER 1. HARDWARE INSTALLATION.........................................1 1.1 BEFORE YOU START........................................................................1 1.2 LOCATE THE ACCESS POINT AND INLINE POWER INJECTOR PORTS............2 1.3 INSTALLING THE ANTENNAS................................................................4 1.4 INSTALLING THE CONSOLE PORT CABLE...............................................5 1.5 CONNECTING THE POWER SUPPLY AND ETHERNET CABLE........................5 1.6 OUTDOOR INSTALLATION....................................................................6 CHAPTER 2. NETWORK TOPOLOGIES.............................................7 2.1 CONFIGURATION EXAMPLES...............................................................8 2.1.1 Wireless Access Bridge...........................................................8 2.1.2 Wireless Access Router with PPPoE Ethernet connection.........9 2.1.3 Wireless Access Router with dynamic IP Ethernet connection.10 2.1.4 Wireless Access Router with static IP Ethernet connection.....11 CHAPTER 3. INITIAL CONFIGURATION............................................12 3.1 CONFIGURE REQUIREMENTS............................................................12 3.2 CONFIGURE THE AP.......................................................................14 3.2.1 Configure the AP as a Bridge..................................................15 3.2.2 Configure the AP as a Router with PPPoE Ethernet connection16 3.2.3 Configure the AP as a Router with dynamic IP address Ethernet .............................................................................................21 3.2.4 Configure the AP as a Router with static IP address Ethernet..22 3.3 CONFIGURE WIRELESS RELATED PARAMETERS...................................24 3.4 SECURITY.....................................................................................25 3.4.1 WEP encryption.....................................................................25 3.4.2 Hide the SSID........................................................................25 3.4.3 Deny ‘ANY’ client station........................................................25 3.4.4 IEEE 802.1x Access Control..................................................26 3.4.5 MAC based Access Control....................................................27 3.5 CONFIGURE DHCP SERVER............................................................28 3.6 CONFIGURE VIRTUAL SERVER..........................................................29 3.7 CONFIGURE ROUTING TABLE............................................................31 3.8 CONFIGURE BRIDGE.......................................................................32 3.9 CONFIGURE SNMP........................................................................33 3.10 CONFIGURATION REVIEW AND APPLY THE NEW SETTINGS......................35 ii 3.11 UTILITY........................................................................................37 3.11.1 System Info...........................................................................37 3.11.2 Software Upgrade..................................................................38 CHAPTER 4. TELNET CONFIGURATION..........................................39 CHAPTER 5. SPECIFICATIONS........................................................48 CHAPTER 6. DEFAULT SETTINGS...................................................49 CHAPTER 7. REGULATORY COMPLIANCE INFORMATION..............59 1 Chapter 1. Hardware Installation This chapter describes the procedures for installing the SendFar Outdoor Access Point. 1.1 Before You Start After unpacking the system, make sure the following items are present and in good condition. 1. Access Point 2. Inline Power Injector 3. AC Power Cord 4. MIL-C-5015 style RS232 Console Port Cable 5. Grounding Wire 6. Cross over Ethernet Cable 7. Two rubber dipole antenna 7. 30M MIL-C-5015 style Ethernet Cable 8. Mast Mounting Kit 10. Wall Mounting Kit 11. User’s Manual Disk 12. Simple Spanner 2 3 4 5 6 8 9 10 11 12 7 2 1.2 Locate the Access Point and Inline Power Injector Ports l Special Ethernet port 1 for connecting the MIL-C-5015 style Ethernet Cable l Special serial port 2 for connecting the MIL-C-5015 style RS-232 console port cable l Grounding port 3. l Special N-Type connector 4 for connecting the antenna or RF cable. l Power & Data output port 5 for connecting the other of the MIL-C-5015 style Ethernet Cable l Data input port 6 for connecting the Ethernet Cable to a Hub Switch Router or a PC. 3 4 1.3 Installing the Antennas Step 1: With the unit powered off, attach the dipole antenna to the antenna connector as shown in Figure 1.3. NOTE: Do not over-tighten; finger tight is sufficient. Position the antenna vertically for best omni-directional signal reception. Figure 1.3. Before installing your WLAN system, we recommend that you test the Access Point using the dipole antenna included in your package. Once testing is completed, install your Access Point for use with the appropriate antenna for your application. 5 1.4 Installing the Console Port Cable Step 2: Attach the Console Port cable to the Serial Port. Attach the other cable end to the Serial Port on a PC running a terminal emulation program, and set the terminal to 115200 Baud, No-Parity, 8 data bits, 1 Stop bit, and ANSI compatible. NOTE: This connection is required for setting up initial configuration information. After configuration is completed, this cable may be removed until additional configuration is required via the Serial Port. 1.5 Connecting the power supply and Ethernet cable Step 3 Plug the female end of the power cord into the Inline Power Injector, and then plug the male end of the power cord into a power outlet or power strip. The Power LED on the front of the Inline Power Injector will light up. Step 4 Run the cross over E…

Text truncated - open the document above for the full version.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 July 6, 2004 RE: SendFar Technology Co., Ltd. FCC ID: QA5-OAP-04003 After a review of the submitted information, I have a few comments on the above referenced Application. Administrative Issues: 1) FYI....Page 23 of the users manual state the antenna connectors are SMA, while the device actually contains Reverse N. This should be changed. 2) FYI....Page 23 of the users manual mentions the FCC EIRP output power is 24 dBm. The information in the application supports 28 dBm EIRP. This should also be changed. Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

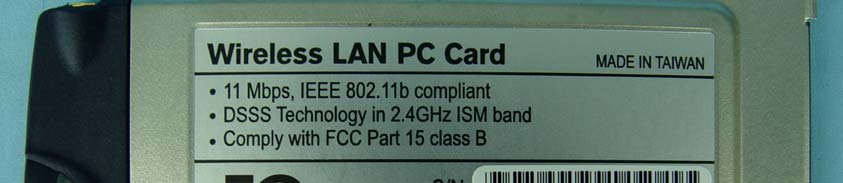

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4 Page 5 Page 6 Page 7 Page 8 Page 9

Label Location

QA5-OAP-04003 AP-8110 PLUS

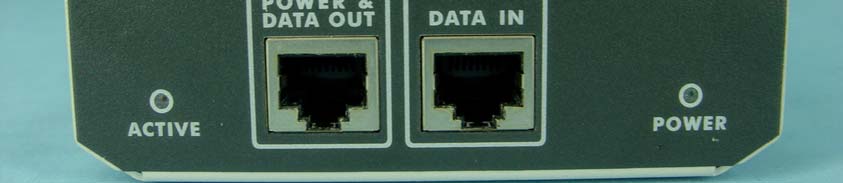

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4 Page 5 Page 6 Page 7 Page 8

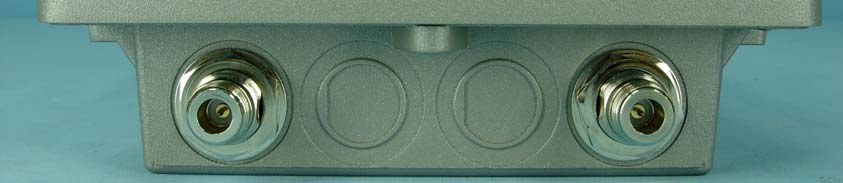

FCC ID: QA5-OAP-04003 Report No.RF930607L15 Operational Description This device is a Wireless Access Point which operates in the 2.4GHz frequency spectrum with throughput of up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT is powered by AC adapter and connected with managing computer through RJ45 and RS232 port. The antenna is dipole antenna with Reversed N Type the maximum gain of this antenna 5dBi connector. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. The other instruction, please have a look at the users manual.

FCC ID: QA5-OAP-04003 Report No: SA930607L15 1 RF EXPOSURE REPORT REPORT NO.: SA930607L15 MODEL NO.: AP-8110 PLUS ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: SendFar Technology Co., Ltd. ADDRESS: 15FL., No.866-2, JungJeng Rd., Jung He City, Taipei, Taiwan 235, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 19, Hwa Ya 2nd Rd., Kueishan, Taoyuan, Taiwan, R.O.C. FCC ID: QA5-OAP-04003 Report No: SA930607L15 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: QA5-OAP-04003 Report No: SA930607L15 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance r. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification This modular is specified to be installed in access point or router which is connected with host through wire. So it is easy to be re-located in the place where at least 20cm far away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: QA5-OAP-04003 Report No: SA930607L15 4 6 Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 5.00dBi or 3.162 (numeric). 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For CCK technique: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 12412199.5260.1261.0 62437199.5260.1261.0 112462199.5260.1261.0

FCC ID: QA5-OAP-04003 Report No.: RF930607L151Issued: June 24, 2004 FCC TEST REPORT REPORT NO.: RF930607L15 MODEL NO.: AP-8110 PLUS RECEIVED: June 7, 2004 TESTED: June 10~23, 2004 APPLICANT: SendFar Technology Co.,Ltd. ADDRESS: 15FL., NO.866-2, Jung Jeng Rd., Junghe City,Taipei, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 51 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA FCC ID: QA5-OAP-04003 Report No.: RF930607L152Issued: June 24, 2004 Table of Contents 1CERTIFICATION ........................................................................................... 4 2SUMMARY OF TEST RESULTS................................................................... 5 3GENERAL INFORMATION ........................................................................... 6 3.1GENERAL DESCRIPTION OF EUT.............................................................. 6 3.2DESCRIPTION OF TEST MODES................................................................ 7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ............................... 7 3.4DESCRIPTION OF SUPPORT UNITS .......................................................... 8 3.5 CONFIGURATION OF SYSTEM UNDER TEST .......................................... 9 4TEST TYPES AND RESULTS..................................................................... 10 4.1CONDUCTED EMISSION MEASUREMENT .............................................. 10 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT............................ 10 4.1.2TEST INSTRUMENTS ................................................................................ 10 4.1.3TEST PROCEDURES..................................................................................11 4.1.4DEVIATION FROM TEST STANDARD ........................................................11 4.1.5TEST SETUP .............................................................................................. 12 4.1.6EUT OPERATING CONDITIONS................................................................ 12 4.1.7TEST RESULTS.......................................................................................... 13 4.2RADIATED EMISSION MEASUREMENT ................................................... 19 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT................................. 19 4.2.2TEST INSTRUMENTS ................................................................................ 20 4.2.3TEST PROCEDURES................................................................................. 21 4.2.4DEVIATION FROM TEST STANDARD ....................................................... 21 4.2.5TEST SETUP .............................................................................................. 22 4.2.6EUT OPERATING CONDITIONS................................................................ 22 4.2.7TEST RESULTS.......................................................................................... 23 4.36dB BANDWIDTH MEASUREMENT .......................................................... 27 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT ........................................ 27 4.3.2TEST INSTRUMENTS ................................................................................ 27 4.3.3TEST PROCEDURE ................................................................................... 28 4.3.4DEVIATION FROM TEST STANDARD ....................................................... 28 4.3.5TEST SETUP .............................................................................................. 28 4.3.6EUT OPERATING CONDITIONS................................................................ 28 4.3.7TEST RESULTS.......................................................................................... 29 4.4MAXIMUM PEAK OUTPUT POWER .......................................................... 33 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ........... 33 FCC ID: QA5-OAP-04003 Report No.: RF930607L153Issued: June 24, 2004 4.4.2TEST INSTRUMENTS ................................................................................ 33 4.4.3TEST PROCEDURES................................................................................. 34 4.4.4DEVIATION FROM TEST STANDARD ....................................................... 34 4.4.5TEST SETUP .............................................................................................. 34 4.4.6EUT OPERATING CONDITIONS................................................................ 34 4.4.7TEST RESULTS.......................................................................................... 35 4.5POWER SPECTRAL DENSITY MEASUREMENT...................................... 36 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ................... 36 4.5.2TEST INSTRUMENTS ................................................................................ 36 4.5.3TEST PROCEDURE ................................................................................... 37 4.5.4DEVIATION FROM TEST STANDARD....................................................... 37 4.5.5TEST SETUP .............................................................................................. 37 4.5.6EUT OPERATING CONDITIONS................................................................ 37 4.5.7TEST RESULTS.......................................................................................... 38 4.6BAND EDGES MEASUREMENT ................................................................ 42 4.6.1LIMITS OF BAND EDGES MEASUREMENT ............................................. 42 4.6.2TEST INSTRUMENTS .........…

Text truncated - open the document above for the full version.

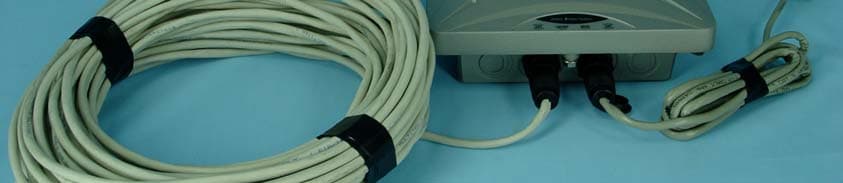

FCC ID: QA5-OAP-04003 Report No.: RF930607L1549Issued: June 24, 2004 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: QA5-OAP-04003 Report No.: RF930607L1550Issued: June 24, 2004 RADIATED EMISSION TEST
