QA5-ORB-04002Wireless Router Bridge

[email protected] www.adt.com.tw ADVANCE DATA TECHNOLOGY CORPORATION FEDERAL COMMUNICATIONS COMMISSION DECLARATION OF CONFORMITY (DoC) FOR THE FOLLOWING EQUIPMENT: PRODUCT NAME: Wireless Router Bridge MODEL NO.: RB-8110 PLUS TRADE NAME: SendFar IS HEREWITH CONFIRMED AND FOUND TO COMPLY WITH THE REQUIREMENTS OF CFR 47 PART 15 REGULATION. THE RESULTS OF ELECTROMAGNETIC EMISSION EVALUATION ARE SHOWN IN THE REPORT NO.: D930607L14 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND, (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. THE FOLLOWING LOCAL MANUFACTURER/IMPORTER IS RESPONSIBLE FOR THIS DECLARATION SendFar Technology Co., Ltd. (Company Name, Manufacturer) 15FL., NO. 866-2, JUNGJENG JUNGHE CITY, TAIPEI, TAIWAN 235, R.O.C. (Company Address, Manufacturer) Person responsible for this declaration: Henry Lin (Name, Surname, Manufacturer) Manager (Position/Title) (Legal Signature) Taiwan (Place) (Date) Representative with U.S. based address has not yet been determined.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 July 6, 2004 RE: SendFar Technology Co., Ltd. FCC ID: QA5-ORB-04002 After a review of the submitted information, I have a few comments on the above referenced Application. Administrative Issues: 1) The FRN specified on the 731 form does not appear to be for SendFar. Please explain and/or correct. 2) The antennas shown in the users manual do not appear to match the device being approved. Please correct. 3) The professional installation paragraph in the back of the manual is not applicable and should be removed. 4) Any AC power line conducted emissions that exceed the average limits with a QP detector must also be measured with an average detector. It appears that data on pages 15, 17, and 19 needs further test data for an average detector. 5) FYI....Page 28 of the users manual states the antenna connectors are SMA, while the device actually contains Reverse N. This should be changed. 6) FYI....Page 28 of the users manual mentions the FCC EIRP output power is 24 dBm. The information in the application supports 28 dBm EIRP. This should also be changed. Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

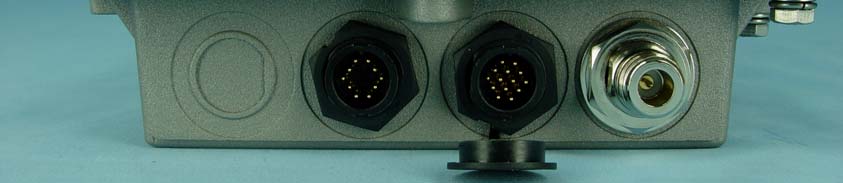

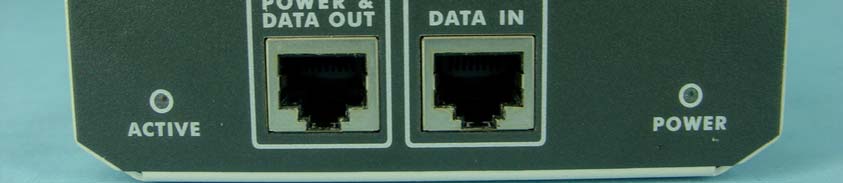

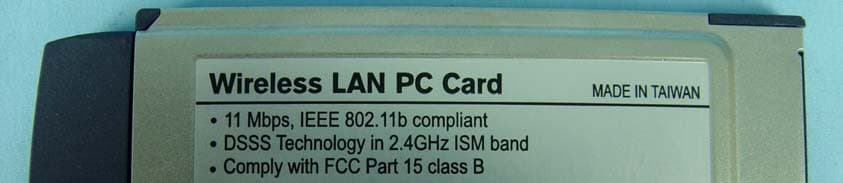

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4 Page 5 Page 6 Page 7 Page 8

QA5-ORB-04002 RB-8110 PLUS

FCC ID Label Location

Page 9 Page 10 Page 11 Page 12 Page 13 Page 14 Page 15 Page 16 Page 17 Page 18

FCC ID: QA5-ORB-04002 Report No. RF930607L14 Operational Description The transmitter of the EUT is powered by POE and connected with managing computer through console port and Ethernet port port. The antennas used in this product are Dipole antenna. The antenna connector is Revers N Type. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. The other instruction, please have a look at the users manual. DSSS Information This device is Direct Sequence Spread Spectrum, the data is mixed by pseudorandom code which is an orthogonal code. The mixed data is digital modulated by BPSK and QPSK technique depends on the data rates. The CCK coding is applied for increasing the data rate, and also the processing gain will be increased. The bit rates are 1,2,5.5,11Mbps, the symbol rates are 1,1,1.375,1.375Mbps, the chip rates are always 11Mbps. So, the Chip/symbol is 11,11,8 and 8 respectively. Although is higher bit rate, the processing gain is lower than 10, but the CCK coding used in higher bit rate will provide 2.2dB coding gain.

FCC ID: QA5-ORB-04002 Report No: SA930607L14 1 RF EXPOSURE REPORT REPORT NO.: SA930607L14 MODEL NO.: RB-8110 PLUS ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: SendFar Technology Co., Ltd. ADDRESS: 15FL., NO.866-2, JUNGJENG RD., JUNGHE CITY, TAIPEI, TAIWAN 235, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 19, Hwa Ya 2nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID: QA5-ORB-04002 Report No: SA930607L14 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: QA5-ORB-04002 Report No: SA930607L14 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance r. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: QA5-ORB-04002 Report No: SA930607L14 4 6 Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 5dBi or 3.162 (numeric). 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 12412125.8930.0791.0 62437199.5260.1261.0 112462125.8930.0791.0

FCC ID: QA5-ORB-04002 Report No.: RF930607L141Issued: June 24, 2004 FCC TEST REPORT REPORT NO.: RF930607L14 MODEL NO.: RB-8110 PLUS RECEIVED: June 7, 2004 TESTED: June 10 ~ June 23, 2004 APPLICANT: SENDFAR TECHNOLOGY CO.,LTD.. ADDRESS: 15FL., NO.866-2, JUNGJENG RD., JUNGHE CITY, TAIPEI, TAIWAN 235, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 53 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA FCC ID: QA5-ORB-04002 Report No.: RF930607L142Issued: June 24, 2004 Table of Contents 1CERTIFICATION ........................................................................................... 4 2SUMMARY OF TEST RESULTS................................................................... 5 3GENERAL INFORMATION ........................................................................... 6 3.1GENERAL DESCRIPTION OF EUT.............................................................. 6 3.2DESCRIPTION OF TEST MODES................................................................ 7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS............................... 7 3.4DESCRIPTION OF SUPPORT UNITS .......................................................... 8 3.5CONFIGURATION OF SYSTEM UNDER TEST........................................... 9 4TEST TYPES AND RESULTS..................................................................... 10 4.1CONDUCTED EMISSION MEASUREMENT .............................................. 10 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT .......................................10 4.1.2 TEST INSTRUMENTS ............................................................................................ 11 4.1.3 TEST PROCEDURES.............................................................................................12 3.1.4DEVIATION FROM TEST STANDARD ...................................................................12 3.1.5TEST SETUP...........................................................................................................13 4.1.6 EUT OPERATING CONDITIONS............................................................................14 4.1.7 TEST RESULTS......................................................................................................15 4.2RADIATED EMISSION MEASUREMENT ................................................... 21 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT.............................................21 4.2.2TEST INSTRUMENTS.............................................................................................22 4.2.3TEST PROCEDURES .............................................................................................23 4.2.4TEST SETUP...........................................................................................................24 4.2.5EUT OPERATING CONDITIONS ............................................................................24 4.2.6TEST RESULTS ......................................................................................................25 4.36dB BANDWIDTH MEASUREMENT .......................................................... 29 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT ....................................................29 4.3.2TEST INSTRUMENTS.............................................................................................29 4.3.3TEST PROCEDURE................................................................................................30 4.3.4TEST SETUP...........................................................................................................30 4.3.5EUT OPERATING CONDITIONS ............................................................................30 4.4MAXIMUM PEAK OUTPUT POWER .......................................................... 35 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT .......................35 4.4.2TEST INSTRUMENTS.............................................................................................35 4.4.3TEST PROCEDURES .............................................................................................36 FCC ID: QA5-ORB-04002 Report No.: RF930607L143Issued: June 24, 2004 4.4.4DEVIATION FROM TEST STANDARD ...................................................................36 4.4.5TEST SETUP...........................................................................................................36 4.4.6EUT OPERATING CONDITIONS ............................................................................36 4.4.7TEST RESULTS ......................................................................................................37 4.5POWER SPECTRAL DENSITY MEASUREMENT...................................... 38 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ...............................38 4.5.2TEST INSTRUMENTS.............................................................................................38 4.5.3TEST PROCEDURE................................................................................................39 4.5.4TEST SETUP...........................................................................................................39 4.5.5EUT OPERATING CONDITIONS ............................................................................39 4.5.6TEST RESULTS ......................................................................................................40 4.6BAND EDGES MEASUREMENT ................................................................ 44 4.6.1LIMITS OF BAND EDGES MEASUREMENT..........................................................44 4.6.2TEST INSTRUMENTS......................…

Text truncated - open the document above for the full version.

FCC ID: QA5-ORB-04002 Report No.: RF930607L1451Issued: June 24, 2004 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: QA5-ORB-04002 Report No.: RF930607L1452Issued: June 24, 2004 RADIATED EMISSION TEST
