QFXRM-609GSM/WCDMA cellular telephone with Bluetooth and WLAN

Nokia E6–00 User Guide 7777777 Issue DRAFT 6 Jan 2011 CyanCyanMagentaMagentaYellowYellowBlackBlack DRAFT Contents Safety3 About this user guide4 Use the in-device user guide4 Get started4 Keys and parts4 Insert the SIM card and battery7 Charging8 Switch the device on or off9 Lock or unlock the keys and screen10 Change the volume of a call, song, or video10 Use your device for the first time10 Touch screen actions11 Keyboard shortcuts12 Interactive home screen elements12 Predefined home screens13 Call a phone number13 Search for a contact14 Save phone numbers and mail addresses14 Send a message14 Mail15 About Mail15 Add a mailbox15 Use separate calendars for work and free time15 Navigate to a destination16 Get social16 About Social16 Post your status to social networking services17 See your friends' status updates on the home screen17 Personalise your device17 Personalise your tones17 Personalise the home screen17 Add a widget to the home screen18 Add a shortcut to the home screen18 Download a game, application, or other item19 Install Nokia Ovi Suite on your PC19 About Ovi Music20 Copy music from your PC20 Back up files21 Find more help21 Support21 Keep your device software and applications up to date22 Access codes23 Protect the environment24 Save energy24 Recycle24 Product and safety information24 2Contents 2www.nokia.com/support CyanCyanMagentaMagentaYellowYellowBlackBlack DRAFT Safety Read these simple guidelines. Not following them may be dangerous or illegal. Read the complete user guide for further information. SWITCH OFF IN RESTRICTED AREAS Switch the device off when mobile phone use is not allowed or when it may cause interference or danger, for example, in aircraft, near medical equipment, fuel, chemicals, or blasting areas. ROAD SAFETY COMES FIRST Obey all local laws. Always keep your hands free to operate the vehicle while driving. Your first consideration while driving should be road safety. INTERFERENCE All wireless devices may be susceptible to interference, which could affect performance. QUALIFIED SERVICE Only qualified personnel may install or repair this product. BATTERIES AND OTHER ACCESSORIES Use only batteries, chargers and other accessories approved by Nokia for use with this device. Do not connect incompatible products. KEEP YOUR DEVICE DRY Your device is not water- resistant. Keep it dry. GLASS PARTS The front cover of the device is made of glass. This glass can break if the device is dropped on a hard surface or receives a substantial impact. If the glass breaks, do not touch the glass parts of the device or attempt to remove the broken glass from the device. Stop using the device until the glass is replaced by qualified service personnel. PROTECT YOUR HEARING Listen to a headset at a moderate level, and do not hold the device near your ear when the loudspeaker is in use. Safety3 www.nokia.com/support3 CyanCyanMagentaMagentaYellowYellowBlackBlack DRAFT About this user guide This short user guide helps you get started with your device. With a short printed user guide, Nokia helps save energy and paper. Your device contains a complete in-device user guide, which you can refer to for additional information about your device. To read the in-device user guide, select Menu > Applications > User guide. For even more support information, go to www.nokia.com/support, or using a mobile device, nokia.mobi/support. Use the in-device user guide Select Menu > Applications > User guide. Open the user guide from an application Select Options > User guide. This is not available for every application. Search the user guide When the user guide is open, select Options > Search, and enter a letter or a word in the search field. Switch between the user guide and an application Press and hold the home key, swipe left or right, and select the desired application. indicates a link to a web page. Links to related topics may be at the end of instructions. Get started Keys and parts Top 1Memory card slot 2Nokia AV connector (3.5 mm) 3Power key Front 1Earpiece 2Display 3Navi™ key (scroll key). Also used to take pictures. 4Home key 5Call key 6Calendar key 7Keyboard 8Microphone 9Contacts key 10End key 11Mail key 4About this user guide 4www.nokia.com/support CyanCyanMagentaMagentaYellowYellowBlackBlack DRAFT 12Secondary camera lens 13Ambient light/Proximity sensor Back 1Loudspeaker 2Camera flash 3Camera lens 4Back cover release button 5Wrist strap hole Sides 1Micro USB connector 2Volume up/Zoom key 3Mute key 4Volume down/Zoom key 5Key lock switch/Flashlight key Bottom 1Charger connector Write with the keyboard Your device has a full keyboard. 1 Function key. To insert special characters printed at the top of keys, press the function key, and then press the corresponding key. To enter several special characters in a row, press the function key twice. To return to normal mode, press the function key. 2 Shift key. To switch between the upper and lower case modes, press the shift key twice. To enter a single upper case letter in lower case mode, or a single lower case letter in upper case mode, press the shift key, and then press the desired alphabet key. 3Sym key. To insert special characters not shown on the keyboard, press the sym key, and select the desired character. 4 Backspace key. To delete a character, press the backspace key. To delete several characters, press and hold the backspace key. Get started5 www.nokia.com/support5 CyanCyanMagentaMagentaYellowYellowBlackBlack DRAFT 5Enter key. To move the cursor to the next row or text input field, press the enter key. Additional functions are based on the current context. For example, in the web address field of the web browser, the enter key acts as the Go icon. 6Ctrl key Insert a variation of a letter You can insert, for example, letters with accents. To insert á, press and hold the sym key, and then press A repeatedly, until the desired letter is displayed. The order and availability of letters depends on the selected writing language. Quick…

Text truncated - open the document above for the full version.

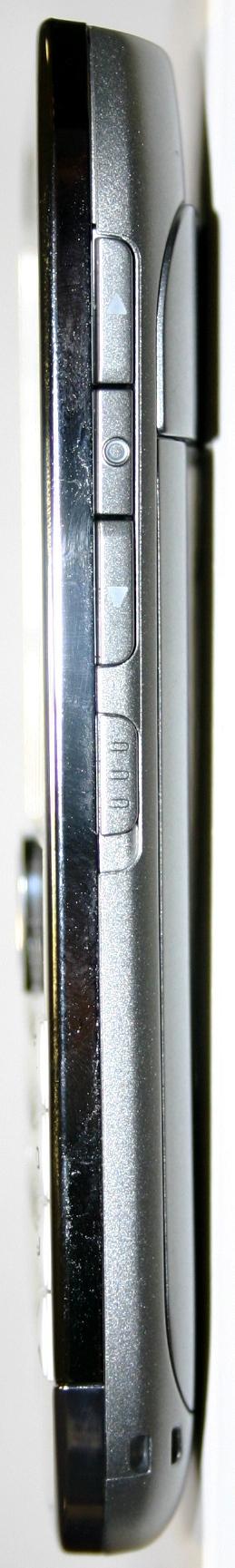

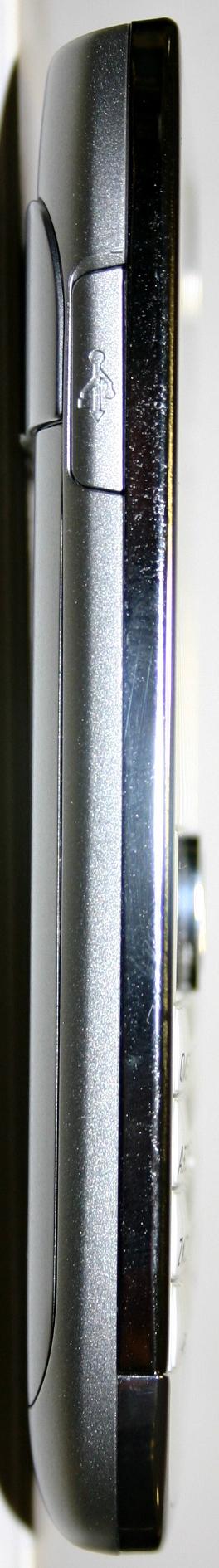

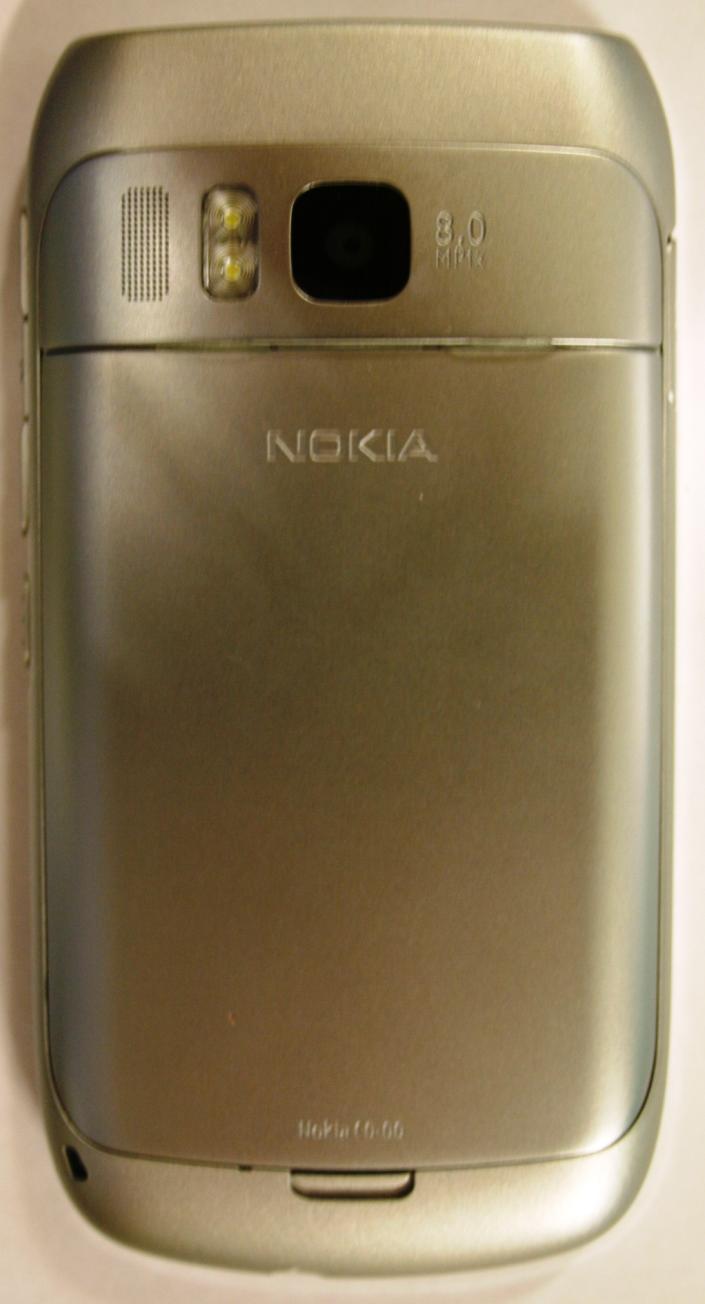

29 Nov 2010 External Photographs FCC ID: QFXRM-609 Exhibit 3 IC: 661Z-RM609 Applicant: Nokia Corporation Copyright © 2010 Nokia. All rights reserved. Front and Back 29 Nov 2010 External Photographs FCC ID: QFXRM-609 Exhibit 3 IC: 661Z-RM609 Applicant: Nokia Corporation Copyright © 2010 Nokia. All rights reserved. Sides Top and Bottom

Material Sheet1of1 OriginalScale OriginalSize A4 1:1 NokiaCorporationCode ItemName DocumentNumber Doc. Vers. Part Vers. Name/Date ChangeRef. Approved/Date OriginalDesigner FUNCTIONALCHARACTERISTICSKEY ProcessCapabilityStudiesRequired Copyright©NokiaCorporation.Allrightsreserved THISDRAWINGISPROTECTEDBYCOPYRIGHTASANUNPUBLISHEDWORK UNAUTHORIZEDREPRODUCTIONOF THISDRAWINGISNOTPERMITTED THISDRAWINGCONTAINSPROPRIETARYANDCONFIDENTIALINFORMATION Alldimensionsareinmillimeters. OngoingStatisticalProcessControlRequired (Total_______pcs) ItemClassification ThisdocumentispropertyofNokiaCorporation. (Total_______pcs) 1stAngle RM-609 Type Label Position P3931 / QFXRM-609 / 661Z-RM609 Type: RM-609 Nokia Corporation IMEI: 123456789012345 CODE: 1234567 SIM 0434 MADE IN CHINA Nokia Corporation FCC ID: QFXRM-609 IC: 661Z-RM609 Model: XX-XX

CONFIDENTIAL 04 February 2011 Internal Photographs FCC ID: QFXRM-609 q Exhibit 9 IC: 661Z-RM609 Applicant: Nokia Corporation Copyright © 2011 Nokia. All rights reserved. Copyright © 2008 Nokia. All rights reserved. Front Cover showing QWERTY keyboard and two flexi connectors to the PWB. CONFIDENTIAL 04 February 2011 Internal Photographs FCC ID: QFXRM-609 q Exhibit 9 IC: 661Z-RM609 Applicant: Nokia Corporation Copyright © 2011 Nokia. All rights reserved. Copyright © 2008 Nokia. All rights reserved. Rear Cover with battery cover removed. Cellular antenna module is located internally at base of rear cover. DC Charging Input Sim Connector IHF Cellular Antenna CONFIDENTIAL 04 February 2011 Internal Photographs FCC ID: QFXRM-609 q Exhibit 9 IC: 661Z-RM609 Applicant: Nokia Corporation Copyright © 2011 Nokia. All rights reserved. Copyright © 2008 Nokia. All rights reserved. Battery cover. Front camera, proximity sensor and IR sensor gasket. USB cover. Power switch cover. Front chin. Cellular antenna module. CONFIDENTIAL 04 February 2011 Internal Photographs FCC ID: QFXRM-609 q Exhibit 9 IC: 661Z-RM609 Applicant: Nokia Corporation Copyright © 2011 Nokia. All rights reserved. Copyright © 2008 Nokia. All rights reserved. Display Front with flexi Display Back with flexi CONFIDENTIAL 04 February 2011 Internal Photographs FCC ID: QFXRM-609 q Exhibit 9 IC: 661Z-RM609 Applicant: Nokia Corporation Copyright © 2011 Nokia. All rights reserved. Copyright © 2008 Nokia. All rights reserved. Display Chassis Front Display Chassis Rear Display Front Earpiece CONFIDENTIAL 04 February 2011 Internal Photographs FCC ID: QFXRM-609 q Exhibit 9 IC: 661Z-RM609 Applicant: Nokia Corporation Copyright © 2011 Nokia. All rights reserved. Copyright © 2008 Nokia. All rights reserved. PWB Rear Side CWS chip Vibra MicroUSB connector MicroSD card Reader connector CONFIDENTIAL 04 February 2011 Internal Photographs FCC ID: QFXRM-609 q Exhibit 9 IC: 661Z-RM609 Applicant: Nokia Corporation Copyright © 2011 Nokia. All rights reserved. Copyright © 2008 Nokia. All rights reserved. PWB Front Side Sim Connector Cellular Antenna IHF uUSB Connector Power Key MicroUSB connector

FCC Part 15C Compliance Test Report / Template Version 12.0 FCC15C_RM-609_17.docx Copyright © TCC Nokia 1 (30) TCC Nokia Salo Laboratory P.O. Box 86 Joensuunkatu 7H / Kiila 1B FIN-24101 SALO, FINLAND Tel. +358 (0) 7180 08000 Fax. +358 (0) 7180 45220 FCC Part 15C Compliance Test Report Test Report no.: FCC15C_RM-609_17.docx Date of Report: 09-Mar-2011 Number of pages: 30 Customer’s Contact person: Simon Read Testing laboratory: TCC Nokia Salo Laboratory P.O. Box 86 Joensuunkatu 7H / Kiila 1B FIN-24101 SALO, FINLAND Tel. +358 (0) 7180 08000 Fax. +358 (0) 7180 45220 Customer: Nokia Corporation Nokia House Summit Avenue, Southwood FARNBOROUGH HAMPSHIRE GU14 0NG UK Tel. +44 1252 866000 Fax. +44 1252 866001 FCC listing no.: IC recognition no.: 533467 661V-1 Tested devices/ accessories: Phone RM-609 / Battery BP-4L, Headset WH-207 and AC-Charger AC-15 FCC ID: QFXRM-609 IC: 661Z-RM609 Supplement reports: - Testing has been carried out in accordance with: CFR 47, FCC rules Part 15 Subpart C, ANSI C63.4 (2003), Public Notice DA 00-705, DTS procedures KDB 558074, IC standards RSS-GEN (Issue 3, December 2010) and RSS-210 (Issue 8, December 2011). Deviations, modifications or clarifications (if any) to above mentioned documents are written in each section under "Test method and limit". Documentation: The test report must always be reproduced in full; reproduction of an excerpt only is subject to written approval of the testing laboratory. The documentation of the testing performed on the tested devices is archived for 15 years at TCC Nokia. Test Results: The EUT complies with the requirements in respect of all parameters subject to the test. The test results relate only to devices specified in this document. Date and signature for the contents: Jari Jantunen, System Manager, EMC FCC Part 15C Compliance Test Report / Template Version 12.0 FCC15C_RM-609_17.docx Copyright © TCC Nokia 2 (30) TCC Nokia Salo Laboratory P.O. Box 86 Joensuunkatu 7H / Kiila 1B FIN-24101 SALO, FINLAND Tel. +358 (0) 7180 08000 Fax. +358 (0) 7180 45220 1. Summary for FCC Part 15C Compliance Test Report Date of receipt 17-Nov-2010 Testing completed 07-Jan-2011 The customer's contact person Simon Read Test Plan referred to T:\Projects\RM-609\TestPlan\RS_testplan_RM-609.xls Notes - Document name FCC15C_RM-609_17.docx 1.1. EUT and Accessory Information The EUT is a 9-band (GSM850/900/1800/1900 and WCDMA Band I/II(1900)/IV(1700)/V(850)/VIII) mobile phone with GPRS, EGPRS, Bluetooth and WLAN. Bluetooth and WLAN are tested with maximum rated TX power. Product Type SN HW MV SW DUT Phone RM-609 004402133284871 3000 - 020.017 15389 Phone RM-609 004402133282529 3000 - 020.017 15391 Battery BP-4L 3932139517561085539ö0670519 CE - - 15385 Battery BP-4L 4955400104050107181ö0670519 CE - - 15387 AC-Charger AC-15 4090490252230802012ö0675463 CE - - 15384 AC-Charger AC-15E 4090490252230802008ö0675463 - - - 15383 Headset WH-207 06949370422A1R00115 3.2 3.1 - 15380 1.2. Summary of Test Results Bluetooth: Section in CFR 47 Section in RSS-GEN or RSS-210 Name of the test Result 15.247(b)(1) A8.4 (2) Conducted peak output power PASSED 15.247(d) A8.5 Band edge compliance of RF emissions NP 15.247(d) A8.5 Spurious RF conducted emissions PASSED 15.247(d), 15.209 A8.5 Spurious radiated emissions NP 15.207 7.2.2 AC powerline conducted emissions PASSED 15.247(a)(1) A8.1 (a) 20 dB bandwidth PASSED 15.247(a)(1) A8.1 (b) Carrier frequency separation PASSED 15.247(a)(1)(iii) A8.1 (d) Number of hopping frequencies PASSED 15.247(a)(1)(iii) A8.1 (d) Time of occupancy PASSED PASSED The EUT complies with the essential requirements in the standard. FAILED The EUT does not comply with the essential requirements in the standard. NP The test was not performed by the TCC Nokia Salo Laboratory. FCC Part 15C Compliance Test Report / Template Version 12.0 FCC15C_RM-609_17.docx Copyright © TCC Nokia 3 (30) TCC Nokia Salo Laboratory P.O. Box 86 Joensuunkatu 7H / Kiila 1B FIN-24101 SALO, FINLAND Tel. +358 (0) 7180 08000 Fax. +358 (0) 7180 45220 CONTENTS 1. Summary for FCC Part 15C Compliance Test Report .............................................. 2 1.1. EUT and Accessory Information .......................................................................................... 2 1.2. Summary of Test Results .................................................................................................... 2 2. Test setups .................................................................................................................. 4 2.1. Conducted RF test setup ..................................................................................................... 4 2.2. AC powerline conducted emissions test setup ..................................................................... 4 2.3. Radiated test setup ............................................................................................................. 4 3. Conducted peak output power (FCC §15.247(b)(1), RSS-210 A8.4 (2)) .................. 5 3.1. Test method and limit .......................................................................................................... 5 3.2. Bluetooth Test results .......................................................................................................... 6 4. Spurious RF conducted emissions (FCC §15.247(d), RSS-A8.5)............................ 9 4.1. Test method and limit .......................................................................................................... 9 4.2. Bluetooth Test results ........................................................................................................ 10 5. AC powerline conducted emissions (FCC §15.207, RSS-GEN 7.2.2) ................... 13 5.1. Test method and limit ........................................................................................................ 13 5.2. Bluetooth Test results ........................................................................................................…

Text truncated - open the document above for the full version.

FCC Part 15C Compliance Test Report / Template Version 15.0 FCC15C_RM-609_06.docx Copyright © TCC Nokia 1 (15) TCC Nokia Salo Laboratory P.O.Box(86) Joensuunkatu 7H / Kiila 1B FIN-24101 SALO, FINLAND Tel. +358 (0) 7180 08000 Fax. +358 (0) 7180 45220 FCC Part 15C Compliance Test Report Test Report no.: FCC15C_RM-609_06.docx Date of Report: 09-Mar-2011 Number of pages: 15 Customer’s Contact person: Simon J Read Testing laboratory: TCC Nokia Salo Laboratory P.O.Box(86) Joensuunkatu 7H / Kiila 1B FIN-24101 SALO, FINLAND Tel. +358 (0) 7180 08000 Fax. +358 (0) 7180 45220 Customer: Nokia Corporation Nokia House Summit Avenue, Southwood FARNBOROUGH HAMPSHIRE GU14 0NG UK Tel. +44 1252 866000 Fax. +44 1252 866001 FCC listing no.: IC recognition no.: 533467 661V-1 Tested devices/ accessories: Phone RM-609 / Battery BP-4L / Headset WH-207/ AC Charger AC-15 FCC ID: QFXRM-609 IC: 661Z-RM609 Supplement reports: - Testing has been carried out in accordance with: CFR 47, FCC rules Part 15 Subpart C, ANSI C63.4 (2003), Public Notice DA 00-705, DTS procedures KDB 558074, IC standards, RSS-210 (Issue 8, December 2010). Deviations, modifications or clarifications (if any) to above mentioned documents are written in each section under "Test method and limit". Documentation: The test report must always be reproduced in full; reproduction of an excerpt only is subject to written approval of the testing laboratory. The documentation of the testing performed on the tested devices is archived for 15 years at TCC Nokia. Test Results: The EUT complies with the requirements in respect of all parameters subject to the test. The test results relate only to devices specified in this document Date and signature for the contents: Sami Lehtonen, System Specialist, EMC FCC Part 15C Compliance Test Report / Template Version 15.0 FCC15C_RM-609_06.docx Copyright © TCC Nokia 2 (15) TCC Nokia Salo Laboratory P.O.Box(86) Joensuunkatu 7H / Kiila 1B FIN-24101 SALO, FINLAND Tel. +358 (0) 7180 08000 Fax. +358 (0) 7180 45220 1. Summary for FCC Part 15C Compliance Test Report Date of receipt 17-Nov-2010 Testing completed 25-Nov-2010 The customer's contact person Simon J Read Test Plan referred to T:\Projects\RM-609\TestPlan\RS_testplan_RM-609.xls Notes - Document name FCC15C_RM-609_06.docx 1.1. EUT and Accessory Information The EUT is a 9-band (GSM850/900/1800/1900) and WCDMA Band (I/II(1900)/IV(1700)/V(850)/VIII/) mobile phone with GPRS, EGPRS, HSDPA, HSUPA and WLAN and Bluetooth. Bluetooth and WLAN are tested with maximum rated TX power. Product Type SNHWMVSW DUT Phone RM-609 004402133283089 3000 020.017 15372 Battery BP-4L 3932139517561085535ö0670519 15362 Headset WH-207 06949370422A1R01415 3.2 3.1 - 15378 AC Charger AC-15 4090490252230802012ö0675463 CE 15384 1.2. Summary of Test Results WLAN: Section in CFR 47 Section in RSS-GEN or RSS-210 Name of the test Result 15.247(b)(1) A8.4 (4) Conducted peak output power NP 15.247(d) A8.5 Band edge compliance of RF emissions PASSED 15.247(d) A8.5 Spurious RF conducted emissions NP 15.247(d), 15.209 A8.5 Spurious radiated emissions PASSED 15.207 7.2.2 AC powerline conducted emissions NP 15.247(a)(2) A8.2 (a) 6dB(bandwidth) NP 15.247(e) A8.2 (b) Power spectral density NP PASSED The EUT complies with the essential requirements in the standard. FAILED The EUT does not comply with the essential requirements in the standard. NP The test was not performed by the TCC Nokia Laboratory. FCC Part 15C Compliance Test Report / Template Version 15.0 FCC15C_RM-609_06.docx Copyright © TCC Nokia 3 (15) TCC Nokia Salo Laboratory P.O.Box(86) Joensuunkatu 7H / Kiila 1B FIN-24101 SALO, FINLAND Tel. +358 (0) 7180 08000 Fax. +358 (0) 7180 45220 CONTENTS 1. Summary for FCC Part 15C Compliance Test Report ............................................... 2 1.1. EUT and Accessory Information ............................................................................................. 2 1.2. Summary of Test Results ........................................................................................................ 2 2. Band edge compliance of RF emissions (FCC §15.247(d), RSS-210 A8.5) ......................................................................................... 4 2.2. Test method and limit .............................................................................................................. 4 2.3. Bluetooth Test results ............................................................................................................. 5 3. Spurious radiated emissions (FCC §15.247(d), §15.209, RSS-210 A8.5) .......................................................................... 9 3.2. Test method and limit .............................................................................................................. 9 3.3. Bluetooth Test results ........................................................................................................... 11 4. Test Equipment ........................................................................................................... 14 4.1. Conducted measurements .................................................................................................... 14 4.2. Radiated measurements ....................................................................................................... 14 FCC Part 15C Compliance Test Report / Template Version 15.0 FCC15C_RM-609_06.docx Copyright © TCC Nokia 4 (15) TCC Nokia Salo Laboratory P.O.Box(86) Joensuunkatu 7H / Kiila 1B FIN-24101 SALO, FINLAND Tel. +358 (0) 7180 08000 Fax. +358 (0) 7180 45220 2. Band edge compliance of RF emissions (FCC §15.247(d), RSS-210 A8.5) EUT with DUT number RM-609, DUT 15372 Accessories with DUT numbers BP-4L, DUT 15362 ; WH-207, DUT 15378; AC-15, DUT 15384 Operation Voltage [V] / [Hz] 115/60 Results PASSED Remarks - Temp [ o C] / Humidity [%RH] / Air Pressure [kPa] 21/ 48/ 101 Date of measurements 26-Nov-2010 Measured by Teuvo Miettinen 2.1.1 Test Setup Tower / table controller Co…

Text truncated - open the document above for the full version.

FCC Part 15C Compliance Test Report / Template Version 15.0 FCC15C_RM-609_16.docx Copyright © TCC Nokia 1 (15) TCC Nokia Copenhagen Laboratory Frederikskaj 1790 COPENHAGEN V DENMARK Tel. +45 33 292929 Fax. +45 33 292934 FCC Part 15C Compliance Test Report Test Report no.: FCC15C_RM-609_16.docx Date of Report: 04-Mar-2011 Number of pages: 15 Customer’s Contact person: Read Simon.J Testing laboratory: TCC Nokia Copenhagen Laboratory Frederikskaj 1790 COPENHAGEN V DENMARK Tel. +45 33 292929 Fax. +45 33 292934 Customer: Nokia Corporation Nokia House Summit Avenue, Southwood FARNBOROUGH HAMPSHIRE GU14 0NG UK Tel. +44 1252 866000 Fax. +44 1252 866001 FCC listing no.: IC recognition no.: 99059 661AL-1 Tested devices/ accessories: Phone RM-609 / Battery BP-4L / Headset WH-207 / Charger AC-15E FCC ID: QFXRM-609 IC: 661Z-RM609 Supplement reports: - Testing has been carried out in accordance with: CFR 47, FCC rules Part 15 Subpart C, ANSI C63.4 (2003), Public Notice DA 00-705, DTS procedures KDB 558074, IC standards, RSS-210 (Issue 8, December 2010). Deviations, modifications or clarifications (if any) to above mentioned documents are written in each section under "Test method and limit". Documentation: The test report must always be reproduced in full; reproduction of an excerpt only is subject to written approval of the testing laboratory. The documentation of the testing performed on the tested devices is archived for 15 years at TCC Nokia. Test Results: The EUT complies with the requirements in respect of all parameters subject to the test. The test results relate only to devices specified in this document Date and signature for the contents: Christian Andersen, System Specialist, EMC FCC Part 15C Compliance Test Report / Template Version 15.0 FCC15C_RM-609_16.docx Copyright © TCC Nokia 2 (15) TCC Nokia Copenhagen Laboratory Frederikskaj 1790 COPENHAGEN V DENMARK Tel. +45 33 292929 Fax. +45 33 292934 1. Summary for FCC Part 15C Compliance Test Report Date of receipt 28-Jan-2011 Testing completed 02-Mar-2011 The customer's contact person Read Simon.J Test Plan referred to T:\Projects\RM-609\TestPlan\RS_testplan_RM-609_CR_HW3500.xls Notes - Document name T:\Projects\RM-609\EMC\FCC15C_RM-609_16.docx 1.1. EUT and Accessory Information The EUT is a 9-band (GSM850/900/1800/1900) and WCDMA Band (I/II(1900)/IV(1700)/V(850)/VIII/) mobile phone with GPRS, EGPRS, HSDPA, HSUPA and WLAN and Bluetooth. Bluetooth and WLAN are tested with maximum rated TX power. Product Type SN HW MV SW DUT Phone RM-609 004402/13/343495/5 3500 - 020.027 23780 Battery BP-4L 3932130126461068045;0670519 - - - 23886 Headset WH-207 06949370422A1R00320 - - - 23923 AC Charger AC-15E 4090499512230700762;0675463 - - - 23789 1.2. Summary of Test Results Bluetooth: Section in CFR 47 Section in RSS-GEN or RSS-210 Name of the test Result 15.247(b)(1) A8.4 (2) Conducted peak output power NP 15.247(d) A8.5 Band edge compliance of RF emissions PASSED 15.247(d) A8.5 Spurious RF conducted emissions NP 15.247(d), 15.209 A8.5 Spurious radiated emissions PASSED 15.207 7.2.2 AC powerline conducted emissions NP 15.247(a)(1) A8.1 (a) 20 dB bandwidth NP 15.247(a)(1) A8.1 (b) Carrier frequency separation NP 15.247(a)(1)(iii) A8.1 (d) Number of hopping frequencies NP 15.247(a)(1)(iii) A8.1 (d) Time of occupancy NP PASSED The EUT complies with the essential requirements in the standard. FAILED The EUT does not comply with the essential requirements in the standard. NP The test was not performed by the TCC Nokia Laboratory. FCC Part 15C Compliance Test Report / Template Version 15.0 FCC15C_RM-609_16.docx Copyright © TCC Nokia 3 (15) TCC Nokia Copenhagen Laboratory Frederikskaj 1790 COPENHAGEN V DENMARK Tel. +45 33 292929 Fax. +45 33 292934 CONTENTS 1. Summary for FCC Part 15C Compliance Test Report .............................................. 2 1.1. EUT and Accessory Information ........................................................................................... 2 1.2. Summary of Test Results ..................................................................................................... 2 2. Band edge compliance of RF emissions (FCC §15.247(d), RSS-210 A8.5) ....................................................................................... 4 2.2. Test method and limit ........................................................................................................... 4 2.3. Bluetooth Test results ........................................................................................................... 5 3. Spurious radiated emissions (FCC §15.247(d), §15.209, RSS-210 A8.5) ......................................................................... 9 3.2. Test method and limit ........................................................................................................... 9 3.3. Bluetooth Test results ......................................................................................................... 11 4. Test Equipment ......................................................................................................... 14 4.1. Conducted measurements ................................................................................................. 14 4.2. Radiated measurements .................................................................................................... 14 FCC Part 15C Compliance Test Report / Template Version 15.0 FCC15C_RM-609_16.docx Copyright © TCC Nokia 4 (15) TCC Nokia Copenhagen Laboratory Frederikskaj 1790 COPENHAGEN V DENMARK Tel. +45 33 292929 Fax. +45 33 292934 2. Band edge compliance of RF emissions (FCC §15.247(d), RSS-210 A8.5) EUT with DUT number RM-609, DUT 23780 Accessories with DUT numbers BP-4L, DUT 23886 ; WH-207, DUT 23923 ; AC-15E, DUT 23789 Operation Voltage [V] / [Hz] 115 / 60 Results Passed Remarks None Temp [ o C] / Humidity [%RH] / Air Pressure [kPa] 21 / 36 / 100.1 Date of measurements 01-Mar-2011 Measured by Christian Andersen 2.1.1 Test Setup 2.2. Test method…

Text truncated - open the document above for the full version.

EMC Test Setup Photos / Template Version 1.0 EMC_Photo_RM-609_23.doc Copyright © TCC Nokia 1 (2) RM-609 Test Setups Picture 1. FCC Part 15C Radiated emissions Picture 2. FCC Part 15C AC powerline conducted emissions EMC Test Setup Photos / Template Version 1.0 EMC_Photo_RM-609_23.doc Copyright © TCC Nokia 2 (2) Picture 3. FCC Part 15B AC powerline conducted emissions Picture 4. FCC Part 15B Radiated emissions
