QFXRM-675XGSM/WCDMA cellular telephone with BT, WLAN, FM Tx and RFID

Nokia C7–00 User Guide 9222032 Issue 1 CyanCyanMagentaMagentaYellowYellowBlackBlack Contents Safety3 About this user guide4 Use the in-device user guide4 Get started4 Keys and parts4 Insert the SIM card and battery5 Insert a memory card6 Charging7 Switch the device on or off8 Nokia account and Nokia's Ovi services8 Device set-up8 Copy contacts or pictures from your old device8 Lock or unlock the keys and screen9 Change the volume of a call, song, or video9 Install Nokia Ovi Suite on your PC9 Touch screen actions10 Call a phone number11 Answer a call12 Mute a call12 Save phone numbers and mail addresses12 Add your important contacts to the home screen12 Send a message12 Personalisation13 Personalise your tones13 Change your theme13 Switch between home screens13 Personalise the home screen13 Add items to the home screen14 About Mail14 Social networks14 About Social14 Take a picture15 Find more help15 Support15 Keep your device software and applications up to date16 Back up files16 Access codes17 Green tips17 Save energy17 Recycle18 Product and safety information18 2www.nokia.com/support CyanCyanMagentaMagentaYellowYellowBlackBlack Safety Read these simple guidelines. Not following them may be dangerous or illegal. Read the complete user guide for further information. SWITCH OFF IN RESTRICTED AREAS Switch the device off when mobile phone use is not allowed or when it may cause interference or danger, for example, in aircraft, near medical equipment, fuel, chemicals, or blasting areas. ROAD SAFETY COMES FIRST Obey all local laws. Always keep your hands free to operate the vehicle while driving. Your first consideration while driving should be road safety. INTERFERENCE All wireless devices may be susceptible to interference, which could affect performance. QUALIFIED SERVICE Only qualified personnel may install or repair this product. KEEP YOUR DEVICE DRY Your device is not water- resistant. Keep it dry. GLASS PARTS The front cover of the device is made of glass. This glass can break if the device is dropped on a hard surface or receives a substantial impact. If the glass breaks, do not touch the glass parts of the device or attempt to remove the broken glass from the device. Stop using the device until the glass is replaced by qualified service personnel. PROTECT YOUR HEARING Listen to a headset at a moderate level, and do not hold the device near your ear when the loudspeaker is in use. www.nokia.com/support3 CyanCyanMagentaMagentaYellowYellowBlackBlack About this user guide This short user guide helps you get started with your device. With a short printed user guide, Nokia helps save energy and paper. Your device contains a complete in-device user guide, which you can refer to for additional information about your device. To read the in-device user guide, select Menu > Applications > User guide. For even more support information, go to www.nokia.com/support, or using a mobile device, nokia.mobi/support. Use the in-device user guide Select Menu > Applications > User guide. Open the user guide from an application Select Options > User guide. This is not available for every application. Search the user guide When the user guide is open, select Options > Search, and enter a letter or a word in the search field. Switch between the user guide and an application Press and hold the menu key, swipe left or right, and select the desired application. Links to related topics may be at the end of instructions. indicates a link to a related topic, and indicates a link to a web page. Get started Keys and parts Top 1Micro USB connector 2Nokia AV connector (3.5 mm) 3Power key Front 1Earpiece 2Call key 3Microphone 4Menu key 5End key 6Secondary camera lens 4www.nokia.com/support CyanCyanMagentaMagentaYellowYellowBlackBlack Sides 1Charger connector 2Volume up/Zoom in key 3Voice key 4Volume down/Zoom out key 5Lock switch 6Camera key Back 1Loudspeaker 2Camera lens 3Camera flash 4Secondary microphone 5Wrist strap hole Touch screen To control your device, lightly touch the screen with your fingertips. The screen does not respond when you use your fingernails. If your fingertips are cold, the screen may not respond to your touch. To avoid scratching the touch screen, never use a pen, pencil, or other sharp object to write on the touch screen. Noise cancellation If you are calling from a noisy environment, your device filters out background noise to make your voice sound clearer to the person at the other end of the line. Noise cancellation is not available when using the loudspeaker or a headset. For the best noise cancellation, hold the device with the earpiece to your ear and the main microphone towards your mouth. Do not cover the secondary microphone at the back of the device. Insert the SIM card and battery Important: Do not use a micro-SIM or a micro-SIM with an adapter in this device. This device does not support use of micro- SIM cards, and use of incompatible SIM cards may damage the card or the device, and may corrupt data stored on the card. www.nokia.com/support5 CyanCyanMagentaMagentaYellowYellowBlackBlack Follow the instructions carefully, to avoid damaging the back cover. Safe removal. Always switch the device off and disconnect the charger before removing the battery. 1Unlock the back cover release latch, and lift the back cover. 2If the battery is inserted, lift the battery out. 3Insert a SIM card. Use the diagram printed on the device to correctly align the card. 4Line up the contacts of the battery and the battery compartment, and insert the battery. 5To replace the back cover, direct the top locking catches toward their slots, and press down until the cover locks into place. Insert a memory card Switch off the device before inserting a memory card. 1Remove the back cover of the device. 2If the battery is inserted, lift the battery out. 3Insert a compatible memory card into the slot. Make sure the contact area of the card is facing down. 4Push the card in, until it clicks. 6www.nokia.com/support …

Text truncated - open the document above for the full version.

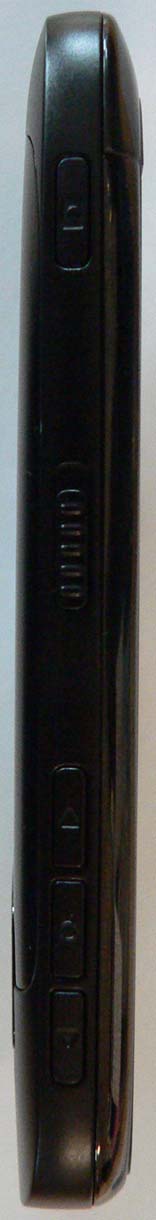

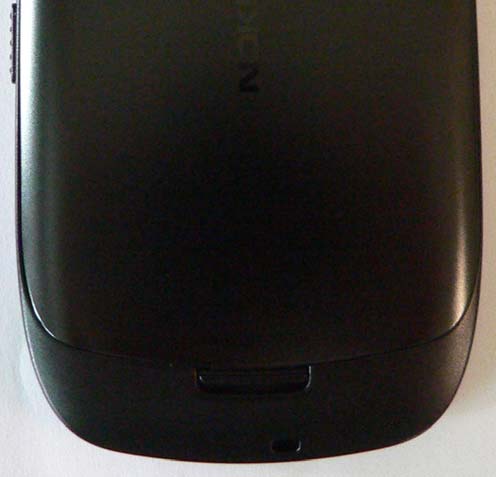

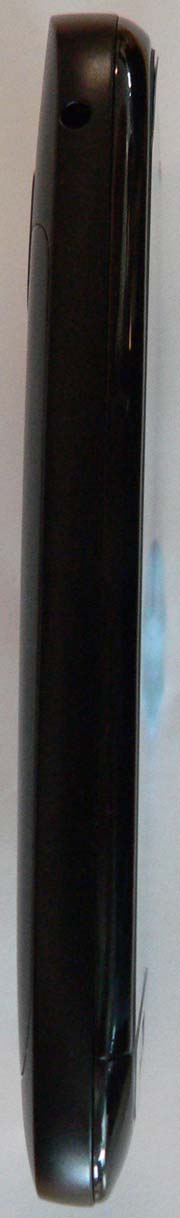

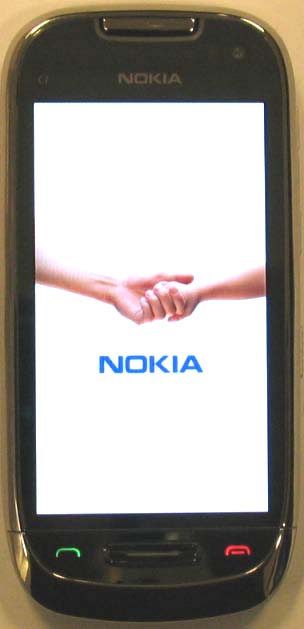

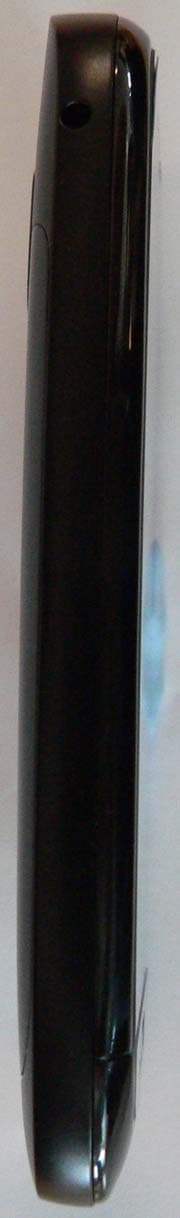

05 Oct 2010 External Photographs FCC ID: QFXRM-675X Exhibit 3 IC: 661Z-RM675 Applicant: Nokia Corporation Copyright © 2010 Nokia. All rights reserved. Front and Back 05 Oct 2010 External Photographs FCC ID: QFXRM-675X Exhibit 3 IC: 661Z-RM675 Applicant: Nokia Corporation Copyright © 2010 Nokia. All rights reserved. Sides Top and Bottom

07 October 2010 Exhibit 01: Type Label FCC ID: QFXRM-675X IC: 661Z-RM675 Applicant: Nokia Corporation Copyright © 2010 Nokia. All rights reserved 07 October 2010 Exhibit 01: Type Label FCC ID: QFXRM-675X IC: 661Z-RM675 Applicant: Nokia Corporation Copyright © 2010 Nokia. All rights reserved

CONFIDENTIAL 05 October 2010 Internal Photographs FCC ID: QFXRM-675X Exhibit 9 IC: 661Z-RM675 Applicant: Nokia Corporation Copyright © 2010 Nokia. All rights reserved. Front Cover plus Touch Panel Flex Front Keymat Front Cover Chin CONFIDENTIAL 05 October 2010 Internal Photographs FCC ID: QFXRM-675X Exhibit 9 IC: 661Z-RM675 Applicant: Nokia Corporation Copyright © 2010 Nokia. All rights reserved. Display Front Display Back CONFIDENTIAL 05 October 2010 Internal Photographs FCC ID: QFXRM-675X Exhibit 9 IC: 661Z-RM675 Applicant: Nokia Corporation Copyright © 2010 Nokia. All rights reserved. AV Jack Back AV Jack Front Camera Module BackCamera Module Front CONFIDENTIAL 05 October 2010 Internal Photographs FCC ID: QFXRM-675X Exhibit 9 IC: 661Z-RM675 Applicant: Nokia Corporation Copyright © 2010 Nokia. All rights reserved. PWB Top Side CONFIDENTIAL 05 October 2010 Internal Photographs FCC ID: QFXRM-675X Exhibit 9 IC: 661Z-RM675 Applicant: Nokia Corporation Copyright © 2010 Nokia. All rights reserved. UI Flex & Chassis Front UI Flex and Chassis Back CONFIDENTIAL 05 October 2010 Internal Photographs FCC ID: QFXRM-675X Exhibit 9 IC: 661Z-RM675 Applicant: Nokia Corporation Copyright © 2010 Nokia. All rights reserved. Back Cover SIM Connector IHF Speaker CONFIDENTIAL 05 October 2010 Internal Photographs FCC ID: QFXRM-675X Exhibit 9 IC: 661Z-RM675 Applicant: Nokia Corporation Copyright © 2010 Nokia. All rights reserved. Vibra uSD Card Reader PWB Bottom

FCC Part Compliance Test Report / Template Version 00.0 FCC15C _RM-675_15.docx Copyright © TCC Nokia 1 (11) Address FCC Part 15C Compliance Test Report Test Report no.: FCC15C_RM-675_15.docx Date of Report: 08-Oct-2010 Number of pages: 11 Customer’s Contact person: Alison Lenaghan Testing laboratory: TCC Nokia Beijing Laboratory Beijing Economic and Technological Development Area No.5 Donghuan Zhonglu Beijing PRC China 100176 Tel. +86 10 8711 8888 Fax. +86 10 8711 4550 Customer: Nokia Corporation Nokia House Summit Avenue, Southwood FARNBOROUGH HAMPSHIRE GU14 0NG UK Tel. +44 1252 866000 Fax. +44 1252 866001 FCC listing no.: IC recognition no.: 975940 661AH-1 Tested devices/ accessories: Phone RM-675 / Battery BL-5K / AC-charger AC-15E / Headset WH-102 FCC ID: QFXRM-675X IC: 661Z-RM675 Supplement reports: - Testing has been carried out in accordance with: CFR 47, FCC rules Part 15 Subpart C, ANSI C63.4 (2003), Public Notice DA 00-705, DTS procedures KDB 558074, IC standards, RSS-210 (Issue 7, June 2007). Deviations, modifications or clarifications (if any) to above mentioned documents are written in each section under "Test method and limit". Documentation: The test report must always be reproduced in full; reproduction of an excerpt only is subject to written approval of the testing laboratory. The documentation of the testing performed on the tested devices is archived for 15 years at TCC Nokia. Test Results: The EUT complies with the requirements in respect of all parameters subject to the test. The test results relate only to devices specified in this document Date and signature for the contents: Jia Dongsheng, System Manager FCC Part Compliance Test Report / Template Version 00.0 FCC15C _RM-675_15.docx Copyright © TCC Nokia 2 (11) Address 1. Summary for FCC Part 15C Compliance Test Report Date of receipt 29-Jun-2010 Testing completed 20-Jul-2010 The customer's contact person Alison Lenaghan Test Plan referred to T:\Projects\RM-675\TestPlan\Copy of RS_testplan_RM- 675_EMC_FCC_SAR.xls Notes - Document name FCC15C_RM-675_11.docx 1.1. EUT and Accessory Information The EUT is a 9-band (GSM850/900/1800/1900) and WCDMA Band (I/II(1900)/IV(1700)/V(850)/VIII/) mobile phone with GPRS, EGPRS, HSDPA, HSUPA and WLAN and Bluetooth and FM transmitter. Bluetooth and WLAN are tested with maximum rated TX power. Product Type SN HW MV SW DUT Phone RM-675 004402131424719 3001 - 010.022 51747 Battery BL-5K 4620400051K10101256;0670580 - - - 51751 AC-charger AC-15E 4090490023220806073;0675463 - - - 51720 Headset WH-102 0694323939454109315 - - - 51755 1.2. Summary of Test Results Bluetooth: Section in CFR 47 Section in RSS-GEN or RSS-210 Name of the test Result 15.247(b)(1) A8.4 (2) Conducted peak output power NP 15.247(d) A8.5 Band edge compliance of RF emissions NP 15.247(d) A8.5 Spurious RF conducted emissions NP 15.247(d), 15.209 A8.5 Spurious radiated emissions PASSED 15.207 7.2.2 AC powerline conducted emissions PASSED 15.247(a)(1) A8.1 (a) 20 dB bandwidth NP 15.247(a)(1) A8.1 (b) Carrier frequency separation NP 15.247(a)(1)(iii) A8.1 (d) Number of hopping frequencies NP 15.247(a)(1)(iii) A8.1 (d) Time of occupancy NP PASSED The EUT complies with the essential requirements in the standard. FAILED The EUT does not comply with the essential requirements in the standard. NP The test was not performed by the TCC Nokia Laboratory. FCC Part Compliance Test Report / Template Version 00.0 FCC15C _RM-675_15.docx Copyright © TCC Nokia 3 (11) Address CONTENTS 1. Summary for FCC Part 15C Compliance Test Report .............................................. 2 1.1. EUT and Accessory Information ........................................................................................... 2 1.2. Summary of Test Results ..................................................................................................... 2 2. Spurious radiated emissions (FCC §22.917(a), §24.238(a), §2.1053, RSS-132 4.5, RSS-133 6.5) .................................. 4 2.1. Test Setup ............................................................................................................................ 4 2.2. Test method and limit ........................................................................................................... 4 2.3. Bluetooth Test results ........................................................................................................... 6 3. AC powerline conducted emissions (FCC §15.207, RSS-GEN 7.2.2) ...................... 9 3.1. Test Setup ............................................................................................................................ 9 3.2. Test method and limit ........................................................................................................... 9 3.3. Bluetooth Test results ......................................................................................................... 10 4. Test Equipment ......................................................................................................... 11 4.1. Conducted measurements ................................................................................................. 11 4.2. Radiated measurements .................................................................................................... 11 FCC Part Compliance Test Report / Template Version 00.0 FCC15C _RM-675_15.docx Copyright © TCC Nokia 4 (11) Address 2. Spurious radiated emissions (FCC §22.917(a), §24.238(a), §2.1053, RSS-132 4.5, RSS-133 6.5) EUT with DUT number RM-675, DUT 51747 Accessories with DUT numbers BL-5K, DUT 51751 ; AC-15E, DUT 51720 ; WH-102, DUT 51755 Operation Voltage [V] / [Hz] Nominal Results PASSED Remarks - Temp [ o C] / Humidity [%RH] / Air Pressure [kPa] 24 / 63 / 100.1 Date of measurements 16-Jul-2010 Measured by Jia Dongsheng 2.1. Test Setup Tow er / table controller Co mmun ication Tester Receiver EUT 2.2. Test method and limit The measurement is made according to Public notice DA 00-705 and IC …

Text truncated - open the document above for the full version.

FCC Part 15C Compliance Test Report / Template Version 12.0 FCC15C_RM-675_21.docx Copyright © TCC Nokia 1 (32) TCC Nokia Copenhagen Laboratory Frederikskaj 1790 COPENHAGEN V DENMARK Tel. +45 33 292929 Fax. +45 33 292934 FCC Part 15C Compliance Test Report Test Report no.: FCC15C_RM-675_21 Date of Report: 05-Aug-2010 Number of pages: 32 Customer’s Contact person: Alison Lenaghan Testing laboratory: TCC Nokia Copenhagen Laboratory Frederikskaj 1790 COPENHAGEN V DENMARK Tel. +45 33 292929 Fax. +45 33 292934 FCC listing no.: IC recognition no.: 99059 661AL-1 Customer: Nokia Corporation Nokia House Summit Avenue, Southwood FARNBOROUGH HAMPSHIRE GU14 0NG UK Tel. +44 1252 866000 Fax. +44 1252 866001 Tested devices/ accessories: Phone RM-675 / Battery BL-5K / AC-Charger AC-15E / Headset WH-102 FCC ID: QFXRM-675X IC: 661Z-RM675 Supplement reports: Testing has been carried out in accordance with: CFR 47, FCC rules Part 15 Subpart C, ANSI C63.4 (2003), Public Notice DA 00-705, DTS procedures KDB 558074, IC standards RSS-GEN (Issue 2, June 2007) and RSS-210 (Issue 7, June 2007). Deviations, modifications or clarifications (if any) to above mentioned documents are written in each section under "Test method and limit". Documentation: The test report must always be reproduced in full; reproduction of an excerpt only is subject to written approval of the testing laboratory. The documentation of the testing performed on the tested devices is archived for 15 years at TCC Nokia. Test Results: The EUT complies with the requirements in respect of all parameters subject to the test. The test results relate only to devices specified in this document. Date and signature for the contents: Christian Andersen, System Specialist, EMC FCC Part 15C Compliance Test Report / Template Version 12.0 FCC15C_RM-675_21.docx Copyright © TCC Nokia 2 (32) TCC Nokia Copenhagen Laboratory Frederikskaj 1790 COPENHAGEN V DENMARK Tel. +45 33 292929 Fax. +45 33 292934 1. Summary for FCC Part 15C Compliance Test Report Date of receipt 28-Jun-2010 Testing completed 30-Jul-2010 The customer's contact person Alison Lenaghan Test Plan referred to T:\Projects\RM-675\TestPlan\RS_testplan_RM-675.xls Notes None Document name Document1 1.1. EUT and Accessory Information The EUT is a 9-band (GSM850/900/1800/1900) and WCDMA Band (I/II(1900)/IV(1700)/V(850)/VIII/) mobile phone with GPRS, EGPRS, HSDPA, HSUPA and WLAN and Bluetooth and FM transmitter. Bluetooth and WLAN are tested with maximum rated TX power. Product Type SN HW MV SW DUT Phone RM-675 004402/13/142374/5 3001 - 010.022 24197 Phone RM-675 004402/13/142289/5 3001 - 010.022 24167 Battery BL-5K 4620400051K10101254;0670580 - - - 24194 AC-Charger AC-15E 4090499512230701369;0675463 - - - 24195 Headset WH-102 0694323939454109323 - - - 24189 1.2. Summary of Test Results Bluetooth: Section in CFR 47 Section in RSS-GEN or RSS-210 Name of the test Result 15.247(b)(1) A8.4 (2) Conducted peak output power Passed 15.247(d) A8.5 Band edge compliance of RF emissions Passed 15.247(d) A8.5 Spurious RF conducted emissions Passed 15.247(d), 15.209 A8.5 Spurious radiated emissions NP 15.207 7.2.2 AC powerline conducted emissions NP 15.247(a)(1) A8.1 (a) 20 dB bandwidth Passed 15.247(a)(1) A8.1 (b) Carrier frequency separation Passed 15.247(a)(1)(iii) A8.1 (d) Number of hopping frequencies Passed 15.247(a)(1)(iii) A8.1 (d) Time of occupancy Passed PASSED The EUT complies with the essential requirements in the standard. FAILED The EUT does not comply with the essential requirements in the standard. NP The test was not performed by the TCC Nokia Copenhagen Laboratory. FCC Part 15C Compliance Test Report / Template Version 12.0 FCC15C_RM-675_21.docx Copyright © TCC Nokia 3 (32) TCC Nokia Copenhagen Laboratory Frederikskaj 1790 COPENHAGEN V DENMARK Tel. +45 33 292929 Fax. +45 33 292934 CONTENTS 1. Summary for FCC Part 15C Compliance Test Report ..............................................2 1.1. EUT and Accessory Information ........................................................................................... 2 1.2. Summary of Test Results ..................................................................................................... 2 2. Test setups ..................................................................................................................4 2.1. Conducted RF test setup...................................................................................................... 4 2.2. AC powerline conducted emissions test setup...................................................................... 4 2.3. Radiated test setup .............................................................................................................. 4 3. Conducted peak output power (FCC §15.247(b)(1), RSS-210 A8.4 (2)) ...................5 3.1. Test method and limit ........................................................................................................... 5 3.2. Bluetooth Test results........................................................................................................... 6 4. Band edge compliance of RF emissions (FCC §15.247(d), RSS-210 A8.5) ............9 4.1. Test method and limit ........................................................................................................... 9 4.2. Bluetooth Test results......................................................................................................... 10 5. Spurious RF conducted emissions (FCC §15.247(d), RSS-A8.5) ..........................14 5.1. Test method and limit ......................................................................................................... 14 5.2. Bluetooth Test results......................................................................................................... 15 6. 20 dB bandwidth (FCC §15.247(a)(1), RSS-210 A8.1 (a)) ........................................18 6.1. Test method and limit .............................................................…

Text truncated - open the document above for the full version.

FCC Part 15C Compliance Test Report / Template Version 15.0 FCC15C_RM-675 _34.docx Copyright © TCC Nokia 1 (25) TCC Nokia Copenhagen LaboratoryFrederikskaj1790 COPENHAGEN VDENMARKTel. +45 33 292929Fax. +45 33 292934 FCC Part 15C Compliance Test Report Test Report no.: FCC15C_RM-675 _34.docx Date of Report: 08-Oct-2010 Number of pages: 25 Customer’s Contact person: Alison Lenaghan Testing laboratory: TCC Nokia Copenhagen Laboratory Frederikskaj 1790 COPENHAGEN V DENMARK Tel. +45 33 292929 Fax. +45 33 292934 Customer: Nokia Corporation Nokia House Summit Avenue, Southwood FARNBOROUGH HAMPSHIRE GU14 0NG UK Tel. +44 1252 866000 Fax. +44 1252 866001 FCC listing no.: IC recognition no.: 99059 661AL-1 Tested devices/ accessories: Phone RM-675 / Battery BL-5K / AC-Charger AC-15x / Headset WH-102 FCC ID: QFXRM-675X IC: 661Z-RM675 Supplement reports: - Testing has been carried out in accordance with: CFR 47, FCC rules Part 15 Subpart C, ANSI C63.4 (2003), Public Notice DA 00-705, DTS procedures KDB 558074, IC standards RSS-GEN (Issue 2, June 2007) and RSS-210 (Issue 7, June 2007). Deviations, modifications or clarifications (if any) to above mentioned documents are written in each section under "Test method and limit". Documentation: The test report must always be reproduced in full; reproduction of an excerpt only is subject to written approval of the testing laboratory. The documentation of the testing performed on the tested devices is archived for 15 years at TCC Nokia. Test Results: The EUT complies with the requirements in respect of all parameters subject to the test. The test results relate only to devices specified in this document Date and signature for the contents: Christian Andersen, System Specialist, EMC FCC Part 15C Compliance Test Report / Template Version 15.0 FCC15C_RM-675 _34.docx Copyright © TCC Nokia 2 (25) TCC Nokia Copenhagen LaboratoryFrederikskaj1790 COPENHAGEN VDENMARKTel. +45 33 292929Fax. +45 33 292934 1. Summary for FCC Part 15C Compliance Test Report Date of receipt 20-Sep-2010 Testing completed 05-Oct-2010 The customer's contact person Alison Lenaghan Test Plan referred to T:\Projects\RM-675\TestPlan\RS_testplan_RM-675_CR_BOB62.xls Notes - Document name T:\Projects\RM-675\EMC\FCC15C_RM-675 _34.docx 1.1. EUT and Accessory Information The EUT is a 9-band (GSM850/900/1800/1900) and WCDMA Band (I/II(1900)/IV(1700)/V(850)/VIII/) mobile phone with GPRS, EGPRS, HSDPA, HSUPA and WLAN and Bluetooth and FM transmitter. Bluetooth and WLAN are tested with maximum rated TX power. Product Type SNHWMV SW DUT Phone RM-675 353755/04/004702/1 6000 - 011.007 24049 Battery BL-5K 4620400051K10101718;0670580 - - - 24040 AC-Charger AC-15x 4090499495220800704;0675460 - - - 24037 Headset WH-102 0694323939454109333 - - - 24039 Phone RM-675 353755/04/004766/6 6000 - 011.007 24045 Battery BL-5K 4620400051K10101717;0670580 - - - 24041 AC-Charger AC-15x 4090499495220800691;0675460 - - - 24036 Headset WH-102 0694323939454109386 - - - 24038 1.2. Summary of Test Results Bluetooth: Section in CFR 47 Section in RSS-GEN or RSS-210 Name of the test Result 15.247(b)(1) A8.4 (2) Conducted peak output power PASSED 15.247(d) A8.5 Band edge compliance of RF emissions PASSED 15.247(d) A8.5 Spurious RF conducted emissions PASSED 15.247(d), 15.209 A8.5 Spurious radiated emissions PASSED 15.207 7.2.2 AC powerline conducted emissions NP 15.247(a)(1) A8.1 (a) 20 dB bandwidth NP 15.247(a)(1) A8.1 (b) Carrier frequency separation NP 15.247(a)(1)(iii) A8.1 (d) Number of hopping frequencies NP 15.247(a)(1)(iii) A8.1 (d) Time of occupancy NP PASSED The EUT complies with the essential requirements in the standard. FAILED The EUT does not comply with the essential requirements in the standard. NP The test was not performed by the TCC Nokia Laboratory. CONTENTS 1. Summary for FCC Part 15C Compliance Test Report .............................................. 2 1.1. EUT and Accessory Information ............................................................................................ 2 1.2. Summary of Test Results ....................................................................................................... 2 2. Conducted peak output power (FCC §15.247(b)(1), RSS-210 A8.4 (2)) .................. 4 2.1. Test method and limit ............................................................................................................. 4 2.2. Bluetooth Test results ............................................................................................................ 5 3. Band edge compliance of RF emissions (FCC §15.247(d), RSS-210 A8.5) ....................................................................................... 8 3.2. Test method and limit ............................................................................................................. 8 3.3. Bluetooth Test results ............................................................................................................ 9 4. Spurious RF conducted emissions (FCC §15.247(d), RSS-A8.5).......................... 15 4.1. Test method and limit ........................................................................................................... 15 4.2. Bluetooth Test results .......................................................................................................... 16 5. Spurious radiated emissions (FCC §15.247(d), §15.209, RSS-210 A8.5) ....................................................................... 19 5.2. Test method and limit ........................................................................................................... 19 5.3. Bluetooth Test results .......................................................................................................... 21 6. Test Equipment ......................................................................................................... 24 6.1. Conducted measurements ......................................................................................…

Text truncated - open the document above for the full version.

EMC Test Setup Photos / Template Version 1.0 EMC_Photos_RM-675_24.docx Copyright © TCC Nokia 1 (3) RM-675 Test Setups Picture 1. FCC Part 15C Radiated emissions Picture 2. FCC Part 15C Radiated emissions, FM TX Picture 3. FCC Part 15B Radiated emissions EMC Test Setup Photos / Template Version 1.0 EMC_Photos_RM-675_24.docx Copyright © TCC Nokia 2 (3) Picture 4. FCC Part 15B Radiated emissions, Data Peripherals Picture 5. FCC Part 15C AC powerline conducted emissions Picture 6. FCC Part 15C AC powerline conducted emissions, FM TX Picture 7. FCC Part 15B AC powerline conducted emissions EMC Test Setup Photos / Template Version 1.0 EMC_Photos_RM-675_24.docx Copyright © TCC Nokia 3 (3)
