QFXRM-744GSM/WCDMA cellular phone with Bluetooth

Nokia C5–00 User Guide 3333333xxxxxxx Issue 1 CyanCyanMagentaMagentaYellowYellowBlackBlack Contents Safety4 Get started5 Keys and parts5 Insert SIM card and battery5 Insert a memory card6 Wrist strap7 Charge the battery7 Switch the device on and off8 Volume control8 Connect a compatible headset8 Antenna locations8 Transfer content from another device8 Install Ovi Suite9 Ovi by Nokia9 About Ovi Store10 Remove a memory card10 Remove battery and SIM card10 Basic use11 Write text11 Menu12 Display indicators12 Shortcuts14 Offline profile14 Access codes15 Configuration settings15 Settings wizard15 Remote lock16 Personalise your device16 Home screen16 Contacts bar16 Themes17 Profiles 18 Telephone19 Make a call19 Answer a call19 Make a video call19 Call and data registers20 Call divert20 Contacts20 Stay connected with your online friends21 Copy contacts21 Manage names and numbers22 Save and edit names and numbers22 Ringing tones, images, and call text for contacts22 Messaging23 About messaging23 Write and send messages23 E-mail25 About Chat26 About Ovi Contacts26 Connect to the service27 Connectivity27 Connect your computer to web27 About Bluetooth28 Send and receive data with Bluetooth28 Synchronisation29 Web29 About Web browser29 Browse the web30 About Search30 Subscribe to a web feed30 Discover nearby events30 Positioning31 About GPS31 2Contents www.nokia.com/support CyanCyanMagentaMagentaYellowYellowBlackBlack About assisted GPS (A-GPS)31 Maps31 Landmarks 36 GPS data37 Music and audio38 Ovi Music38 FM Radio38 Camera39 Capture an image39 Record a video clip39 Images and videos39 About Gallery39 About Share online40 Time management40 Calendar40 Alarm clock41 Clock settings41 Settings41 Device and SIM card security41 Restore original settings42 Data management42 Protected content42 Find help43 Support43 Keep your device software and applications up to date43 Prolong battery life44 In-device help45 Protect the environment45 Save energy45 Recycle45 Nokia original accessories46 Practical rules about accessories46 Battery46 Product and safety information46 Contents3 www.nokia.com/support CyanCyanMagentaMagentaYellowYellowBlackBlack Safety Read these simple guidelines. Not following them may be dangerous or illegal. Read the complete user guide for further information. SWITCH OFF IN RESTRICTED AREAS Switch the device off when mobile phone use is not allowed or when it may cause interference or danger, for example, in aircraft, near medical equipment, fuel, chemicals, or blasting areas. ROAD SAFETY COMES FIRST Obey all local laws. Always keep your hands free to operate the vehicle while driving. Your first consideration while driving should be road safety. INTERFERENCE All wireless devices may be susceptible to interference, which could affect performance. QUALIFIED SERVICE Only qualified personnel may install or repair this product. BATTERIES, CHARGERS AND OTHER ACCESSORIES Use only batteries, chargers, and other accessories approved by Nokia for use with this device. Do not connect incompatible products. KEEP YOUR DEVICE DRY Your device is not water- resistant. Keep it dry. PROTECT YOUR HEARING Listen to a headset at a moderate level, and do not hold the device near your ear when the loudspeaker is in use. 4Safety www.nokia.com/support CyanCyanMagentaMagentaYellowYellowBlackBlack Get started Keys and parts 1Earpiece 2Display 3Left selection key 4Home key 5Call key 6Number keys 7Secondary camera lens 8Navi™ key (scroll key). Can also be used to capture images. 9Right selection key 10Clear key C 11End/Power key 12Microphone 13Charger connector 14Micro USB connector 15Nokia AV connector (3.5 mm) 16Camera flash 17Volume keys. Can also be used to zoom when using the camera. 18Memory card slot 19Main camera lens 20Back cover release button 21Wrist strap eyelet 22Loudspeaker Note: The surface of this device does not contain nickel in the platings. The surface of this device contains stainless steel. Insert SIM card and battery Important: Do not use a mini-UICC SIM card, also known as a micro-SIM card, a micro-SIM card with an adapter, or a SIM card that has a mini-UICC cutout (see Get started5 www.nokia.com/support CyanCyanMagentaMagentaYellowYellowBlackBlack figure) in this device. A micro SIM card is smaller than the standard SIM card. This device does not support the use of micro- SIM cards and use of incompatible SIM cards may damage the card or the device, and may corrupt data stored on the card. 1To remove the back cover of the device, pull the release button (1) toward the bottom of the device, and lift the cover off (2). 2Slide the SIM card into the SIM card holder. Make sure the contact area is facing down. The battery must be removed before you can insert the SIM card. 3Insert the battery. 4To replace the back cover, carefully align the top lugs (1), and line up the back cover, then gently press down until the cover locks into place (2). Insert a memory card The memory card may be supplied with the device, and may already be inserted. 1Open the memory card slot cover. 2Place the card in the slot with the contact area facing up. 3Push the card gently to lock it into place. Close the slot cover. 6Get started www.nokia.com/support CyanCyanMagentaMagentaYellowYellowBlackBlack Wrist strap Thread the wrist strap, and tighten it. A wrist strap may not be included. Charge the battery Your battery has been partially charged at the factory, but you may need to recharge it before you can switch on your device for the first time. If the device indicates a low charge, do the following: 1Connect the charger to a wall outlet. 2Connect the charger to the device. 3When the battery is fully charged, disconnect the charger from the device, then from the wall outlet. You do not need to charge the battery for a specific length of time, and you can use the device while it is charging. If the battery is completely discharged, it may take several minutes before the charging indicator appears on the display or before an…

Text truncated - open the document above for the full version.

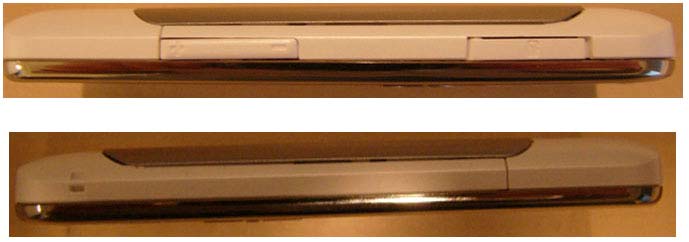

11 FEBRUARY 2011 Exhibit 03: External Photos FCC ID: QFXRM-744 Applicant: Nokia Corporation Copyright © 2010 Nokia. All rights reserved. Front and Back Top and Bottom 11 FEBRUARY 2011 Exhibit 03: External Photos FCC ID: QFXRM-744 Applicant: Nokia Corporation Copyright © 2010 Nokia. All rights reserved. Back with cover removed Sides

14 February 2011 Exhibit 01: Type Label FCC ID: QFXRM-744 Applicant: Nokia Corporation Copyright © 2011 Nokia. All rights reserved 14 February 2011 Exhibit 01: Type Label FCC ID: QFXRM-744 Applicant: Nokia Corporation Copyright © 2011 Nokia. All rights reserved

10 FEBRUARY 2011 Exhibit 09: Internal Photos FCC ID: QFXRM-744 Applicant: Nokia Corporation Copyright © 2011 Nokia. All Rights Reserved Front – cover removed 10 FEBRUARY 2011 Exhibit 09: Internal Photos FCC ID: QFXRM-744 Applicant: Nokia Corporation Copyright © 2011 Nokia. All Rights Reserved Back cover 10 FEBRUARY 2011 Exhibit 09: Internal Photos FCC ID: QFXRM-744 Applicant: Nokia Corporation Copyright © 2011 Nokia. All Rights Reserved PWB front 10 FEBRUARY 2011 Exhibit 09: Internal Photos FCC ID: QFXRM-744 Applicant: Nokia Corporation Copyright © 2011 Nokia. All Rights Reserved PWB back 10 FEBRUARY 2011 Exhibit 09: Internal Photos FCC ID: QFXRM-744 Applicant: Nokia Corporation Copyright © 2011 Nokia. All Rights Reserved Back cover - back 10 FEBRUARY 2011 Exhibit 09: Internal Photos FCC ID: QFXRM-744 Applicant: Nokia Corporation Copyright © 2011 Nokia. All Rights Reserved Back cover - back

FCC Part 15C Compliance Test Report / Template Version 12.0 FCC15C_RM-744_05.docx Copyright © TCC Nokia 1 (29) TCC Nokia Copenhagen Laboratory Frederikskaj 1790 COPENHAGEN V DENMARK Tel. +45 33 292929 Fax. +45 33 292934 FCC Part 15C Compliance Test Report Test Report no.: FCC15C_RM-744_05.docx Date of Report: 15-Feb-2011 Number of pages: 29 Customer’s Contact person: Alison Lenaghan Testing laboratory: TCC Nokia Copenhagen Laboratory Frederikskaj 1790 COPENHAGEN V DENMARK Tel. +45 33 292929 Fax. +45 33 292934 Customer: Nokia Corporation Nokia House Summit Avenue, Southwood FARNBOROUGH HAMPSHIRE GU14 0NG UK Tel. +44 1252 866000 Fax. +44 1252 866001 FCC listing no.: IC recognition no.: 99059 661AL-1 Tested devices/ accessories: Phone RM-744 / Battery BL-5CT / Charger AC-8 / Headset WH-102 FCC ID: QFXRM-744 IC: 661Z-RM744 Supplement reports: Testing has been carried out in accordance with: CFR 47, FCC rules Part 15 Subpart C, ANSI C63.4 (2003), Public Notice DA 00-705, DTS procedures KDB 558074, IC standards RSS-GEN (Issue 2, June 2007) and RSS-210 (Issue 7, June 2007). Deviations, modifications or clarifications (if any) to above mentioned documents are written in each section under "Test method and limit". Documentation: The test report must always be reproduced in full; reproduction of an excerpt only is subject to written approval of the testing laboratory. The documentation of the testing performed on the tested devices is archived for 15 years at TCC Nokia. Test Results: The EUT complies with the requirements in respect of all parameters subject to the test. The test results relate only to devices specified in this document. Date and signature for the contents: Ruben Hansen, System Manager, EMC FCC Part 15C Compliance Test Report / Template Version 12.0 FCC15C_RM-744_05.docx Copyright © TCC Nokia 2 (29) TCC Nokia Copenhagen Laboratory Frederikskaj 1790 COPENHAGEN V DENMARK Tel. +45 33 292929 Fax. +45 33 292934 1. Summary for FCC Part 15C Compliance Test Report Date of receipt 24-Jan-2011 Testing completed The customer's contact person Alison Lenaghan Test Plan referred to T:\Projects\RM-744\TestPlan\RS_testplan_RM-744.xls Notes Document name FCC15C_RM-744_05.docx 1.1. EUT and Accessory Information The EUT is a 7-band (GSM850/900/1800/1900) and WCDMA Band (I/V(850)/V(850)) mobile phone with GPRS, EGPRS, HSDPA, HSUPA and Bluetooth. Product Type SN HW MV SW DUT Phone RM-744 004402/13/371096/6 9204 - 070.020 23805 Battery BL-5CT 3635639511910602976;0670555 - - - 23793 Ac charger AC-8E 1103338294020301729;0675387 - - - 26853 Headset WH-102 06943230293H2606851 - - - 23899 1.2. Summary of Test Results Bluetooth: Section in CFR 47 Section in RSS-GEN or RSS-210 Name of the testResult 15.247(b)(1) A8.4 (2) Conducted peak output power PASSED 15.247(d) A8.5 Band edge compliance of RF emissions NP 15.247(d) A8.5 Spurious RF conducted emissions PASSED 15.247(d), 15.209 A8.5 Spurious radiated emissions NP 15.207 7.2.2 AC powerline conducted emissions PASSED 15.247(a)(1) A8.1 (a) 20 dB bandwidth PASSED 15.247(a)(1) A8.1 (b) Carrier frequency separation PASSED 15.247(a)(1)(iii) A8.1 (d) Number of hopping frequencies PASSED 15.247(a)(1)(iii) A8.1 (d) Time of occupancy PASSED PASSED The EUT complies with the essential requirements in the standard. FAILED The EUT does not comply with the essential requirements in the standard. NP The test was not performed by the TCC Nokia Copenhagen Laboratory. FCC Part 15C Compliance Test Report / Template Version 12.0 FCC15C_RM-744_05.docx Copyright © TCC Nokia 3 (29) TCC Nokia Copenhagen Laboratory Frederikskaj 1790 COPENHAGEN V DENMARK Tel. +45 33 292929 Fax. +45 33 292934 CONTENTS 1. Summary for FCC Part 15C Compliance Test Report ............................................... 2 1.1. EUT and Accessory Information ............................................................................................. 2 1.2. Summary of Test Results ........................................................................................................ 2 2. Test setups .................................................................................................................... 4 2.1. Conducted RF test setup ........................................................................................................ 4 2.2. AC powerline conducted emissions test setup ........................................................................ 4 2.3. Radiated test setup ................................................................................................................. 4 3. Conducted peak output power (FCC §15.247(b)(1), RSS-210 A8.4 (2)) ................... 5 3.1. Test method and limit .............................................................................................................. 5 3.2. Bluetooth Test results ............................................................................................................. 6 4. Spurious RF conducted emissions (FCC §15.247(d), RSS-A8.5) ............................. 9 4.1. Test method and limit .............................................................................................................. 9 4.2. Bluetooth Test results ........................................................................................................... 10 5. AC powerline conducted emissions (FCC §15.107, ICES-003 section 5.3) ................................................................................ 13 5.2. Test method and limit ............................................................................................................ 13 6. 20 dB bandwidth (FCC §15.247(a)(1), RSS-210 A8.1 (a)) ......................................... 15 6.1. Test method and limit ............................................................................................................ 15 6.2. Bluetooth Test results ........................................................................................................... 16 7. Carr…

Text truncated - open the document above for the full version.

FCC Part 15C Compliance Test Report / Template Version 15.0 FCC15C_RM-744_09.docx Copyright © TCC Nokia 1 (15) TCC Nokia Tampere Laboratory P.O. Box 68 Sinitaival 5 FIN-33720 TAMPERE, FINLAND Tel. +358 (0) 7180 46800 Fax. +358 (0) 7180 46880 FCC Part 15C Compliance Test Report Test Report no.: FCC15C_RM-744_09.docx Date of Report: 18-Feb-2011 Number of pages: 15 Customer’s Contact person: Lenaghan Alison Testing laboratory: TCC Nokia Tampere Laboratory P.O. Box 68 Sinitaival 5 FIN-33720 TAMPERE, FINLAND Tel. +358 (0) 7180 46800 Fax. +358 (0) 7180 46880 Customer: Nokia Corporation Nokia House Summit Avenue, Southwood FARNBOROUGH HAMPSHIRE GU14 0NG UK Tel. +44 1252 866000 Fax. +44 1252 866001 FCC listing no.: IC recognition no.: 94436 661AK-1 Tested devices/ accessories: Phone RM-744 / Battery BL-5CT / Charger AC-8E / Headset WH-102 FCC ID: QFXRM-744 IC: 661Z-RM744 Supplement reports: - Testing has been carried out in accordance with: CFR 47, FCC rules Part 15 Subpart C, ANSI C63.4 (2003), Public Notice DA 00-705, DTS procedures KDB 558074, IC standards. Deviations, modifications or clarifications (if any) to above mentioned documents are written in each section under "Test method and limit". Documentation: The test report must always be reproduced in full; reproduction of an excerpt only is subject to written approval of the testing laboratory. The documentation of the testing performed on the tested devices is archived for 15 years at TCC Nokia. Test Results: The EUT complies with the requirements in respect of all parameters subject to the test. The test results relate only to devices specified in this document Date and signature for the contents: Jari Jantunen, System Manager, EMC FCC Part 15C Compliance Test Report / Template Version 15.0 FCC15C_RM-744_09.docx Copyright © TCC Nokia 2 (15) TCC Nokia Tampere Laboratory P.O. Box 68 Sinitaival 5 FIN-33720 TAMPERE, FINLAND Tel. +358 (0) 7180 46800 Fax. +358 (0) 7180 46880 1. Summary for FCC Part 15C Compliance Test Report Date of receipt 25-Jan-2011 Testing completed 11-Feb-2011 The customer's contact person Lenaghan Alison Test Plan referred to T:\Projects\RM-744\TestPlan\RS_testplan_RM-744.xls Notes - Document name FCC15C_RM-744_09.docx 1.1. EUT and Accessory Information The EUT is a 7-band (GSM850/900/1800/1900) and WCDMA Band (I/V(850)/V(850)) mobile phone with GPRS, EGPRS, HSDPA, HSUPA and Bluetooth. Bluetooth and WLAN are tested with maximum rated TX power. Product Type SN HW MV SW DUT Phone RM-744 004402133710883 9204 - 070.020 42469 Battery BL-5CT 3635639511910602892;0670555 - - - 42470 Charger AC-8E 4868679361310602230;0675387 - - - 42444 Headset WH-102 0694323939454107471 - - - 42460 1.2. Summary of Test Results Bluetooth: Section in CFR 47 Section in RSS-GEN or RSS-210 Name of the test Result 15.247(b)(1) A8.4 (2) Conducted peak output power NP 15.247(d) A8.5 Band edge compliance of RF emissions PASSED 15.247(d) A8.5 Spurious RF conducted emissions NP 15.247(d), 15.209 A8.5 Spurious radiated emissions PASSED 15.207 7.2.2 AC powerline conducted emissions NP 15.247(a)(1) A8.1 (a) 20 dB bandwidth NP 15.247(a)(1) A8.1 (b) Carrier frequency separation NP 15.247(a)(1)(iii) A8.1 (d) Number of hopping frequencies NP 15.247(a)(1)(iii) A8.1 (d) Time of occupancy NP PASSED The EUT complies with the essential requirements in the standard. FAILED The EUT does not comply with the essential requirements in the standard. NP The test was not performed by the TCC Nokia Laboratory. FCC Part 15C Compliance Test Report / Template Version 15.0 FCC15C_RM-744_09.docx Copyright © TCC Nokia 3 (15) TCC Nokia Tampere Laboratory P.O. Box 68 Sinitaival 5 FIN-33720 TAMPERE, FINLAND Tel. +358 (0) 7180 46800 Fax. +358 (0) 7180 46880 CONTENTS 1. Summary for FCC Part 15C Compliance Test Report .............................................. 2 1.1. EUT and Accessory Information ............................................................................................. 2 1.2. Summary of Test Results ........................................................................................................ 2 2. Band edge compliance of RF emissions (FCC §15.247(d), RSS-210 A8.5) ....................................................................................... 4 2.2. Test method and limit .............................................................................................................. 4 2.3. Bluetooth Test results ............................................................................................................. 5 3. Spurious radiated emissions (FCC §15.247(d), §15.209, RSS-210 A8.5) ......................................................................... 9 3.2. Test method and limit .............................................................................................................. 9 3.3. Bluetooth Test results ........................................................................................................... 11 4. Test Equipment ......................................................................................................... 14 4.1. Conducted measurements .................................................................................................... 14 4.2. Radiated measurements ....................................................................................................... 14 FCC Part 15C Compliance Test Report / Template Version 15.0 FCC15C_RM-744_09.docx Copyright © TCC Nokia 4 (15) TCC Nokia Tampere Laboratory P.O. Box 68 Sinitaival 5 FIN-33720 TAMPERE, FINLAND Tel. +358 (0) 7180 46800 Fax. +358 (0) 7180 46880 2. Band edge compliance of RF emissions (FCC §15.247(d), RSS-210 A8.5) EUT with DUT number RM-744, DUT 42469 Accessories with DUT numbers BL-5CT, DUT 42470 ; AC-8E, DUT 42444 ; WH-102, DUT 42460 Operation Voltage [V] / [Hz] 115 / 60 Results PASSED Remarks - Temp [ o C] / Humidity [%RH] / Air Pressure [kPa] 23 / 50 / 99.8 Date of measurements 11-Feb-2011 Measured by Jari Jantunen 2.1.1 Test S…

Text truncated - open the document above for the full version.

EMC Test Setup Photos / Template Version 1.0 EMC_Photo_RM-744_02.docx Copyright © TCC Nokia 1 (2) RM-744 Test Setups Picture 1. FCC Part 15C Radiated emissions Picture 2. FCC Part 15B Radiated emissions EMC Test Setup Photos / Template Version 1.0 EMC_Photo_RM-744_02.docx Copyright © TCC Nokia 2 (2) Picture 3. FCC Part 15C AC powerline conducted emissions Picture 4. FCC Part 15B AC powerline conducted emissions
